AS048/KH0059 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

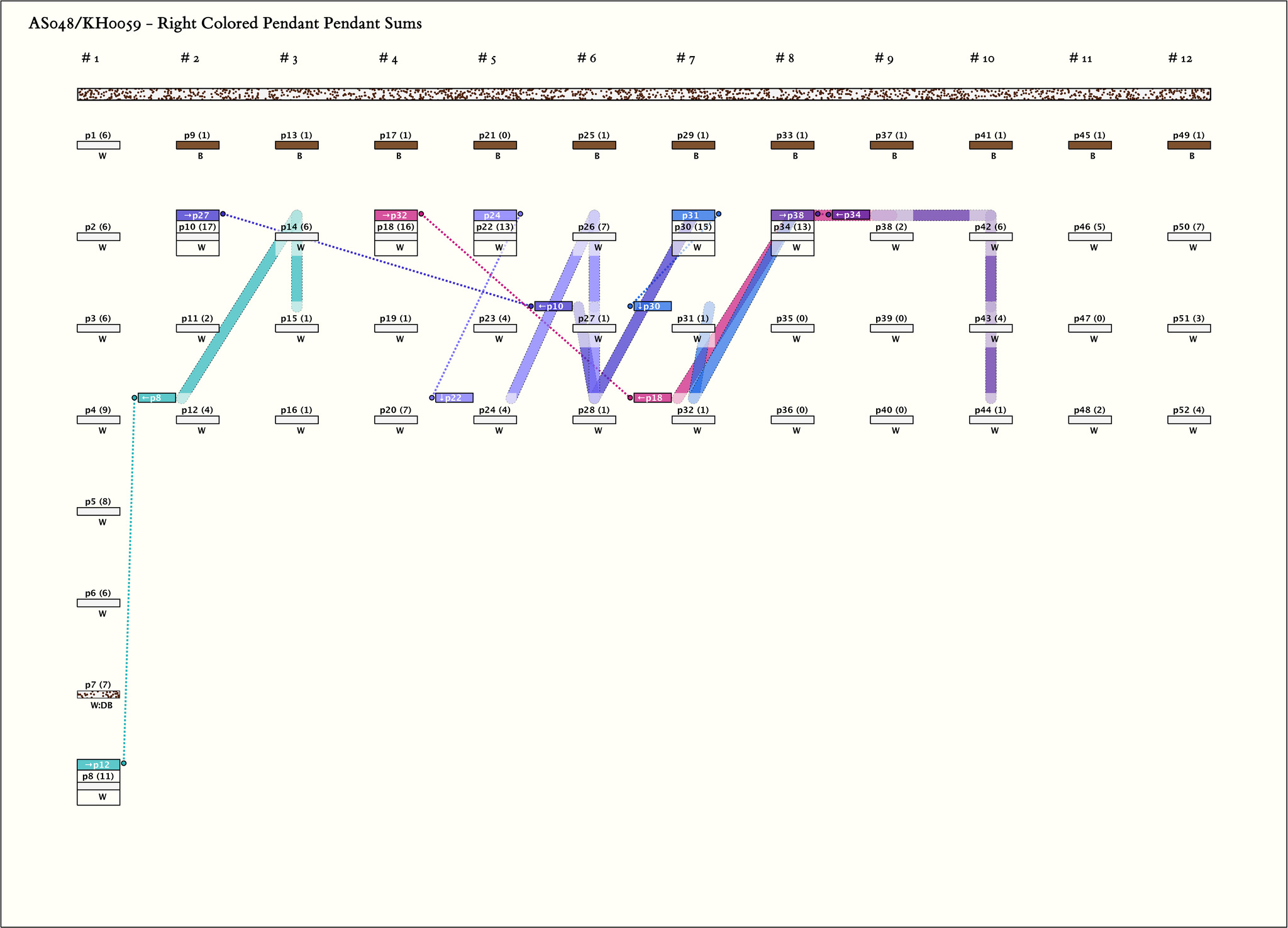

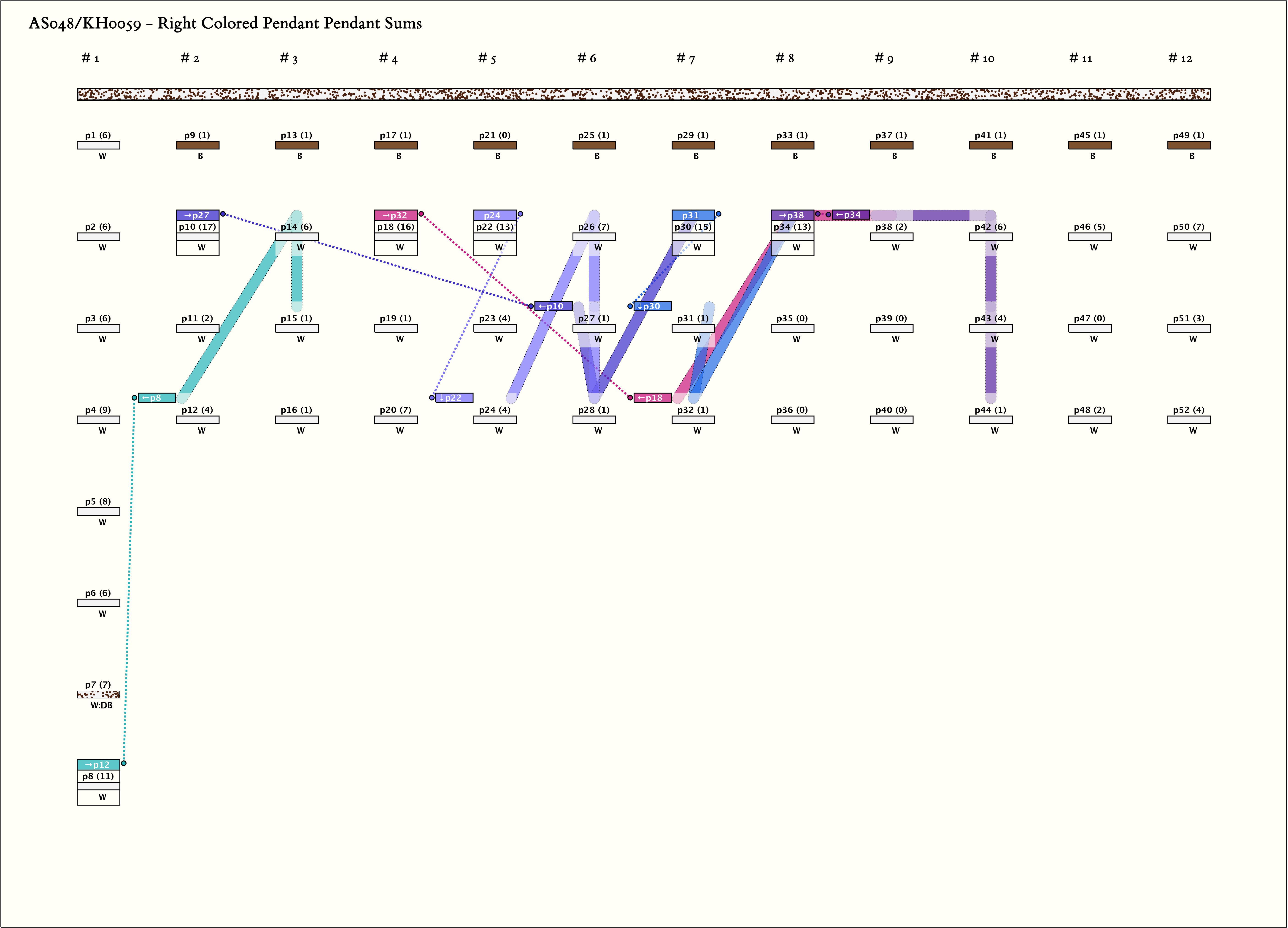

Right Handed Sums: # Sums = 6, Max # Summands = 4, (Min, Mean, Max) Sum Values = (11, 14, 17)
Click on Image to View Larger

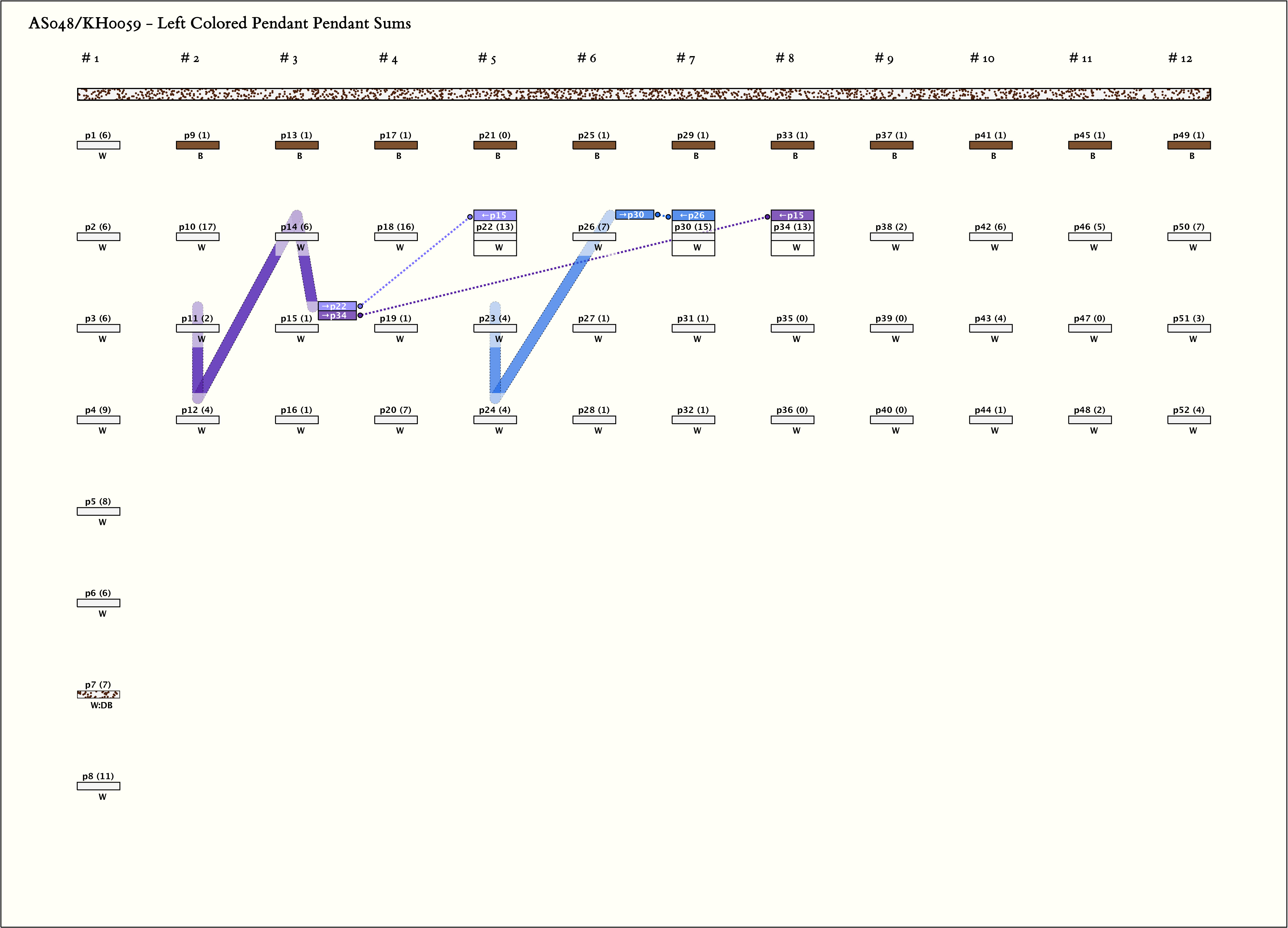

Left Handed Sums: # Sums = 3, Max # Summands = 4, (Min, Mean, Max) Sum Values = (13, 14, 15)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

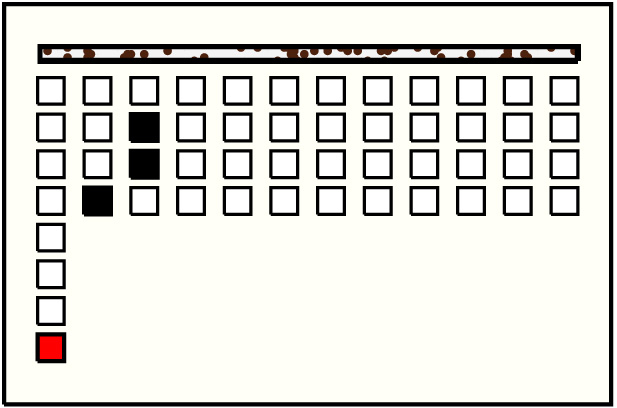

1	p8_{1, 8} : 11_W	11	3	p12: 4_W + p14: 6_W + p15: 1_W

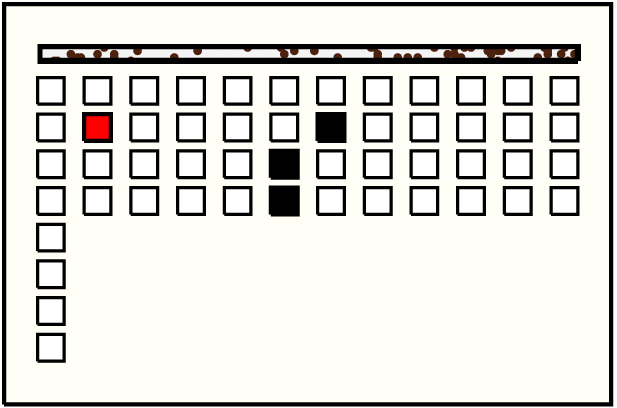

2	p10_{2, 2} : 17_W	17	3	p27: 1_W + p28: 1_W + p30: 15_W

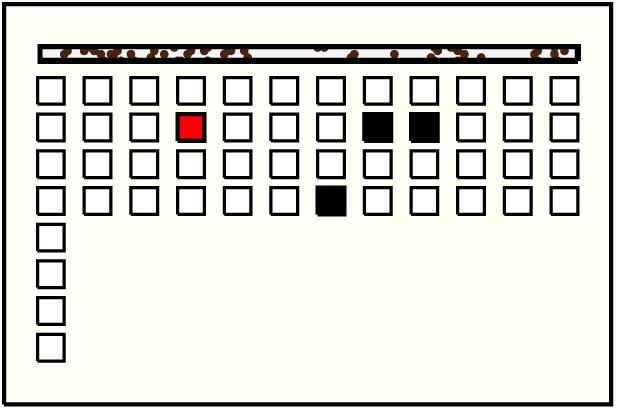

3	p18_{4, 2} : 16_W	16	3	p32: 1_W + p34: 13_W + p38: 2_W

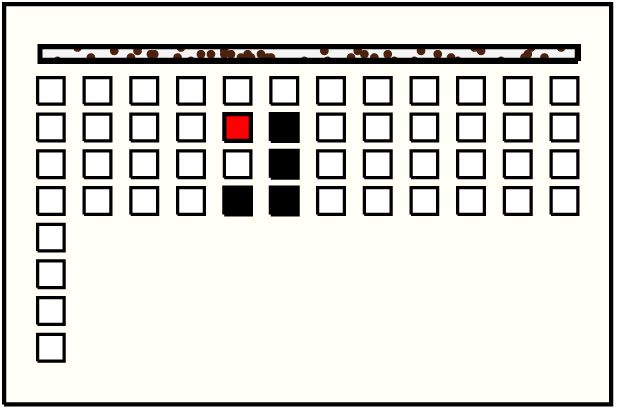

4	p22_{5, 2} : 13_W	13	4	p24: 4_W + p26: 7_W + p27: 1_W + p28: 1_W

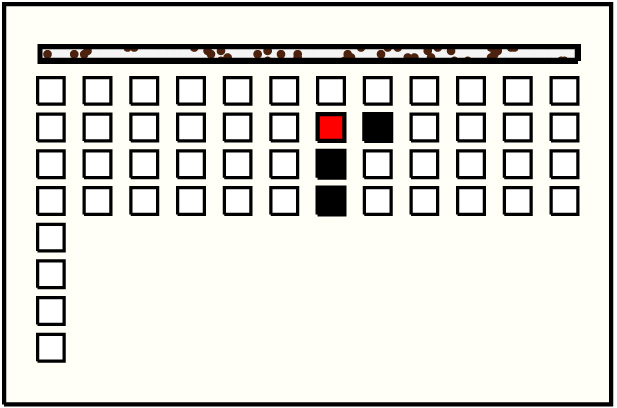

5	p30_{7, 2} : 15_W	15	3	p31: 1_W + p32: 1_W + p34: 13_W

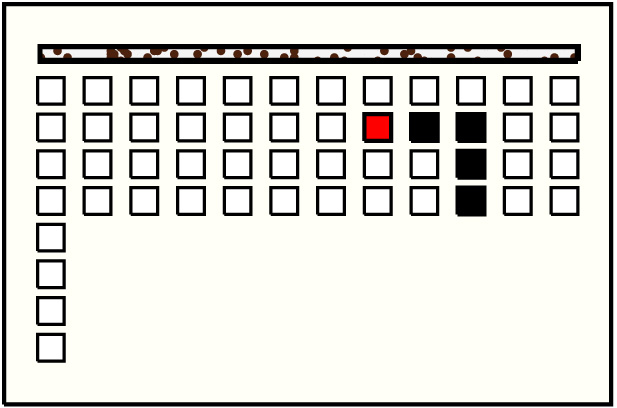

6	p34_{8, 2} : 13_W	13	4	p38: 2_W + p42: 6_W + p43: 4_W + p44: 1_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

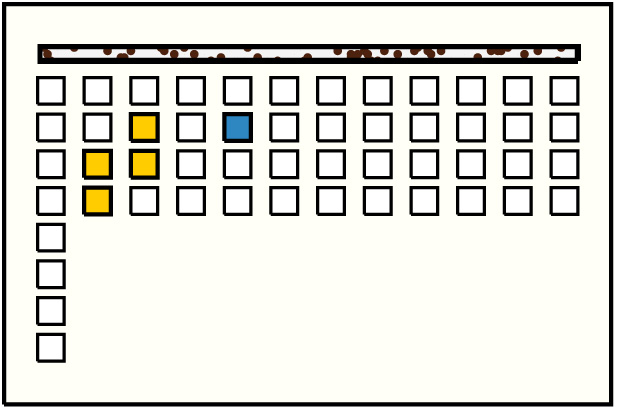

1	p22_{5, 2} : 13_W	13	4	p11: 2_W + p12: 4_W + p14: 6_W + p15: 1_W

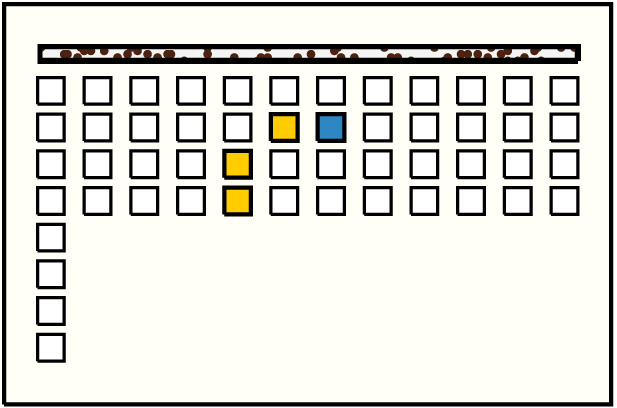

2	p30_{7, 2} : 15_W	15	3	p23: 4_W + p24: 4_W + p26: 7_W

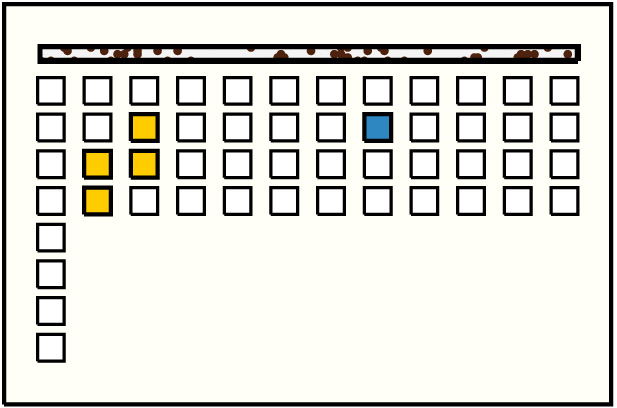

3	p34_{8, 2} : 13_W	13	4	p11: 2_W + p12: 4_W + p14: 6_W + p15: 1_W

Khipu Notes:

Ascher Databook Notes:

On cords P8s2, P34s2, and P47sl, the color change is at 2. 5 cm. On P46sl it is at 6.0 cm.
AS048 and UR1049 were excavated by University of Tokyo 1958 expedition, La Centinela, Tambo de Mora. The work is described in Andes, The University of Tokyo Expedition 1958, Report 1, pp. 225-226. The Museum has several associated fragments of pottery.
The khipu has 12 groups by spacing. The last 11 groups each have 4 pendants and the same color pattern (B, W, W, W). For all 11 groups:
1. positions 1 and 4 have no subsidiaries.
2. position 2 has the maximum value. With the exception of the last group, P₂ > P₁ + P₃ + P₄.
3. the values on pendants and subsidiaries are each 17 or less. Only 0, 1 appears in position l; 0-4 in position 3; 0-2, 4, 7 in position 4; and 1, 2,3, 7 on subsidiaries.
The values on pendants in group 1 are between 6 and 11, and all 6 subsidiaries have value 1.
