AS189/KH0207 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Right-Handed Sum Detail
This Khipu's Fieldmark Catalog	Khipu Notes
This Khipu's Drawing

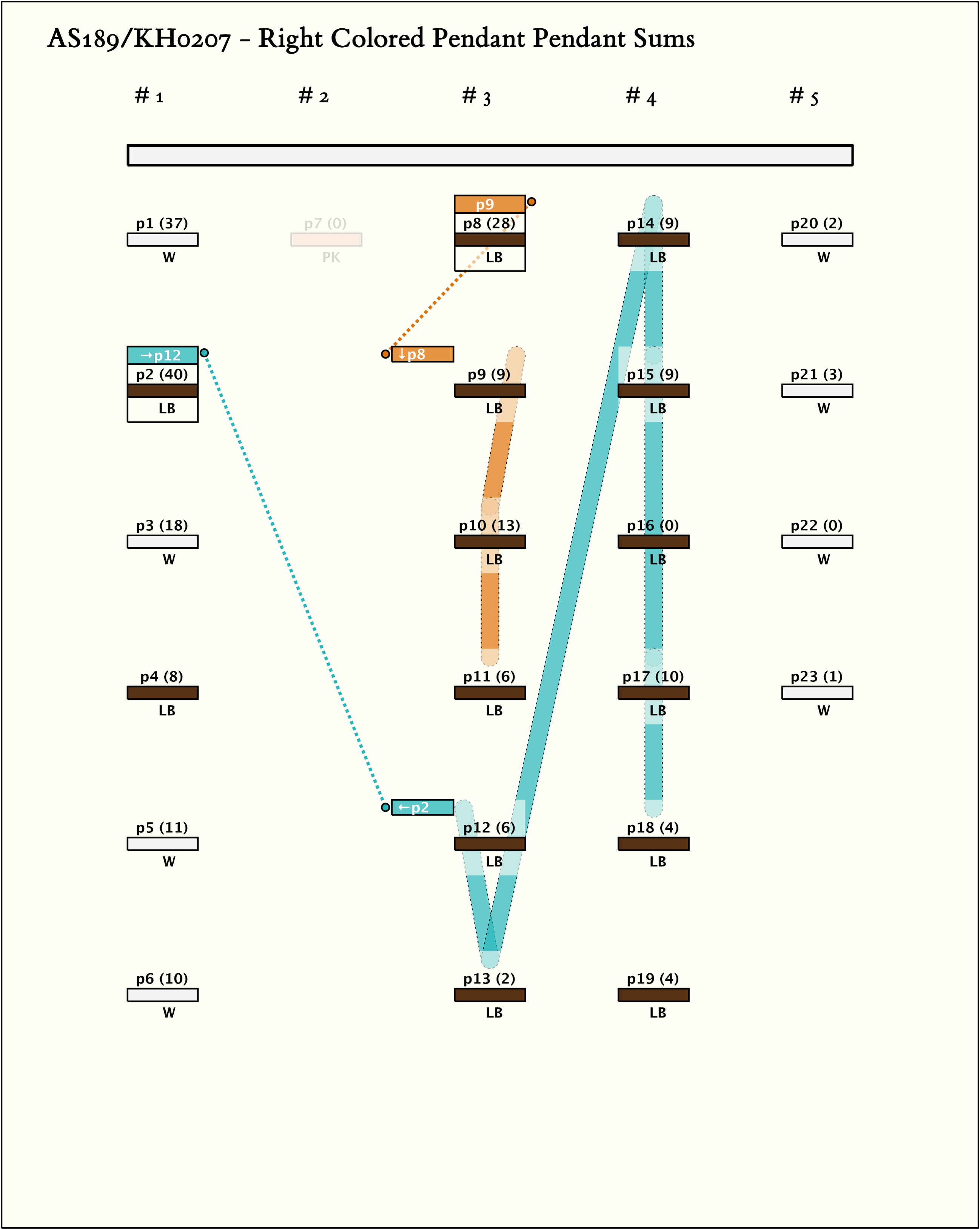

Right Handed Sums:     # Sums = 2,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (28, 34, 40)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

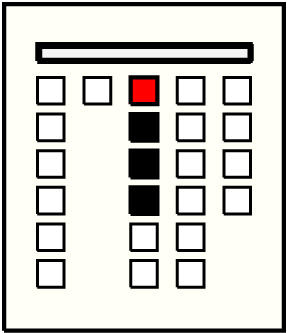

1			p21, 2 : 40LB	40	6	p12: 6LB + p13: 2LB + p14: 9LB + p15: 9LB + p17: 10LB + p18: 4LB
2			p83, 1 : 28LB	28	3	p9: 9LB + p10: 13LB + p11: 6LB

Khipu Notes:

Ascher Databook Notes:

1. This is an unraveled E type knot or a twist in the cord.
2. This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of these khipus, see UR1097.
3. AS187, AS188, and AS189 were acquired together as part of the contents of a wicker basket. For a description of this collection, see AS187.
4. By spacing, the khipu is separated into 4 groups. The first group is separated from the next 3 groups by a large space which included a single pendant cord. Groups 1-3 each have 6 pendants.
5. Group 4 has all pendants W; groups 2 and 3 have all pendants LB; and group 1 has some of each color. There are no subsidiaries in group 1; all subsidiaries in group 2 are LB: W; and all subsidiaries in groups 3 and 4 are LB-W.
