KH0253/UR017 - Colored Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

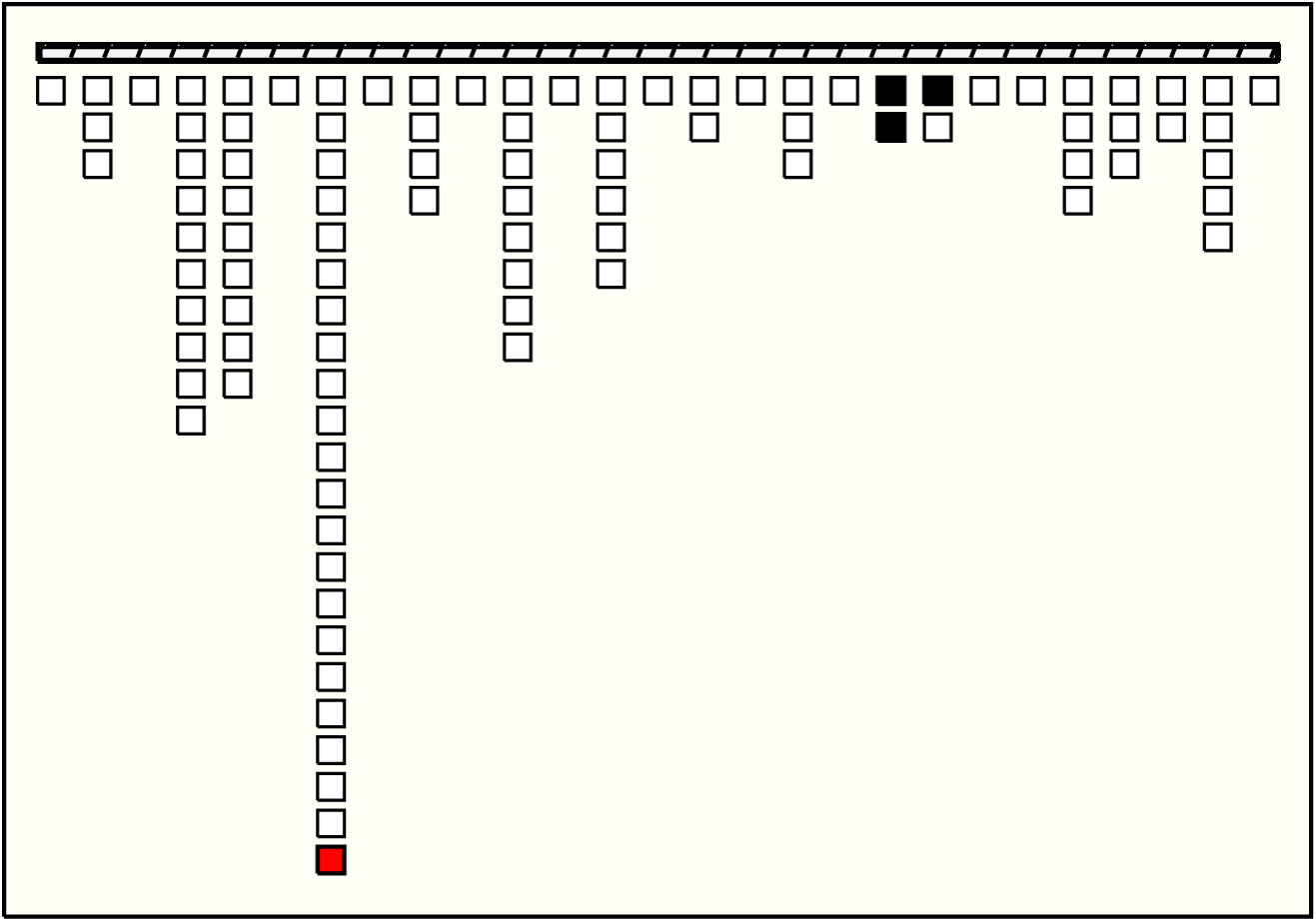

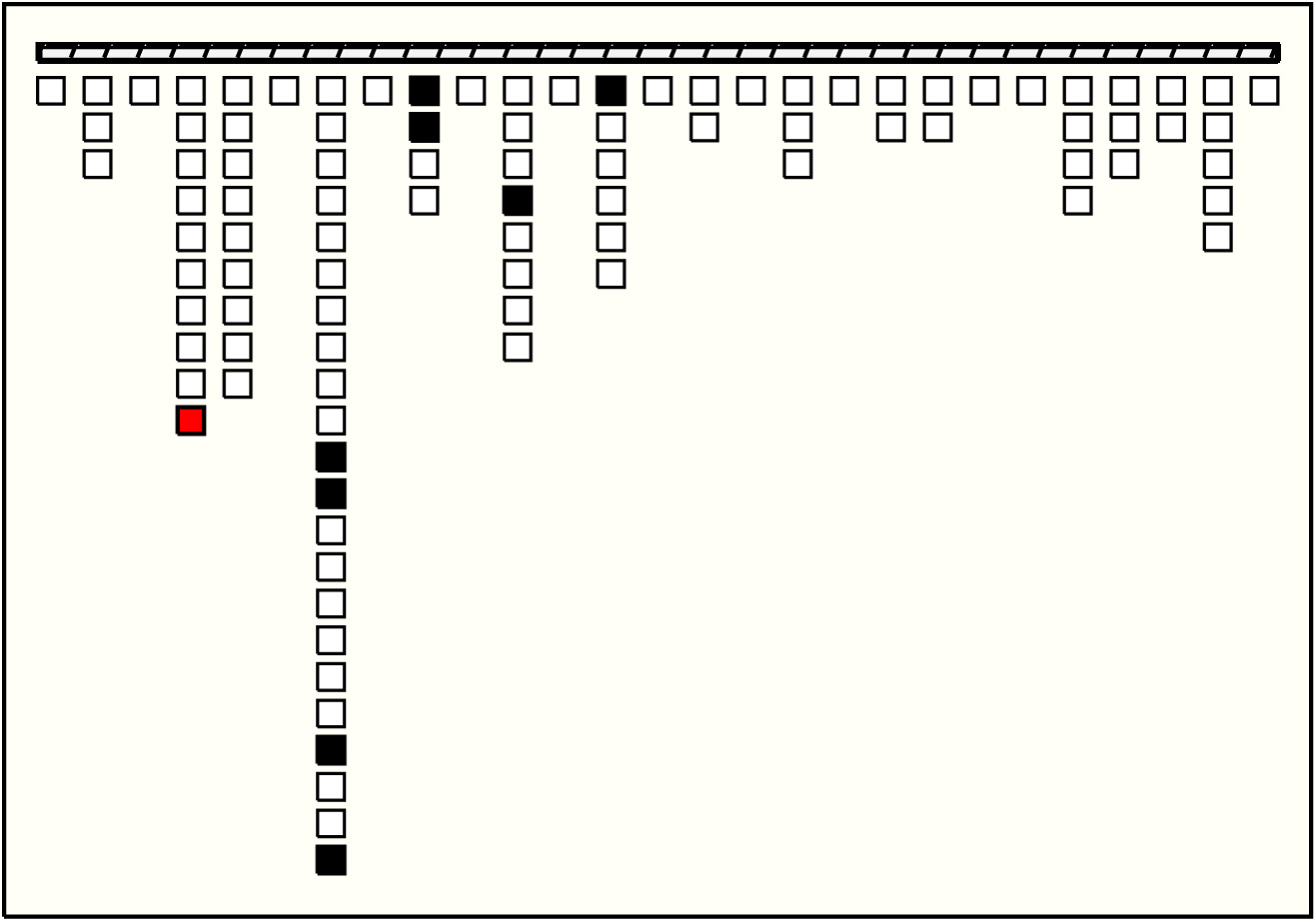

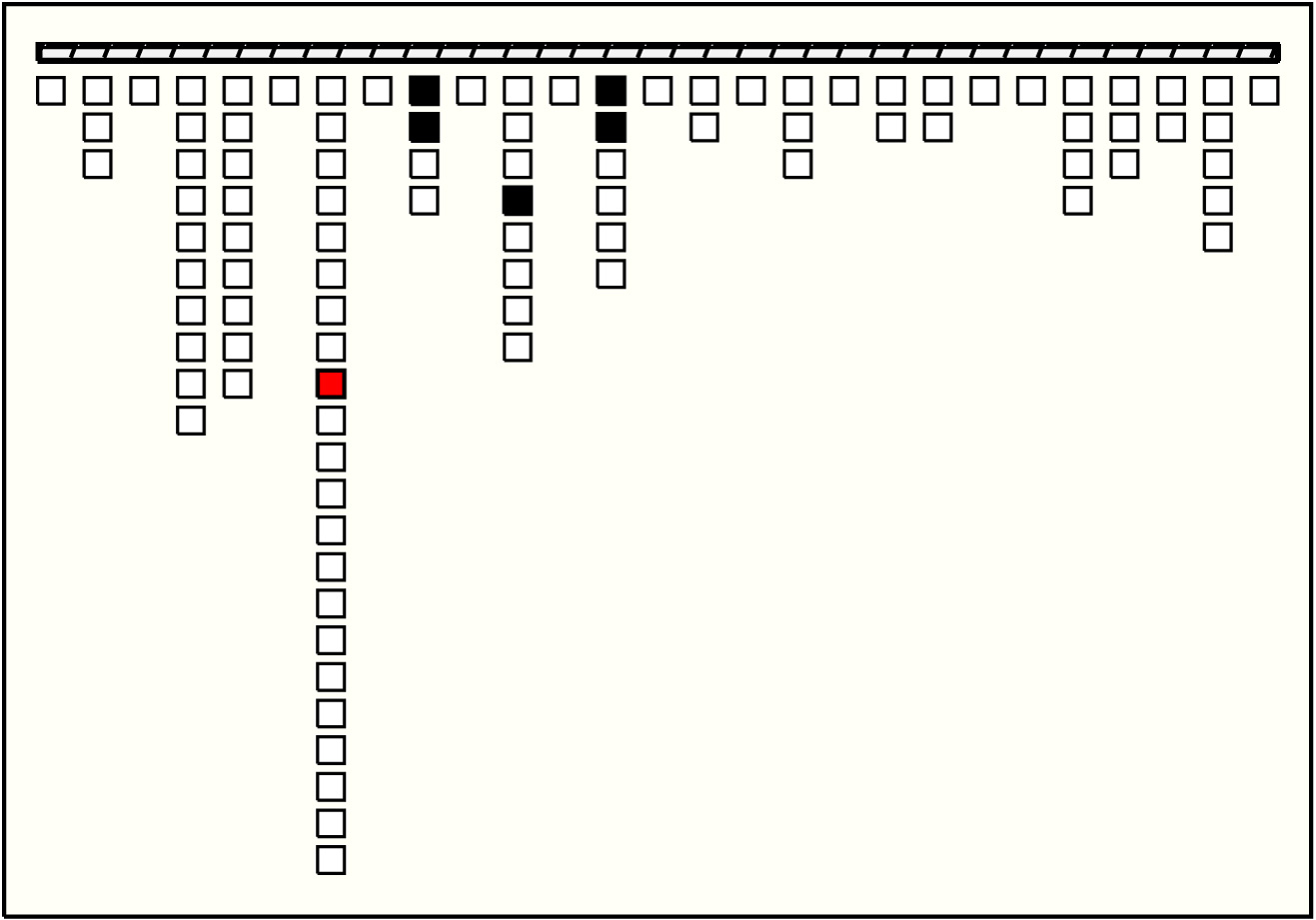

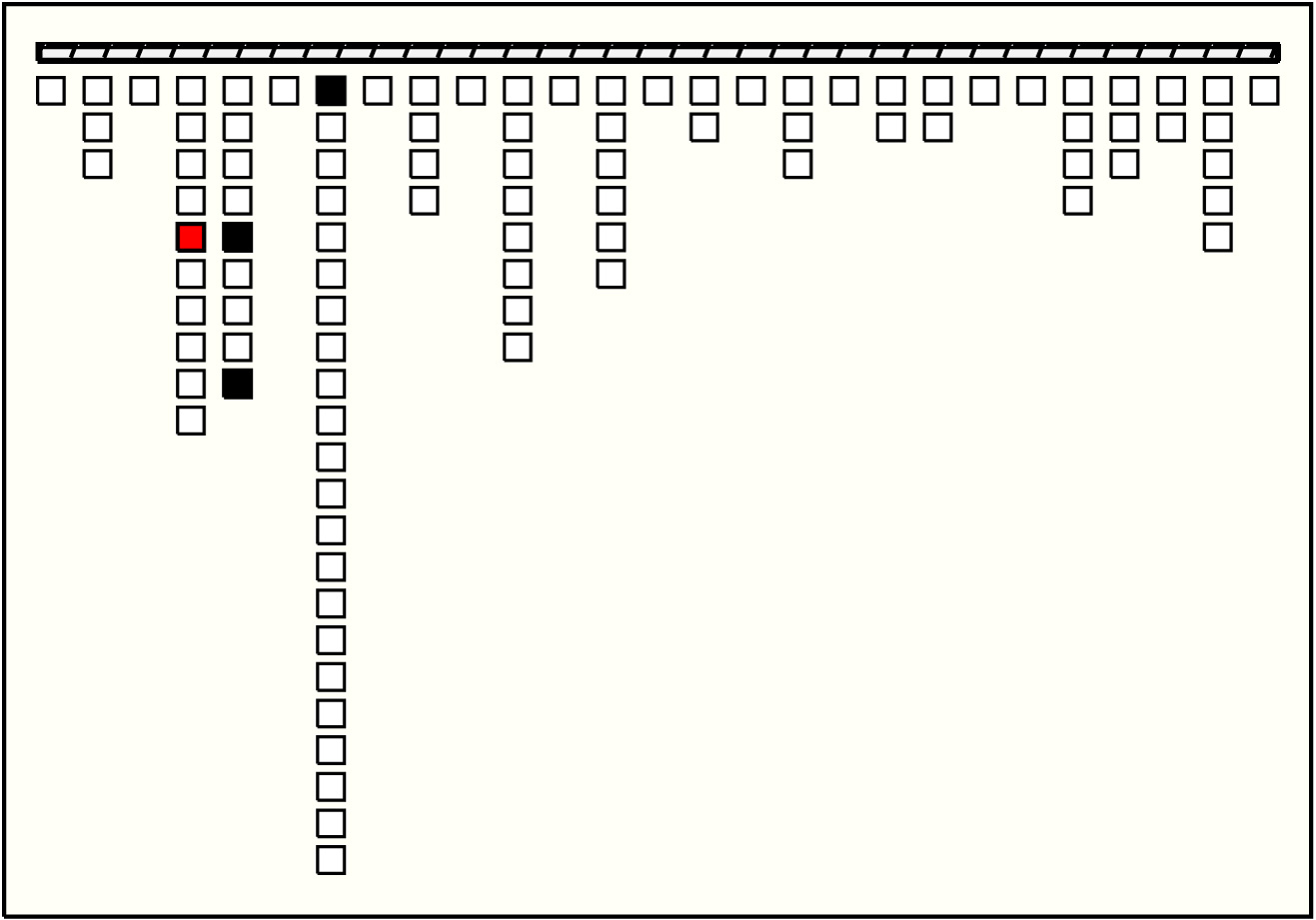

Right Handed Sums with Figure-8-Knots: # Sums = 6, Max # Summands = 8, (Min, Mean, Max) Sum Values = (11, 32, 85)
Click on Image to View Larger

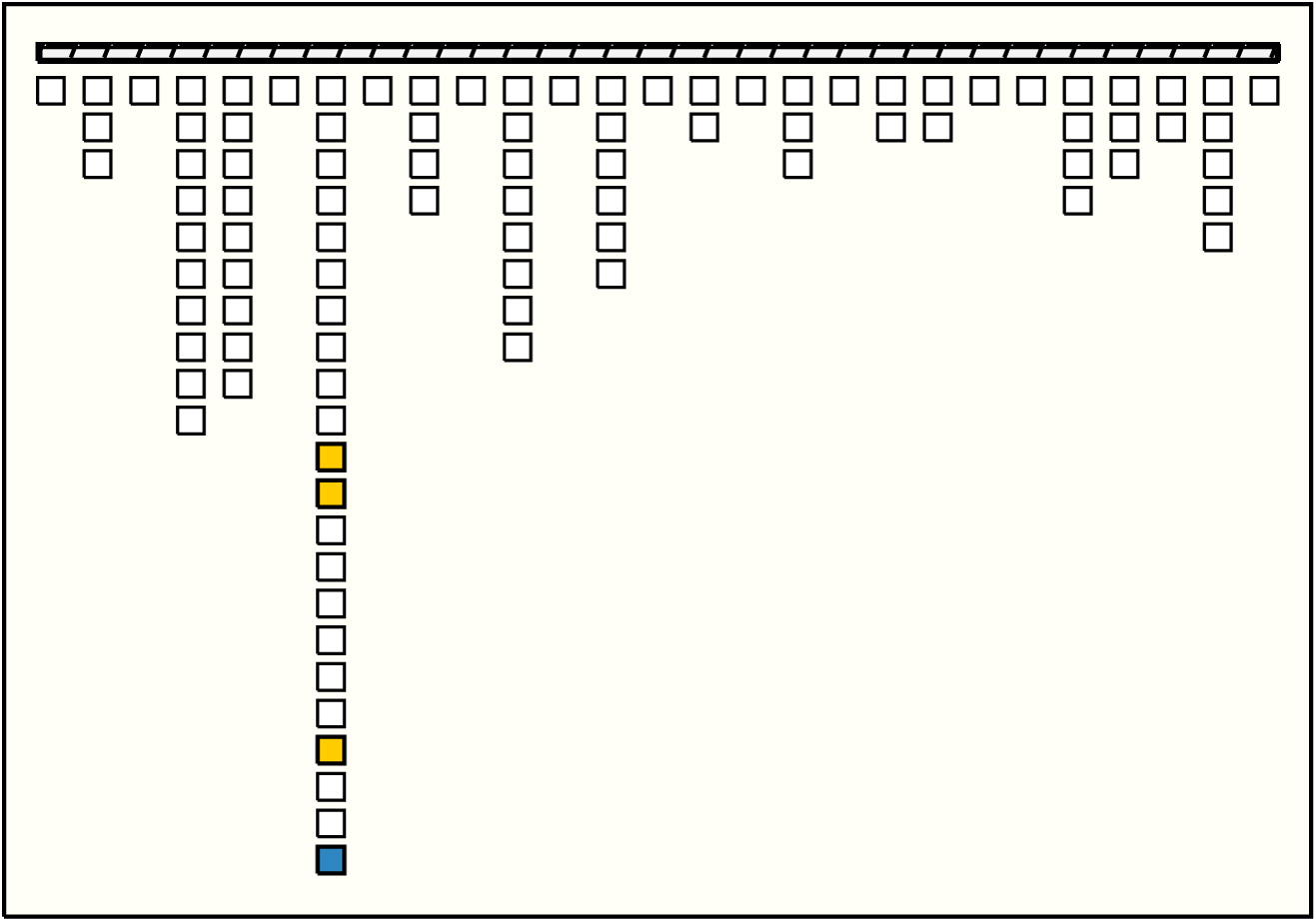

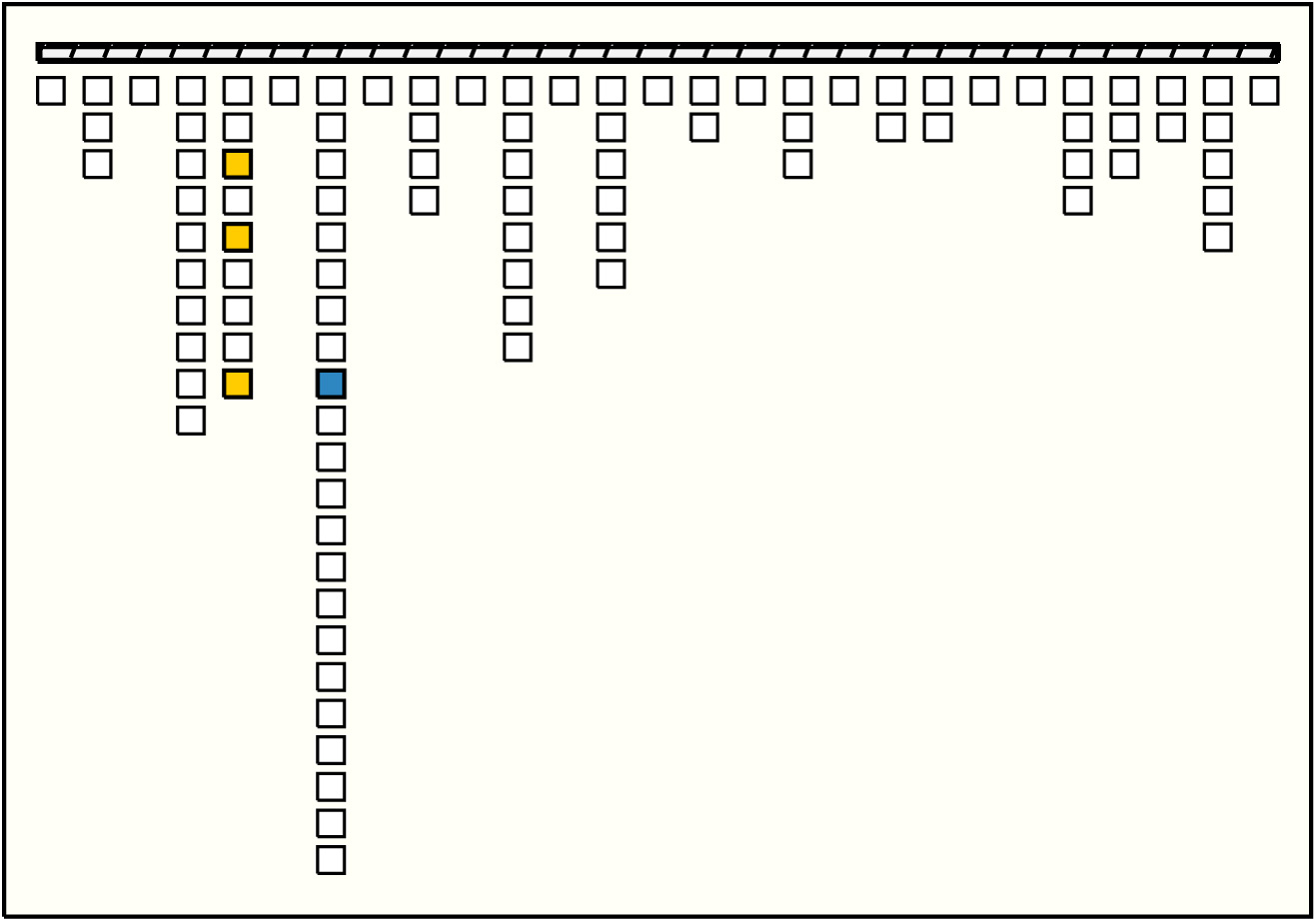

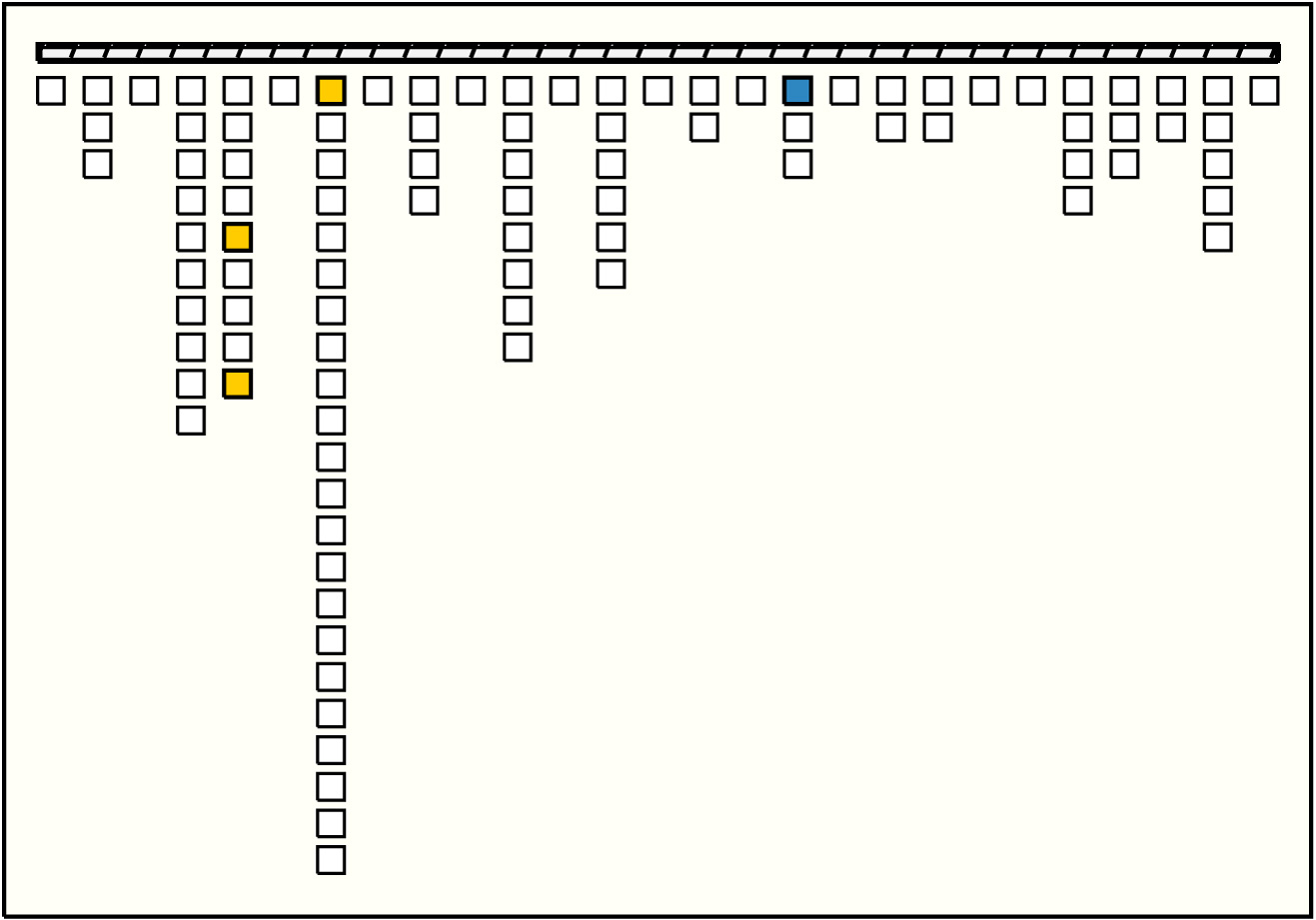

Left Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 4, (Min, Mean, Max) Sum Values = (11, 22, 58)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p4 : 27AB | 27 | 4 | g7p22: 13AB + g9p1: 1AB + g9p2: 10AB + g11p4: 3AB❽ | |
| 2 |  | g4p5 : 11AB | 11 | 3 | ∞g5p5: 6AB∞ + g5p9: 3AB + g7p1: 2AB∞ | |
| 3 |  | g4p10 : 41AB | 41 | 8 | g7p11: 2AB∞ + g7p12: 1AB + g7p19: 10AB + g7p22: 13AB + g9p1: 1AB + g9p2: 10AB + g11p4: 3AB + g13p1: 1AB❽ | |
| 4 |  | g7p9 : 16AB | 16 | 5 | ❽g9p1: 1AB + g9p2: 10AB + g11p4: 3AB + g13p1: 1AB + g13p2: 1AB❽ | |
| 5 |  | g7p18 : 85W | 85 | 3 | g23p1: 2W∞ + g23p4: 5W + ∞g26p2: 78W | |
| 6 |  | g7p22 : 13AB | 13 | 3 | g19p1: 2AB∞ + g19p2: 1AB + ∞g20p1: 10AB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g7p9 : 16AB | 16 | 3 | g5p3: 7AB∞ + g5p5: 6AB + ∞g5p9: 3AB | |
| 2 |  | g7p22 : 13AB | 13 | 3 | g7p11: 2AB∞ + g7p12: 1AB + g7p19: 10AB | |
| 3 |  | g17p1 : 11AB | 11 | 3 | ∞g5p5: 6AB∞ + g5p9: 3AB + g7p1: 2AB∞ | |
| 4 |  | g25p1 : 11AB | 11 | 3 | ∞g5p5: 6AB∞ + g5p9: 3AB + g7p1: 2AB∞ | |
| 5 |  | g26p3 : 58AB | 58 | 4 | g4p1: 10AB + g4p2: 10AB + g4p4: 27AB + g4p5: 11AB❽ |
