KH0273/UR041 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

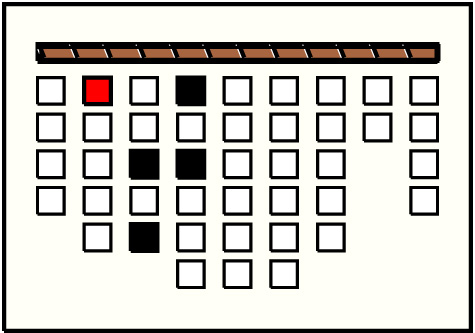

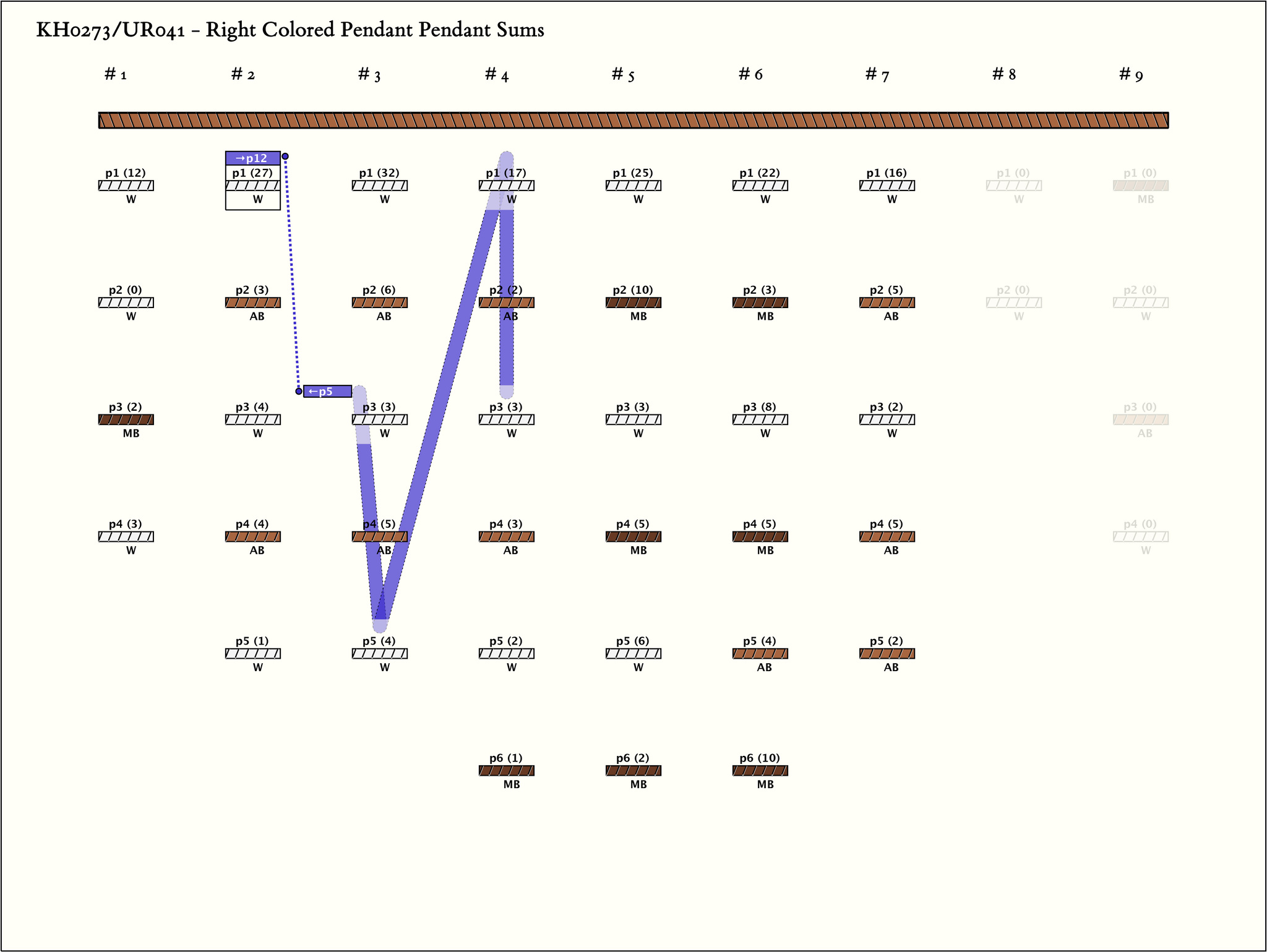

Right Handed Sums with Figure-8-Knots:     # Sums = 1,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (27, 27, 27)
Click on Image to View Larger

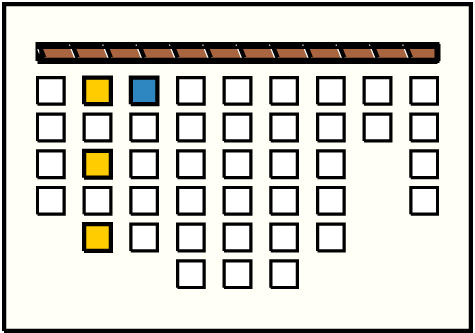

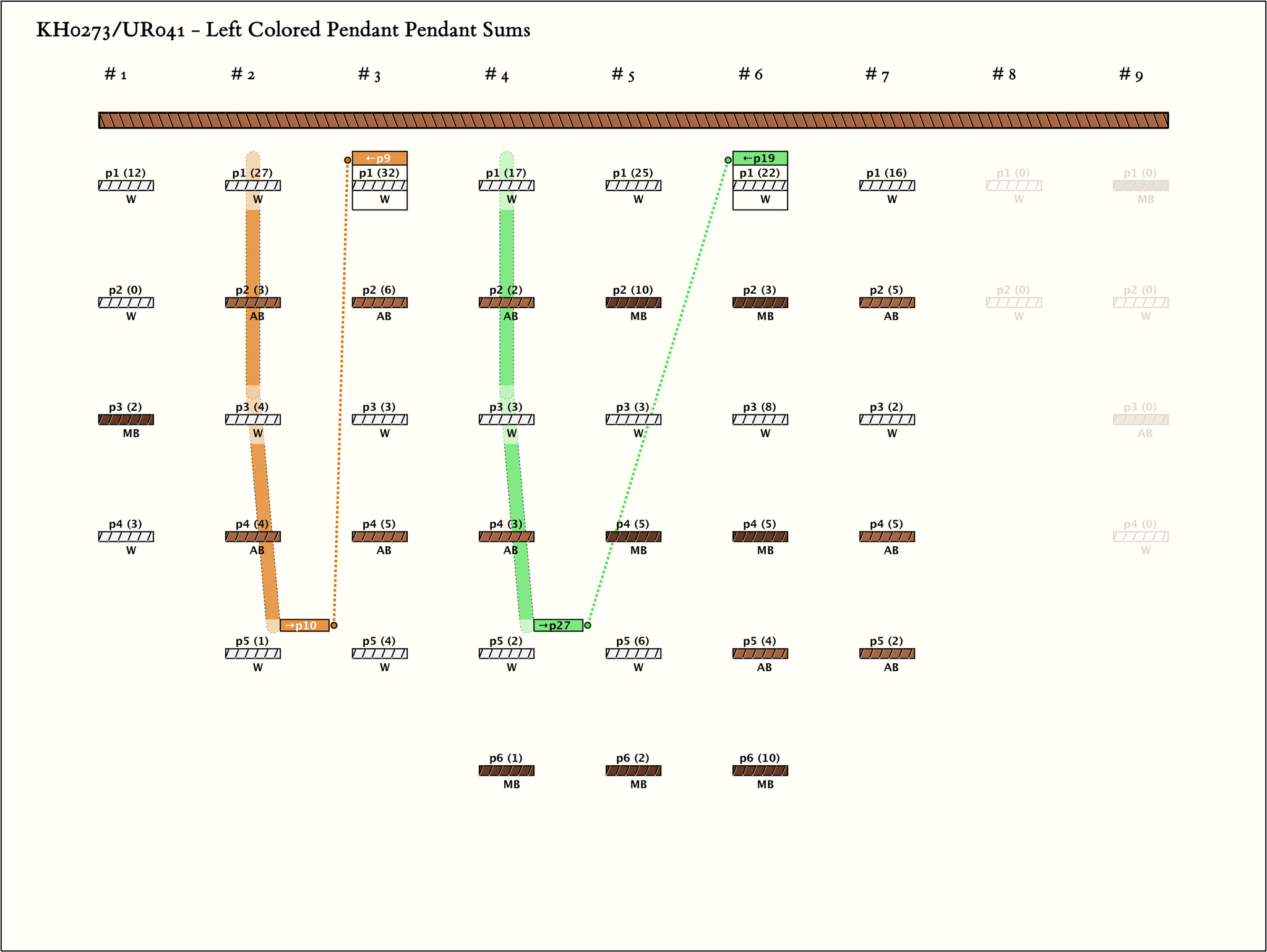

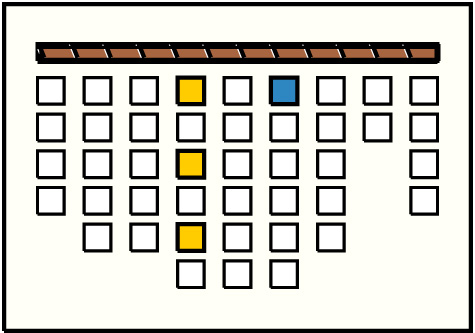

Left Handed Sums with Figure-8-Knots:     # Sums = 2,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (22, 27, 32)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g3p1 : 27W274g4p3: 3W + g4p5: 4W + g5p1: 17W + g5p3: 3W

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g4p1 : 32W323g3p1: 27W + g3p3: 4W + g3p5: 1W❽
2
g7p1 : 22W223g5p1: 17W + g5p3: 3W + g5p5: 2W∞

Khipu Notes:
Cultural Affiliation "Inca? early nazca?" and in remarks, "Orig says 'early nazca' 'prob. made up' from Peabody Museum.
