KH0430/UR192 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Colored Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Left-Handed Sums with Figure-8-Knots
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

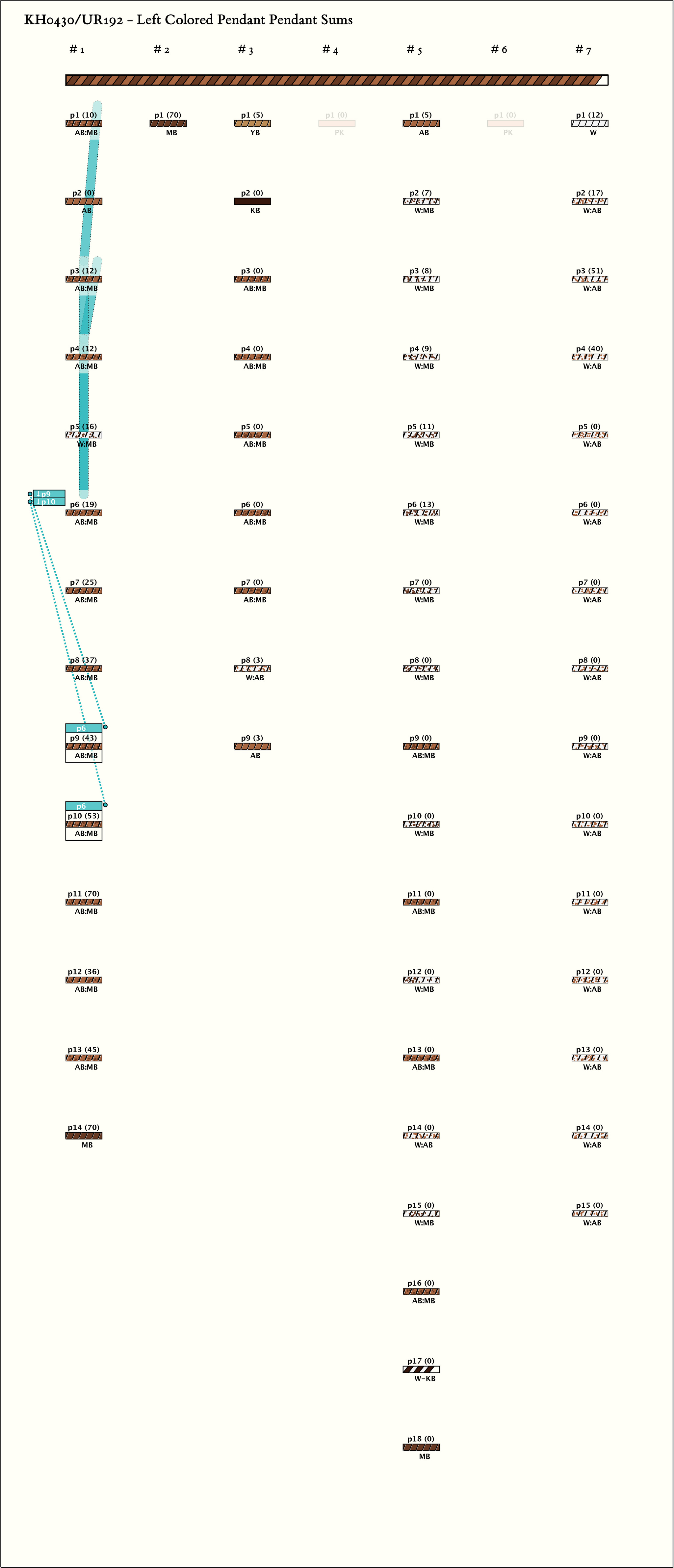

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (43, 48, 53)
Click on Image to View Larger

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			g1p9 : 43_AB:MB	43	3	g1p3: 12_AB:MB∞ + g1p4: 12_AB:MB + g1p6: 19_AB:MB
2			g1p10 : 53_AB:MB	53	4	g1p1: 10_AB:MB + g1p3: 12_AB:MB + g1p4: 12_AB:MB + g1p6: 19_AB:MB

Khipu Notes:

M1 and M2 are composed of threads wrapped around primary cord; very frayed. Each covers ca. 1.5 cm. of hte primary cord.
