KH0470/UR233 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

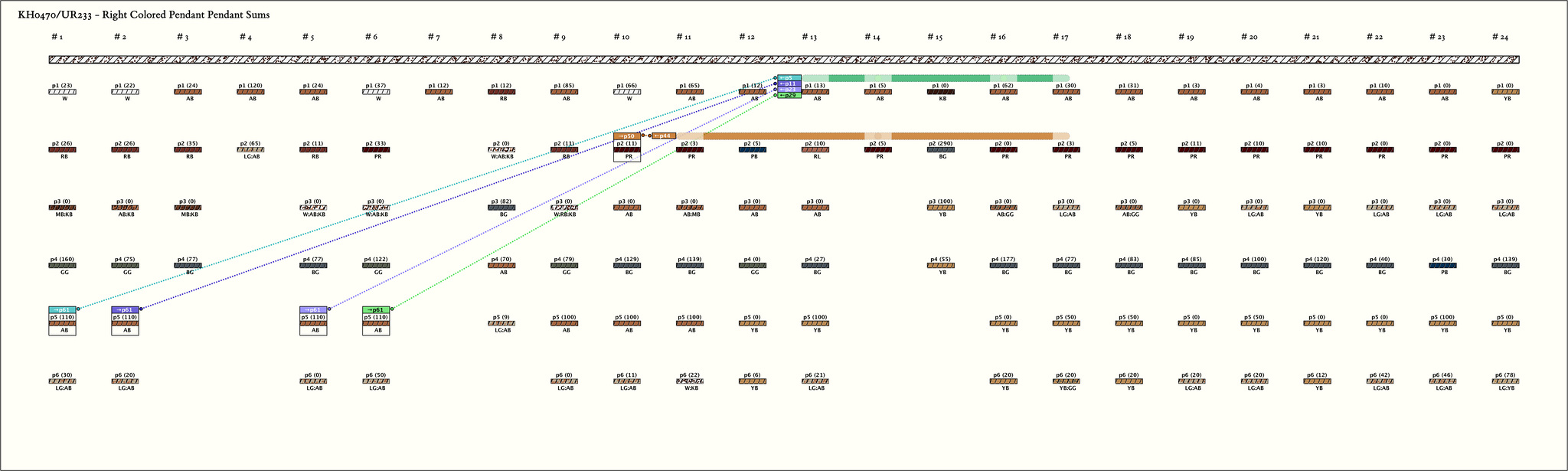

Right Handed Sums with Figure-8-Knots:     # Sums = 5,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (11, 90, 110)
Click on Image to View Larger

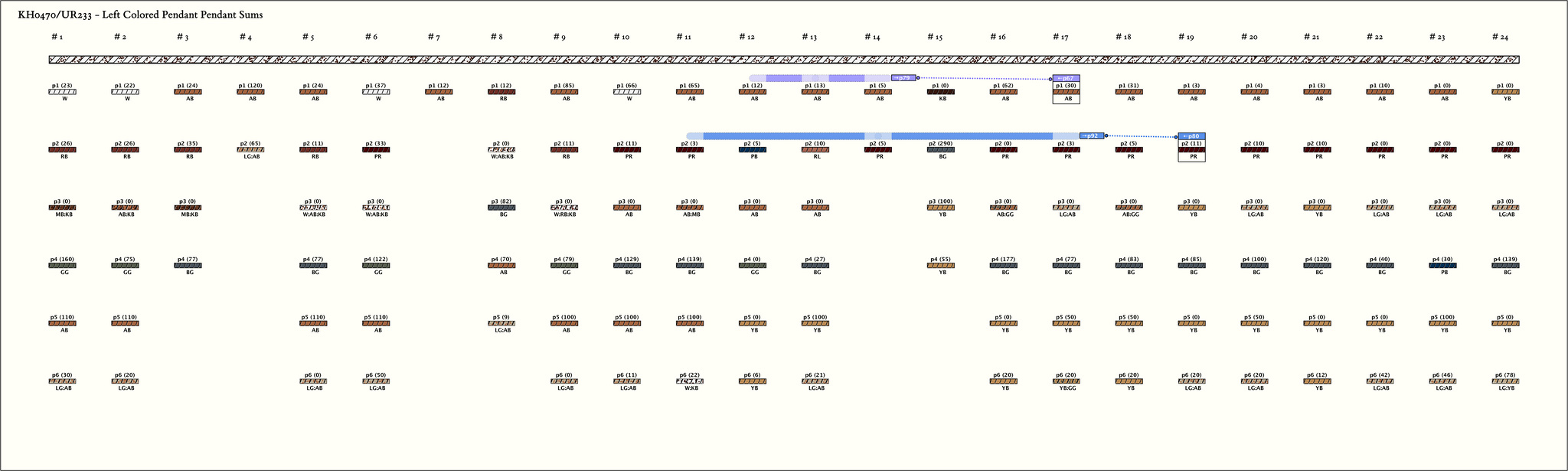

Left Handed Sums with Figure-8-Knots:     # Sums = 2,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (11, 20, 30)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

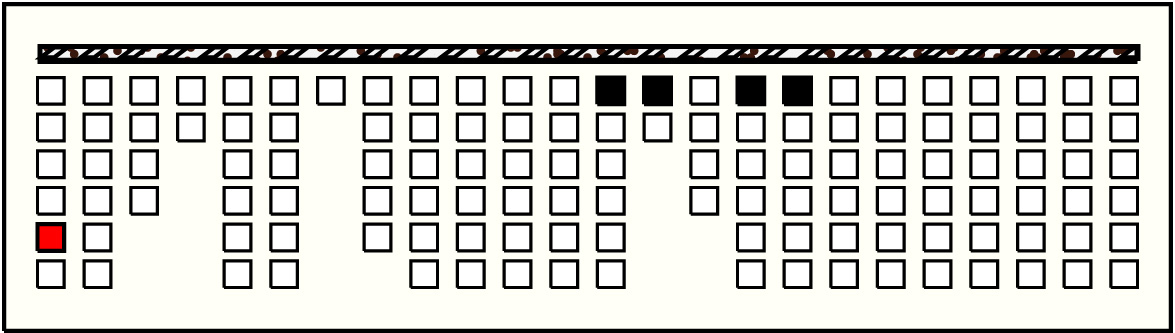

g1p5 : 110AB1104g13p1: 13AB + g14p1: 5AB + g16p1: 62AB + g17p1: 30AB
2

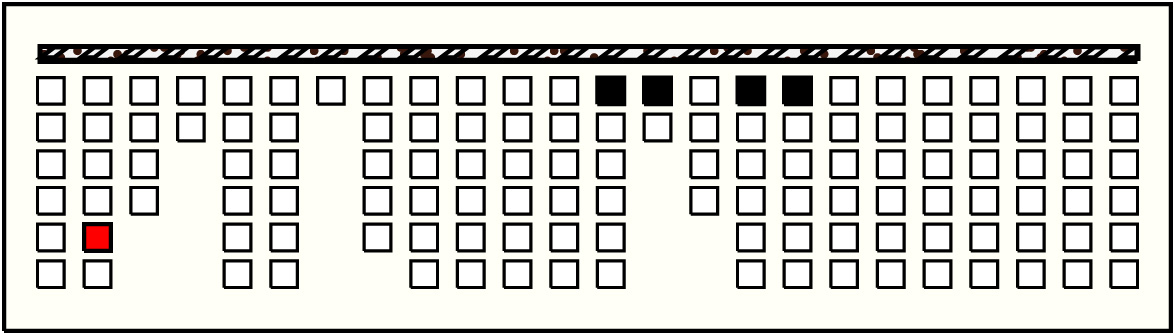

g2p5 : 110AB1104g13p1: 13AB + g14p1: 5AB + g16p1: 62AB + g17p1: 30AB
3

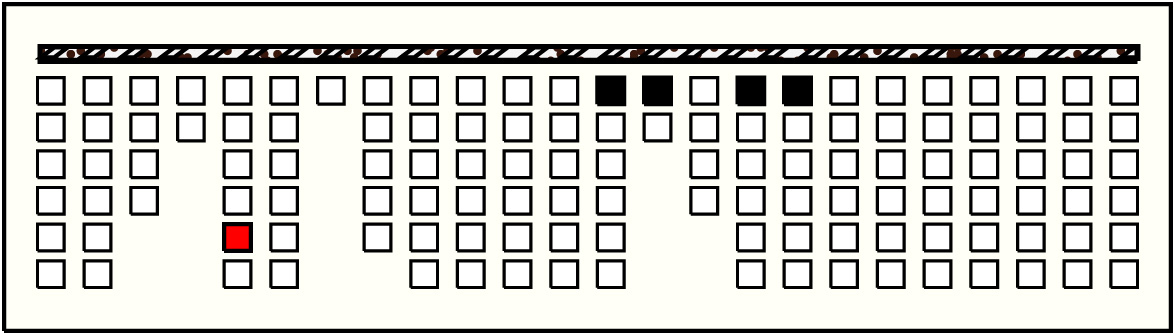

g5p5 : 110AB1104g13p1: 13AB + g14p1: 5AB + g16p1: 62AB + g17p1: 30AB
4
g6p5 : 110AB1104g13p1: 13AB + g14p1: 5AB + g16p1: 62AB + g17p1: 30AB
5

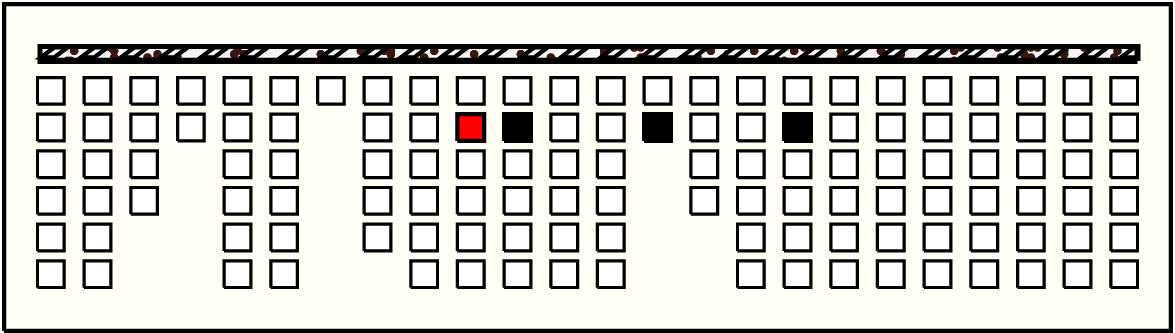

g10p2 : 11PR113g11p2: 3PR + g14p2: 5PR + g17p2: 3PR

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

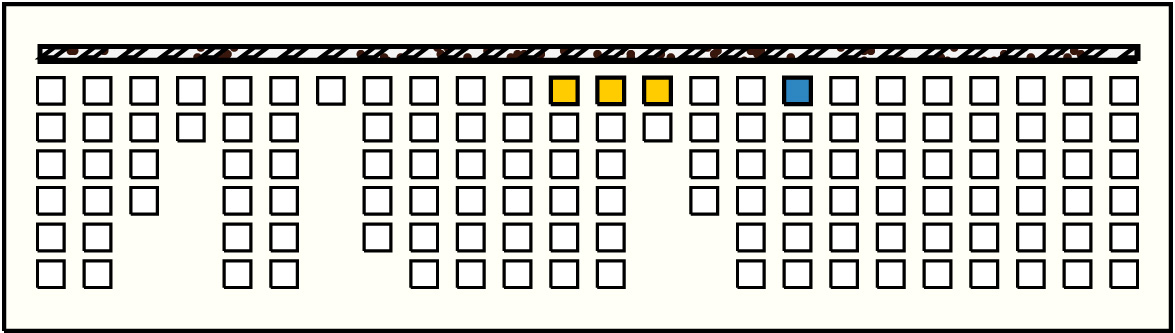

g17p1 : 30AB303g12p1: 12AB + g13p1: 13AB + ∞g14p1: 5AB
2
g19p2 : 11PR113g11p2: 3PR + g14p2: 5PR + g17p2: 3PR
