KH0494/UR258 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

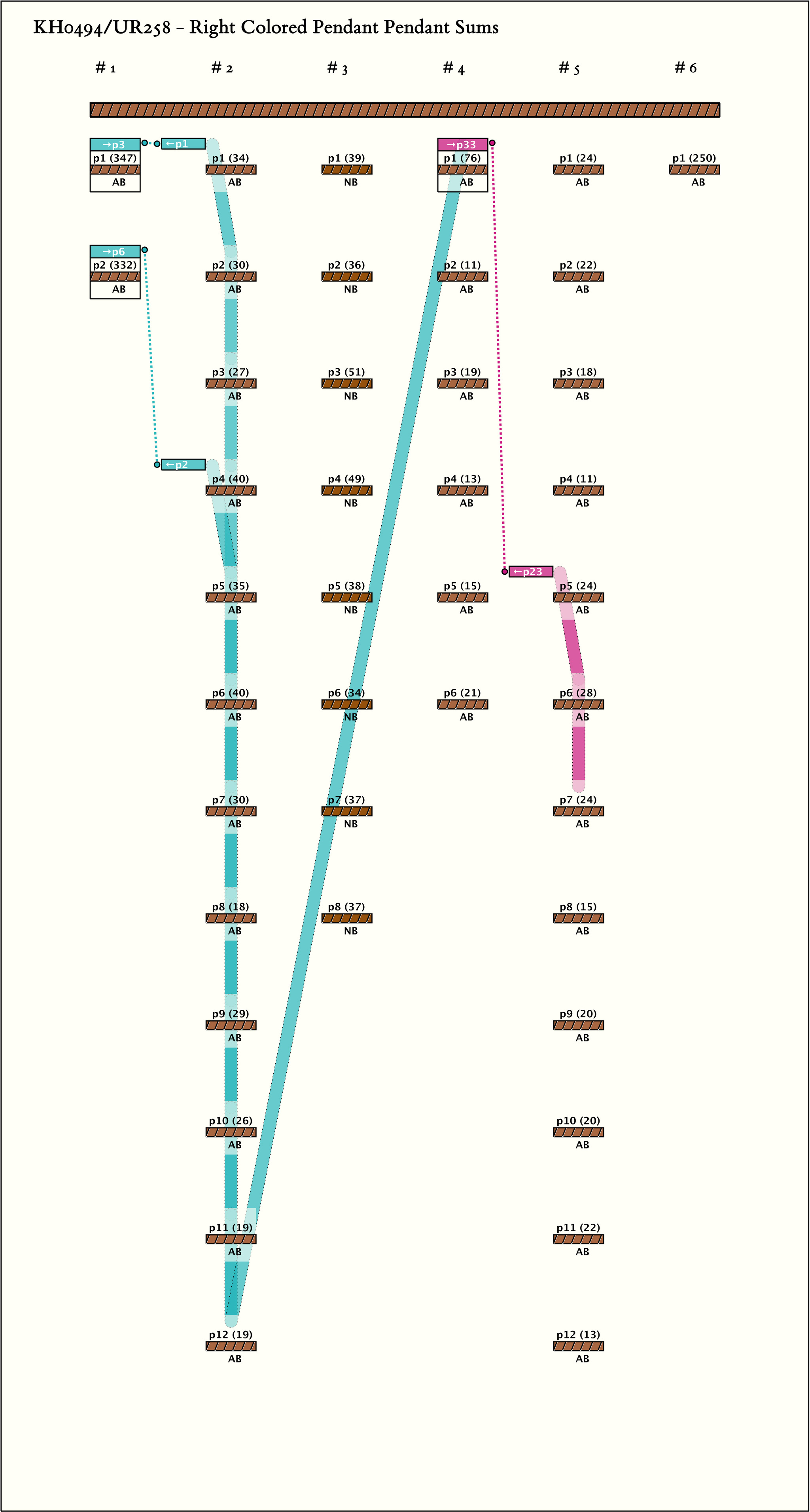

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

Right Handed Sums with Figure-8-Knots:     # Sums = 3,  Max # Summands = 12,   (Min, Mean, Max) Sum Values = (76, 252, 347)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands

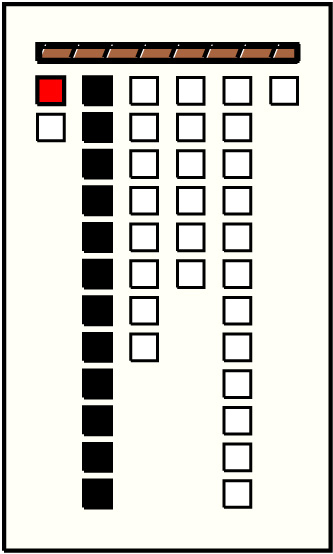

1
g1p1 : 347AB34712g2p1: 34AB + g2p2: 30AB + g2p3: 27AB + g2p4: 40AB + g2p5: 35AB + g2p6: 40AB + g2p7: 30AB + g2p8: 18AB + g2p9: 29AB + g2p10: 26AB + g2p11: 19AB + g2p12: 19AB

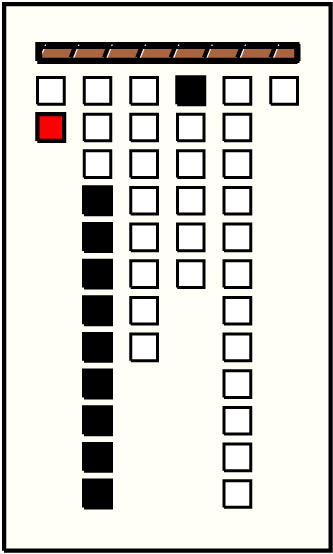

2
g1p2 : 332AB33210g2p4: 40AB + g2p5: 35AB + g2p6: 40AB + g2p7: 30AB + g2p8: 18AB + g2p9: 29AB + g2p10: 26AB + g2p11: 19AB + g2p12: 19AB + g4p1: 76AB❽

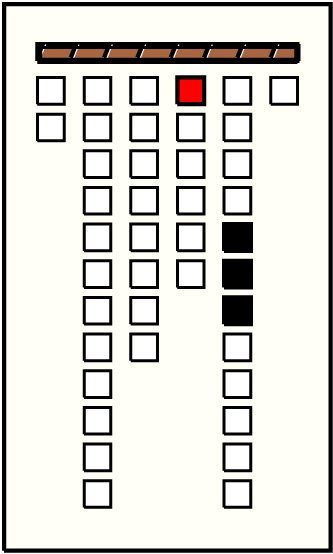

3
g4p1 : 76AB763∞g5p5: 24AB + g5p6: 28AB + g5p7: 24AB
