KH0506/UR269 - Colored Pendant Sums
Drawings:

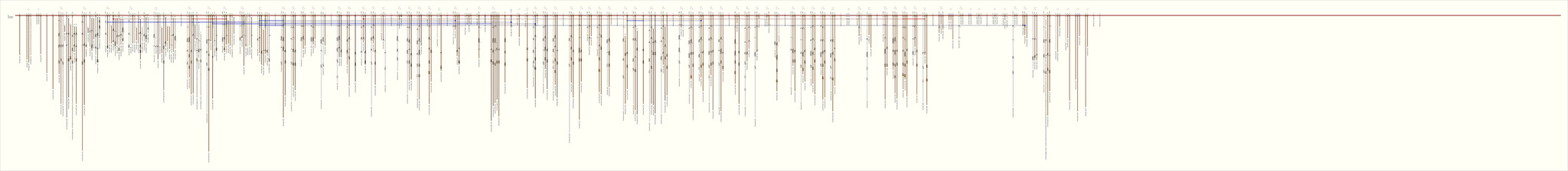

Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (420, 1360, 2300)
Click on Image to View Larger
Left Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 13, (Min, Mean, Max) Sum Values = (1000, 1966, 2515)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p4 : 420MB | 420 | 3 | g12p4: 300MB + g13p4: 20MB + g14p3: 100MB | |
| 2 |  | g27p2 : 2300AB | 2300 | 3 | ❽g86p1: 2236AB + g87p3: 44AB + ∞g88p2: 20AB∞ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g37p2 : 2000NB | 2000 | 3 | g16p2: 200NB + g16p4: 20NB + g18p2: 1780NB | |
| 2 |  | g43p1 : 1000MB | 1000 | 7 | g8p2: 40MB + g8p4: 420MB + g10p3: 20MB + g12p4: 300MB + g13p4: 20MB + g14p3: 100MB + g15p3: 100MB | |
| 3 |  | g46p2 : 2313MB | 2313 | 13 | g13p4: 20MB + g14p3: 100MB + g15p3: 100MB + g16p3: 50MB + g18p3: 47MB + g19p3: 46MB + g24p2: 1730MB + g24p3: 40MB + g26p1: 46MB + g27p3: 46MB + g32p3: 46MB + g37p4: 21MB + g41p1: 21MB❽ | |
| 4 |  | g64p2 : 2515NB | 2515 | 3 | g56p2: 47NB + g57p2: 2422NB + g58p1: 46NB | |
| 5 |  | g99p2 : 2000NB | 2000 | 3 | g16p2: 200NB + g16p4: 20NB + g18p2: 1780NB |
