KH0521/UR283 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

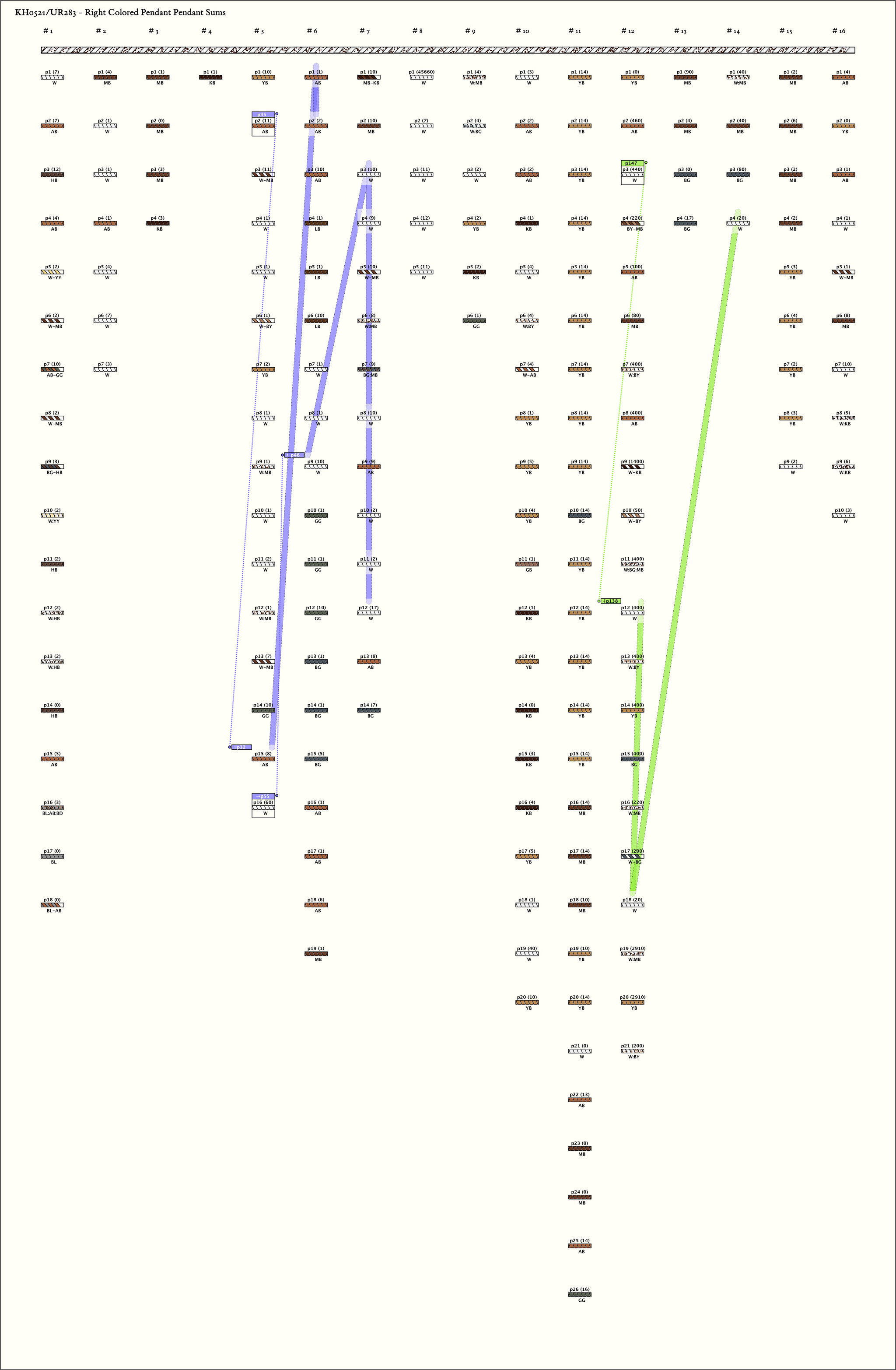

Right Handed Sums with Figure-8-Knots:     # Sums = 3,  Max # Summands = 7,   (Min, Mean, Max) Sum Values = (11, 170, 440)
Click on Image to View Larger

Left Handed Sums with Figure-8-Knots:     # Sums = 27,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (11, 15, 40)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g5p2 : 11AB113g5p15: 8AB + g6p1: 1AB + ∞g6p2: 2AB
2
g5p16 : 60W607∞g6p9: 10W∞ + g7p3: 10W + g7p4: 9W + g7p8: 10W + g7p10: 2W + g7p11: 2W + g7p12: 17W
3
g12p3 : 440W4403g12p12: 400W + g12p18: 20W + g14p4: 20W

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g7p12 : 17W176❽g2p2: 1W + g2p3: 1W + g2p5: 4W + g2p6: 7W + g2p7: 3W + g5p4: 1W❽
2
g8p3 : 11W113g2p6: 7W + g2p7: 3W + g5p4: 1W❽
3
g8p4 : 12W123❽g2p3: 1W + g2p5: 4W + g2p6: 7W
4
g8p5 : 11W113g2p6: 7W + g2p7: 3W + g5p4: 1W❽
5
g10p19 : 40W405❽g6p8: 1W + g6p9: 10W + g7p3: 10W + g7p4: 9W + g7p8: 10W❽
6
g11p1 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
7
g11p2 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
8
g11p3 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
9
g11p4 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
10
g11p5 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
11
g11p6 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
12
g11p7 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
13
g11p8 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
14
g11p9 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
15
g11p10 : 14BG144❽g6p13: 1BG + g6p14: 1BG + g6p15: 5BG + g7p14: 7BG
16
g11p11 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
17
g11p12 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
18
g11p13 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
19
g11p14 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
20
g11p15 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
21
g11p16 : 14MB143g3p3: 3MB + g6p19: 1MB + g7p2: 10MB
22
g11p17 : 14MB143g3p3: 3MB + g6p19: 1MB + g7p2: 10MB
23
g11p20 : 14YB143∞g5p1: 10YB∞ + g5p7: 2YB + g9p4: 2YB
24
g11p22 : 13AB133❽g6p1: 1AB + g6p2: 2AB + g6p3: 10AB∞
25
g11p25 : 14AB144❽g6p1: 1AB + g6p2: 2AB + g6p3: 10AB + g6p16: 1AB❽
26
g12p18 : 20W204❽g8p5: 11W + g9p3: 2W + g10p1: 3W + ∞g10p5: 4W
27
g14p4 : 20W204❽g8p5: 11W + g9p3: 2W + g10p1: 3W + ∞g10p5: 4W
