KH0666/QU020, QU20 - Colored Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

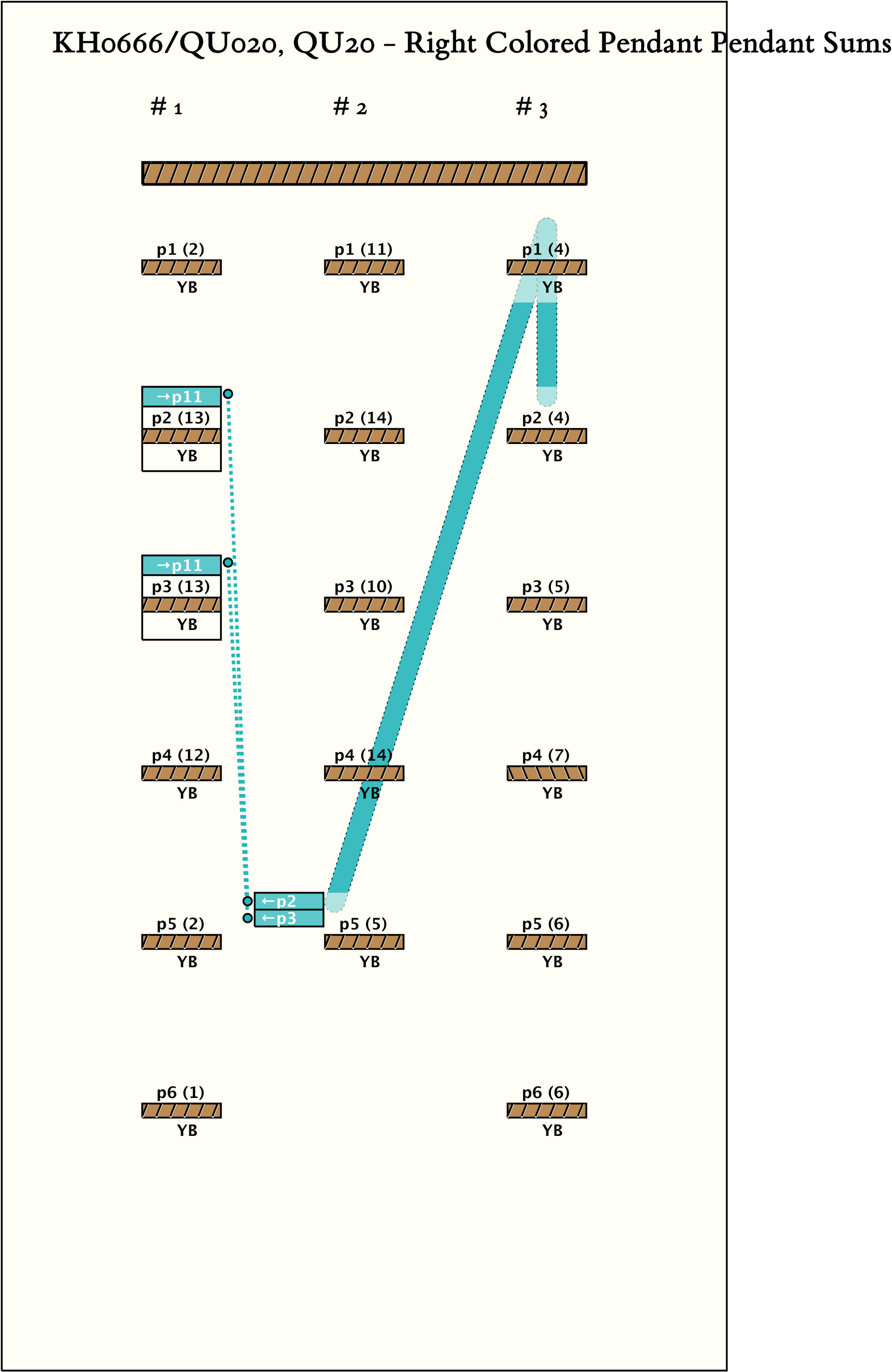

Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (13, 13, 13)
Click on Image to View Larger

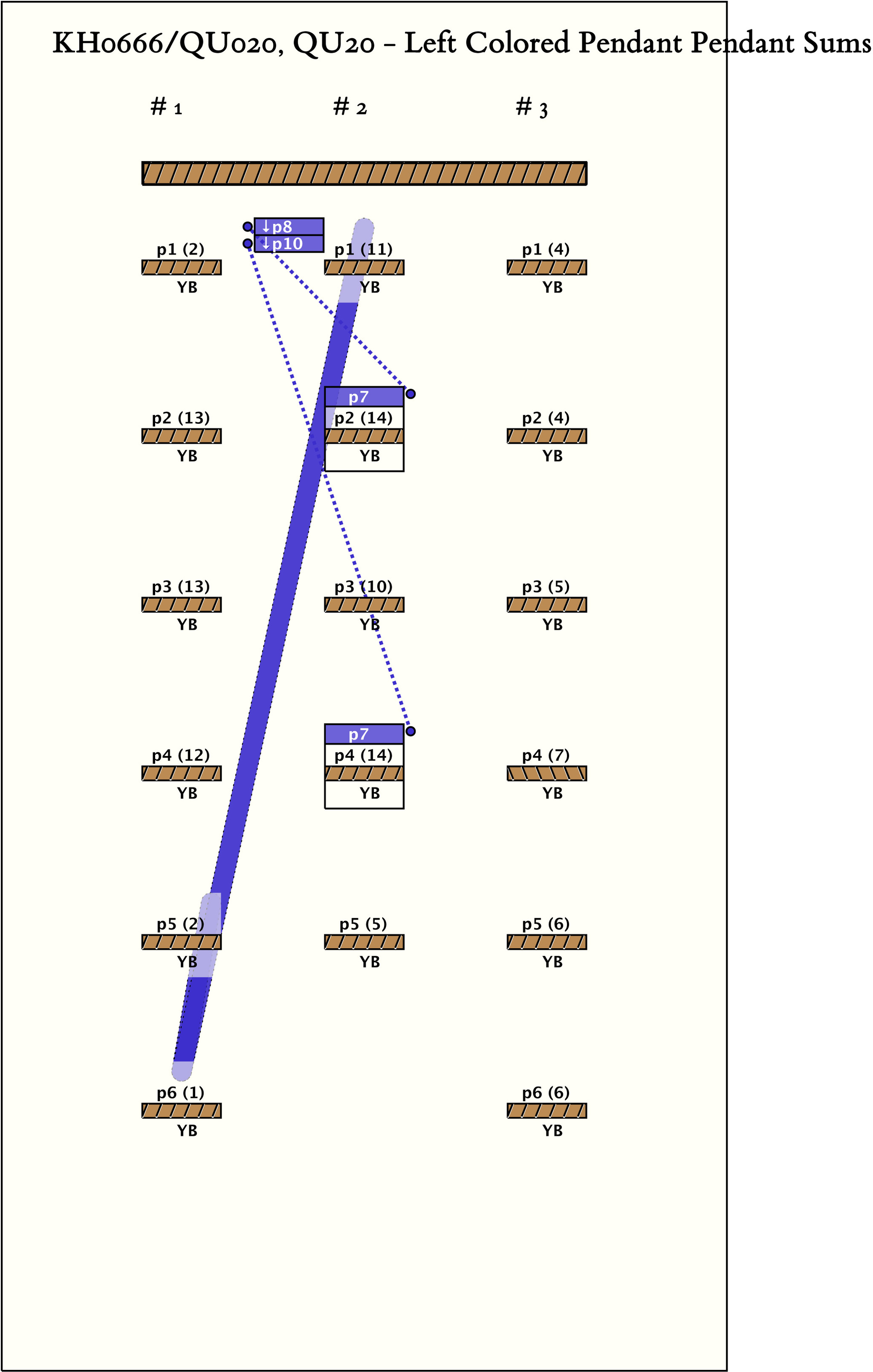

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (14, 14, 14)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2 : 13YB | 13 | 3 | g2p5: 5YB + g3p1: 4YB + g3p2: 4YB | |
| 2 |  | g1p3 : 13YB | 13 | 3 | g2p5: 5YB + g3p1: 4YB + g3p2: 4YB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g2p2 : 14YB | 14 | 3 | g1p5: 2YB∞ + g1p6: 1YB + g2p1: 11YB❽ | |
| 2 |  | g2p4 : 14YB | 14 | 3 | g1p5: 2YB∞ + g1p6: 1YB + g2p1: 11YB❽ |
Khipu Notes:
Collector: Herbert Spencer Zim and Sonia Bleeker Zim
