KH0699/KT001 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

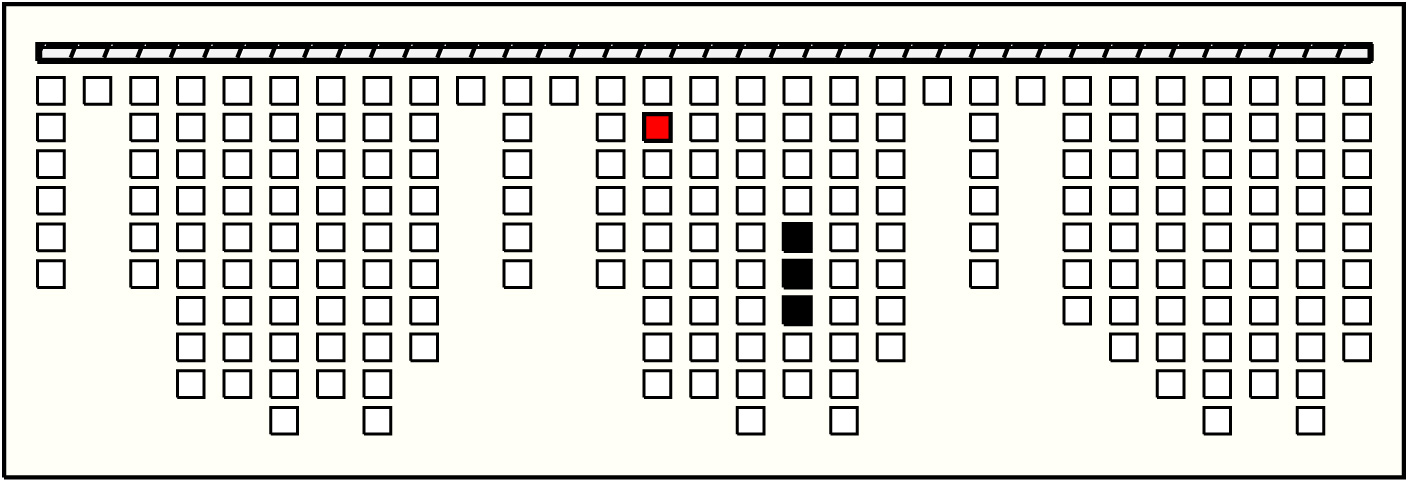

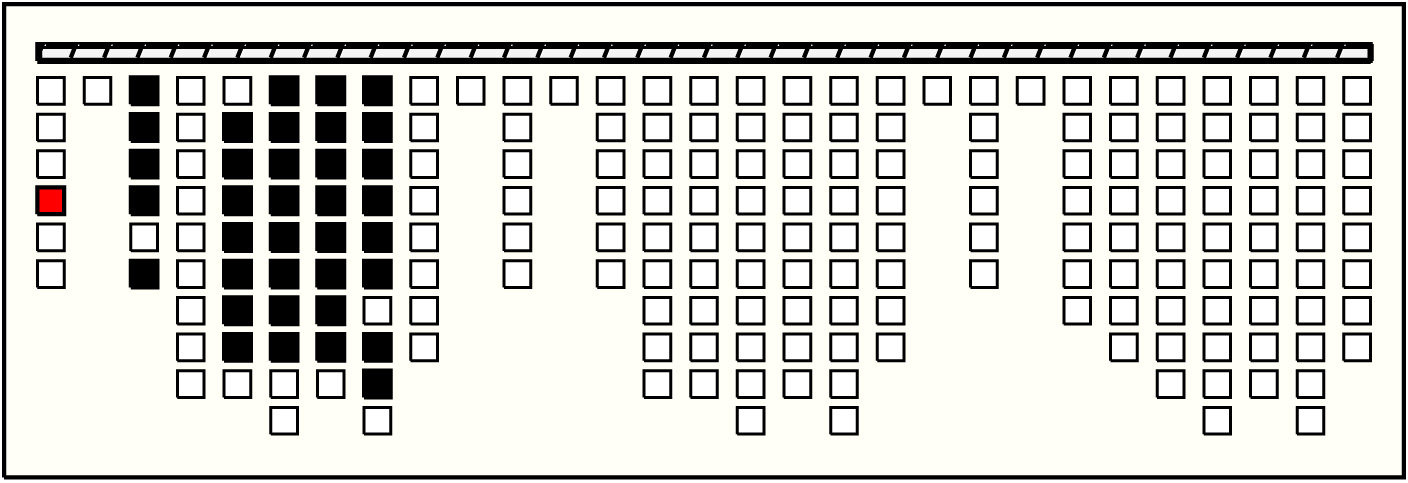

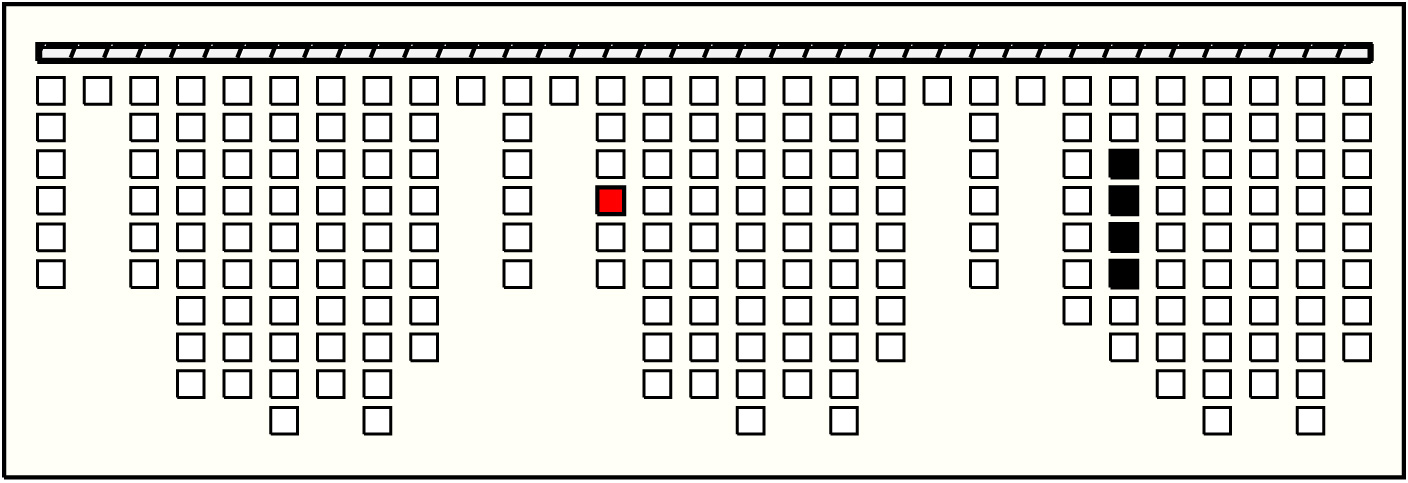

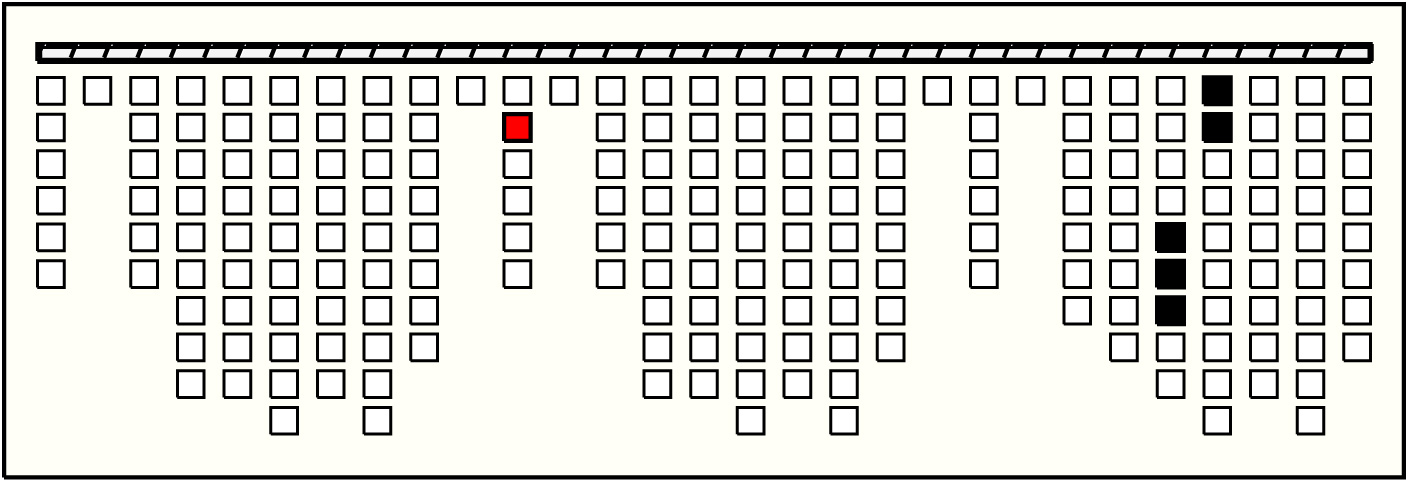

Right Handed Sums with Figure-8-Knots:     # Sums = 26,  Max # Summands = 9,   (Min, Mean, Max) Sum Values = (26, 103, 204)
Click on Image to View Larger

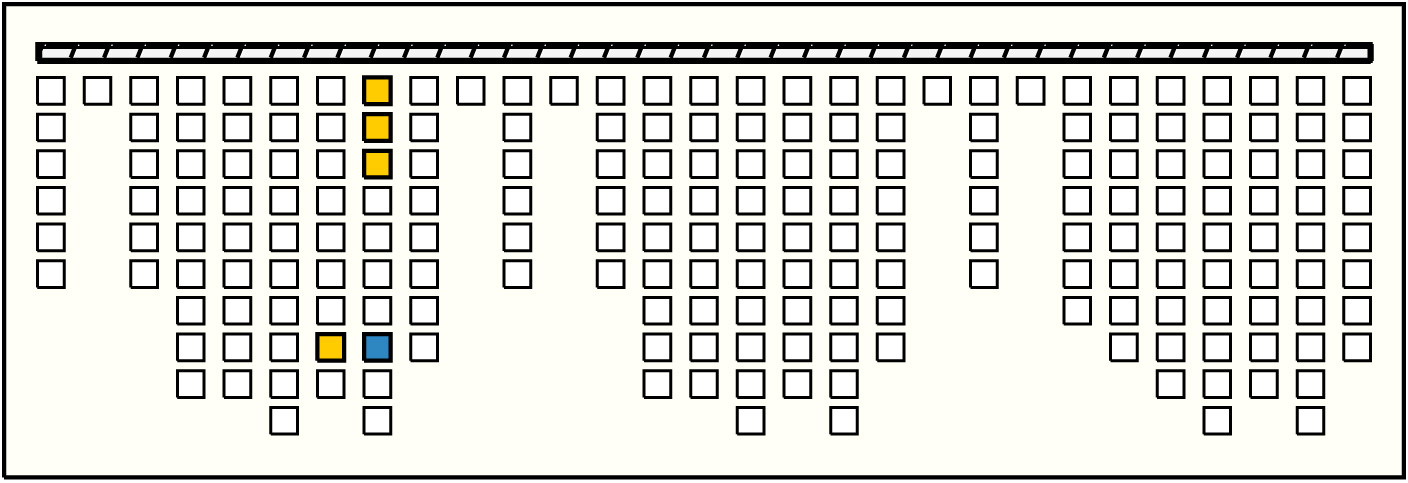

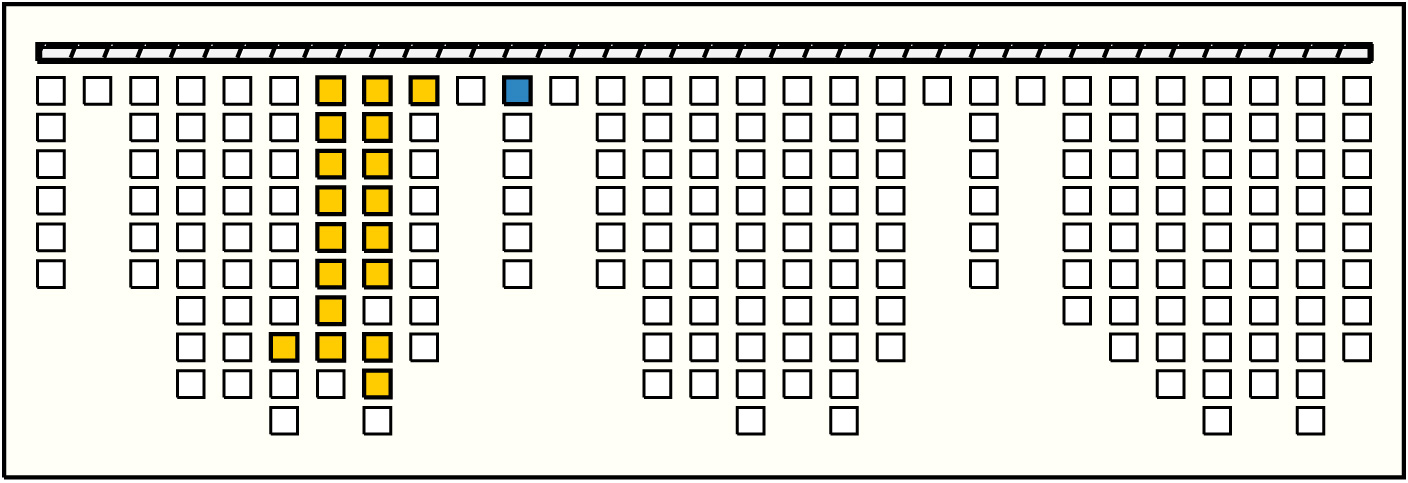

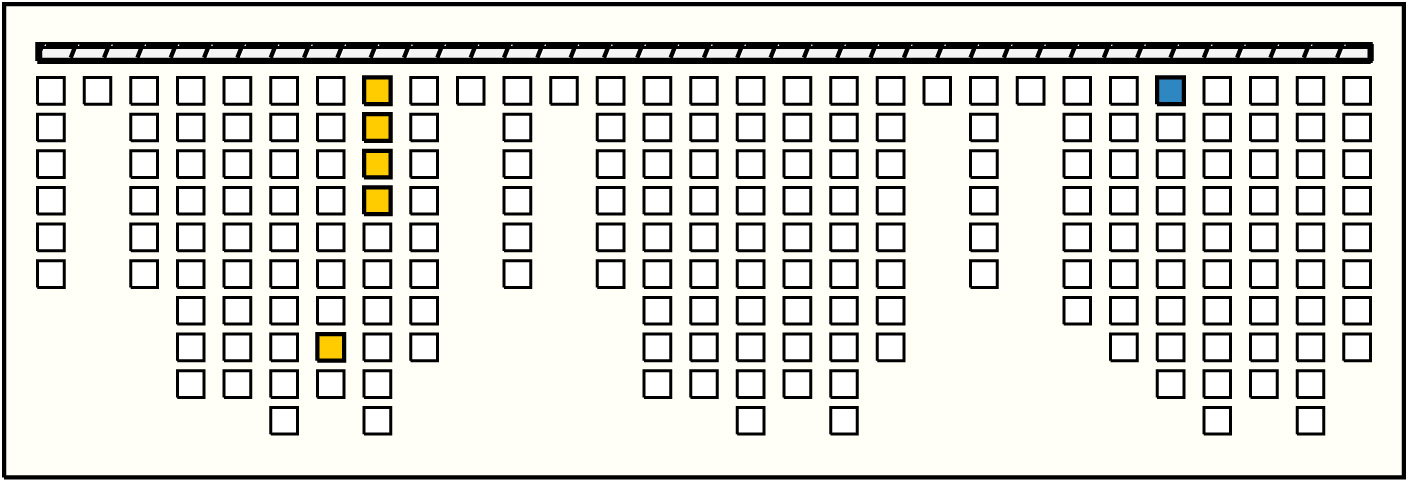

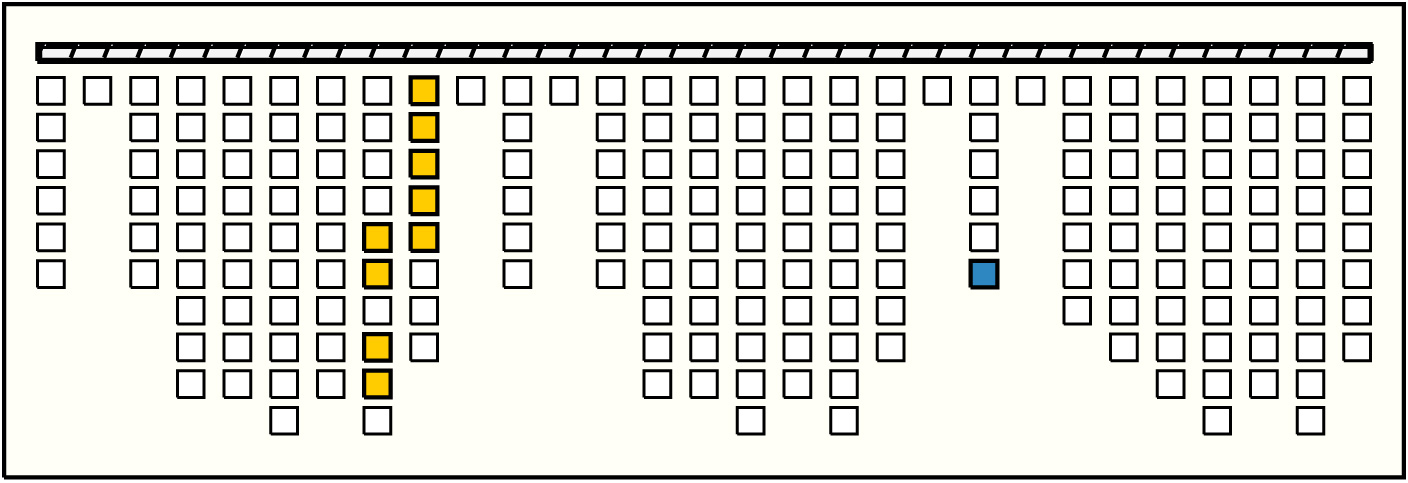

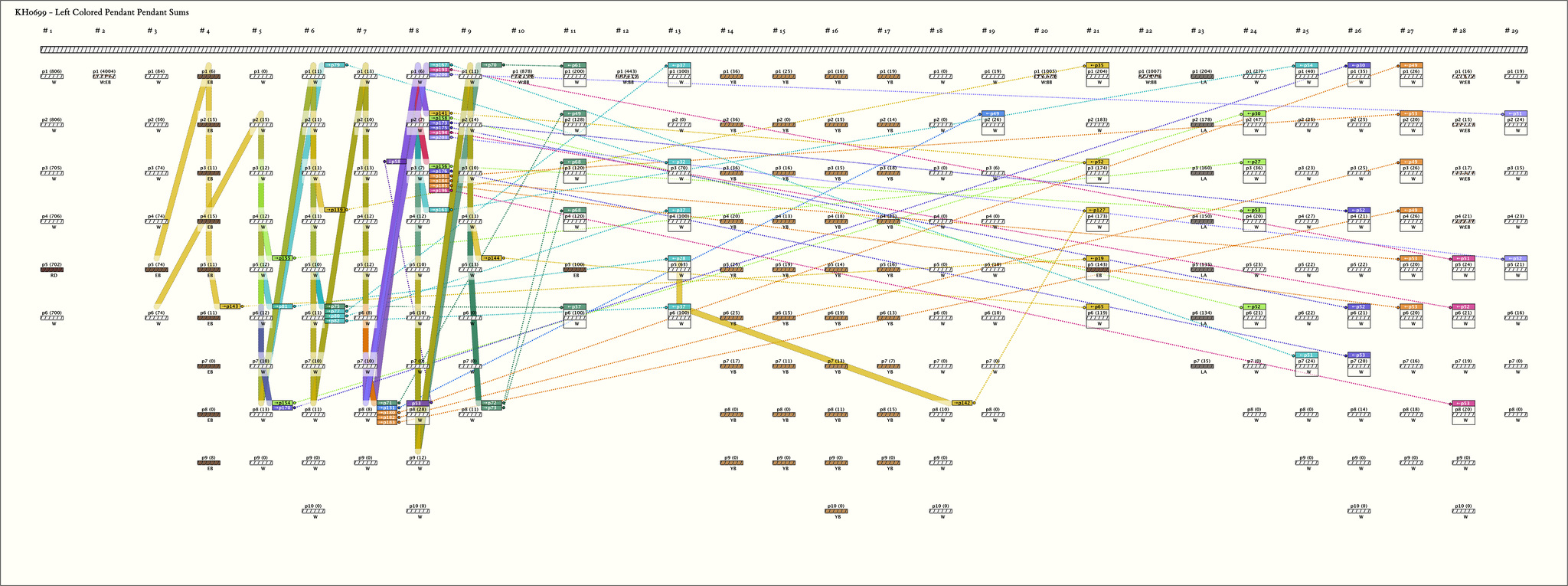

Left Handed Sums with Figure-8-Knots:     # Sums = 33,  Max # Summands = 20,   (Min, Mean, Max) Sum Values = (20, 74, 204)
Click on Image to View Larger

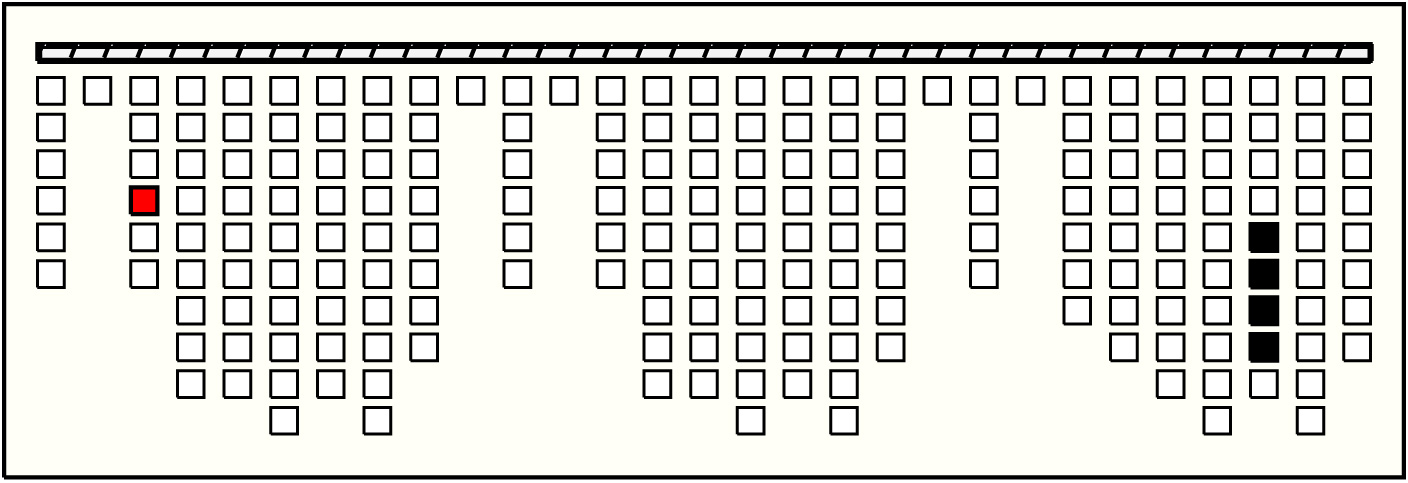

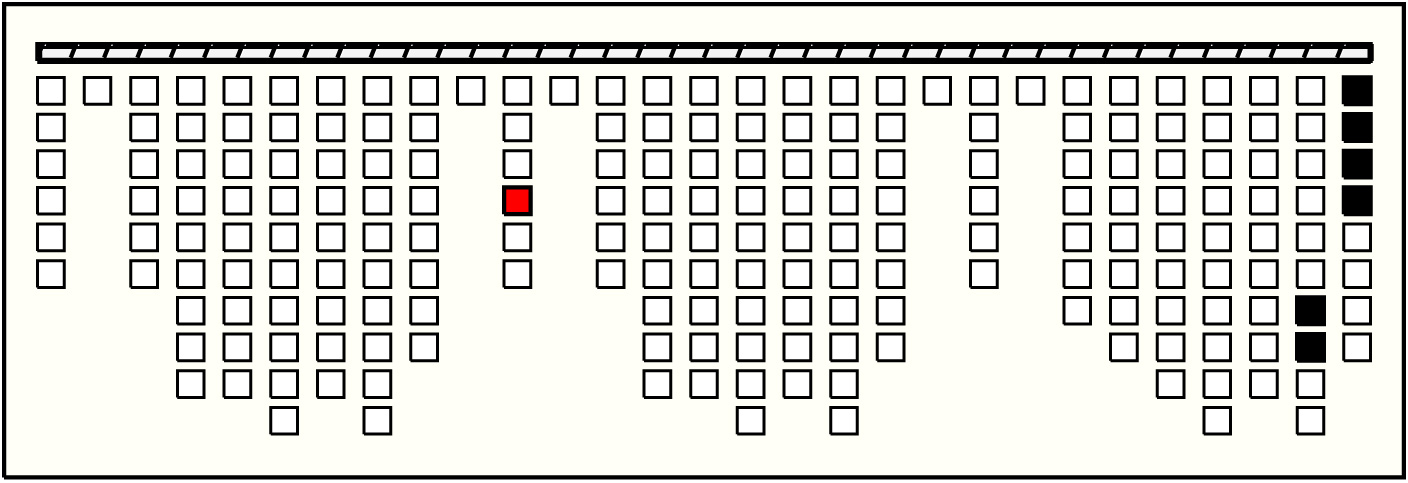

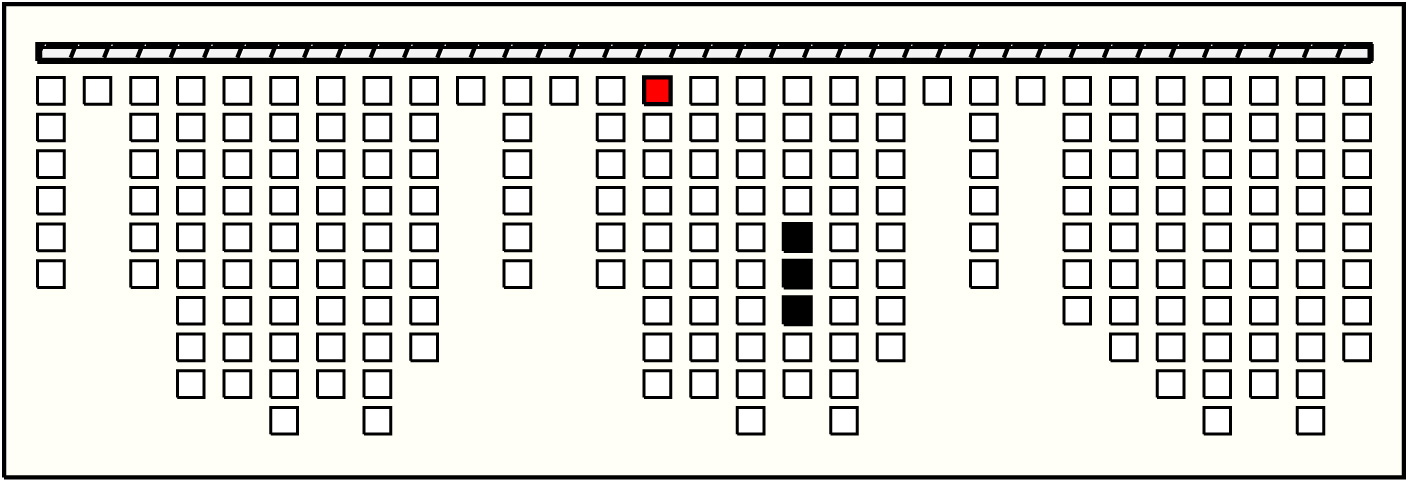

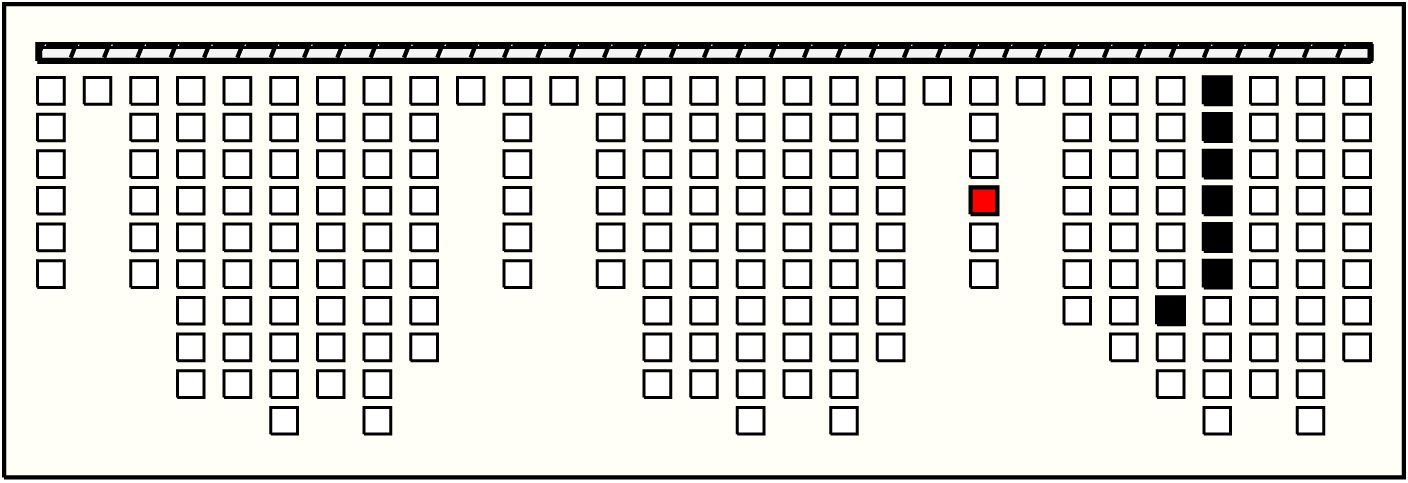

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p3 : 86W863❽g24p6: 21W + g25p1: 40W + g25p2: 25W∞
2
g1p4 : 86W863❽g24p6: 21W + g25p1: 40W + g25p2: 25W∞
3
g3p1 : 84W843g24p5: 23W∞ + g24p6: 21W + g25p1: 40W
4
g3p2 : 60W603∞g26p7: 20W∞ + g26p8: 14W + g27p1: 26W❽
5
g3p3 : 84W843g24p5: 23W∞ + g24p6: 21W + g25p1: 40W
6
g3p4 : 84W843g24p5: 23W∞ + g24p6: 21W + g25p1: 40W
7
g3p6 : 84W843g24p5: 23W∞ + g24p6: 21W + g25p1: 40W
8
g11p1 : 200W2009❽g26p1: 26W + g26p2: 25W + g26p3: 25W + g26p4: 21W + g26p5: 22W + g26p6: 21W + g26p7: 20W + g26p8: 14W + g27p1: 26W❽
9
g11p2 : 128W1286∞g27p2: 20W∞ + g27p3: 26W + g27p4: 26W + g27p5: 20W + g27p6: 20W + g27p7: 16W
10
g11p3 : 120W1203g13p6: 100W + g18p5: 10W + g18p6: 10W
11
g11p4 : 120W1203g13p6: 100W + g18p5: 10W + g18p6: 10W
12
g11p6 : 100W1004∞g25p7: 24W + g26p1: 26W + g26p2: 25W + g26p3: 25W❽
13
g13p1 : 100W1004∞g25p7: 24W + g26p1: 26W + g26p2: 25W + g26p3: 25W❽
14
g13p3 : 80W804∞g26p7: 20W∞ + g26p8: 14W + g27p1: 26W + ∞g27p2: 20W∞
15
g13p4 : 100W1004∞g25p7: 24W + g26p1: 26W + g26p2: 25W + g26p3: 25W❽
16
g13p5 : 73W734g27p6: 20W + g27p7: 16W + g27p8: 18W + g29p1: 19W
17
g13p6 : 100W1004∞g25p7: 24W + g26p1: 26W + g26p2: 25W + g26p3: 25W❽
18
g14p1 : 36YB363❽g17p5: 16YB + g17p6: 13YB + g17p7: 7YB❽
19
g14p2 : 36YB363❽g17p5: 16YB + g17p6: 13YB + g17p7: 7YB❽
20
g14p3 : 36YB363❽g17p5: 16YB + g17p6: 13YB + g17p7: 7YB❽
21
g19p2 : 26W263❽g19p3: 6W + g19p5: 10W + g19p6: 10W❽
22
g21p1 : 204W2048❽g24p6: 21W + g25p1: 40W + g25p2: 25W + g25p3: 23W + g25p4: 27W + g25p5: 22W + g25p6: 22W + ∞g25p7: 24W
23
g21p2 : 183W1837g25p1: 40W + g25p2: 25W + g25p3: 23W + g25p4: 27W + g25p5: 22W + g25p6: 22W + ∞g25p7: 24W
24
g21p3 : 174W1748❽g26p1: 26W + g26p2: 25W + g26p3: 25W + g26p4: 21W + g26p5: 22W + g26p6: 21W + g26p7: 20W + g26p8: 14W❽
25
g21p4 : 173W1738❽g26p6: 21W + g26p7: 20W + g26p8: 14W + g27p1: 26W + g27p2: 20W + g27p3: 26W + g27p4: 26W + ∞g27p5: 20W
26
g21p6 : 119W1195g25p2: 25W∞ + g25p3: 23W + g25p4: 27W + g25p5: 22W + g25p6: 22W❽

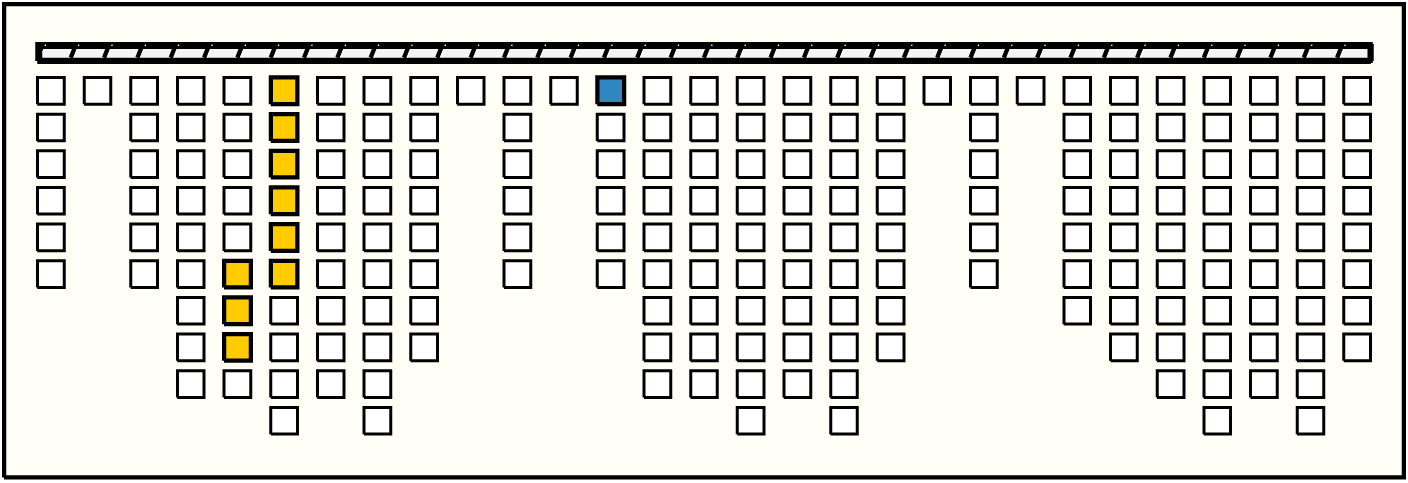

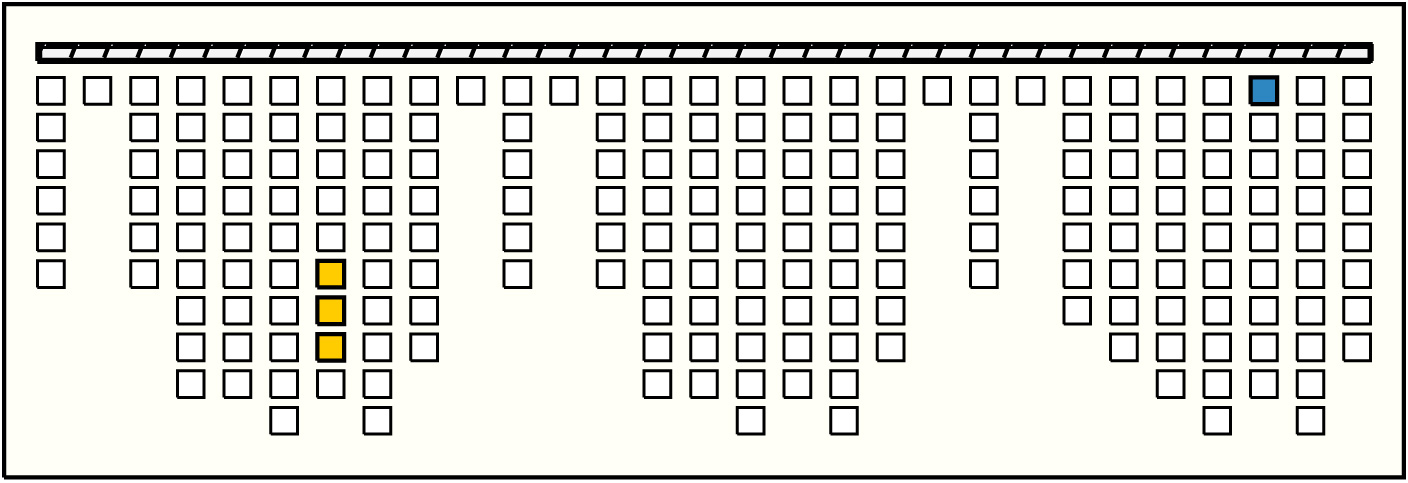

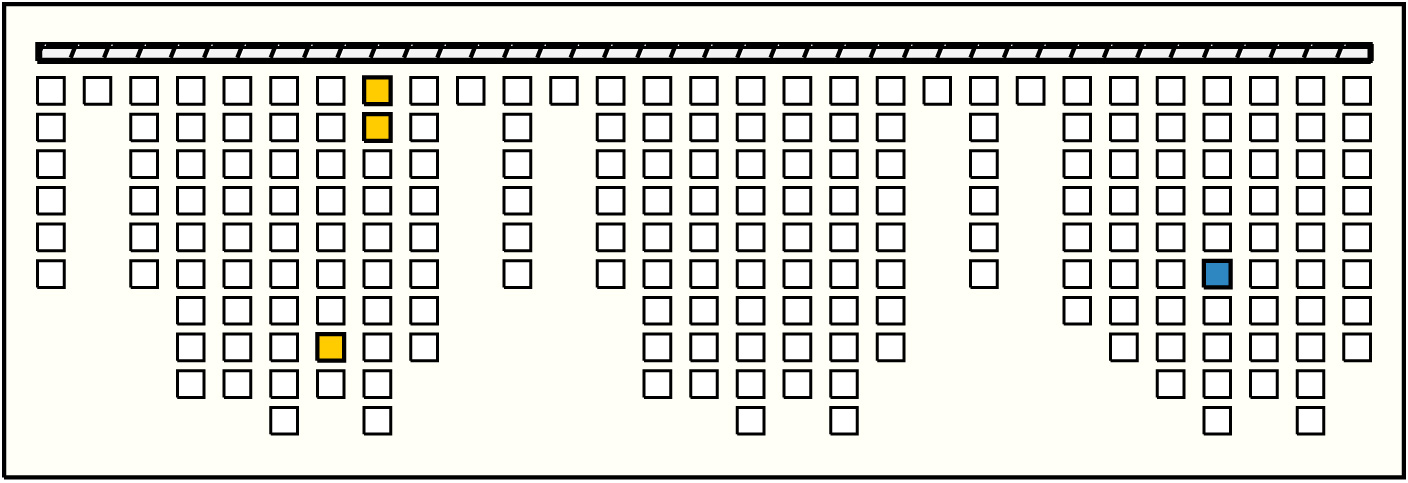

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g11p1 : 200W20020❽g6p4: 11W + g6p5: 10W + g6p6: 11W + g6p7: 10W + g6p8: 11W + g7p1: 13W + g7p2: 10W + g7p3: 13W + g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W + g7p8: 10W + g8p1: 6W + g8p2: 7W + g8p3: 7W + g8p4: 12W + g8p5: 10W + g8p6: 10W + g8p8: 9W❽
2
g11p2 : 128W12812∞g6p5: 10W∞ + g6p6: 11W + g6p7: 10W + g6p8: 11W + g7p1: 13W + g7p2: 10W + g7p3: 13W + g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W + g7p8: 10W
3
g11p3 : 120W12012∞g6p7: 10W∞ + g6p8: 11W + g7p1: 13W + g7p2: 10W + g7p3: 13W + g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W + g7p8: 10W + g8p1: 6W + g8p2: 7W
4
g11p4 : 120W12012∞g6p7: 10W∞ + g6p8: 11W + g7p1: 13W + g7p2: 10W + g7p3: 13W + g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W + g7p8: 10W + g8p1: 6W + g8p2: 7W
5
g11p6 : 100W1009g5p6: 12W + g5p7: 10W + g5p8: 13W + g6p1: 11W + g6p2: 11W + g6p3: 11W + g6p4: 11W + g6p5: 10W + g6p6: 11W❽
6
g13p1 : 100W1009g5p6: 12W + g5p7: 10W + g5p8: 13W + g6p1: 11W + g6p2: 11W + g6p3: 11W + g6p4: 11W + g6p5: 10W + g6p6: 11W❽
7
g13p3 : 80W807g5p5: 12W + g5p6: 12W + g5p7: 10W + g5p8: 13W + g6p1: 11W + g6p2: 11W + g6p3: 11W❽
8
g13p4 : 100W1009g5p6: 12W + g5p7: 10W + g5p8: 13W + g6p1: 11W + g6p2: 11W + g6p3: 11W + g6p4: 11W + g6p5: 10W + g6p6: 11W❽
9
g13p5 : 73W736g5p2: 15W + g5p3: 12W + g5p4: 12W + g5p5: 12W + g5p6: 12W + g5p7: 10W
10
g13p6 : 100W1009g5p6: 12W + g5p7: 10W + g5p8: 13W + g6p1: 11W + g6p2: 11W + g6p3: 11W + g6p4: 11W + g6p5: 10W + g6p6: 11W❽
11
g19p2 : 26W263g7p6: 8W + g7p7: 8W + g7p8: 10W
12
g21p1 : 204W20420❽g6p1: 11W + g6p2: 11W + g6p3: 11W + g6p4: 11W + g6p5: 10W + g6p6: 11W + g6p7: 10W + g6p8: 11W + g7p1: 13W + g7p2: 10W + g7p3: 13W + g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W + g7p8: 10W + g8p1: 6W + g8p2: 7W + g8p3: 7W + g8p4: 12W
13
g21p2 : 183W1833g3p4: 84W + g3p6: 84W + g5p2: 15W
14
g21p3 : 174W17417❽g6p2: 11W + g6p3: 11W + g6p4: 11W + g6p5: 10W + g6p6: 11W + g6p7: 10W + g6p8: 11W + g7p1: 13W + g7p2: 10W + g7p3: 13W + g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W + g7p8: 10W + g8p1: 6W + g8p2: 7W
15
g21p5 : 153EB1537g3p5: 84EB + g4p1: 6EB + g4p2: 15EB + g4p3: 11EB + g4p4: 15EB + g4p5: 11EB + g4p6: 11EB❽
16
g21p6 : 119W11910g5p2: 15W + g5p3: 12W + g5p4: 12W + g5p5: 12W + g5p6: 12W + g5p7: 10W + g5p8: 13W + g6p1: 11W + g6p2: 11W + g6p3: 11W❽
17
g24p2 : 47W474g5p5: 12W + g5p6: 12W + g5p7: 10W + g5p8: 13W
18
g24p3 : 46W464g5p4: 12W + g5p5: 12W + g5p6: 12W + g5p7: 10W
19
g24p4 : 20W203g8p1: 6W + g8p2: 7W + g8p3: 7W
20
g24p5 : 23W233g7p8: 10W + g8p1: 6W + g8p2: 7W
21
g25p1 : 40W404g7p4: 12W + g7p5: 12W + g7p6: 8W + g7p7: 8W
22
g25p3 : 23W233g7p8: 10W + g8p1: 6W + g8p2: 7W
23
g25p7 : 24W243g7p7: 8W + g7p8: 10W + g8p1: 6W
24
g26p1 : 26W263g7p6: 8W + g7p7: 8W + g7p8: 10W
25
g26p7 : 20W203g8p1: 6W + g8p2: 7W + g8p3: 7W
26
g27p1 : 26W263g7p6: 8W + g7p7: 8W + g7p8: 10W
27
g27p2 : 20W203g8p1: 6W + g8p2: 7W + g8p3: 7W
28
g27p3 : 26W263g7p6: 8W + g7p7: 8W + g7p8: 10W
29
g27p4 : 26W263g7p6: 8W + g7p7: 8W + g7p8: 10W
30
g27p5 : 20W203g8p1: 6W + g8p2: 7W + g8p3: 7W
31
g27p6 : 20W203g8p1: 6W + g8p2: 7W + g8p3: 7W
32
g29p2 : 24W243g7p7: 8W + g7p8: 10W + g8p1: 6W
33
g29p4 : 23W233g7p8: 10W + g8p1: 6W + g8p2: 7W
