MM001 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

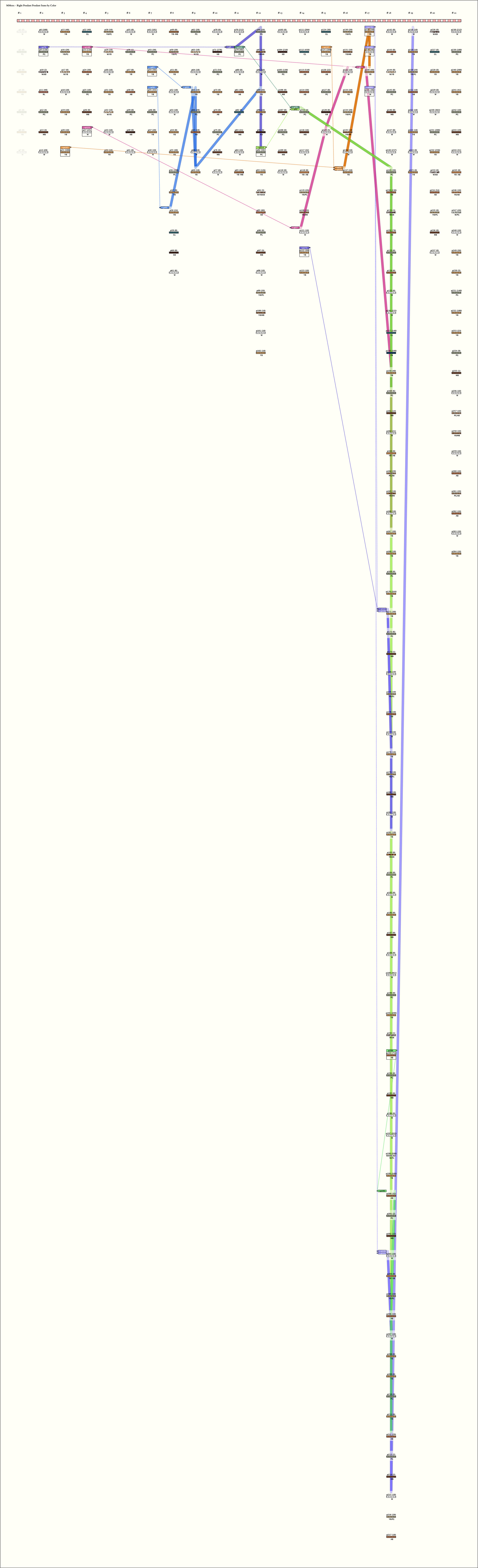

Right Handed Sums: # Sums = 14, Max # Summands = 6, (Min, Mean, Max) Sum Values = (25, 63, 110)
Click on Image to View Larger

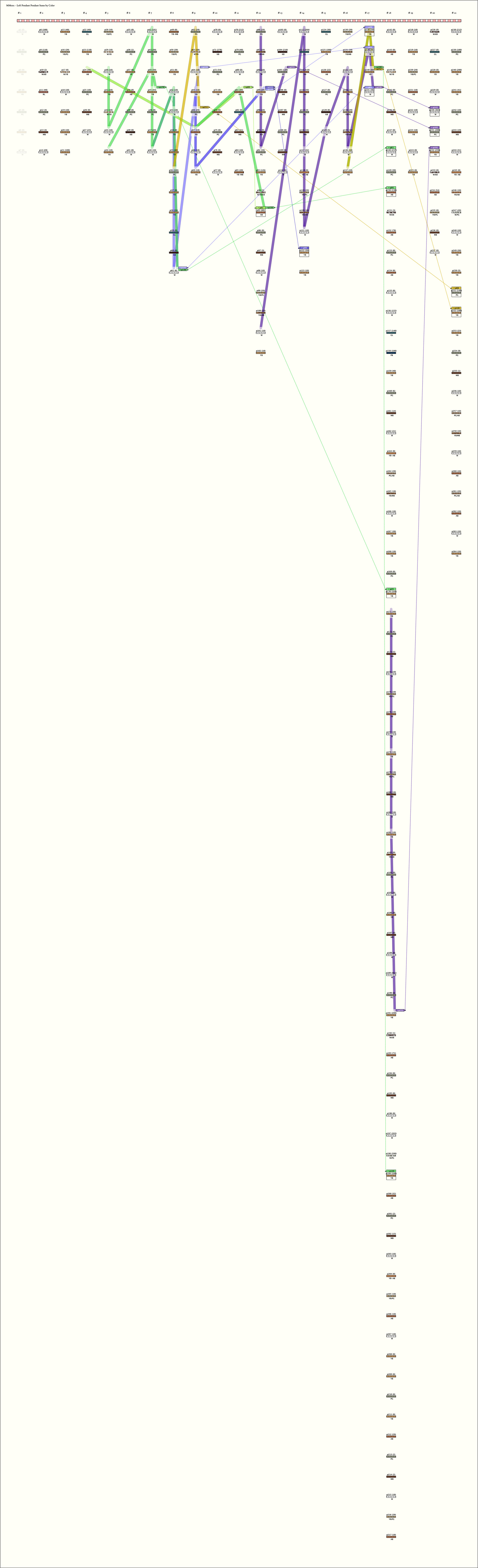

Left Handed Sums: # Sums = 14, Max # Summands = 9, (Min, Mean, Max) Sum Values = (36, 135, 363)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p9_{2, 2} : 110_PG	110	3	p79: 40_PG + p86: 20_PG + p92: 50_PG

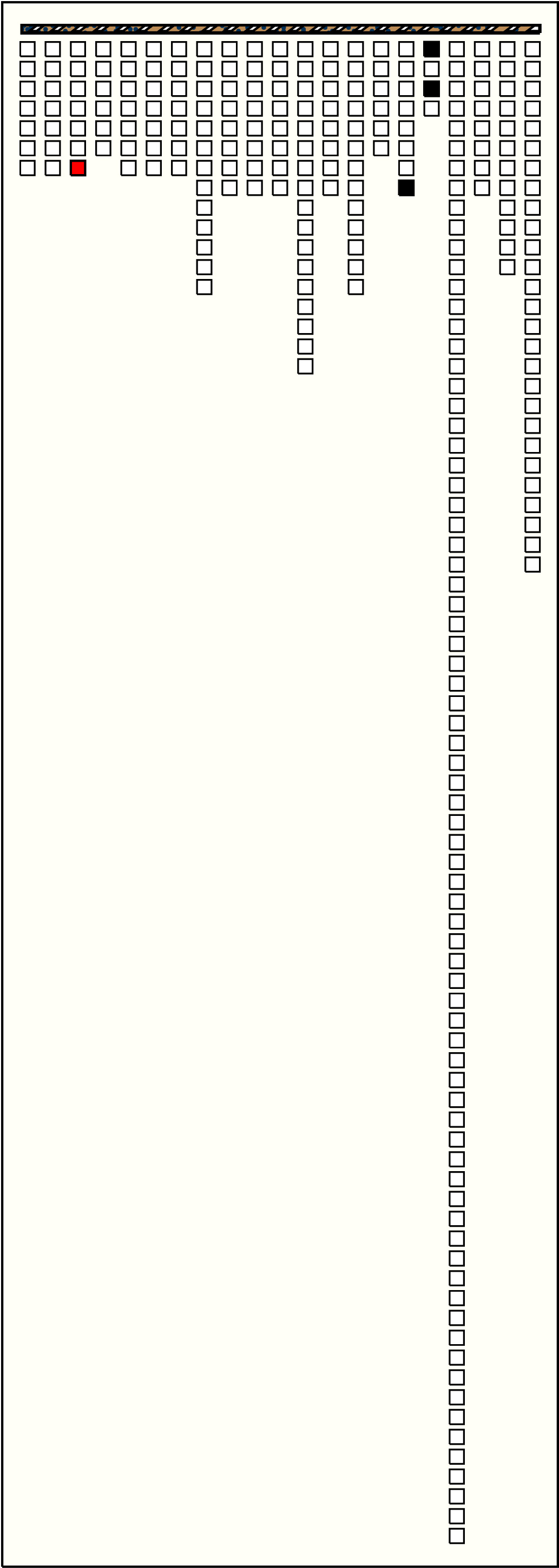

2	p21_{3, 7} : 100_YB	100	3	p137: 10_YB + p138: 50_YB + p140: 40_YB
3	p23_{4, 2} : 110_YB	110	3	p140: 40_YB + p159: 40_YB + p167: 30_YB

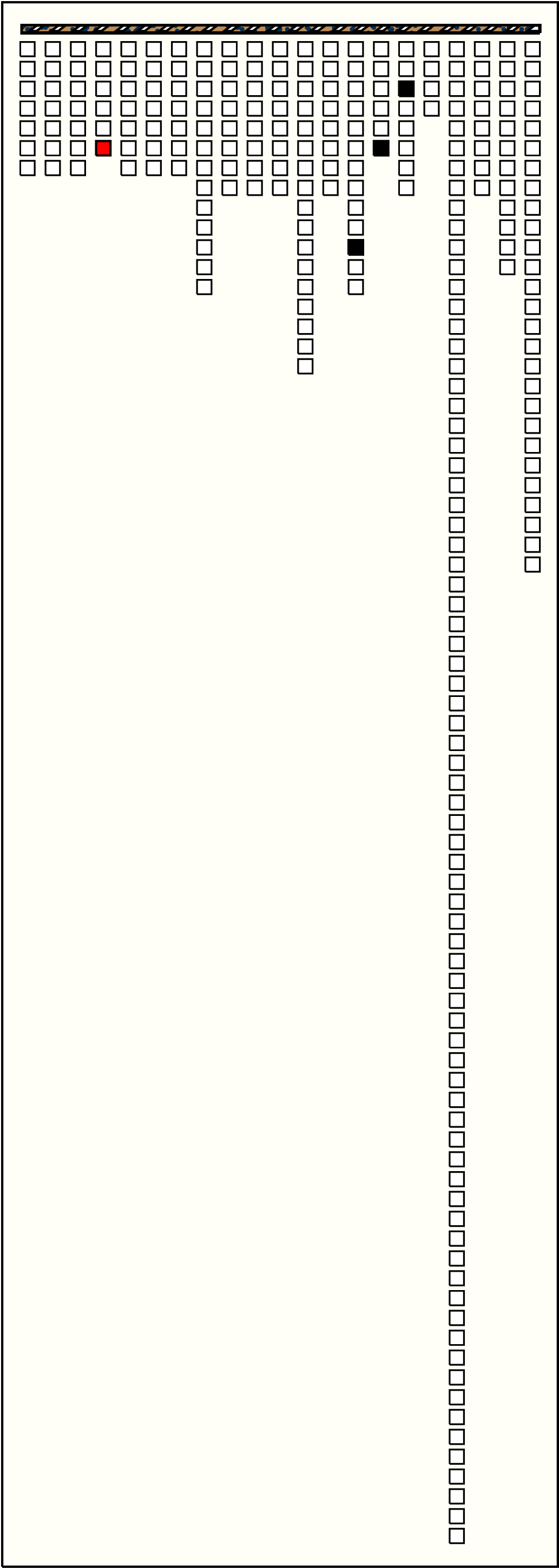

4	p27_{4, 6} : 25_W	25	3	p121: 10_W + p129: 5_W + p132: 10_W
5	p44_{7, 3} : 50_YB	50	3	p65: 10_YB + p69: 10_YB + p89: 30_YB

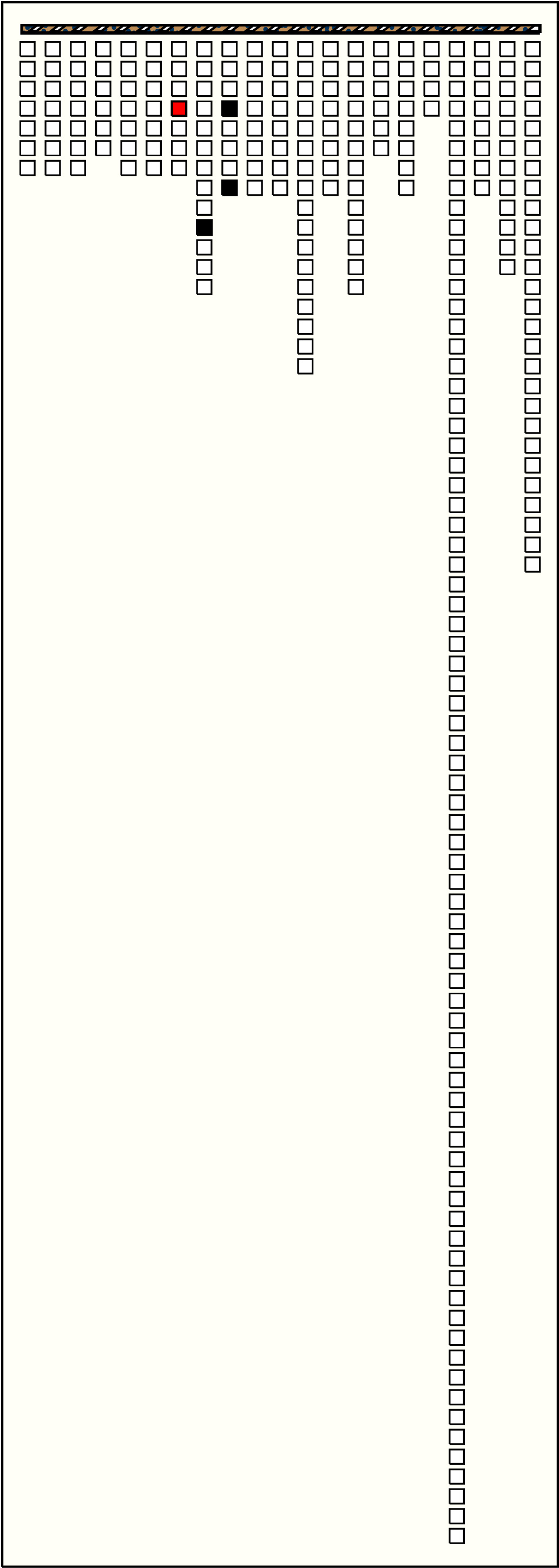

6	p45_{7, 4} : 44_YB	44	3	p58: 24_YB + p65: 10_YB + p69: 10_YB

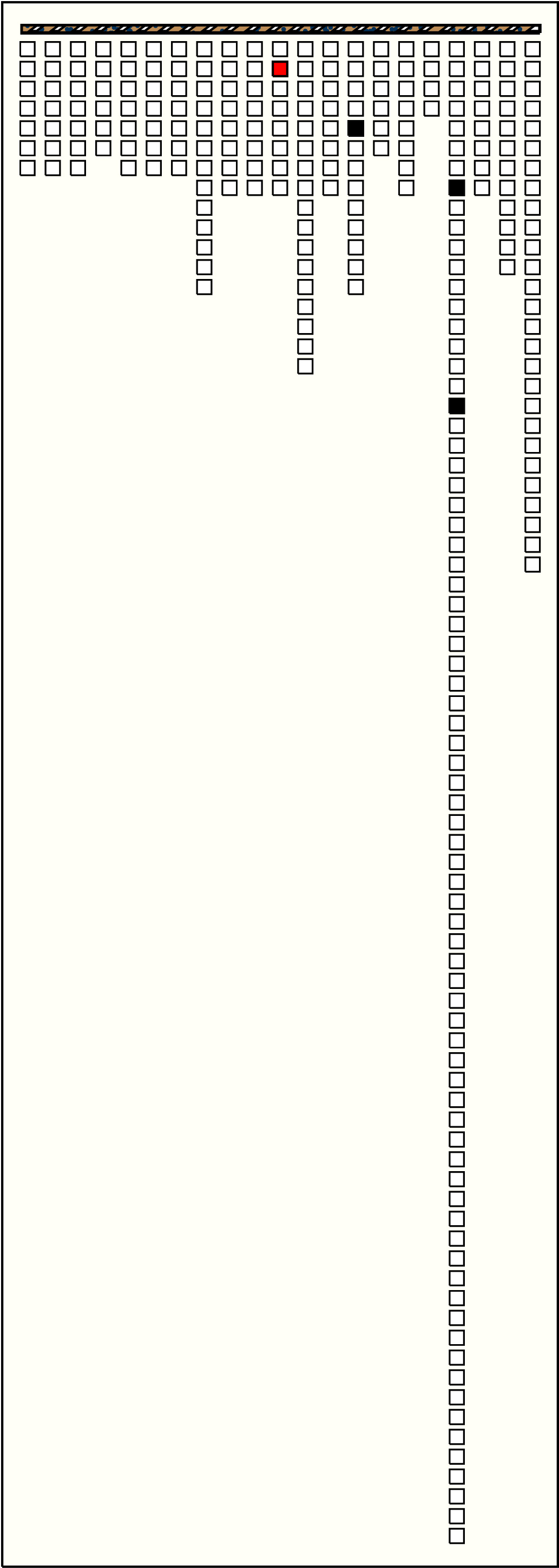

7	p79_{11, 2} : 40_PG	40	3	p115: 4_PG + p149: 30_PG + p160: 6_PG

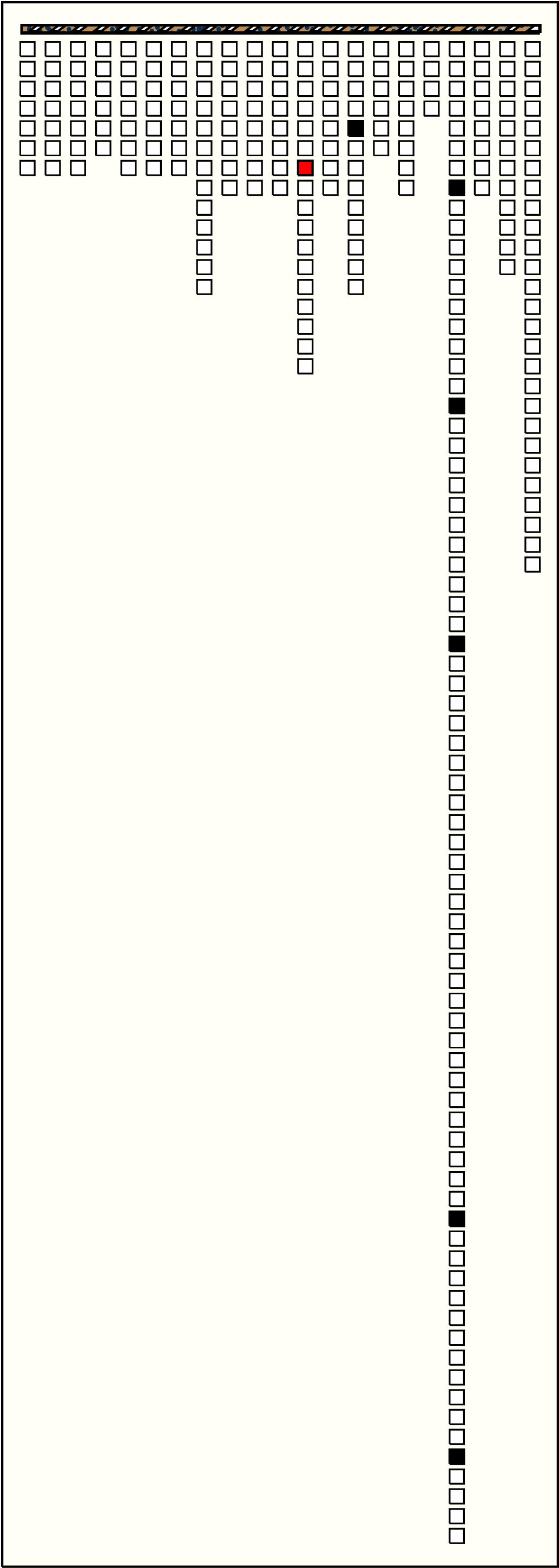

8	p92_{12, 7} : 50_PG	50	6	p115: 4_PG + p149: 30_PG + p160: 6_PG + p172: 6_PG + p201: 2_PG + p213: 2_PG

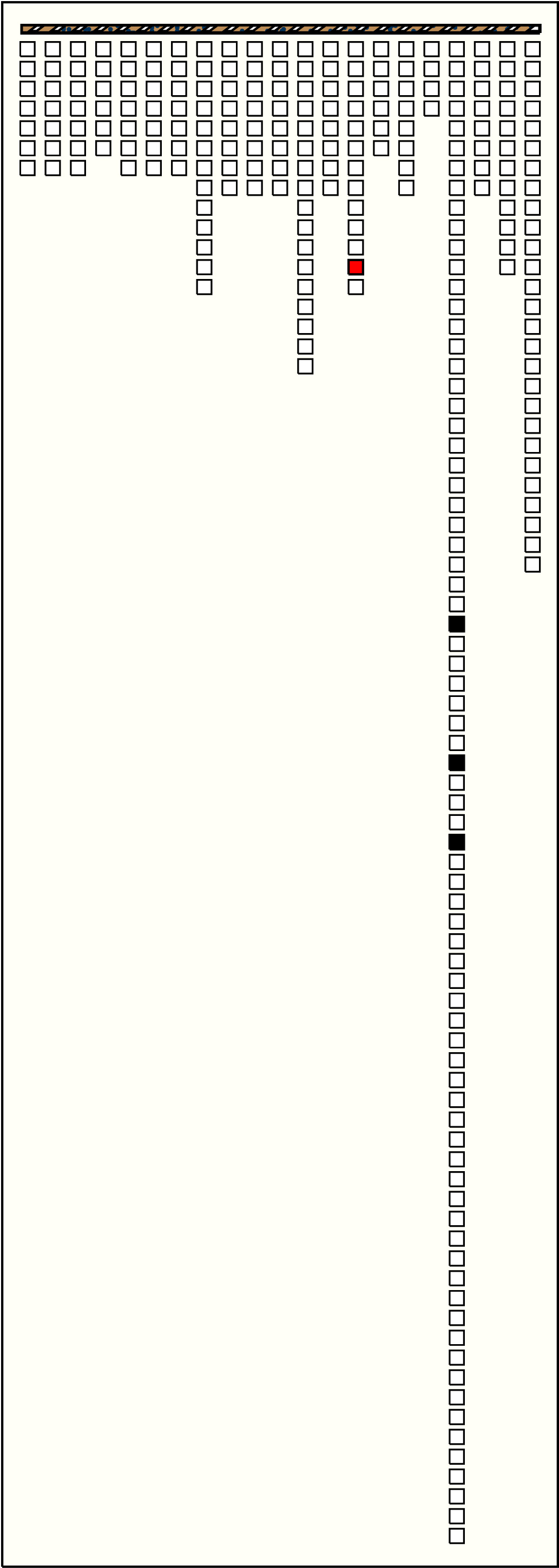

9	p122_{14, 12} : 50_YB	50	3	p171: 30_YB + p178: 10_YB + p182: 10_YB
10	p125_{15, 2} : 100_YB	100	3	p137: 10_YB + p138: 50_YB + p140: 40_YB

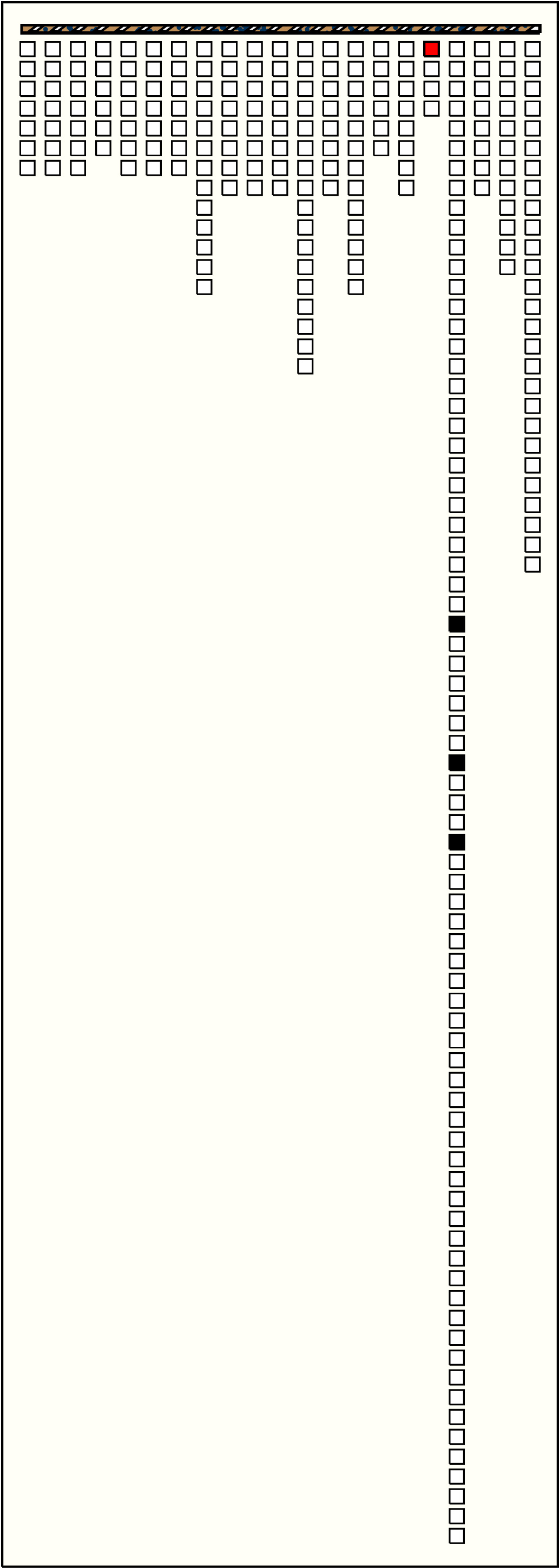

11	p138_{17, 1} : 50_YB	50	3	p171: 30_YB + p178: 10_YB + p182: 10_YB
12	p139_{17, 2} : 46_W	46	4	p203: 16_W + p207: 10_W + p215: 10_W + p218: 10_W
13	p141_{17, 4} : 36_W	36	3	p203: 16_W + p207: 10_W + p215: 10_W
14	p193_{18, 52} : 71_AB	71	3	p200: 32_AB + p206: 10_AB + p212: 29_AB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

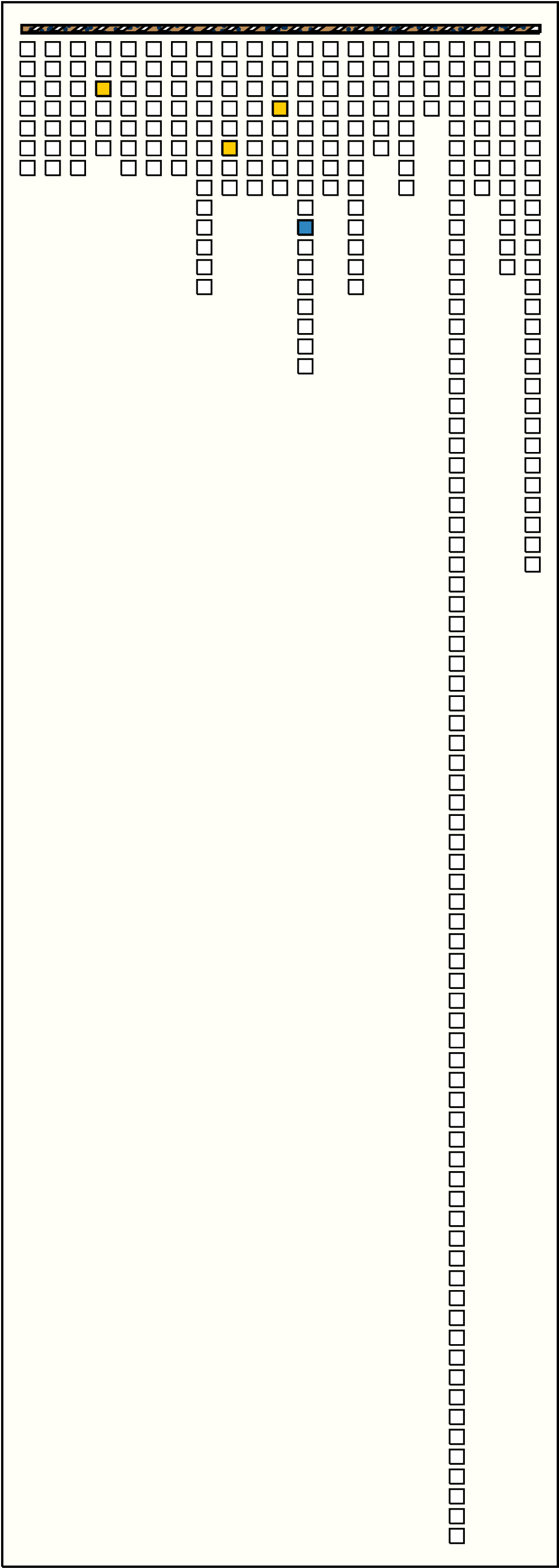

1	p95_{12, 10} : 80_AB	80	3	p24: 30_AB + p67: 10_AB + p81: 40_AB
2	p122_{14, 12} : 50_YB	50	3	p65: 10_YB + p69: 10_YB + p89: 30_YB

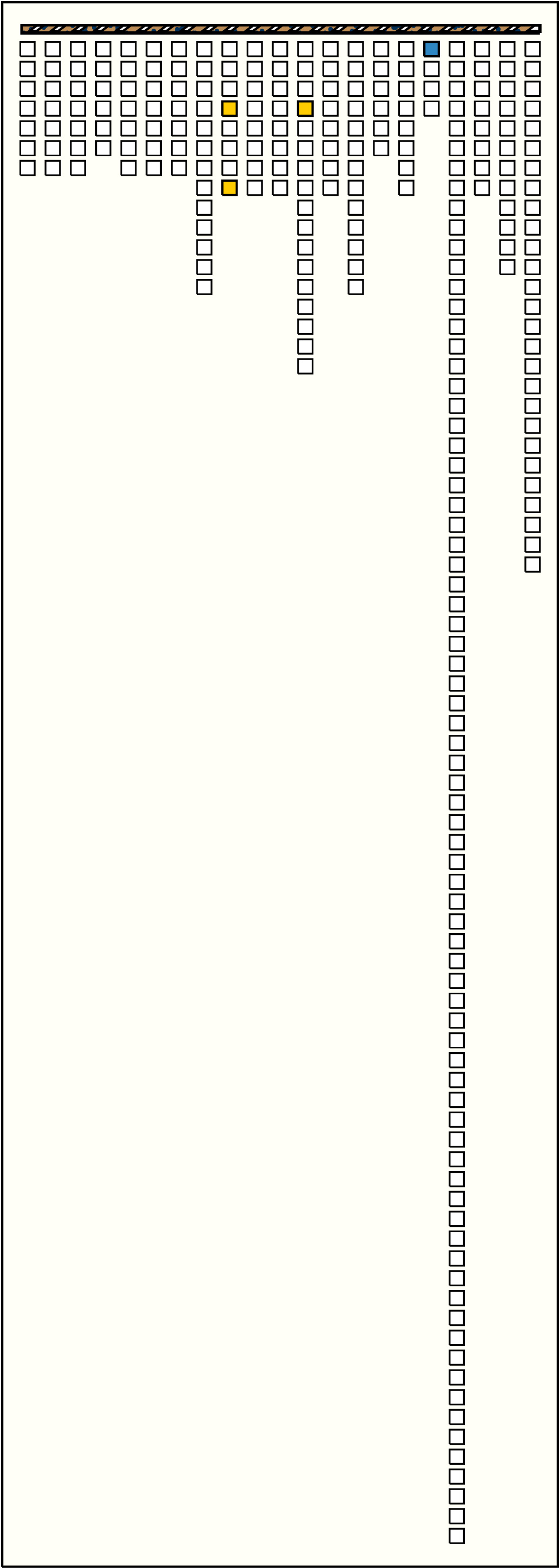

3	p138_{17, 1} : 50_YB	50	3	p65: 10_YB + p69: 10_YB + p89: 30_YB
4	p139_{17, 2} : 46_W	46	5	p48: 10_W + p52: 10_W + p53: 10_W + p61: 6_W + p64: 10_W
5	p141_{17, 4} : 36_W	36	4	p48: 10_W + p52: 10_W + p53: 10_W + p61: 6_W

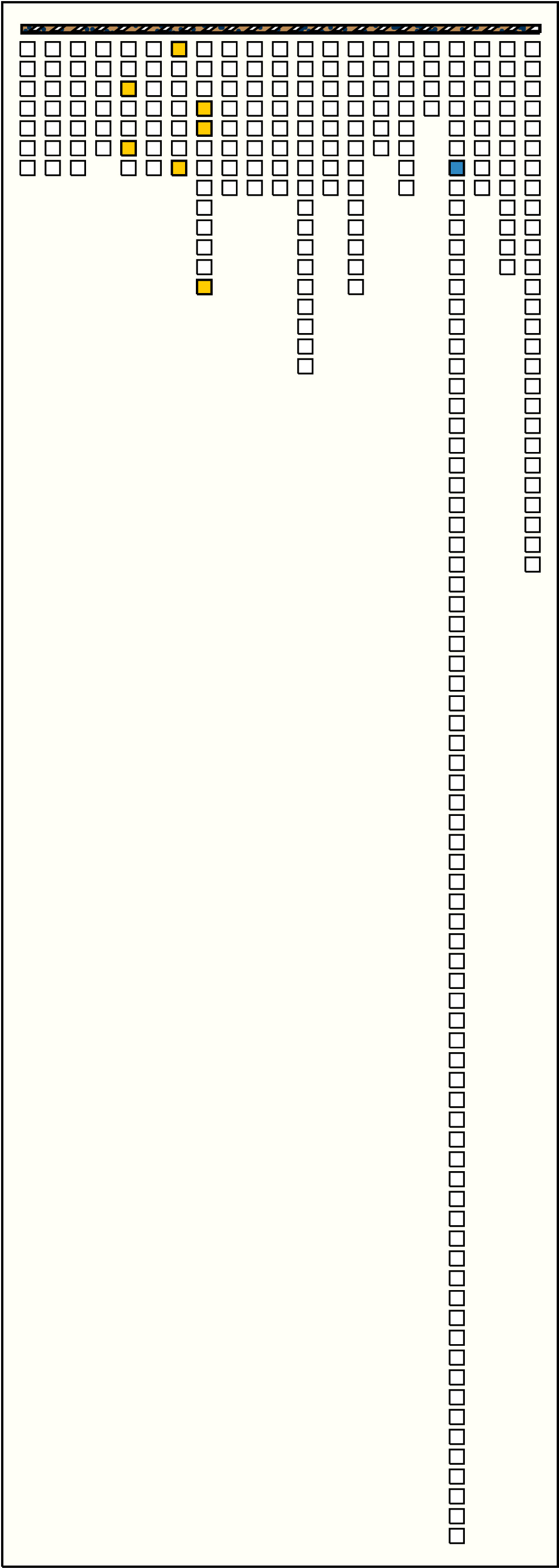

6	p148_{18, 7} : 237_W	237	7	p30: 10_W + p33: 10_W + p42: 181_W + p48: 10_W + p52: 10_W + p53: 10_W + p61: 6_W

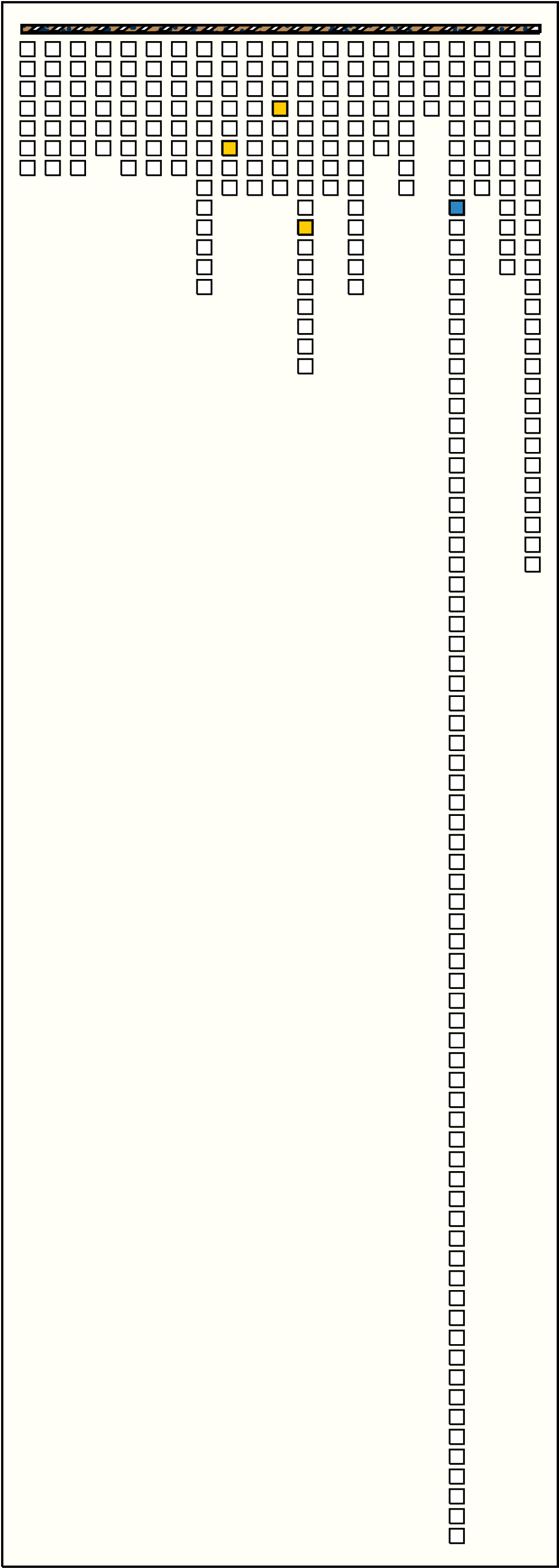

7	p150_{18, 9} : 130_AB	130	3	p67: 10_AB + p81: 40_AB + p95: 80_AB
8	p170_{18, 29} : 104_YB	104	3	p34: 10_YB + p44: 50_YB + p45: 44_YB
9	p199_{18, 58} : 100_YB	100	3	p137: 10_YB + p138: 50_YB + p140: 40_YB

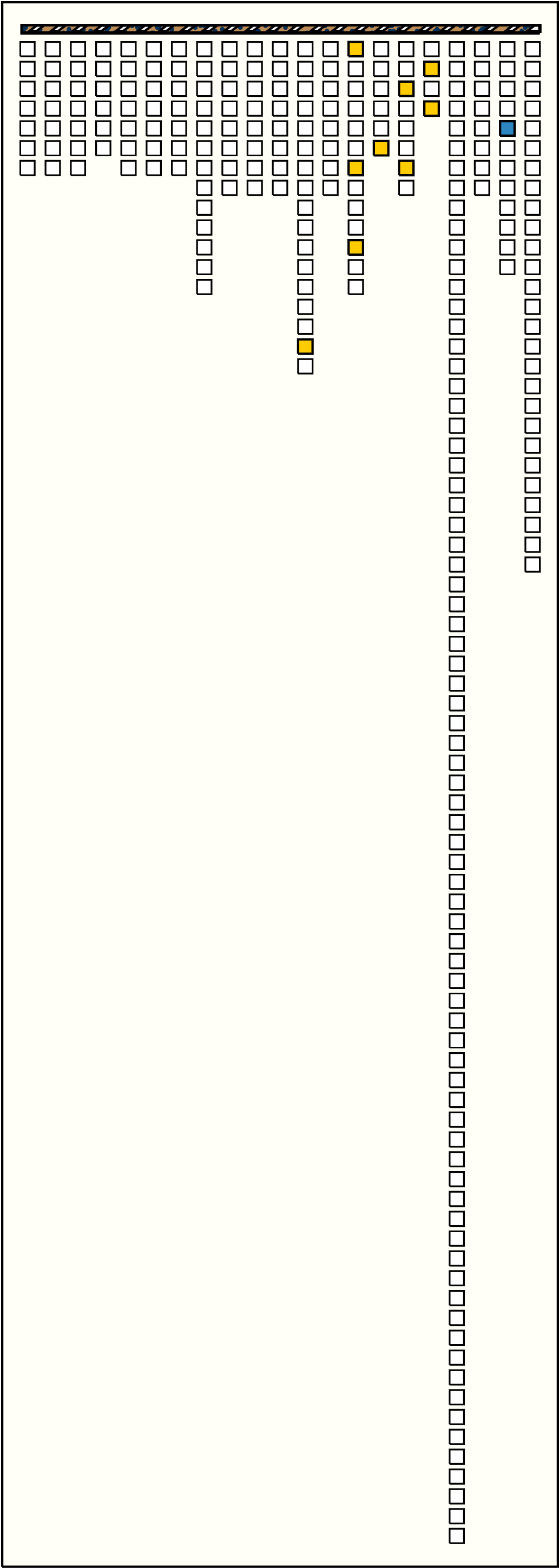

10	p230_{20, 5} : 363_W	363	9	p101: 10_W + p111: 204_W + p117: 32_W + p121: 10_W + p129: 5_W + p132: 10_W + p136: 10_W + p139: 46_W + p141: 36_W
11	p231_{20, 6} : 200_PG	200	3	p86: 20_PG + p92: 50_PG + p105: 130_PG
12	p232_{20, 7} : 250_YB	250	4	p171: 30_YB + p178: 10_YB + p182: 10_YB + p191: 200_YB

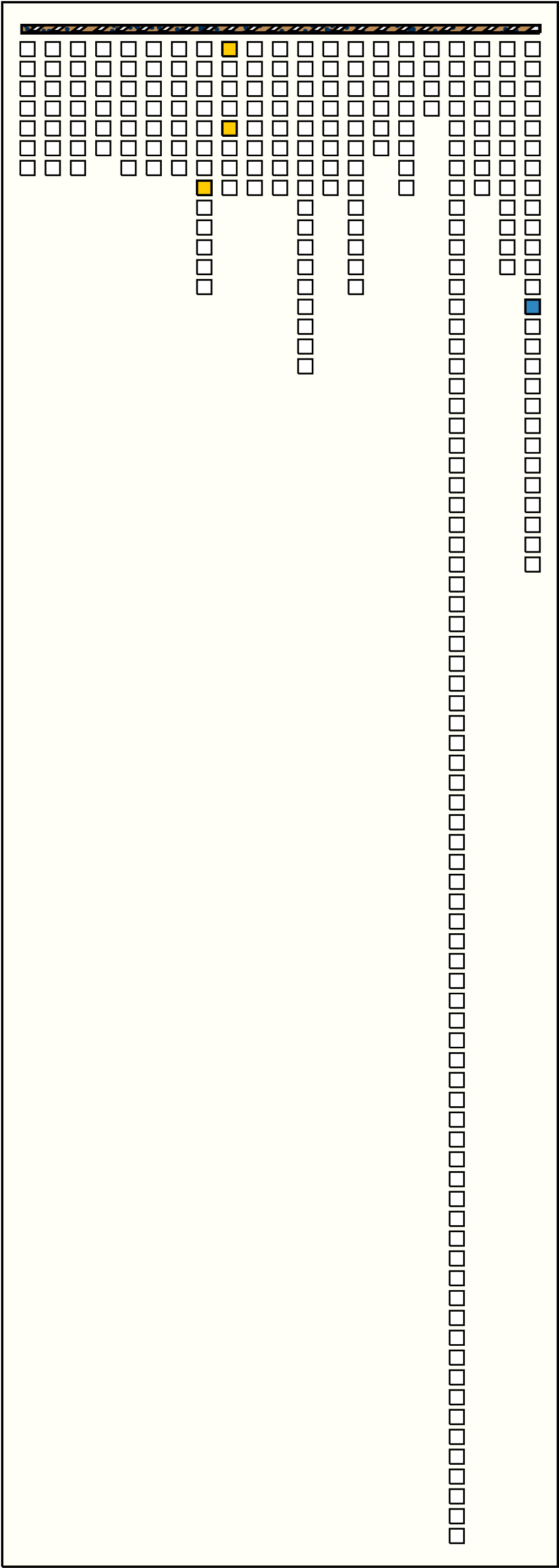

13	p251_{21, 14} : 140_PG	140	3	p56: 100_PG + p62: 20_PG + p66: 20_PG
14	p252_{21, 15} : 100_YB	100	3	p137: 10_YB + p138: 50_YB + p140: 40_YB

Khipu Notes:

Museum Notes

Museum Description: Object on long-term loan from Werner Grünevald (German sugar magnate, spent two decades living in Peru), first lent to the museum in April, 2017 by Grünevald (still alive as of August '18) after initial restoration of the khipu by the Landesmuseum Hannover in March, 2017. The object is Grünevald's only khipu (as he primarily collected ceramics and textiles) and has never before been lent to an institution. He would like to place it in an institution that will take long-term care of the artifact, meaning that the long-term loan is likely to convert to a donation upon Grünevald's death. The khipu was recently mounted by Jan Hoffman (head conservator) with plans to hang the khipu in a frame in the permanent exhibition next to the Gretzer khipus (AS10-AS13).
Provenance: Bought from Gerente del Banco in Chocope in 1969. The merchant attributed the khipu to Huacho and referred to it as "Chancay/Inka."

Primary Cord

Fiber: CN - Cotton (confirmed by the Landesmuseum Hannover using chemical sourcing methods, but only for a select sample of cords)

Cord Notes:

93: Color change from YB to PB occurs during last turn of 6L long knot (see photo)
137: Loop begins after cord 137, color PK, ties back to primary cord after pendant 141 (see photo)
144: Incomplete unwraveled former mottled cord (see photo)
183/184: Loop pendants which reaches length of approx. 4.0cm before turning back and re-attaching to primary cord
239s1: Subsidiary broken at attachment to pendant 239
247: Attachment knot unknown because pendant 247 is attached under pendant 246, which makes the attachment ambiguous (unclear if attached to primary cord or if 247 is actually a subsidiary to 246, but I think it's more likely a pendent than a subsidiary)
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon)
(Manuel Medrano)
