QU009/KH0597 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

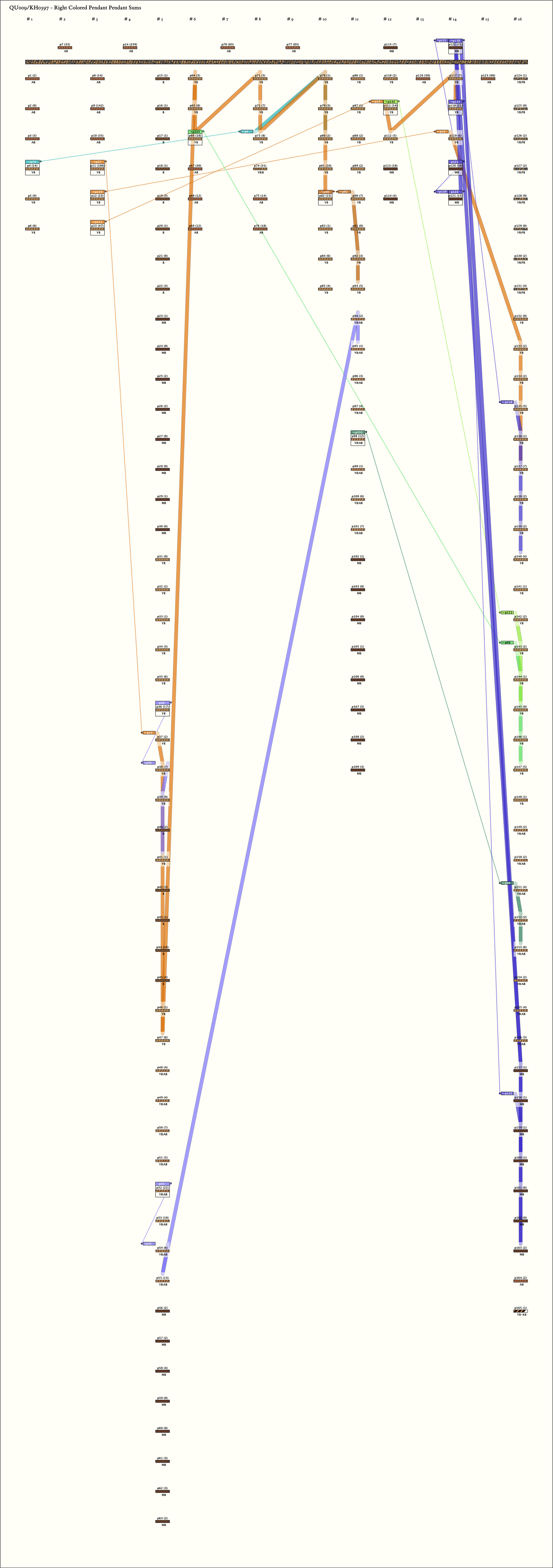

Right Handed Sums: # Sums = 14, Max # Summands = 17, (Min, Mean, Max) Sum Values = (11, 27, 106)
Click on Image to View Larger

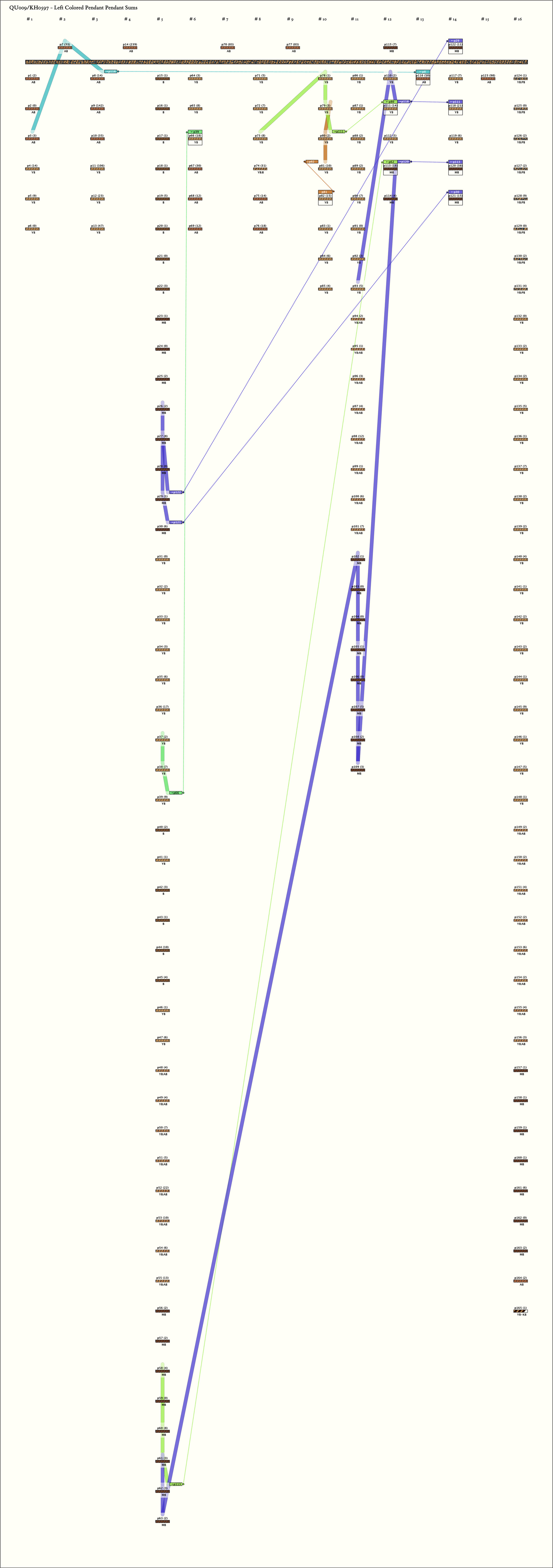

Left Handed Sums: # Sums = 9, Max # Summands = 9, (Min, Mean, Max) Sum Values = (11, 22, 50)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

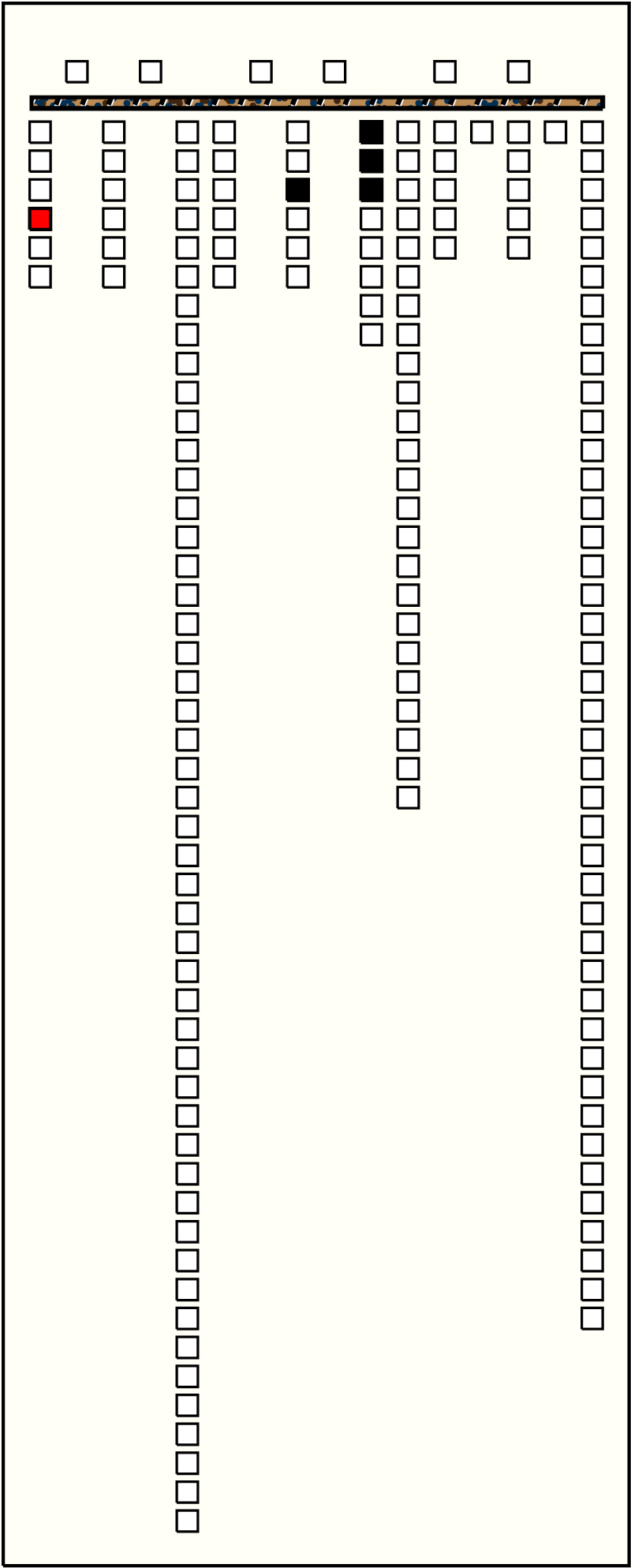

1	p4_{1, 4} : 14_YB	14	4	p73: 8_YB + p78: 1_YB + p79: 3_YB + p80: 2_YB

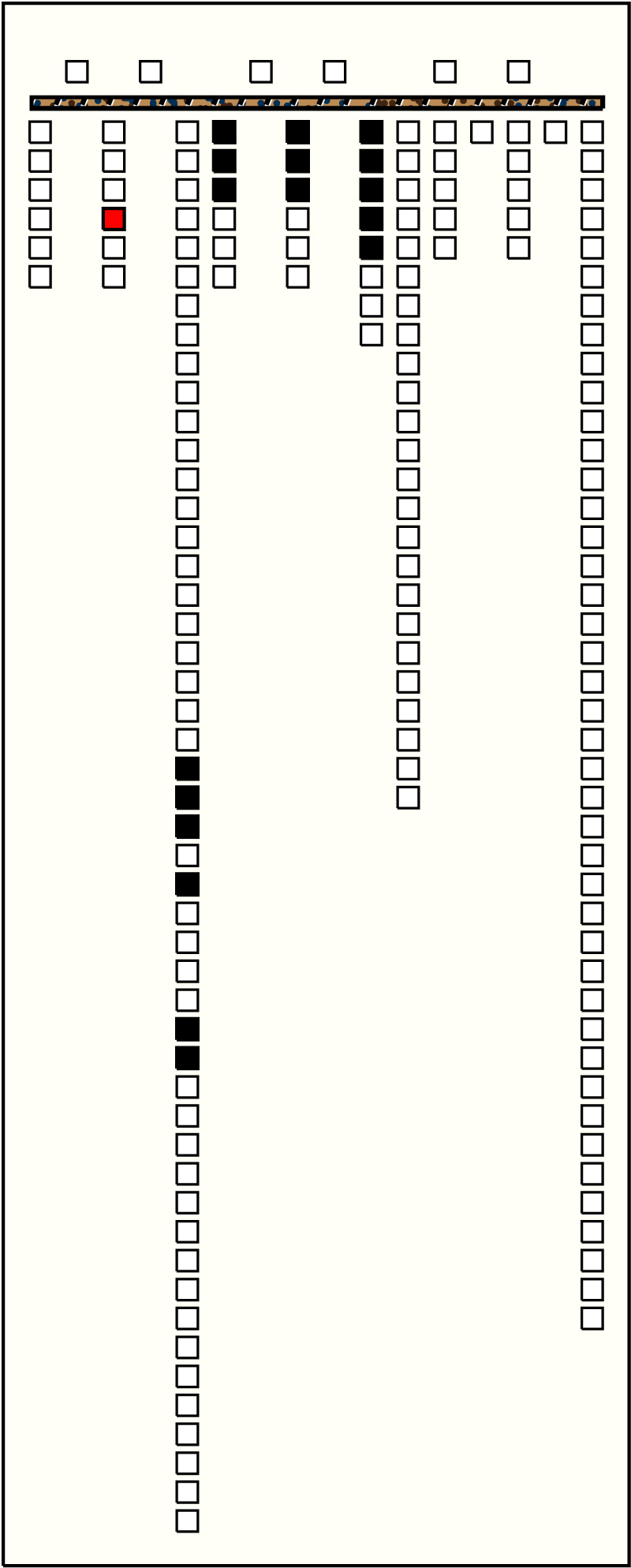

2	p11_{3, 4} : 106_YB	106	17	p37: 2_YB + p38: 7_YB + p39: 9_YB + p41: 1_YB + p46: 1_YB + p47: 6_YB + p64: 3_YB + p65: 8_YB + p66: 18_YB + p71: 5_YB + p72: 7_YB + p73: 8_YB + p78: 1_YB + p79: 3_YB + p80: 2_YB + p81: 10_YB + p82: 15_YB

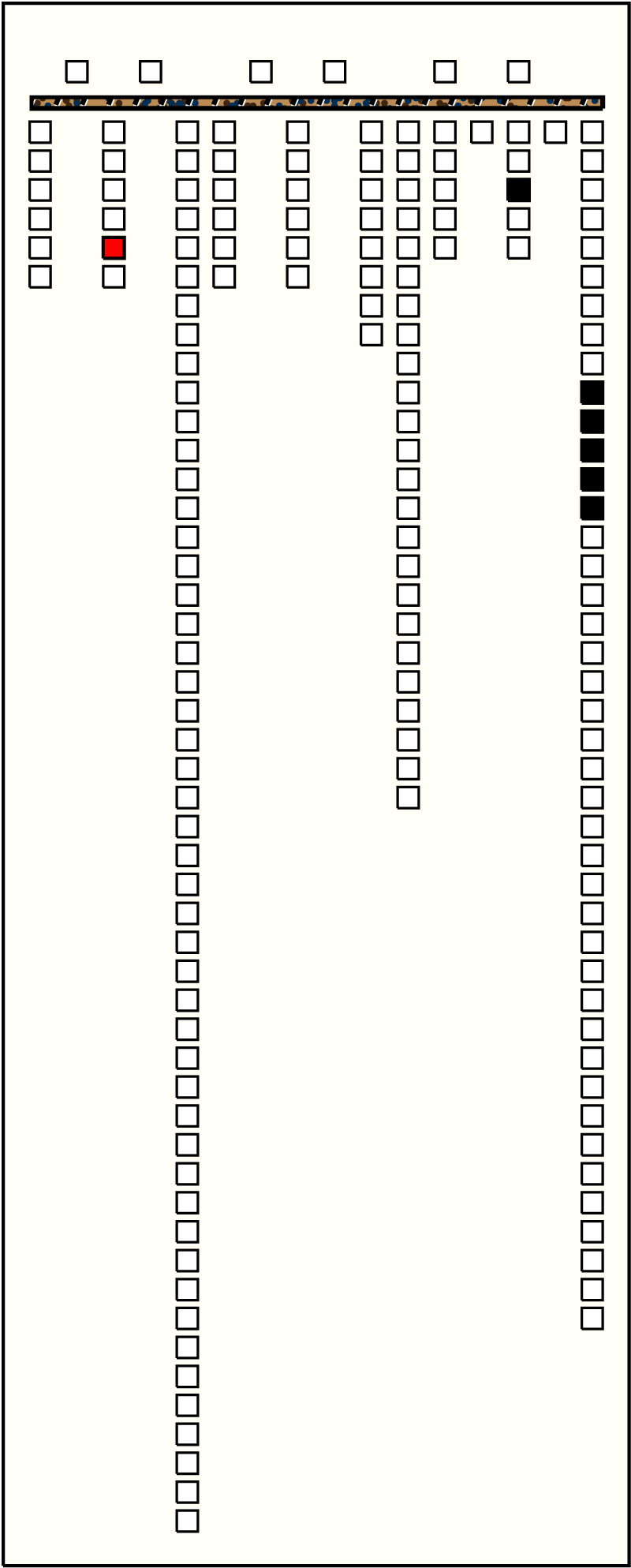

3	p12_{3, 5} : 23_YB	23	6	p119: 6_YB + p133: 2_YB + p134: 2_YB + p135: 5_YB + p136: 1_YB + p137: 7_YB

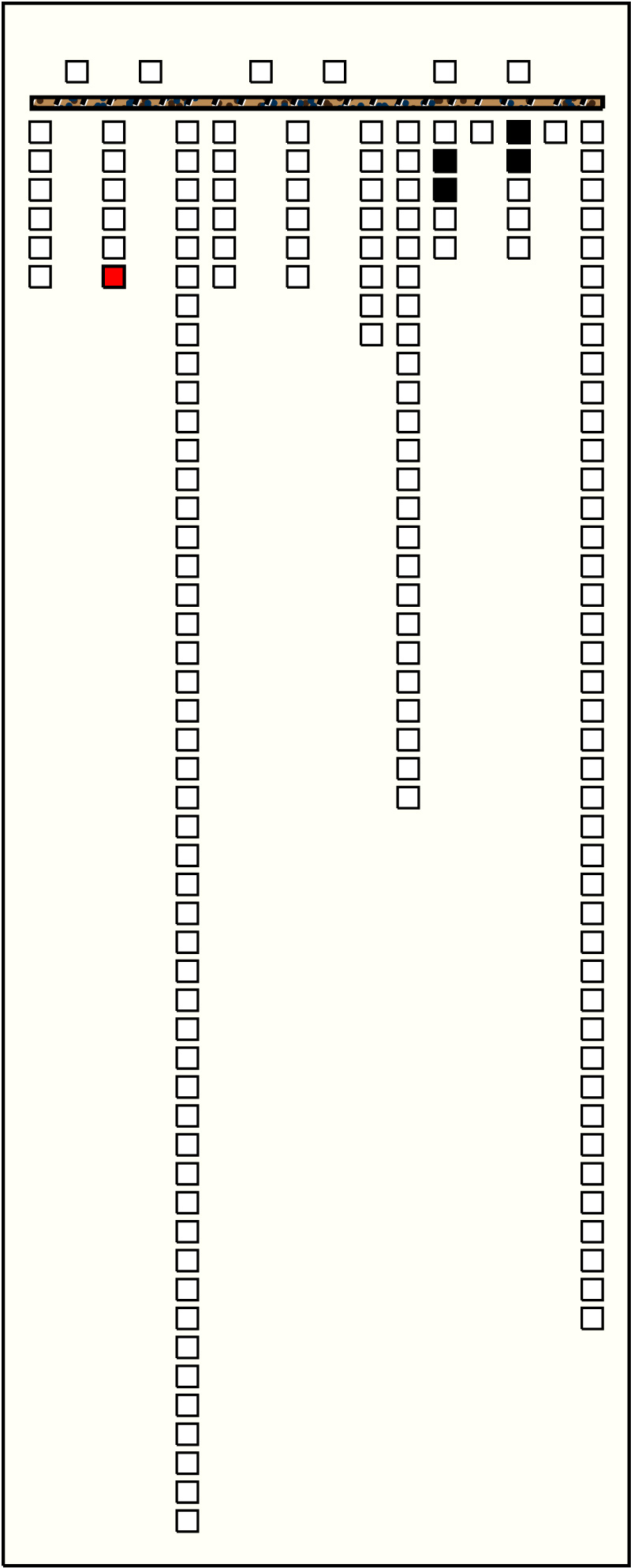

4	p13_{3, 6} : 47_YB	47	4	p111: 14_YB + p112: 5_YB + p117: 7_YB + p118: 21_YB

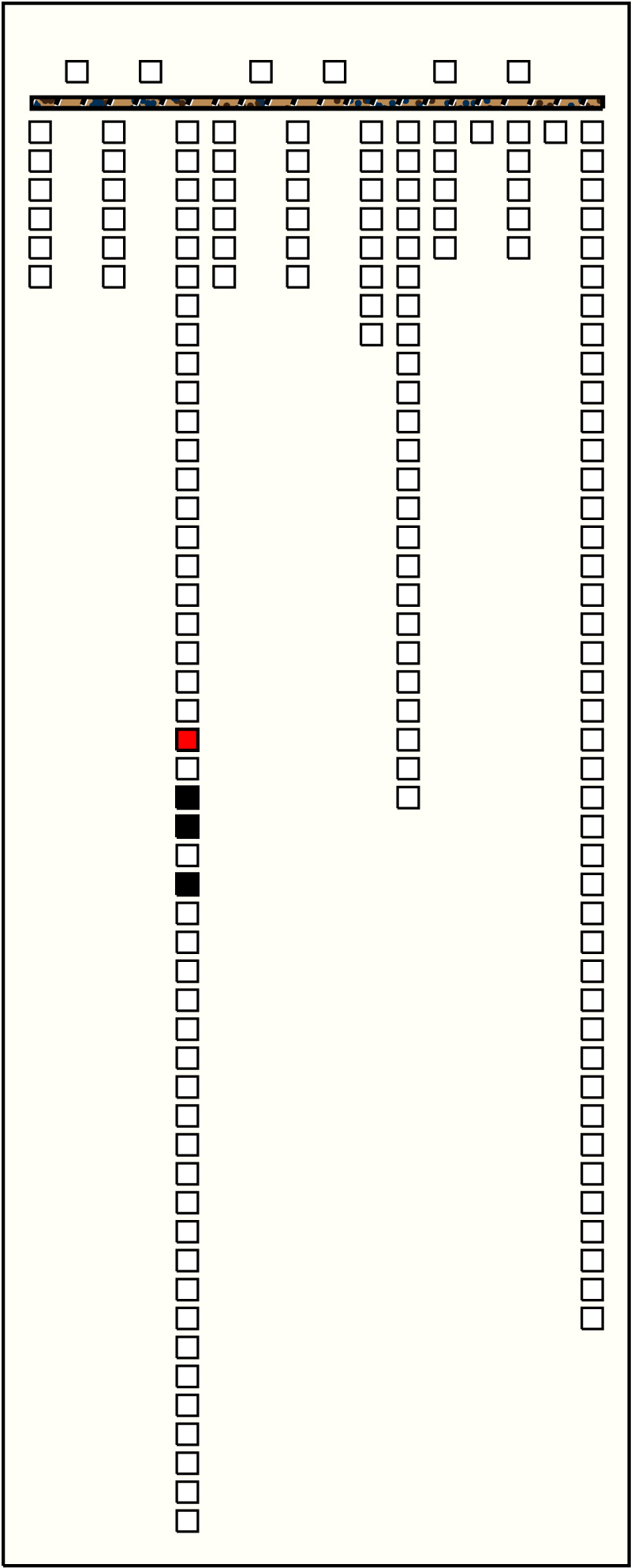

5	p36_{5, 22} : 17_YB	17	3	p38: 7_YB + p39: 9_YB + p41: 1_YB

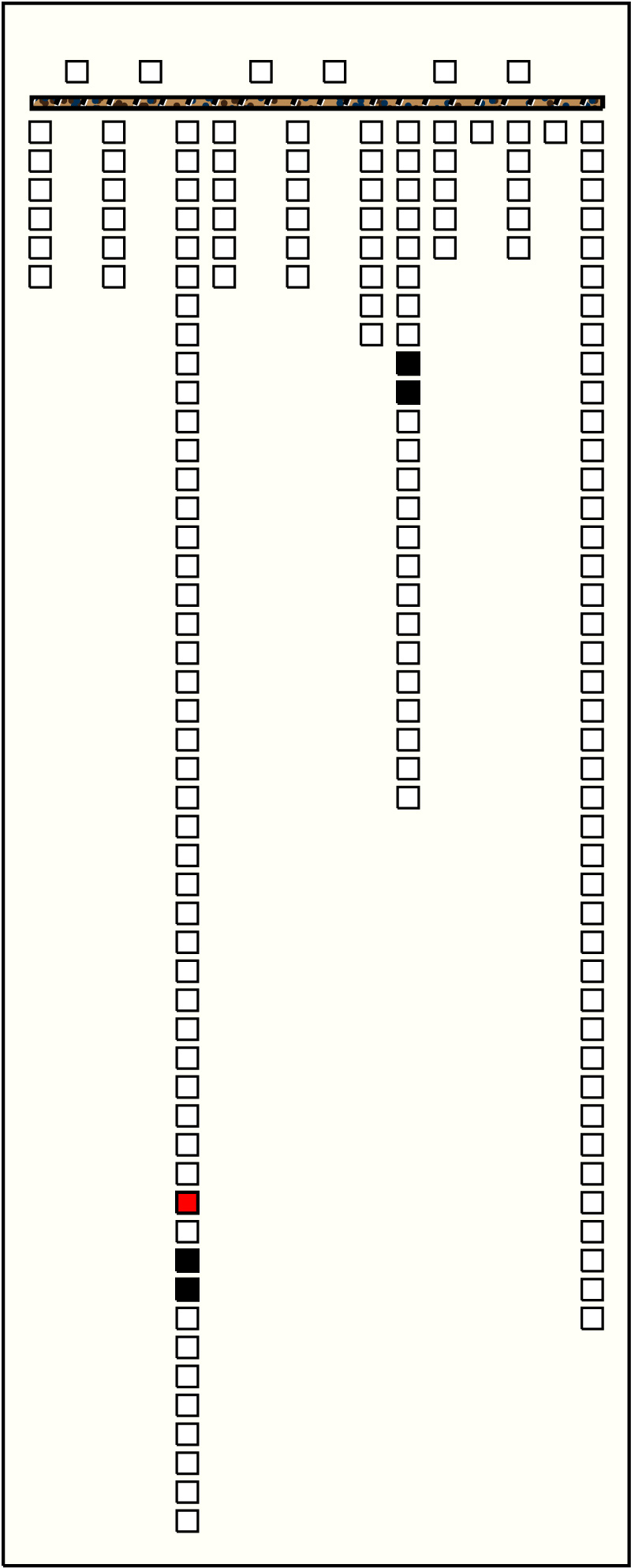

6	p52_{5, 38} : 22_YB:AB	22	4	p54: 6_YB:AB + p55: 13_YB:AB + p94: 2_YB:AB + p95: 1_YB:AB

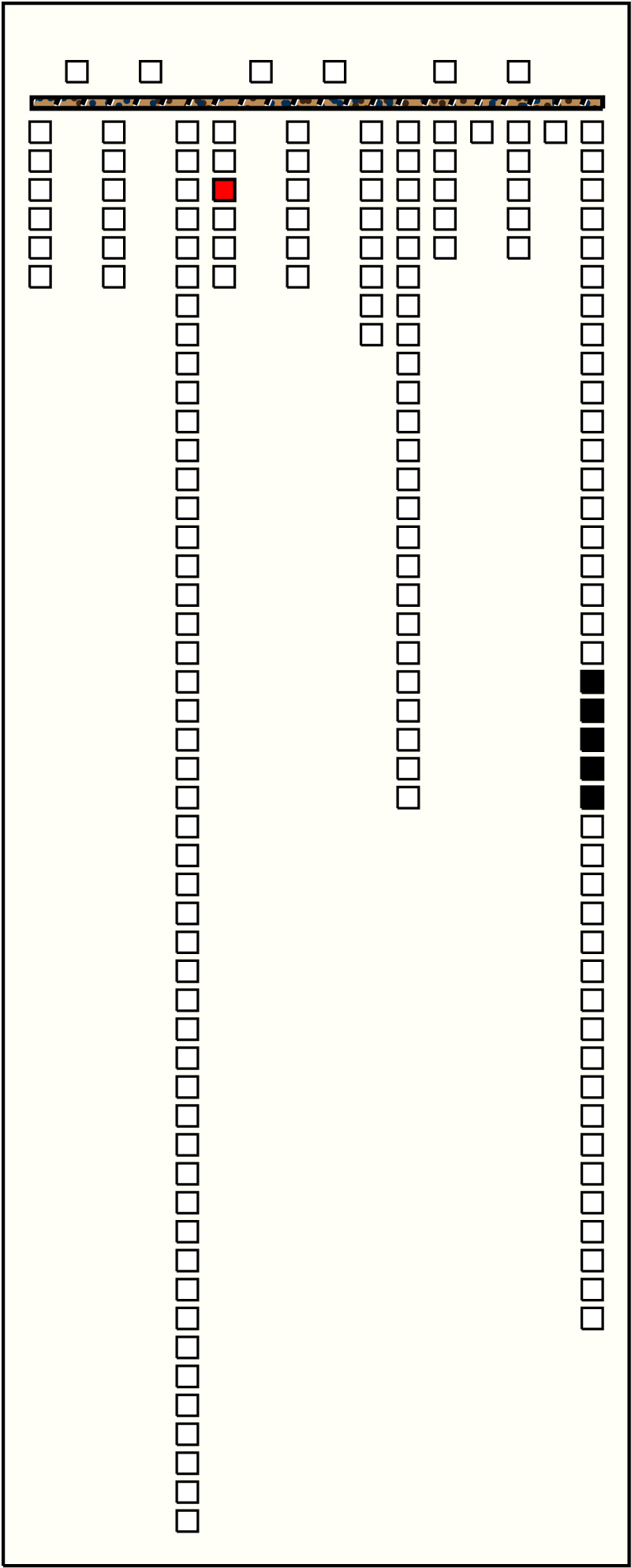

7	p66_{6, 3} : 18_YB	18	5	p143: 2_YB + p144: 1_YB + p145: 9_YB + p146: 1_YB + p147: 5_YB

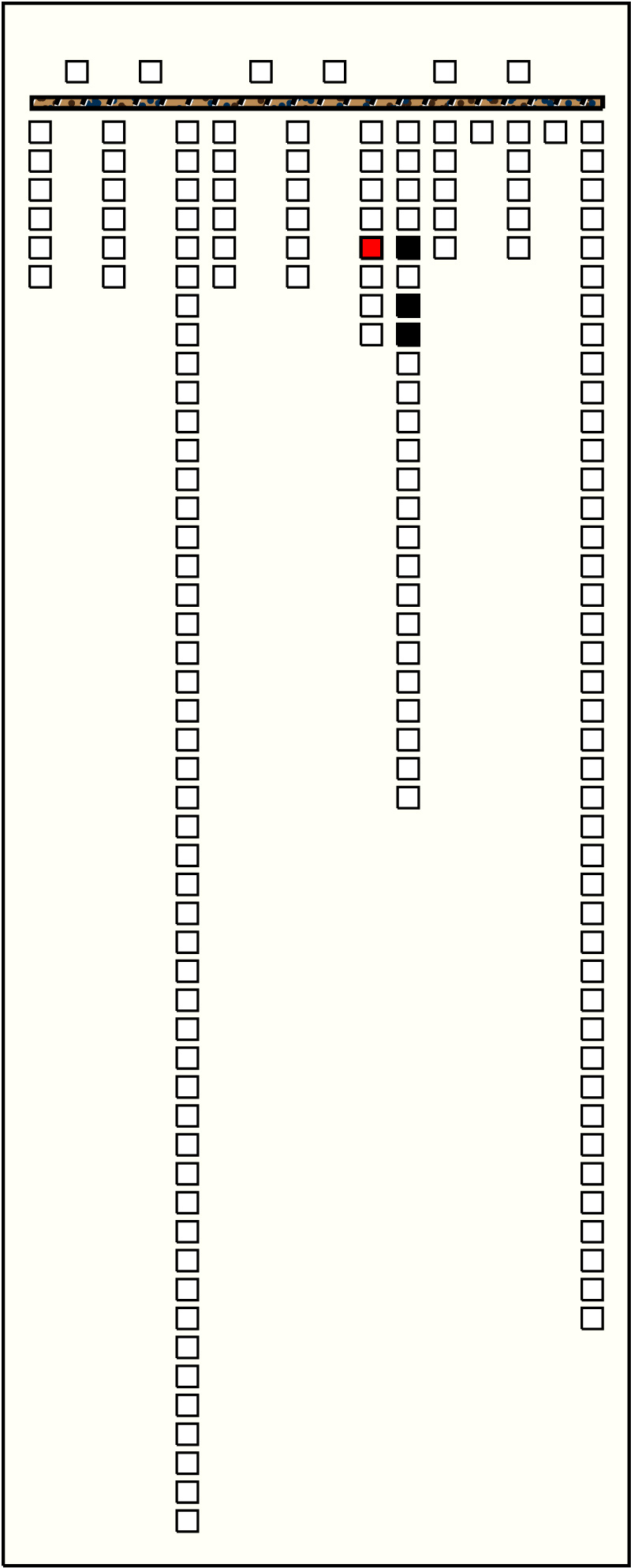

8	p82_{10, 5} : 15_YB	15	3	p90: 7_YB + p92: 3_YB + p93: 5_YB

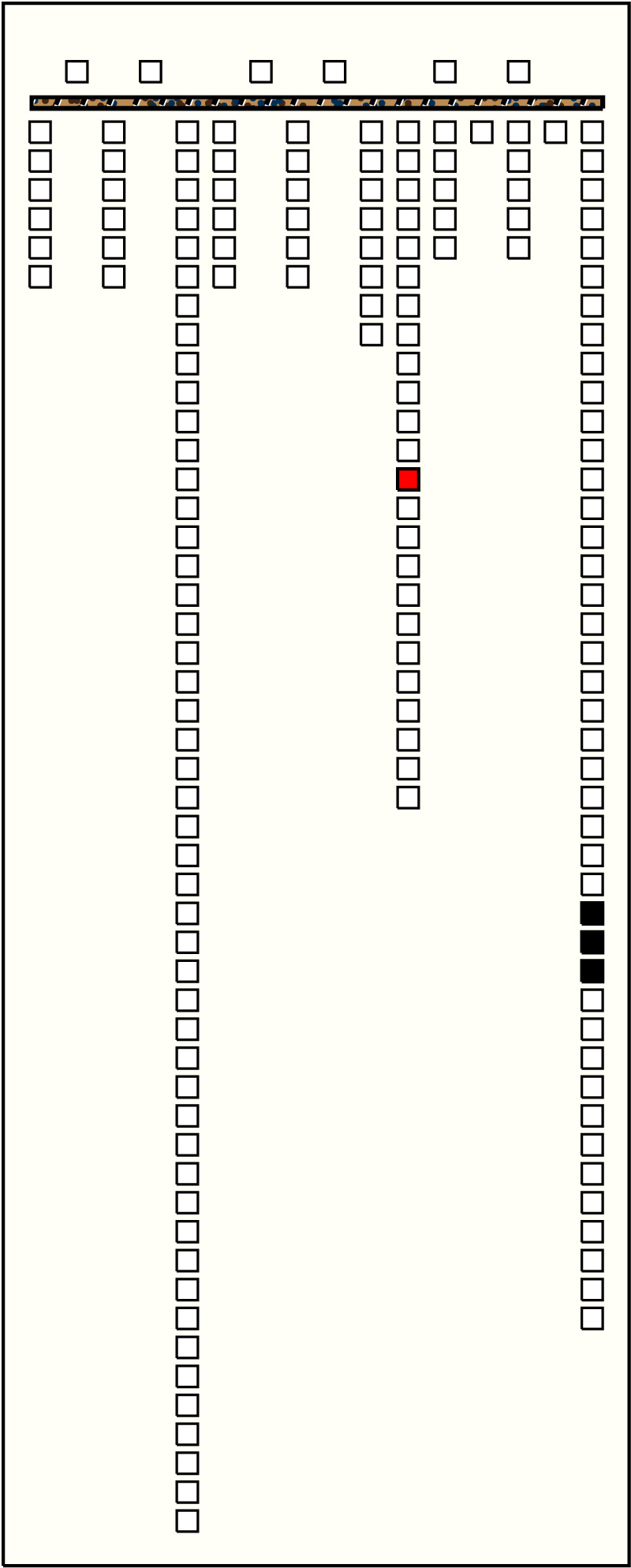

9	p98_{11, 13} : 12_YB:AB	12	3	p151: 4_YB:AB + p152: 2_YB:AB + p153: 6_YB:AB

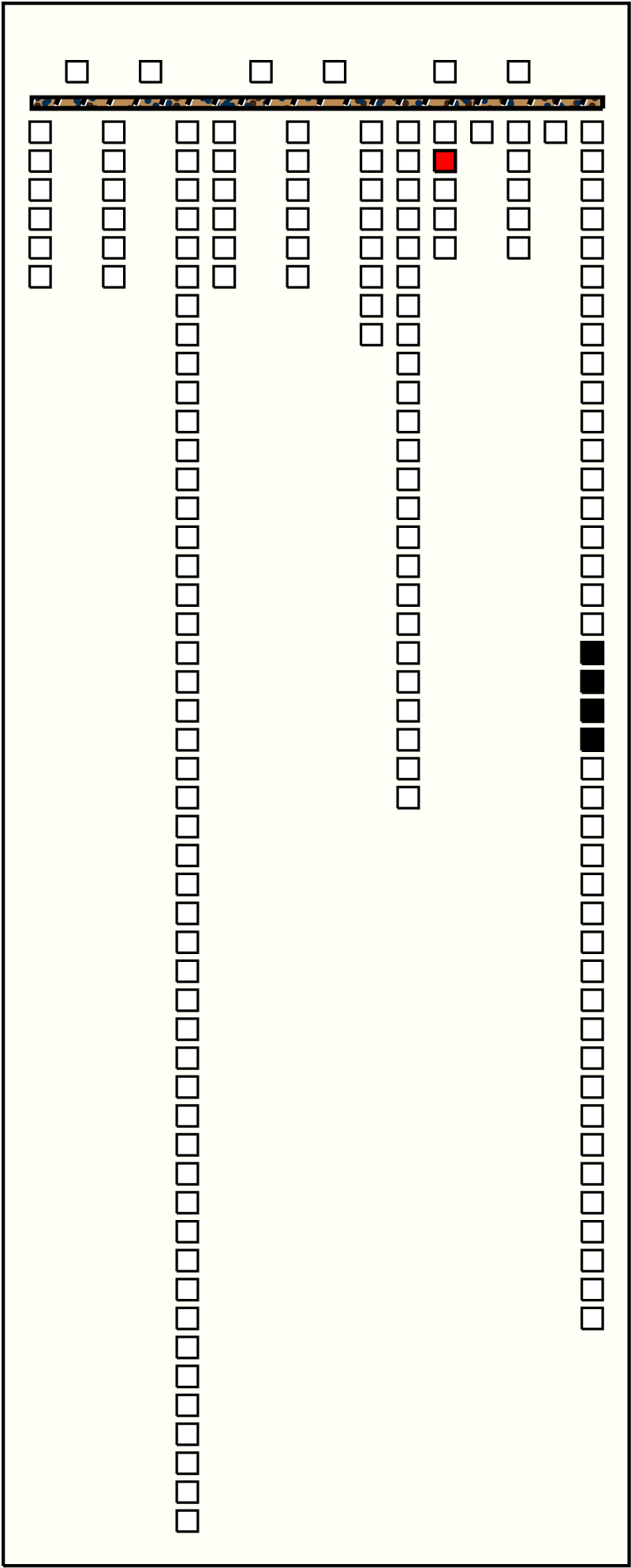

10	p111_{12, 2} : 14_YB	14	4	p142: 2_YB + p143: 2_YB + p144: 1_YB + p145: 9_YB

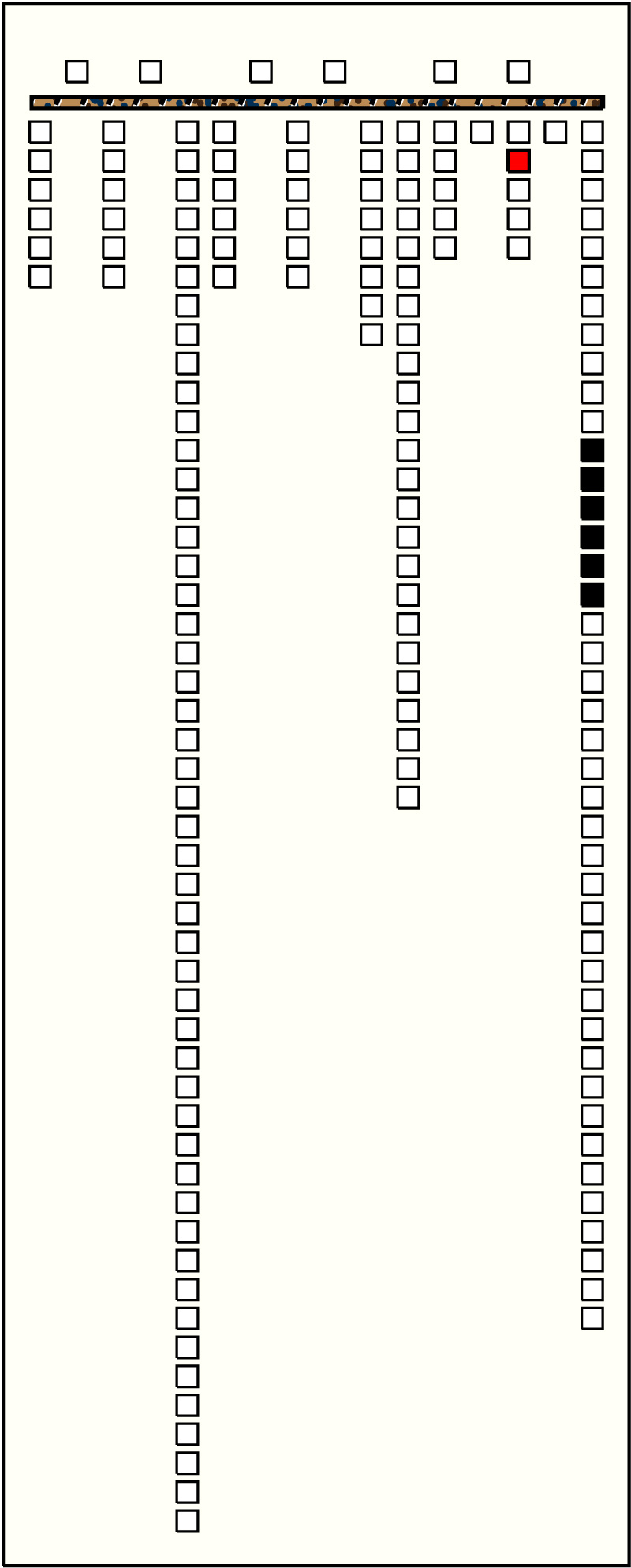

11	p118_{14, 2} : 21_YB	21	6	p135: 5_YB + p136: 1_YB + p137: 7_YB + p138: 2_YB + p139: 2_YB + p140: 4_YB

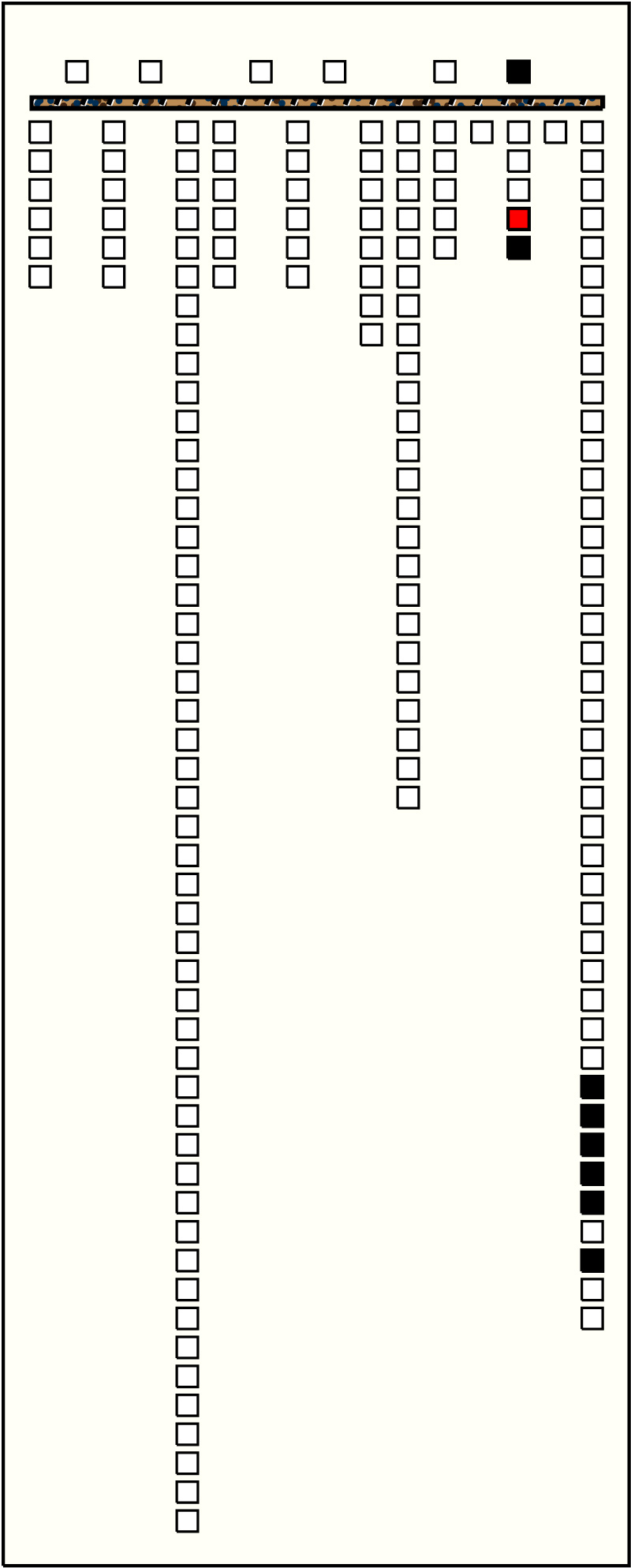

12	p120_{14, 4} : 38_MB	38	8	p121: 15_MB + p122: 11_MB + p157: 1_MB + p158: 1_MB + p159: 1_MB + p160: 1_MB + p161: 6_MB + p163: 2_MB

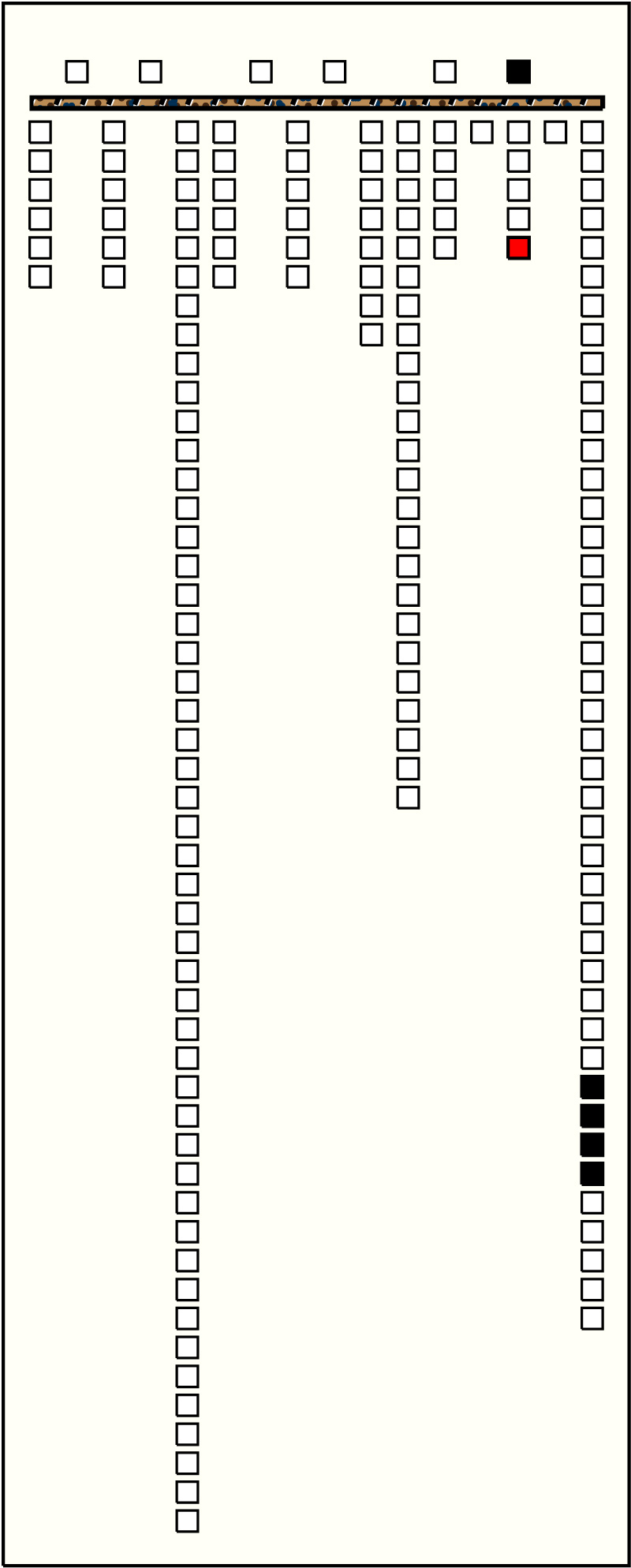

13	p121_{14, 5} : 15_MB	15	5	p122: 11_MB + p157: 1_MB + p158: 1_MB + p159: 1_MB + p160: 1_MB

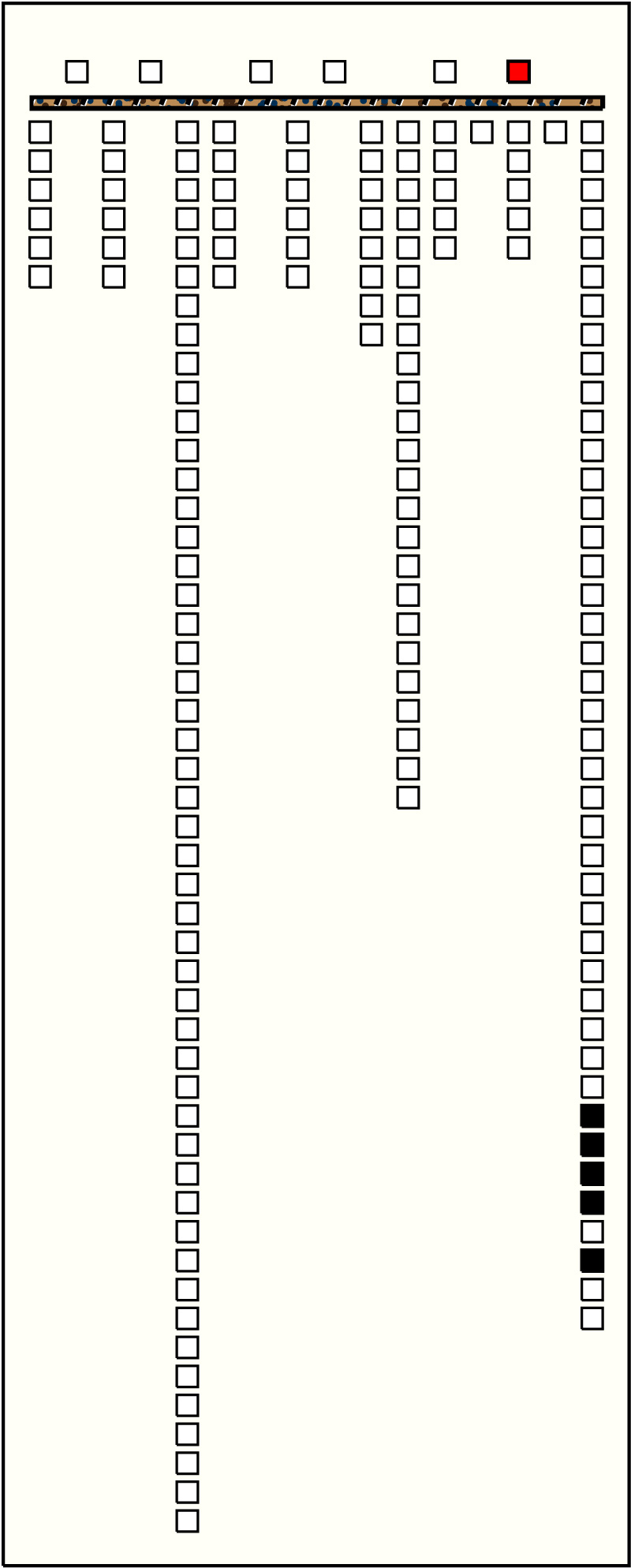

14	p122_{14, 6} : 11_MB	11	5	p158: 1_MB + p159: 1_MB + p160: 1_MB + p161: 6_MB + p163: 2_MB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

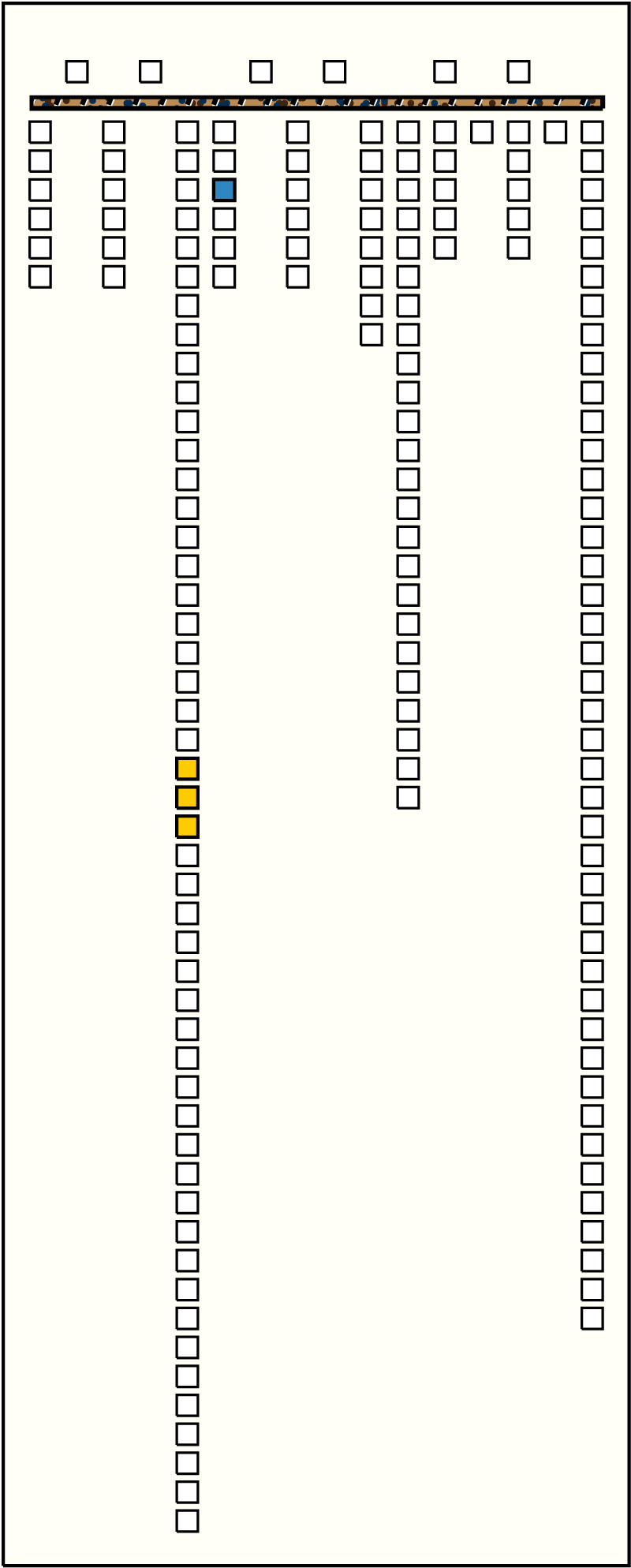

1	p66_{6, 3} : 18_YB	18	3	p37: 2_YB + p38: 7_YB + p39: 9_YB

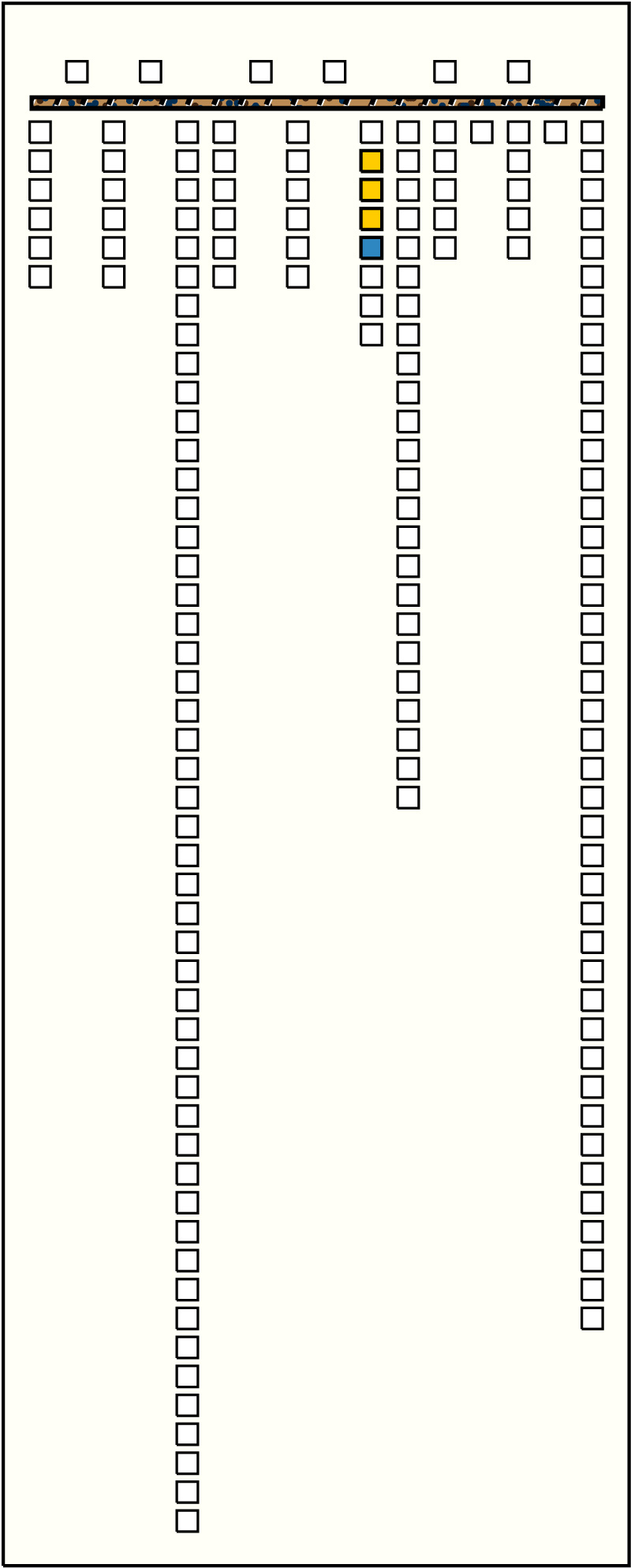

2	p82_{10, 5} : 15_YB	15	3	p79: 3_YB + p80: 2_YB + p81: 10_YB
3	p111_{12, 2} : 14_YB	14	4	p73: 8_YB + p78: 1_YB + p79: 3_YB + p80: 2_YB

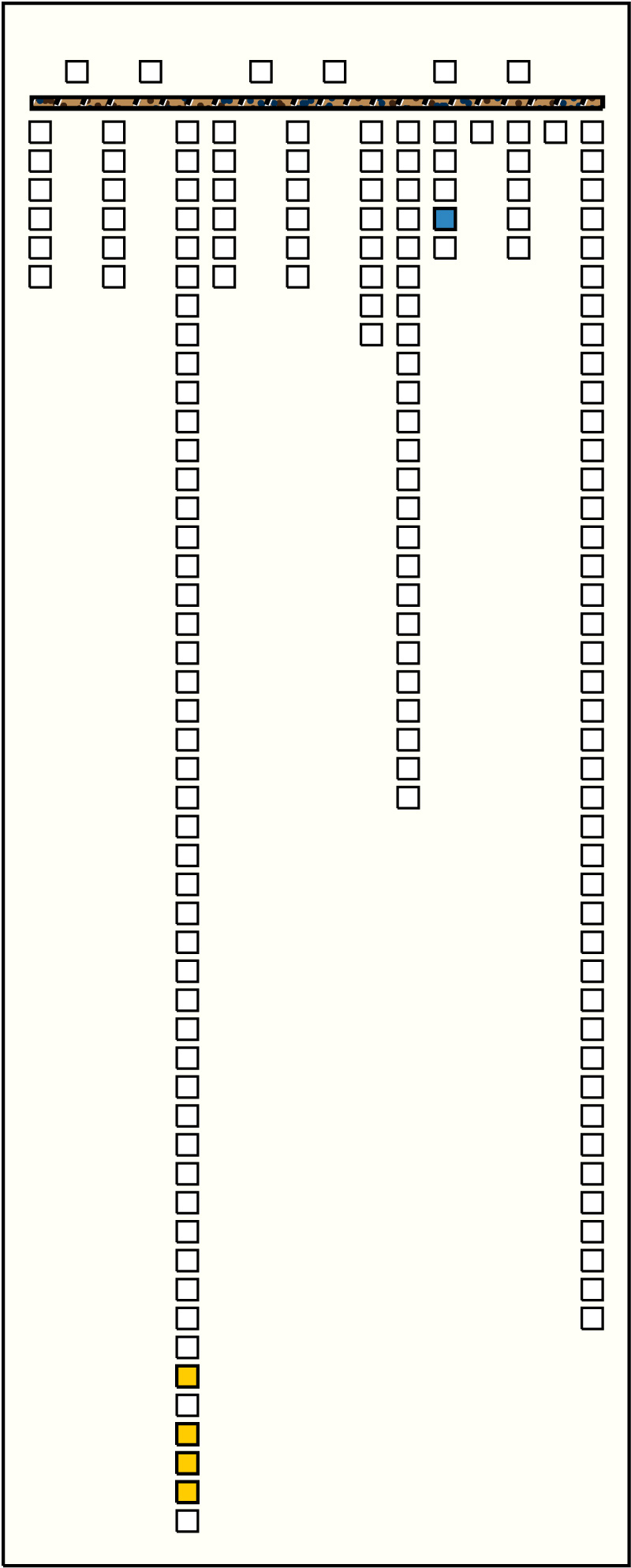

4	p113_{12, 4} : 18_MB	18	4	p58: 4_MB + p60: 8_MB + p61: 3_MB + p62: 3_MB

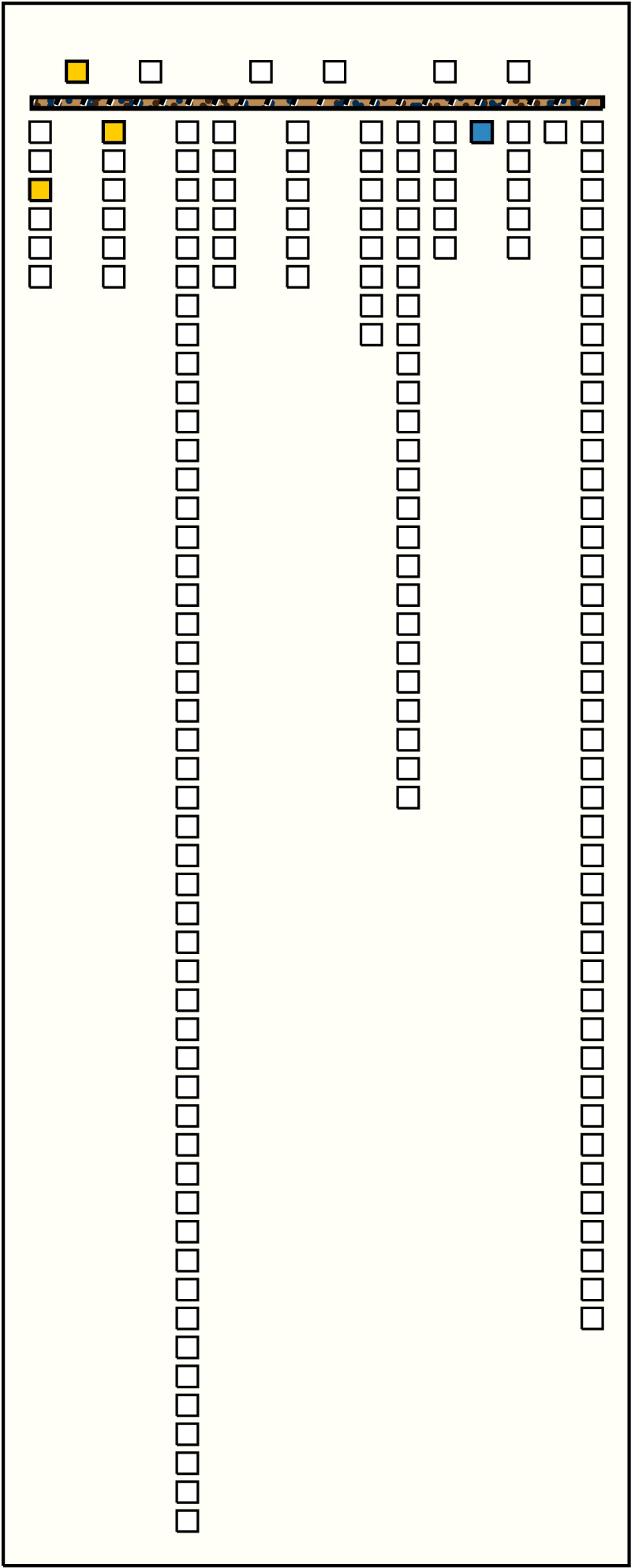

5	p116_{13, 1} : 50_AB	50	3	p3: 3_AB + p7: 33_AB + p8: 14_AB
6	p118_{14, 2} : 21_YB	21	3	p93: 5_YB + p110: 2_YB + p111: 14_YB

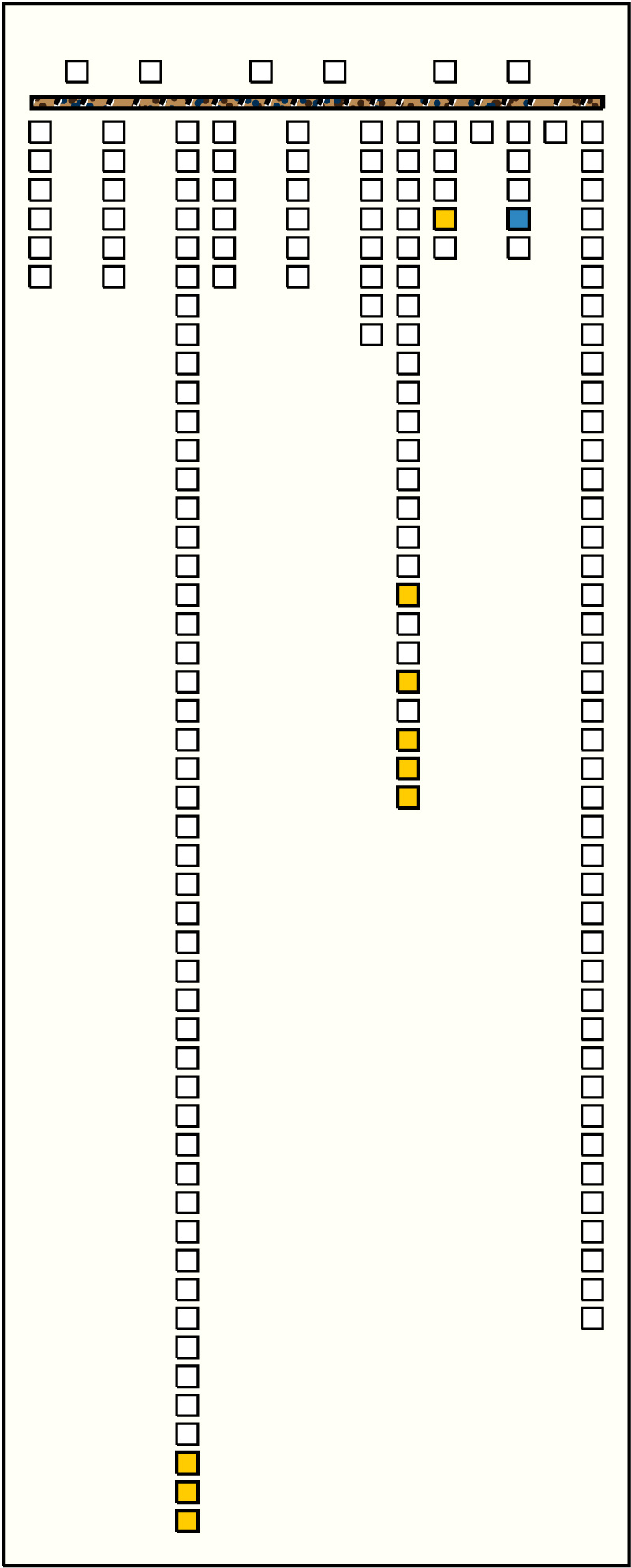

7	p120_{14, 4} : 38_MB	38	9	p61: 3_MB + p62: 3_MB + p63: 2_MB + p102: 1_MB + p105: 1_MB + p107: 5_MB + p108: 2_MB + p109: 3_MB + p113: 18_MB

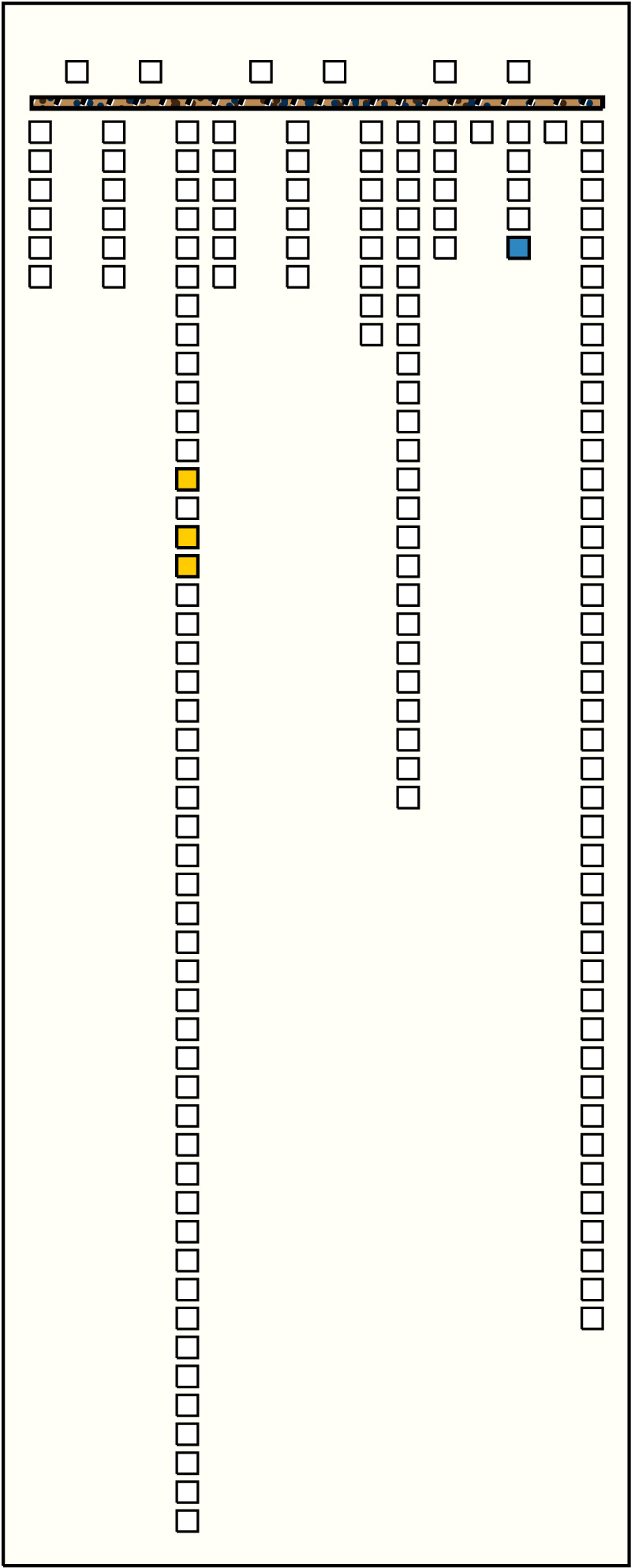

8	p121_{14, 5} : 15_MB	15	3	p27: 8_MB + p29: 1_MB + p30: 6_MB

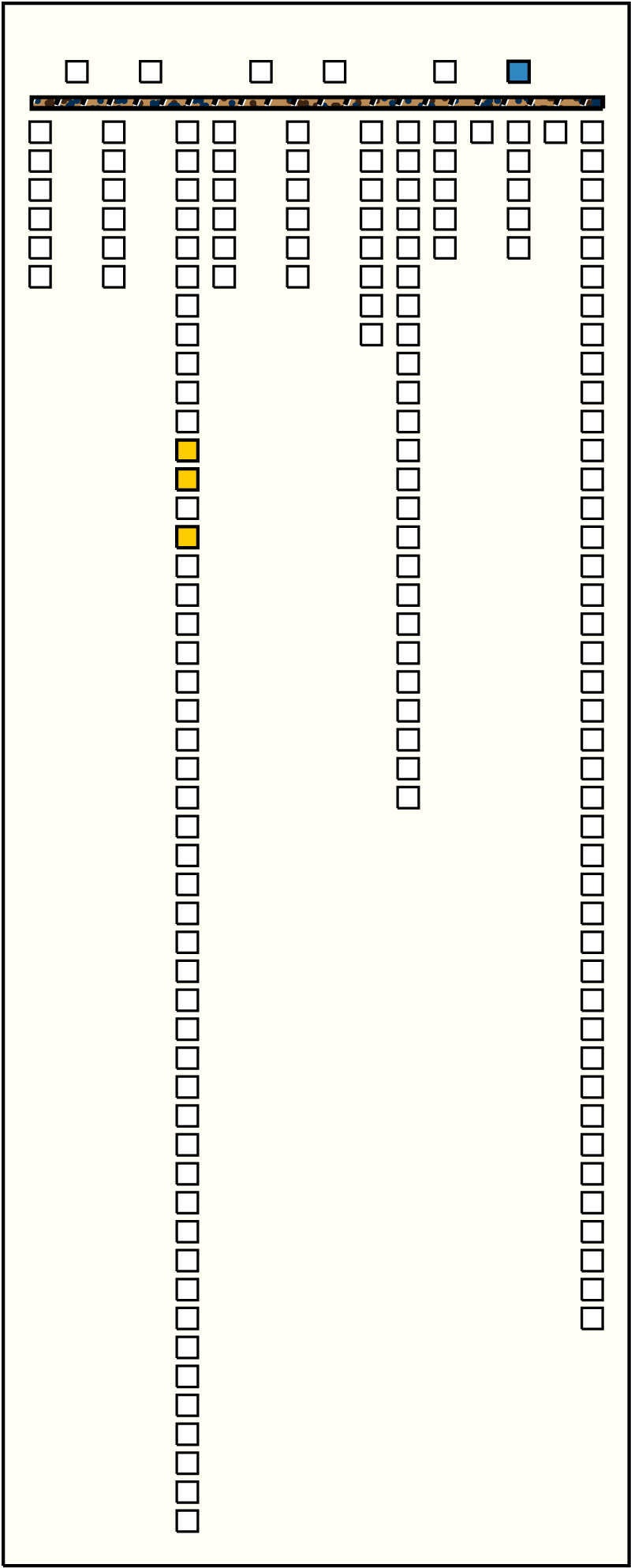

9	p122_{14, 6} : 11_MB	11	3	p26: 2_MB + p27: 8_MB + p29: 1_MB

Khipu Notes:

Khipu with top and subsidiary cords
Whole khipu - main cord has one plied end and one tied off.
Looped top cords all represent or could represent (Grp 1 is short by 5 but one P is broken) the sum of the pendant knots (subsidiaries not included in value).
The order of top cord values is: 1- 33; 2- 239; 4-83; 5- 83 (4 and 5 have no space between); 8- 50; 9-98.
Groups without looped top cords: 3- 203; 6- 41 (+1E +4L); 7- 69; 10- 110. Knot total for looped groups= 586, non-looped=423 (+5?). Total knot count, excluding 3 loose cords=1009 (+5?).
Colors mostly occur in groups of strings with same hue.
All subsidiaries are attached below the units register, except for 69A.
All subsidiaries are attached in the recto, except 113A, which is in verso.
Many pendants have bends that look like they were retied at some point in the past.
Group 10 has an abundance of 2L knots.
* Strings 29 and 126 look like were made by looping a spun strand around main cord and then plying it. Are short and knotted at end with an overhand knot. Perhaps served as a placemarker.
There are 10 groups of pendants and the knot sum is near 1000. Khipu could be related to the census.Guaman Poma illustrated the 10 stages of life (not in years, but in ability to work) for females and males. Could each group tell of which ayllus had individuals capable of each stage of work and maybe how they fulfilled that tribute?
