UR1033D/KH0038 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Right-Handed Sum Detail
This Khipu's Fieldmark Catalog	Khipu Notes

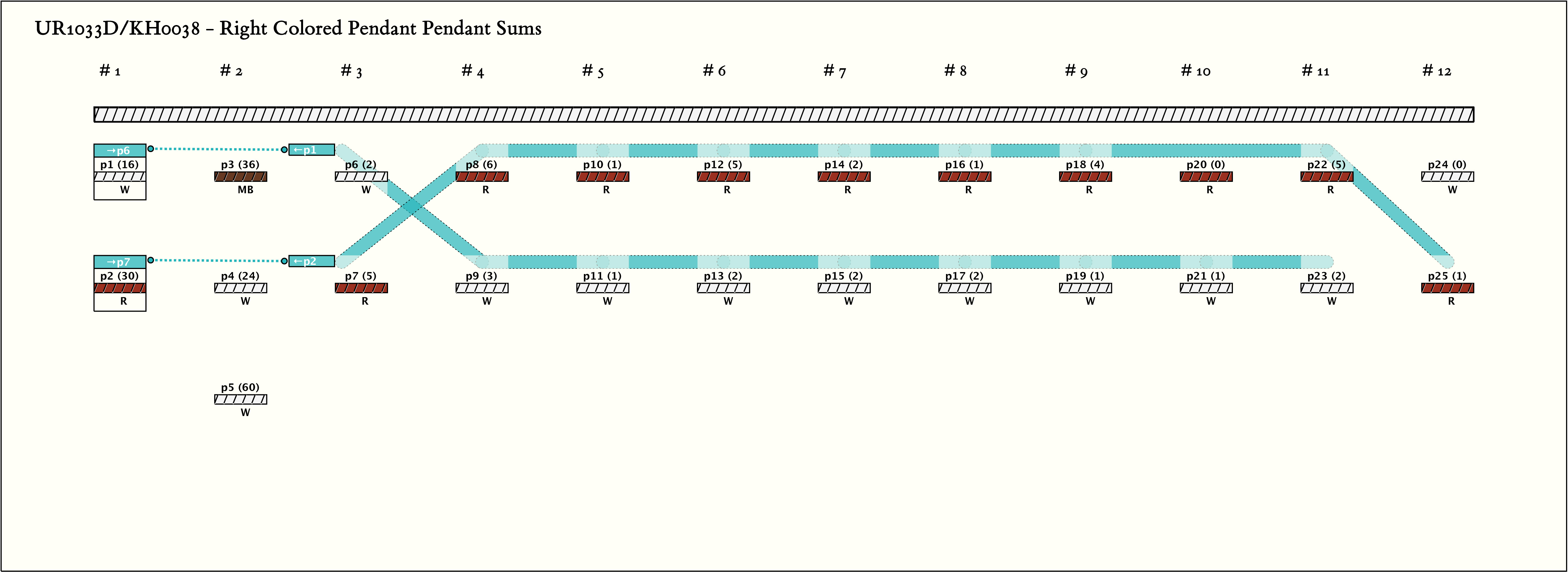

This Khipu's Drawing

Right Handed Sums:     # Sums = 2,  Max # Summands = 9,   (Min, Mean, Max) Sum Values = (16, 23, 30)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p11, 1 : 16W	16	9	p6: 2W + p9: 3W + p11: 1W + p13: 2W + p15: 2W + p17: 2W + p19: 1W + p21: 1W + p23: 2W
2			p21, 2 : 30R	30	9	p7: 5R + p8: 6R + p10: 1R + p12: 5R + p14: 2R + p16: 1R + p18: 4R + p22: 5R + p25: 1R

Khipu Notes:

Ascher Databook Notes:

1. Construction note: Pendants 1 and 2 are tied to the end of the main cord.
2. Construction note: Pendants 3 and 4 are linked together by pendant 3 being tied around pendant 4.
3. This khipu is part of the collection of 7 connected khipus numbered UR1033A-UR1033G.
4. After the first 5 pendants, there are 10 groups of 2 pendants each by spacing.
   Each group has a W pendant and an R pendant.
   Groups 2-9 are R, W, while groups 1 and 10 are W, R.
5. The values on the pendants in the 10 groups are 0-6.
6. Pendant 1 is W and its value is the sum of the W pendants in groups 1-10.
   Pendant 2 is R, and its value is the sum of the R pendants in groups 1-10.
7. Pendant 5 is the sum of pendants 3 and 4.
