UR1146/KH0162 - Colored Pendant Sum

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Relationships	Right-Handed X-Ray
All Colored Pendant Sum Relationships	Left-Handed X-Ray
This Khipu's Ascher Sum Relationships	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 15, Max # Summands = 9, (Min, Mean, Max) Sum Values = (11, 16, 64)
Click on Image to View Larger

Left Handed Sums: # Sums = 3, Max # Summands = 3, (Min, Mean, Max) Sum Values = (13, 15, 16)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p1_{1, 1} : 11_YB	11	3	p101: 6_YB + p102: 4_YB + p103: 1_YB

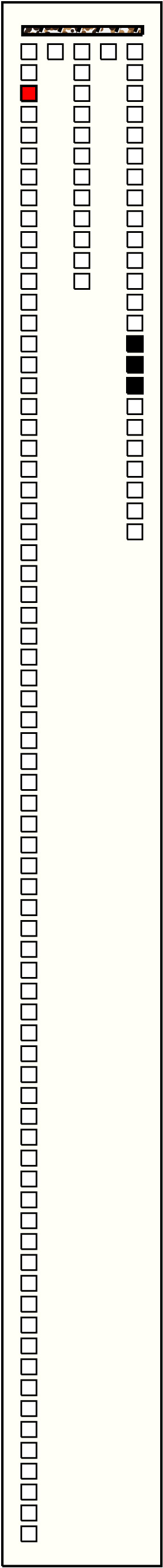

2	p3_{1, 3} : 11_YB	11	3	p101: 6_YB + p102: 4_YB + p103: 1_YB
3	p4_{1, 4} : 11_YB	11	3	p101: 6_YB + p102: 4_YB + p103: 1_YB

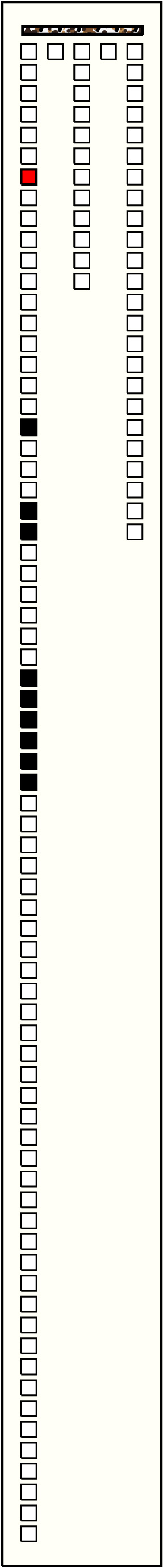

4	p7_{1, 7} : 64_B	64	9	p19: 13_B + p23: 5_B + p24: 5_B + p31: 17_B + p32: 3_B + p33: 6_B + p34: 6_B + p35: 6_B + p36: 3_B

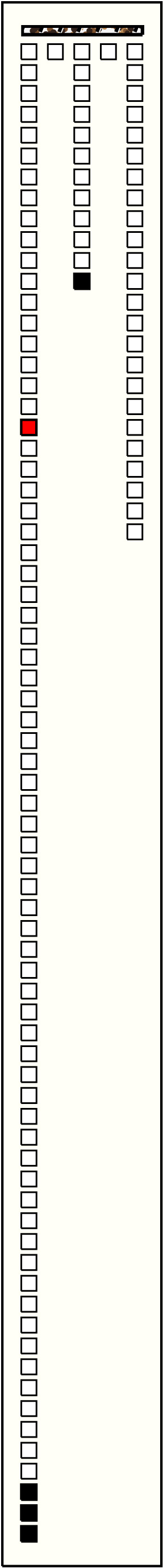

5	p19_{1, 19} : 13_B	13	4	p70: 3_B + p71: 2_B + p72: 6_B + p85: 2_B

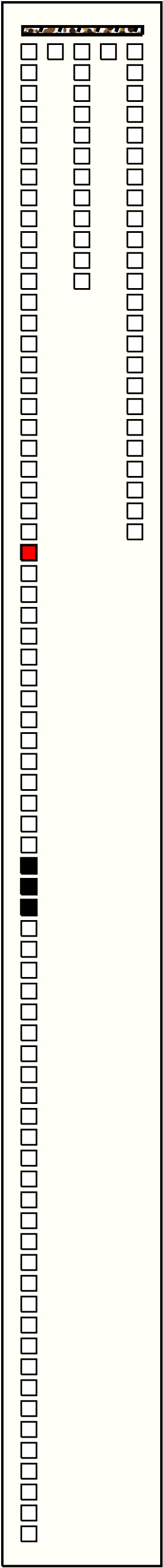

6	p25_{1, 25} : 13_YB	13	3	p40: 4_YB + p41: 5_YB + p42: 4_YB

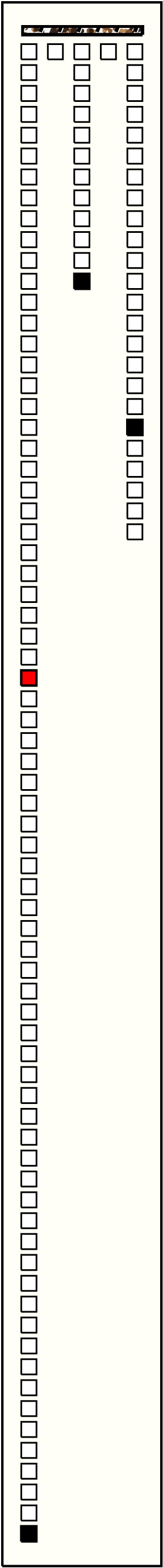

7	p31_{1, 31} : 17_B	17	3	p72: 6_B + p85: 2_B + p105: 9_B

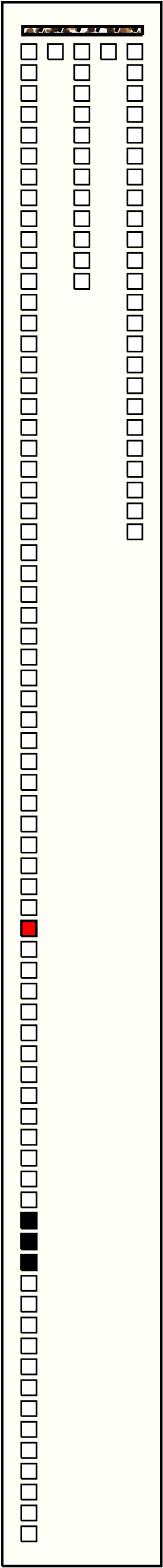

8	p43_{1, 43} : 15_B	15	3	p57: 6_B + p58: 5_B + p59: 4_B
9	p49_{1, 49} : 12_YB	12	3	p74: 6_YB + p75: 5_YB + p76: 1_YB
10	p50_{1, 50} : 11_YB	11	3	p101: 6_YB + p102: 4_YB + p103: 1_YB

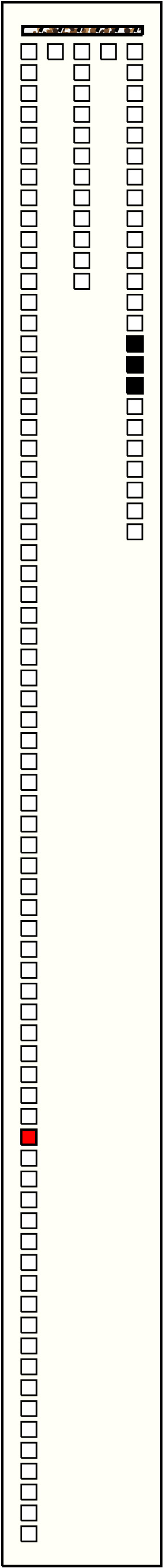

11	p53_{1, 53} : 11_YB	11	3	p101: 6_YB + p102: 4_YB + p103: 1_YB
12	p55_{1, 55} : 14_B	14	3	p56: 3_B + p57: 6_B + p58: 5_B

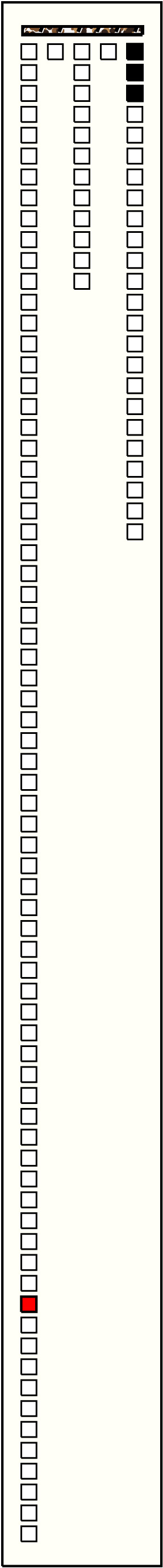

13	p61_{1, 61} : 16_YB	16	3	p87: 9_YB + p88: 5_YB + p89: 2_YB

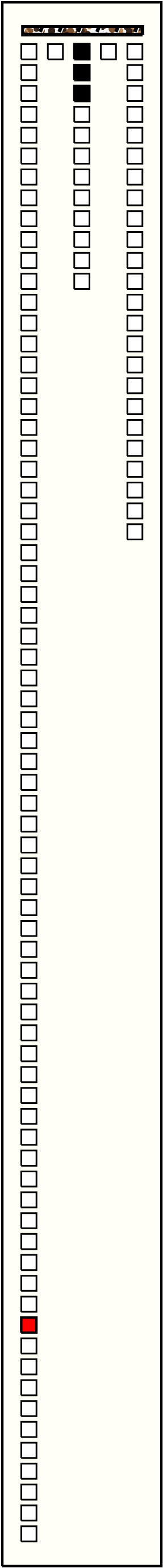

14	p62_{1, 62} : 12_YB	12	3	p74: 6_YB + p75: 5_YB + p76: 1_YB

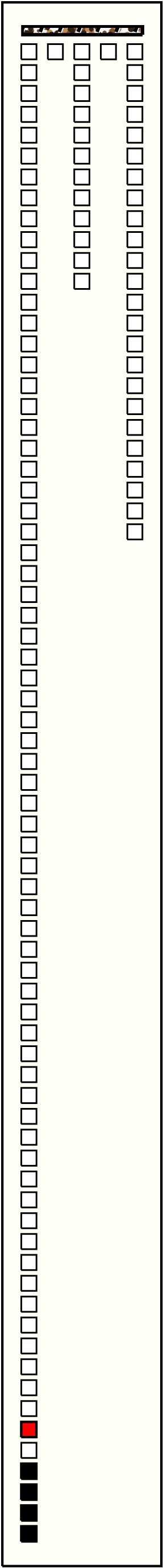

15	p67_{1, 67} : 16_B	16	4	p69: 5_B + p70: 3_B + p71: 2_B + p72: 6_B

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

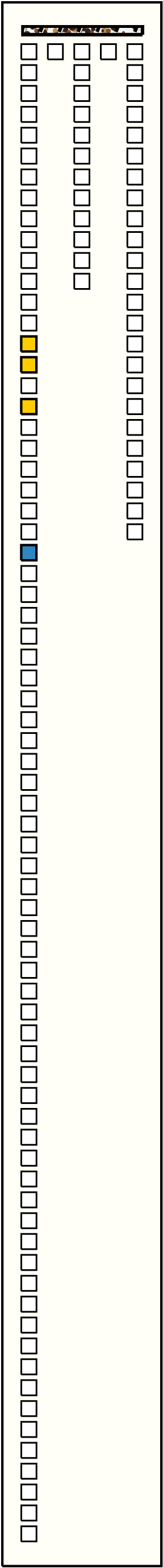

1	p25_{1, 25} : 13_YB	13	3	p15: 4_YB + p16: 5_YB + p18: 4_YB

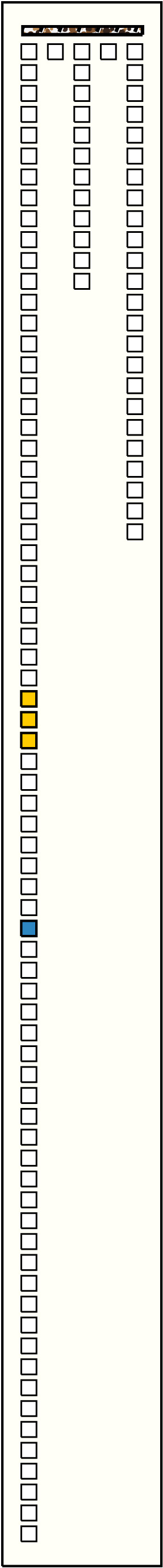

2	p43_{1, 43} : 15_B	15	3	p32: 3_B + p33: 6_B + p34: 6_B
3	p67_{1, 67} : 16_B	16	3	p47: 1_B + p48: 1_B + p55: 14_B

Khipu Notes:

Ascher Databook Notes:

Construction note: The positioning of the knot clusters is not standard. Rather than having all long knot clusters aligned and all single knot clusters aligned, the first knot cluster used is in the highest position. Values have been assigned assuming that the knot cluster positions are "top justified" rather than the usual which is "bottom justified." For example, we usually write numbers "right justified" but can write them "left justified" also. Thus:

541|
23|
47|

left justified

or

|541
|23
|47

right justified
Construction note: The markers are threads wrapped around the main cord. The wrapping extends for about 0.5 cm. along the main cord.
This is one of several khipus acquired by the Museum in 1907 with provenance Ica. For a list of them, see UR1100.
The positioning of knot clusters discussed in #1 above, is also found on AS164. (AS164 has the same Museum acquisition designation.)
This khipu is also discussed by Nordenskiöld (see Introduction).
By markers, the khipu is separated into 3 parts. The first part is 72 pendants alternating 6 YB, 6 B, 6 YB, 6 B, etc. Thus, by color, part 1 is 12 groups of 6 pendants each, Although not as consistent in color patterning, part 2 is 2 groups of 6 pendants each (6 YB, 6 mixed), and part 3 is 4 groups of 6 pendants each (6 YB, 6 DB, 6 YB, 6 mixed).
Subsidiaries appear only on the first position in a group. When attached to YB pendants they are CB: W, and when attached to other colors they are BB.
The values on the khipu are restricted to 0-17, and 64.
The sum of the values on all pendants in part 1 is 500.
