UR297 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 44, Max # Summands = 6, (Min, Mean, Max) Sum Values = (11, 41, 130)
Click on Image to View Larger

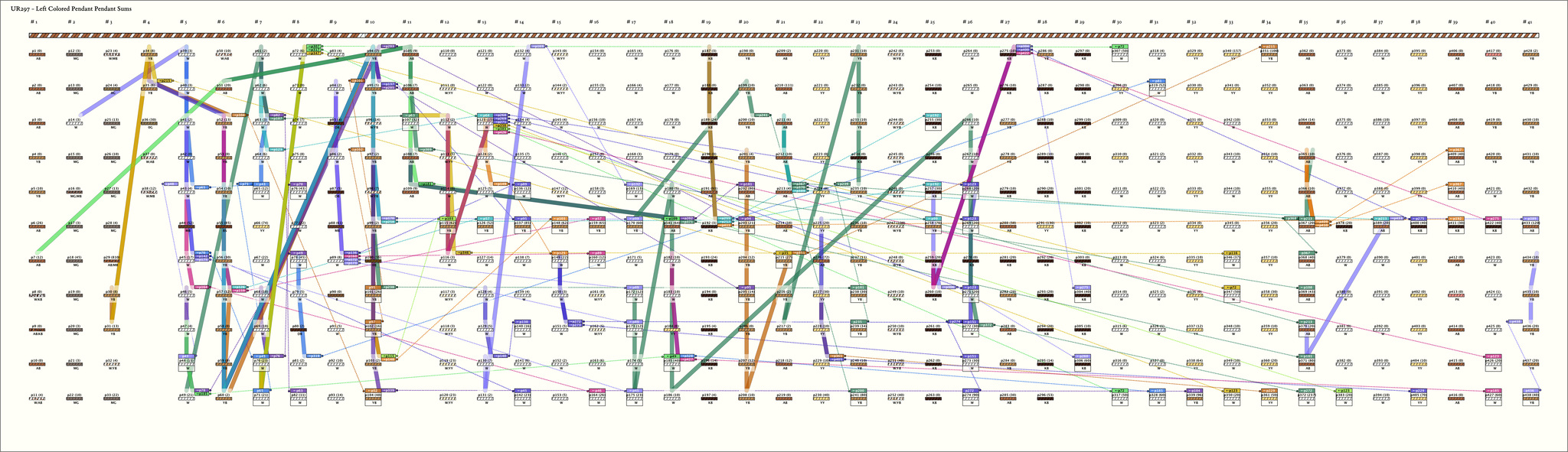

Left Handed Sums: # Sums = 76, Max # Summands = 15, (Min, Mean, Max) Sum Values = (11, 43, 237)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p45_{5, 7} : 17_W	17	3	p81: 2_W + p82: 11_W + p83: 4_W

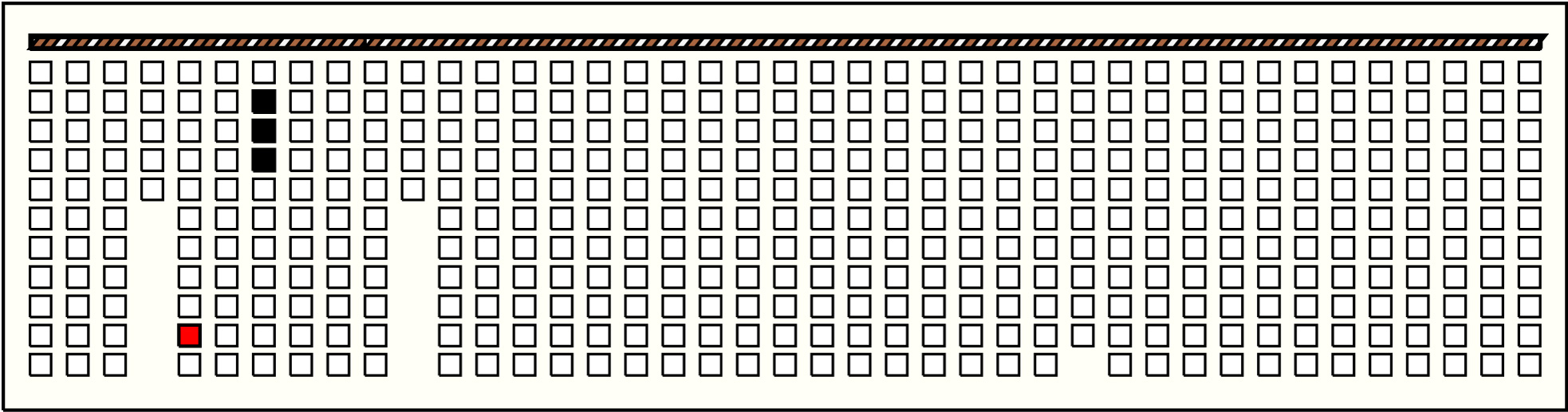

2	p48_{5, 10} : 15_W	15	3	p62: 6_W + p63: 3_W + p64: 6_W
3	p49_{5, 11} : 21_W	21	3	p63: 3_W + p64: 6_W + p65: 12_W
4	p51_{6, 2} : 20_AB	20	3	p211: 6_AB + p212: 10_AB + p213: 4_AB

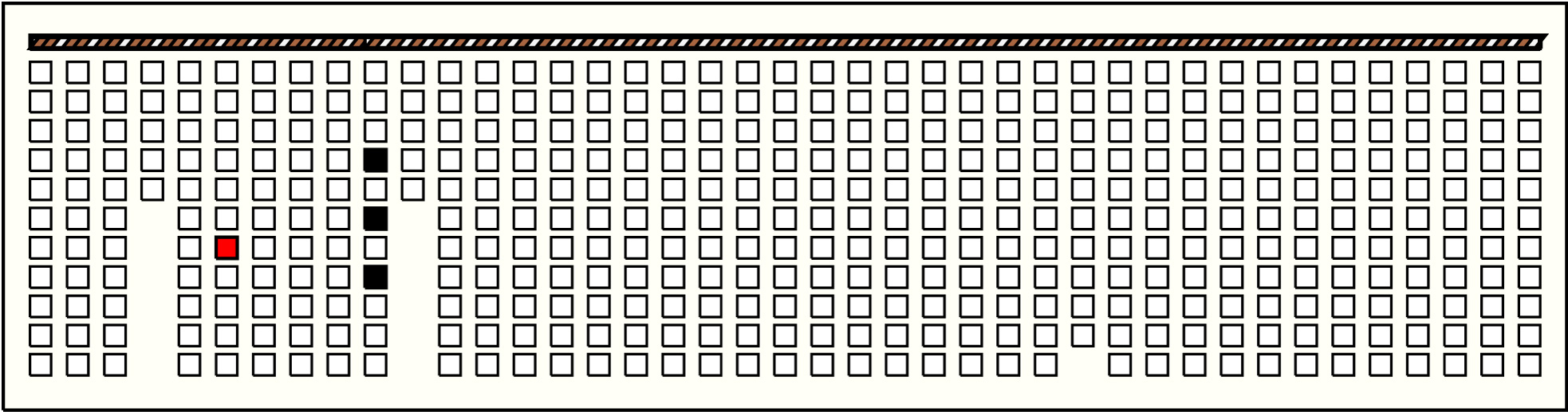

5	p56_{6, 7} : 30_YB	30	3	p97: 2_YB + p99: 2_YB + p101: 26_YB
6	p65_{7, 5} : 12_W	12	3	p84: 2_W + p86: 2_W + p89: 8_W

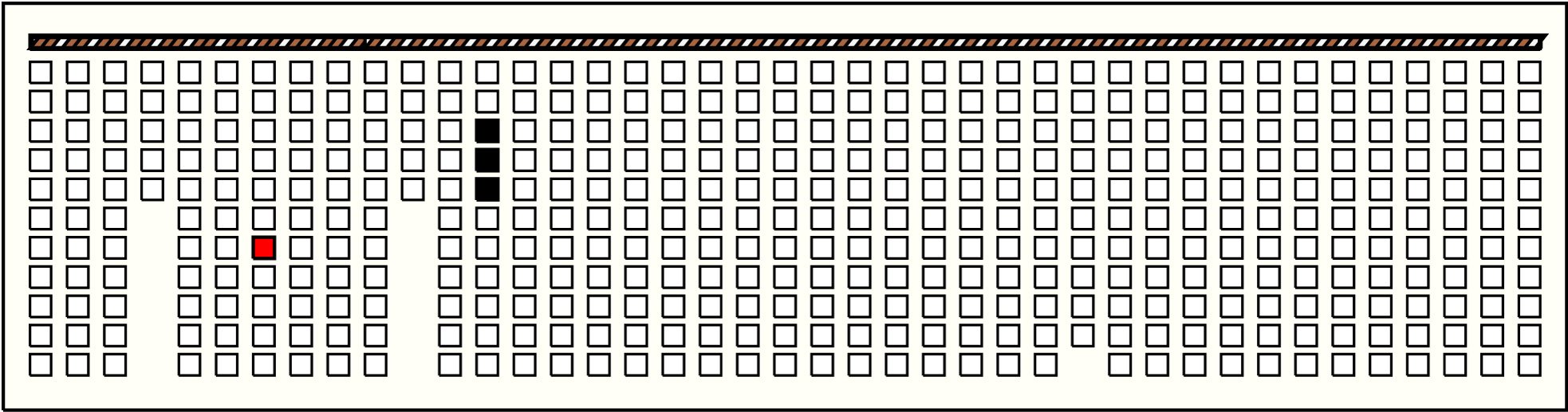

7	p67_{7, 7} : 22_W	22	3	p123: 15_W + p124: 2_W + p125: 5_W

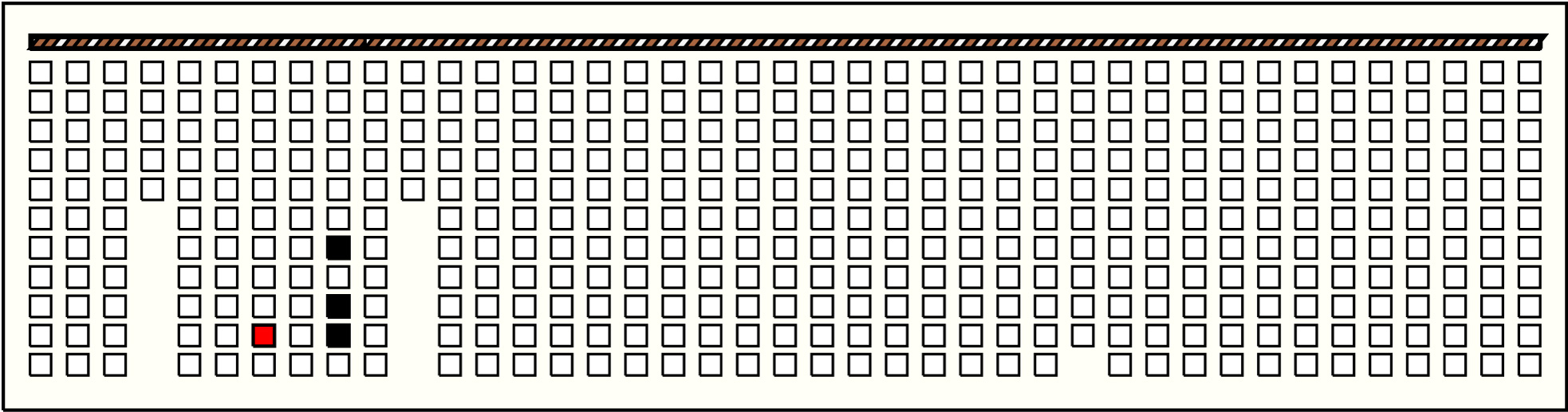

8	p70_{7, 10} : 23_W	23	3	p89: 8_W + p91: 5_W + p92: 10_W

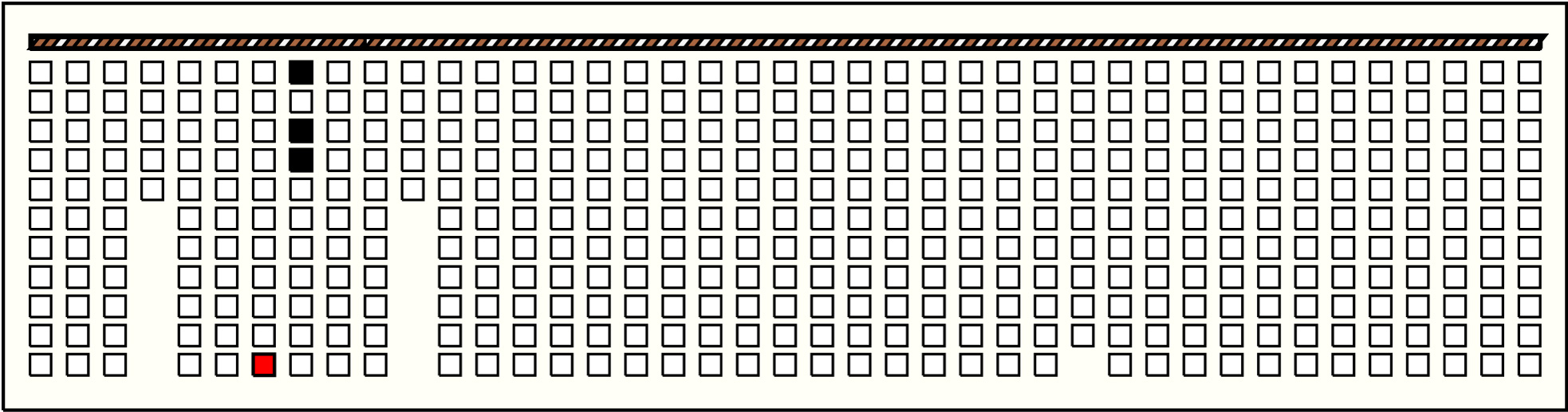

9	p71_{7, 11} : 21_W	21	3	p72: 6_W + p74: 7_W + p75: 8_W

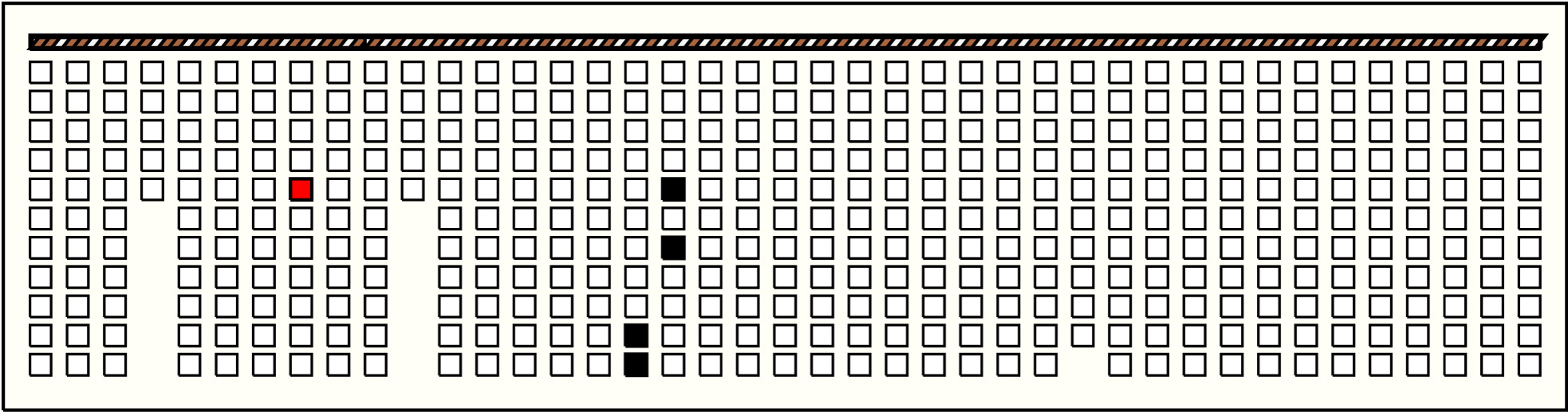

10	p76_{8, 5} : 43_W	43	4	p174: 5_W + p175: 23_W + p180: 5_W + p182: 10_W

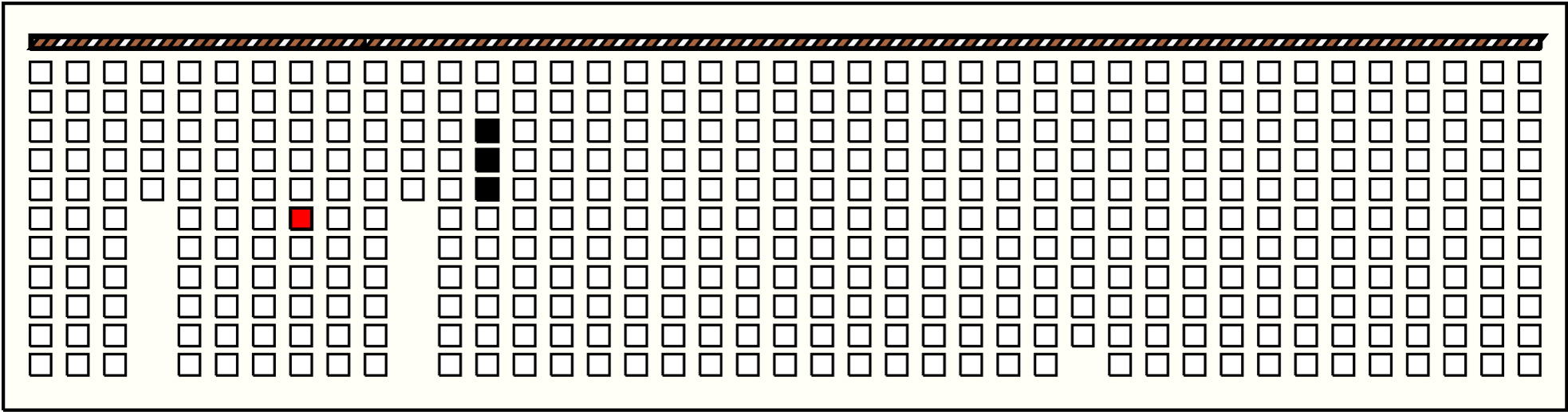

11	p77_{8, 6} : 22_W	22	3	p123: 15_W + p124: 2_W + p125: 5_W

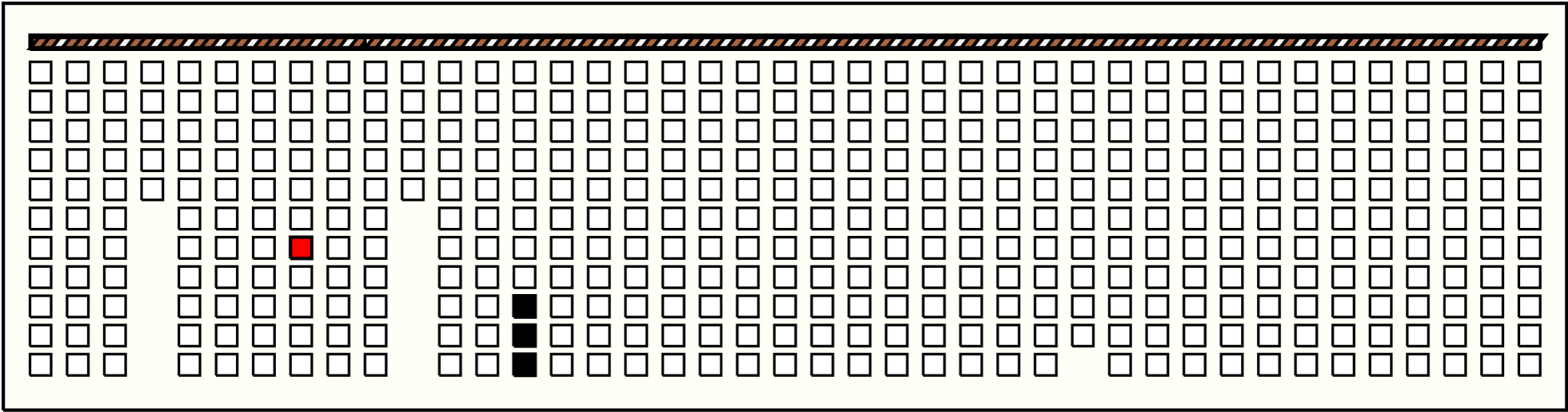

12	p78_{8, 7} : 45_W	45	3	p140: 16_W + p141: 6_W + p142: 23_W

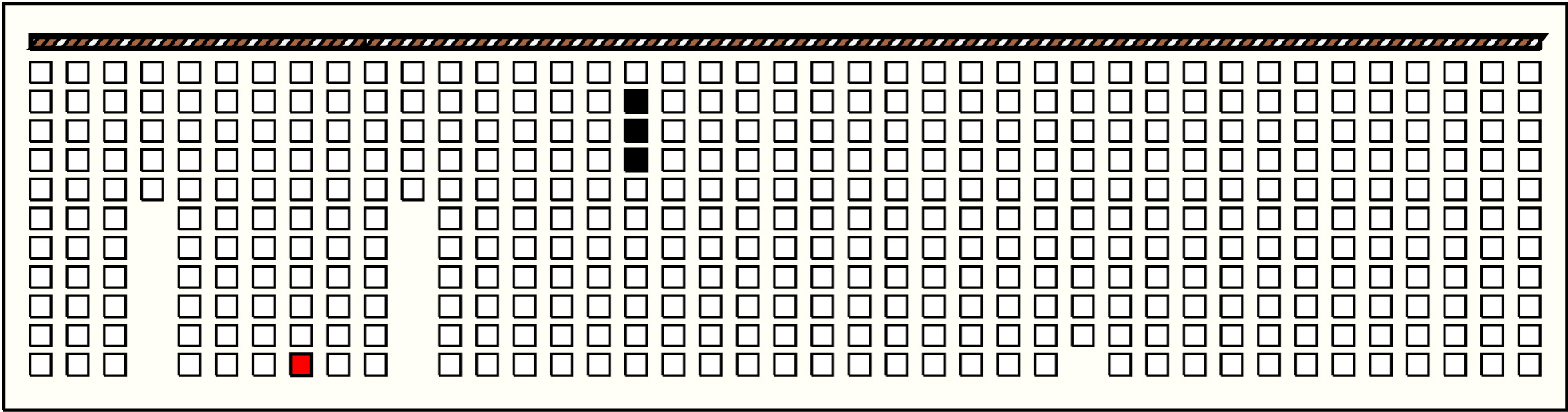

13	p82_{8, 11} : 11_W	11	3	p166: 4_W + p167: 4_W + p168: 3_W

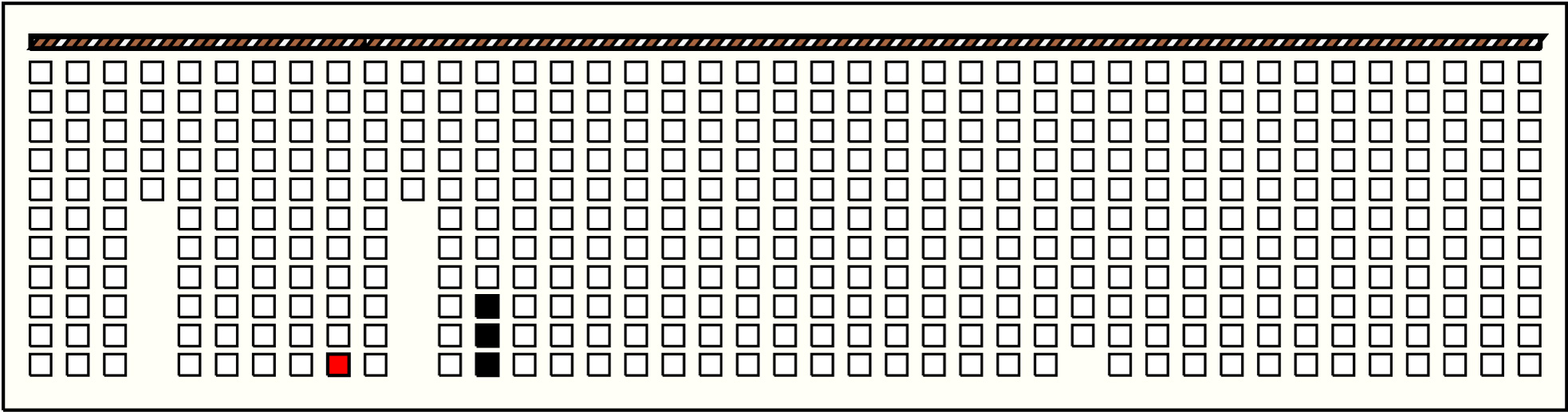

14	p93_{9, 11} : 14_W	14	3	p129: 5_W + p130: 7_W + p131: 2_W

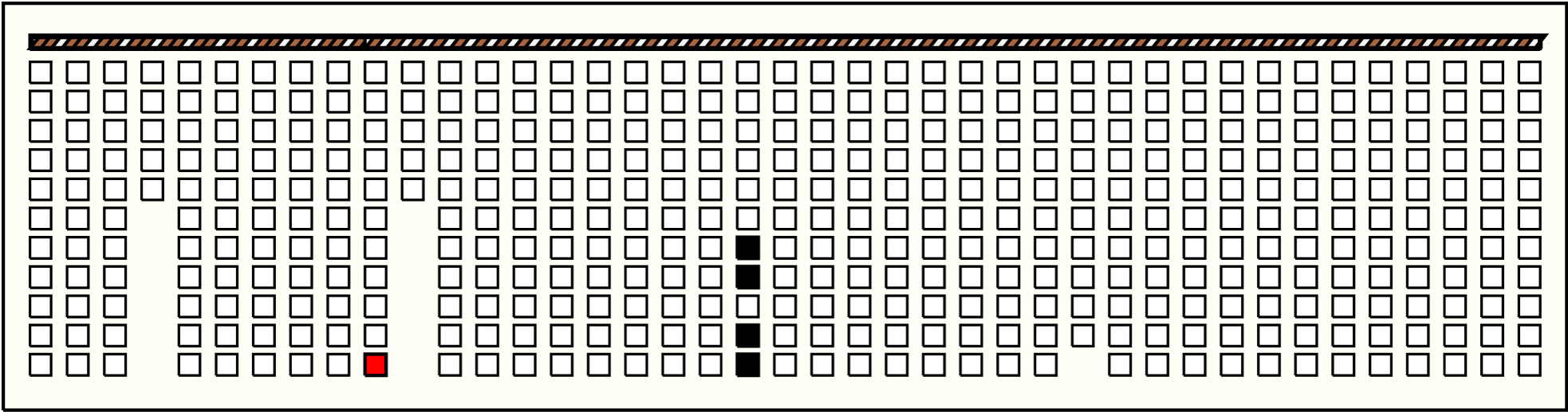

15	p104_{10, 11} : 48_YB	48	4	p204: 12_YB + p205: 14_YB + p207: 12_YB + p208: 10_YB

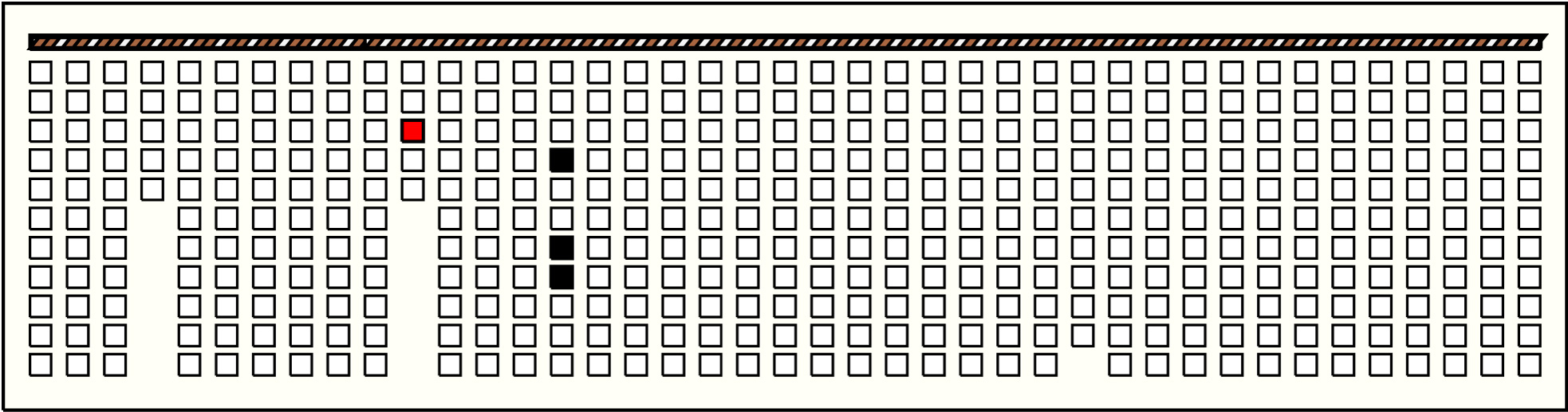

16	p107_{11, 3} : 32_W	32	3	p146: 7_W + p149: 22_W + p150: 3_W

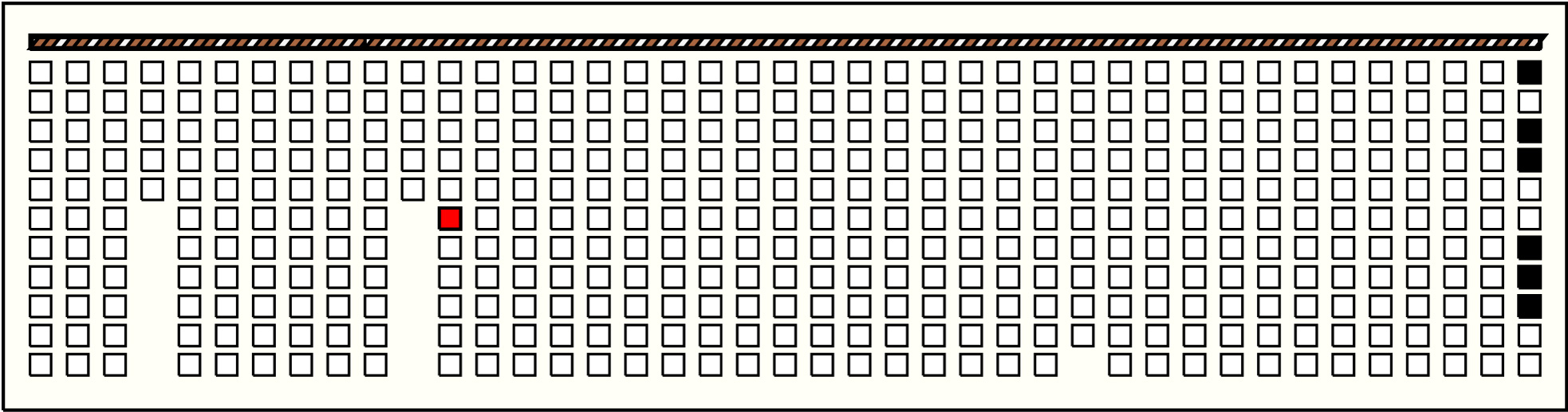

17	p115_{12, 6} : 62_YB	62	6	p428: 2_YB + p430: 10_YB + p431: 10_YB + p434: 10_YB + p435: 10_YB + p436: 20_YB
18	p123_{13, 3} : 15_W	15	4	p130: 7_W + p131: 2_W + p132: 4_W + p133: 2_W

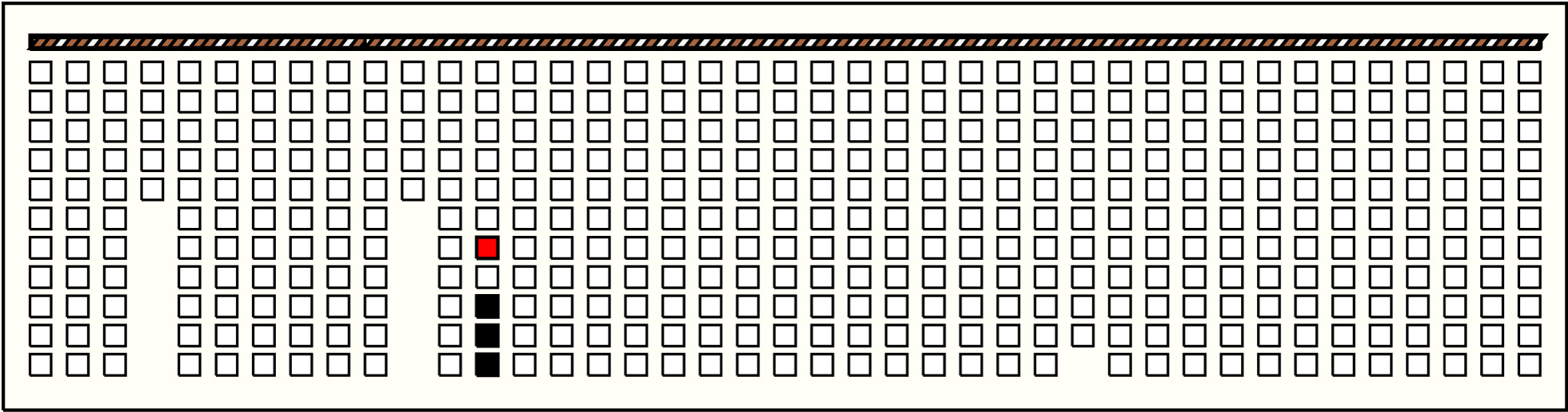

19	p127_{13, 7} : 14_W	14	3	p129: 5_W + p130: 7_W + p131: 2_W

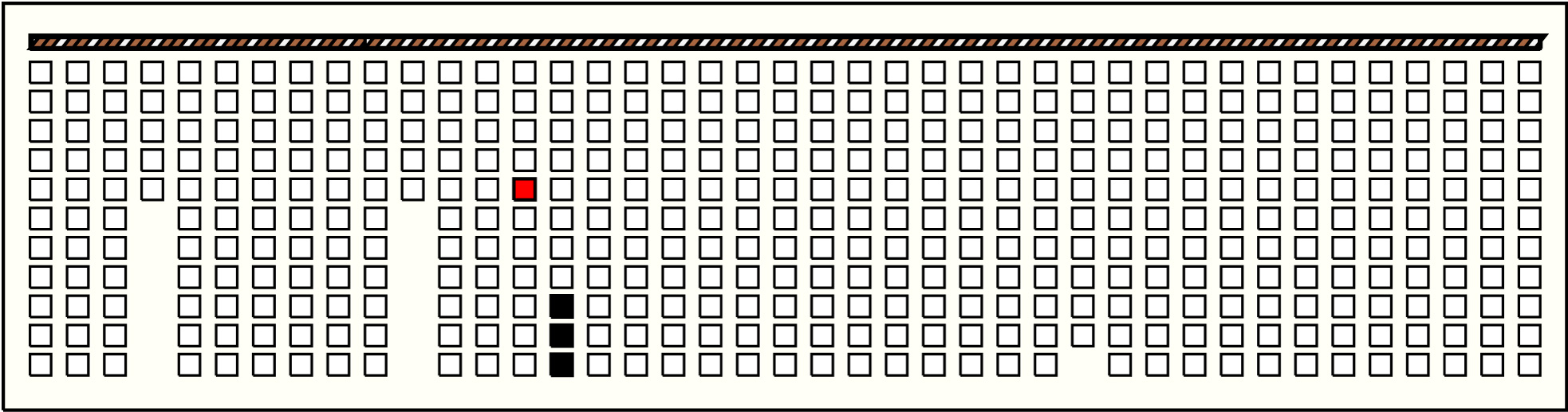

20	p136_{14, 5} : 12_W	12	3	p151: 5_W + p152: 2_W + p153: 5_W

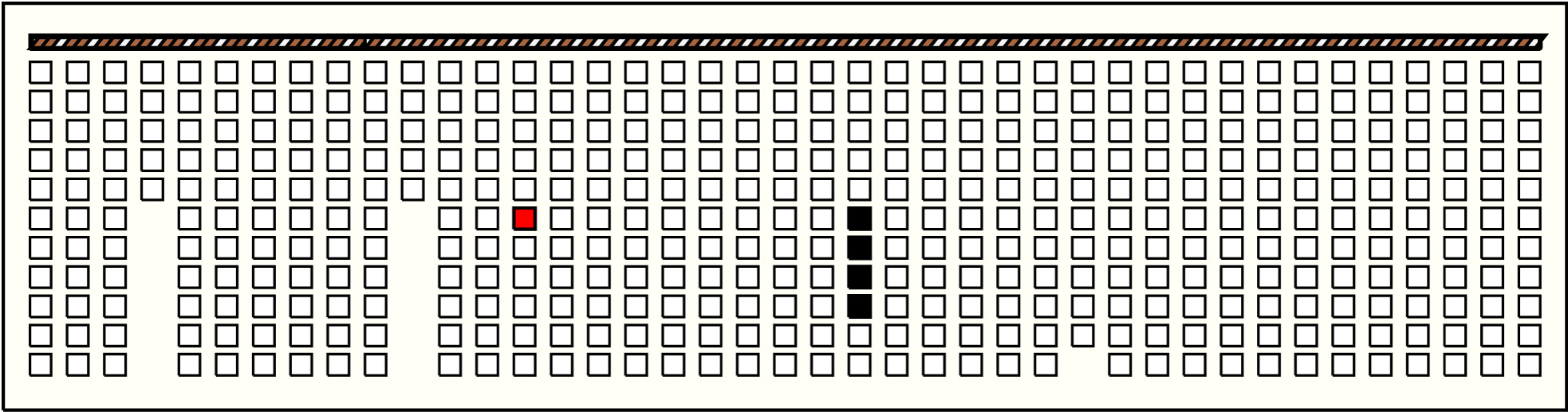

21	p137_{14, 6} : 85_YB	85	4	p236: 10_YB + p237: 11_YB + p238: 30_YB + p239: 34_YB

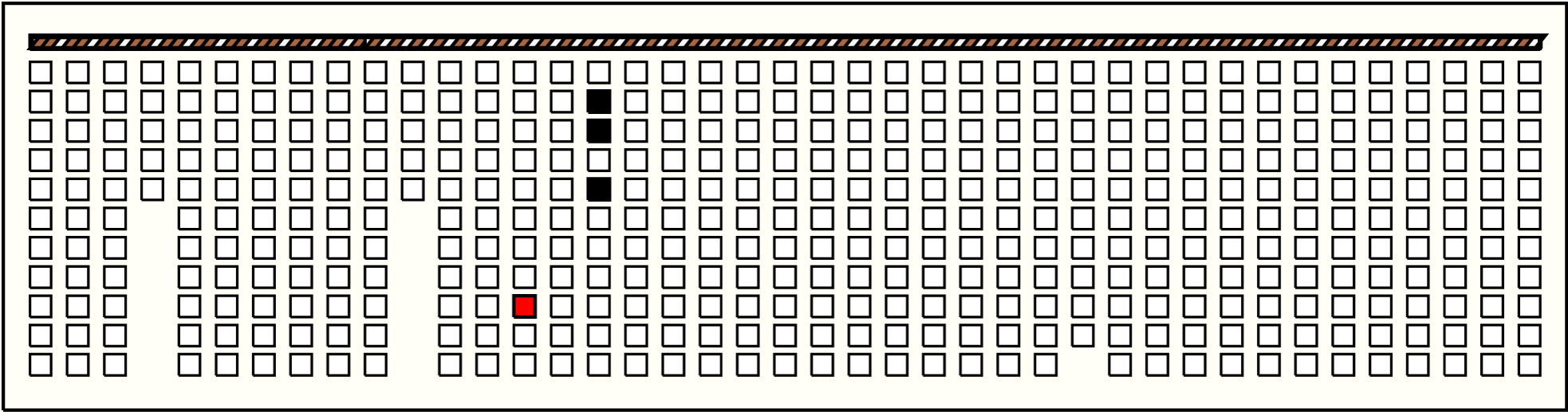

22	p140_{14, 9} : 16_W	16	3	p155: 3_W + p156: 10_W + p158: 3_W

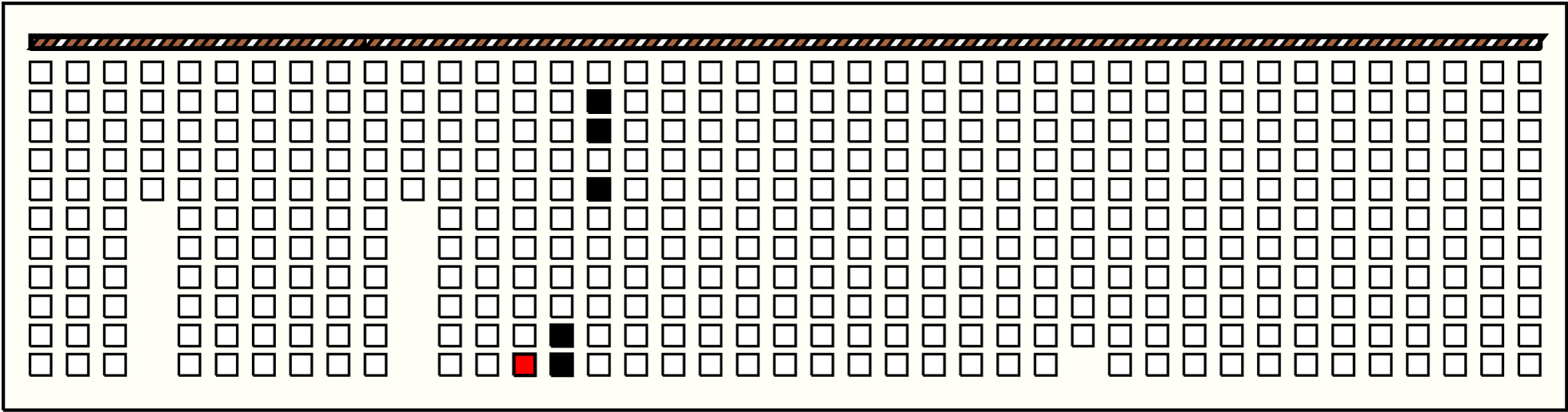

23	p142_{14, 11} : 23_W	23	5	p152: 2_W + p153: 5_W + p155: 3_W + p156: 10_W + p158: 3_W
24	p148_{15, 6} : 62_YB	62	6	p428: 2_YB + p430: 10_YB + p431: 10_YB + p434: 10_YB + p435: 10_YB + p436: 20_YB
25	p159_{16, 6} : 65_YB	65	5	p205: 14_YB + p207: 12_YB + p208: 10_YB + p215: 27_YB + p216: 2_YB
26	p160_{16, 7} : 12_W	12	3	p165: 4_W + p166: 4_W + p167: 4_W

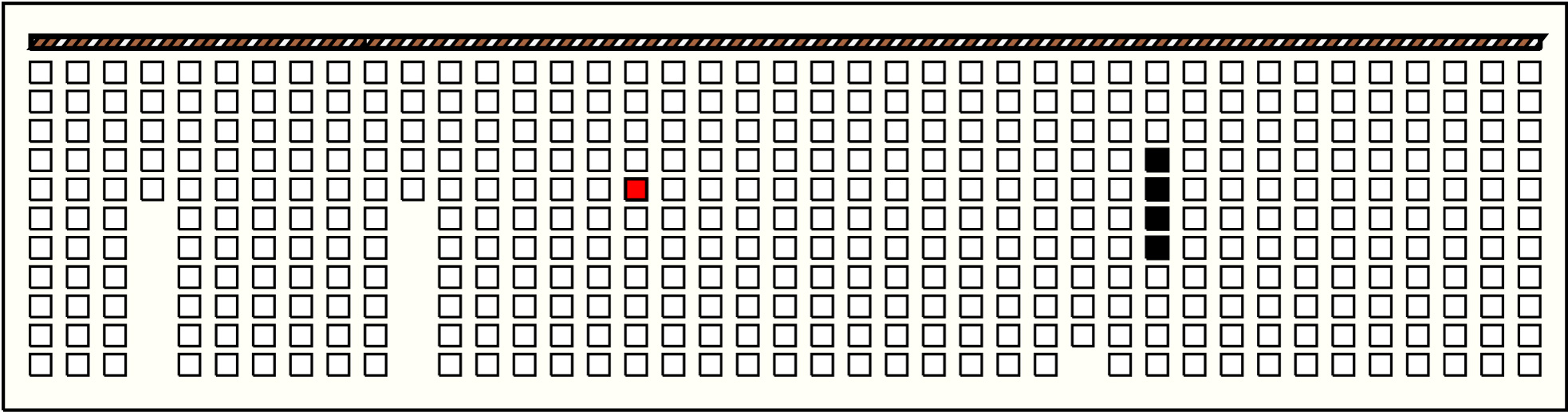

27	p169_{17, 5} : 13_W	13	4	p321: 2_W + p322: 3_W + p323: 2_W + p324: 6_W

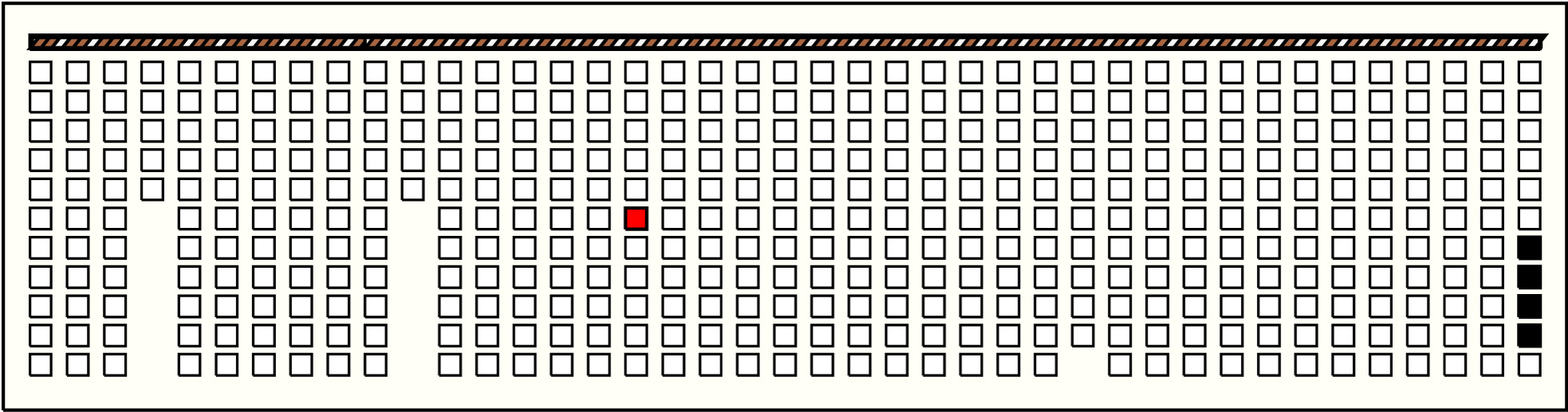

28	p170_{17, 6} : 60_YB	60	4	p434: 10_YB + p435: 10_YB + p436: 20_YB + p437: 20_YB

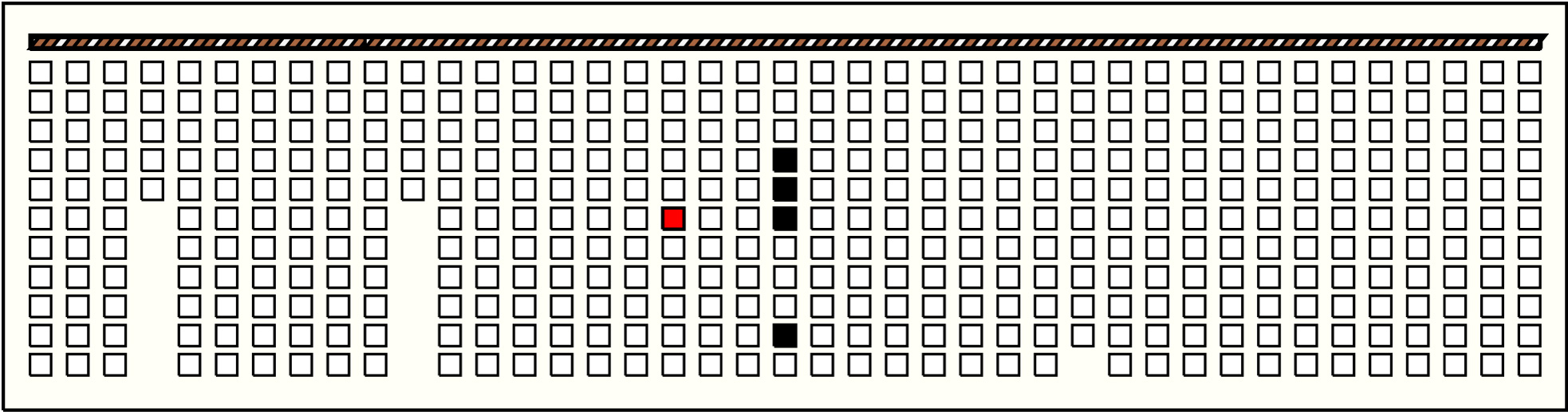

29	p181_{18, 6} : 64_AB	64	4	p212: 10_AB + p213: 4_AB + p214: 38_AB + p218: 12_AB

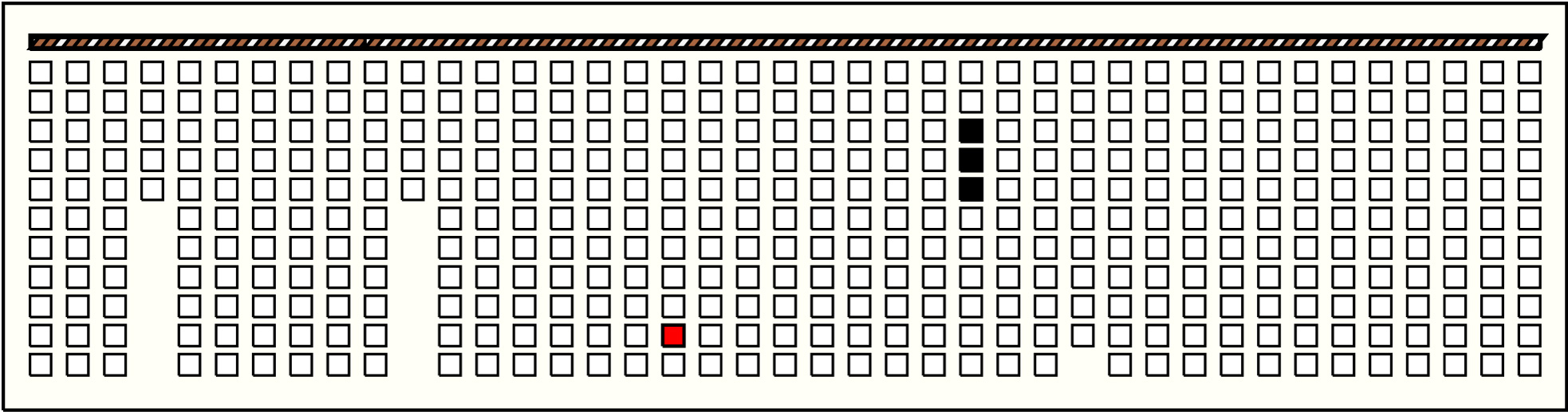

30	p185_{18, 10} : 40_W	40	3	p266: 10_W + p267: 10_W + p268: 20_W

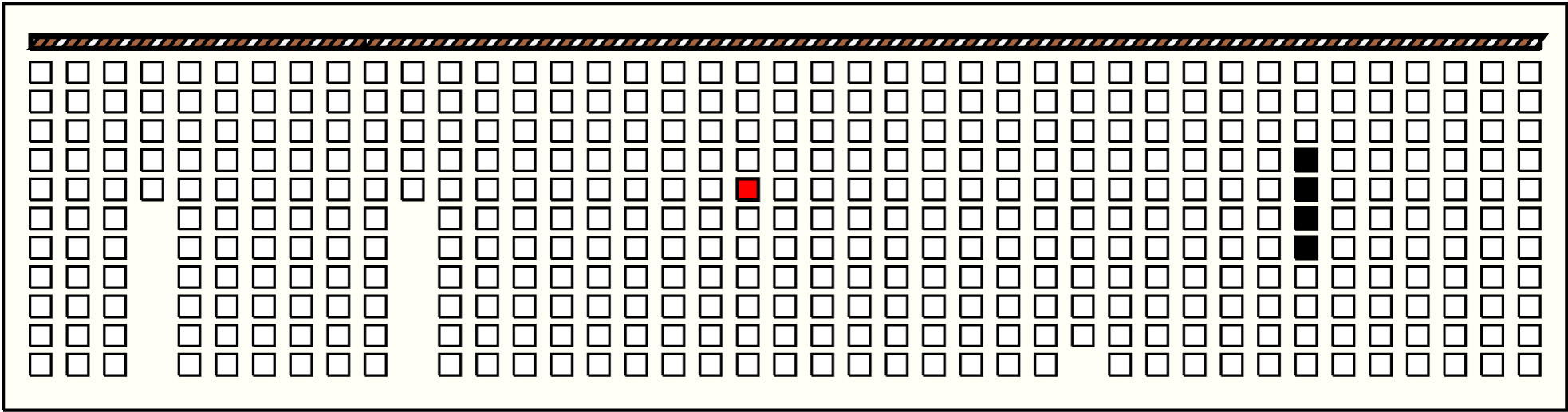

31	p202_{20, 5} : 80_AB	80	4	p365: 10_AB + p366: 10_AB + p367: 20_AB + p368: 40_AB

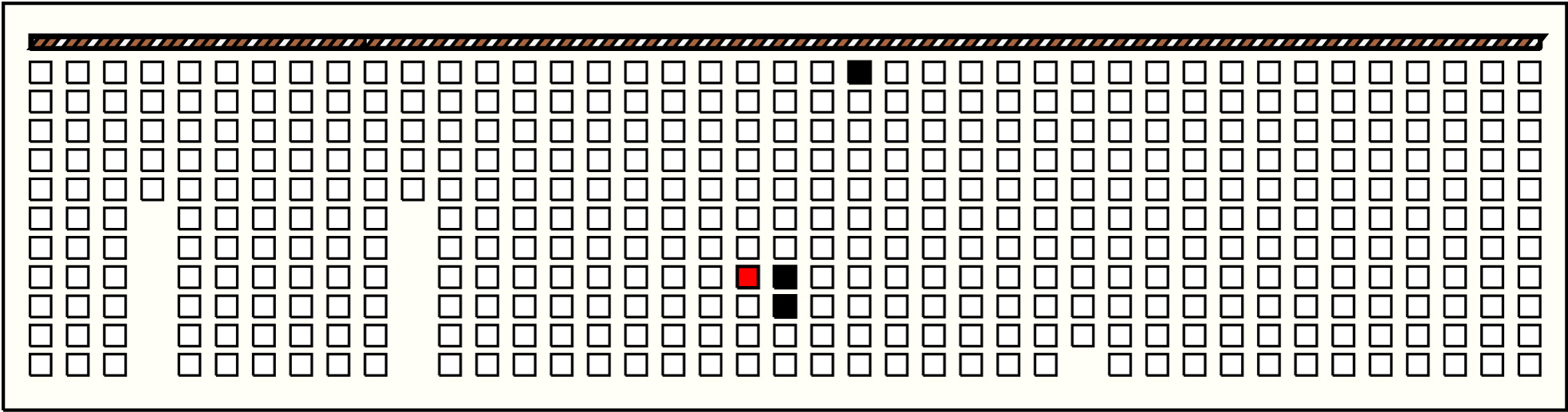

32	p205_{20, 8} : 14_YB	14	3	p216: 2_YB + p217: 2_YB + p231: 10_YB

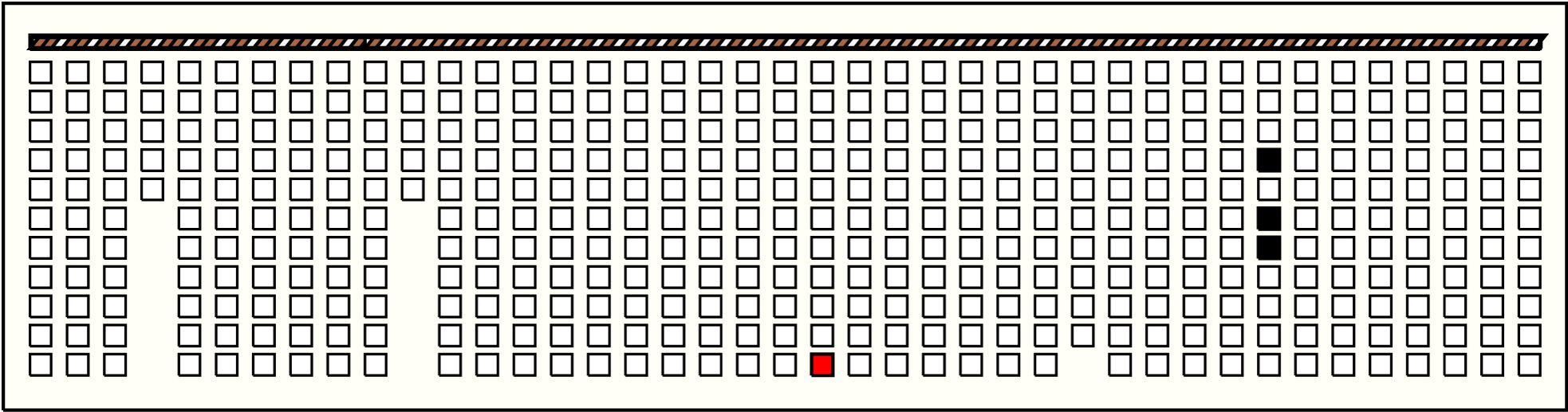

33	p230_{22, 11} : 40_YY	40	3	p354: 10_YY + p356: 20_YY + p357: 10_YY

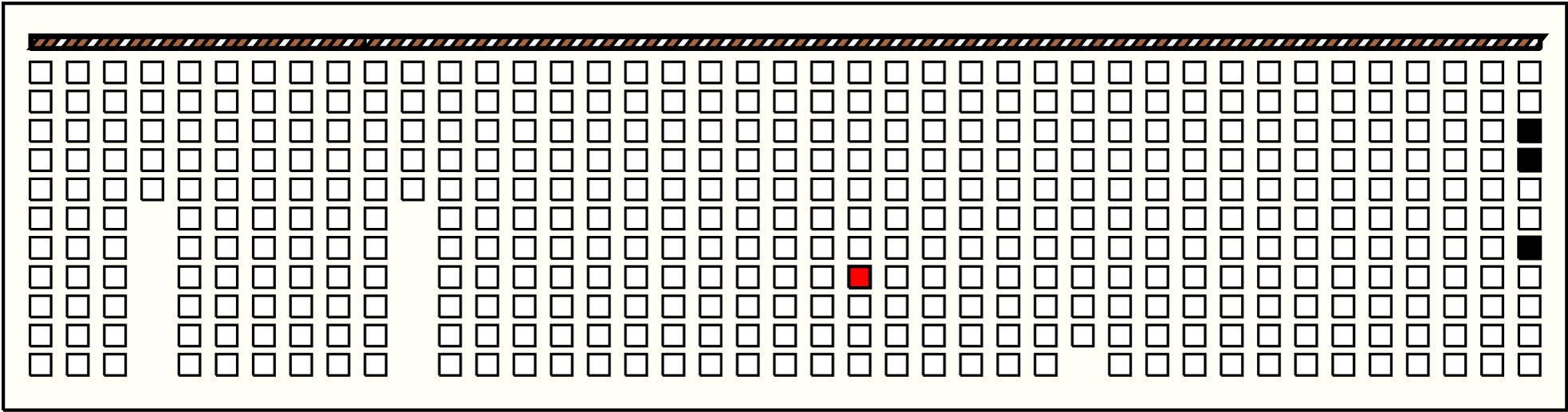

34	p238_{23, 8} : 30_YB	30	3	p430: 10_YB + p431: 10_YB + p434: 10_YB

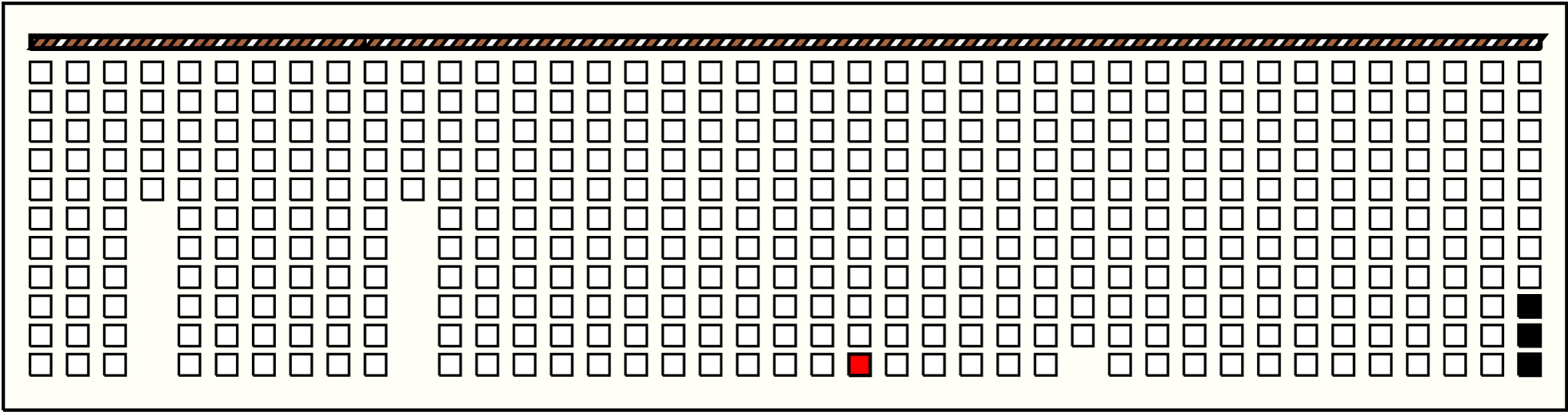

35	p241_{23, 11} : 80_YB	80	3	p436: 20_YB + p437: 20_YB + p438: 40_YB

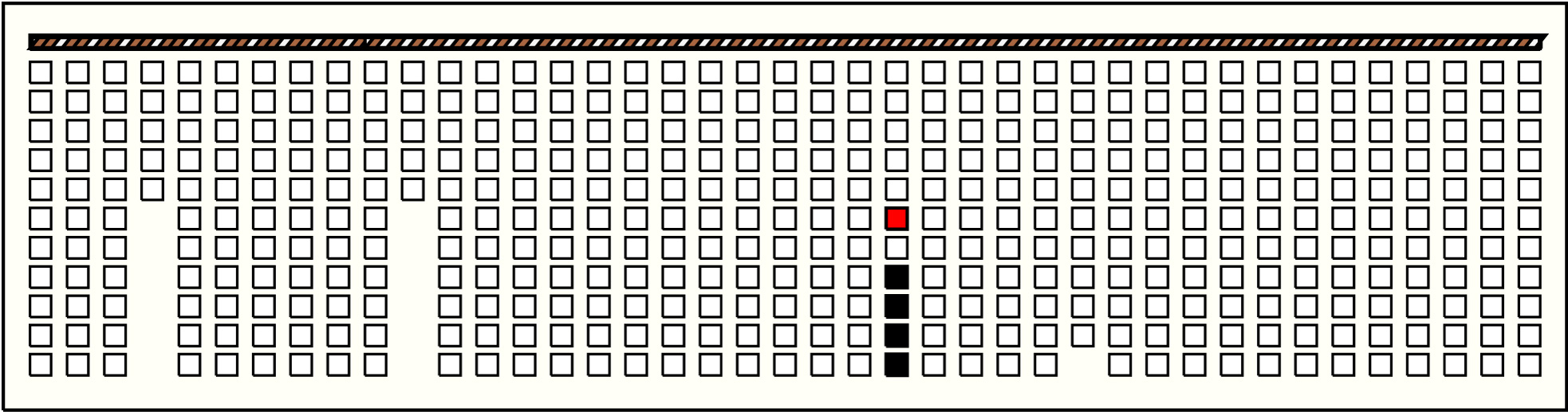

36	p247_{24, 6} : 100_W:YB	100	4	p249: 10_W:YB + p250: 10_W:YB + p251: 40_W:YB + p252: 40_W:YB

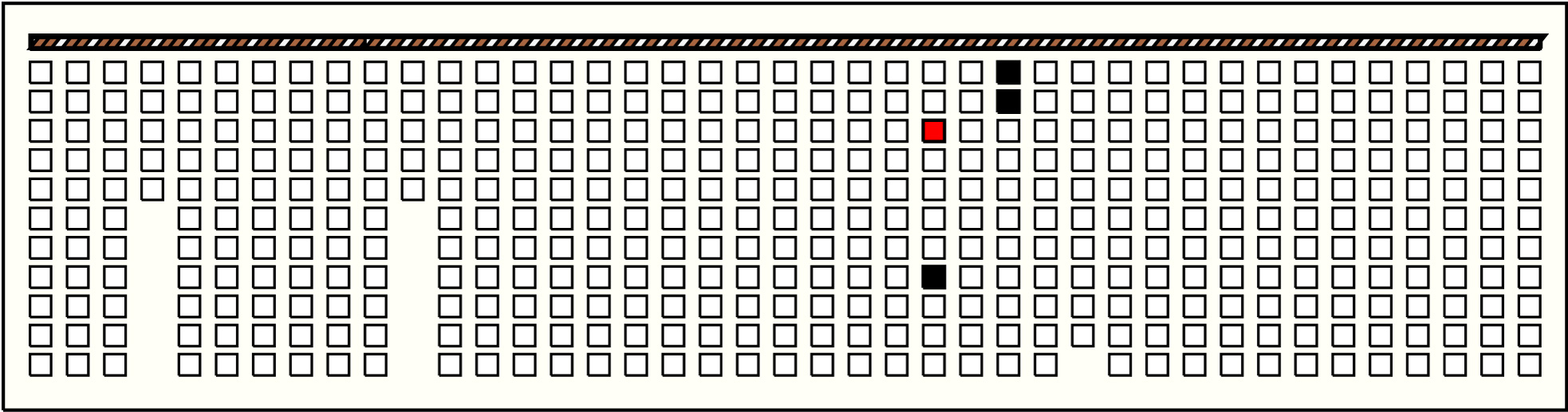

37	p255_{25, 3} : 30_KB	30	3	p260: 10_KB + p275: 10_KB + p276: 10_KB
38	p257_{25, 5} : 30_KB	30	3	p260: 10_KB + p275: 10_KB + p276: 10_KB

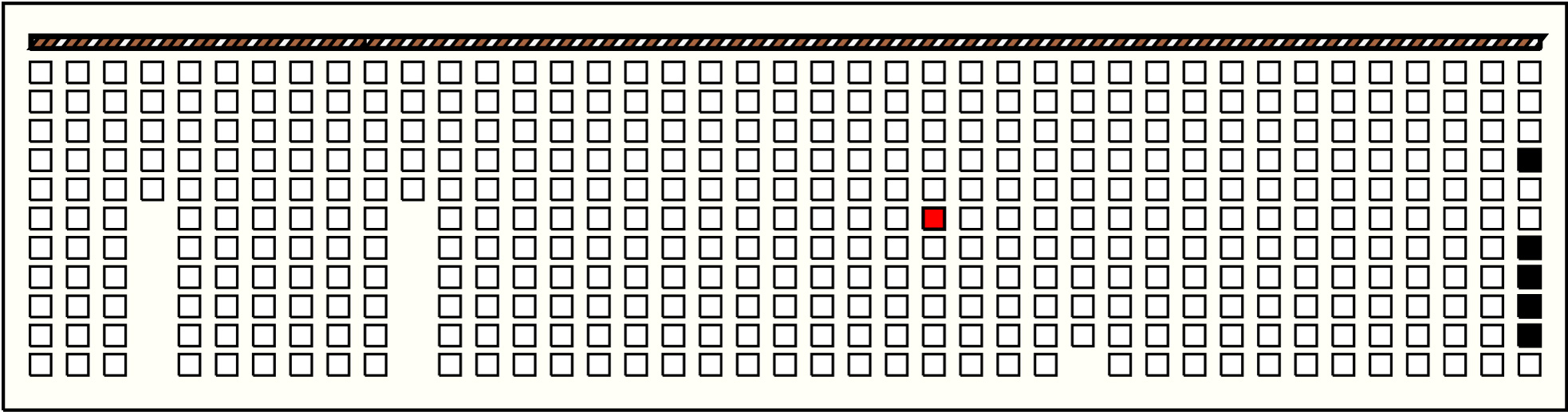

39	p258_{25, 6} : 70_YB	70	5	p431: 10_YB + p434: 10_YB + p435: 10_YB + p436: 20_YB + p437: 20_YB

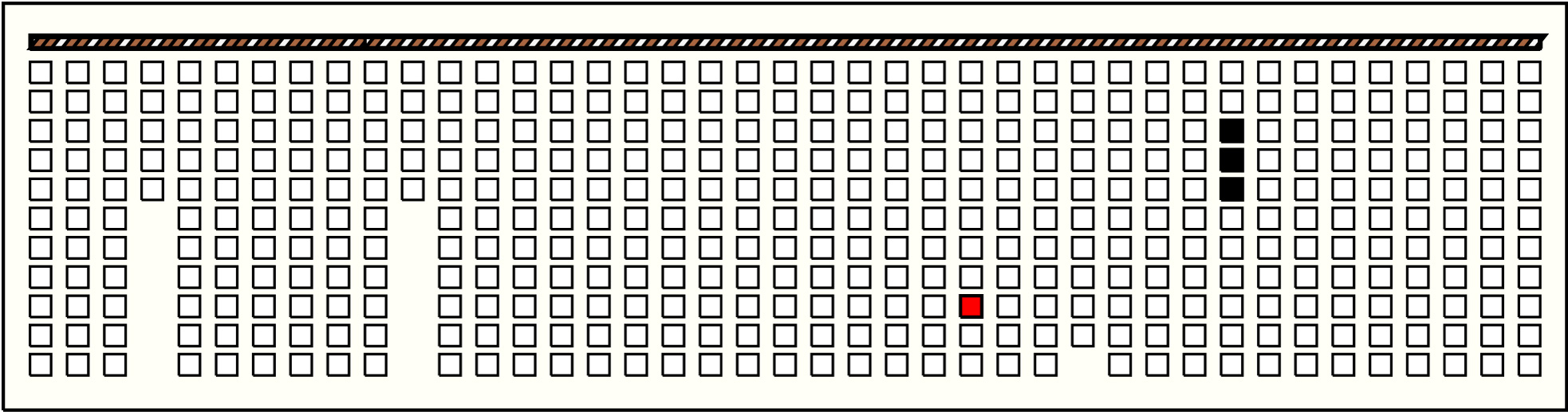

40	p272_{26, 9} : 30_W	30	3	p342: 10_W + p343: 10_W + p344: 10_W

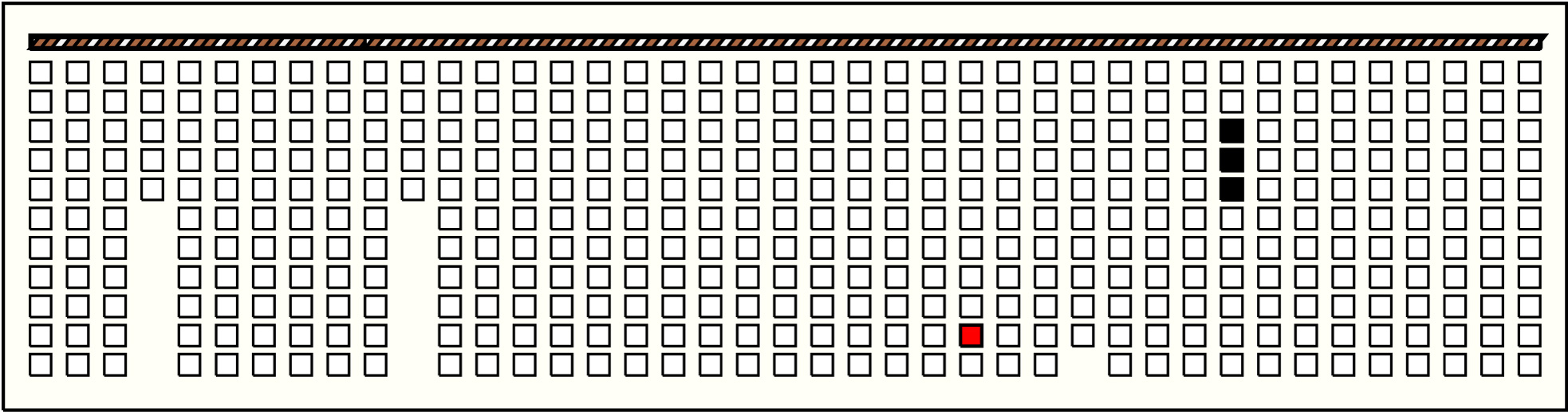

41	p273_{26, 10} : 30_W	30	3	p342: 10_W + p343: 10_W + p344: 10_W

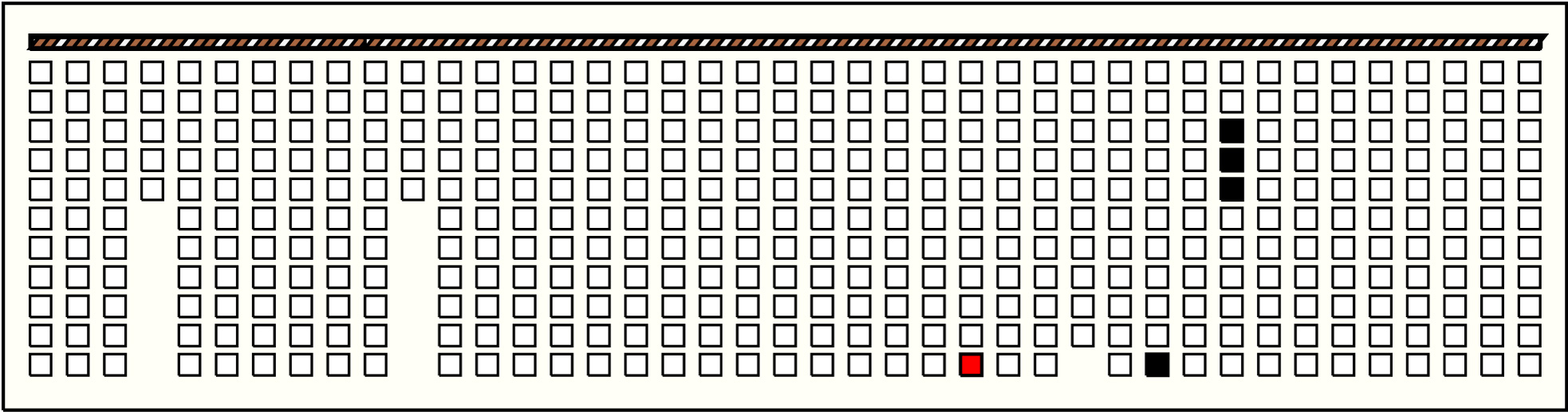

42	p274_{26, 11} : 90_W	90	4	p328: 60_W + p342: 10_W + p343: 10_W + p344: 10_W

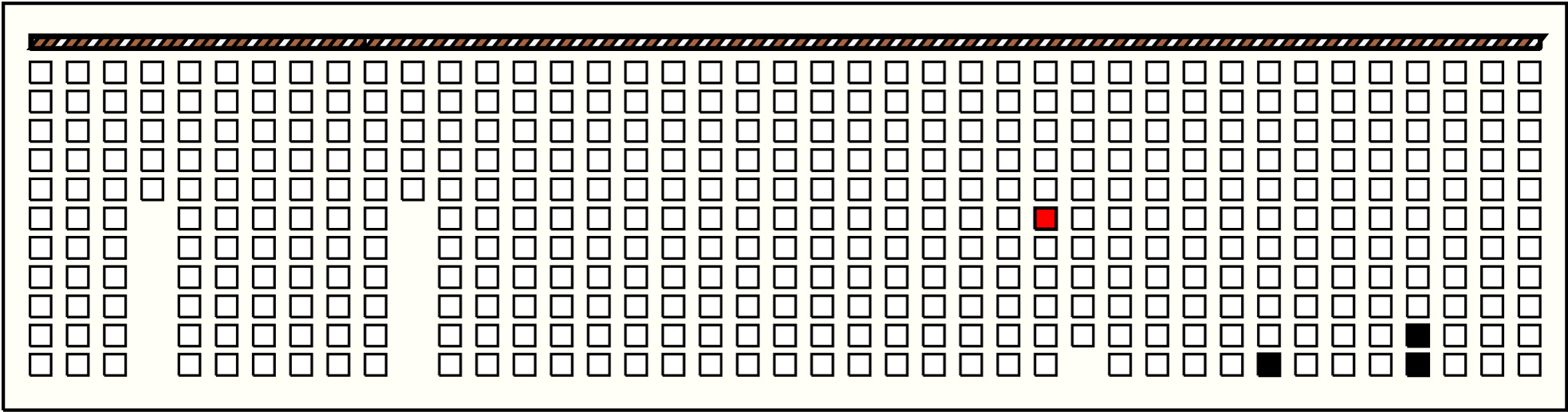

43	p291_{28, 6} : 130_YY	130	3	p361: 50_YY + p404: 10_YY + p405: 70_YY

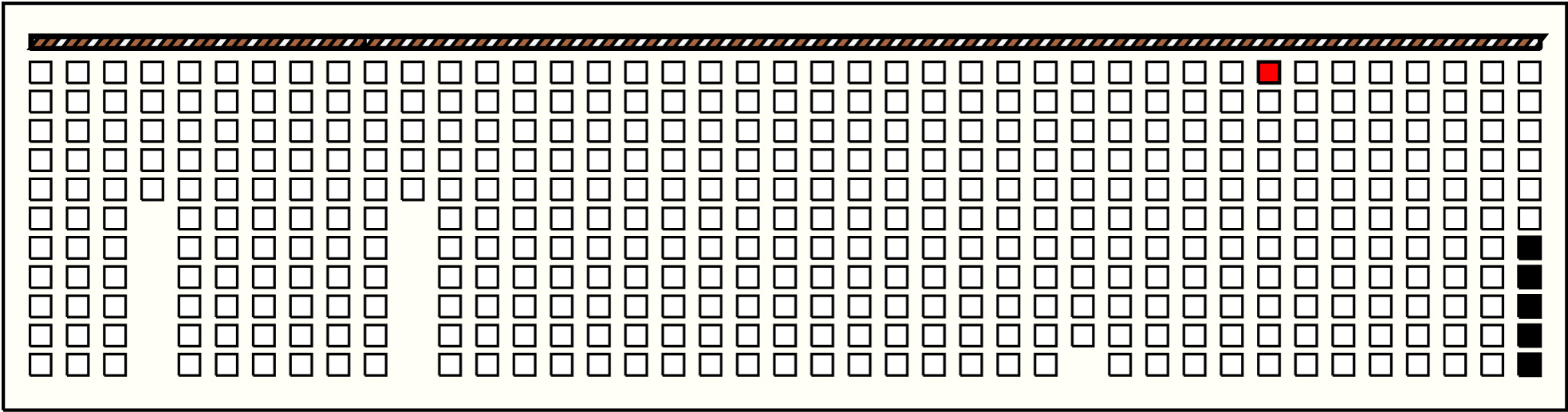

44	p351_{34, 1} : 100_YB	100	5	p434: 10_YB + p435: 10_YB + p436: 20_YB + p437: 20_YB + p438: 40_YB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

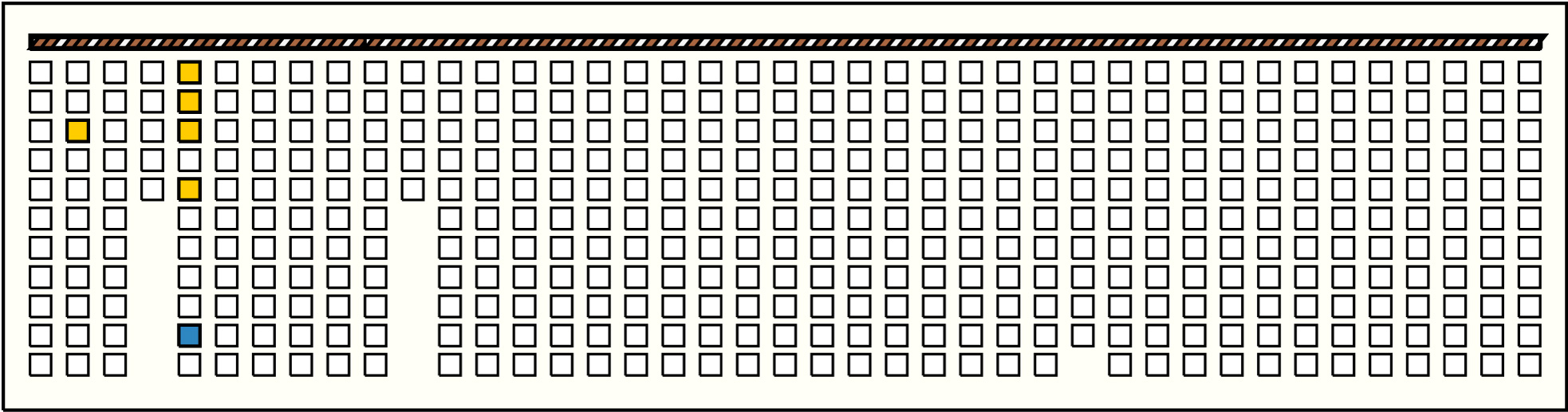

1	p48_{5, 10} : 15_W	15	5	p14: 3_W + p39: 3_W + p40: 3_W + p41: 2_W + p43: 4_W

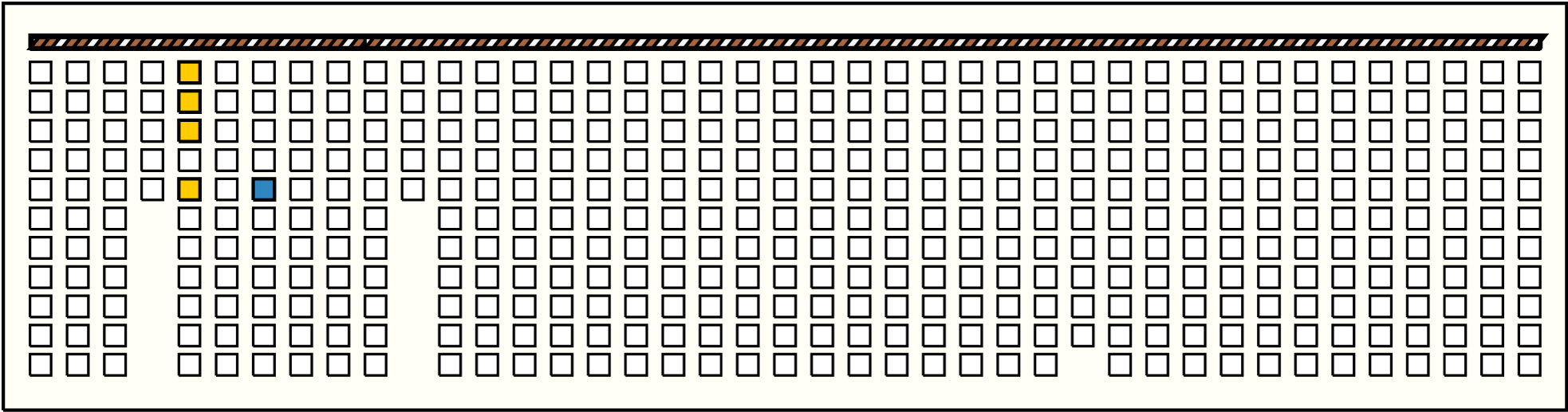

2	p65_{7, 5} : 12_W	12	4	p39: 3_W + p40: 3_W + p41: 2_W + p43: 4_W

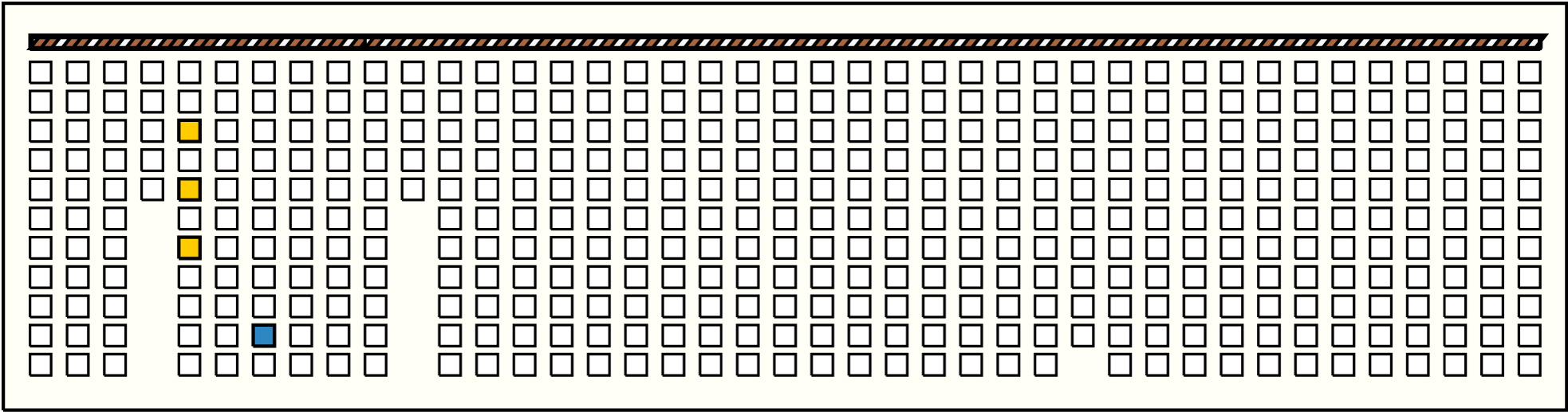

3	p70_{7, 10} : 23_W	23	3	p41: 2_W + p43: 4_W + p45: 17_W
4	p71_{7, 11} : 21_W	21	3	p63: 3_W + p64: 6_W + p65: 12_W

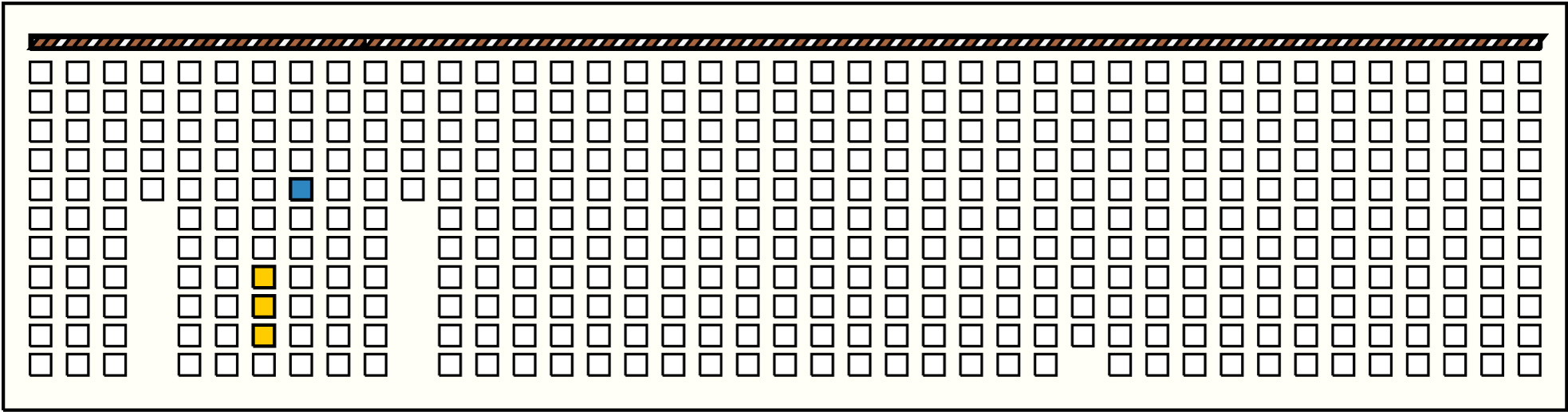

5	p76_{8, 5} : 43_W	43	3	p68: 10_W + p69: 10_W + p70: 23_W

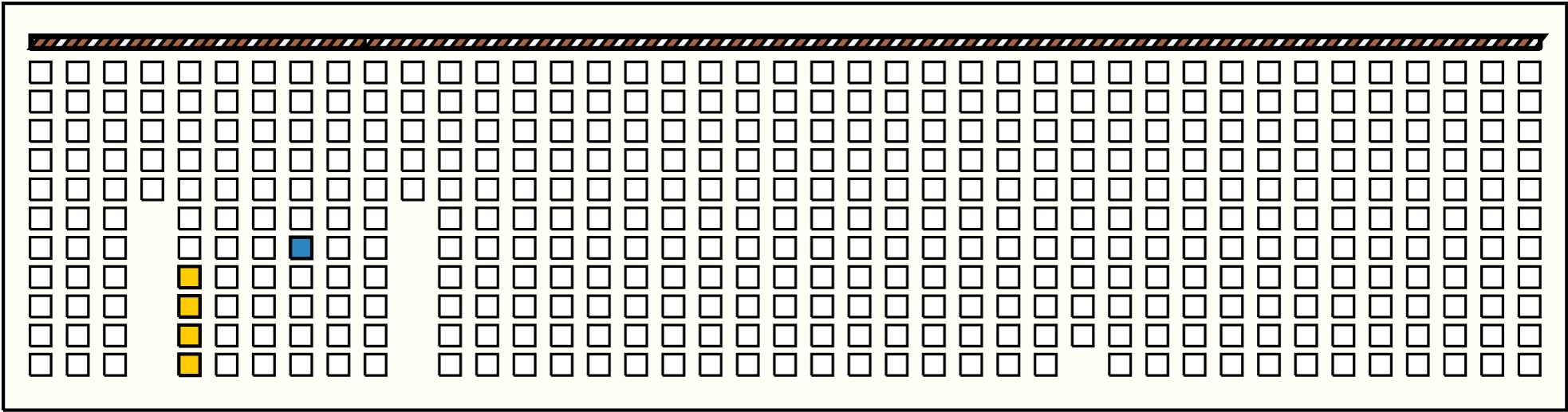

6	p78_{8, 7} : 45_W	45	4	p46: 5_W + p47: 4_W + p48: 15_W + p49: 21_W

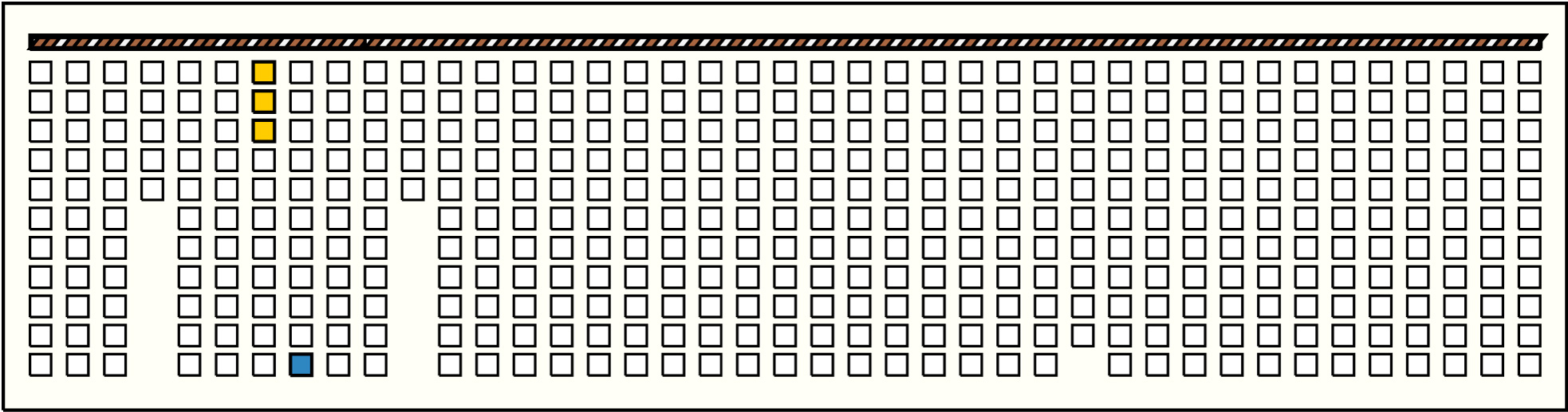

7	p82_{8, 11} : 11_W	11	3	p61: 2_W + p62: 6_W + p63: 3_W
8	p101_{10, 8} : 26_YB	26	4	p57: 12_YB + p60: 2_YB + p94: 7_YB + p95: 5_YB

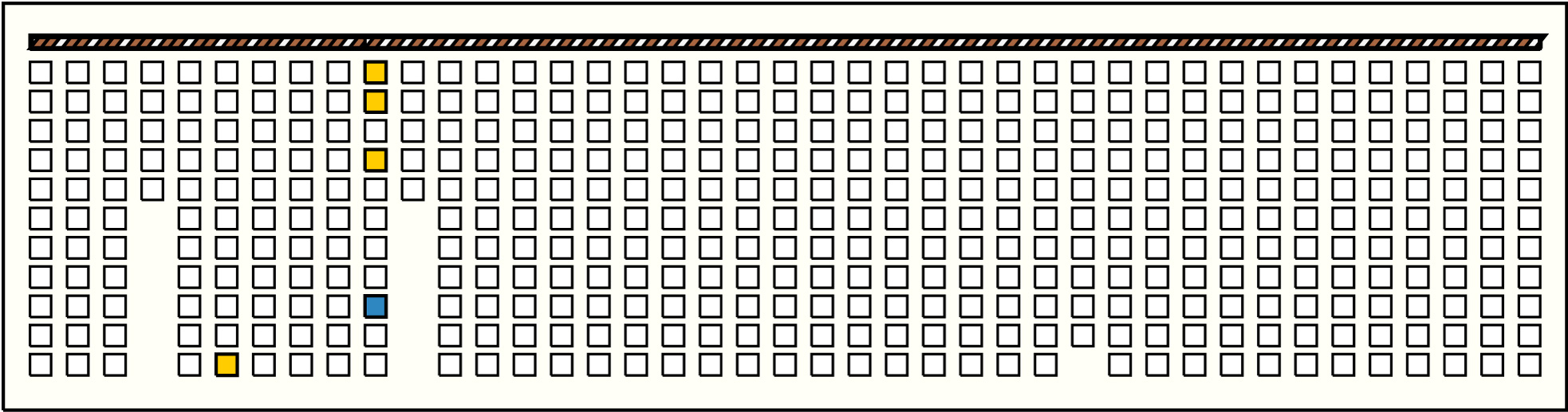

9	p102_{10, 9} : 16_YB	16	4	p60: 2_YB + p94: 7_YB + p95: 5_YB + p97: 2_YB
10	p104_{10, 11} : 48_YB	48	5	p30: 8_YB + p31: 13_YB + p34: 8_YB + p35: 6_YB + p52: 13_YB

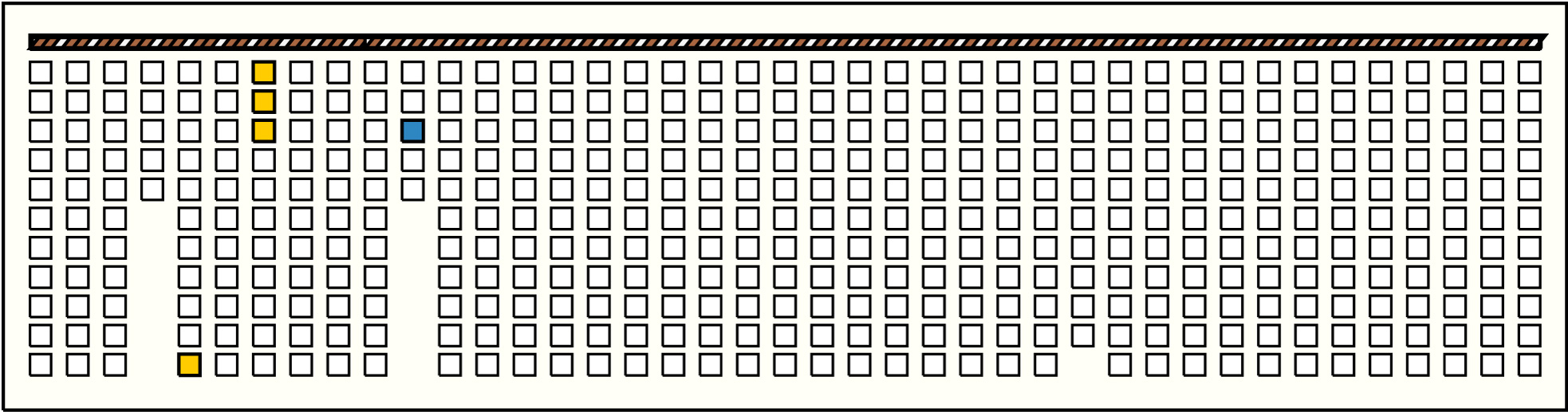

11	p107_{11, 3} : 32_W	32	4	p49: 21_W + p61: 2_W + p62: 6_W + p63: 3_W

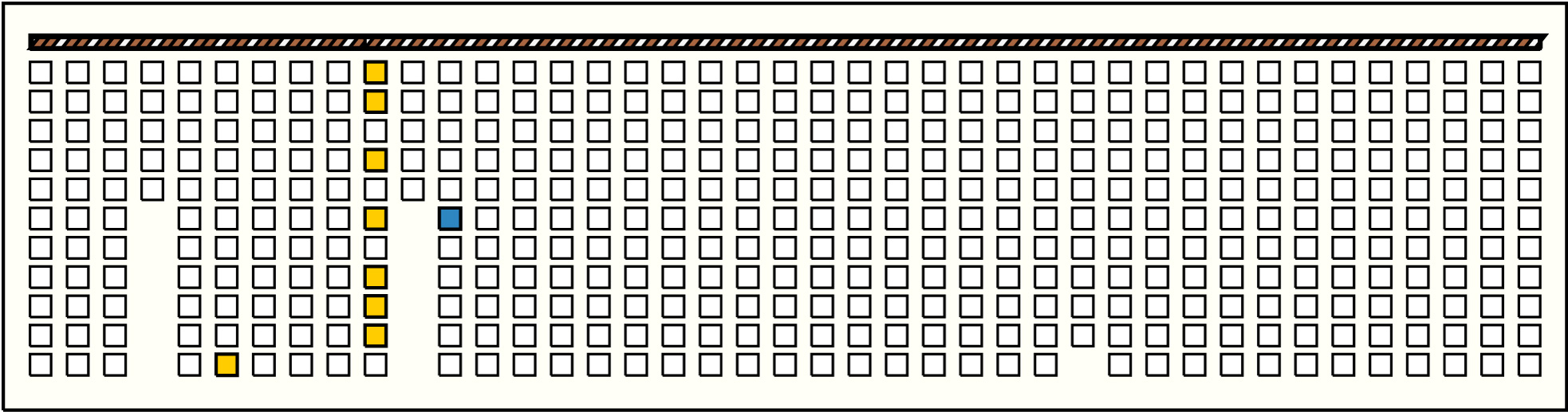

12	p115_{12, 6} : 62_YB	62	8	p60: 2_YB + p94: 7_YB + p95: 5_YB + p97: 2_YB + p99: 2_YB + p101: 26_YB + p102: 16_YB + p103: 2_YB
13	p123_{13, 3} : 15_W	15	3	p62: 6_W + p63: 3_W + p64: 6_W
14	p126_{13, 6} : 52_YB	52	3	p54: 10_YB + p56: 30_YB + p57: 12_YB

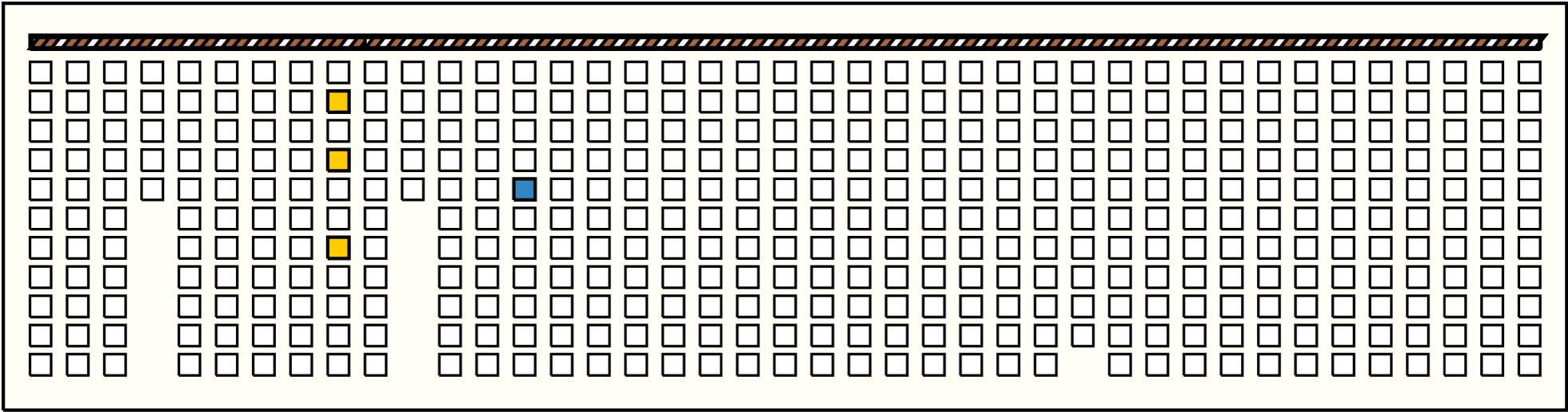

15	p136_{14, 5} : 12_W	12	3	p84: 2_W + p86: 2_W + p89: 8_W

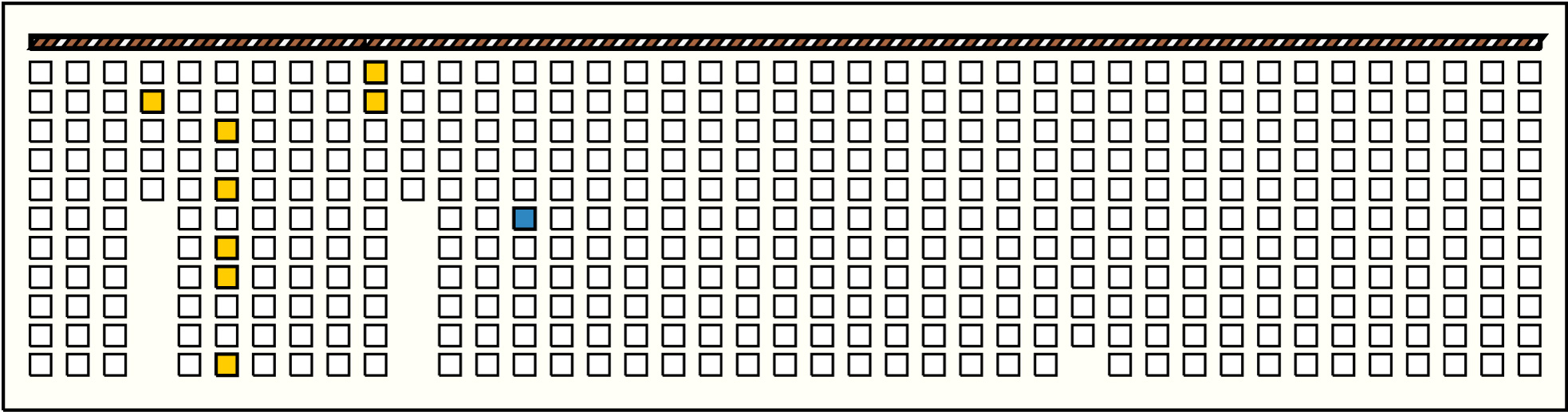

16	p137_{14, 6} : 85_YB	85	8	p35: 6_YB + p52: 13_YB + p54: 10_YB + p56: 30_YB + p57: 12_YB + p60: 2_YB + p94: 7_YB + p95: 5_YB

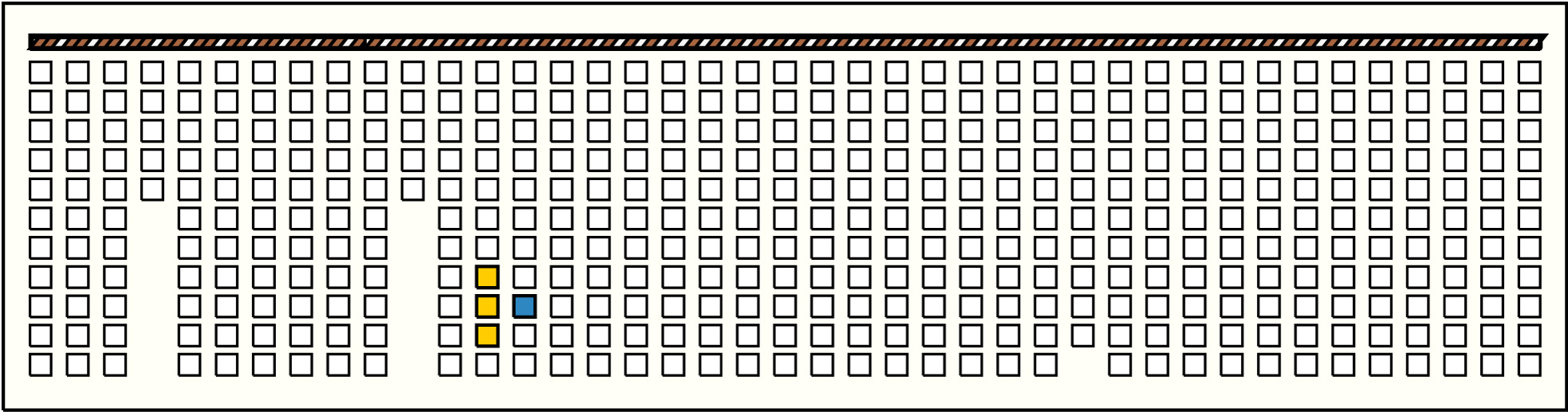

17	p140_{14, 9} : 16_W	16	3	p128: 4_W + p129: 5_W + p130: 7_W

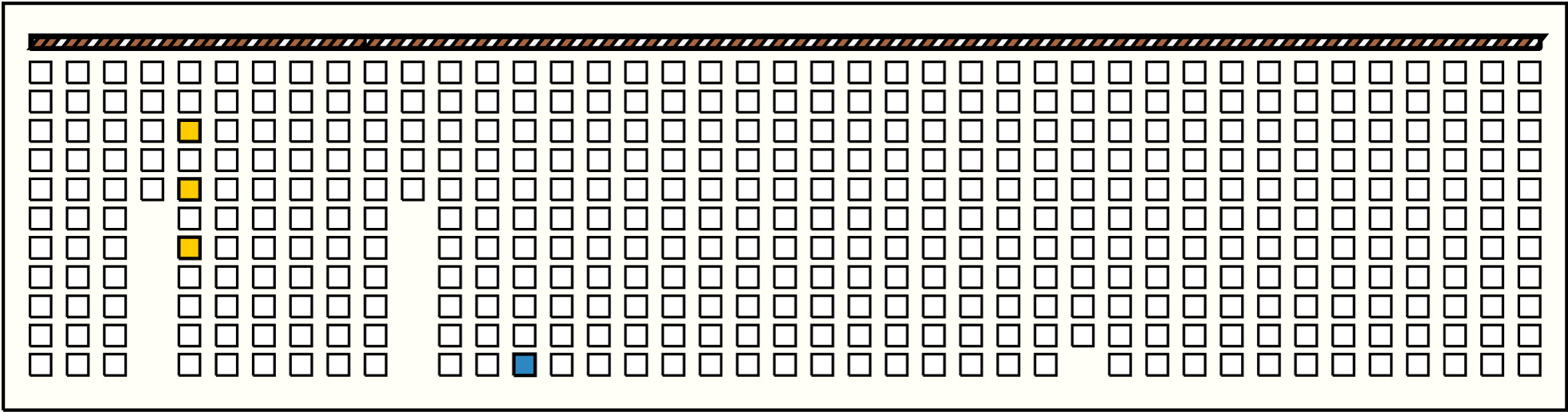

18	p142_{14, 11} : 23_W	23	3	p41: 2_W + p43: 4_W + p45: 17_W
19	p148_{15, 6} : 62_YB	62	8	p60: 2_YB + p94: 7_YB + p95: 5_YB + p97: 2_YB + p99: 2_YB + p101: 26_YB + p102: 16_YB + p103: 2_YB

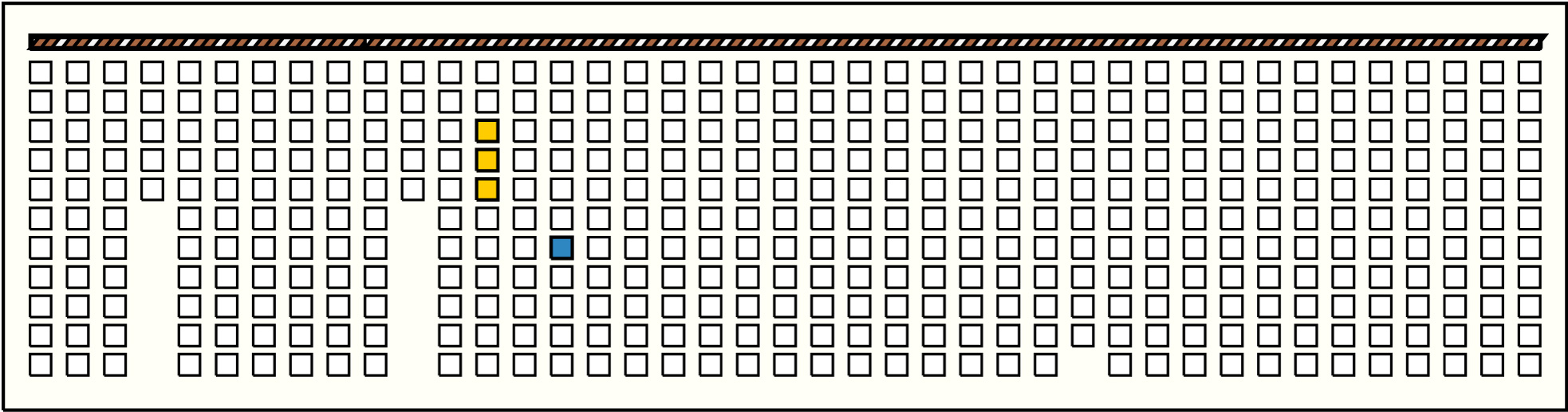

20	p149_{15, 7} : 22_W	22	3	p123: 15_W + p124: 2_W + p125: 5_W
21	p159_{16, 6} : 65_YB	65	4	p52: 13_YB + p54: 10_YB + p56: 30_YB + p57: 12_YB

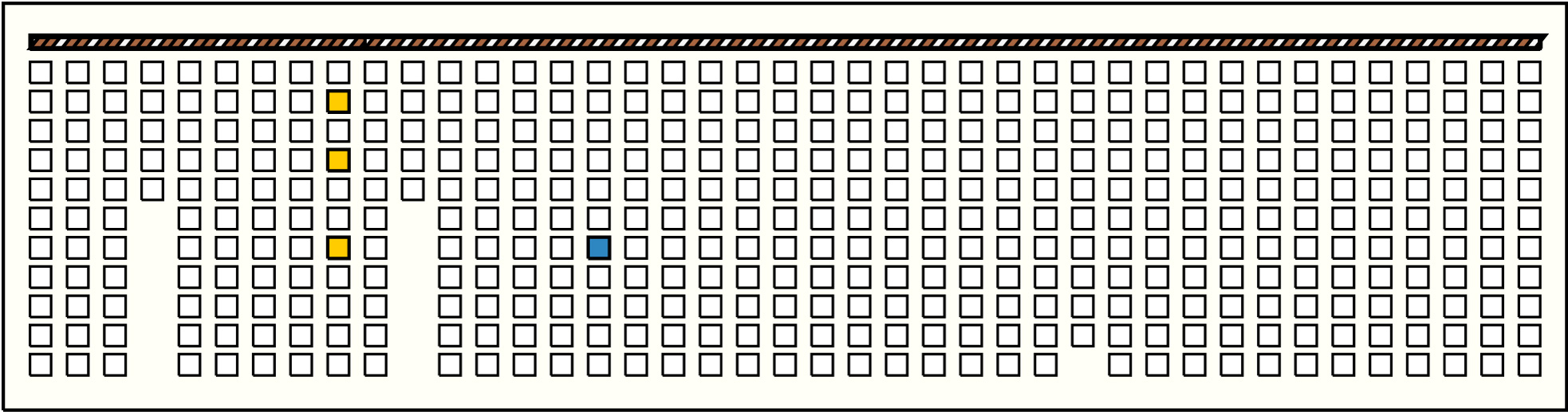

22	p160_{16, 7} : 12_W	12	3	p84: 2_W + p86: 2_W + p89: 8_W

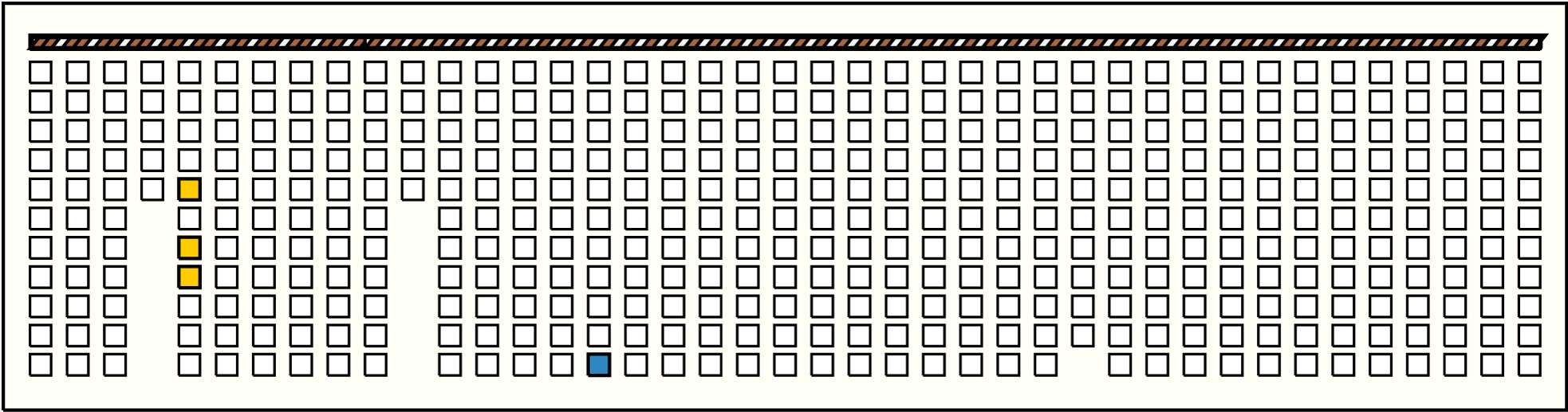

23	p164_{16, 11} : 26_W	26	3	p43: 4_W + p45: 17_W + p46: 5_W
24	p169_{17, 5} : 13_W	13	3	p130: 7_W + p131: 2_W + p132: 4_W

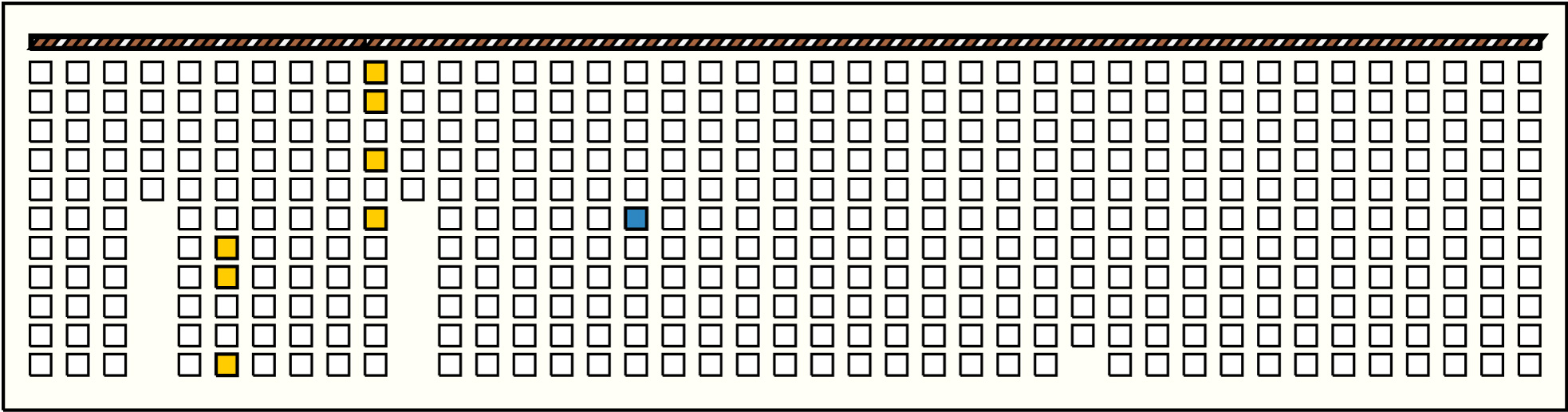

25	p170_{17, 6} : 60_YB	60	7	p56: 30_YB + p57: 12_YB + p60: 2_YB + p94: 7_YB + p95: 5_YB + p97: 2_YB + p99: 2_YB

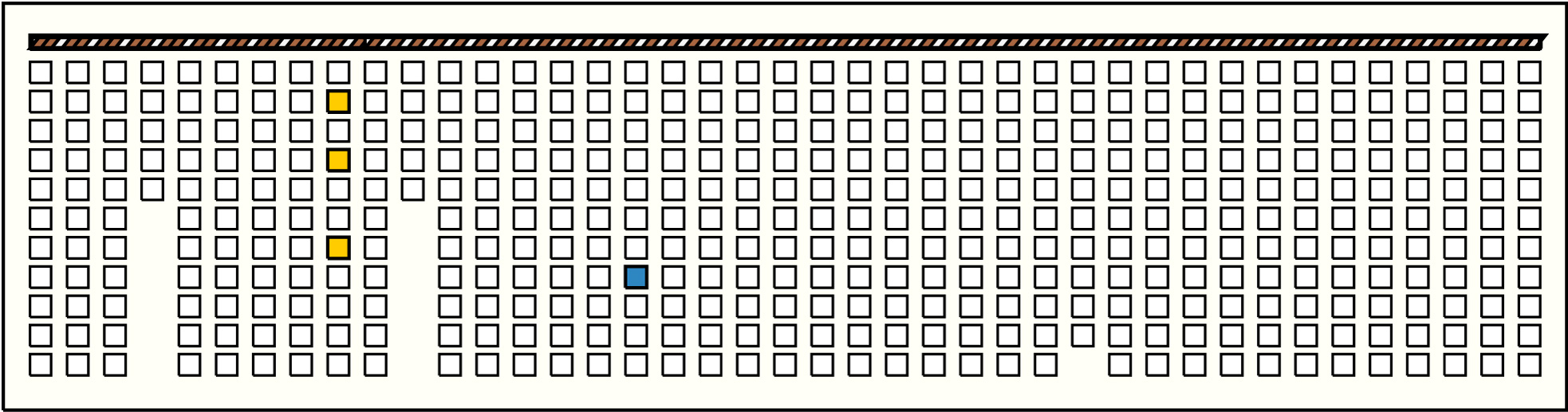

26	p172_{17, 8} : 12_W	12	3	p84: 2_W + p86: 2_W + p89: 8_W

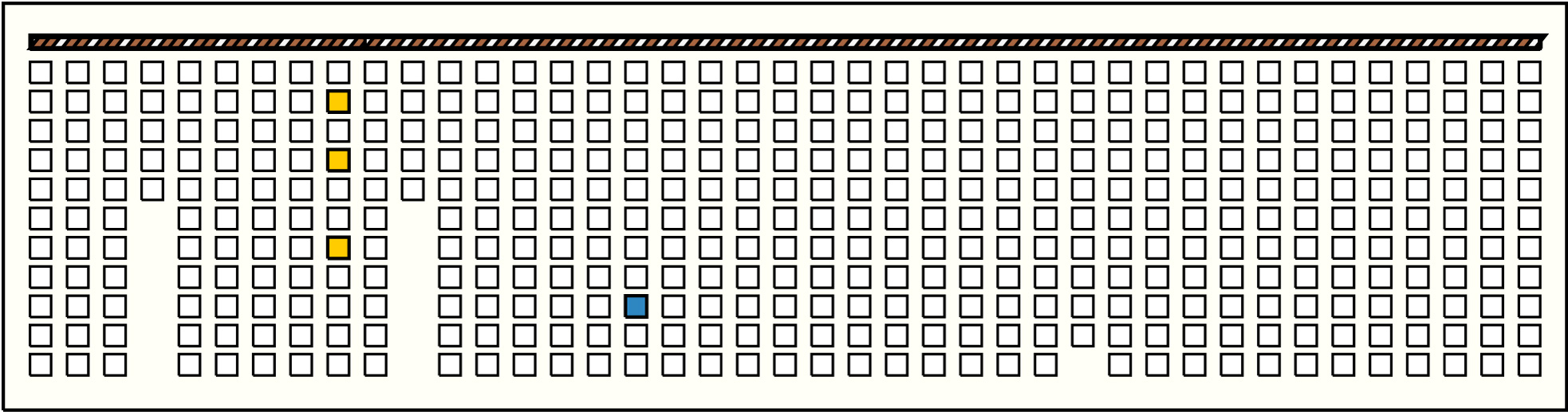

27	p173_{17, 9} : 12_W	12	3	p84: 2_W + p86: 2_W + p89: 8_W
28	p175_{17, 11} : 23_W	23	3	p41: 2_W + p43: 4_W + p45: 17_W

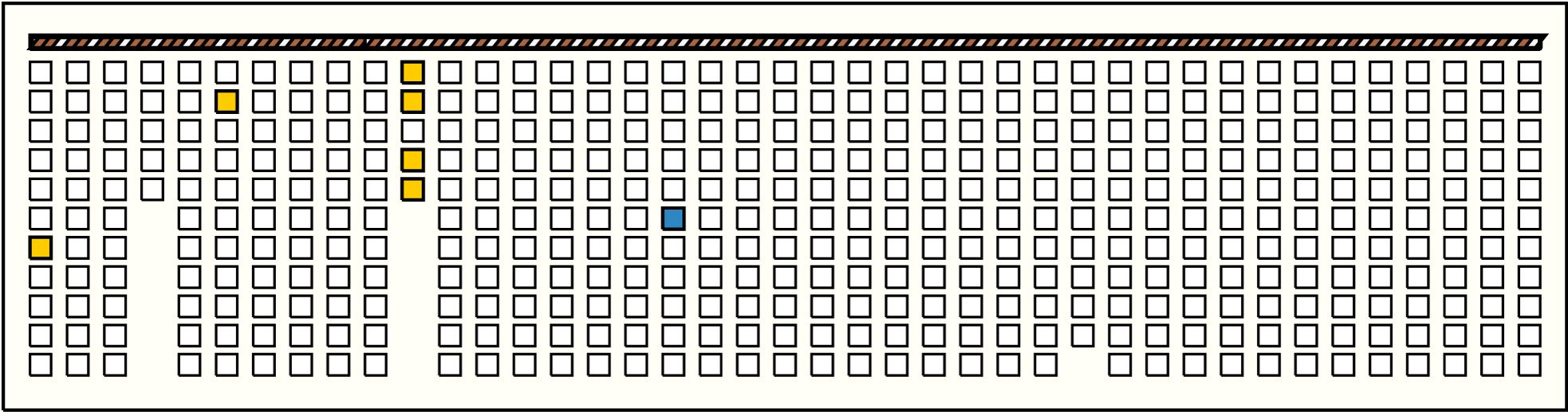

29	p181_{18, 6} : 64_AB	64	6	p7: 12_AB + p51: 20_AB + p105: 9_AB + p106: 7_AB + p108: 7_AB + p109: 9_AB

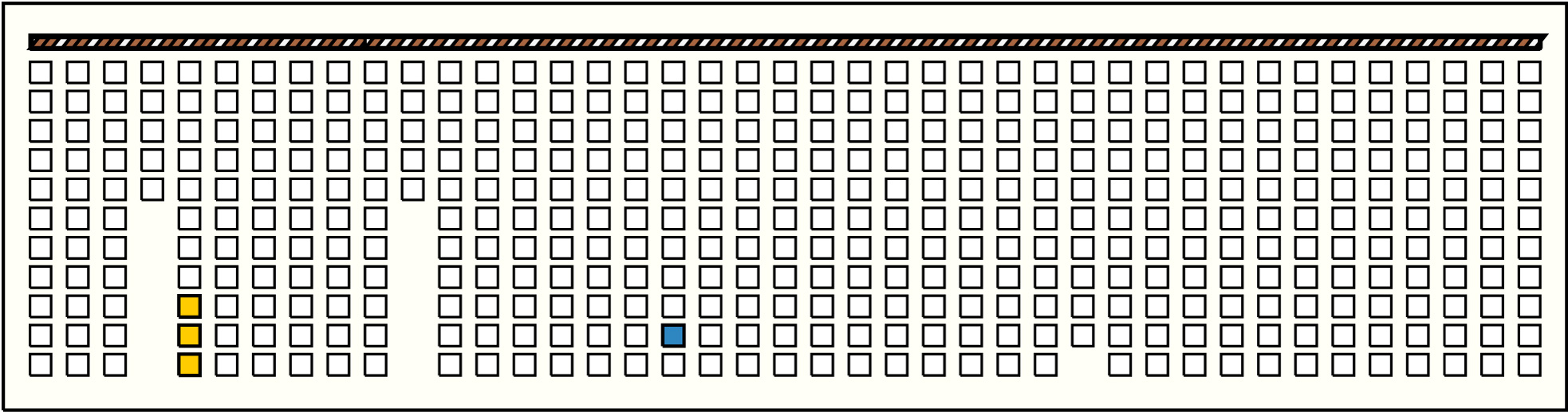

30	p185_{18, 10} : 40_W	40	3	p47: 4_W + p48: 15_W + p49: 21_W

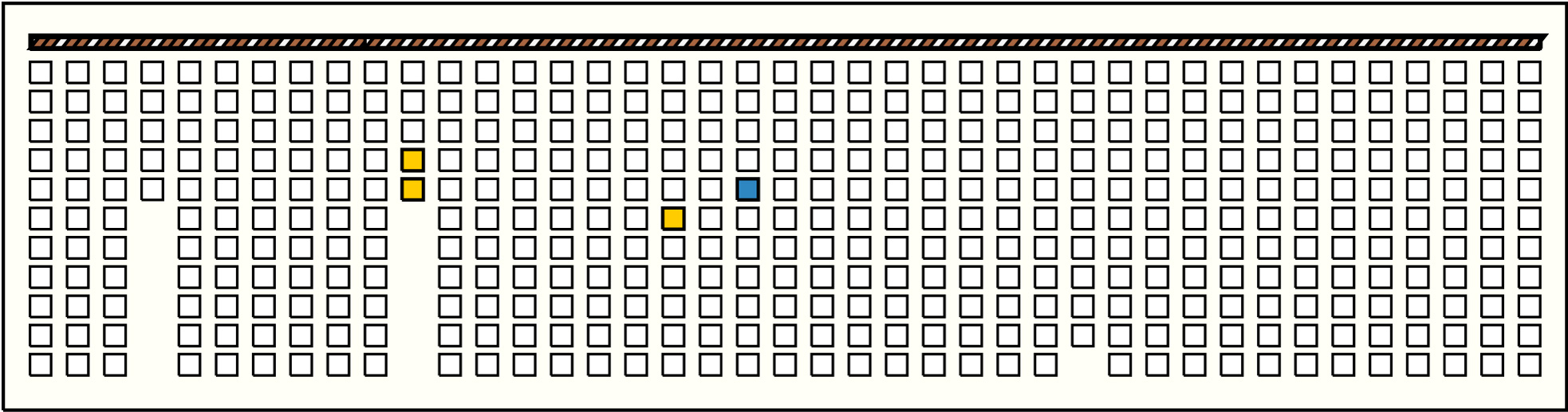

31	p202_{20, 5} : 80_AB	80	3	p108: 7_AB + p109: 9_AB + p181: 64_AB

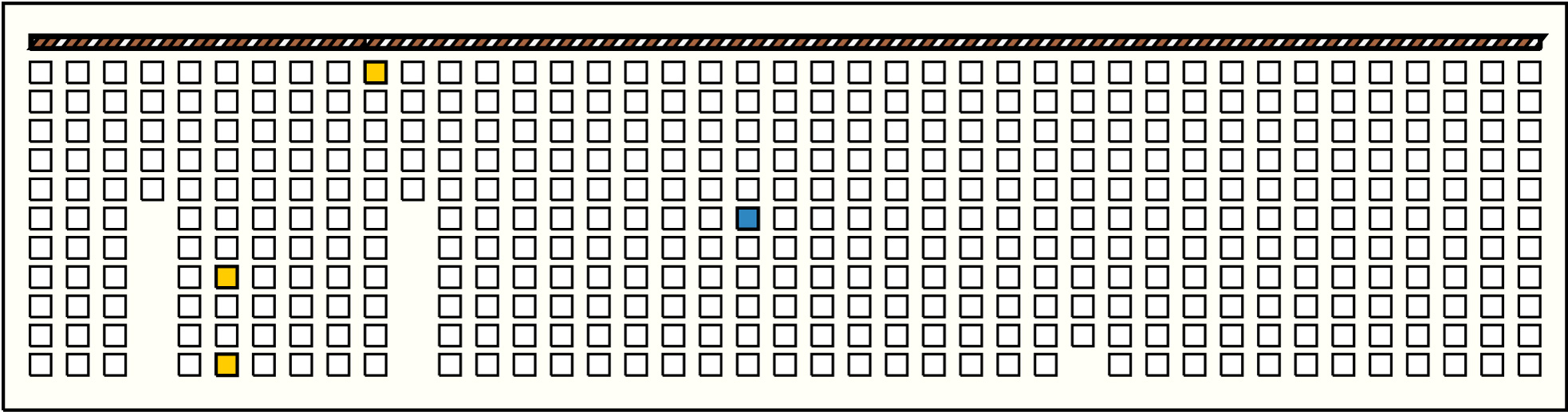

32	p203_{20, 6} : 21_YB	21	3	p57: 12_YB + p60: 2_YB + p94: 7_YB

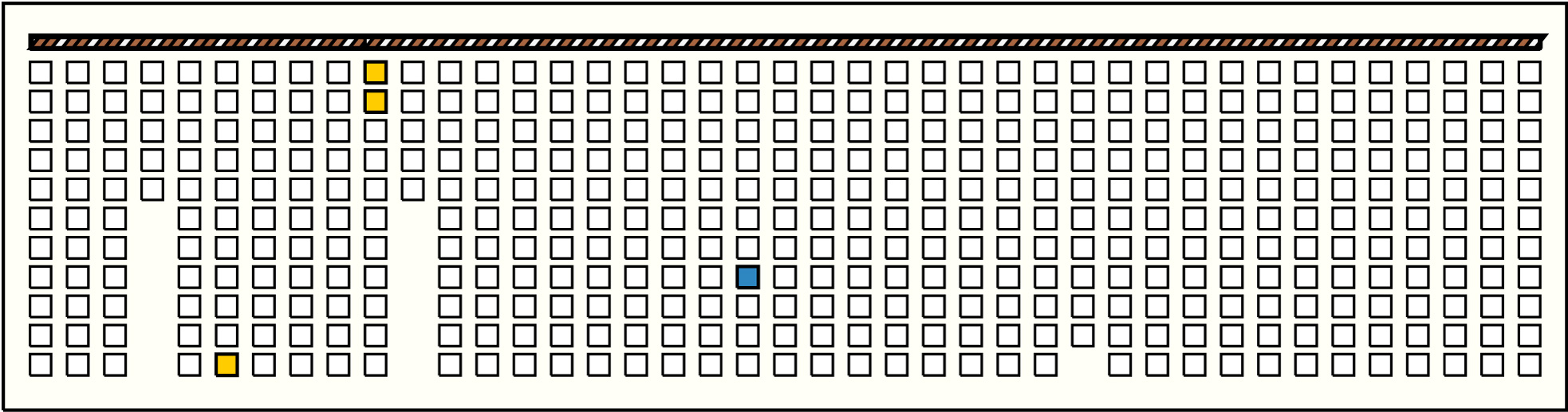

33	p205_{20, 8} : 14_YB	14	3	p60: 2_YB + p94: 7_YB + p95: 5_YB

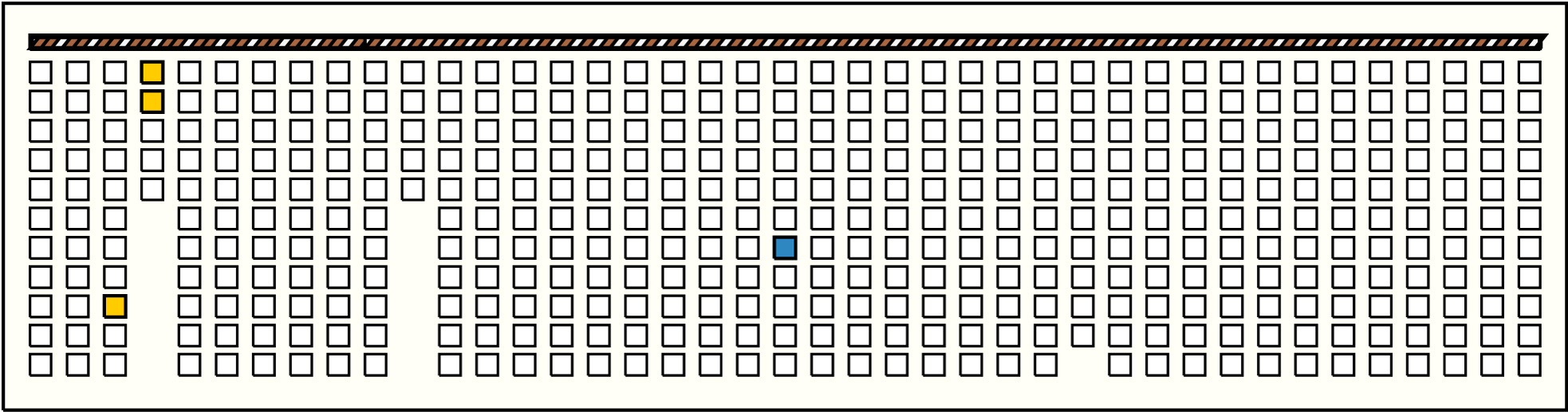

34	p215_{21, 7} : 27_YB	27	3	p31: 13_YB + p34: 8_YB + p35: 6_YB

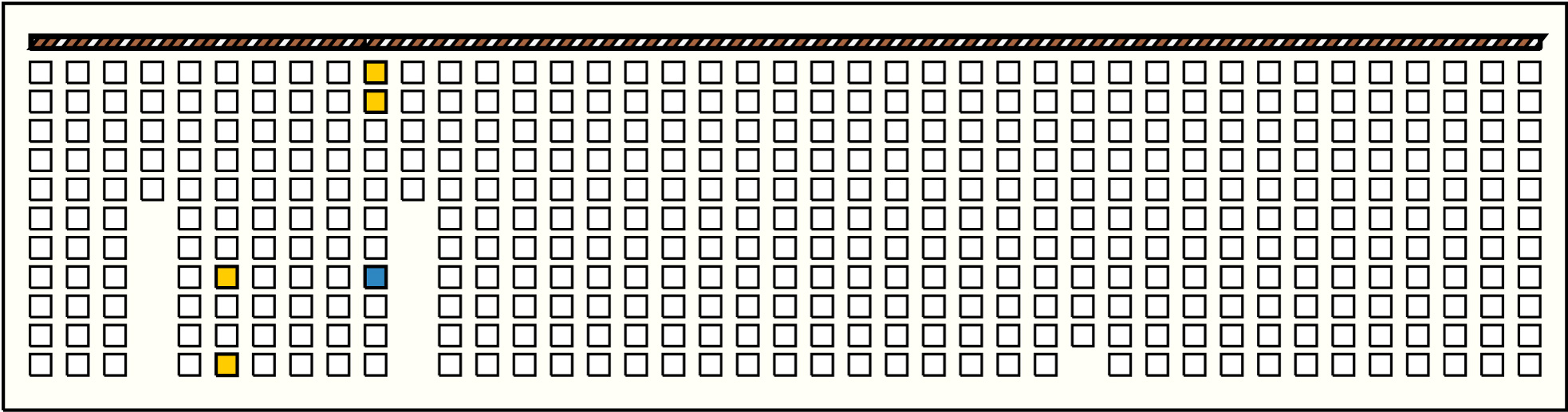

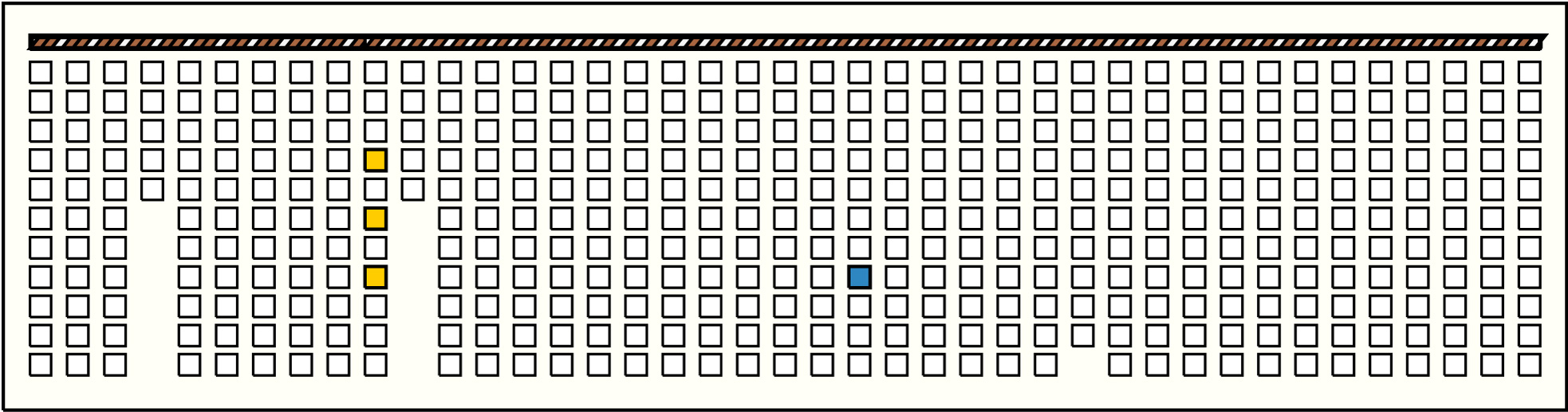

35	p238_{23, 8} : 30_YB	30	3	p97: 2_YB + p99: 2_YB + p101: 26_YB

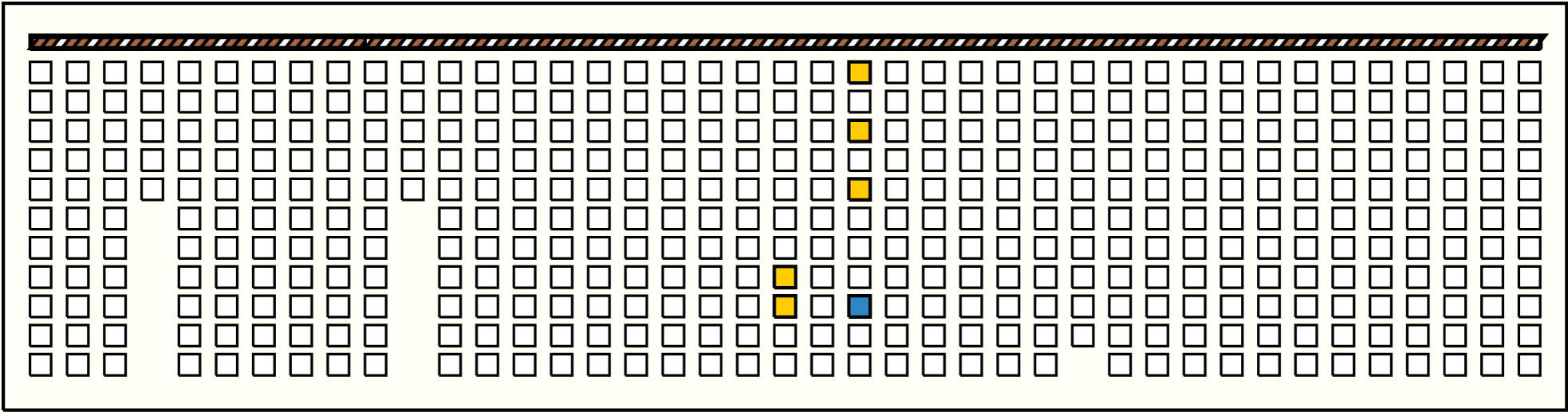

36	p239_{23, 9} : 34_YB	34	5	p216: 2_YB + p217: 2_YB + p231: 10_YB + p233: 10_YB + p235: 10_YB

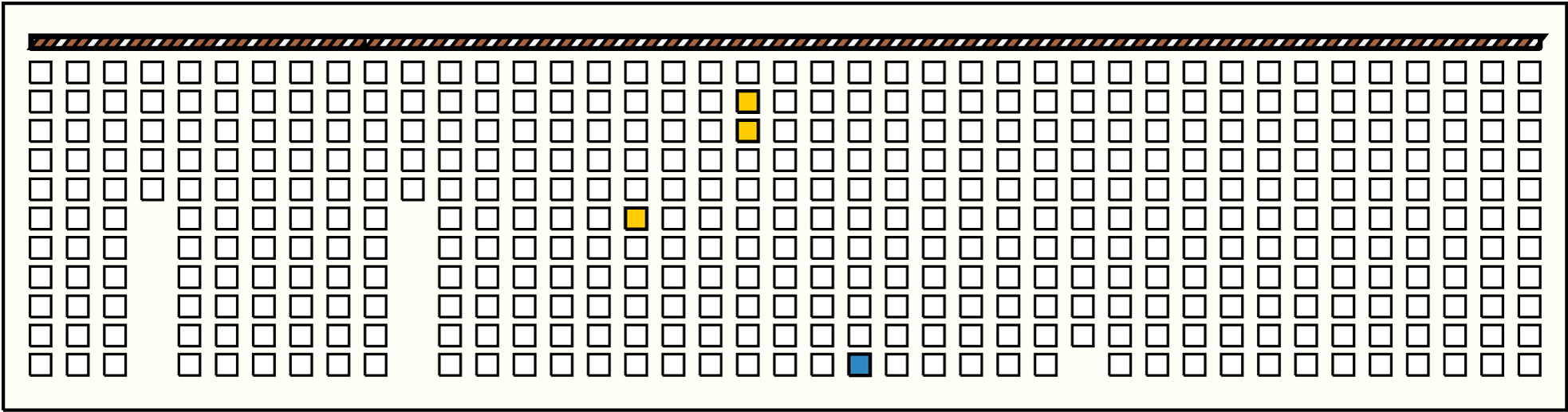

37	p241_{23, 11} : 80_YB	80	3	p170: 60_YB + p199: 10_YB + p200: 10_YB
38	p255_{25, 3} : 30_KB	30	3	p187: 3_KB + p189: 24_KB + p192: 3_KB
39	p257_{25, 5} : 30_KB	30	3	p187: 3_KB + p189: 24_KB + p192: 3_KB

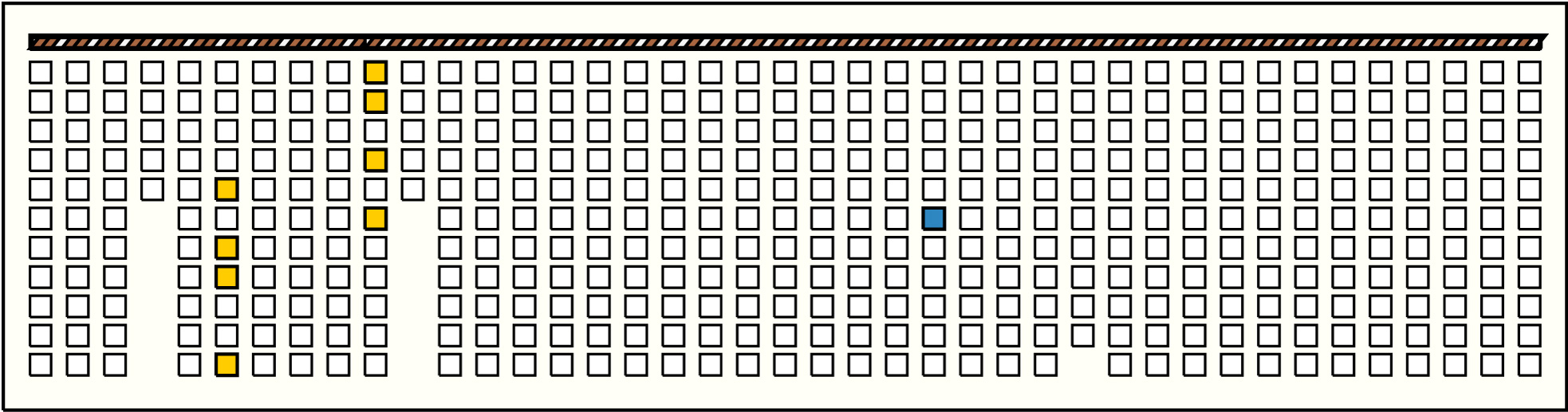

40	p258_{25, 6} : 70_YB	70	8	p54: 10_YB + p56: 30_YB + p57: 12_YB + p60: 2_YB + p94: 7_YB + p95: 5_YB + p97: 2_YB + p99: 2_YB
41	p268_{26, 5} : 20_W	20	3	p112: 2_W + p116: 3_W + p123: 15_W

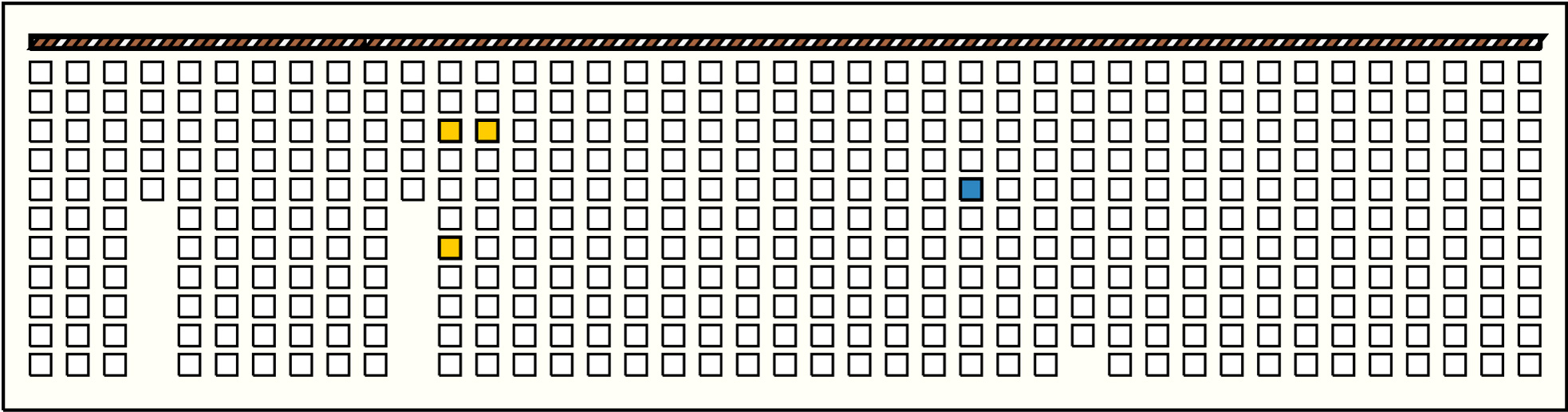

42	p269_{26, 6} : 20_W	20	3	p112: 2_W + p116: 3_W + p123: 15_W

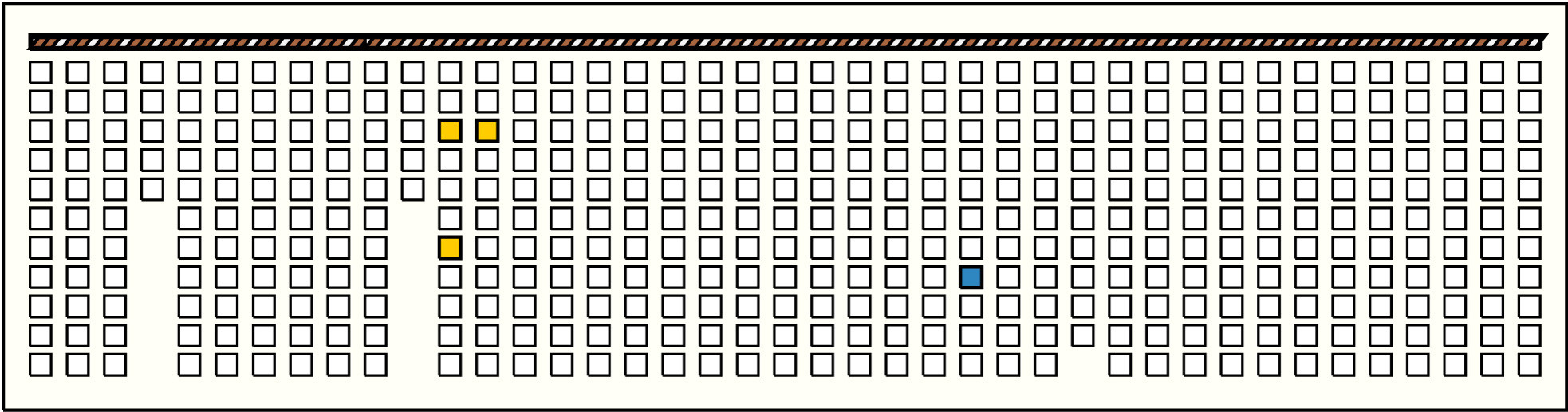

43	p271_{26, 8} : 20_W	20	3	p112: 2_W + p116: 3_W + p123: 15_W

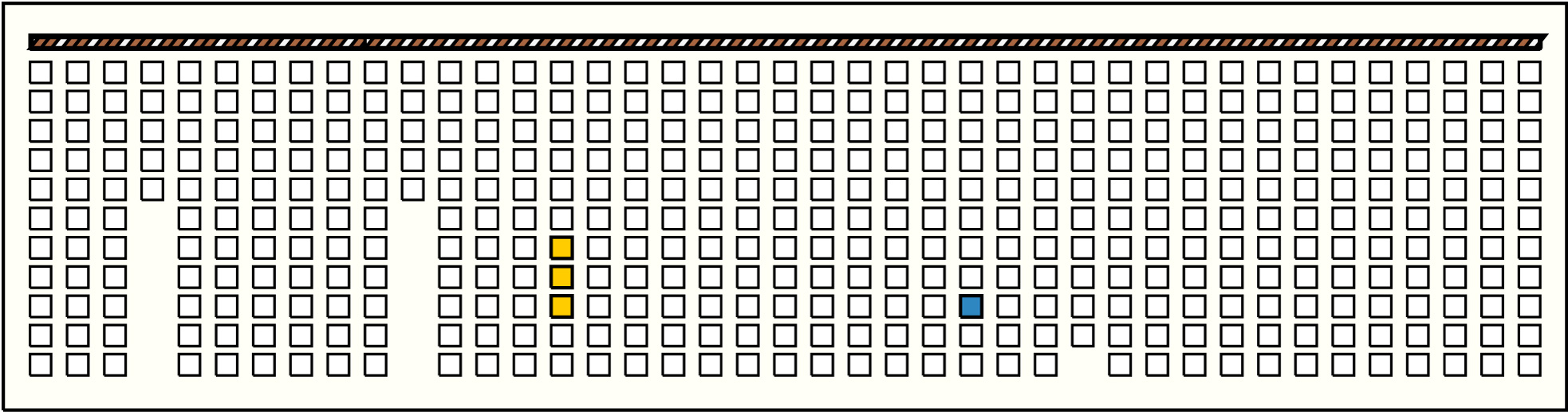

44	p272_{26, 9} : 30_W	30	3	p149: 22_W + p150: 3_W + p151: 5_W

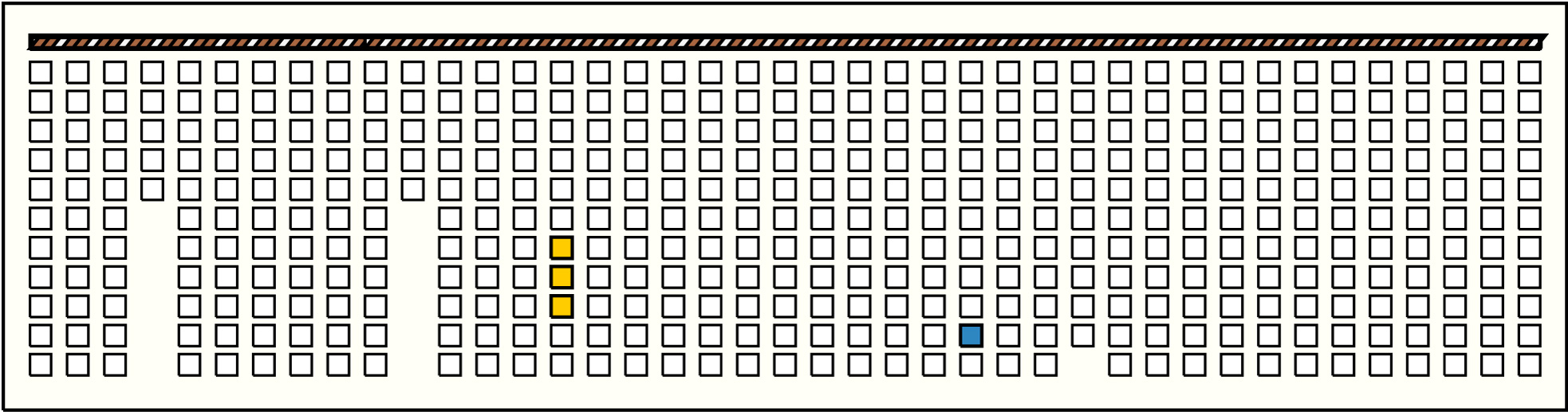

45	p273_{26, 10} : 30_W	30	3	p149: 22_W + p150: 3_W + p151: 5_W

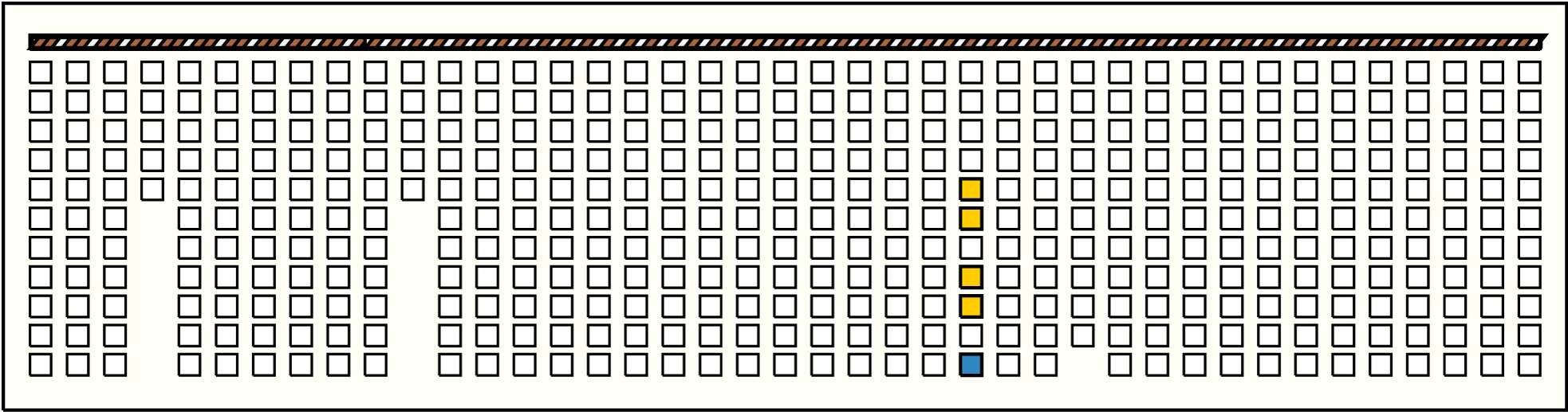

46	p274_{26, 11} : 90_W	90	4	p268: 20_W + p269: 20_W + p271: 20_W + p272: 30_W

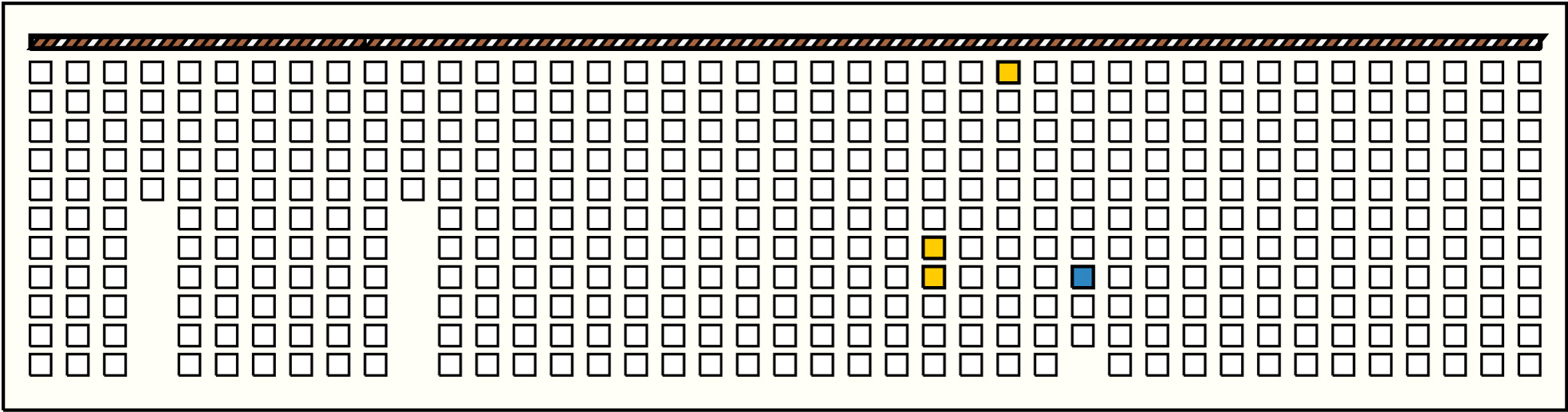

47	p304_{29, 8} : 40_KB	40	3	p259: 20_KB + p260: 10_KB + p275: 10_KB

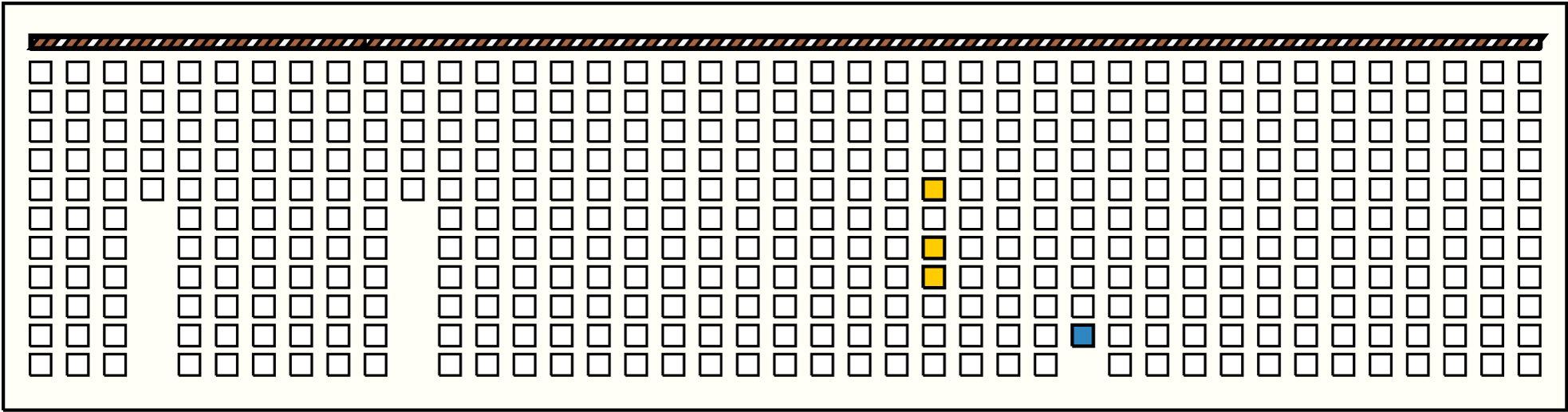

48	p306_{29, 10} : 60_KB	60	3	p257: 30_KB + p259: 20_KB + p260: 10_KB

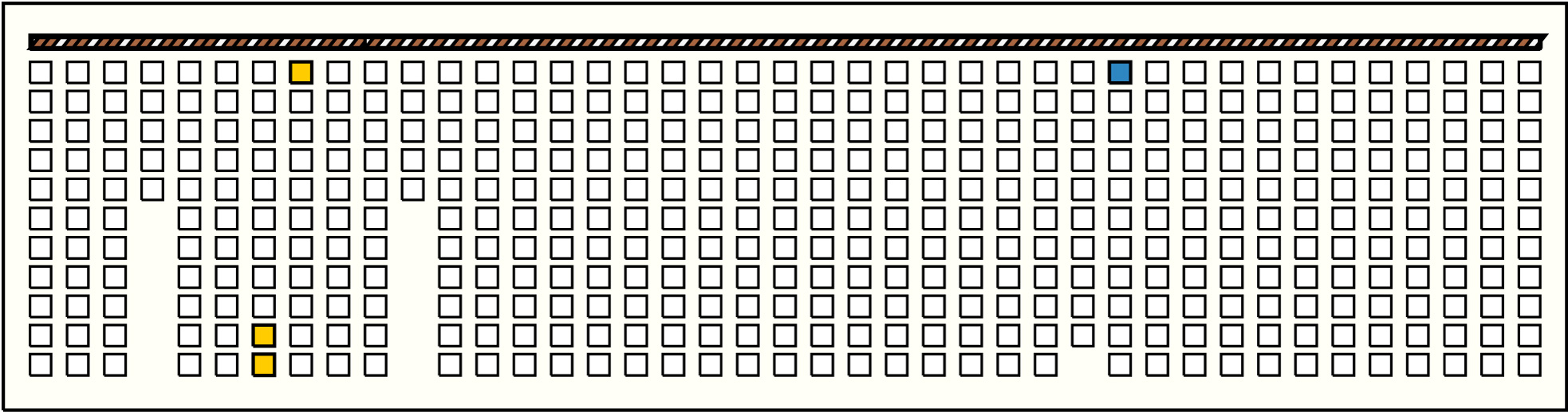

49	p307_{30, 1} : 50_W	50	3	p70: 23_W + p71: 21_W + p72: 6_W

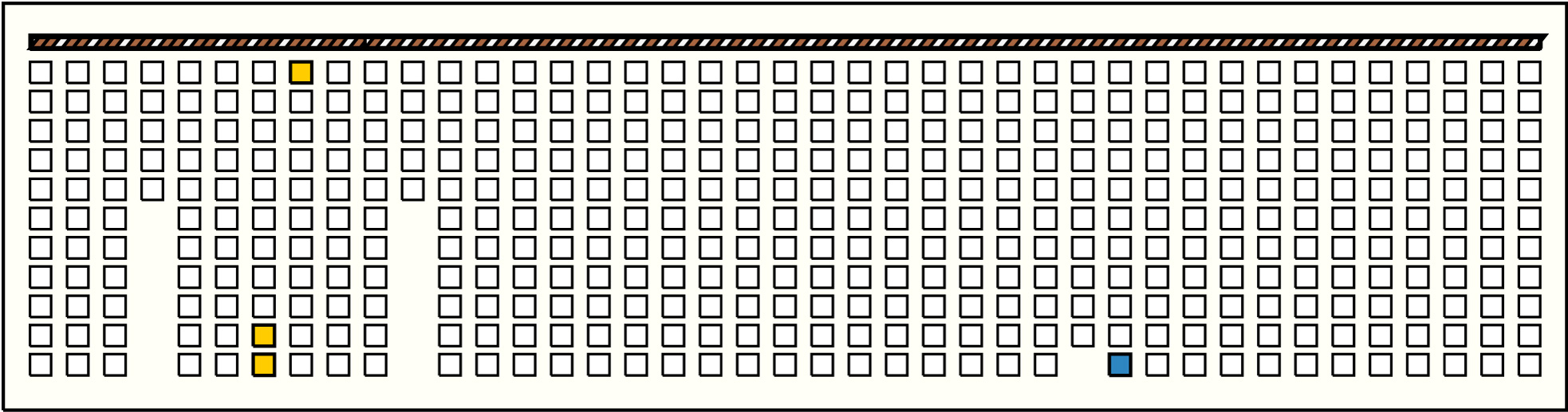

50	p317_{30, 11} : 50_W	50	3	p70: 23_W + p71: 21_W + p72: 6_W

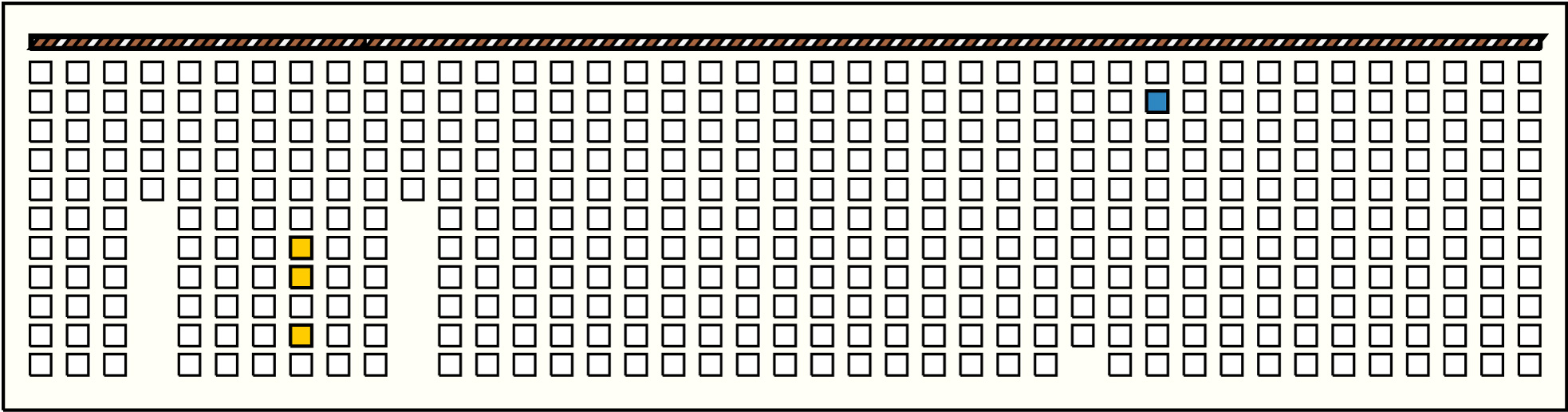

51	p319_{31, 2} : 52_W	52	3	p78: 45_W + p79: 5_W + p81: 2_W

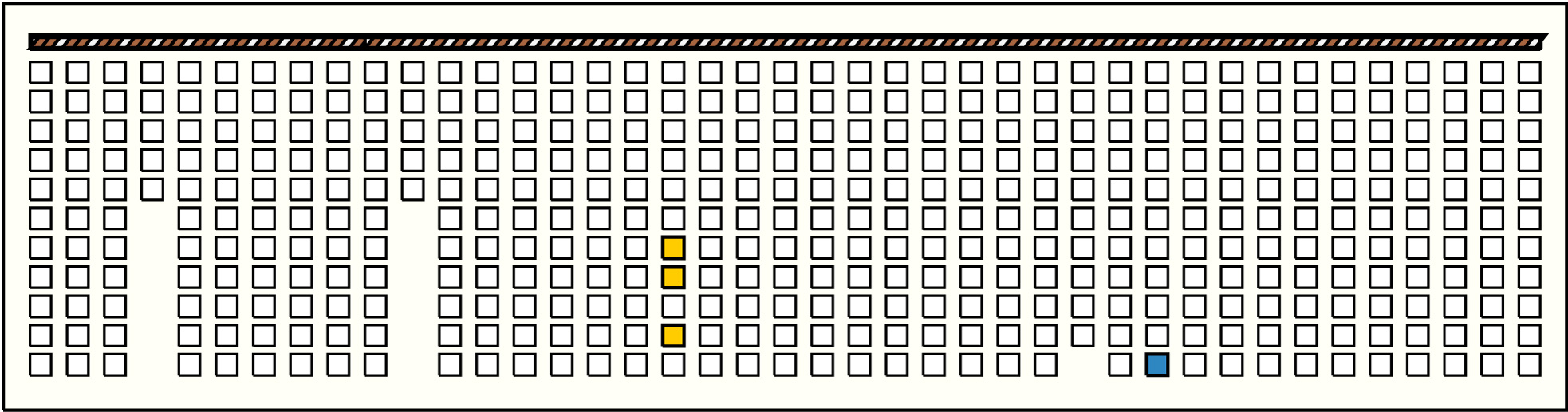

52	p328_{31, 11} : 60_W	60	3	p182: 10_W + p183: 10_W + p185: 40_W

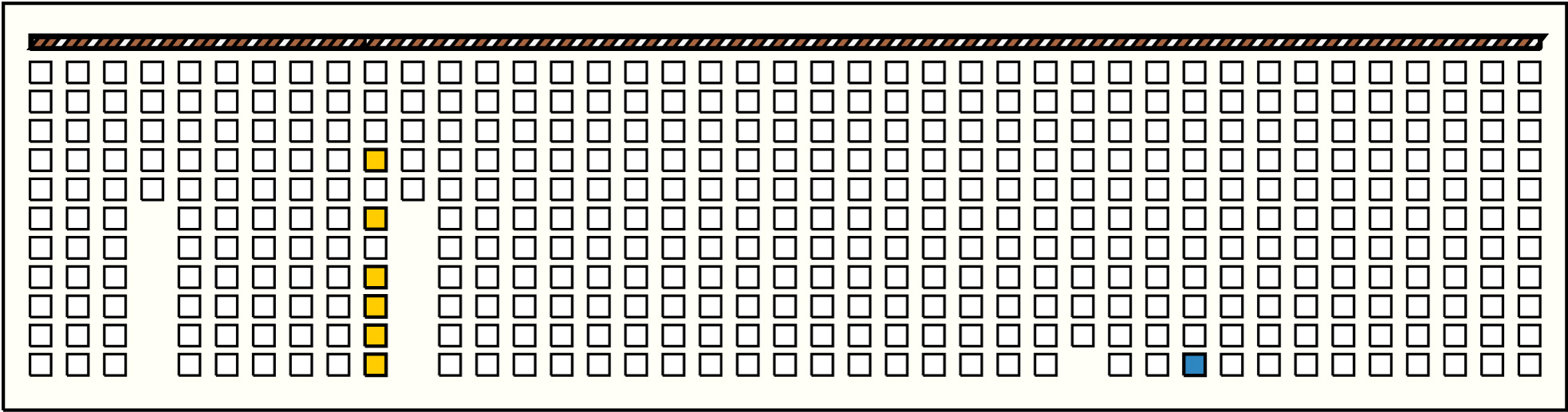

53	p339_{32, 11} : 96_YB	96	6	p97: 2_YB + p99: 2_YB + p101: 26_YB + p102: 16_YB + p103: 2_YB + p104: 48_YB
54	p346_{33, 7} : 37_W	37	3	p107: 32_W + p112: 2_W + p116: 3_W

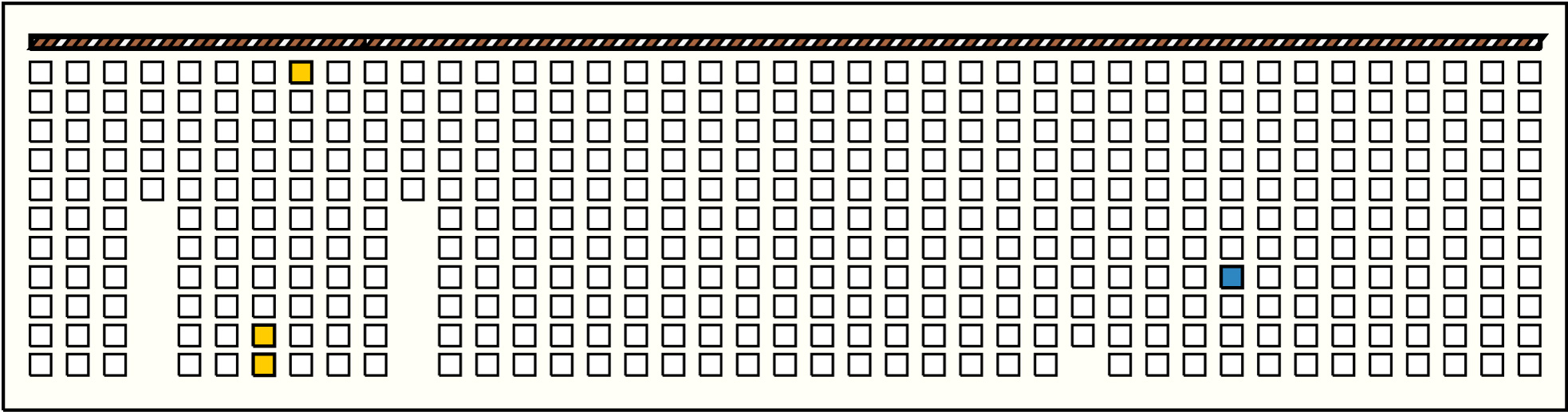

55	p347_{33, 8} : 50_W	50	3	p70: 23_W + p71: 21_W + p72: 6_W

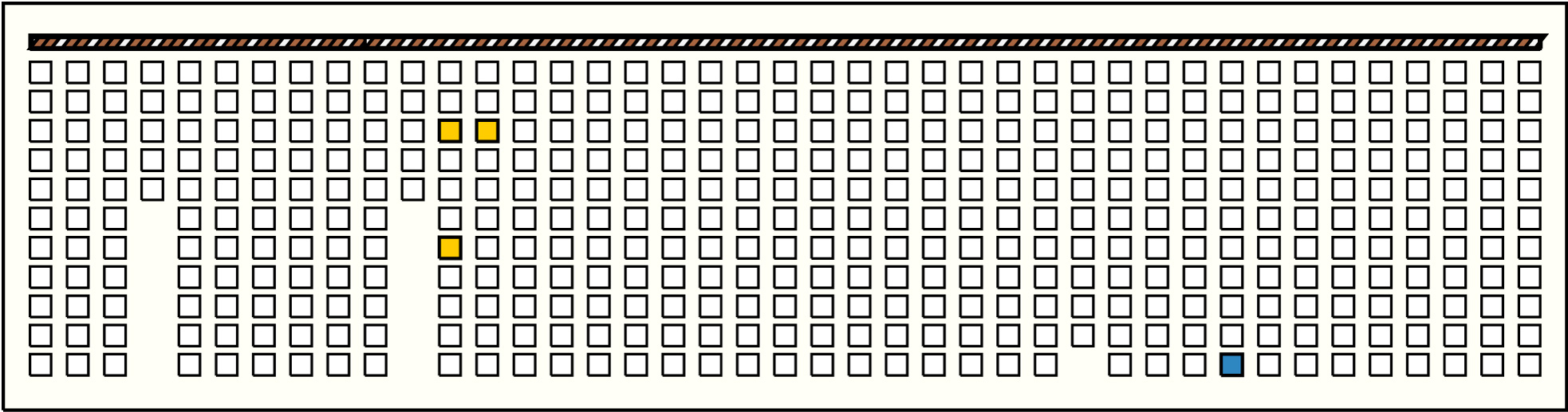

56	p350_{33, 11} : 20_W	20	3	p112: 2_W + p116: 3_W + p123: 15_W

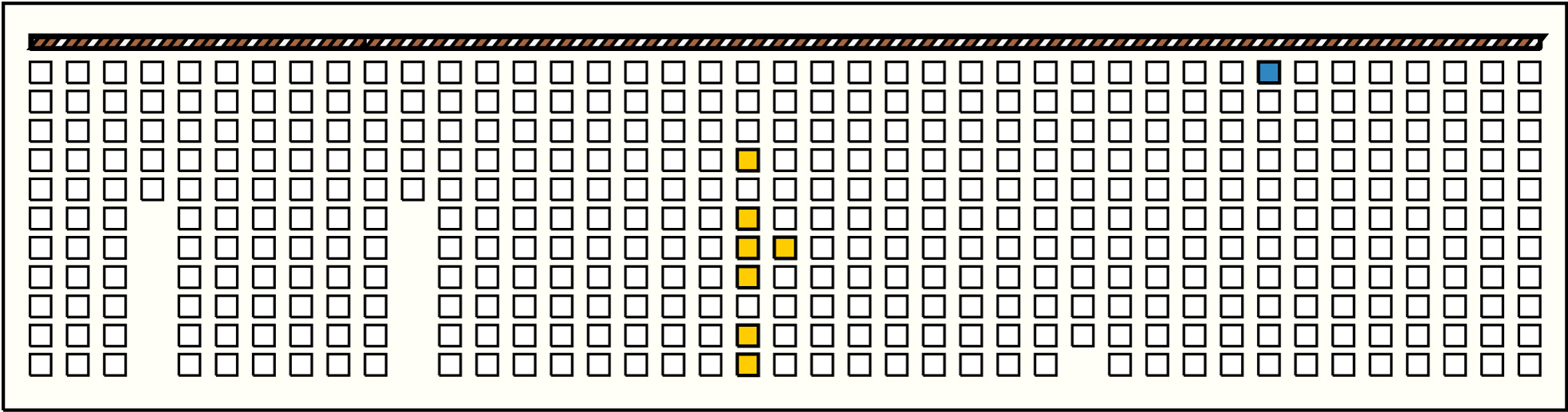

57	p351_{34, 1} : 100_YB	100	7	p201: 4_YB + p203: 21_YB + p204: 12_YB + p205: 14_YB + p207: 12_YB + p208: 10_YB + p215: 27_YB

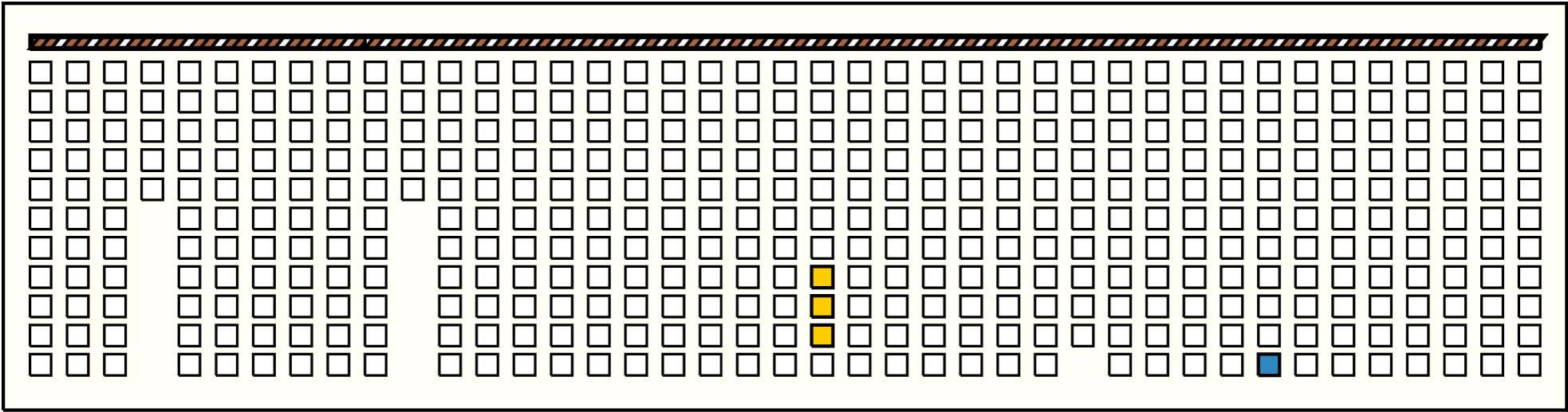

58	p361_{34, 11} : 50_YY	50	3	p227: 30_YY + p228: 10_YY + p229: 10_YY

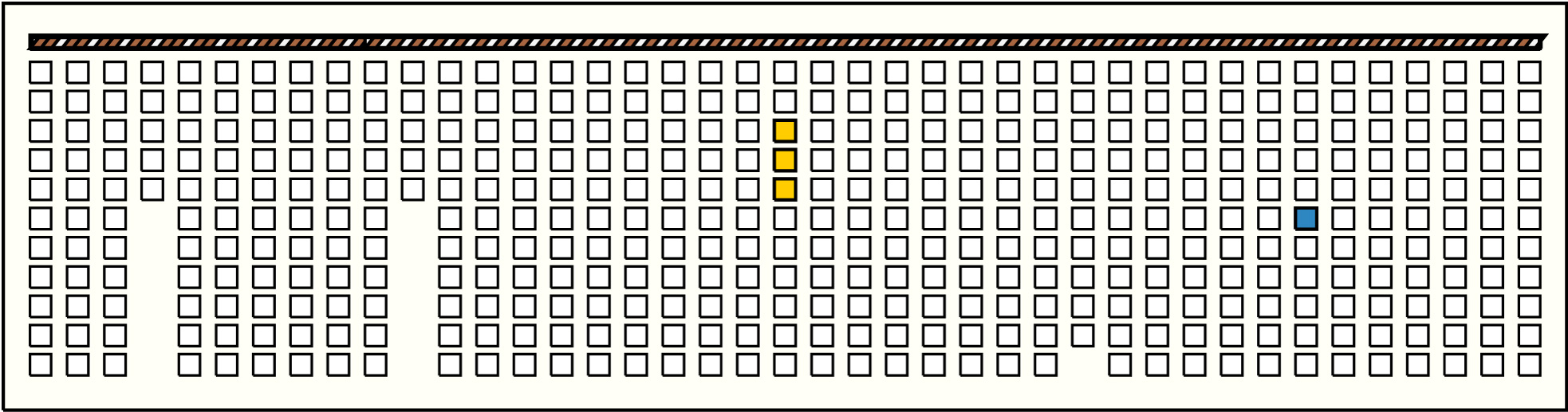

59	p367_{35, 6} : 20_AB	20	3	p211: 6_AB + p212: 10_AB + p213: 4_AB
60	p368_{35, 7} : 40_AB	40	3	p365: 10_AB + p366: 10_AB + p367: 20_AB

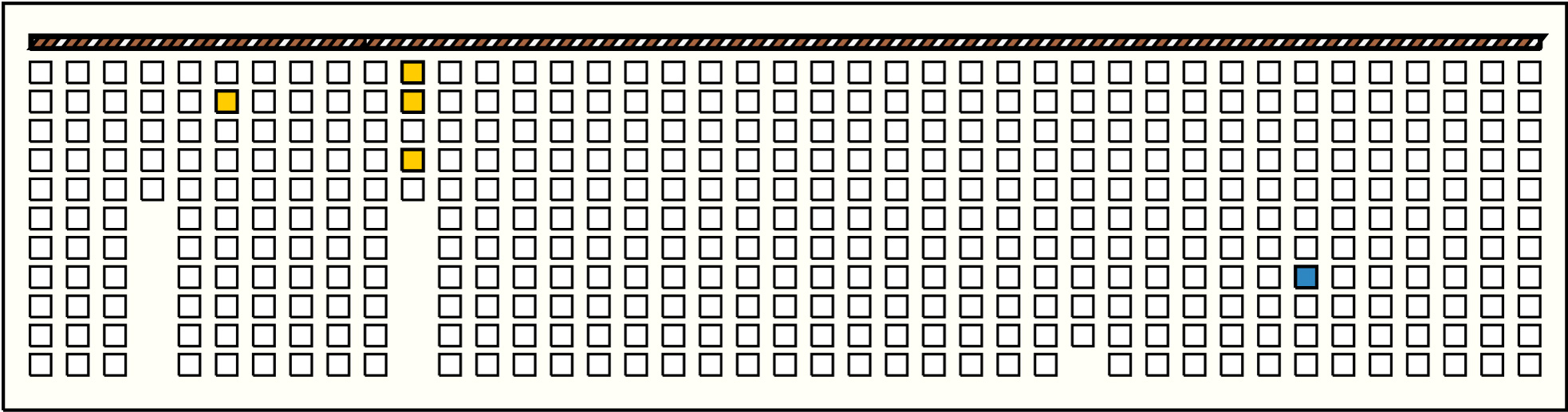

61	p369_{35, 8} : 43_AB	43	4	p51: 20_AB + p105: 9_AB + p106: 7_AB + p108: 7_AB

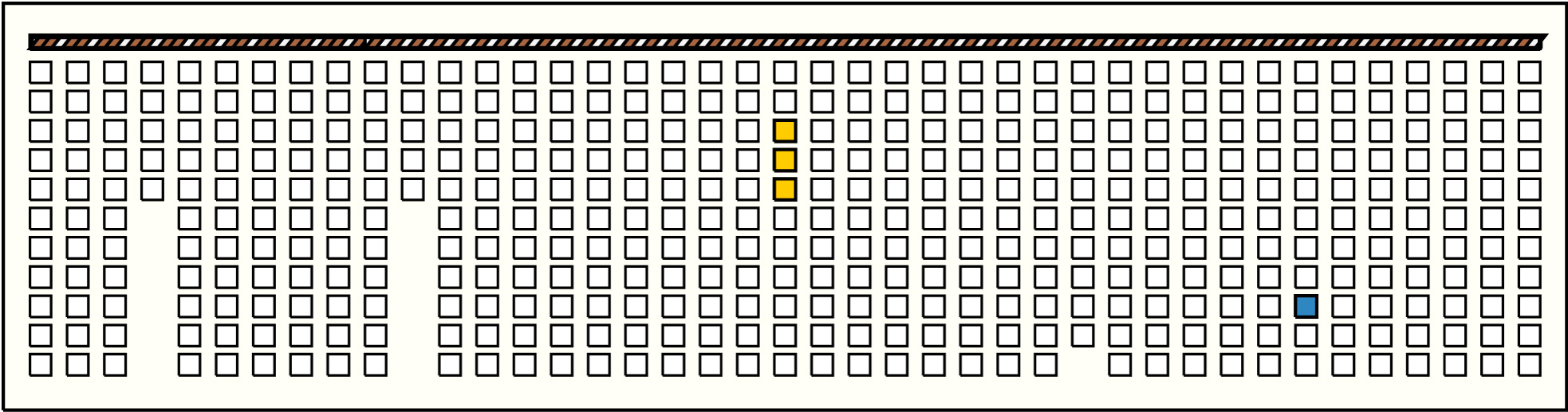

62	p370_{35, 9} : 20_AB	20	3	p211: 6_AB + p212: 10_AB + p213: 4_AB

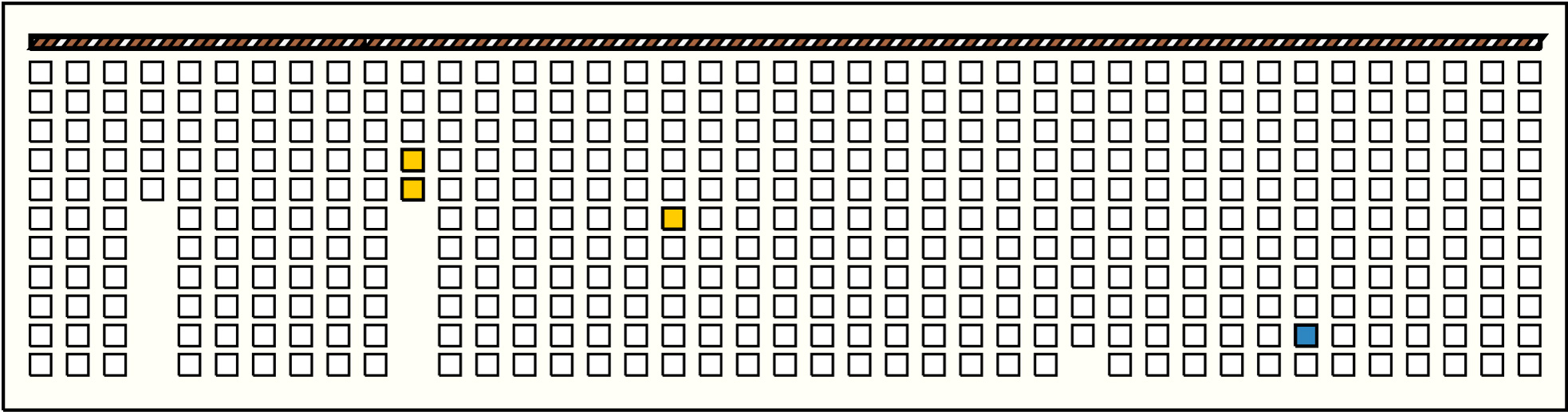

63	p371_{35, 10} : 80_AB	80	3	p108: 7_AB + p109: 9_AB + p181: 64_AB

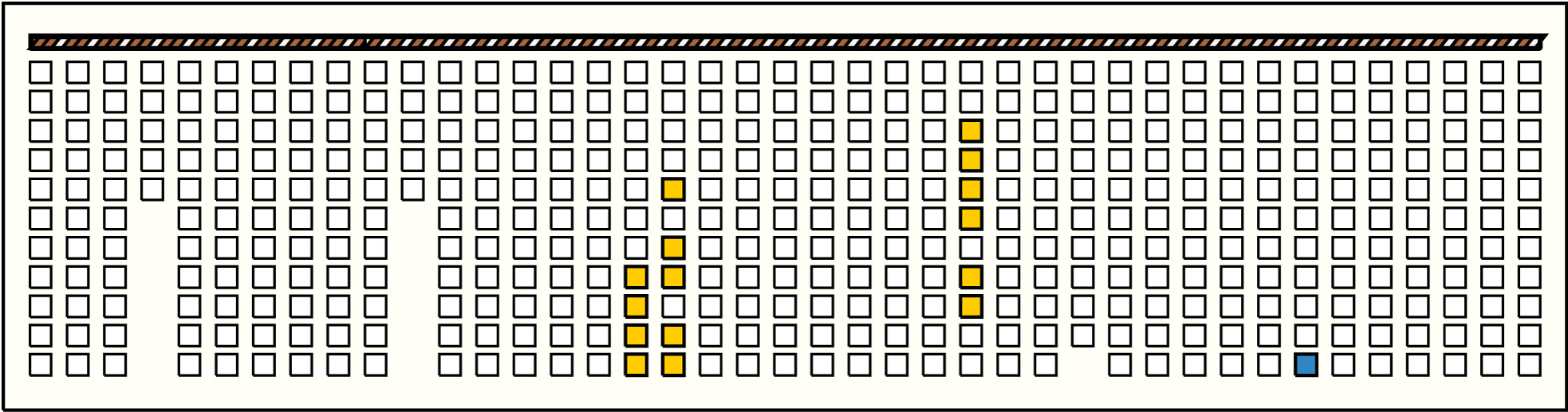

64	p372_{35, 11} : 237_W	237	15	p172: 12_W + p173: 12_W + p174: 5_W + p175: 23_W + p180: 5_W + p182: 10_W + p183: 10_W + p185: 40_W + p186: 10_W + p266: 10_W + p267: 10_W + p268: 20_W + p269: 20_W + p271: 20_W + p272: 30_W

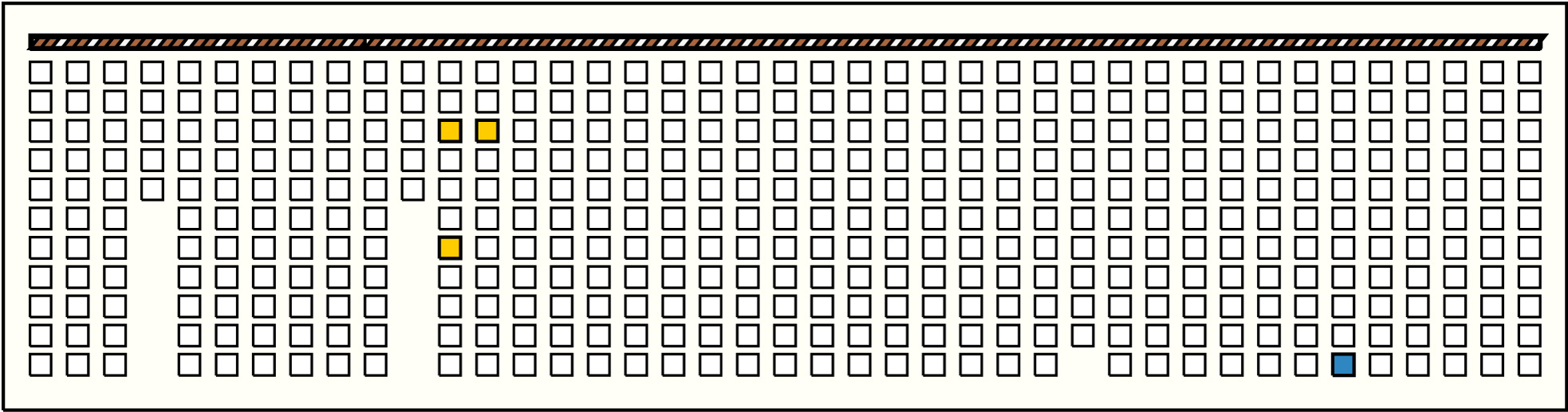

65	p383_{36, 11} : 20_W	20	3	p112: 2_W + p116: 3_W + p123: 15_W

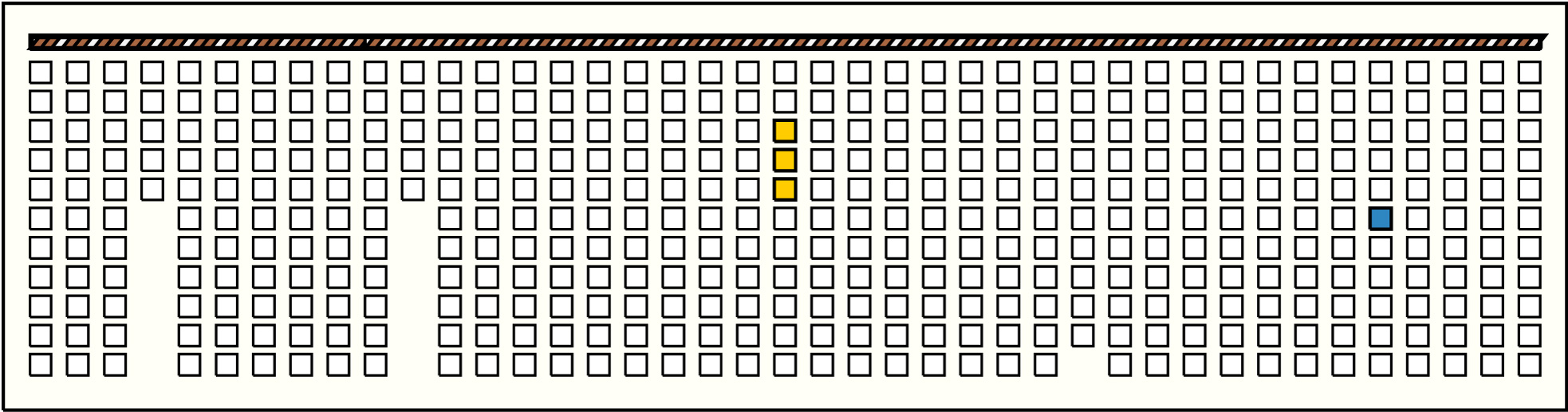

66	p389_{37, 6} : 20_AB	20	3	p211: 6_AB + p212: 10_AB + p213: 4_AB

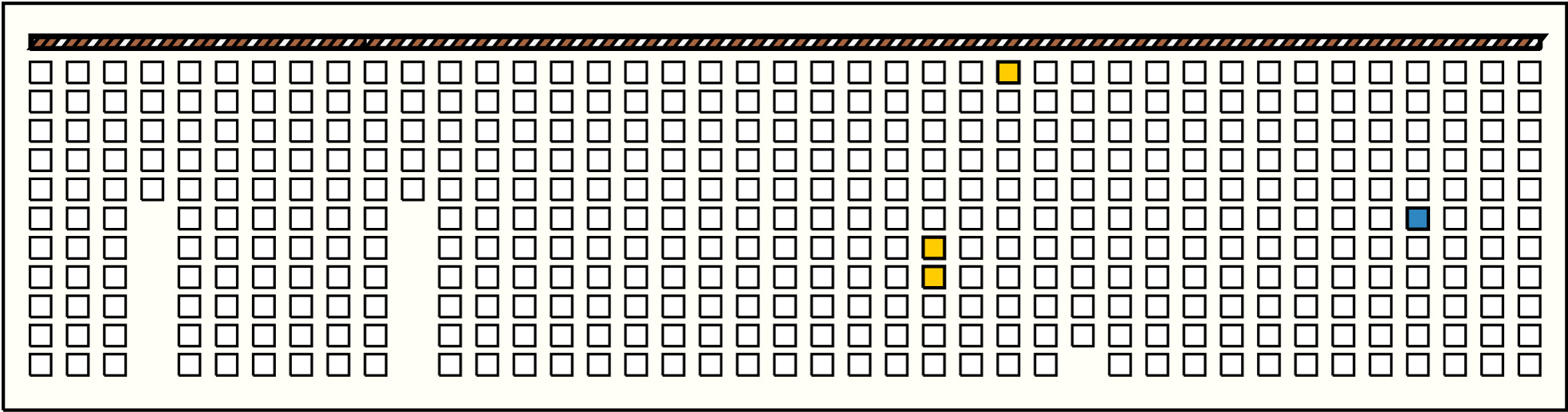

67	p400_{38, 6} : 40_KB	40	3	p259: 20_KB + p260: 10_KB + p275: 10_KB

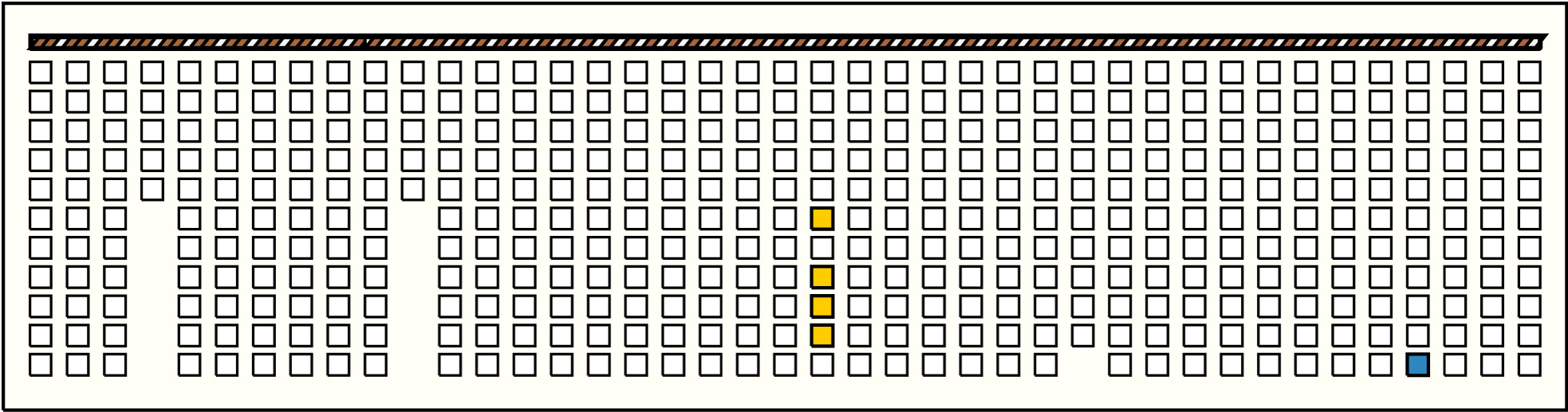

68	p405_{38, 11} : 70_YY	70	4	p225: 20_YY + p227: 30_YY + p228: 10_YY + p229: 10_YY

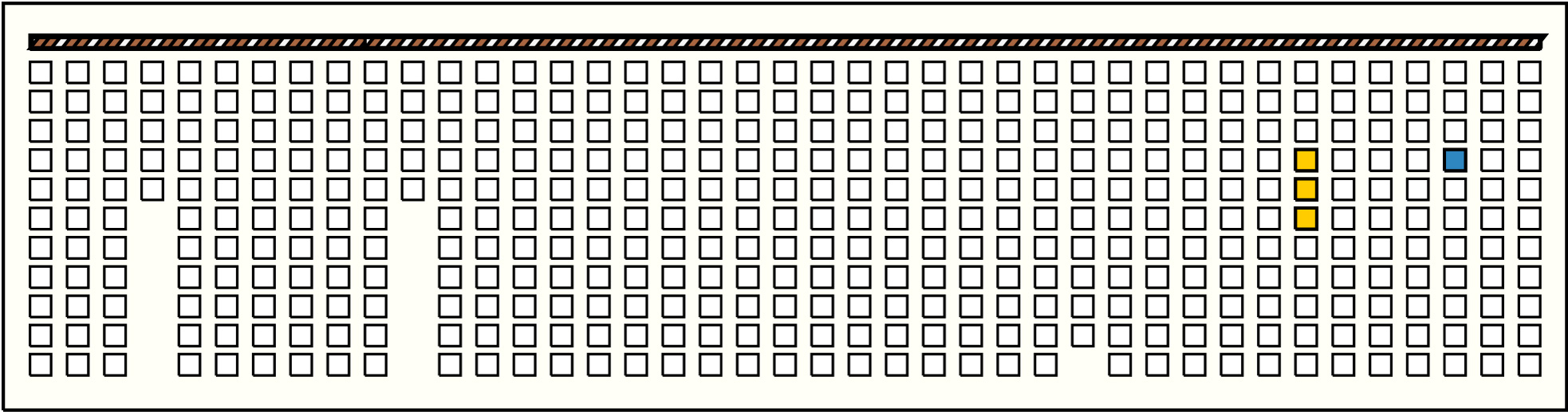

69	p409_{39, 4} : 40_AB	40	3	p365: 10_AB + p366: 10_AB + p367: 20_AB
70	p410_{39, 5} : 40_AB	40	3	p365: 10_AB + p366: 10_AB + p367: 20_AB
71	p411_{39, 6} : 30_KB	30	3	p187: 3_KB + p189: 24_KB + p192: 3_KB

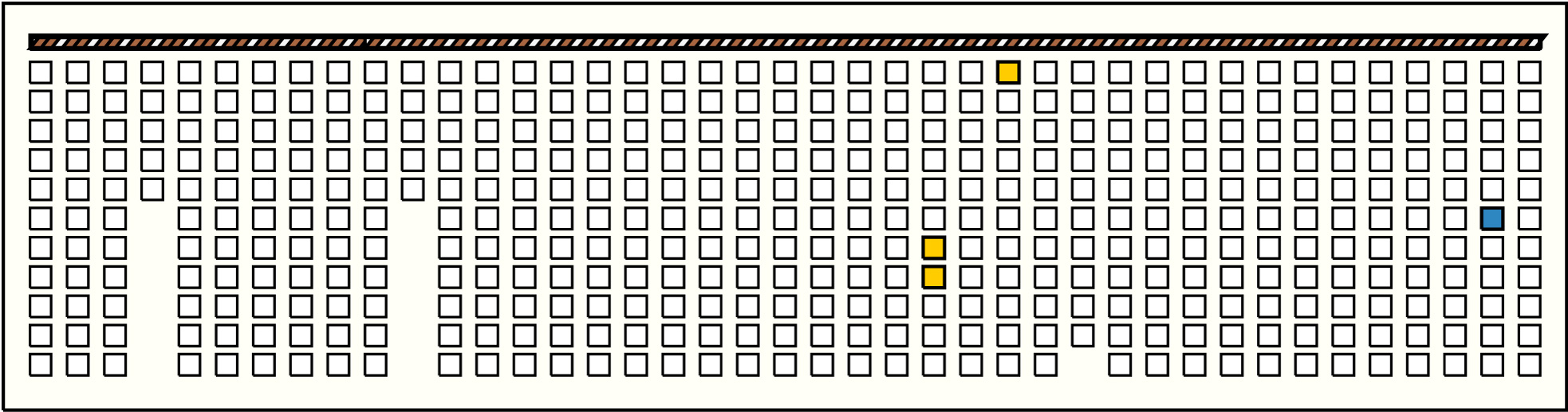

72	p422_{40, 6} : 40_KB	40	3	p259: 20_KB + p260: 10_KB + p275: 10_KB

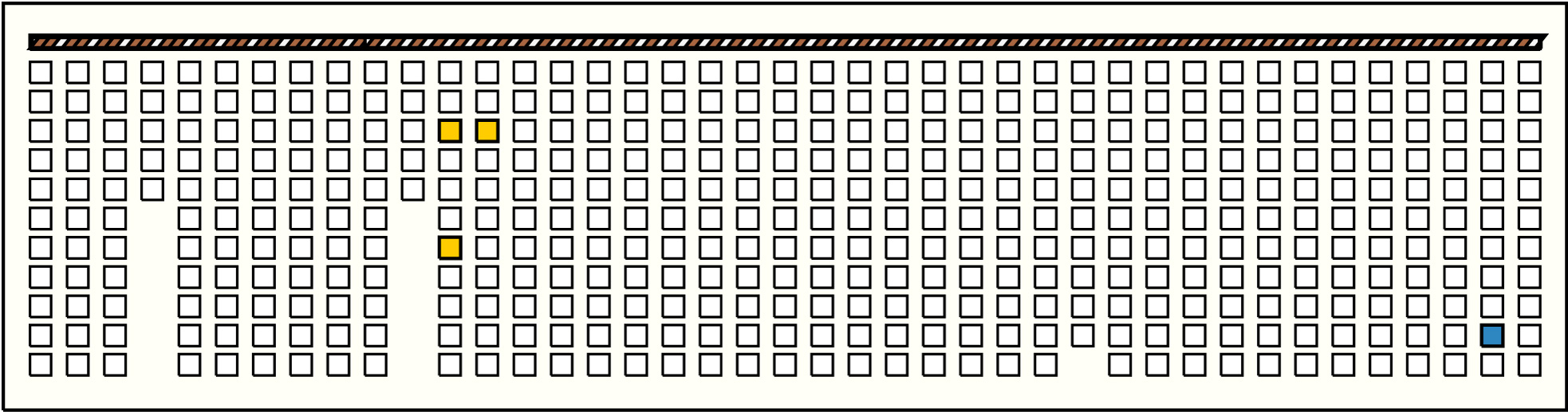

73	p426_{40, 10} : 20_W	20	3	p112: 2_W + p116: 3_W + p123: 15_W
74	p427_{40, 11} : 60_W	60	3	p182: 10_W + p183: 10_W + p185: 40_W

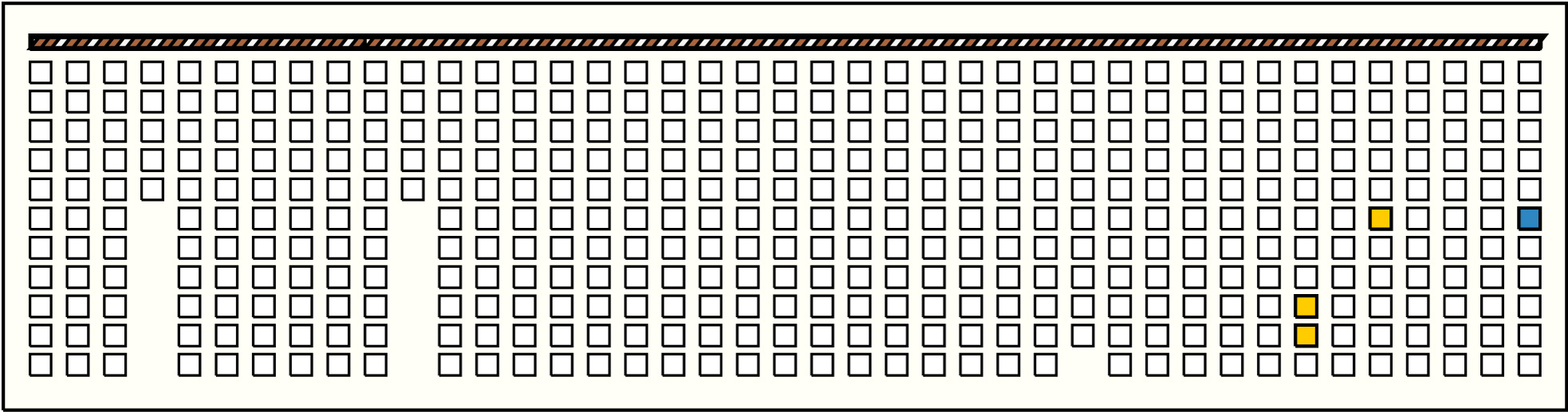

75	p433_{41, 6} : 120_AB	120	3	p370: 20_AB + p371: 80_AB + p389: 20_AB

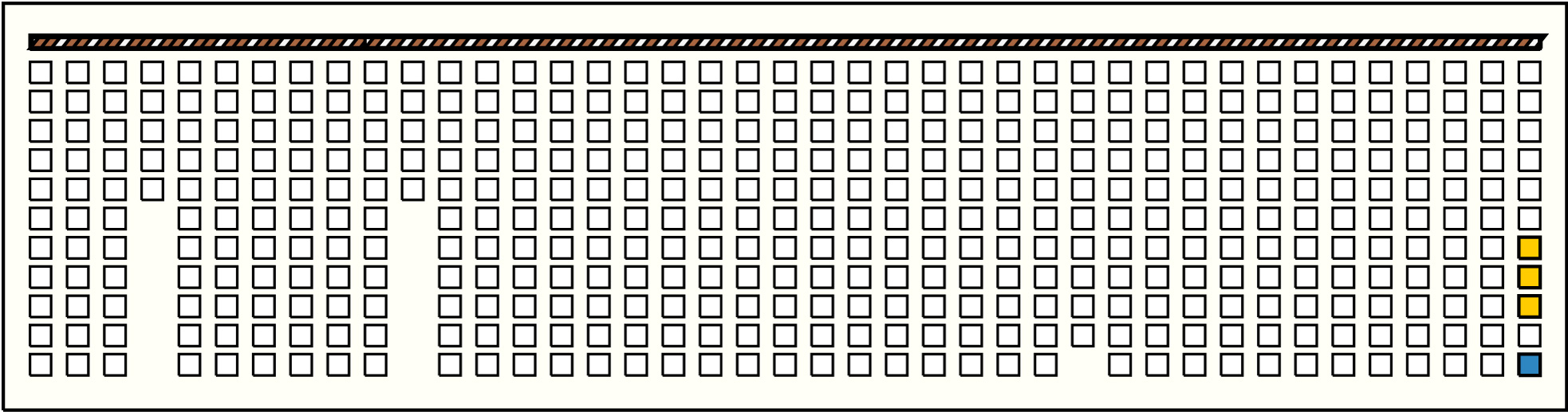

76	p438_{41, 11} : 40_YB	40	3	p434: 10_YB + p435: 10_YB + p436: 20_YB

Khipu Notes:

Author's Notes
This khipu was transcribed by Ashok Khosla, from copies of notes left by Gary Urton at Dumbarton Oaks, and found by Mack FitzPatrick.
Urton notes that these are essentially two khipus. Khipu A, consisting of groups 1-9, and Khipu B with all successive groups.

Many cords were pulled up like top cords by Conklin. These cords have been noted in cord notes as "Conklin Pullup"

Khipu Field Guide Notes:
Primary Cord Section
Two different main cords, spliced at 27.0 cm.
AB-AB-W (Cord A) final S-twist. (~.33 cm thick)
AB-W (Cord B) final S-twist (~ .66 cm thick)
Splice knot at 26.5 cm
