AS035D/KH0046 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Right-Handed Sum Detail
This Khipu's Fieldmark Catalog	Khipu Notes
This Khipu's Drawing

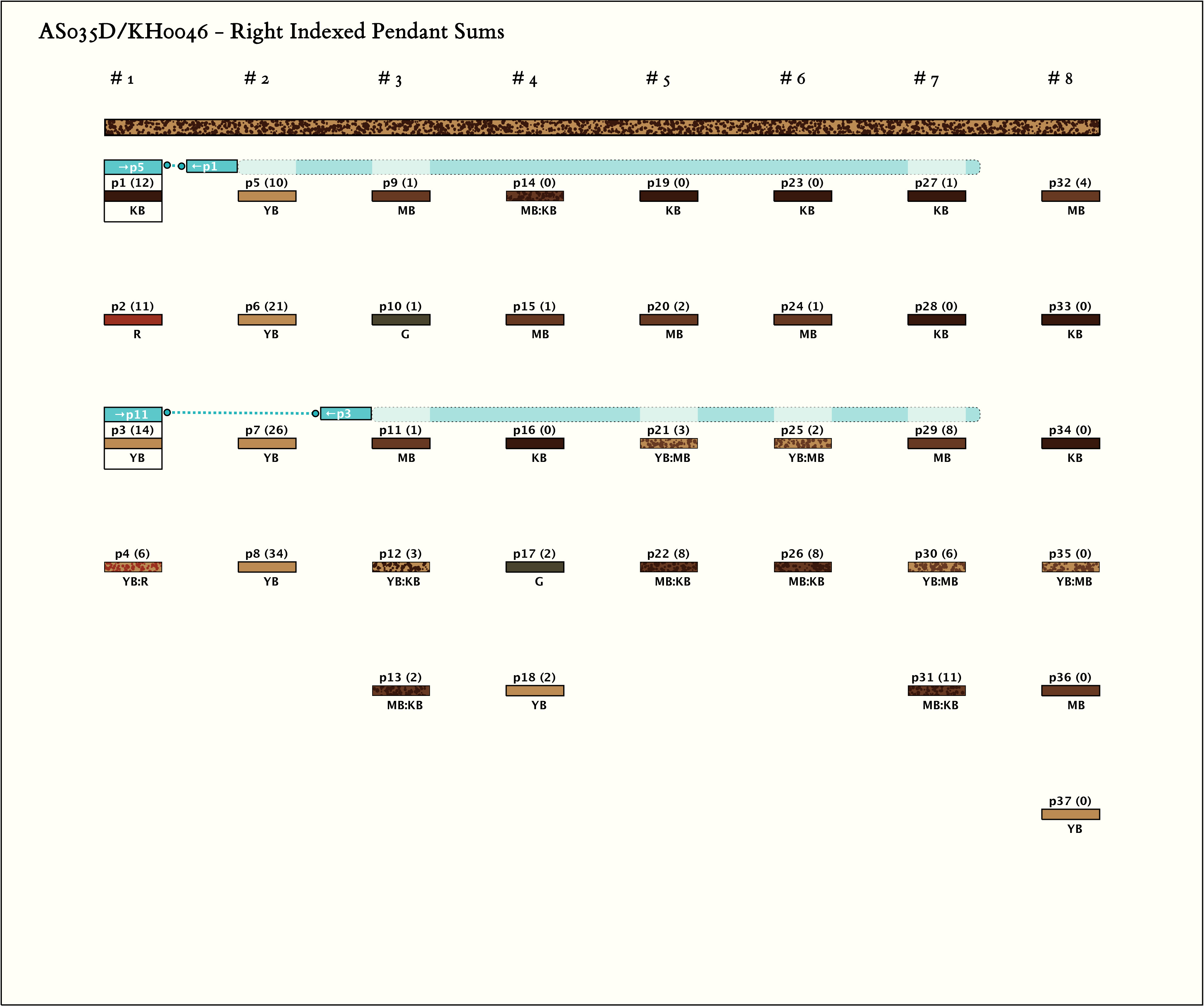

Right Handed Sums:     # Sums = 2,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (12, 13, 14)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

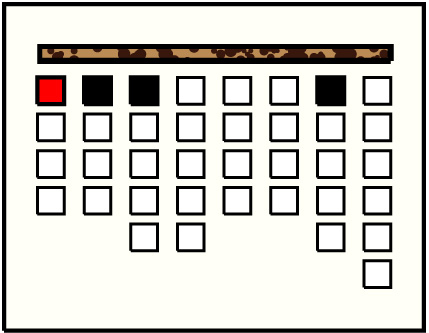

1			p11, 1 : 12KB	12	3	p5: 10YB + p9: 1MB + p27: 1KB

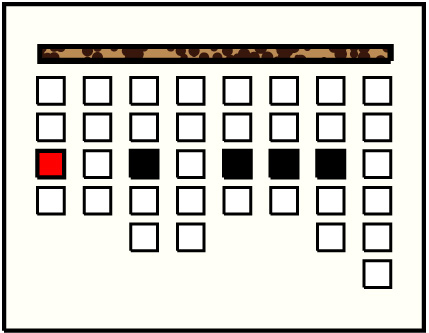

2			p31, 3 : 14YB	14	4	p11: 1MB + p21: 3YB:MB + p25: 2YB:MB + p29: 8MB

Khipu Notes:

Ascher Databook Notes:

1. Construction note : pendants 21 and 22 are tied together at 1.0 cm . below the main cord by a YB colored cord.
2. This khipu contains 5 broken pendants of color KB. Two fragments of KB pendants were loose within the khipu collection . One had a cluster of 2L knots, and the other a cluster of 4L knots.
3. AS35A-AS035D is a collection of 4 khipus that are tied together.
4. By spacing, there are 8 groups of 4, 4, 5, 5, 4, 4, 5, 6 pendants. With the exception of 1 additional pendant in group 7, groups 5, 6, 7 show the same colr pattern (KB, MB/YB, MB:YB, MB:KB).
5. Group 1 repeats the values on AS35A, and group 2 repeats the color and values on AS35B.
