KH0014/AS013 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

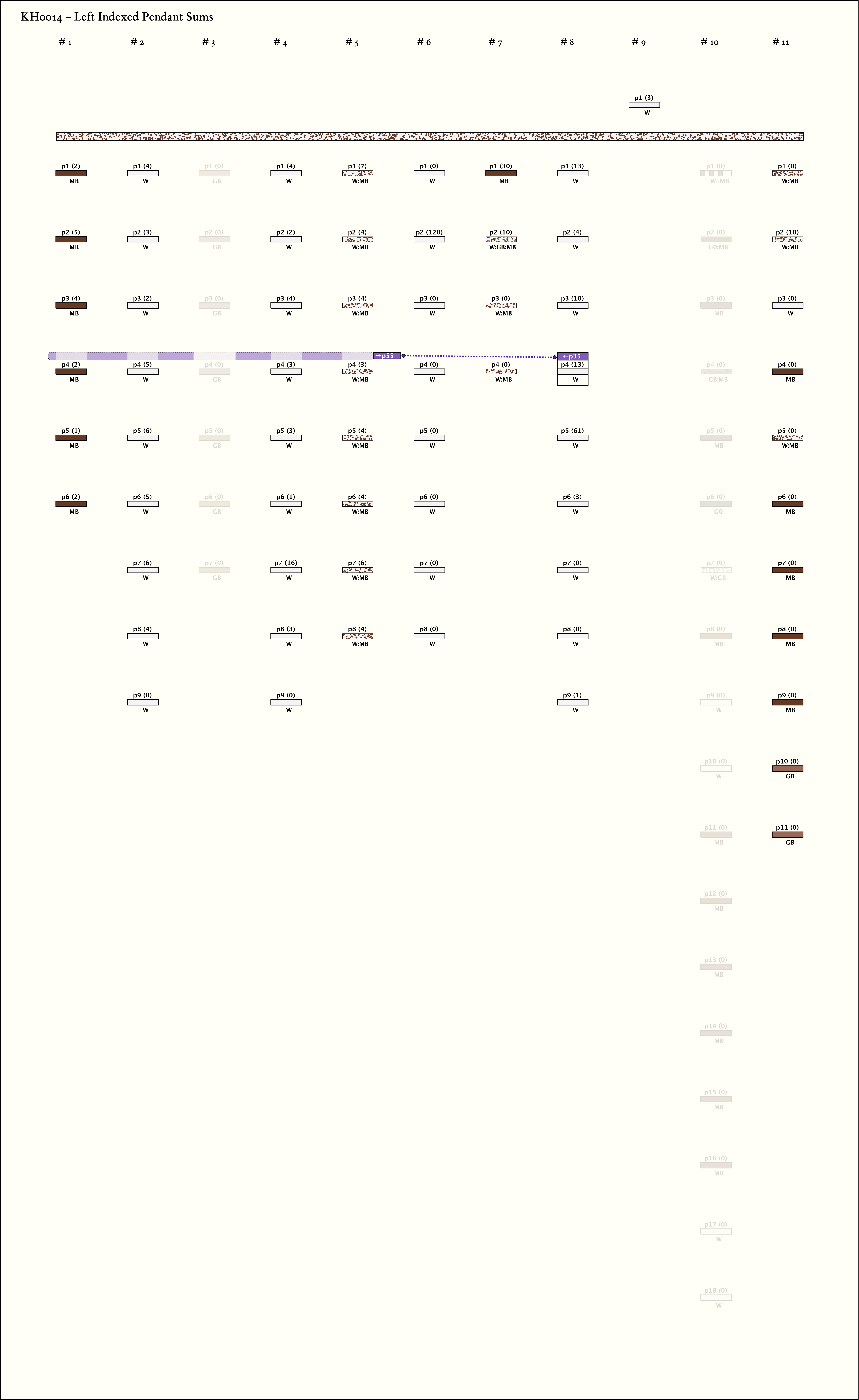

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 4, (Min, Mean, Max) Sum Values = (13, 13, 13)
Click on Image to View Larger
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p4 : 13W | 13 | 4 | g1p4: 2MB∞ + g2p4: 5W + g4p4: 3W + g5p4: 3W:MB |
Khipu Notes:
Ascher Databook Notes:
- Most values are below 10; the maximum value is 61.
- Groups of W alternate with groups of different colors until the top cord occurs.
- Using 4 individual colors, 10 different colors are constructed.
