KH0049/AS038, HP036 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

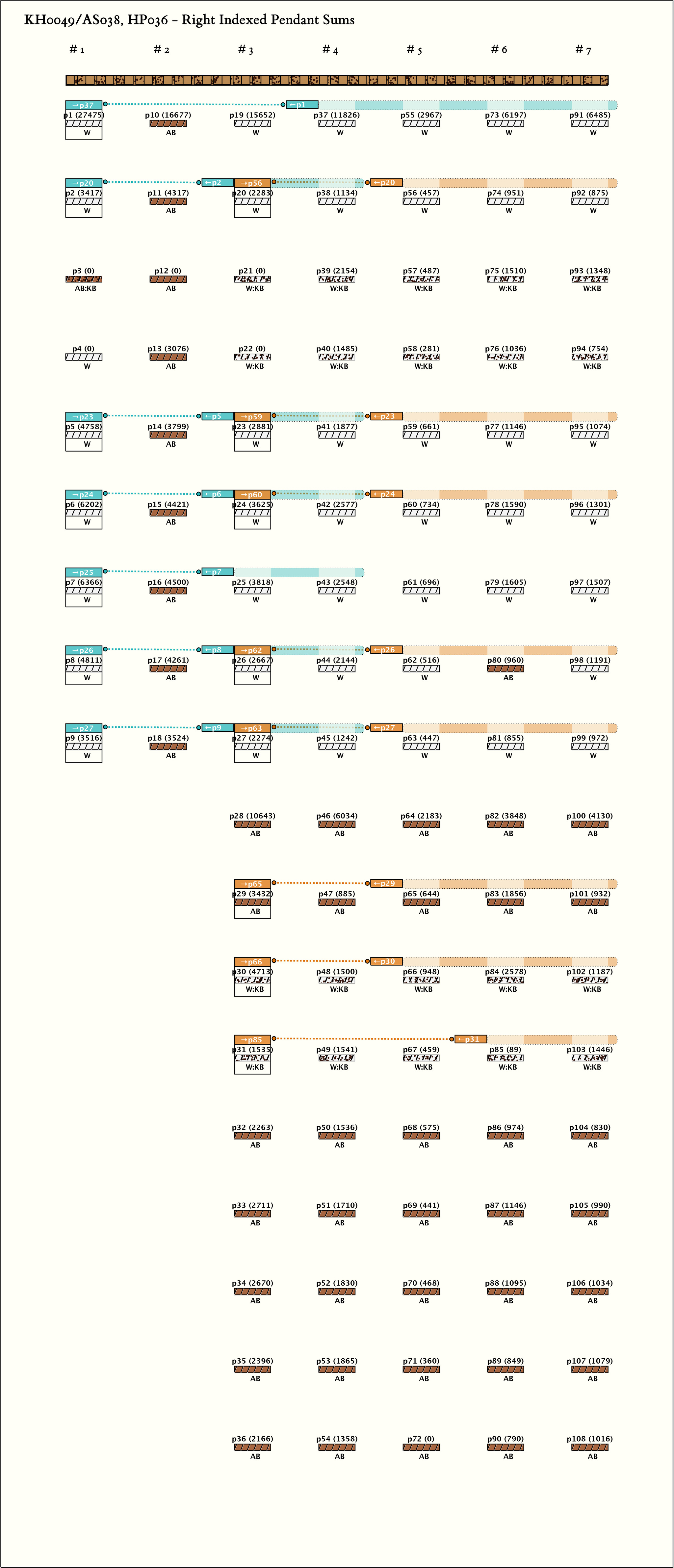

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

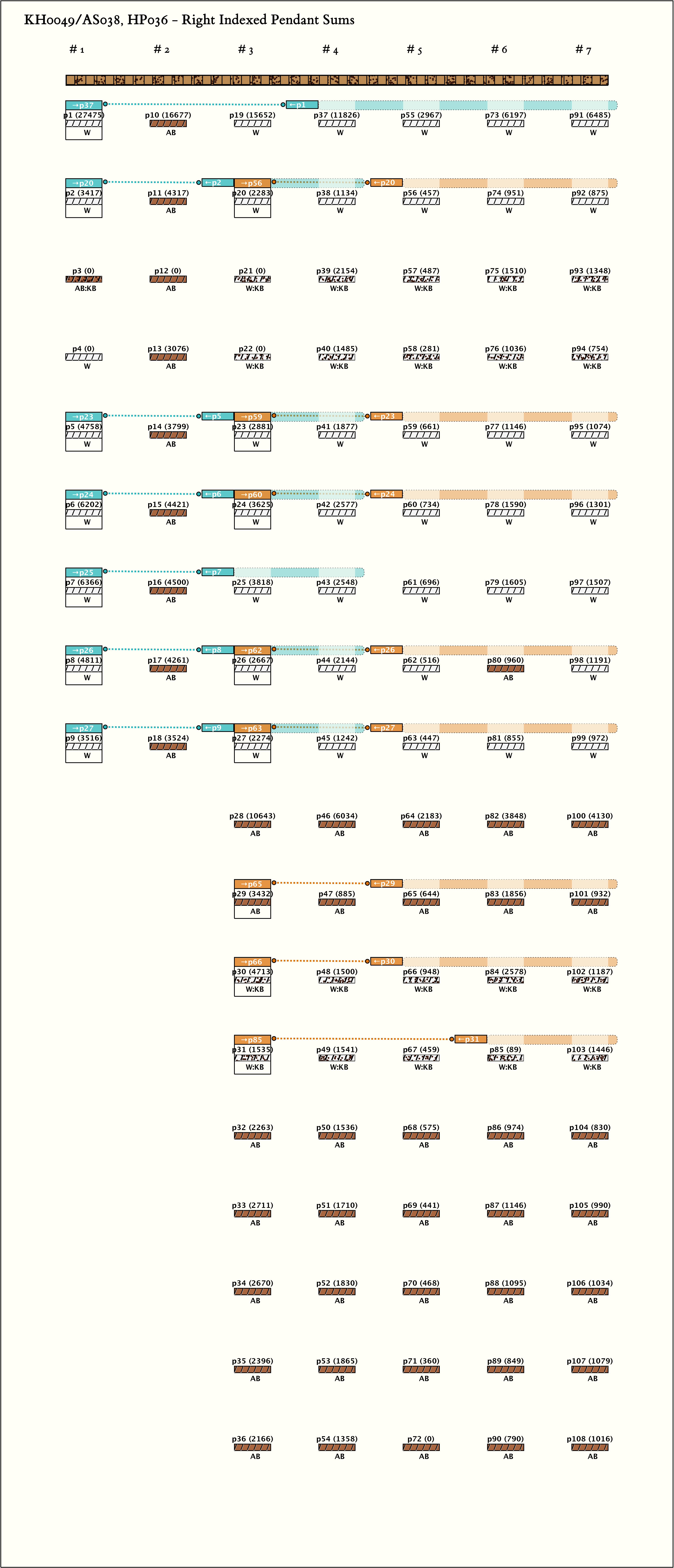

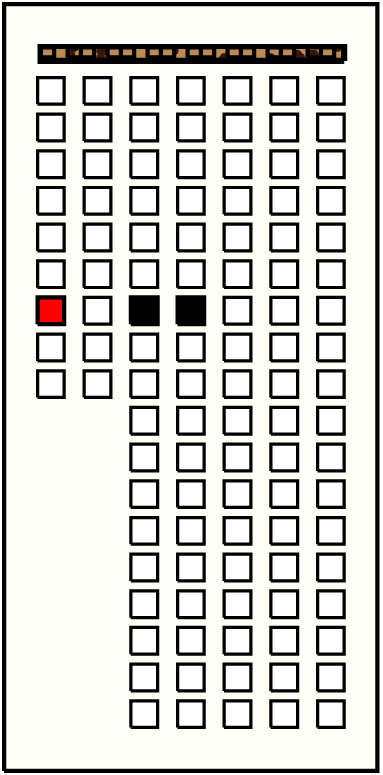

Right Handed Sums with Figure-8-Knots: # Sums = 15, Max # Summands = 4, (Min, Mean, Max) Sum Values = (1535, 5330, 27475)

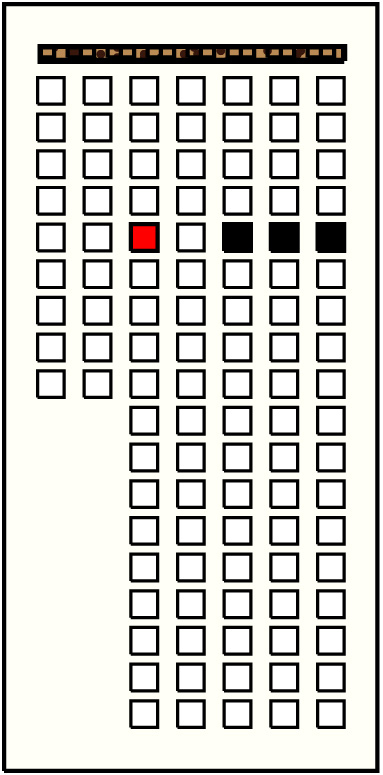

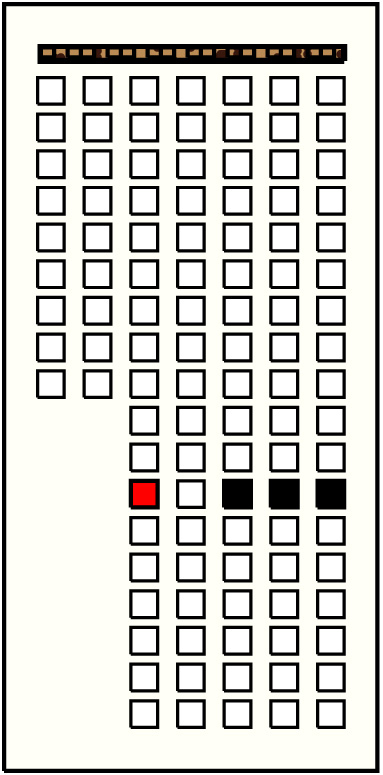

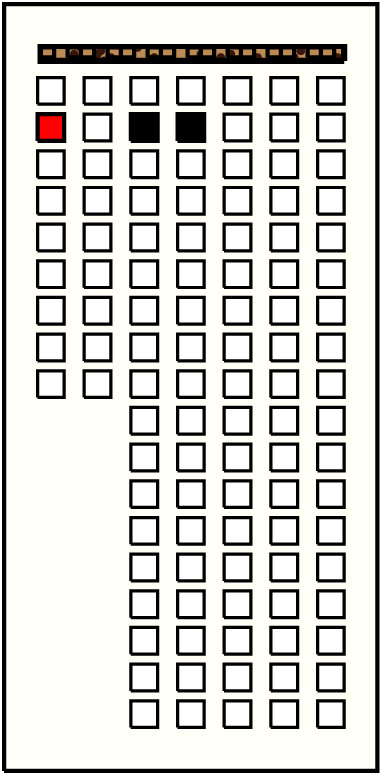

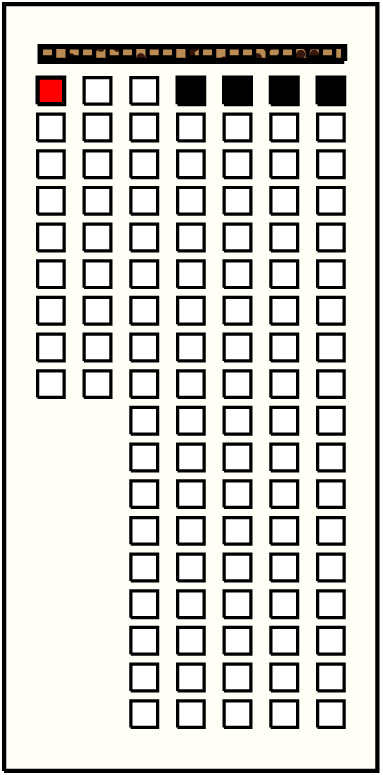

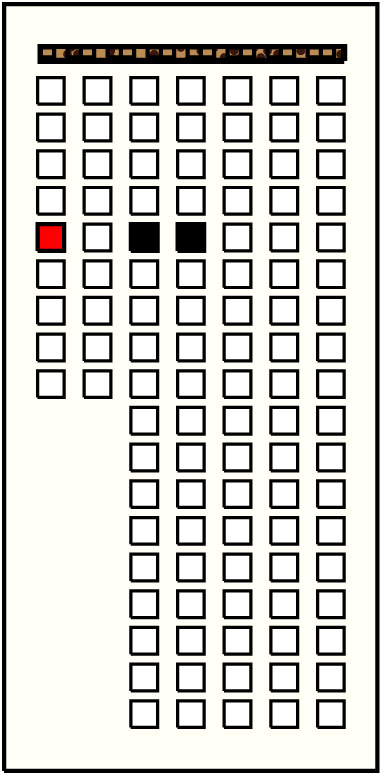

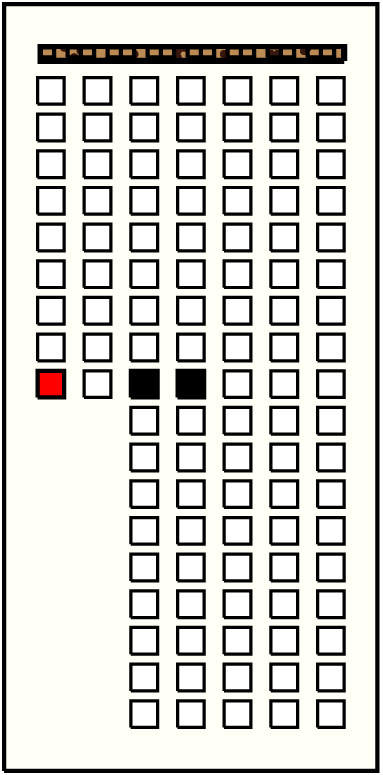

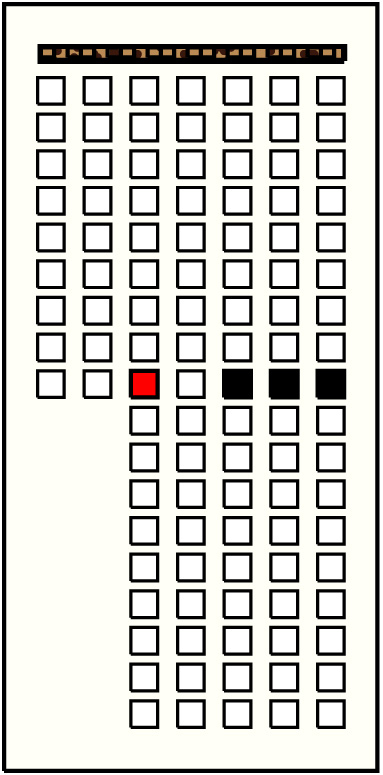

Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p1 : 27475W | 27475 | 4 | ❽g4p1: 11826W + g5p1: 2967W + g6p1: 6197W + g7p1: 6485W❽ | |
| 2 |  | g1p2 : 3417W | 3417 | 2 | ❽g3p2: 2283W + g4p2: 1134W❽ | |
| 3 |  | g1p5 : 4758W | 4758 | 2 | ❽g3p5: 2881W + g4p5: 1877W❽ | |
| 4 |  | g1p6 : 6202W | 6202 | 2 | ❽g3p6: 3625W + g4p6: 2577W❽ | |
| 5 |  | g1p7 : 6366W | 6366 | 2 | ∞g3p7: 3818W∞ + g4p7: 2548W❽ | |
| 6 |  | g1p8 : 4811W | 4811 | 2 | ❽g3p8: 2667W + ∞g4p8: 2144W | |
| 7 |  | g1p9 : 3516W | 3516 | 2 | ∞g3p9: 2274W + g4p9: 1242W | |
| 8 |  | g3p2 : 2283W | 2283 | 3 | ∞g5p2: 457W∞ + g6p2: 951W + g7p2: 875W❽ | |
| 9 |  | g3p5 : 2881W | 2881 | 3 | ❽g5p5: 661W + g6p5: 1146W + g7p5: 1074W❽ | |
| 10 |  | g3p6 : 3625W | 3625 | 3 | ∞g5p6: 734W + g6p6: 1590W + g7p6: 1301W❽ | |
| 11 |  | g3p8 : 2667W | 2667 | 3 | g5p8: 516W + g6p8: 960AB + g7p8: 1191W❽ | |
| 12 |  | g3p9 : 2274W | 2274 | 3 | g5p9: 447W∞ + g6p9: 855W + g7p9: 972W❽ | |
| 13 |  | g3p11 : 3432AB | 3432 | 3 | ∞g5p11: 644AB∞ + g6p11: 1856AB + g7p11: 932AB❽ | |
| 14 |  | g3p12 : 4713W:KB | 4713 | 3 | ❽g5p12: 948W:KB + g6p12: 2578W:KB + g7p12: 1187W:KB❽ | |
| 15 |  | g3p13 : 1535W:KB | 1535 | 2 | ∞g6p13: 89W:KB∞ + g7p13: 1446W:KB❽ |
