KH0275/UR045 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

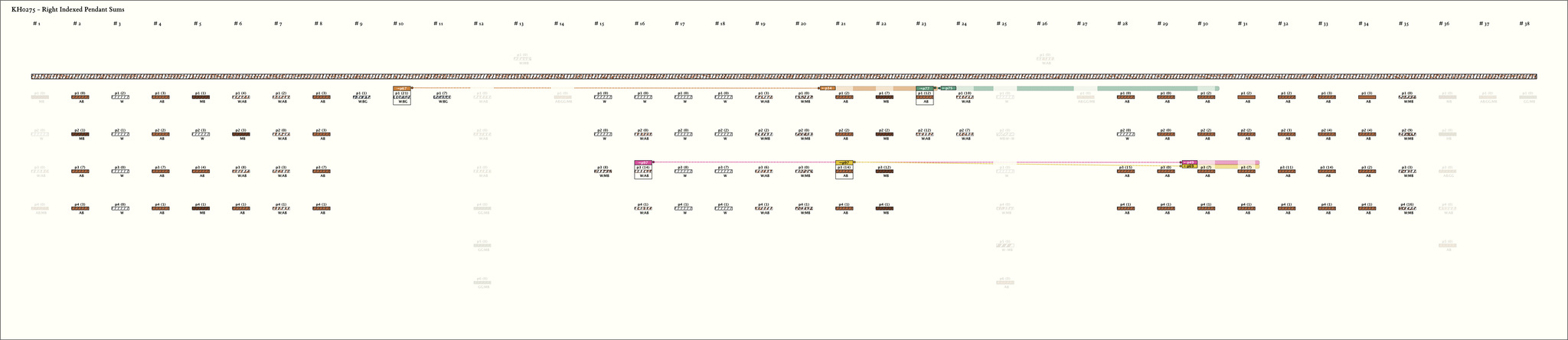

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 3, (Min, Mean, Max) Sum Values = (12, 15, 21)
Click on Image to View Larger

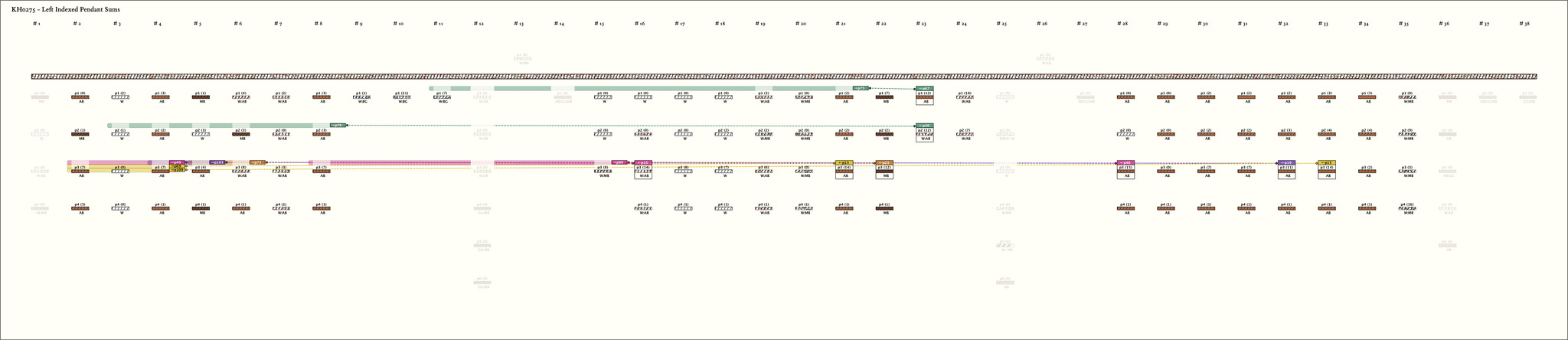

Left Handed Sums with Figure-8-Knots: # Sums = 8, Max # Summands = 5, (Min, Mean, Max) Sum Values = (11, 13, 15)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g10p1 : 21W:BG | 21 | 3 | ❽g21p1: 2AB + g22p1: 7MB + ∞g23p1: 12AB | |
| 2 |  | g16p3 : 14W:AB | 14 | 2 | g30p3: 7AB∞ + g31p3: 7AB∞ | |
| 3 |  | g21p3 : 14AB | 14 | 2 | g30p3: 7AB∞ + g31p3: 7AB∞ | |
| 4 |  | g23p1 : 12AB | 12 | 2 | g24p1: 10W:AB + g30p1: 2AB❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g16p3 : 14W:AB | 14 | 2 | ❽g2p3: 7AB + g4p3: 7AB∞ | |
| 2 |  | g21p3 : 14AB | 14 | 2 | ❽g2p3: 7AB + g4p3: 7AB∞ | |
| 3 |  | g22p3 : 12MB | 12 | 2 | g5p3: 4AB∞ + g6p3: 8W:AB∞ | |
| 4 |  | g23p1 : 12AB | 12 | 3 | ∞g11p1: 7W:BG + g19p1: 3W:AB + g21p1: 2AB❽ | |
| 5 |  | g23p2 : 12W:AB | 12 | 5 | ❽g3p2: 1W + g4p2: 2AB + g5p2: 3W + g6p2: 3MB + ∞g8p2: 3AB∞ | |
| 6 |  | g28p3 : 15AB | 15 | 2 | ❽g8p3: 7AB + g15p3: 8W:MB | |
| 7 |  | g32p3 : 11AB | 11 | 2 | g4p3: 7AB∞ + g5p3: 4AB∞ | |
| 8 |  | g33p3 : 14AB | 14 | 2 | ❽g2p3: 7AB + g4p3: 7AB∞ |
