KH0480/UR244 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

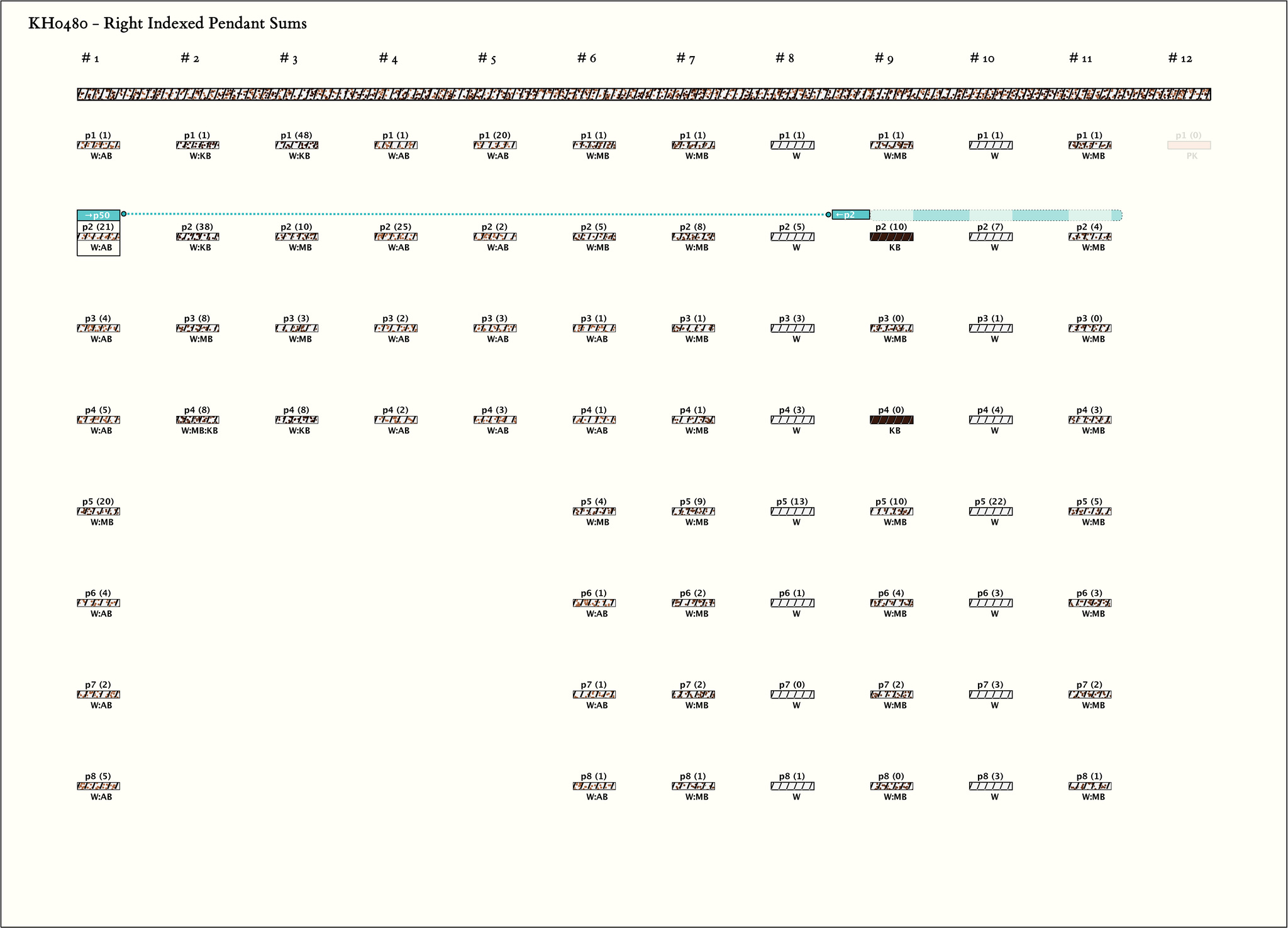

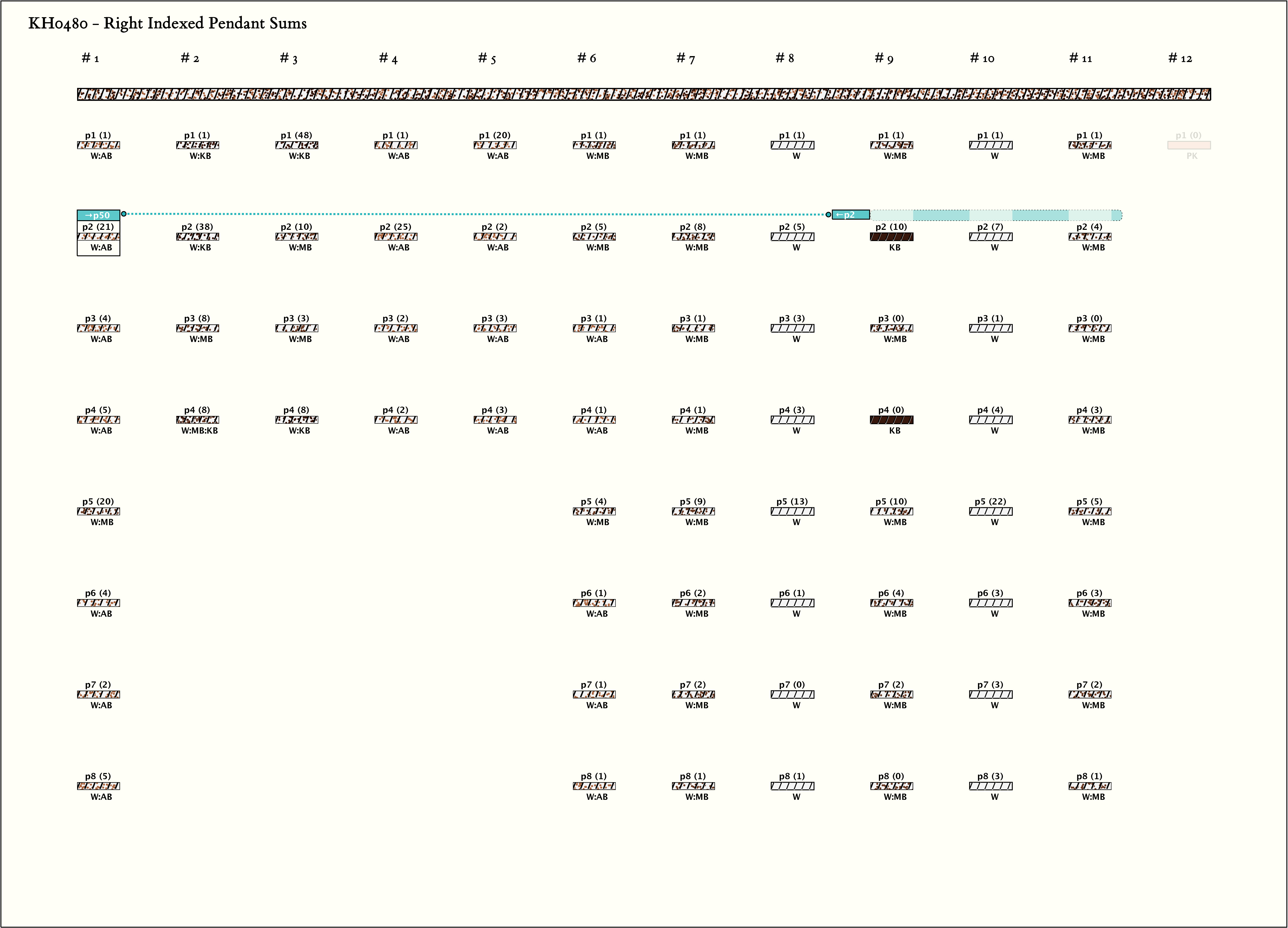

Right Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 3, (Min, Mean, Max) Sum Values = (21, 21, 21)
Click on Image to View Larger

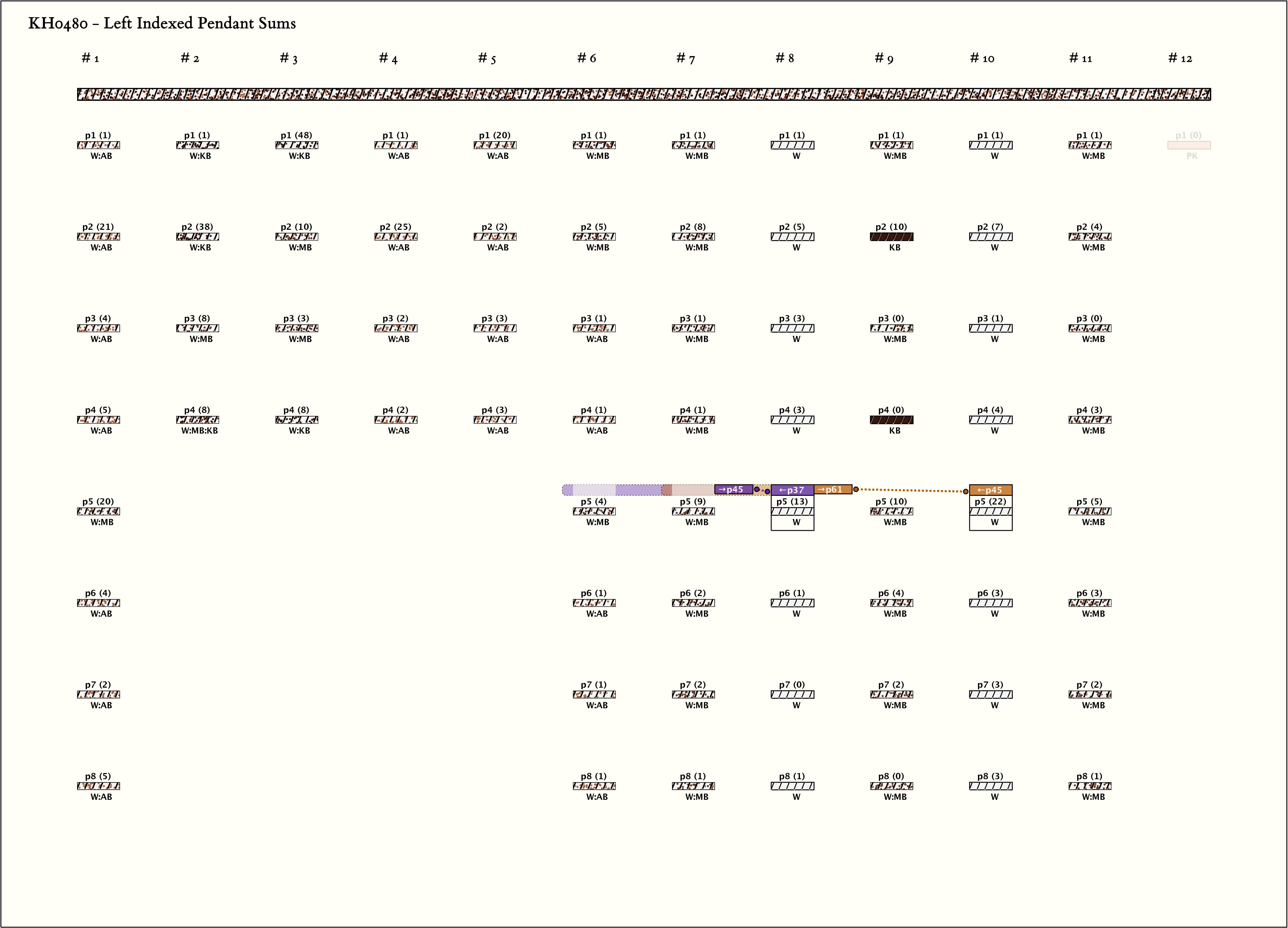

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 18, 22)
Click on Image to View Larger

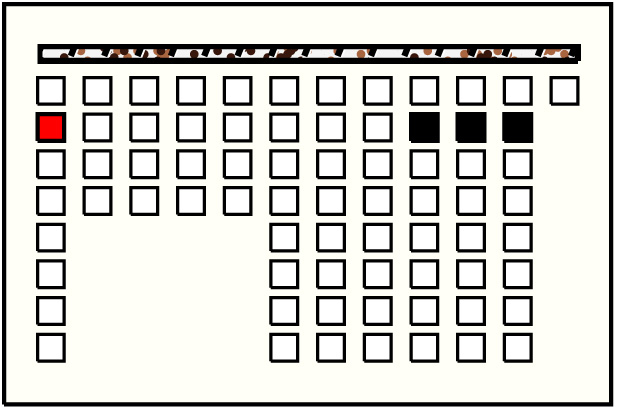

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2 : 21W:AB | 21 | 3 | ∞g9p2: 10KB + g10p2: 7W + ∞g11p2: 4W:MB |

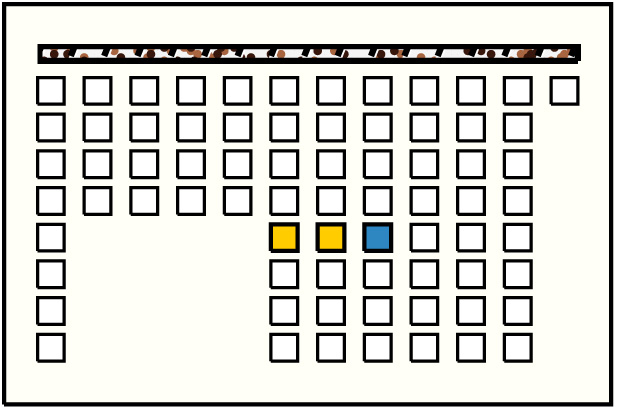

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p5 : 13W | 13 | 2 | ∞g6p5: 4W:MB∞ + ∞g7p5: 9W:MB | |
| 2 |  | g10p5 : 22W | 22 | 2 | ∞g7p5: 9W:MB + g8p5: 13W∞ |
