KH0503/UR267A - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 4, (Min, Mean, Max) Sum Values = (141, 172, 215)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

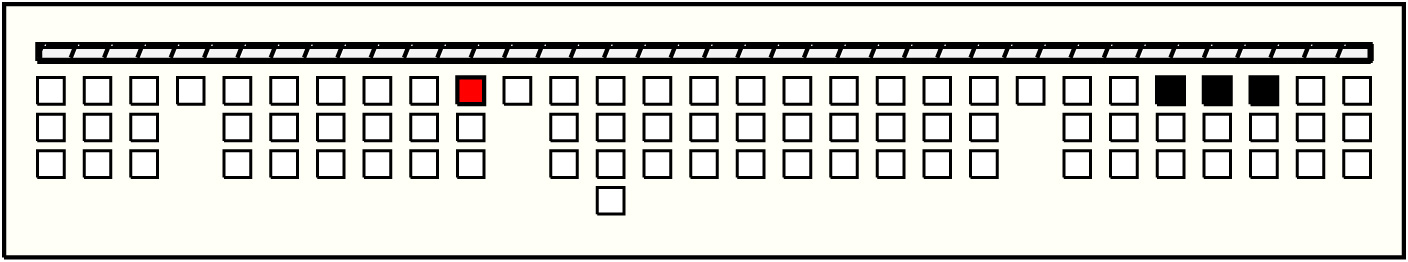

| 1 |  | g5p3 : 191AB:MB | 191 | 4 | g23p3: 55W∞ + g24p3: 77W + g25p3: 40AB + g26p3: 19W❽ | |

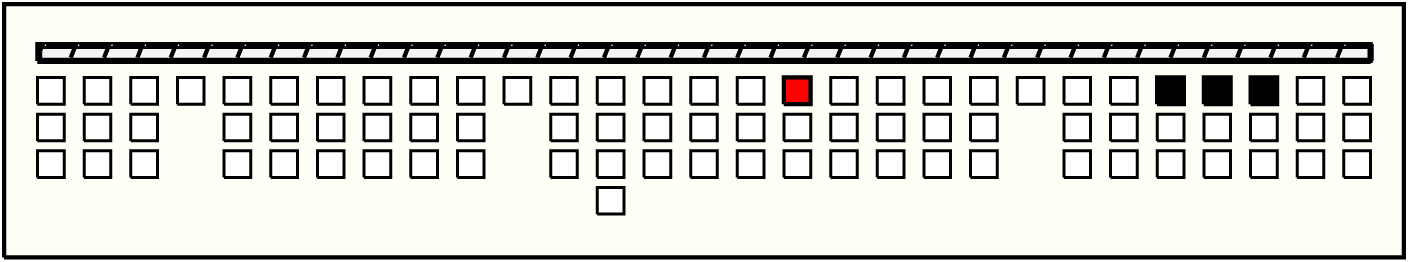

| 2 |  | g10p1 : 141W | 141 | 3 | ∞g25p1: 63W + g26p1: 34W + g27p1: 44W❽ | |

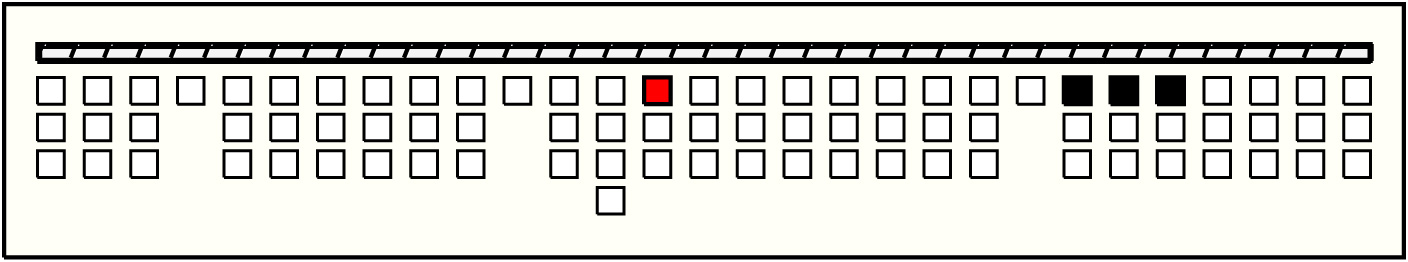

| 3 |  | g14p1 : 215W | 215 | 3 | g23p1: 70W + g24p1: 82W + ∞g25p1: 63W | |

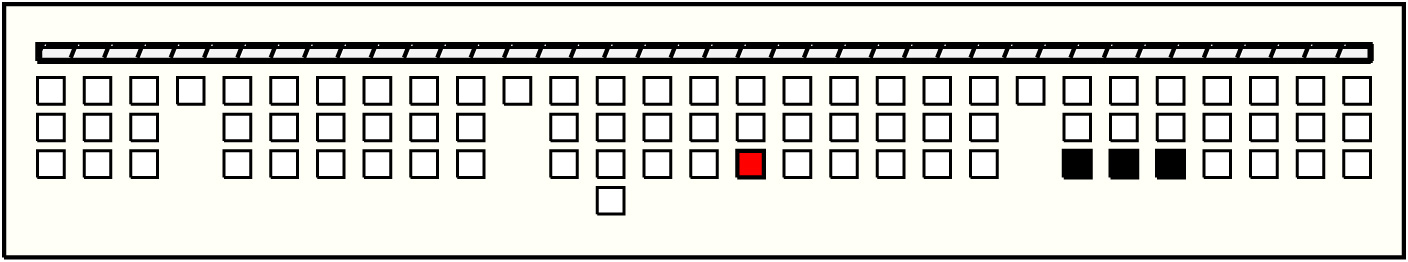

| 4 |  | g16p3 : 172AB | 172 | 3 | g23p3: 55W∞ + g24p3: 77W + g25p3: 40AB∞ | |

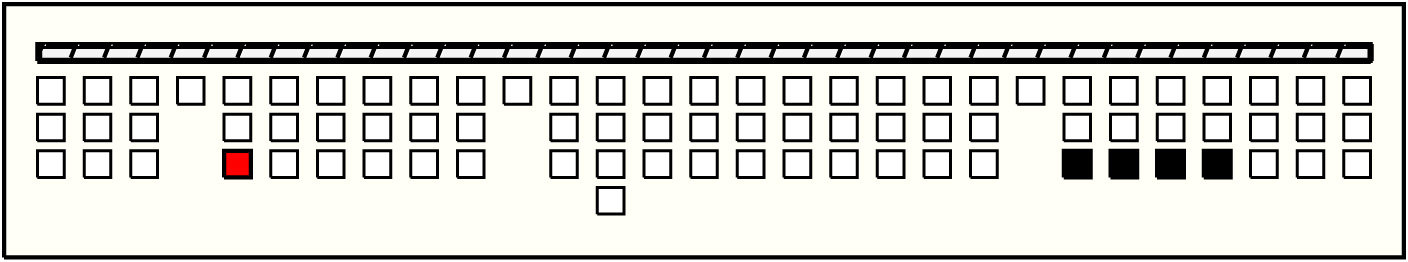

| 5 |  | g17p1 : 141W | 141 | 3 | ∞g25p1: 63W + g26p1: 34W + g27p1: 44W❽ |
