KH0507/UR270 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 3, (Min, Mean, Max) Sum Values = (185, 185, 185)
Click on Image to View Larger

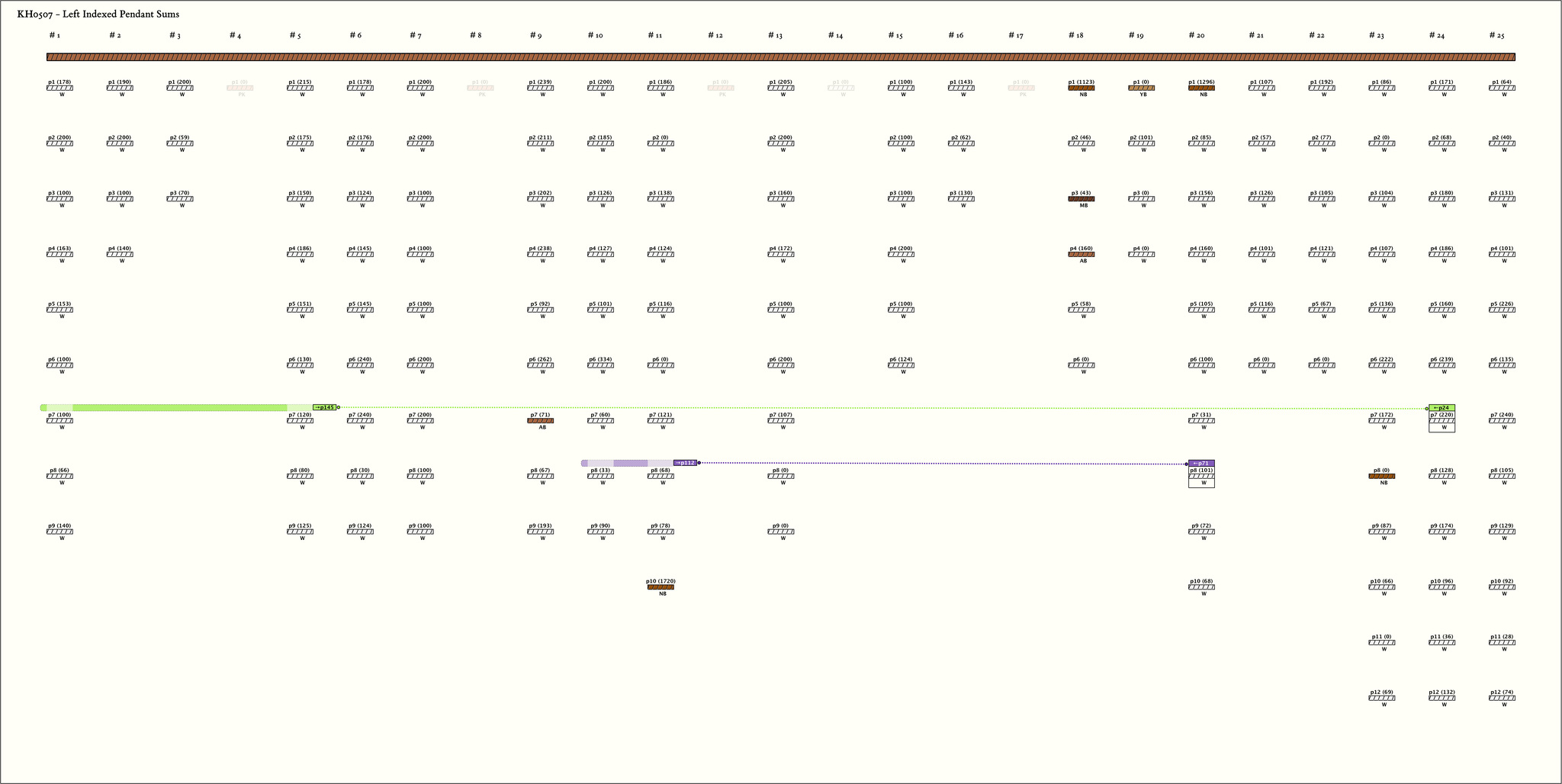

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 2, (Min, Mean, Max) Sum Values = (101, 160, 220)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

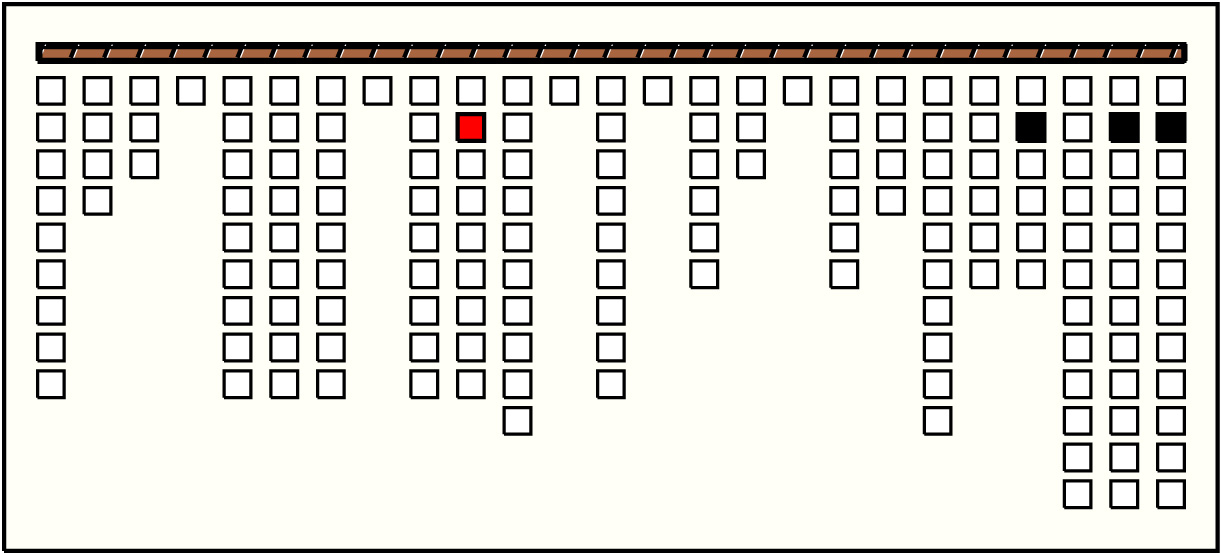

| 1 |  | g10p2 : 185W | 185 | 3 | ❽g22p2: 77W + g24p2: 68W + g25p2: 40W∞ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

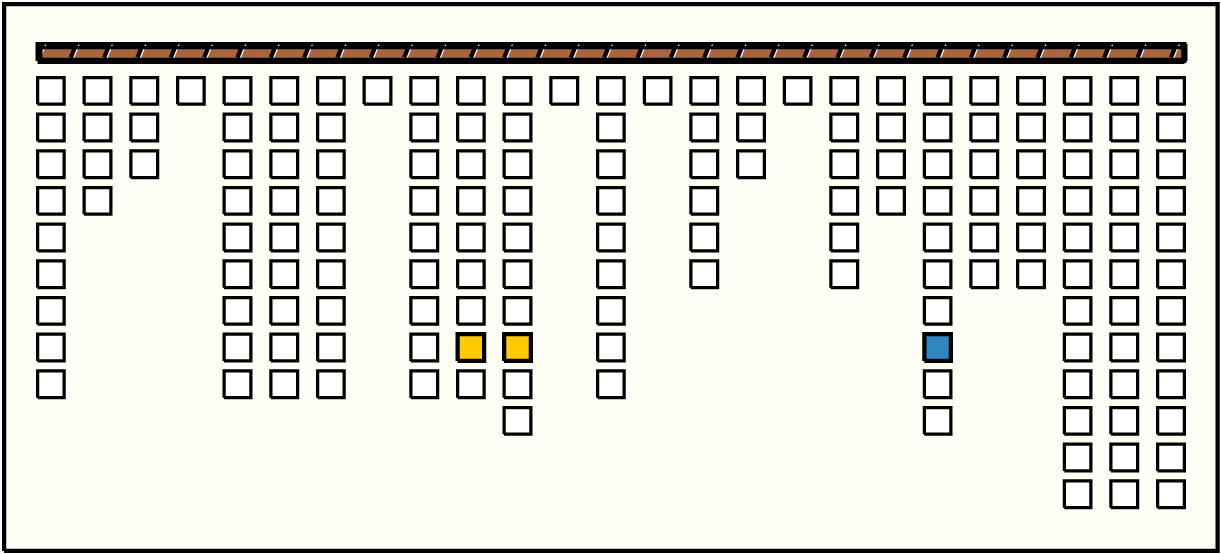

| 1 |  | g20p8 : 101W | 101 | 2 | ❽g10p8: 33W + g11p8: 68W❽ | |

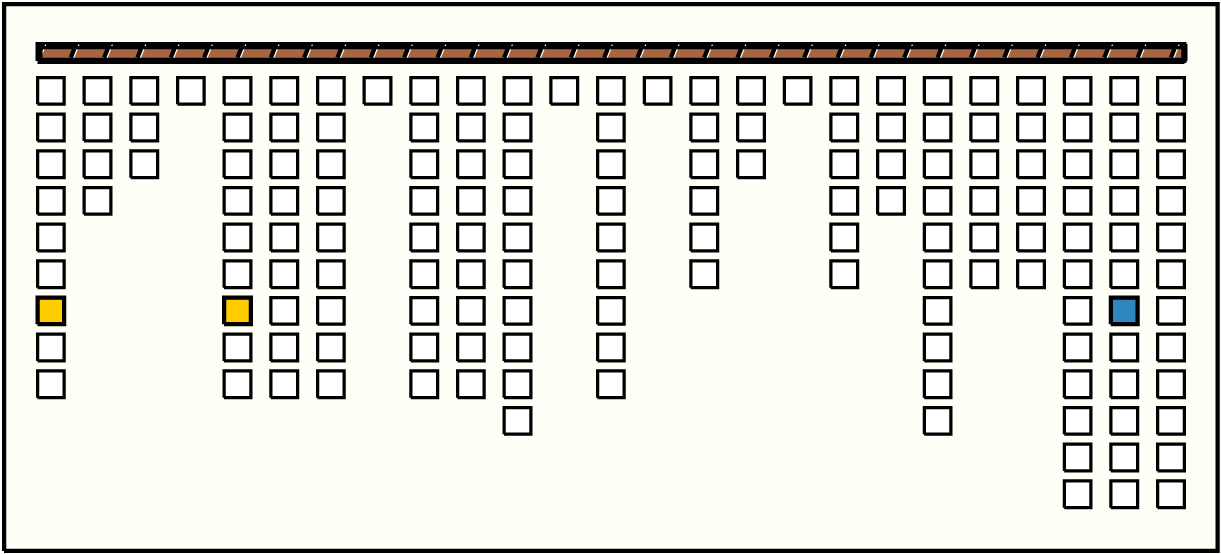

| 2 |  | g24p7 : 220W | 220 | 2 | g1p7: 100W + g5p7: 120W∞ |
