MM020 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

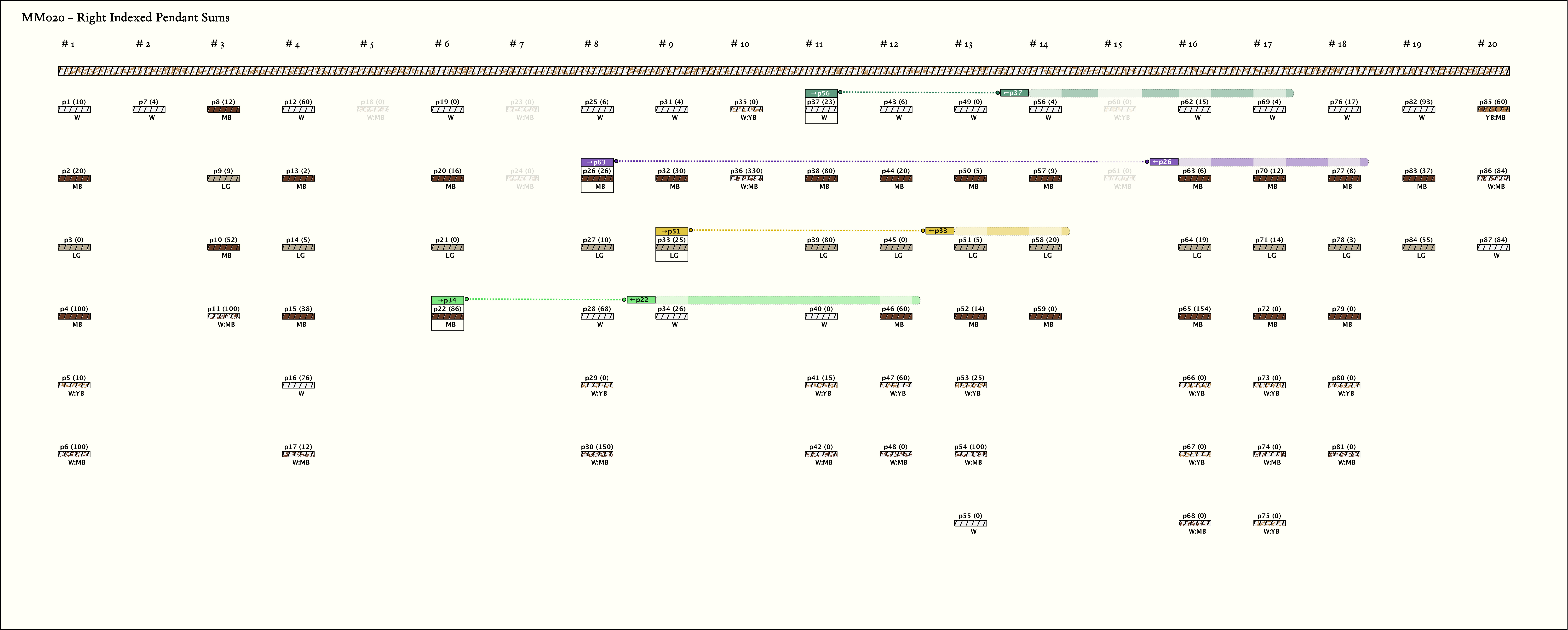

Right Handed Sums: # Sums = 4, Max # Summands = 3, (Min, Mean, Max) Sum Values = (23, 40, 86)
Click on Image to View Larger

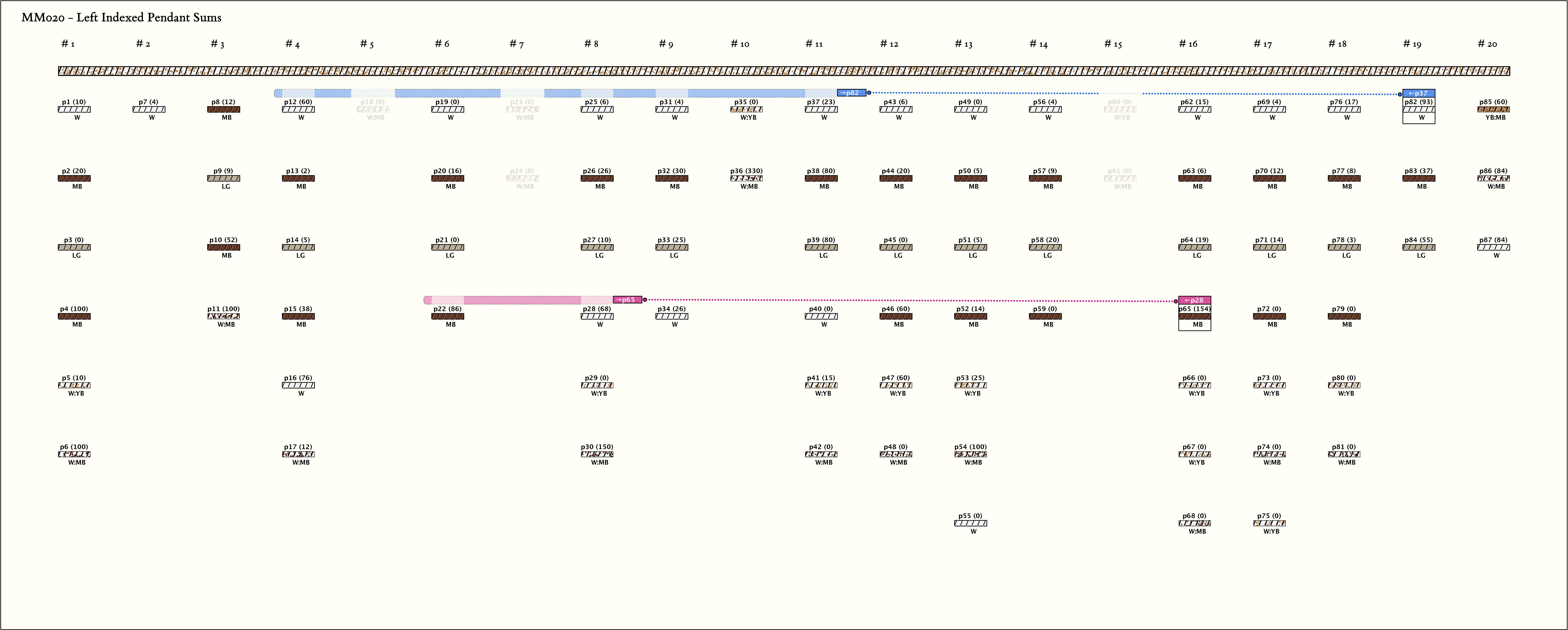

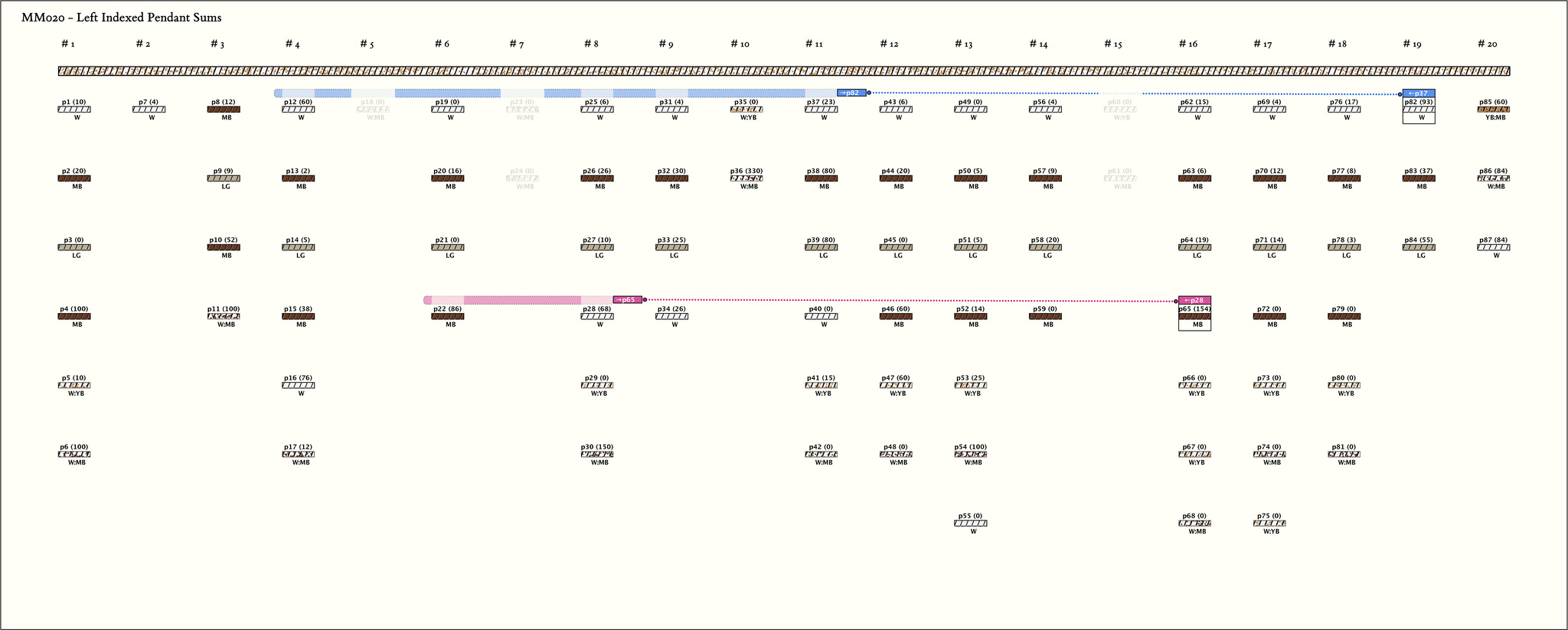

Left Handed Sums: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (93, 124, 154)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

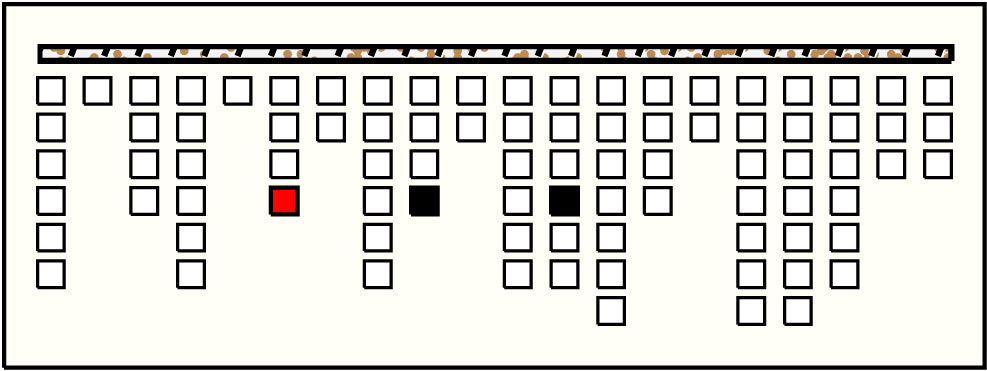

1	p22_{6, 4} : 86_MB	86	2	p34: 26_W + p46: 60_MB

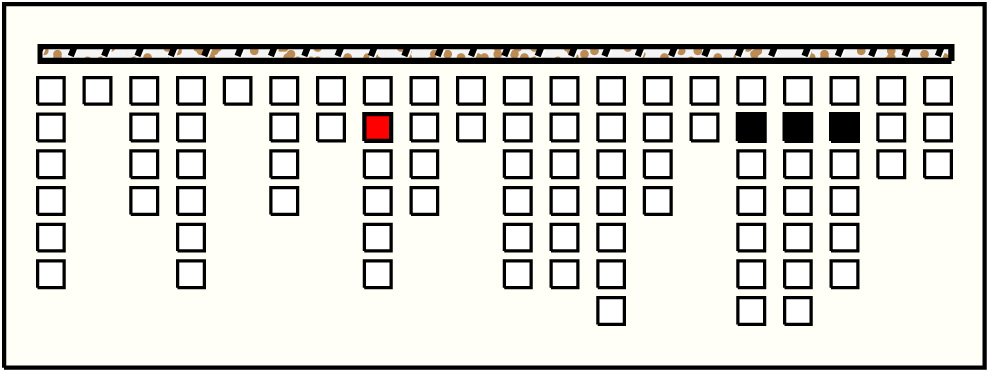

2	p26_{8, 2} : 26_MB	26	3	p63: 6_MB + p70: 12_MB + p77: 8_MB

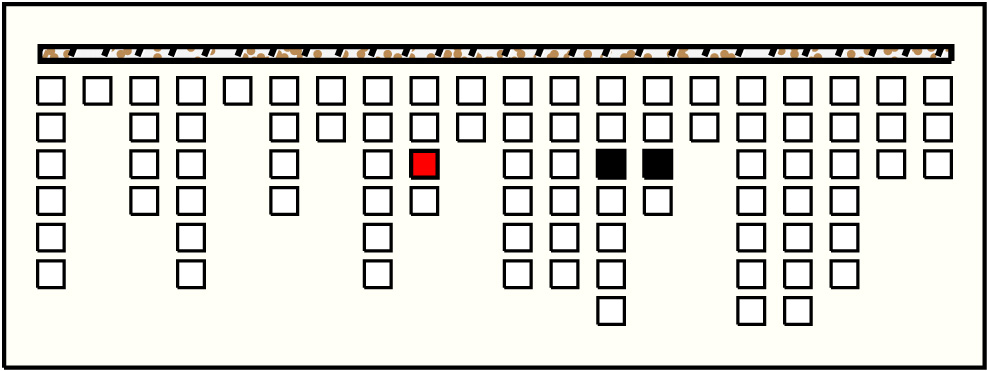

3	p33_{9, 3} : 25_LG	25	2	p51: 5_LG + p58: 20_LG

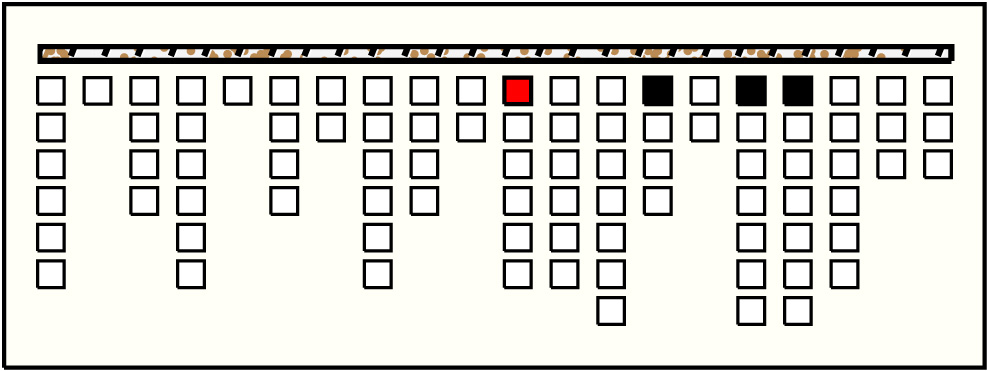

4	p37_{11, 1} : 23_W	23	3	p56: 4_W + p62: 15_W + p69: 4_W

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

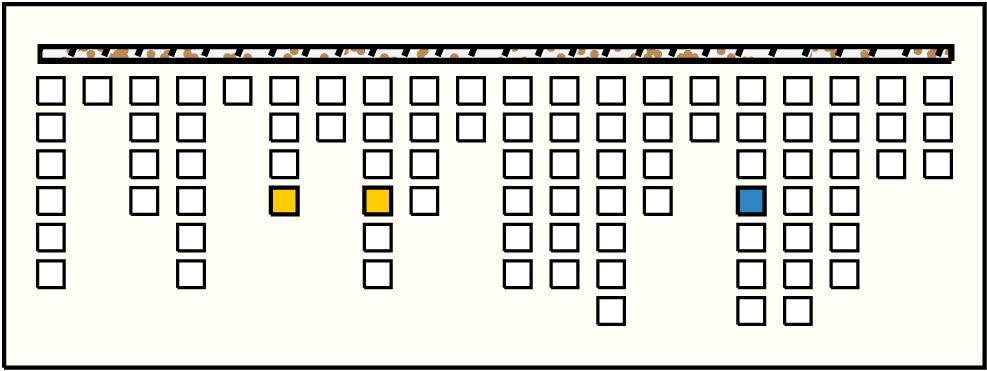

1			p65_{16, 4} : 154_MB	154	2	p22: 86_MB + p28: 68_W

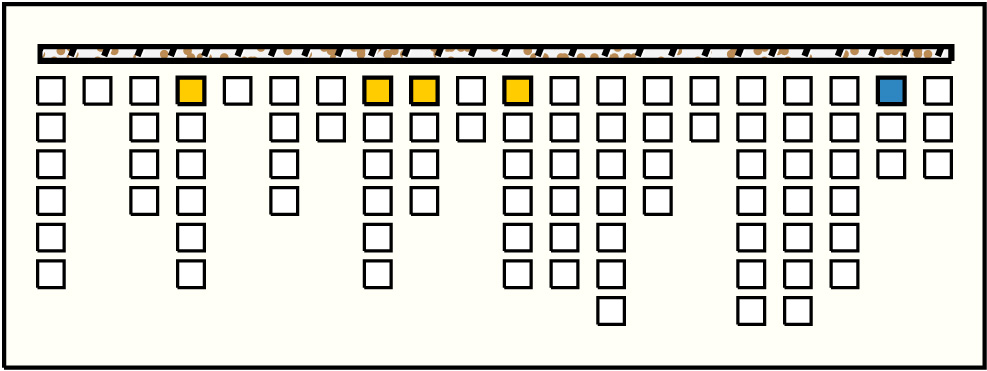

2			p82_{19, 1} : 93_W	93	4	p12: 60_W + p25: 6_W + p31: 4_W + p37: 23_W

Khipu Notes:

Notes and Obeservations for Khipu MM020

36: second set of 3S knots aligns with ones' place of other pendants on the khipu; counted as tens
40: repair knot aligned with tens' place
69: strand of animal hair of some sort interlaced at top of pendant
85: pendant broken immediately after 6th S knot

Primary Cord Notes

Primary Cord Thread Wrappings
W wrapping 15.0-16.0cm and 26.5-28.5cm
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon). Manuel Medrano.
