UR050/KH0280 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Indexed Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 2, (Min, Mean, Max) Sum Values = (21, 21, 21)
Click on Image to View Larger

Left Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 2, (Min, Mean, Max) Sum Values = (21, 21, 21)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

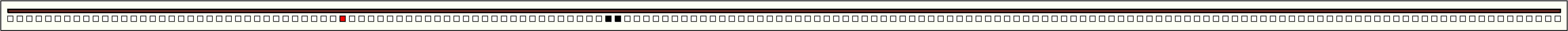

1			p36_{36, 1} : 21_W	21	2	p64: 16_W + p65: 5_PK

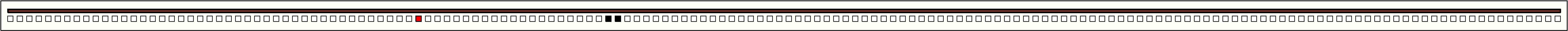

2			p44_{44, 1} : 21_W	21	2	p64: 16_W + p65: 5_PK

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

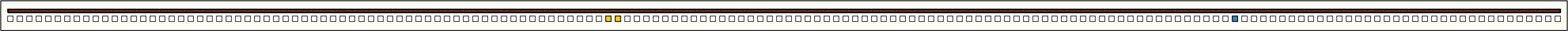

1	p130_{130, 1} : 21_W	21	2	p64: 16_W + p65: 5_PK

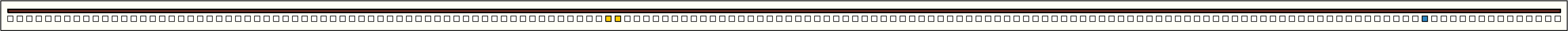

2	p150_{150, 1} : 21_W	21	2	p64: 16_W + p65: 5_PK

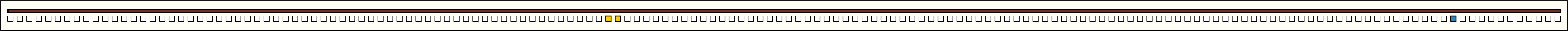

3	p153_{153, 1} : 21_W	21	2	p64: 16_W + p65: 5_PK

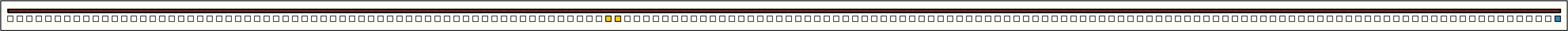

4	p164_{164, 1} : 21_W	21	2	p64: 16_W + p65: 5_PK

Khipu Notes:

This is a canuto khipu, with all of its cords tied in bundles to the primary cord.
This khipu has been reconstructed using information from Jon Clindaniel's DASH thesis notes at Harvard. Cord cluster information is missing and has been defaulted to one cord per cluster.
