UR052/KH0282 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

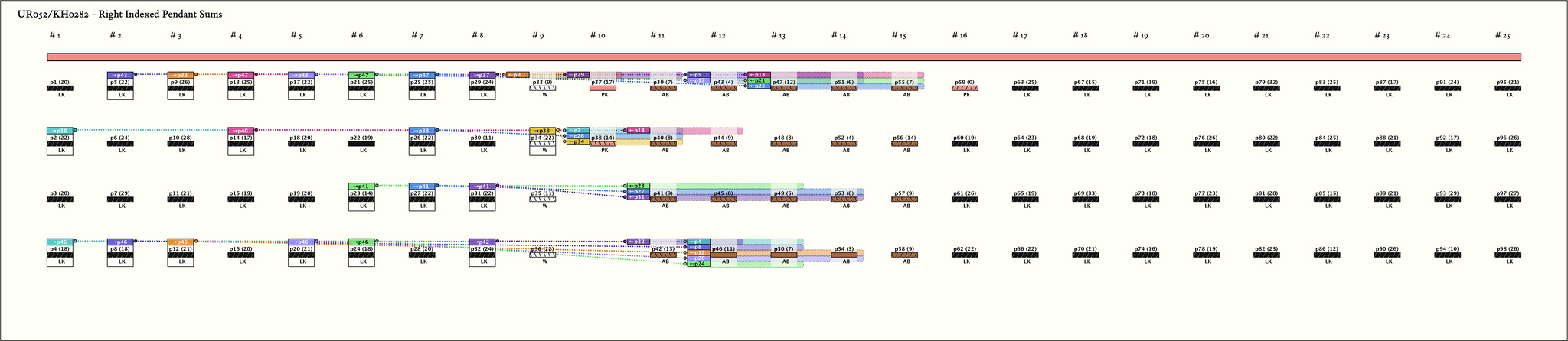

Right Handed Sums: # Sums = 20, Max # Summands = 3, (Min, Mean, Max) Sum Values = (14, 22, 26)
Click on Image to View Larger

Left Handed Sums: # Sums = 16, Max # Summands = 3, (Min, Mean, Max) Sum Values = (12, 23, 33)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

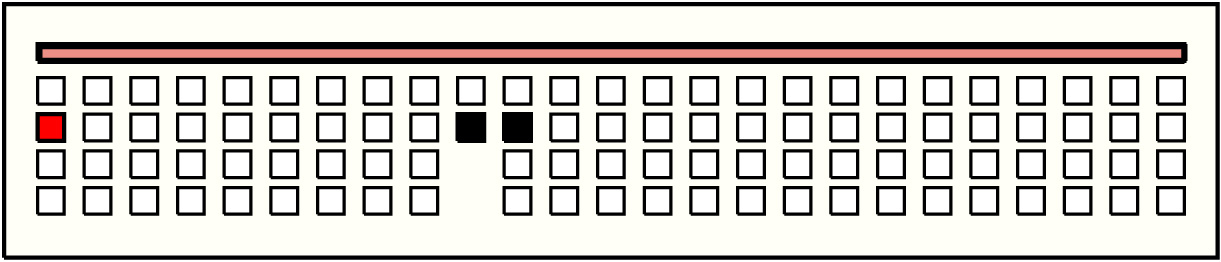

1	p2_{1, 2} : 22_LK	22	2	p38: 14_PK + p40: 8_AB

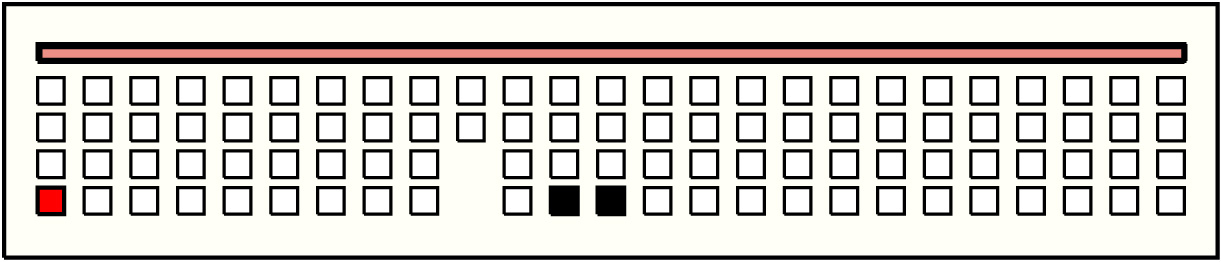

2	p4_{1, 4} : 18_LK	18	2	p46: 11_AB + p50: 7_AB

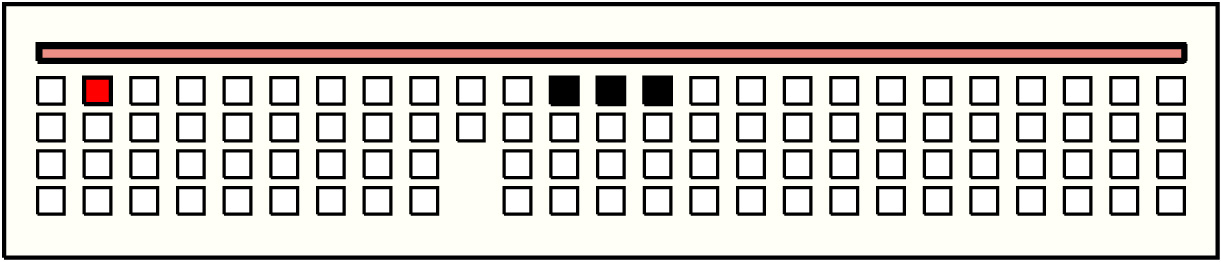

3	p5_{2, 1} : 22_LK	22	3	p43: 4_AB + p47: 12_AB + p51: 6_AB

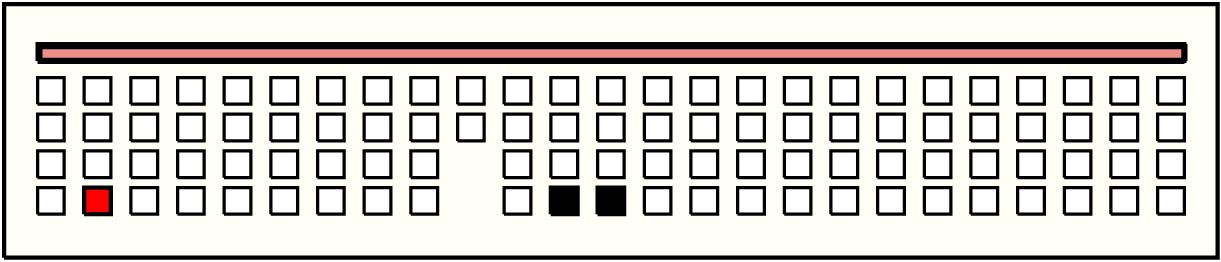

4	p8_{2, 4} : 18_LK	18	2	p46: 11_AB + p50: 7_AB

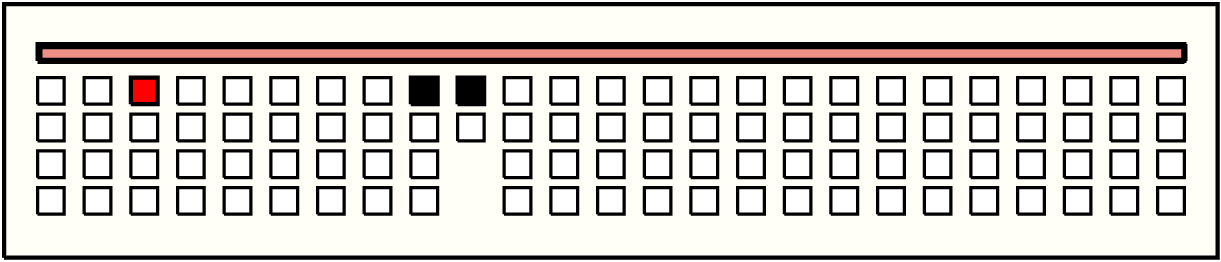

5	p9_{3, 1} : 26_LK	26	2	p33: 9_W + p37: 17_PK

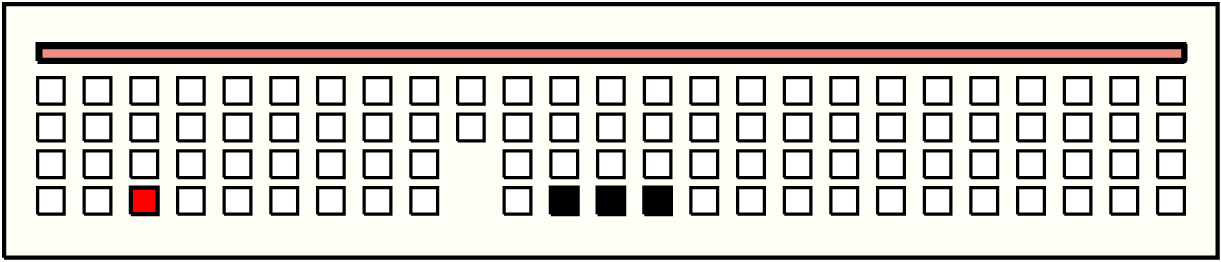

6	p12_{3, 4} : 21_LK	21	3	p46: 11_AB + p50: 7_AB + p54: 3_AB

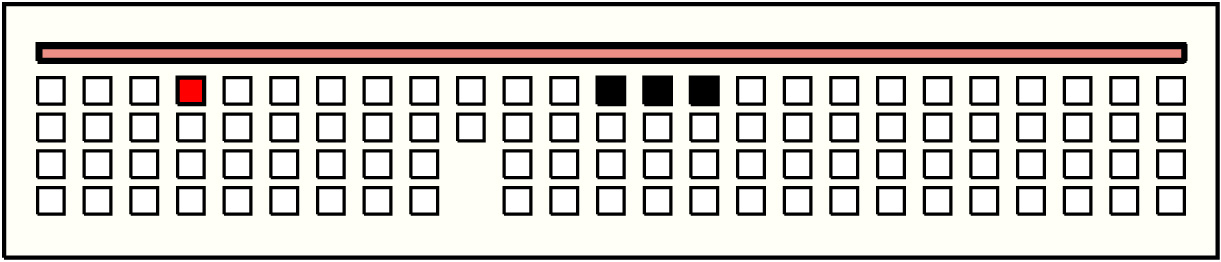

7	p13_{4, 1} : 25_LK	25	3	p47: 12_AB + p51: 6_AB + p55: 7_AB

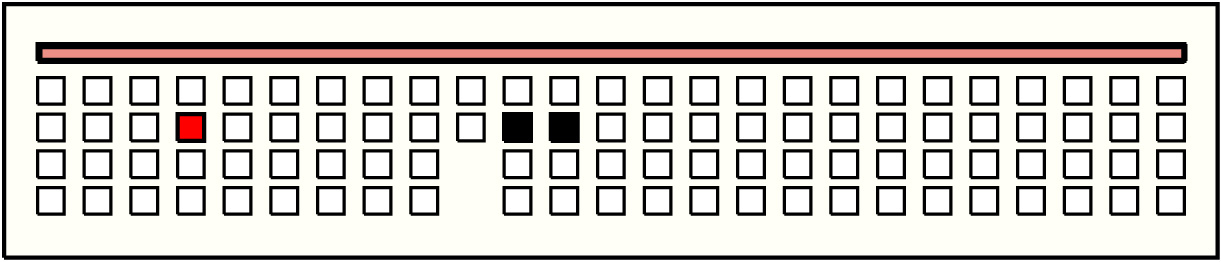

8	p14_{4, 2} : 17_LK	17	2	p40: 8_AB + p44: 9_AB

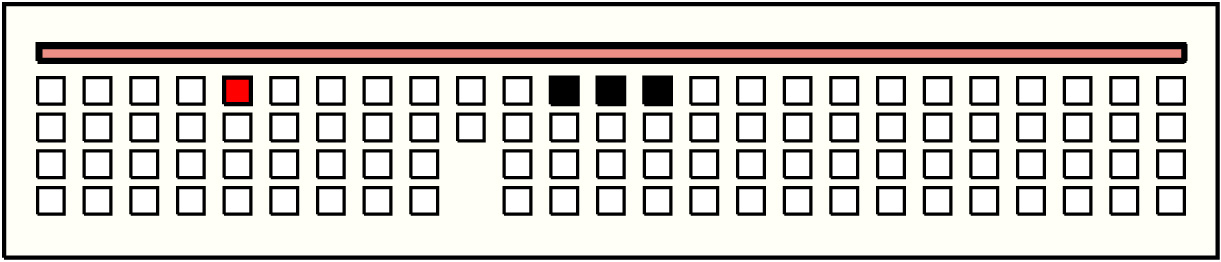

9	p17_{5, 1} : 22_LK	22	3	p43: 4_AB + p47: 12_AB + p51: 6_AB

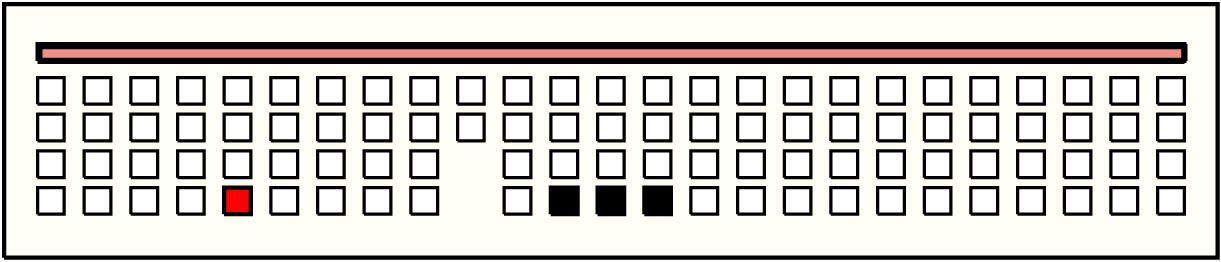

10	p20_{5, 4} : 21_LK	21	3	p46: 11_AB + p50: 7_AB + p54: 3_AB

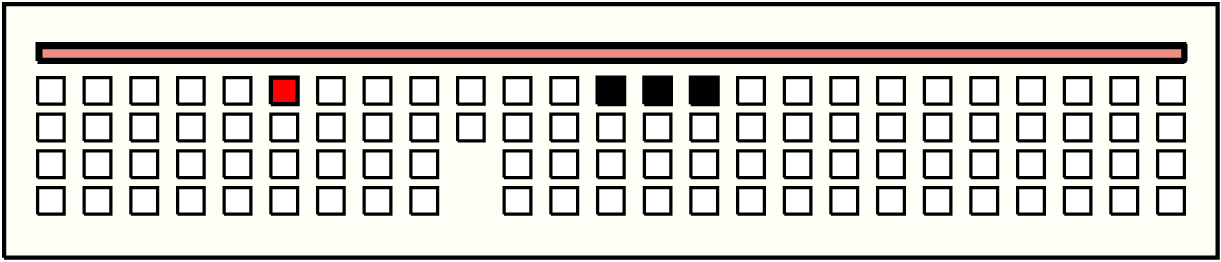

11	p21_{6, 1} : 25_LK	25	3	p47: 12_AB + p51: 6_AB + p55: 7_AB

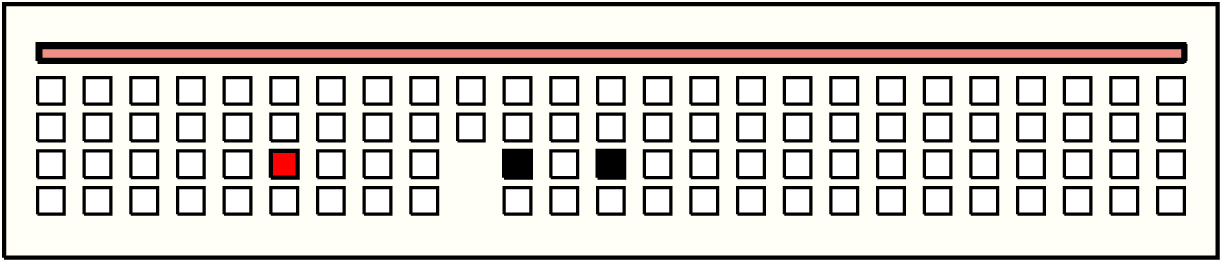

12	p23_{6, 3} : 14_LK	14	2	p41: 9_AB + p49: 5_AB

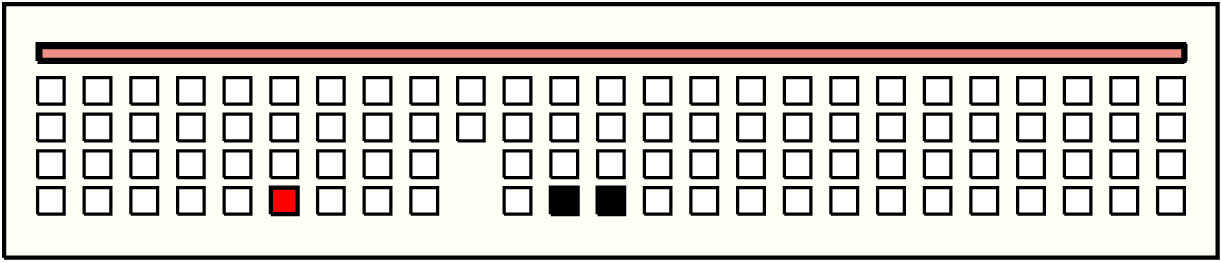

13	p24_{6, 4} : 18_LK	18	2	p46: 11_AB + p50: 7_AB

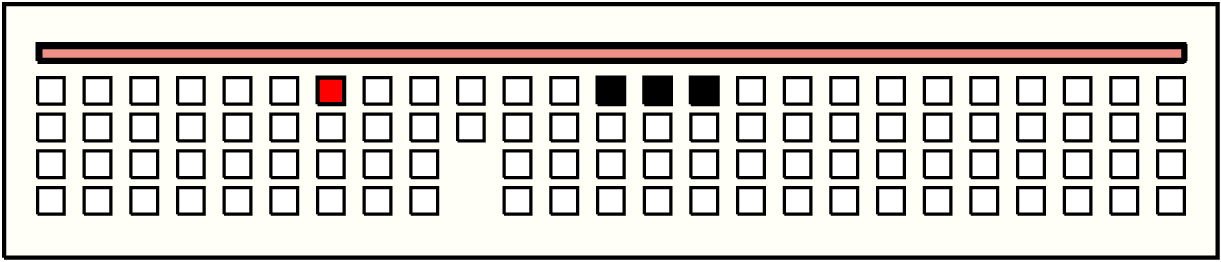

14	p25_{7, 1} : 25_LK	25	3	p47: 12_AB + p51: 6_AB + p55: 7_AB

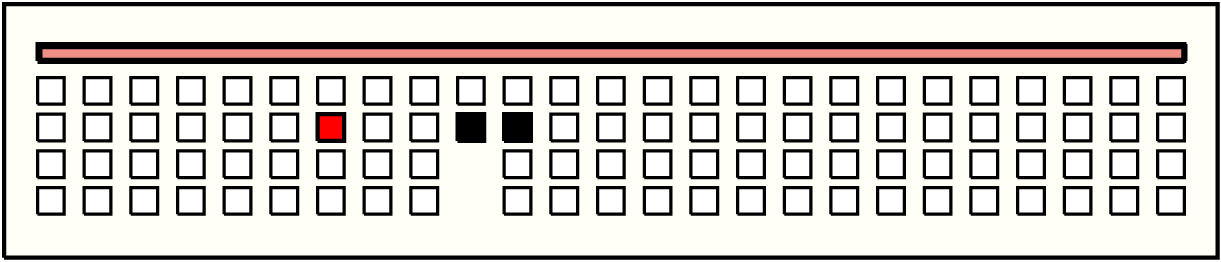

15	p26_{7, 2} : 22_LK	22	2	p38: 14_PK + p40: 8_AB

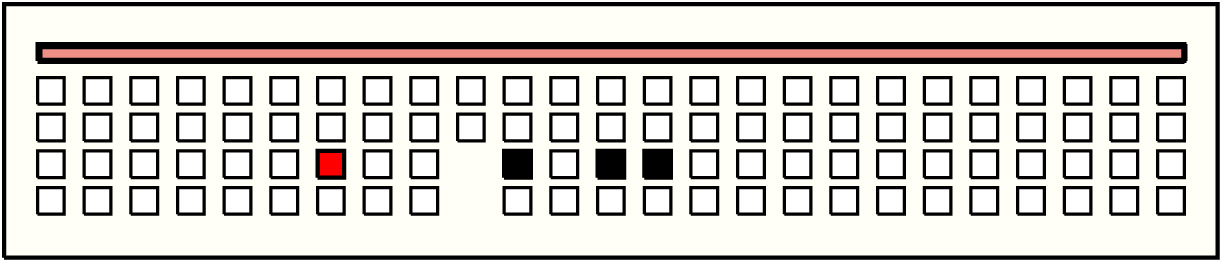

16	p27_{7, 3} : 22_LK	22	3	p41: 9_AB + p49: 5_AB + p53: 8_AB

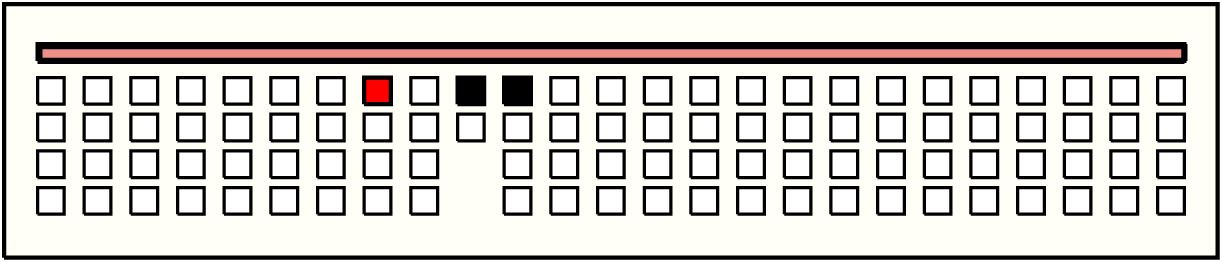

17	p29_{8, 1} : 24_LK	24	2	p37: 17_PK + p39: 7_AB

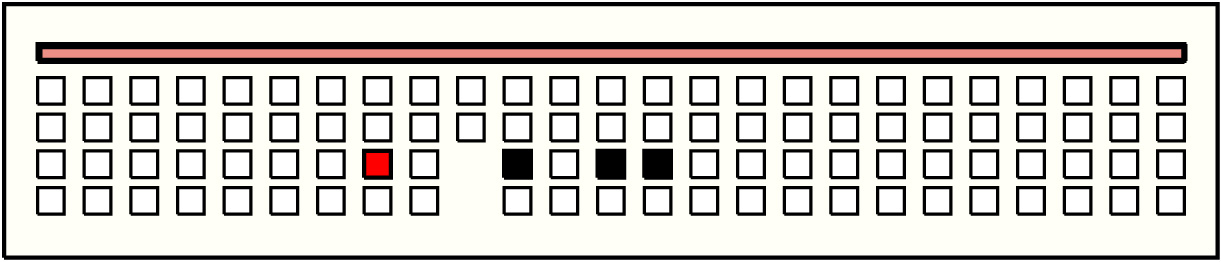

18	p31_{8, 3} : 22_LK	22	3	p41: 9_AB + p49: 5_AB + p53: 8_AB

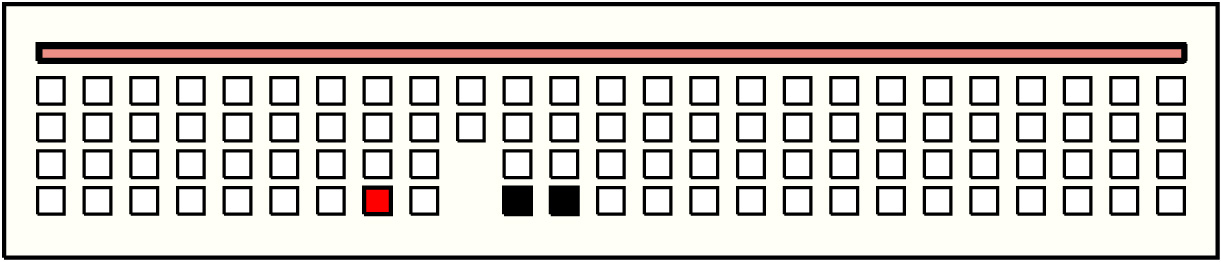

19	p32_{8, 4} : 24_LK	24	2	p42: 13_AB + p46: 11_AB

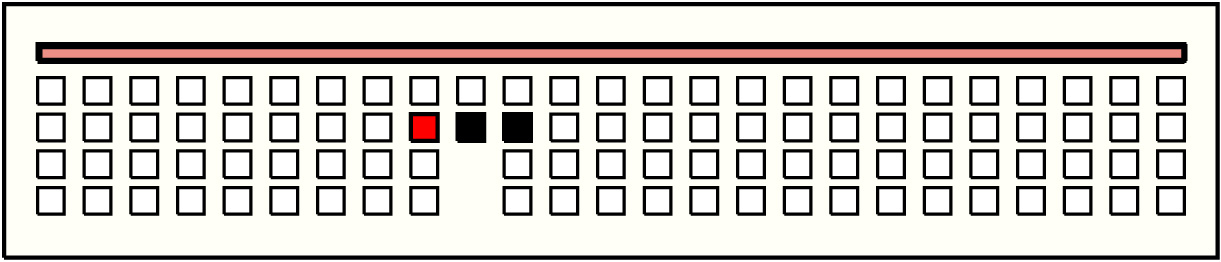

20	p34_{9, 2} : 22_W	22	2	p38: 14_PK + p40: 8_AB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

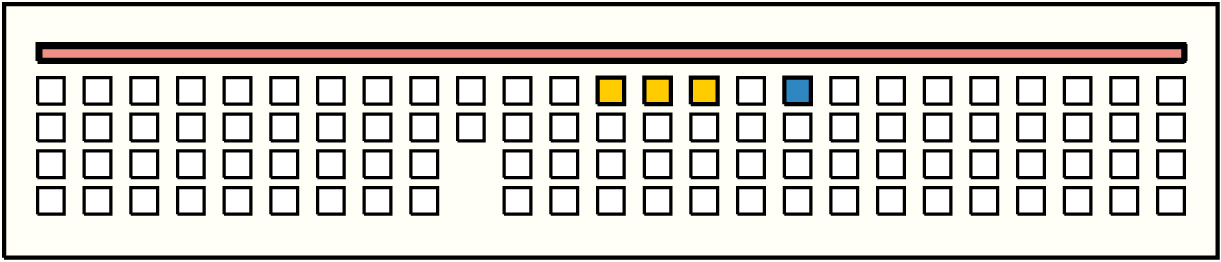

1	p63_{17, 1} : 25_LK	25	3	p47: 12_AB + p51: 6_AB + p55: 7_AB

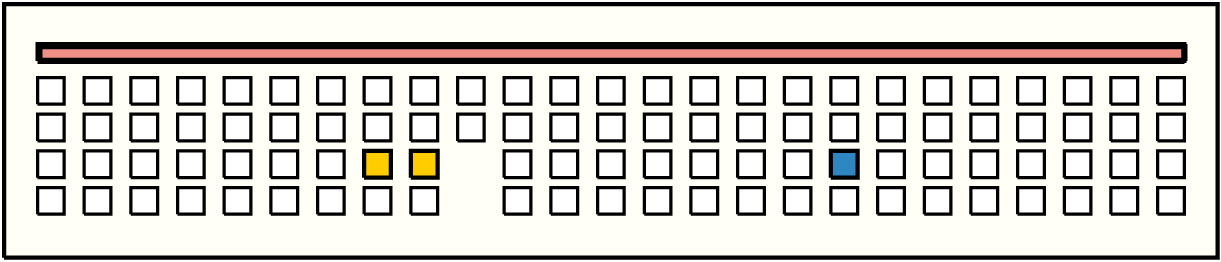

2	p69_{18, 3} : 33_LK	33	2	p31: 22_LK + p35: 11_W

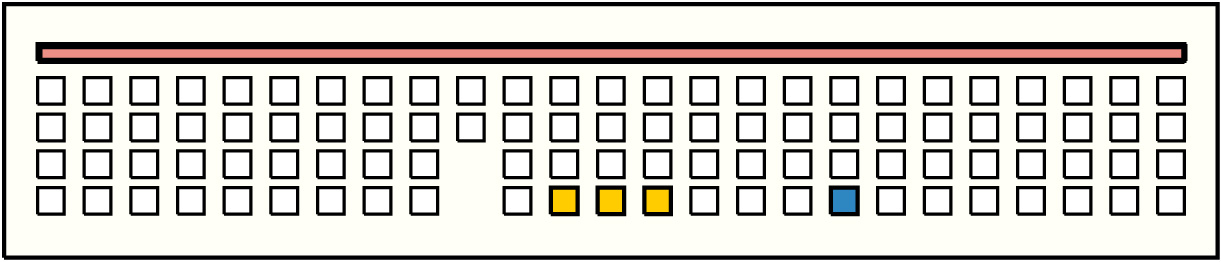

3	p70_{18, 4} : 21_LK	21	3	p46: 11_AB + p50: 7_AB + p54: 3_AB

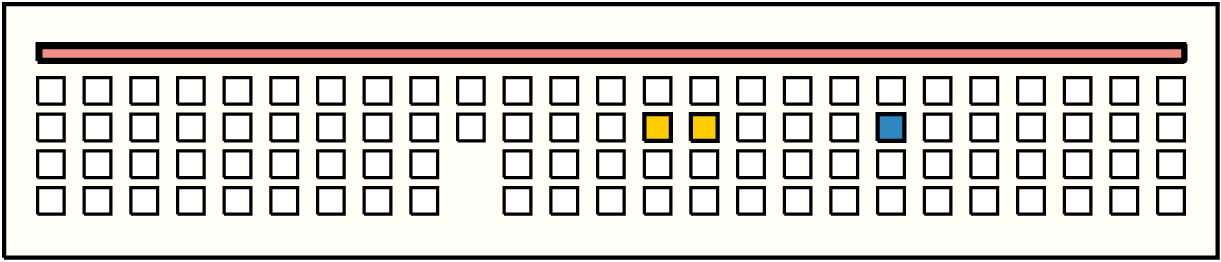

4	p72_{19, 2} : 18_LK	18	2	p52: 4_AB + p56: 14_AB

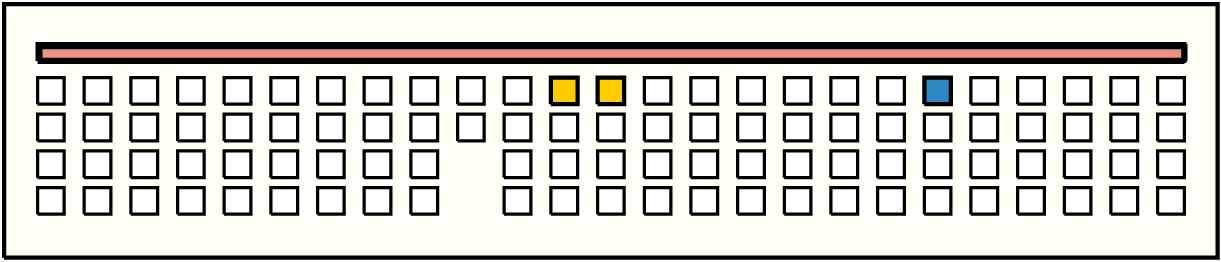

5	p75_{20, 1} : 16_LK	16	2	p43: 4_AB + p47: 12_AB

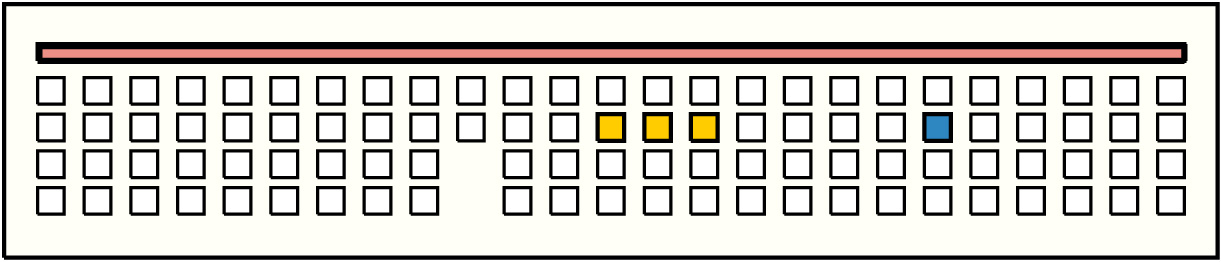

6	p76_{20, 2} : 26_LK	26	3	p48: 8_AB + p52: 4_AB + p56: 14_AB
7	p78_{20, 4} : 19_LK	19	3	p50: 7_AB + p54: 3_AB + p58: 9_AB

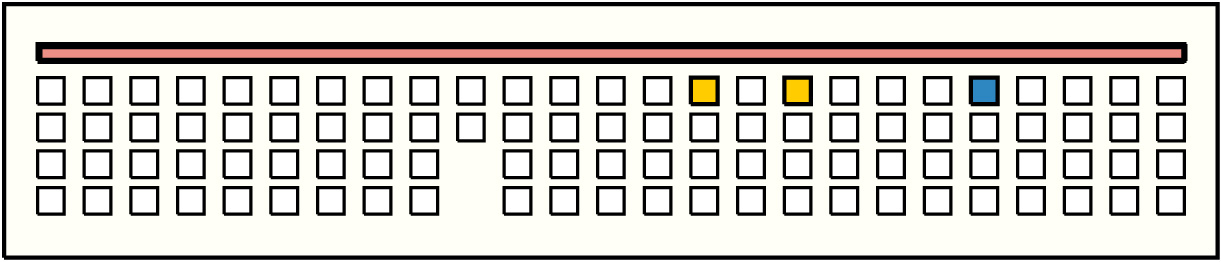

8	p79_{21, 1} : 32_LK	32	2	p55: 7_AB + p63: 25_LK

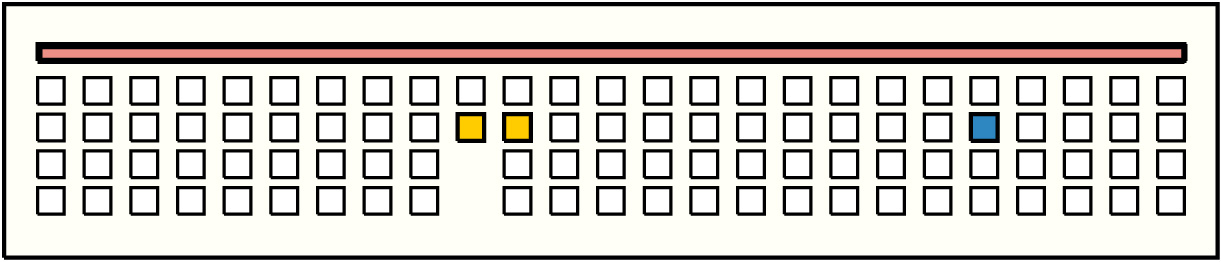

9	p80_{21, 2} : 22_LK	22	2	p38: 14_PK + p40: 8_AB

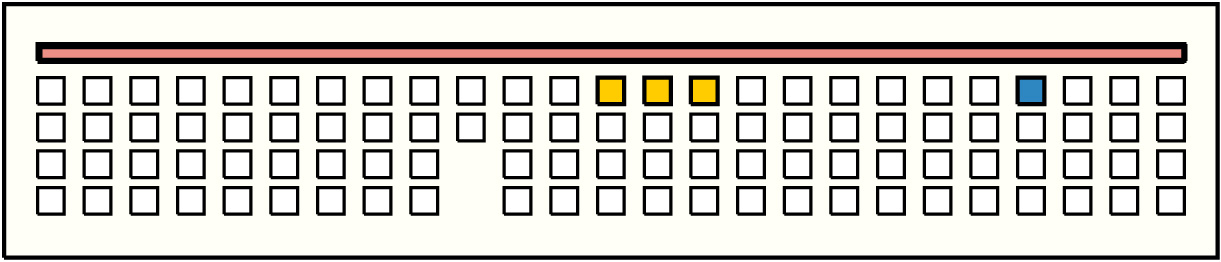

10	p83_{22, 1} : 25_LK	25	3	p47: 12_AB + p51: 6_AB + p55: 7_AB

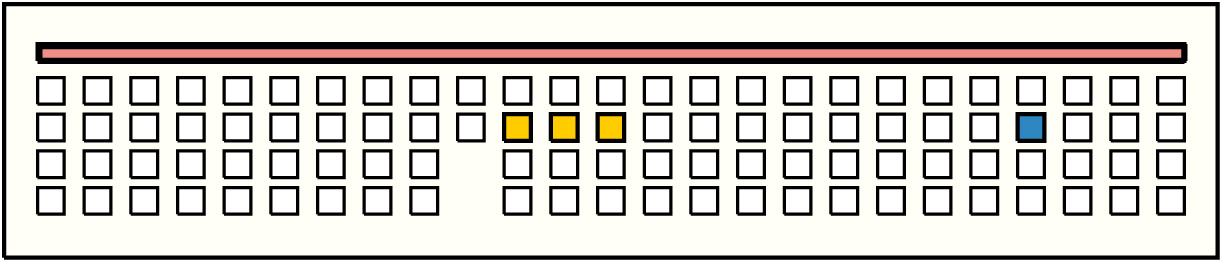

11	p84_{22, 2} : 25_LK	25	3	p40: 8_AB + p44: 9_AB + p48: 8_AB

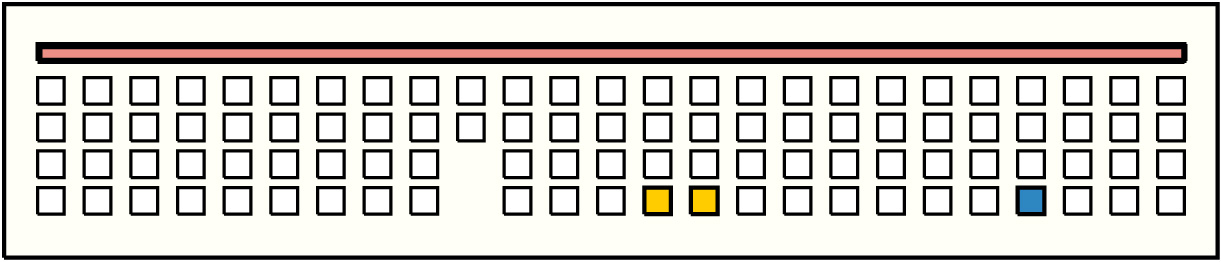

12	p86_{22, 4} : 12_LK	12	2	p54: 3_AB + p58: 9_AB

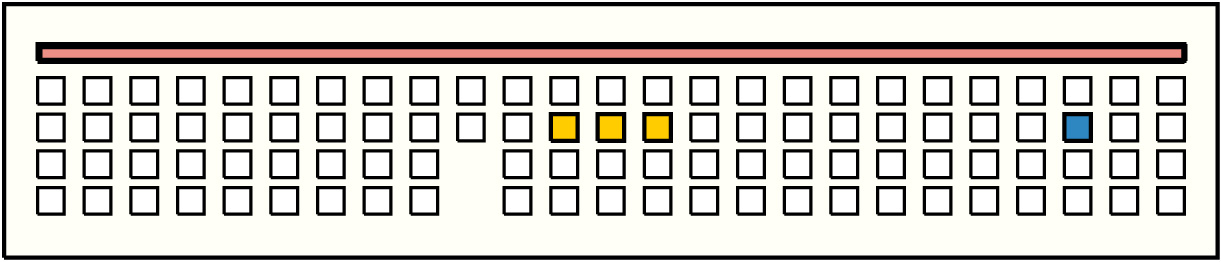

13	p88_{23, 2} : 21_LK	21	3	p44: 9_AB + p48: 8_AB + p52: 4_AB

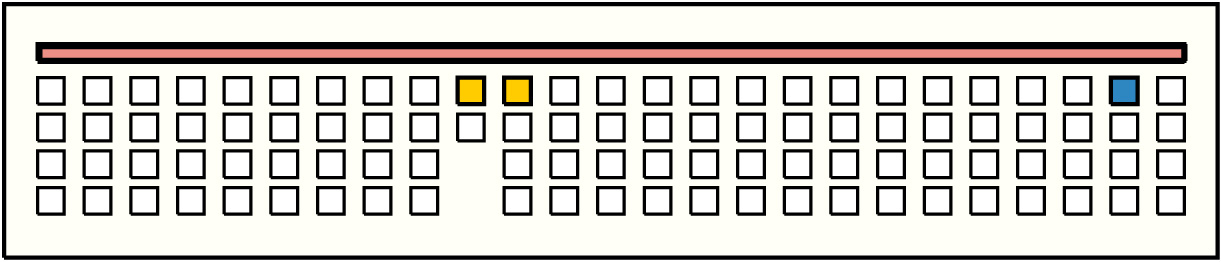

14	p91_{24, 1} : 24_LK	24	2	p37: 17_PK + p39: 7_AB

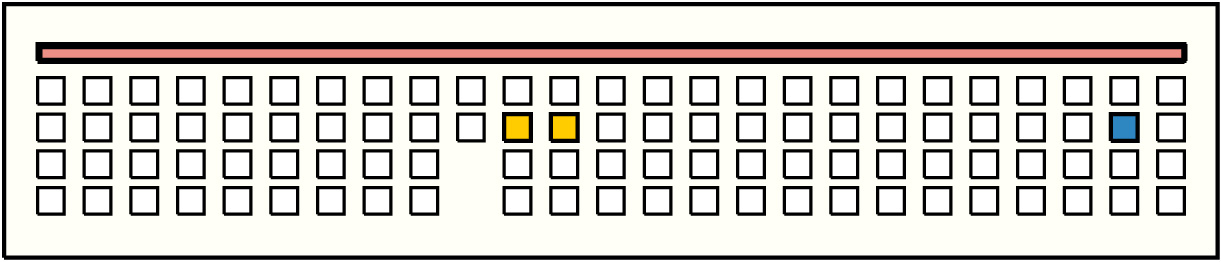

15	p92_{24, 2} : 17_LK	17	2	p40: 8_AB + p44: 9_AB

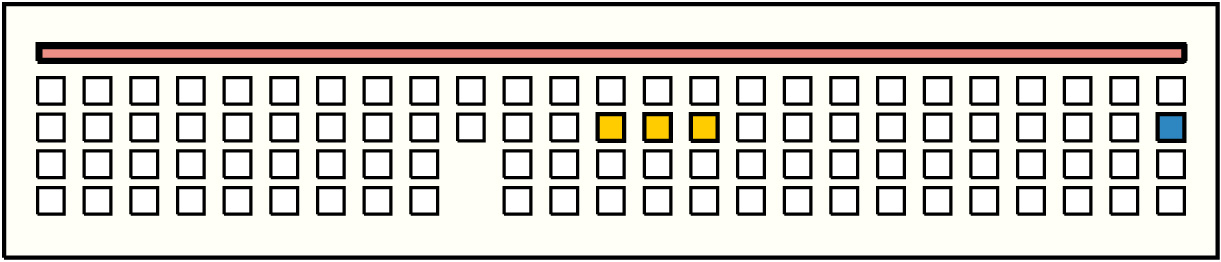

16	p96_{25, 2} : 26_LK	26	3	p48: 8_AB + p52: 4_AB + p56: 14_AB

Khipu Notes:

Most canuto groups are created by doubling cords over the primary cord and wrapping the bundle with colored camelid thread(called here canuto). Therefore at the primary cord there appear to be two pendant cords going around the primary cord. It is not possible to distinguish which pendants at B belong to which cords at A.
2. The groups at A are connected with three cords wrapped around primary cord; they are not doubled, so three plied cords show ar primary cord and there are only 3 cords coming out of canuto.
3. Fiber types:
4. Canuto ribs: end of the cord is doubled back on itself and wrapped with colored thread
** There are two diagrams in the notes
This is a canuto khipu, with all of its cords tied in bundles to the primary cord.
This khipu has been reconstructed using information from Jon Clindaniel's DASH thesis notes at Harvard. Cord cluster information is missing and has been defaulted to one cord per cluster.
