UR054/KH0288 - Indexed Pendant Sum

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Relationships	Right-Handed X-Ray
All Indexed Pendant Sum Relationships	Left-Handed X-Ray
This Khipu's Ascher Sum Relationships	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 17, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 17, 24)
Click on Image to View Larger

Left Handed Sums: # Sums = 15, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 18, 25)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

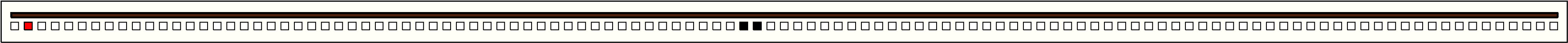

1	p2_{2, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB

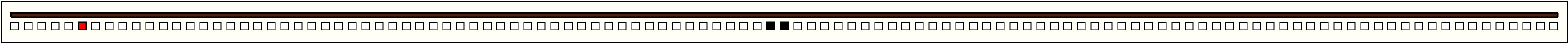

2	p6_{6, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB
3	p19_{19, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

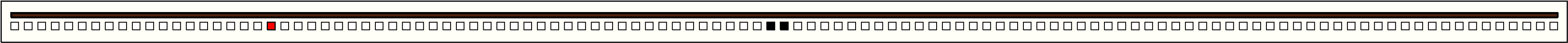

4	p20_{20, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

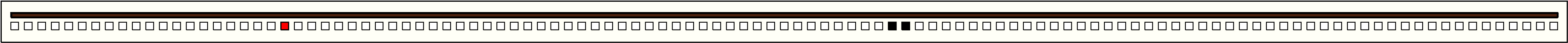

5	p21_{21, 1} : 22_DB	22	2	p66: 11_DB + p67: 11_DB

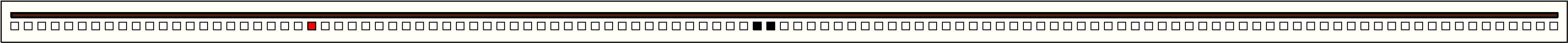

6	p23_{23, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

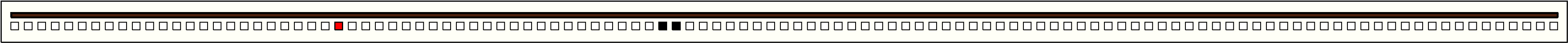

7	p25_{25, 1} : 21_DB	21	2	p49: 10_DB + p50: 11_DB

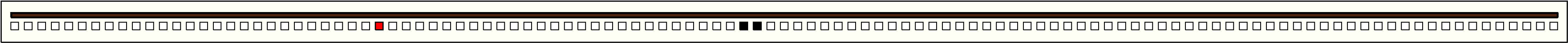

8	p28_{28, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB

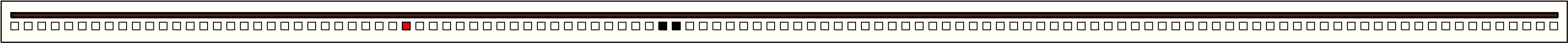

9	p30_{30, 1} : 21_DB	21	2	p49: 10_DB + p50: 11_DB

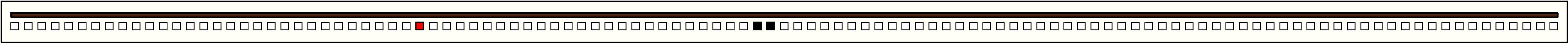

10	p31_{31, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

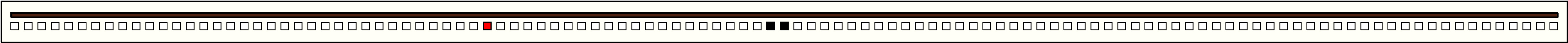

11	p36_{36, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

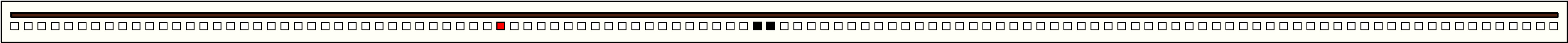

12	p37_{37, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

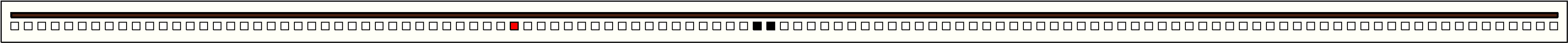

13	p38_{38, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

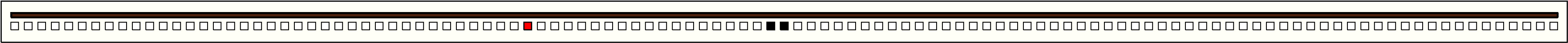

14	p39_{39, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

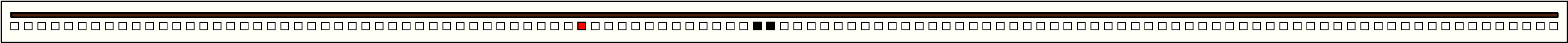

15	p43_{43, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB
16	p44_{44, 1} : 24_DB	24	2	p52: 15_DB + p53: 9_DB

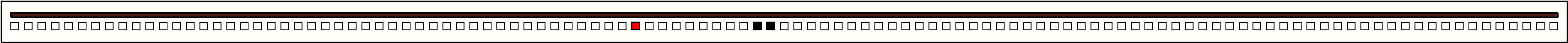

17	p47_{47, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

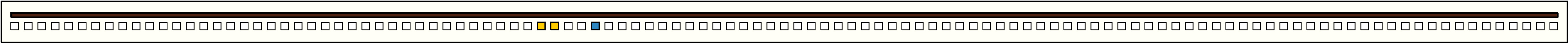

1	p44_{44, 1} : 24_DB	24	2	p40: 12_DB + p41: 12_DB

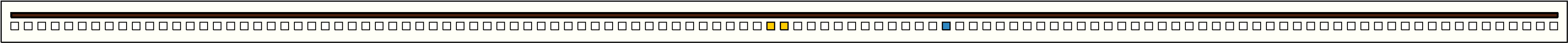

2	p70_{70, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB
3	p71_{71, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

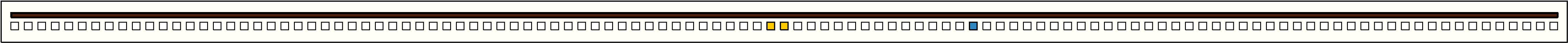

4	p72_{72, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

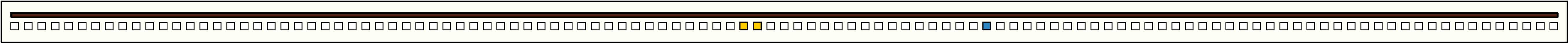

5	p73_{73, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB
6	p78_{78, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB
7	p85_{85, 1} : 24_DB	24	2	p40: 12_DB + p41: 12_DB
8	p96_{96, 1} : 25_DB	25	2	p3: 14_DB + p4: 11_DB
9	p102_{102, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB
10	p104_{104, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB
11	p109_{109, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB
12	p110_{110, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB
13	p112_{112, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB
14	p113_{113, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB
15	p115_{115, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

Khipu Notes:

This is a canuto khipu, with all of its cords tied in bundles to the primary cord.
This khipu has been reconstructed using information from Jon Clindaniel's DASH thesis notes at Harvard. Cord cluster information is missing and has been defaulted to one cord per cluster.
