UR066/KH0303 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

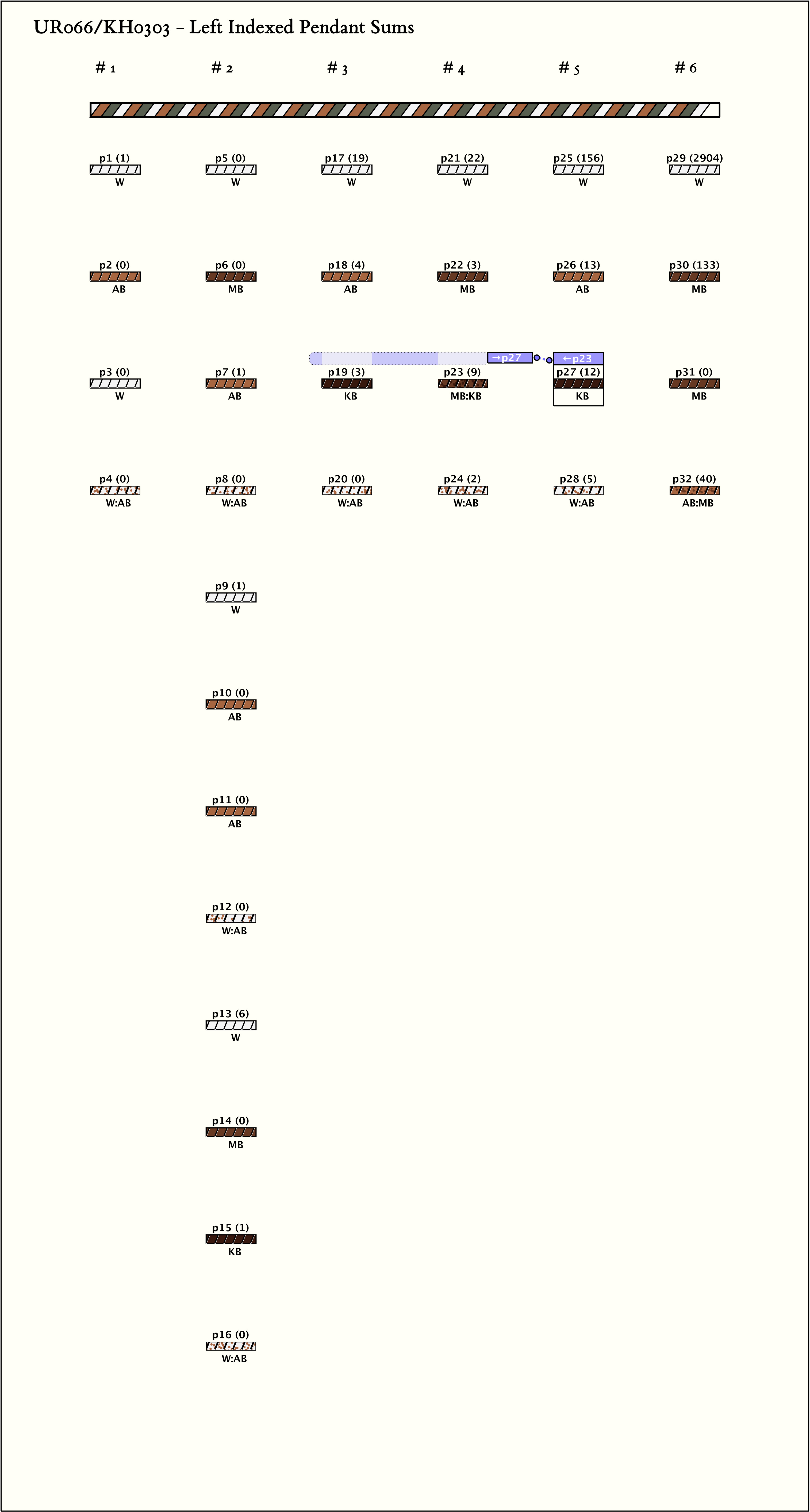

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 2, (Min, Mean, Max) Sum Values = (12, 12, 12)
Click on Image to View Larger
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | p275, 3 : 12KB | 12 | 2 | p19: 3KB + p23: 9MB:KB |
Khipu Notes:
UR66 was rolled together with UR67. Pendants facing away, khipus unroll so that doubled end of primary cords are on the left; 66 is on top. Roll up left to right, S spiral.
