UR244/KH0480 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

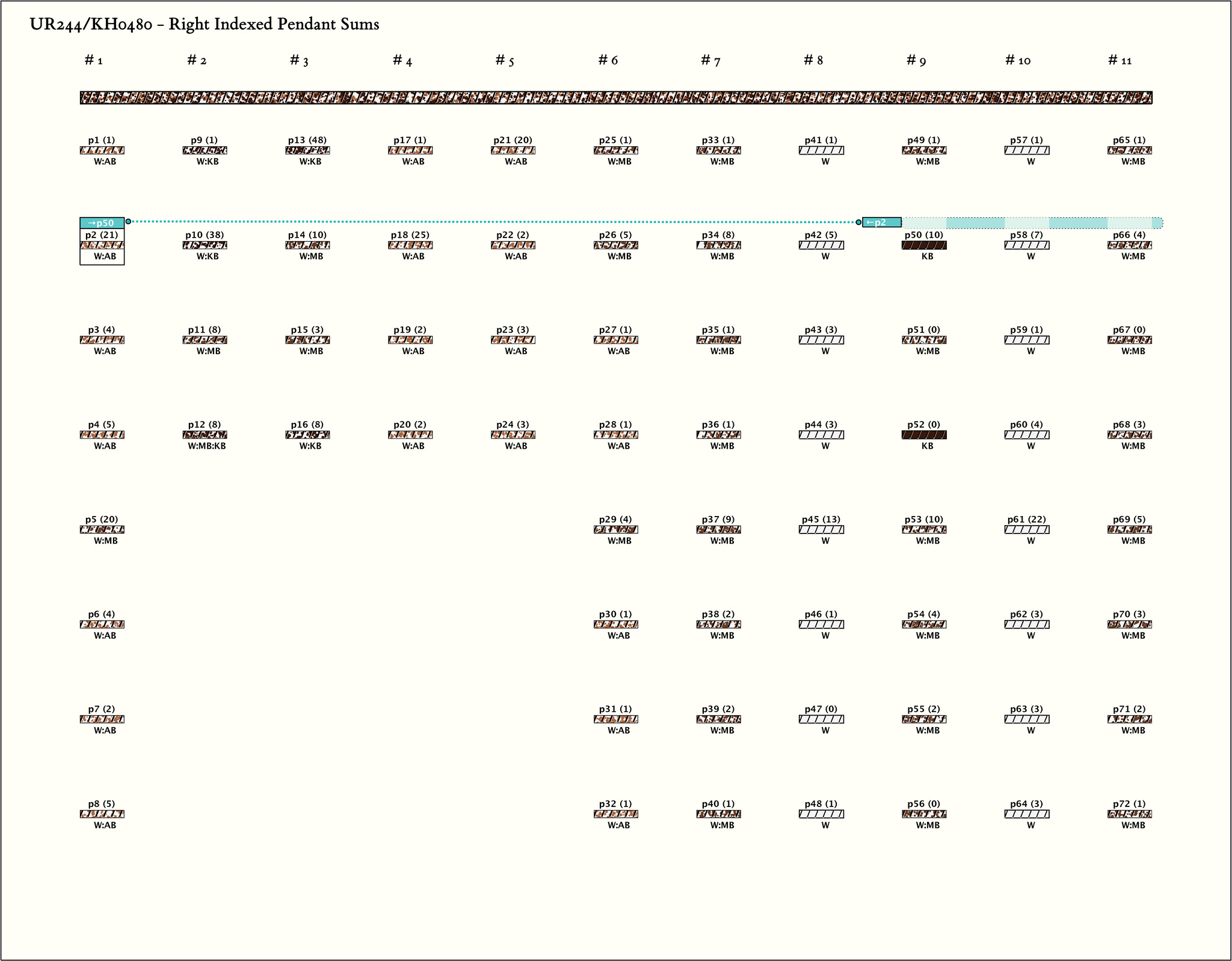

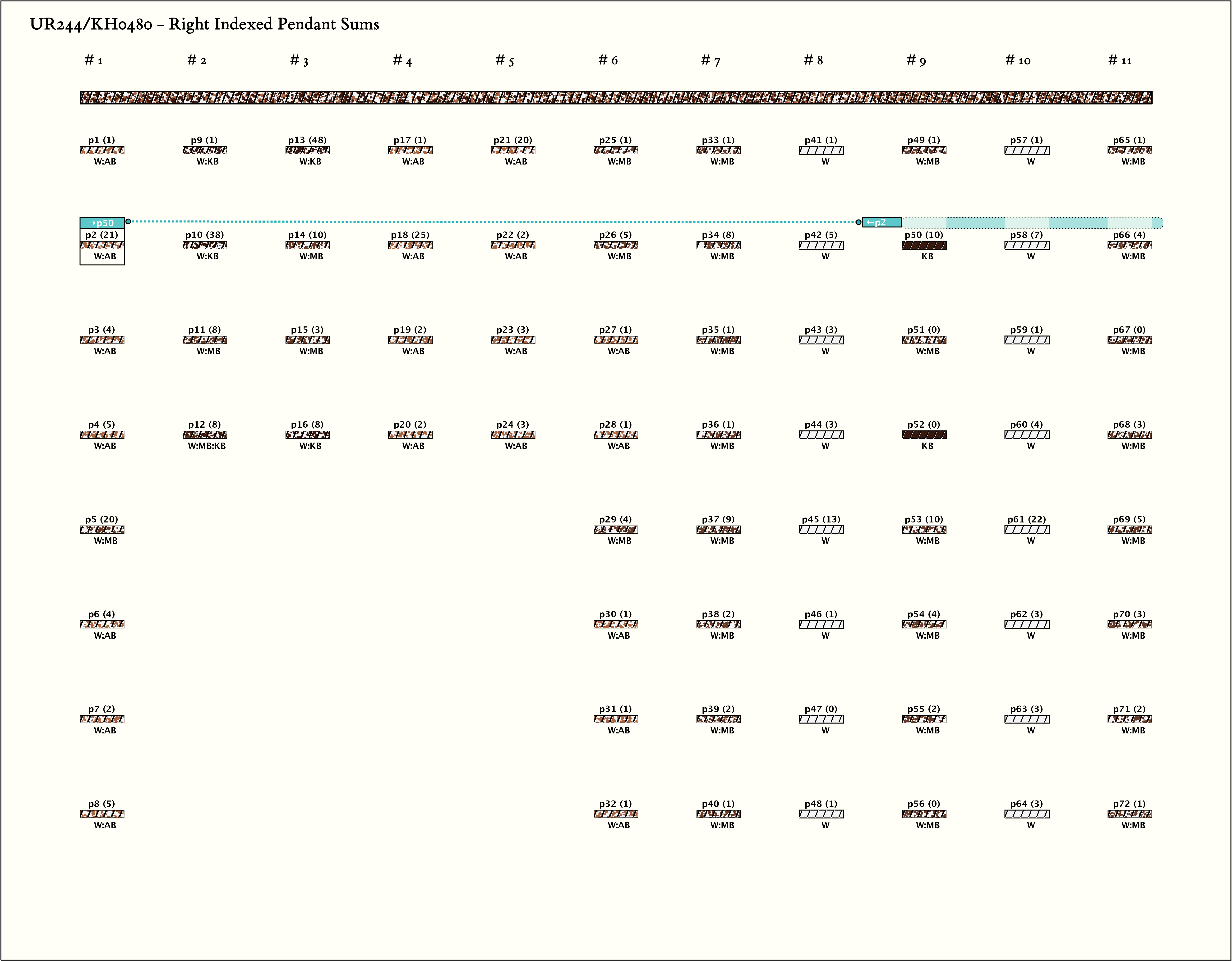

Right Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 3, (Min, Mean, Max) Sum Values = (21, 21, 21)
Click on Image to View Larger

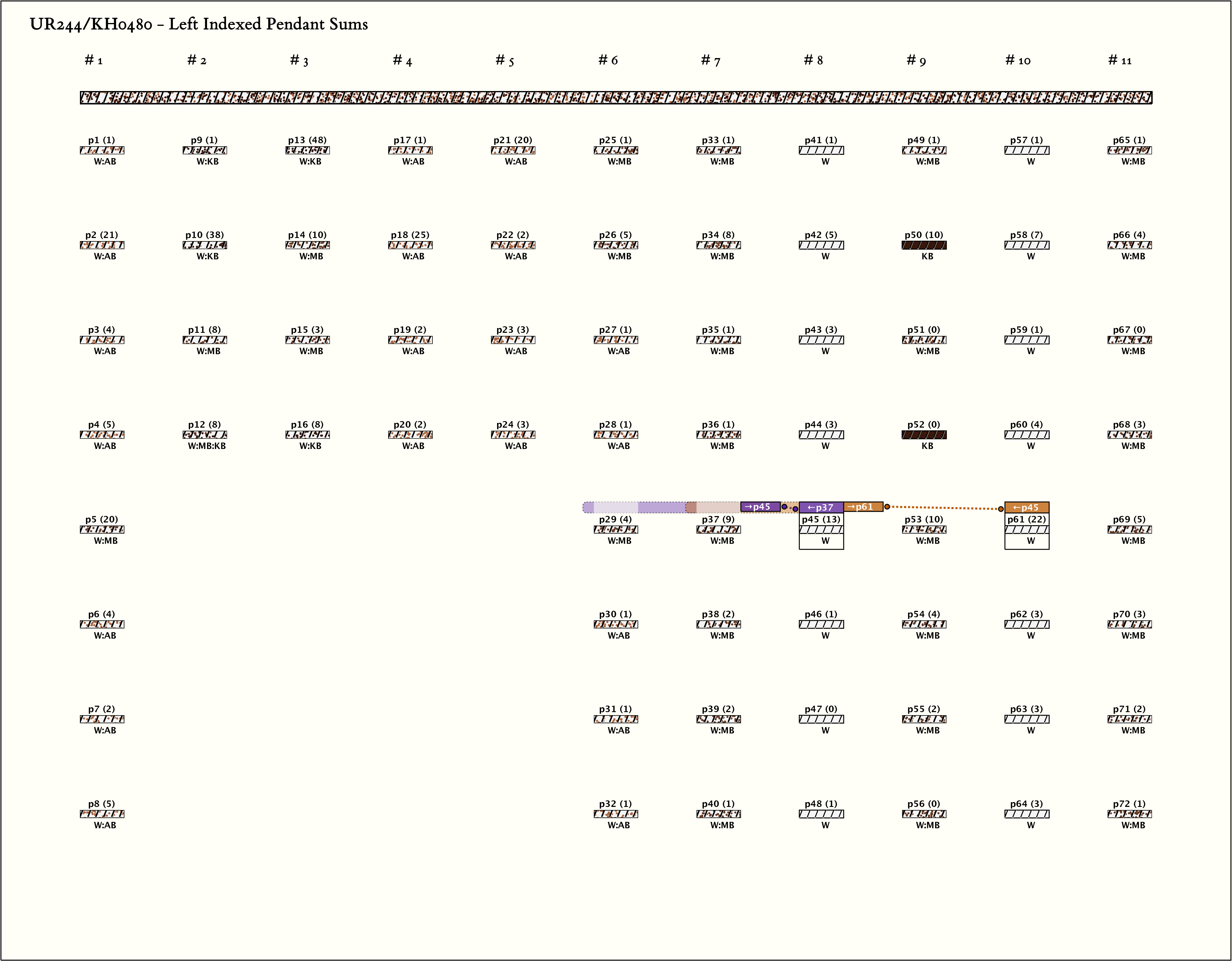

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 18, 22)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | p21, 2 : 21W:AB | 21 | 3 | ∞p50: 10KB + p58: 7W + ∞p66: 4W:MB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

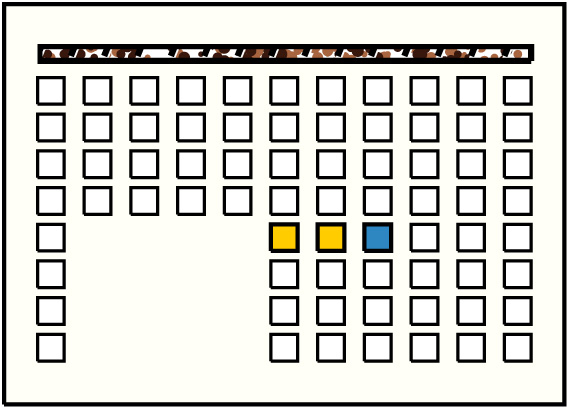

| 1 |  | p458, 5 : 13W | 13 | 2 | ∞p29: 4W:MB∞ + ∞p37: 9W:MB | |

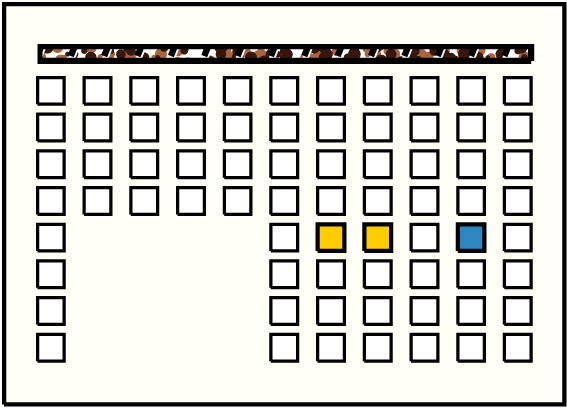

| 2 |  | p6110, 5 : 22W | 22 | 2 | ∞p37: 9W:MB + p45: 13W∞ |
