AB001 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksRight-Handed XRay
All Pendant Pendant Sum RelationshipsLeft-Handed XRay
This Khipu's Fieldmark CatalogRight-Handed Sum Detail
This Khipu's DrawingLeft-Handed Sum Detail

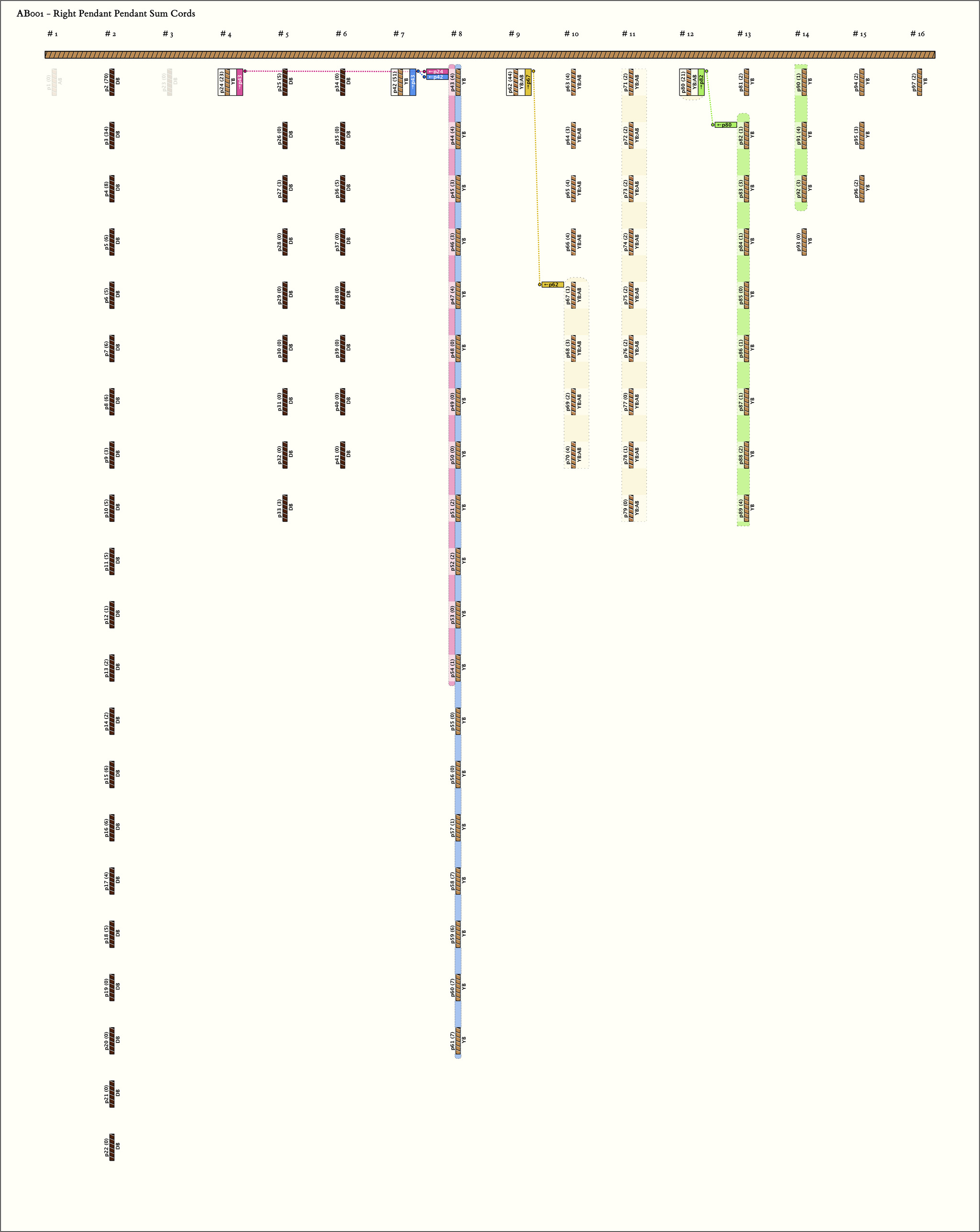

Right Handed Sums:     # Sums = 4,  Max # Summands = 19,   (Min, Mean, Max) Sum Values = (21, 35, 51)
Click on Image to View Larger

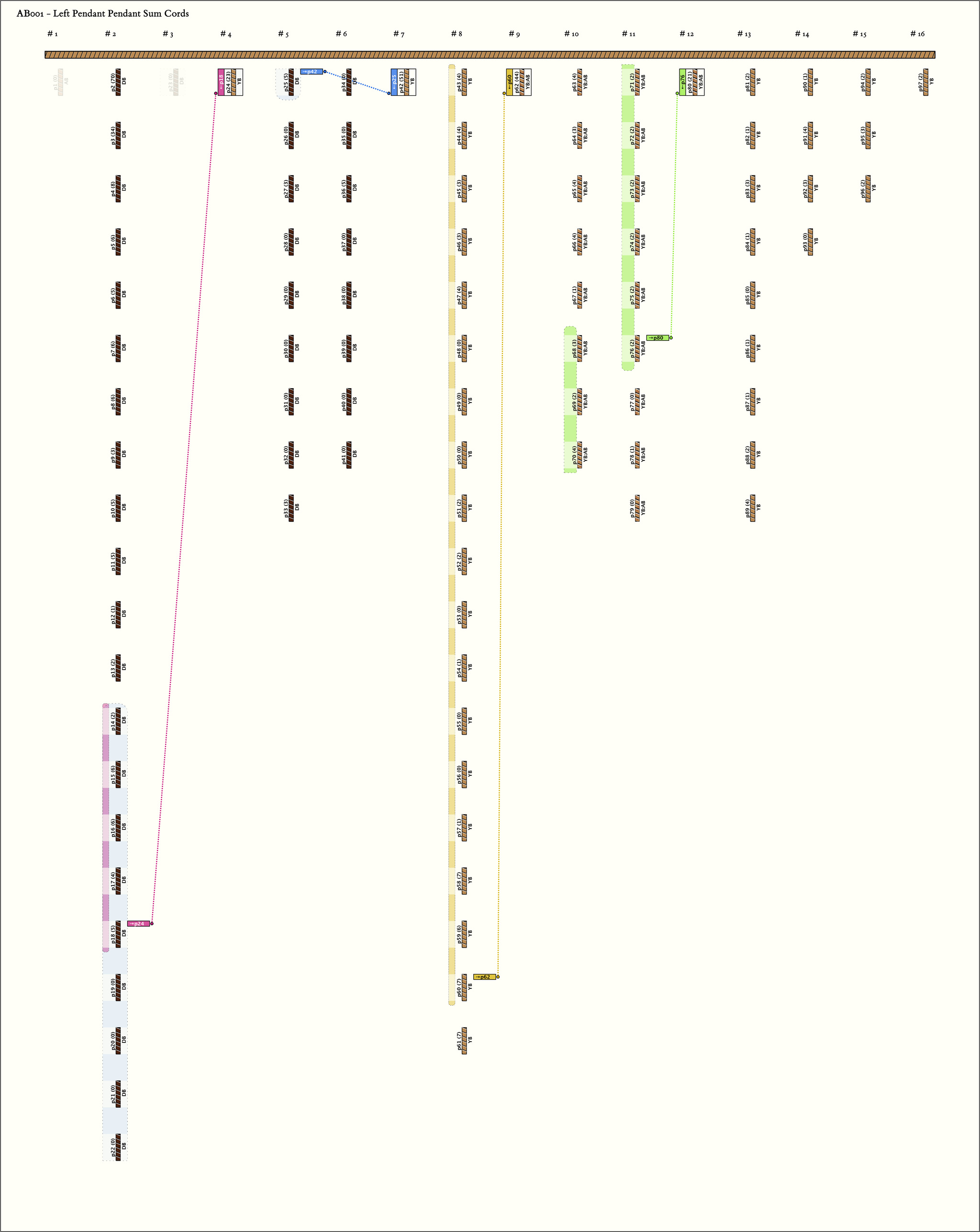

Left Handed Sums:     # Sums = 4,  Max # Summands = 18,   (Min, Mean, Max) Sum Values = (21, 35, 51)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
p244, 1 : 23YB2312p43: 4YB + p44: 4YB + p45: 3YB + p46: 3YB + p47: 4YB + p48: 0YB + p49: 0YB + p50: 0YB + p51: 2YB + p52: 2YB + p53: 0YB + p54: 1YB
2

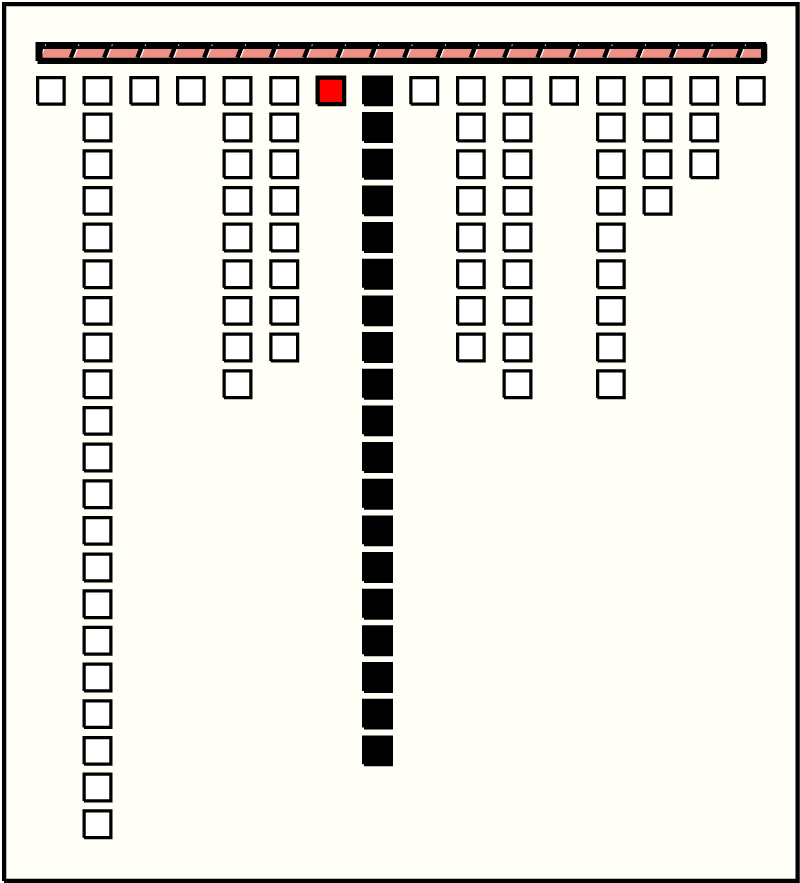

p427, 1 : 51YB5119p43: 4YB + p44: 4YB + p45: 3YB + p46: 3YB + p47: 4YB + p48: 0YB + p49: 0YB + p50: 0YB + p51: 2YB + p52: 2YB + p53: 0YB + p54: 1YB + p55: 0YB + p56: 0YB + p57: 1YB + p58: 7YB + p59: 6YB + p60: 7YB + p61: 7YB
3

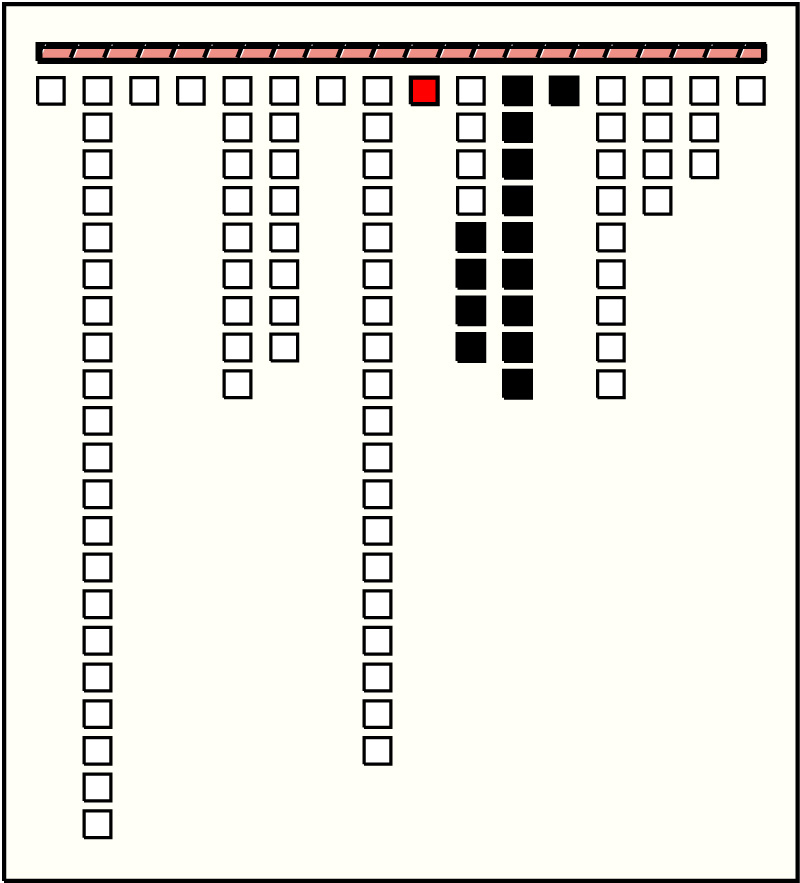

p629, 1 : 44YB:AB4414p67: 1YB:AB + p68: 3YB:AB + p69: 2YB:AB + p70: 4YB:AB + p71: 2YB:AB + p72: 2YB:AB + p73: 2YB:AB + p74: 2YB:AB + p75: 2YB:AB + p76: 2YB:AB + p77: 0YB:AB + p78: 1YB:AB + p79: 0YB:AB + p80: 21YB:AB
4

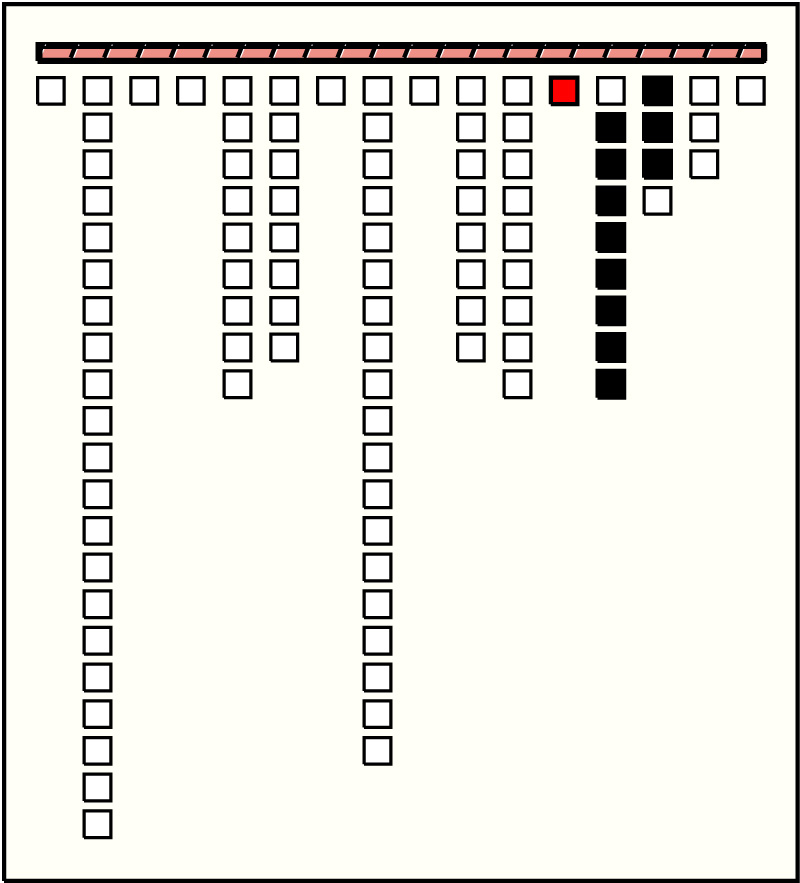

p8012, 1 : 21YB:AB2111p82: 1YB + p83: 3YB + p84: 1YB + p85: 0YB + p86: 1YB + p87: 1YB + p88: 2YB + p89: 4YB + p90: 1YB + p91: 4YB + p92: 3YB

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

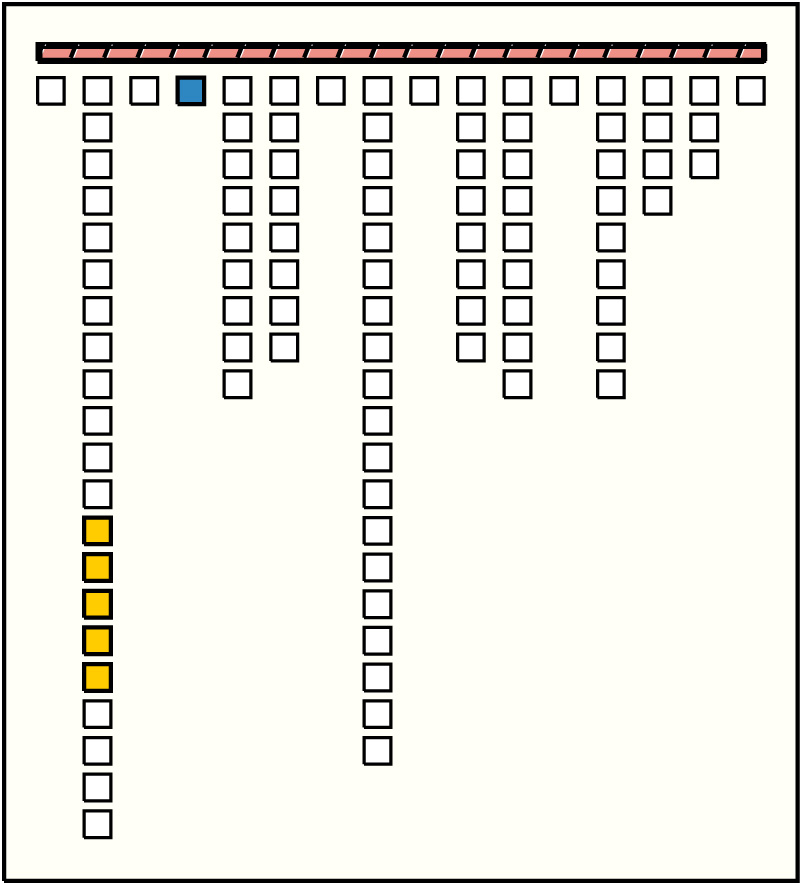

p244, 1 : 23YB235p14: 2DB + p15: 6DB + p16: 6DB + p17: 4DB + p18: 5DB
2
p427, 1 : 51YB5112p14: 2DB + p15: 6DB + p16: 6DB + p17: 4DB + p18: 5DB + p19: 0DB + p20: 0DB + p21: 0DB + p22: 0DB + p23: 0DB + p24: 23YB + p25: 5DB
3

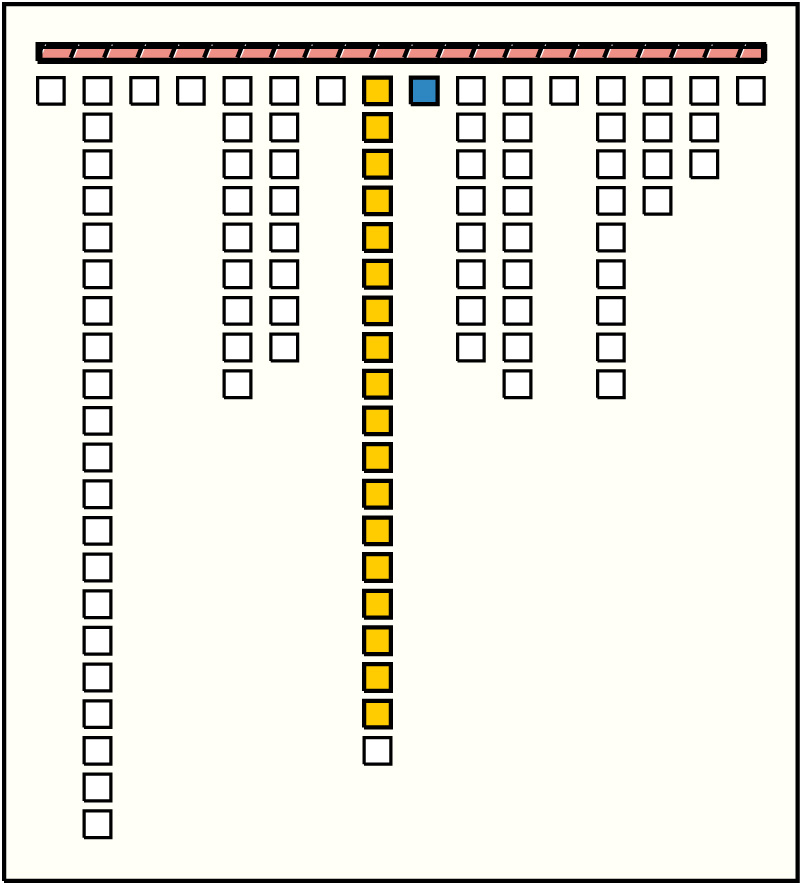

p629, 1 : 44YB:AB4418p43: 4YB + p44: 4YB + p45: 3YB + p46: 3YB + p47: 4YB + p48: 0YB + p49: 0YB + p50: 0YB + p51: 2YB + p52: 2YB + p53: 0YB + p54: 1YB + p55: 0YB + p56: 0YB + p57: 1YB + p58: 7YB + p59: 6YB + p60: 7YB
4

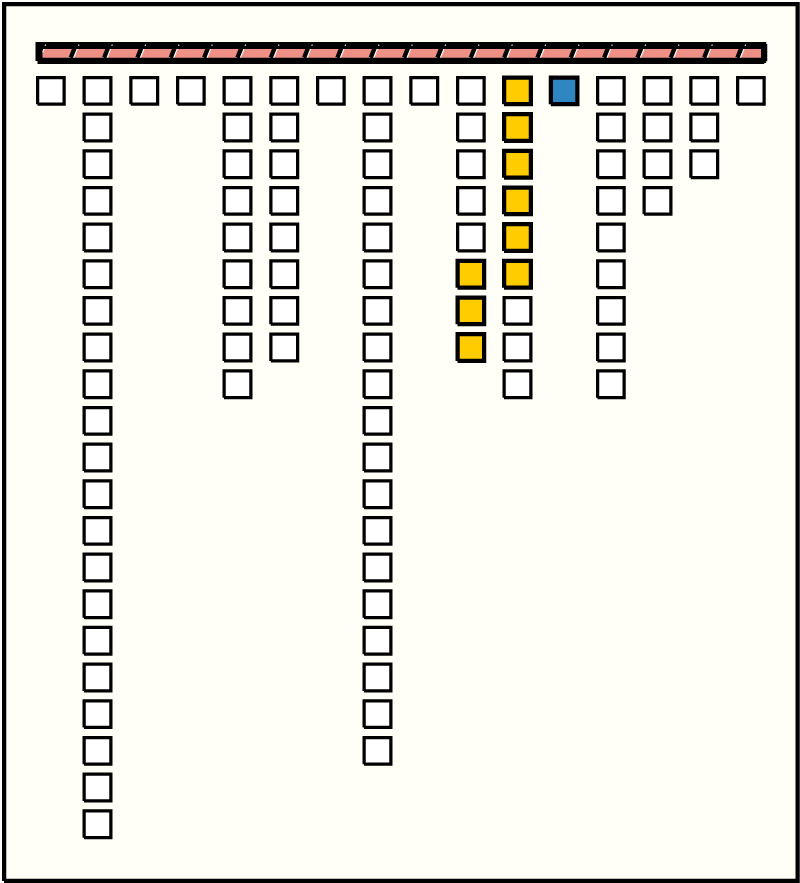

p8012, 1 : 21YB:AB219p68: 3YB:AB + p69: 2YB:AB + p70: 4YB:AB + p71: 2YB:AB + p72: 2YB:AB + p73: 2YB:AB + p74: 2YB:AB + p75: 2YB:AB + p76: 2YB:AB

Khipu Notes:
Fieldguide Notes:

AB001 Photograph
