AS010/KH0011 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

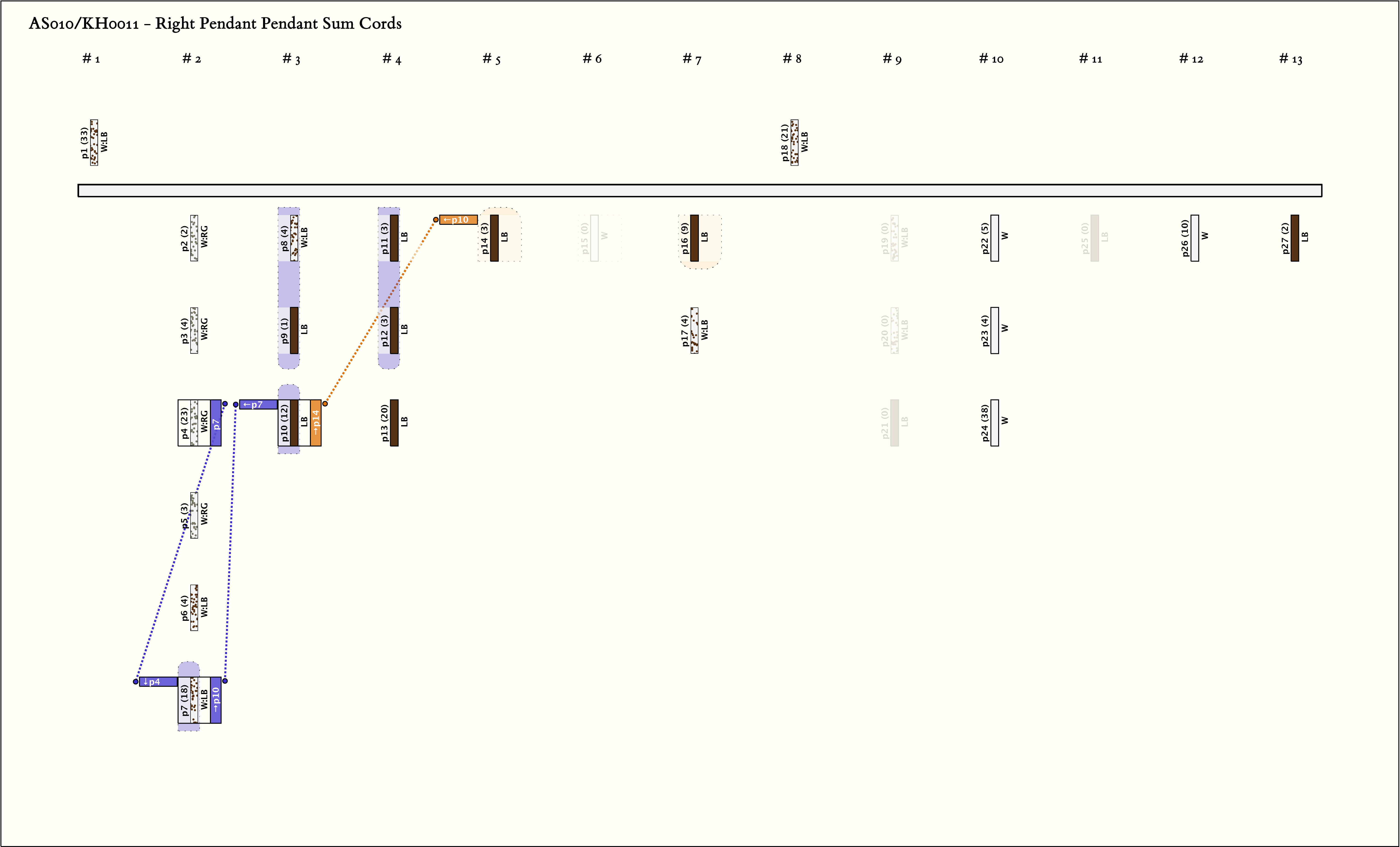

Right Handed Sums: # Sums = 3, Max # Summands = 3, (Min, Mean, Max) Sum Values = (12, 18, 23)
Click on Image to View Larger

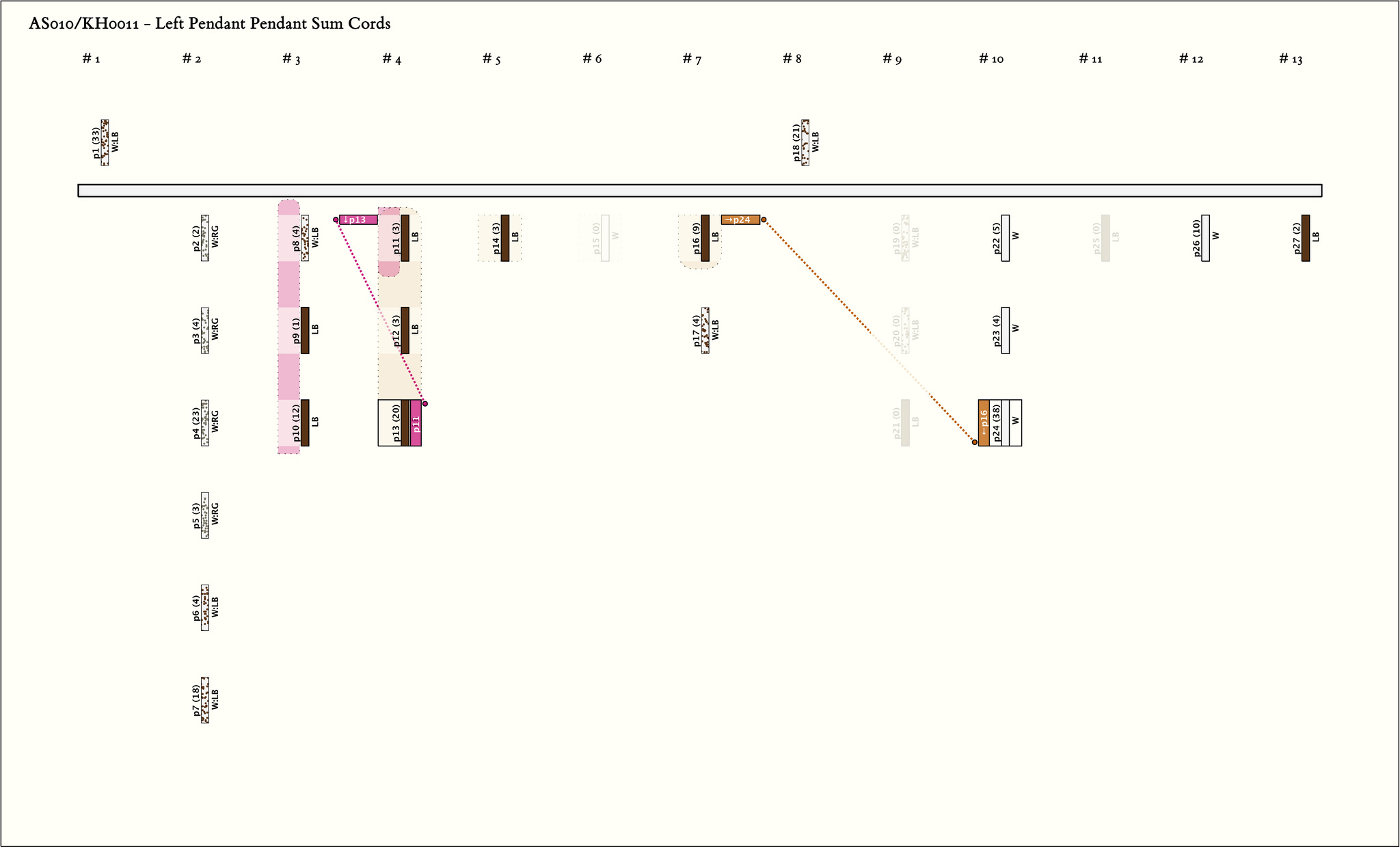

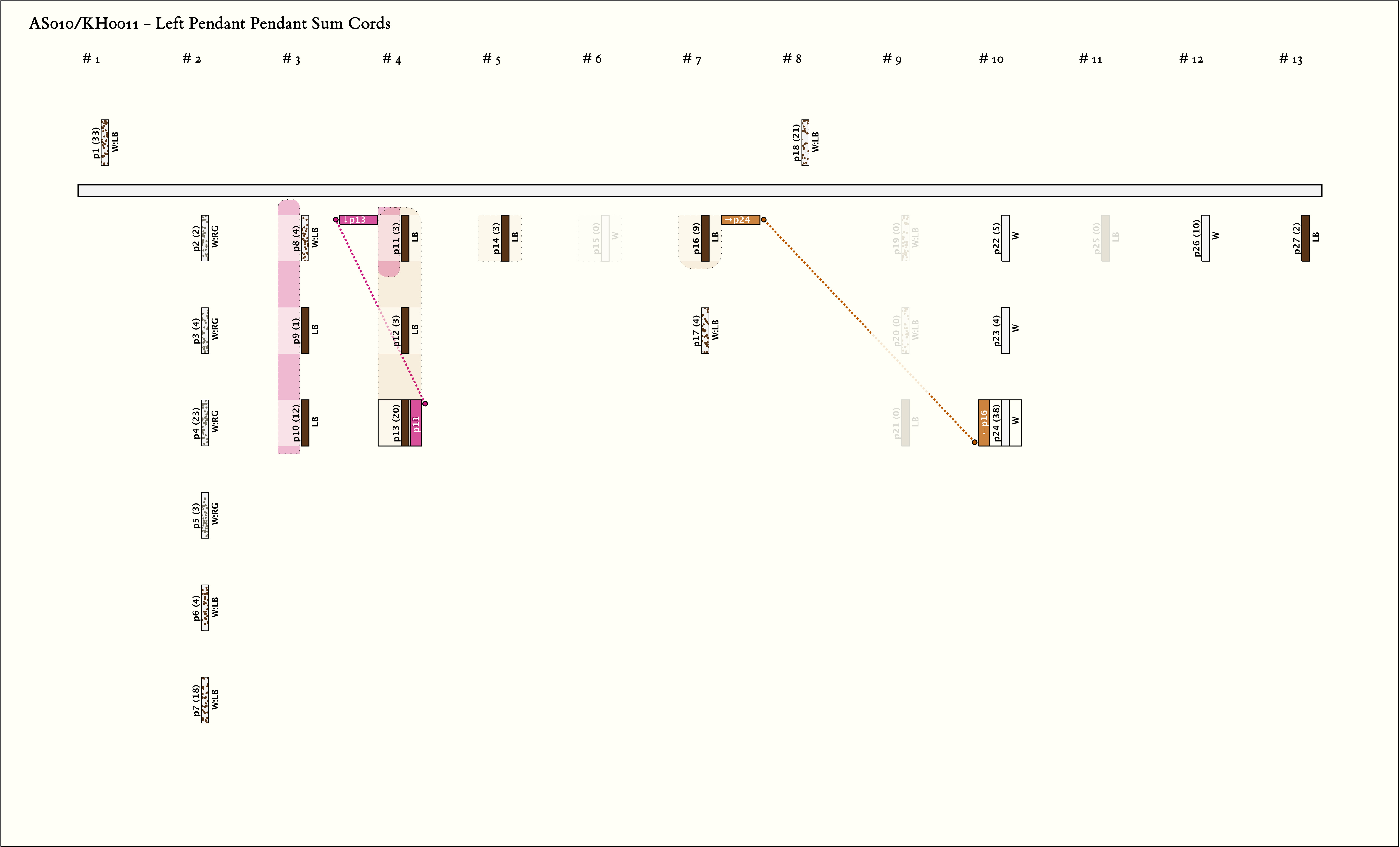

Left Handed Sums: # Sums = 2, Max # Summands = 6, (Min, Mean, Max) Sum Values = (20, 29, 38)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p4_{2, 3} : 23_W:RG	23	3	p7: 18_W:LB + p8: 4_W:LB + p9: 1_LB
2	p7_{2, 6} : 18_W:LB	18	3	p10: 12_LB + p11: 3_LB + p12: 3_LB
3	p10_{3, 3} : 12_LB	12	3	p14: 3_LB + p15: 0_W + p16: 9_LB

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p13_{4, 3} : 20_LB	20	4	p8: 4_W:LB + p9: 1_LB + p10: 12_LB + p11: 3_LB
2			p24_{10, 3} : 38_W	38	6	p11: 3_LB + p12: 3_LB + p13: 20_LB + p14: 3_LB + p15: 0_W + p16: 9_LB

Khipu Notes:

Fieldguide Notes:

This khipus has 2 interesting field-marks:

Ascher Databook Notes:

All cords have end knots making this a well-preserved specimen.
Association by color gives one possible grouping while spacing gives another: by color groups of 4,3,7,3,1,2; by spacing groups of 6,3,3,6,3,2.
Top cord P18 has value of 21 equaling the number of grouped cords (7 groups of 3 cords each) - excluding last two set off by main cord knot.
The value of top cord P1 plus the value of its subsidiary P1s1 equals 51. The total value of the first 7 pendants is 51 (I could not replicate this conclusion - Ashok) and the total value of the next 7 pendants is 51. Ashok added: That is:

P₁ + P_1s1 = 51

\[ \sum\limits_{i=2}^{8} P_{i} = 58\; \]

\[ \sum\limits_{i=9}^{16} P_{i} = 51\; \]
