AS026A/KH0027 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

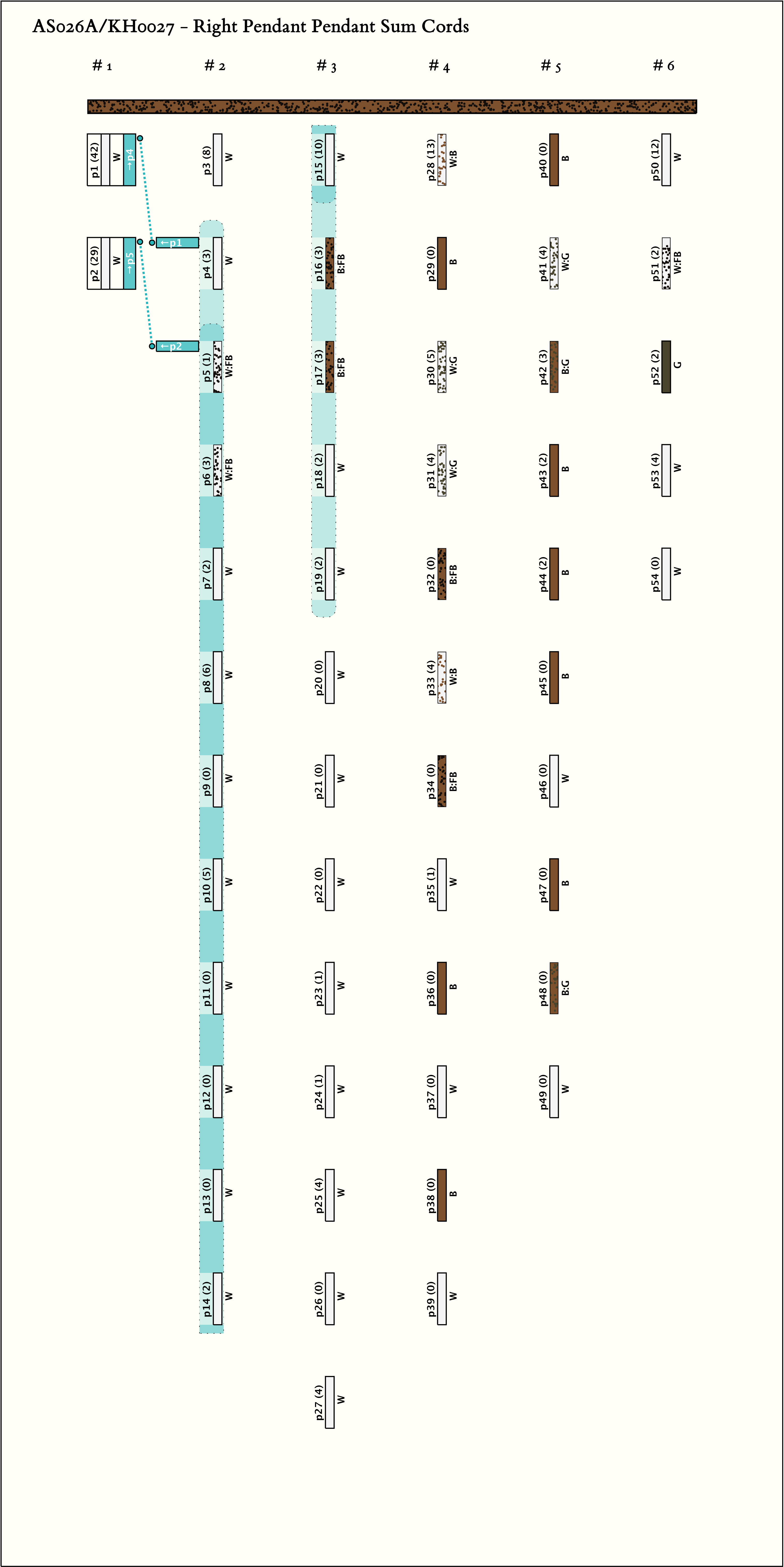

Right Handed Sums: # Sums = 2, Max # Summands = 16, (Min, Mean, Max) Sum Values = (29, 36, 42)
Click on Image to View Larger

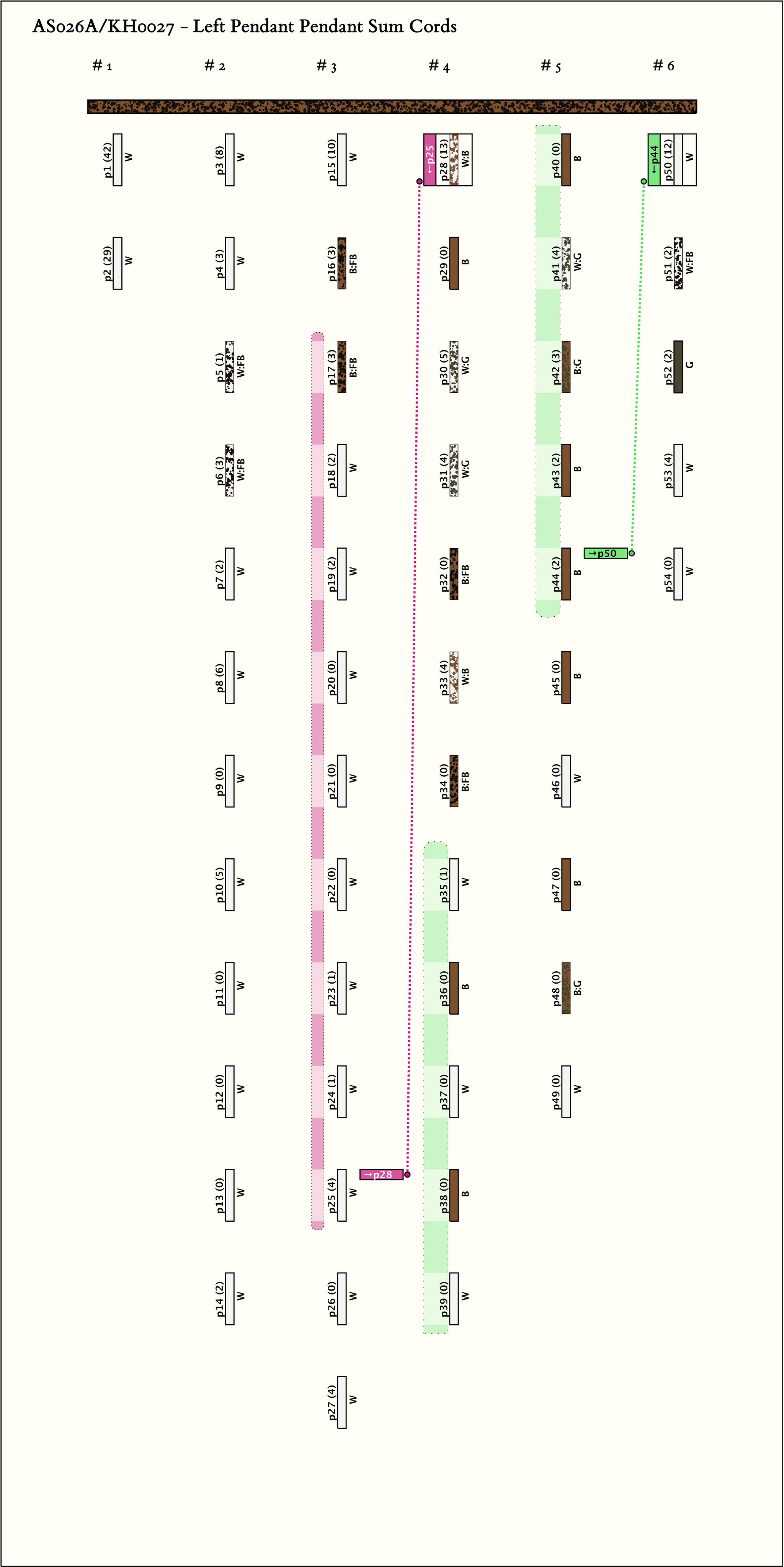

Left Handed Sums: # Sums = 2, Max # Summands = 10, (Min, Mean, Max) Sum Values = (12, 12, 13)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p1_{1, 1} : 42_W	42	16	p4: 3_W + p5: 1_W:FB + p6: 3_W:FB + p7: 2_W + p8: 6_W + p9: 0_W + p10: 5_W + p11: 0_W + p12: 0_W + p13: 0_W + p14: 2_W + p15: 10_W + p16: 3_B:FB + p17: 3_B:FB + p18: 2_W + p19: 2_W

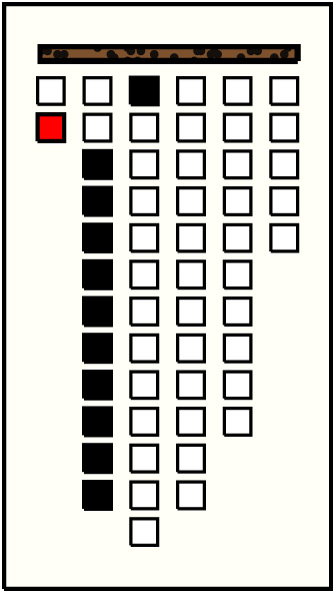

2			p2_{1, 2} : 29_W	29	11	p5: 1_W:FB + p6: 3_W:FB + p7: 2_W + p8: 6_W + p9: 0_W + p10: 5_W + p11: 0_W + p12: 0_W + p13: 0_W + p14: 2_W + p15: 10_W

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

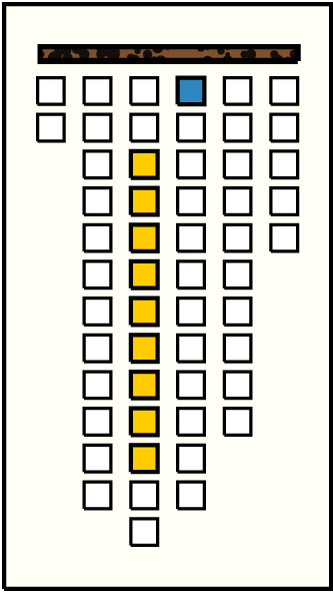

1			p28_{4, 1} : 13_W:B	13	9	p17: 3_B:FB + p18: 2_W + p19: 2_W + p20: 0_W + p21: 0_W + p22: 0_W + p23: 1_W + p24: 1_W + p25: 4_W

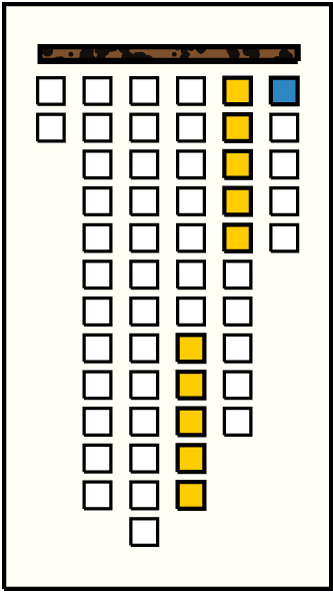

2			p50_{6, 1} : 12_W	12	10	p35: 1_W + p36: 0_B + p37: 0_W + p38: 0_B + p39: 0_W + p40: 0_B + p41: 4_W:G + p42: 3_B:G + p43: 2_B + p44: 2_B

Khipu Notes:

Ascher Databook Notes:

Khipus AS026A and AS026B are joined. Their main cords are knotted together at 1.0 cm. from the twisted end of AS026A (between pendant cords 2 and 3), and at 15.0 cm. from the twisted end of AS026B (just before its first pendant cord).
By spacing, AS026A has 6 groups of 2, 12, 13, 12, 10, 5 pendants respectively. The order of magnitude of the values in the first group (29-49) is greater than the values in the other groups ( 0-13). Within the other groups, values in position 1 are 8-13 while values in all the other positions are restricted to 0-6.
Both AS026A and AS026B contain the colors W, B, FB and their combinations FB:W and B:W. There are colors that occur in AS026A and not in AS026B, as follows: DB, G, and the combinations G:W, B:G, and FB:B. Similarly, there are colors that occur in AS026B and not in AS026A. They are: KB, GG, GG:W, B:GG, and KB:B. These differences may be due to differential changes from the same original colors.
