AS050/KH0061 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

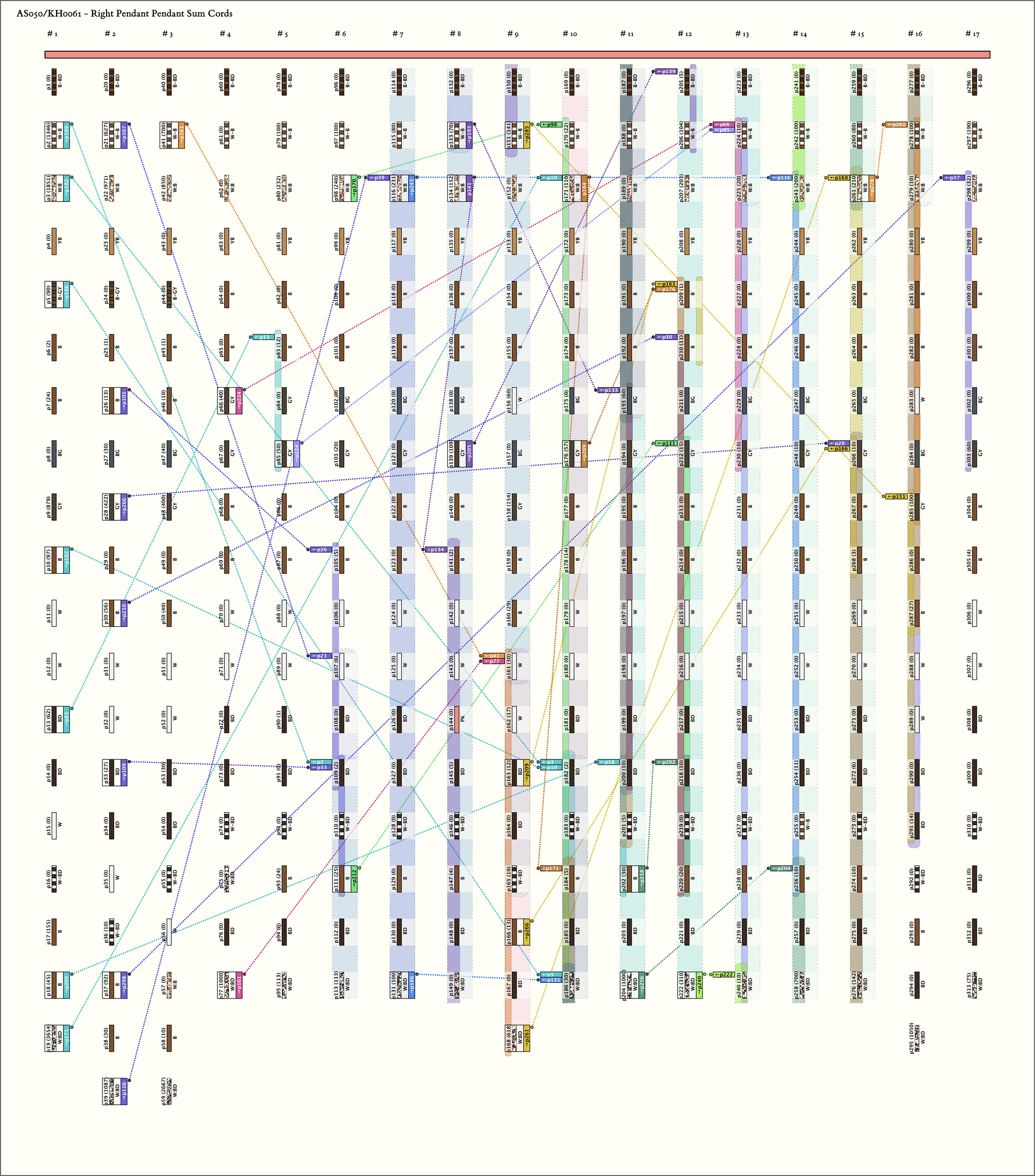

Right Handed Sums: # Sums = 35, Max # Summands = 109, (Min, Mean, Max) Sum Values = (12, 420, 3654)
Click on Image to View Larger

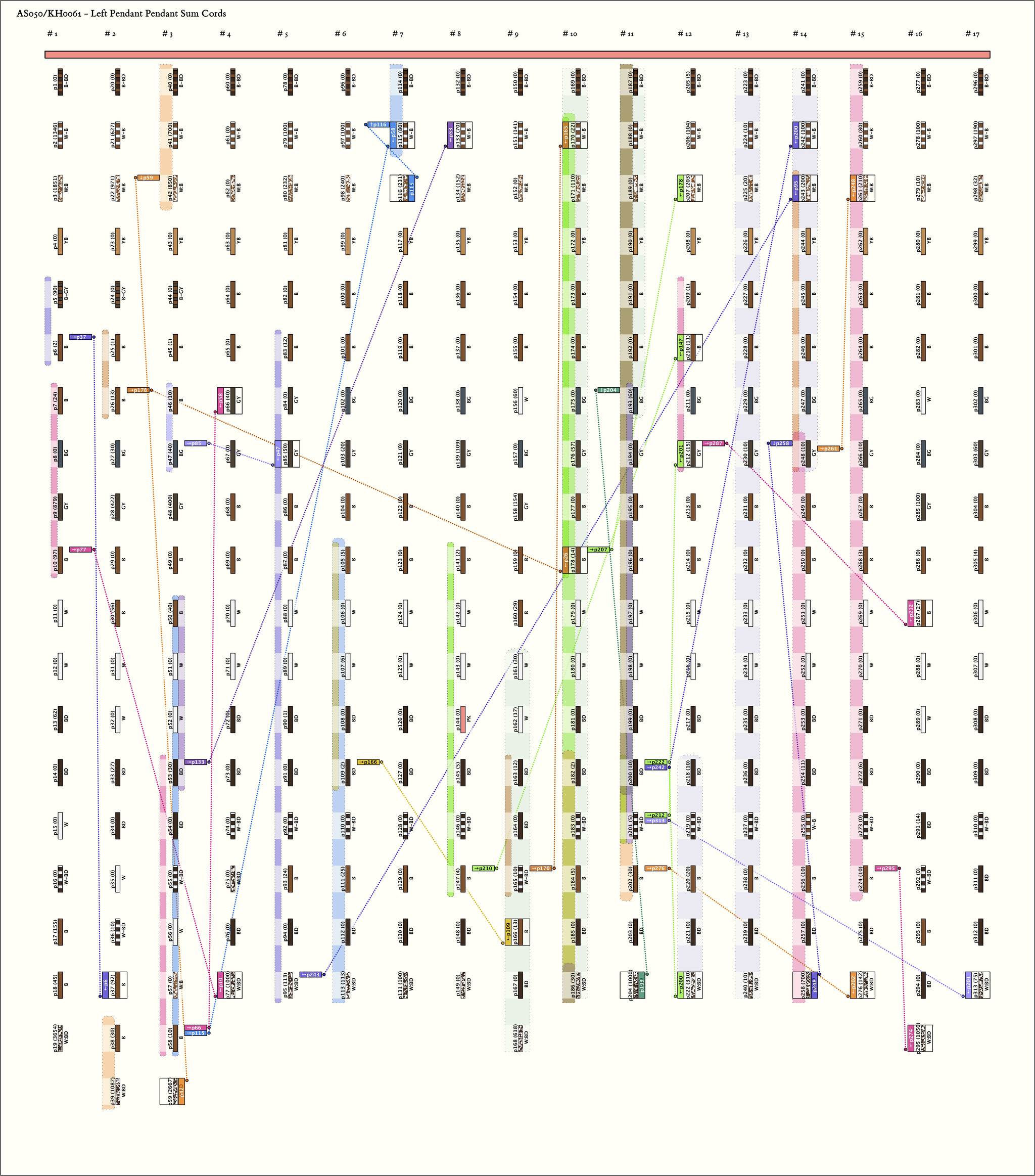

Left Handed Sums: # Sums = 24, Max # Summands = 33, (Min, Mean, Max) Sum Values = (11, 347, 2667)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

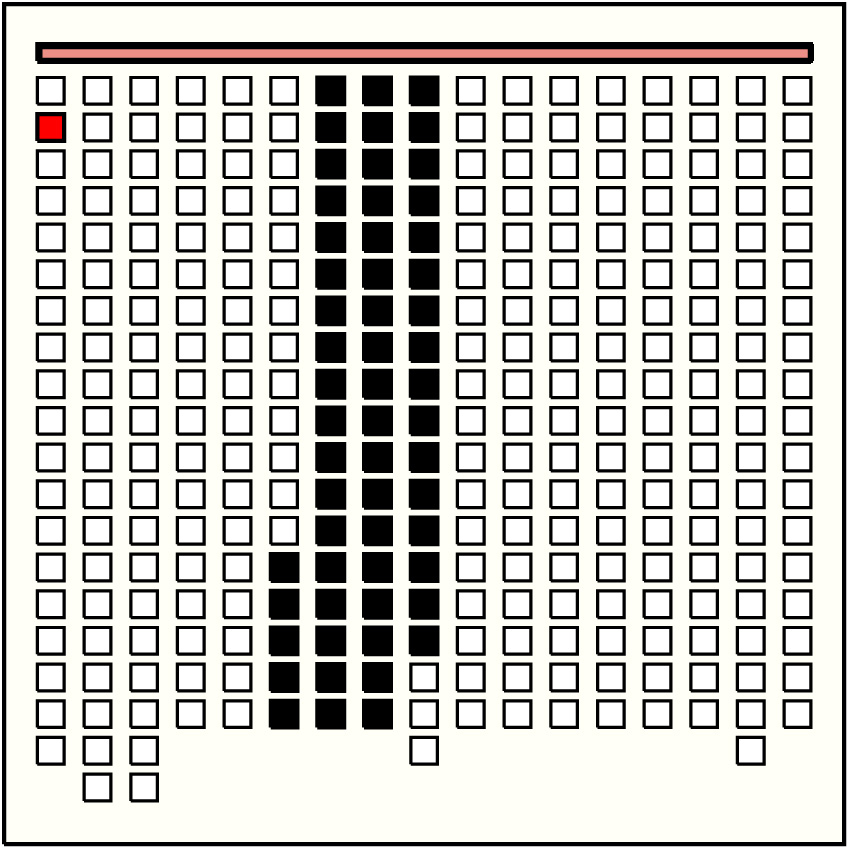

1	p2_{1, 2} : 1346_W-B	1346	57	p109: 2_BD + p110: 0_W-BD + p111: 25_B + p112: 0_BD + p113: 113_W:BD + p114: 0_B-BD + p115: 80_W-B + p116: 231_W:B + p117: 0_YB + p118: 0_B + p119: 0_B + p120: 0_BG + p121: 0_GY + p122: 0_B + p123: 0_B + p124: 0_W + p125: 0_W + p126: 0_BD + p127: 0_BD + p128: 0_W-BD + p129: 0_B + p130: 0_BD + p131: 100_W:BD + p132: 0_B-BD + p133: 70_W-B + p134: 152_W:B + p135: 0_YB + p136: 0_B + p137: 0_B + p138: 0_BG + p139: 109_GY + p140: 0_B + p141: 2_B + p142: 0_W + p143: 0_W + p144: 0_PK + p145: 5_BD + p146: 0_W-BD + p147: 4_B + p148: 0_BD + p149: 0_W:BD + p150: 0_B-BD + p151: 141_W-B + p152: 0_W:B + p153: 0_YB + p154: 0_B + p155: 0_B + p156: 60_W + p157: 0_BG + p158: 154_GY + p159: 0_B + p160: 29_B + p161: 30_W + p162: 17_W + p163: 12_BD + p164: 0_BD + p165: 10_W-BD
2	p3_{1, 3} : 1851_W:B	1851	44	p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD + p201: 5_W-BD + p202: 30_B + p203: 0_BD + p204: 1000_W:BD + p205: 5_B-BD + p206: 104_W-B + p207: 203_W:B + p208: 0_YB + p209: 1_B + p210: 11_B + p211: 0_BG + p212: 15_GY + p213: 0_B + p214: 0_B + p215: 0_W + p216: 0_W + p217: 0_BD + p218: 10_BD + p219: 0_W-BD + p220: 20_B + p221: 0_BD + p222: 310_W:BD + p223: 0_B-BD + p224: 10_W-B + p225: 20_W:B
3	p5_{1, 5} : 90_B-GY	90	8	p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG

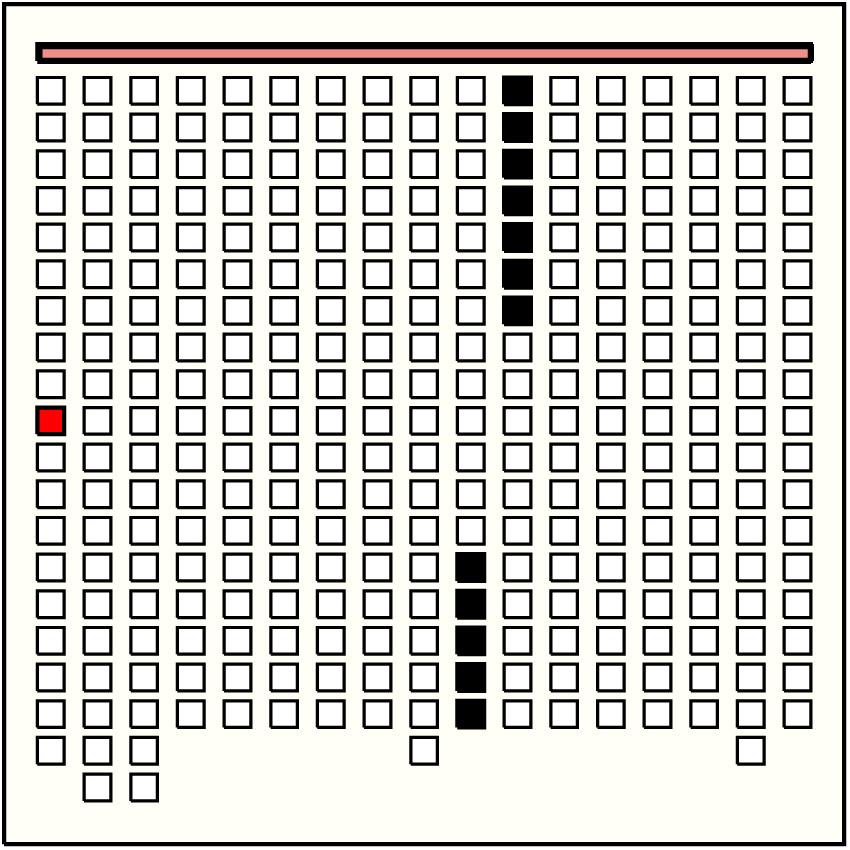

4	p10_{1, 10} : 97_B	97	12	p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG
5	p13_{1, 13} : 62_BD	62	3	p83: 12_B + p84: 0_GY + p85: 50_GY
6	p18_{1, 18} : 45_B	45	3	p200: 10_BD + p201: 5_W-BD + p202: 30_B

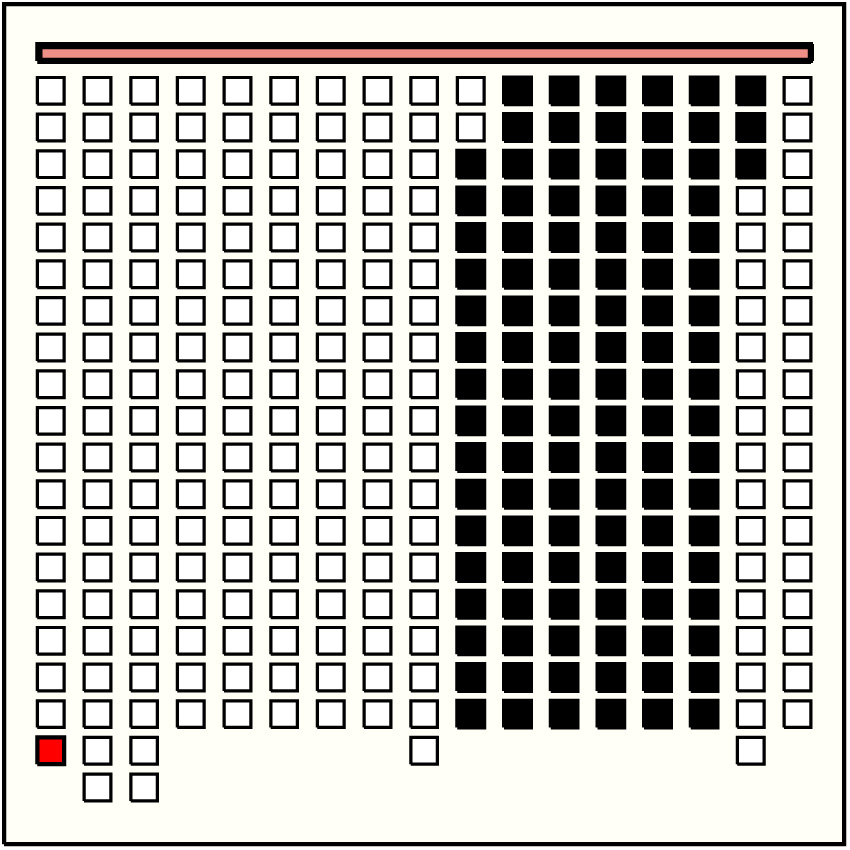

7	p19_{1, 19} : 3654_W:BD	3654	109	p171: 110_W:B + p172: 0_YB + p173: 0_B + p174: 0_B + p175: 0_BG + p176: 57_GY + p177: 0_B + p178: 14_B + p179: 0_W + p180: 0_W + p181: 0_BD + p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD + p201: 5_W-BD + p202: 30_B + p203: 0_BD + p204: 1000_W:BD + p205: 5_B-BD + p206: 104_W-B + p207: 203_W:B + p208: 0_YB + p209: 1_B + p210: 11_B + p211: 0_BG + p212: 15_GY + p213: 0_B + p214: 0_B + p215: 0_W + p216: 0_W + p217: 0_BD + p218: 10_BD + p219: 0_W-BD + p220: 20_B + p221: 0_BD + p222: 310_W:BD + p223: 0_B-BD + p224: 10_W-B + p225: 20_W:B + p226: 0_YB + p227: 0_B + p228: 0_B + p229: 0_BG + p230: 10_GY + p231: 0_B + p232: 0_B + p233: 0_W + p234: 0_W + p235: 0_BD + p236: 0_BD + p237: 0_W-BD + p238: 0_B + p239: 0_BD + p240: 10_W:BD + p241: 0_B-BD + p242: 100_W-B + p243: 200_W:B + p244: 0_YB + p245: 0_B + p246: 0_B + p247: 0_BG + p248: 10_GY + p249: 0_B + p250: 0_B + p251: 0_W + p252: 0_W + p253: 0_BD + p254: 11_BD + p255: 0_W-B + p256: 10_B + p257: 0_BD + p258: 700_W:BD + p259: 0_B-BD + p260: 80_W-B + p261: 210_W:B + p262: 0_YB + p263: 0_B + p264: 0_B + p265: 0_BG + p266: 10_GY + p267: 0_B + p268: 3_B + p269: 0_W + p270: 0_W + p271: 0_BD + p272: 6_BD + p273: 0_W-BD + p274: 10_B + p275: 0_BD + p276: 142_W:BD + p277: 0_B-BD + p278: 100_W-B + p279: 10_W:B

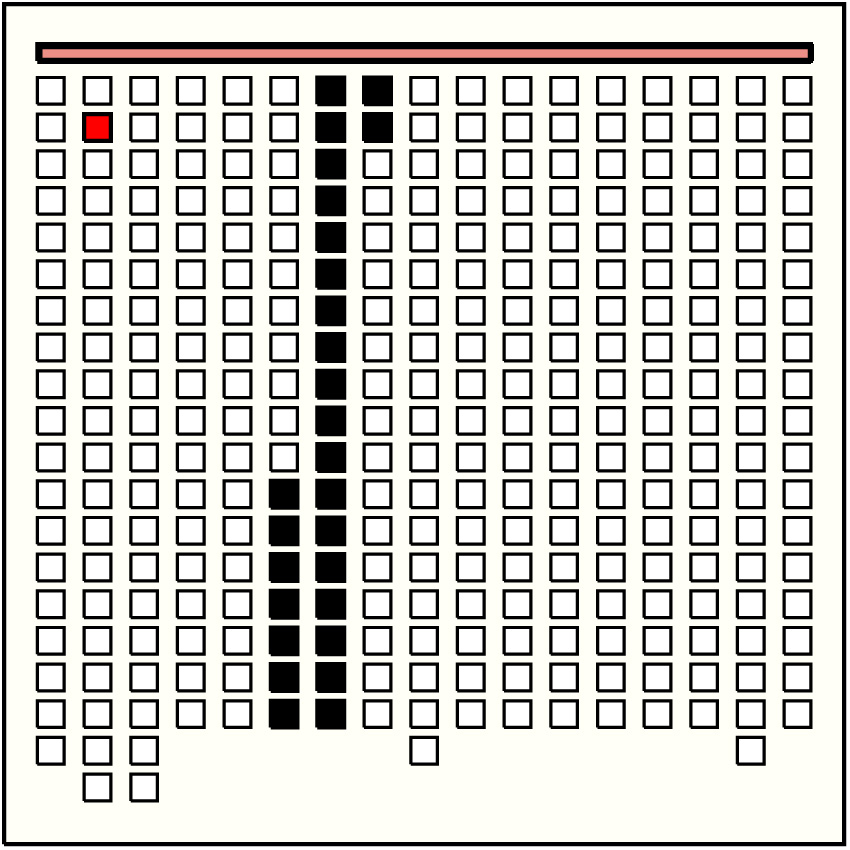

8	p21_{2, 2} : 627_W-B	627	27	p107: 6_W + p108: 0_BD + p109: 2_BD + p110: 0_W-BD + p111: 25_B + p112: 0_BD + p113: 113_W:BD + p114: 0_B-BD + p115: 80_W-B + p116: 231_W:B + p117: 0_YB + p118: 0_B + p119: 0_B + p120: 0_BG + p121: 0_GY + p122: 0_B + p123: 0_B + p124: 0_W + p125: 0_W + p126: 0_BD + p127: 0_BD + p128: 0_W-BD + p129: 0_B + p130: 0_BD + p131: 100_W:BD + p132: 0_B-BD + p133: 70_W-B

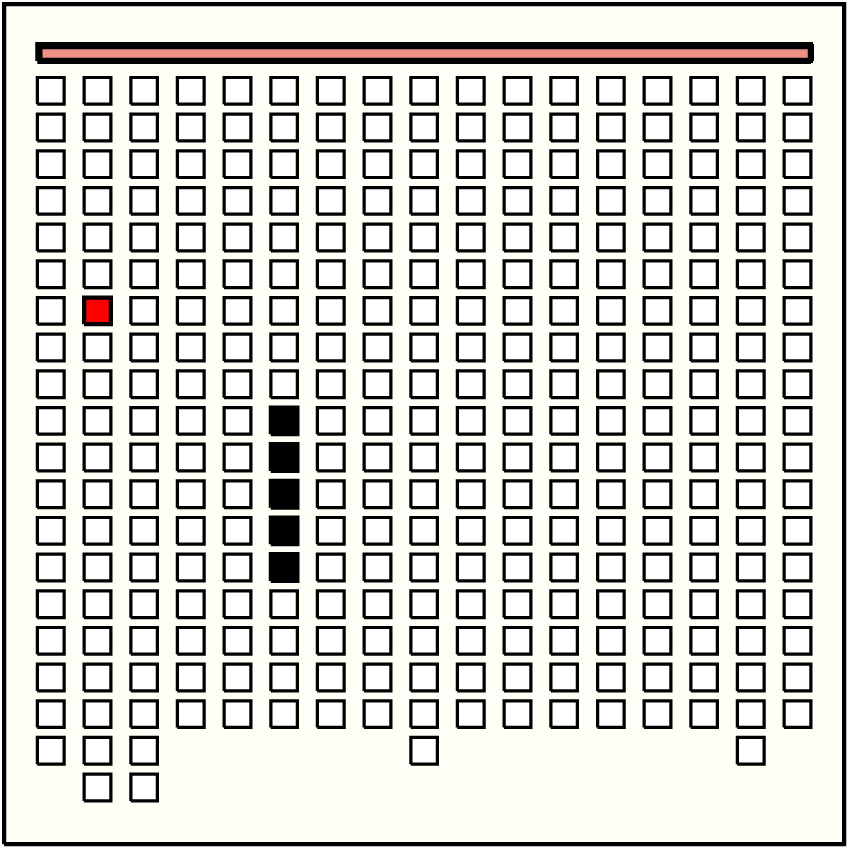

9	p26_{2, 7} : 13_B	13	5	p105: 5_B + p106: 0_W + p107: 6_W + p108: 0_BD + p109: 2_BD

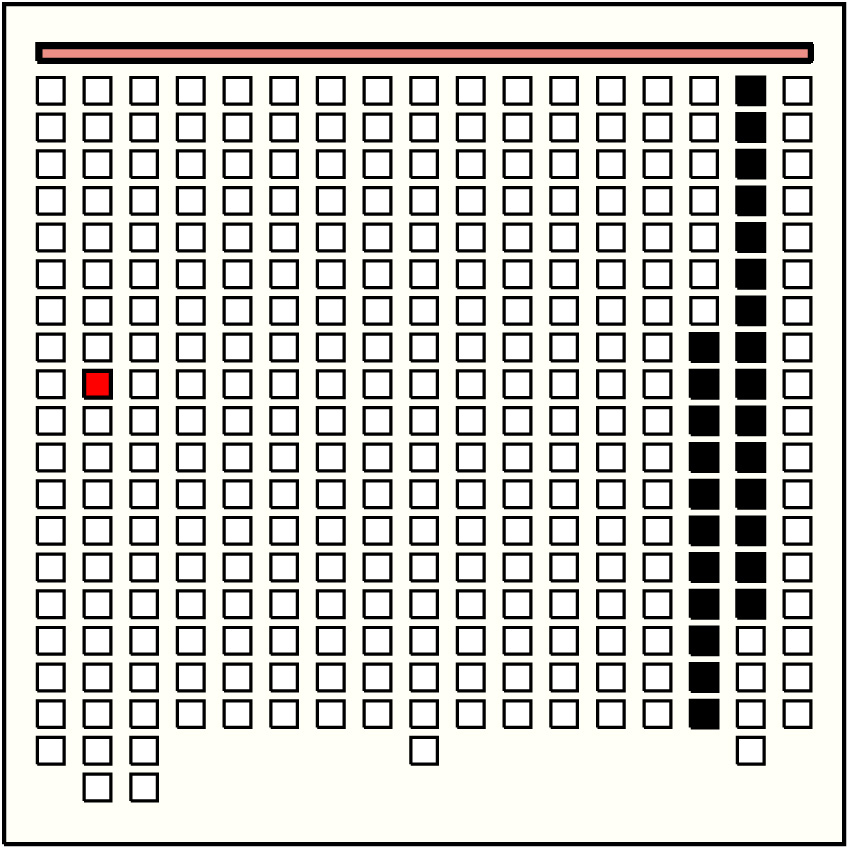

10	p28_{2, 9} : 422_GY	422	26	p266: 10_GY + p267: 0_B + p268: 3_B + p269: 0_W + p270: 0_W + p271: 0_BD + p272: 6_BD + p273: 0_W-BD + p274: 10_B + p275: 0_BD + p276: 142_W:BD + p277: 0_B-BD + p278: 100_W-B + p279: 10_W:B + p280: 0_YB + p281: 0_B + p282: 0_B + p283: 0_W + p284: 0_BG + p285: 100_GY + p286: 0_B + p287: 27_B + p288: 0_W + p289: 0_W + p290: 0_BD + p291: 14_BD

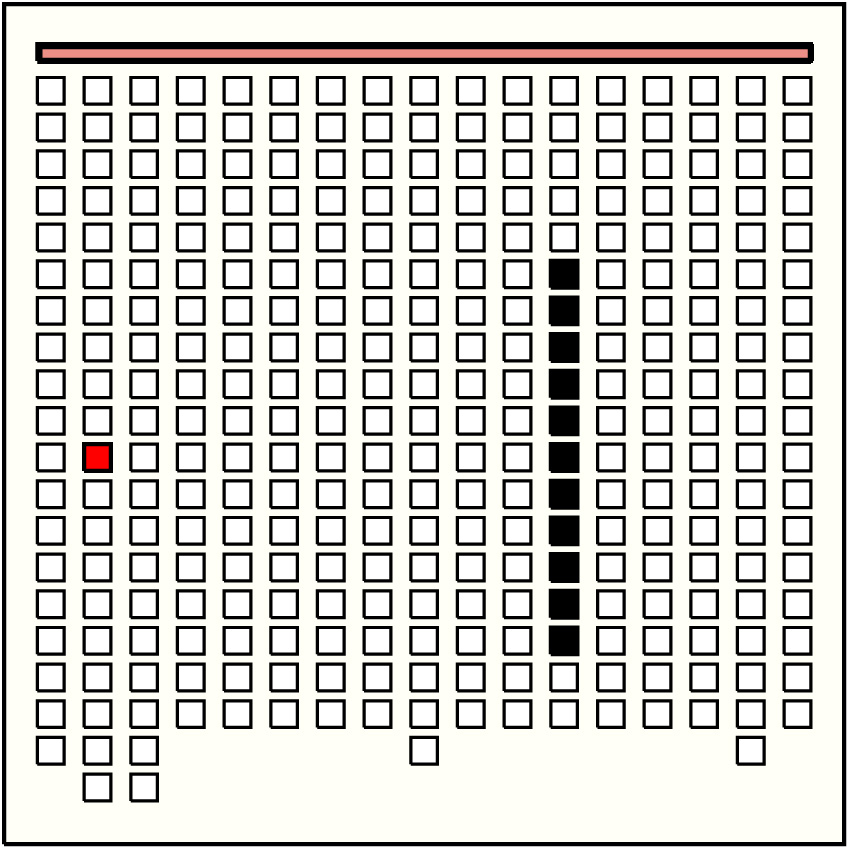

11	p30_{2, 11} : 56_B	56	11	p210: 11_B + p211: 0_BG + p212: 15_GY + p213: 0_B + p214: 0_B + p215: 0_W + p216: 0_W + p217: 0_BD + p218: 10_BD + p219: 0_W-BD + p220: 20_B

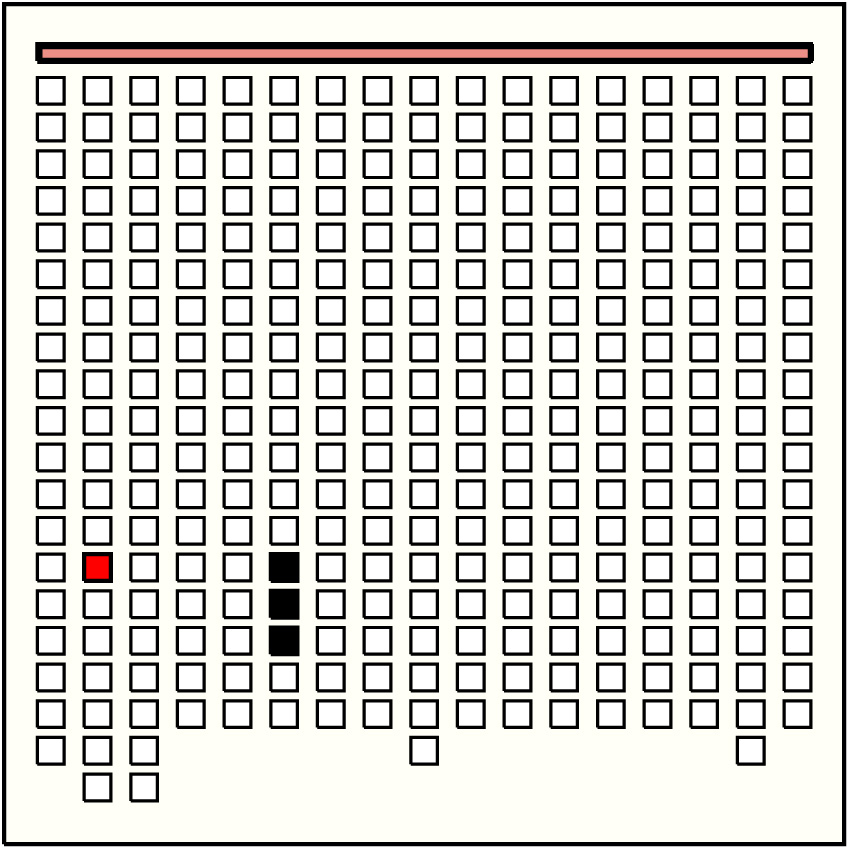

12	p33_{2, 14} : 27_BD	27	3	p109: 2_BD + p110: 0_W-BD + p111: 25_B

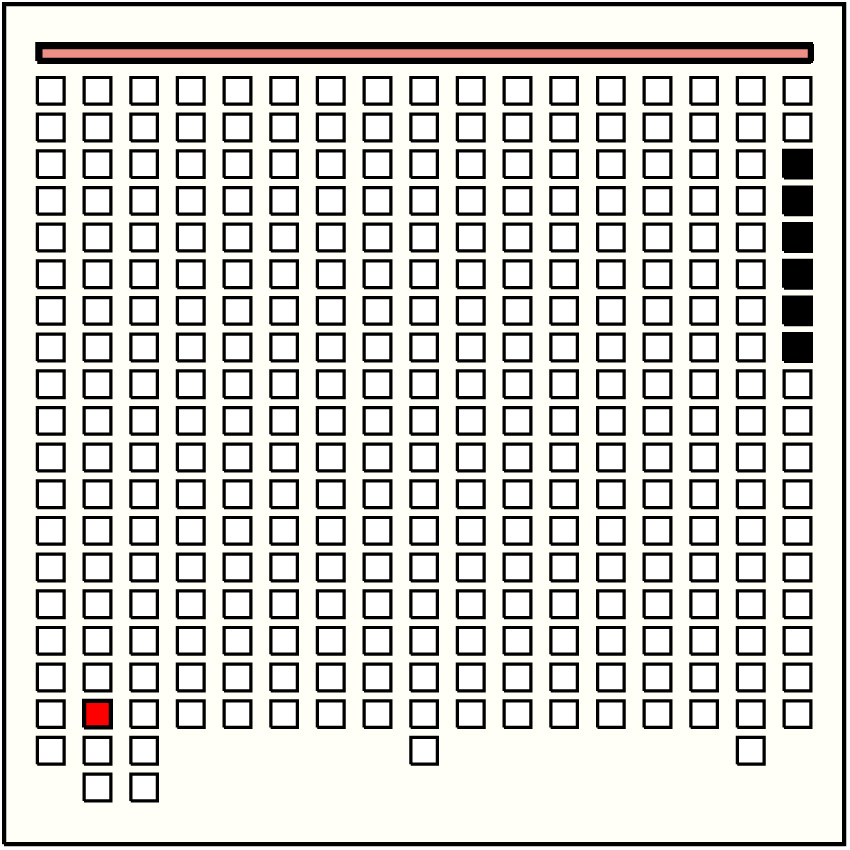

13	p37_{2, 18} : 92_B	92	6	p298: 32_W:B + p299: 0_YB + p300: 0_B + p301: 0_B + p302: 0_BG + p303: 60_GY
14	p39_{2, 20} : 1087_W:BD	1087	46	p116: 231_W:B + p117: 0_YB + p118: 0_B + p119: 0_B + p120: 0_BG + p121: 0_GY + p122: 0_B + p123: 0_B + p124: 0_W + p125: 0_W + p126: 0_BD + p127: 0_BD + p128: 0_W-BD + p129: 0_B + p130: 0_BD + p131: 100_W:BD + p132: 0_B-BD + p133: 70_W-B + p134: 152_W:B + p135: 0_YB + p136: 0_B + p137: 0_B + p138: 0_BG + p139: 109_GY + p140: 0_B + p141: 2_B + p142: 0_W + p143: 0_W + p144: 0_PK + p145: 5_BD + p146: 0_W-BD + p147: 4_B + p148: 0_BD + p149: 0_W:BD + p150: 0_B-BD + p151: 141_W-B + p152: 0_W:B + p153: 0_YB + p154: 0_B + p155: 0_B + p156: 60_W + p157: 0_BG + p158: 154_GY + p159: 0_B + p160: 29_B + p161: 30_W
15	p41_{3, 2} : 700_W-B	700	8	p161: 30_W + p162: 17_W + p163: 12_BD + p164: 0_BD + p165: 10_W-BD + p166: 13_B + p167: 0_BD + p168: 618_W:BD

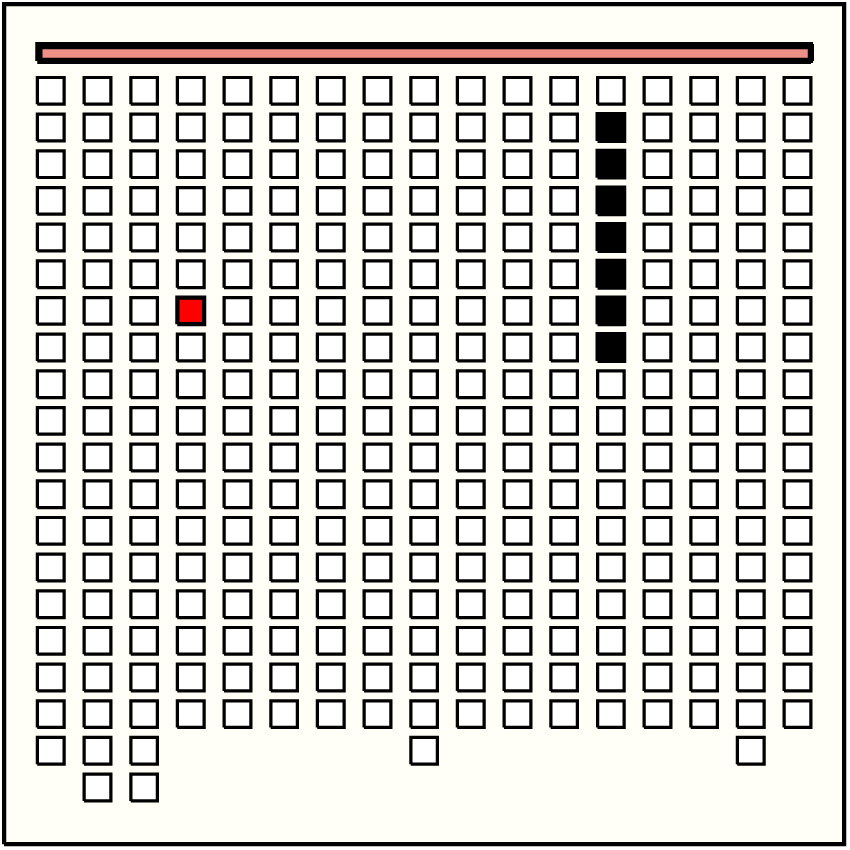

16	p66_{4, 7} : 40_GY	40	7	p224: 10_W-B + p225: 20_W:B + p226: 0_YB + p227: 0_B + p228: 0_B + p229: 0_BG + p230: 10_GY

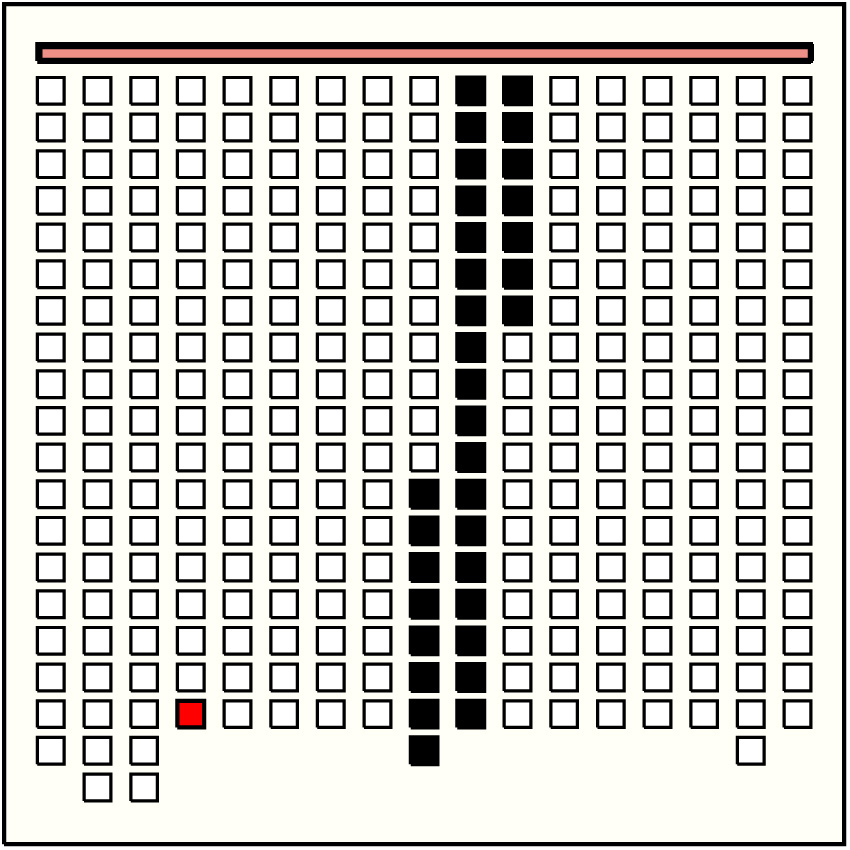

17	p77_{4, 18} : 1000_W:BD	1000	33	p161: 30_W + p162: 17_W + p163: 12_BD + p164: 0_BD + p165: 10_W-BD + p166: 13_B + p167: 0_BD + p168: 618_W:BD + p169: 0_B-BD + p170: 22_W-B + p171: 110_W:B + p172: 0_YB + p173: 0_B + p174: 0_B + p175: 0_BG + p176: 57_GY + p177: 0_B + p178: 14_B + p179: 0_W + p180: 0_W + p181: 0_BD + p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG

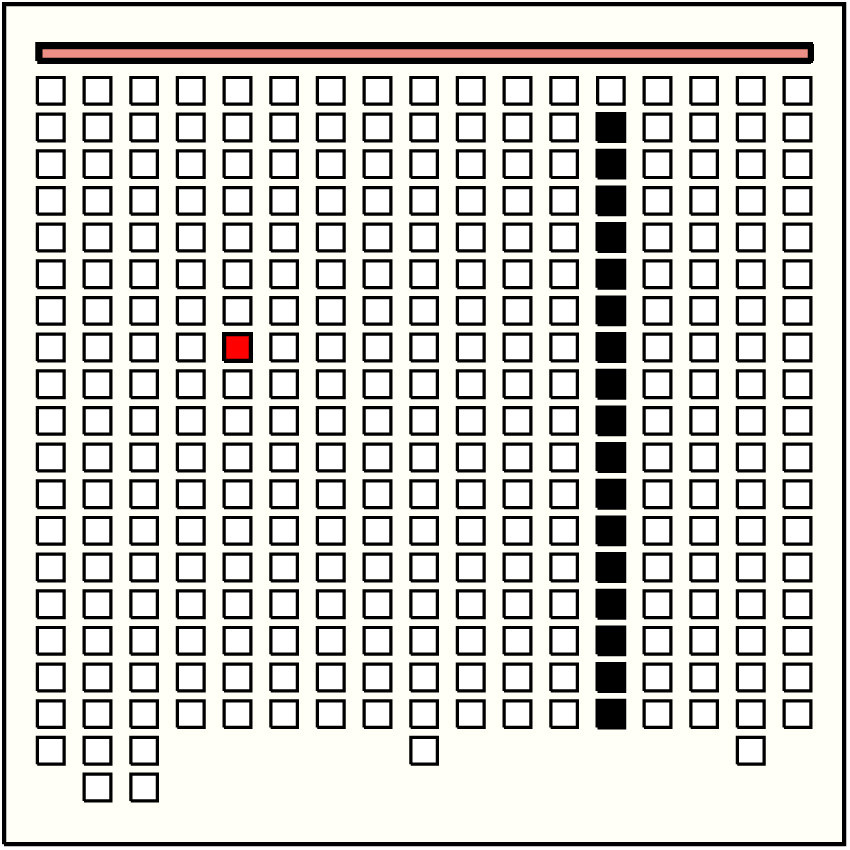

18	p85_{5, 8} : 50_GY	50	17	p224: 10_W-B + p225: 20_W:B + p226: 0_YB + p227: 0_B + p228: 0_B + p229: 0_BG + p230: 10_GY + p231: 0_B + p232: 0_B + p233: 0_W + p234: 0_W + p235: 0_BD + p236: 0_BD + p237: 0_W-BD + p238: 0_B + p239: 0_BD + p240: 10_W:BD

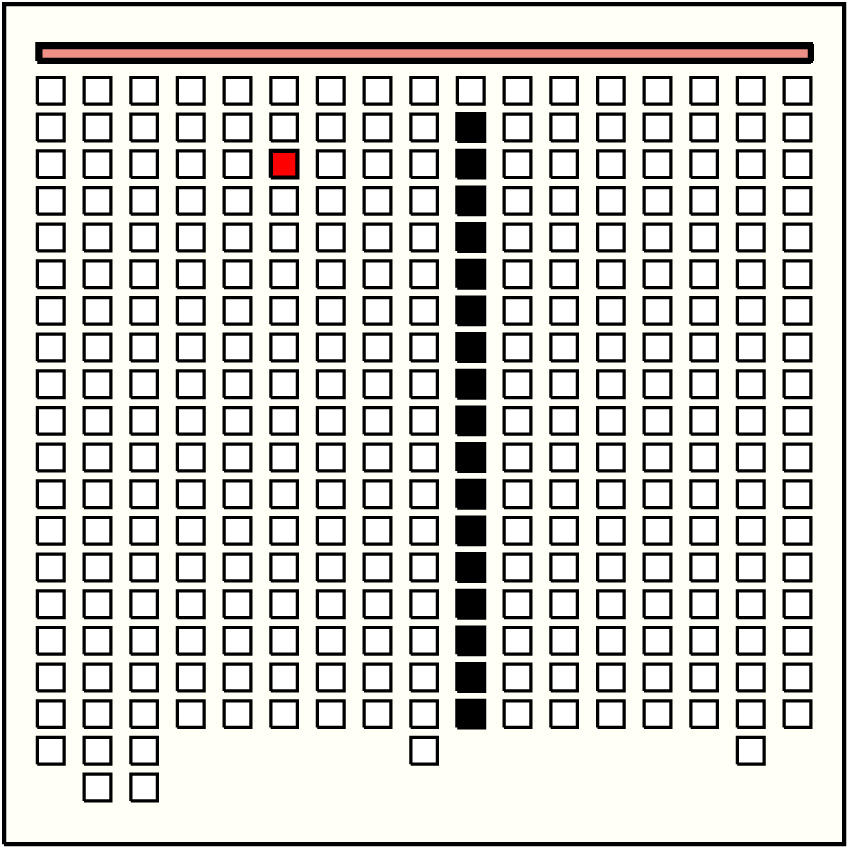

19	p98_{6, 3} : 240_W:B	240	17	p170: 22_W-B + p171: 110_W:B + p172: 0_YB + p173: 0_B + p174: 0_B + p175: 0_BG + p176: 57_GY + p177: 0_B + p178: 14_B + p179: 0_W + p180: 0_W + p181: 0_BD + p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD

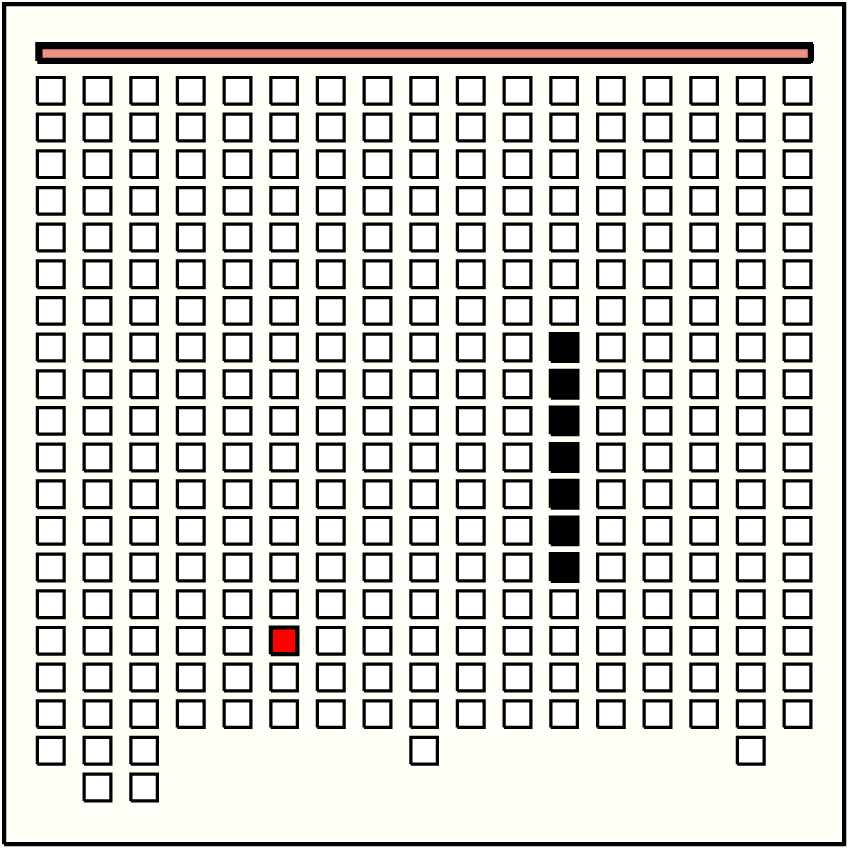

20	p111_{6, 16} : 25_B	25	7	p212: 15_GY + p213: 0_B + p214: 0_B + p215: 0_W + p216: 0_W + p217: 0_BD + p218: 10_BD

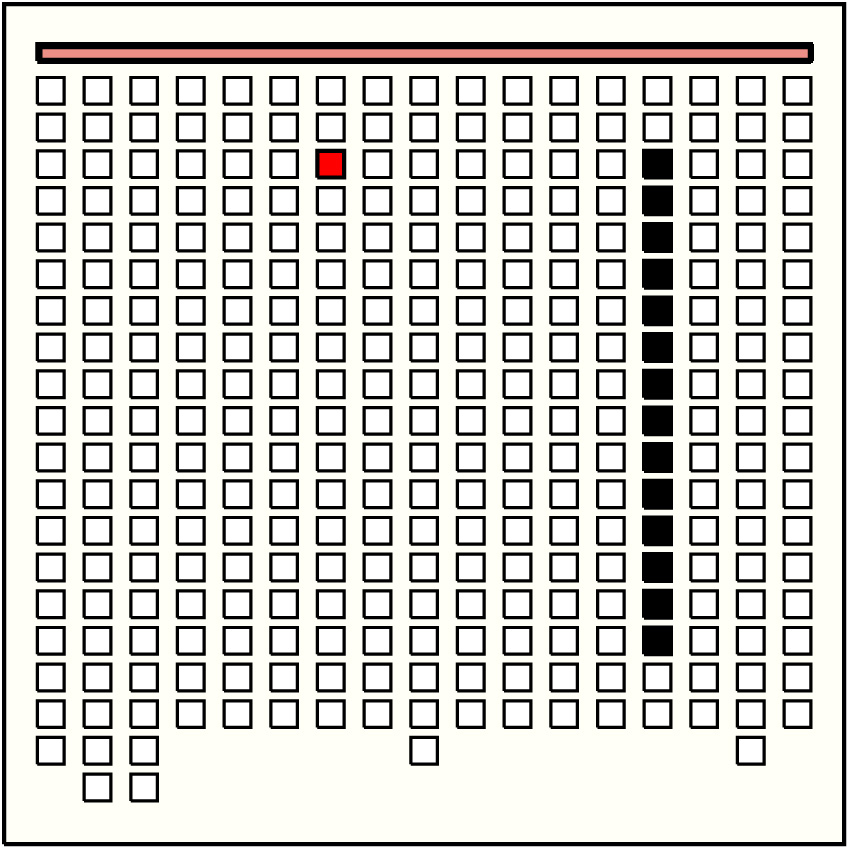

21	p116_{7, 3} : 231_W:B	231	14	p243: 200_W:B + p244: 0_YB + p245: 0_B + p246: 0_B + p247: 0_BG + p248: 10_GY + p249: 0_B + p250: 0_B + p251: 0_W + p252: 0_W + p253: 0_BD + p254: 11_BD + p255: 0_W-B + p256: 10_B

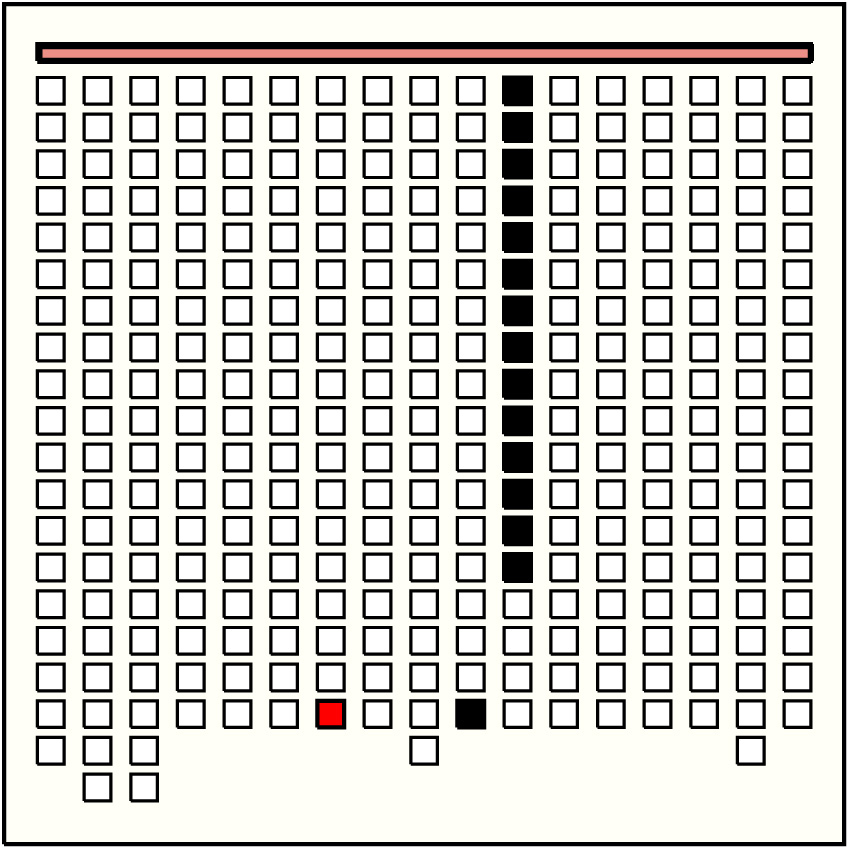

22	p131_{7, 18} : 100_W:BD	100	15	p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD

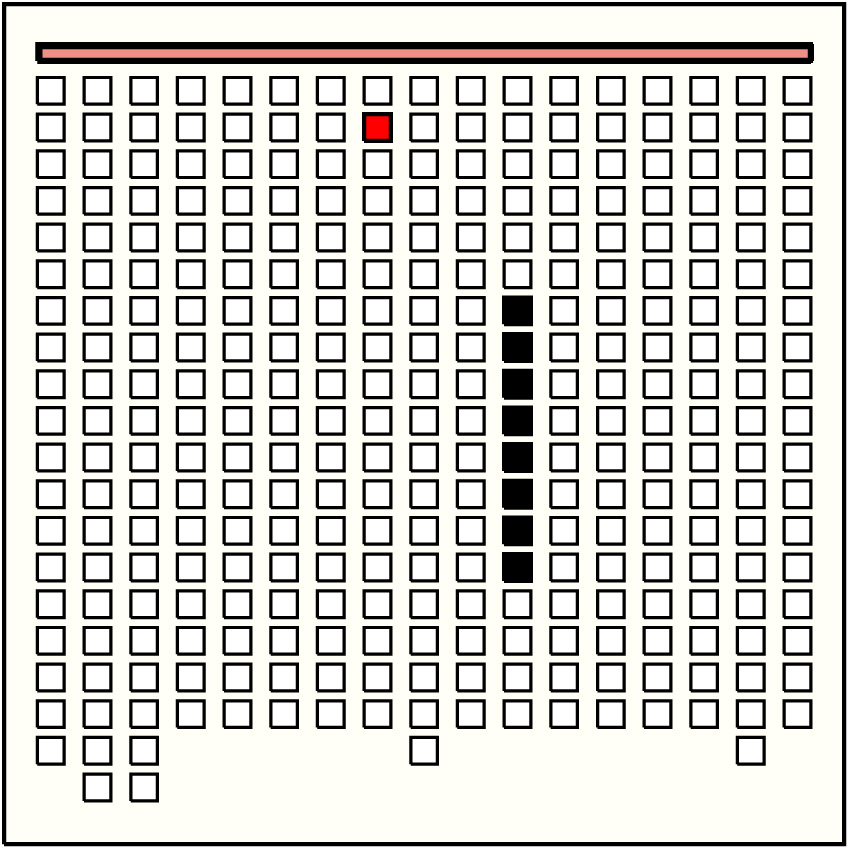

23	p133_{8, 2} : 70_W-B	70	8	p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD

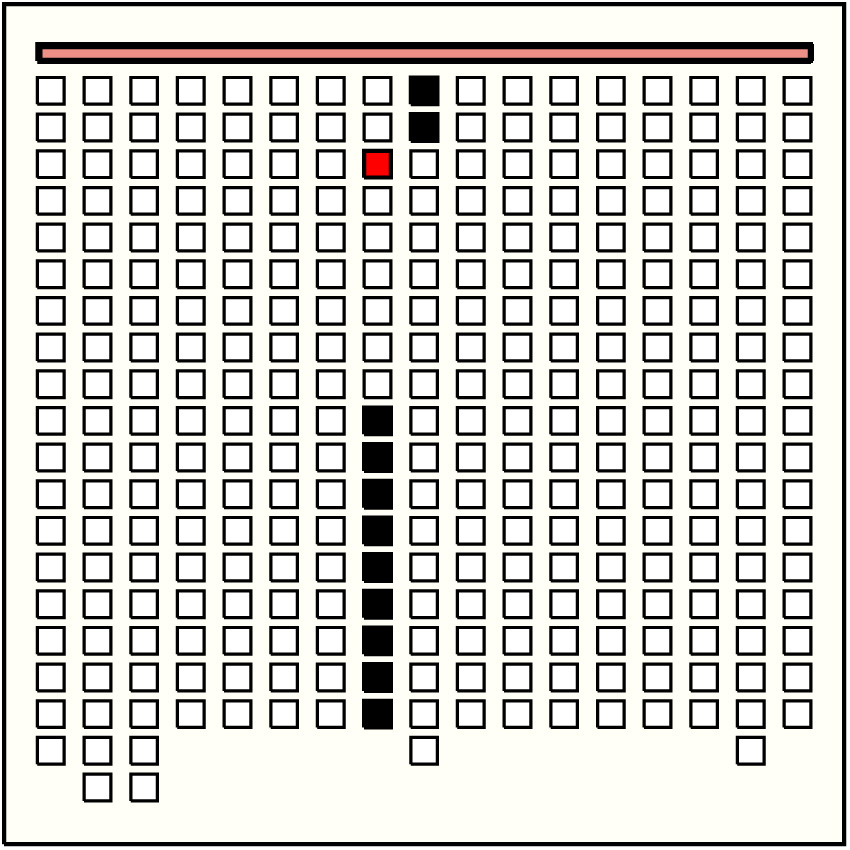

24	p134_{8, 3} : 152_W:B	152	11	p141: 2_B + p142: 0_W + p143: 0_W + p144: 0_PK + p145: 5_BD + p146: 0_W-BD + p147: 4_B + p148: 0_BD + p149: 0_W:BD + p150: 0_B-BD + p151: 141_W-B
25	p139_{8, 8} : 109_GY	109	2	p205: 5_B-BD + p206: 104_W-B

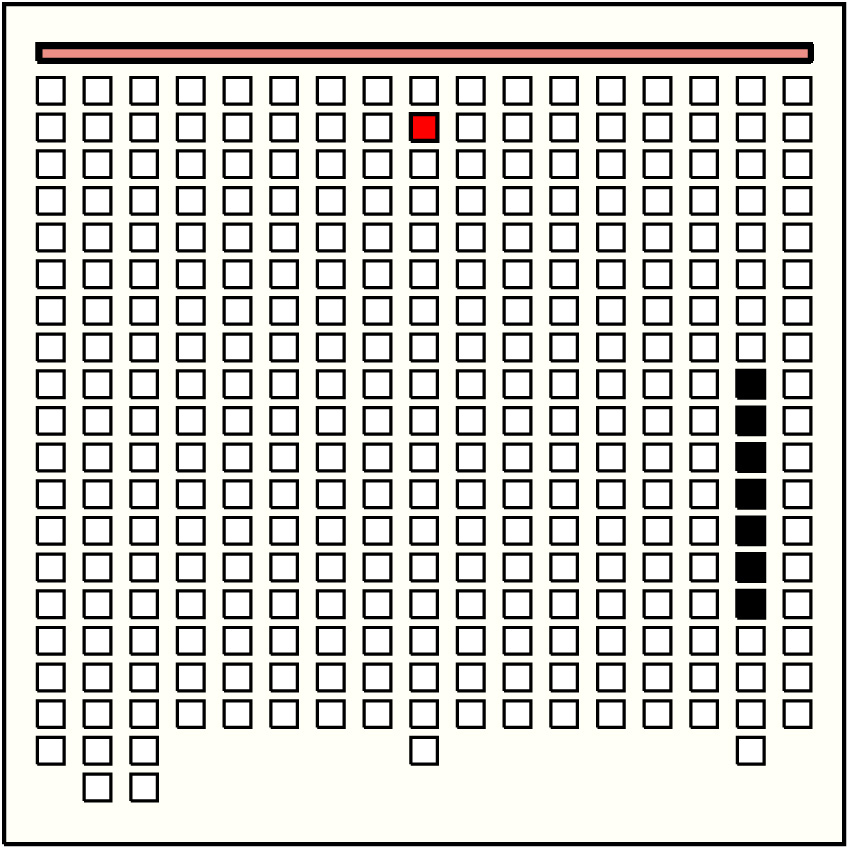

26	p151_{9, 2} : 141_W-B	141	7	p285: 100_GY + p286: 0_B + p287: 27_B + p288: 0_W + p289: 0_W + p290: 0_BD + p291: 14_BD

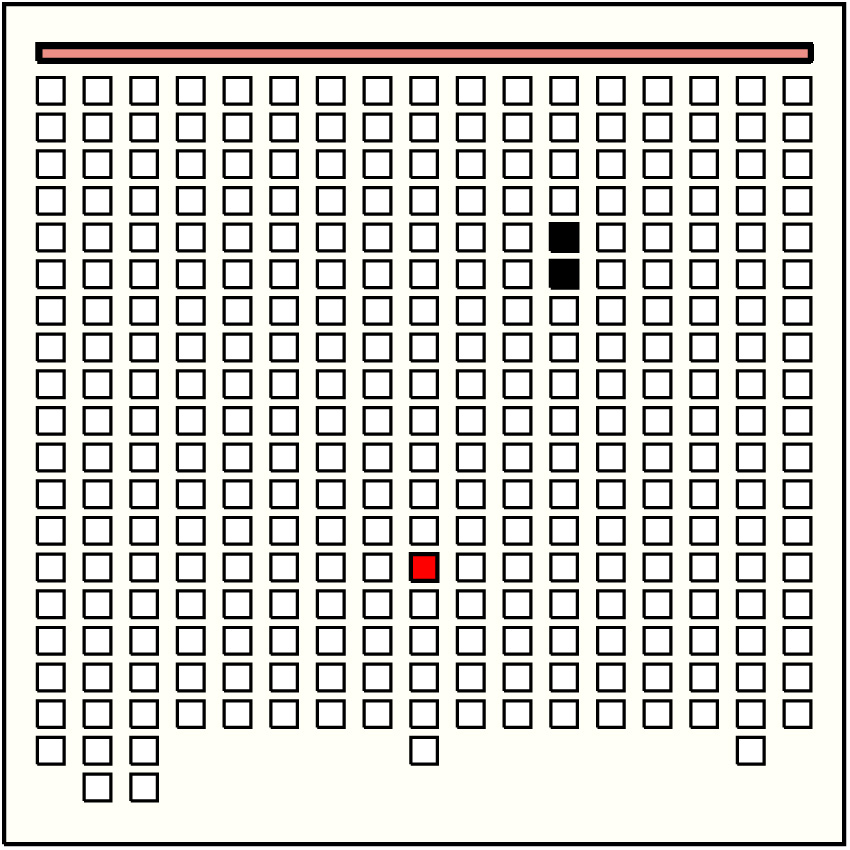

27	p163_{9, 14} : 12_BD	12	2	p209: 1_B + p210: 11_B

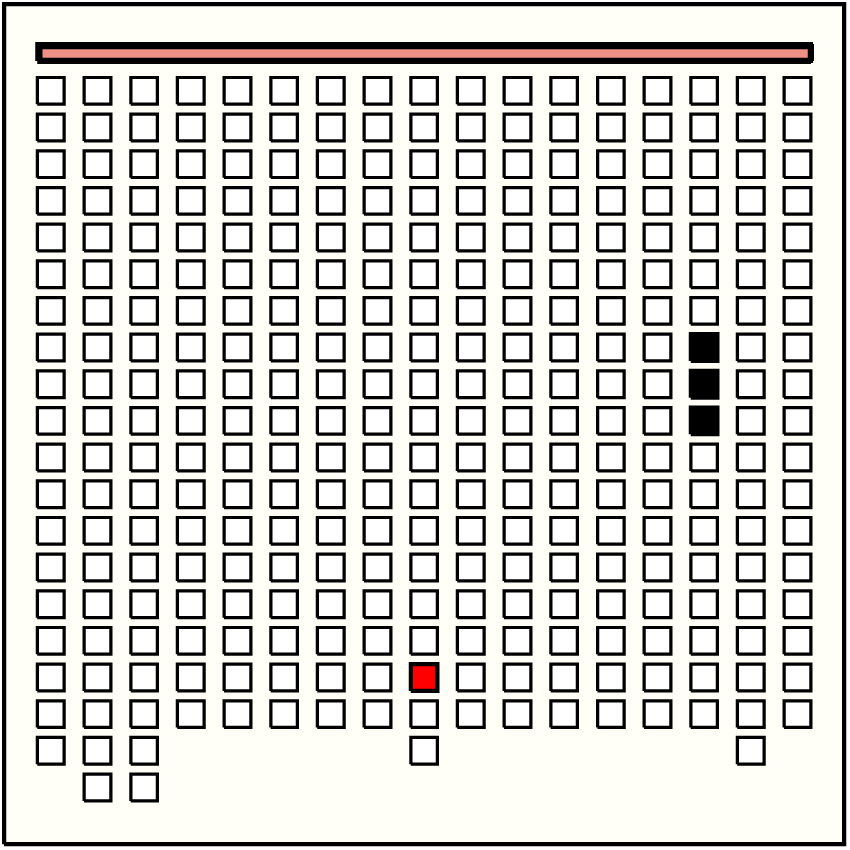

28	p166_{9, 17} : 13_B	13	3	p266: 10_GY + p267: 0_B + p268: 3_B

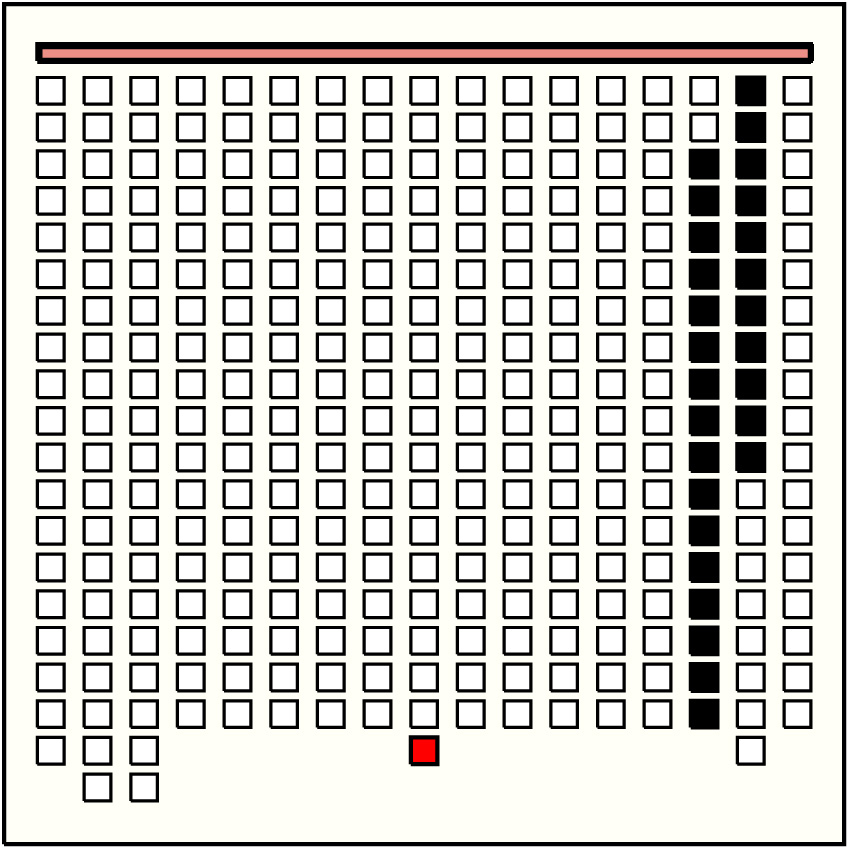

29	p168_{9, 19} : 618_W:BD	618	27	p261: 210_W:B + p262: 0_YB + p263: 0_B + p264: 0_B + p265: 0_BG + p266: 10_GY + p267: 0_B + p268: 3_B + p269: 0_W + p270: 0_W + p271: 0_BD + p272: 6_BD + p273: 0_W-BD + p274: 10_B + p275: 0_BD + p276: 142_W:BD + p277: 0_B-BD + p278: 100_W-B + p279: 10_W:B + p280: 0_YB + p281: 0_B + p282: 0_B + p283: 0_W + p284: 0_BG + p285: 100_GY + p286: 0_B + p287: 27_B

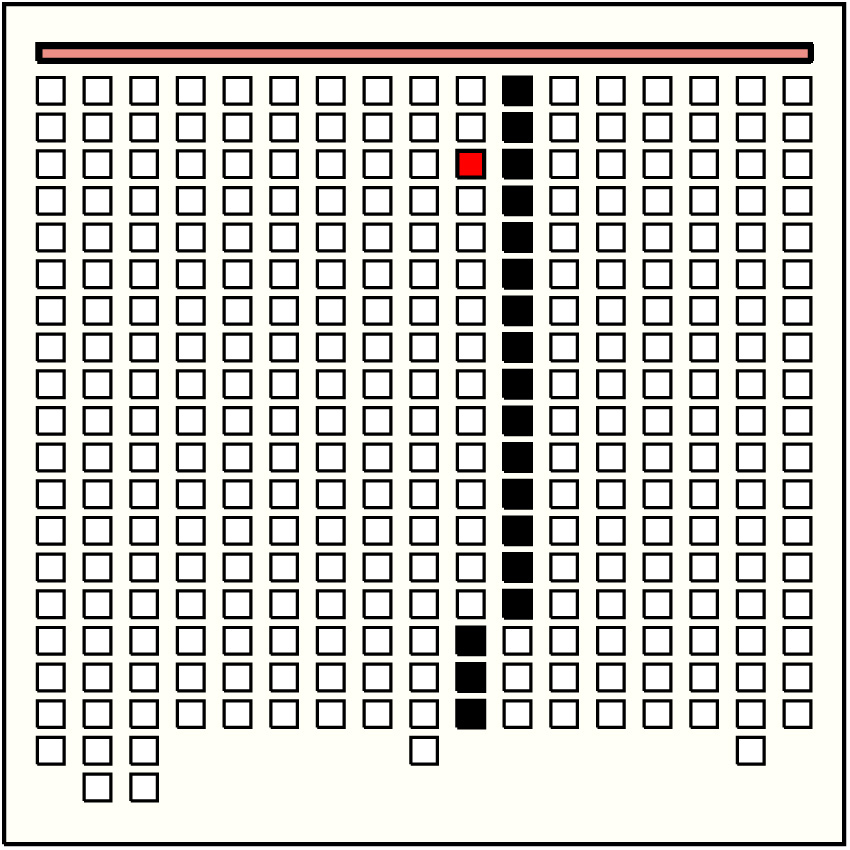

30	p171_{10, 3} : 110_W:B	110	18	p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD + p201: 5_W-BD

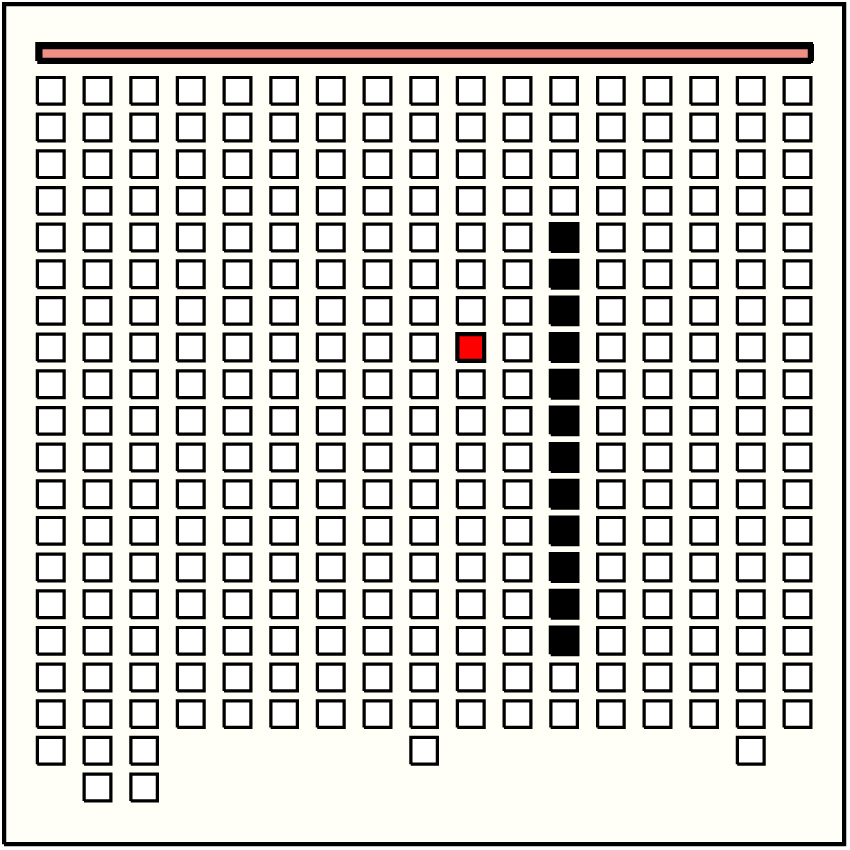

31	p176_{10, 8} : 57_GY	57	12	p209: 1_B + p210: 11_B + p211: 0_BG + p212: 15_GY + p213: 0_B + p214: 0_B + p215: 0_W + p216: 0_W + p217: 0_BD + p218: 10_BD + p219: 0_W-BD + p220: 20_B

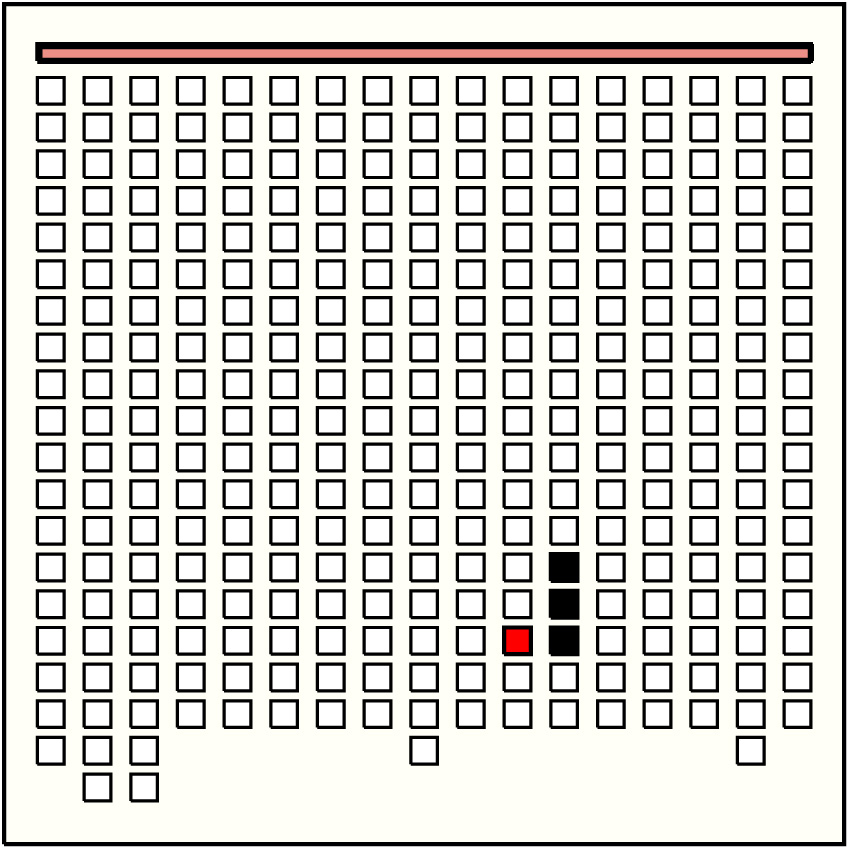

32	p202_{11, 16} : 30_B	30	3	p218: 10_BD + p219: 0_W-BD + p220: 20_B

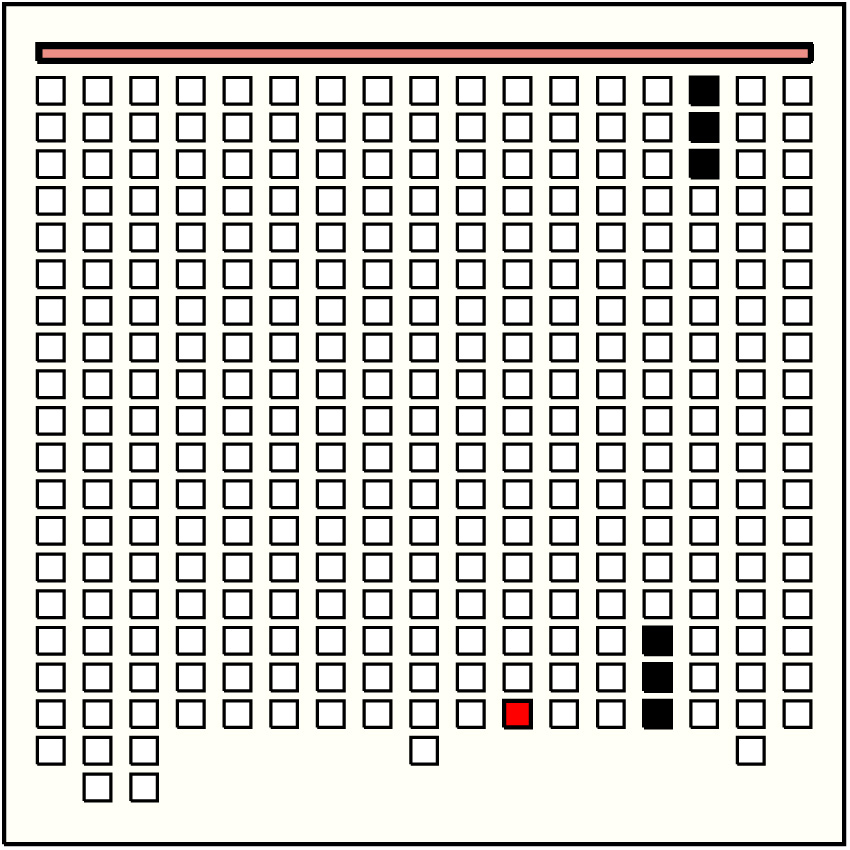

33	p204_{11, 18} : 1000_W:BD	1000	6	p256: 10_B + p257: 0_BD + p258: 700_W:BD + p259: 0_B-BD + p260: 80_W-B + p261: 210_W:B

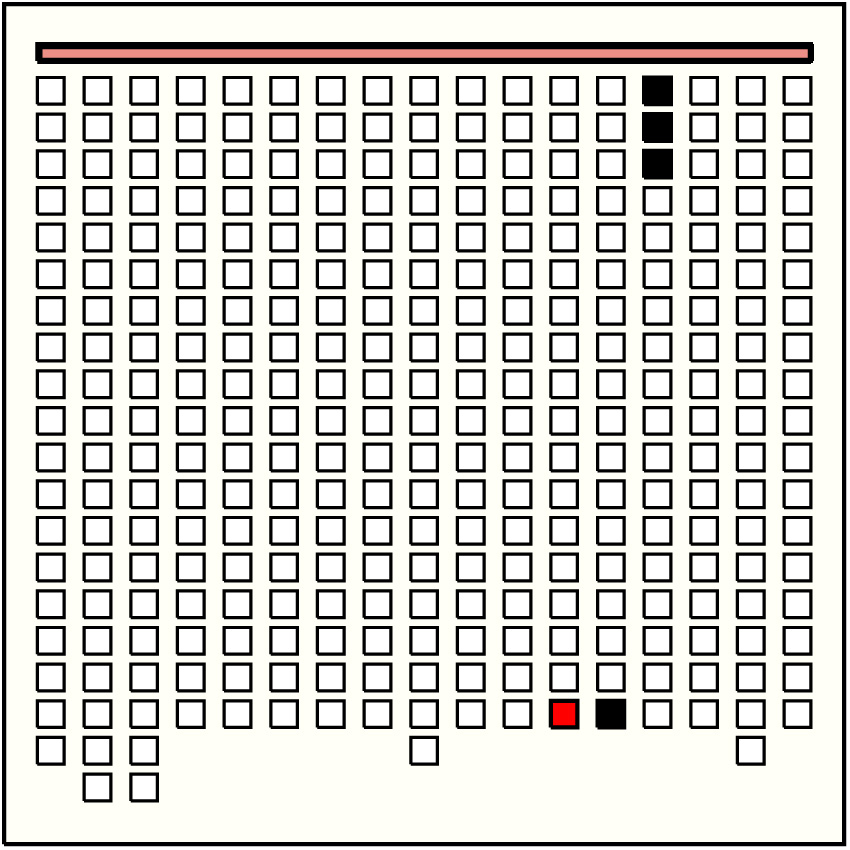

34	p222_{12, 18} : 310_W:BD	310	4	p240: 10_W:BD + p241: 0_B-BD + p242: 100_W-B + p243: 200_W:B

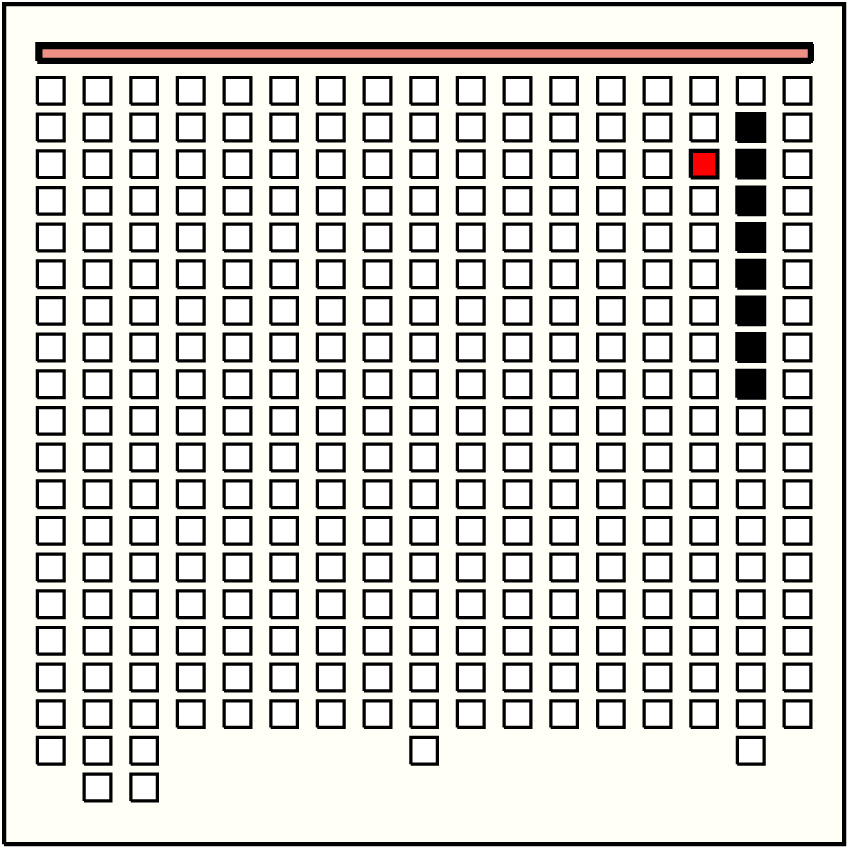

35	p261_{15, 3} : 210_W:B	210	8	p278: 100_W-B + p279: 10_W:B + p280: 0_YB + p281: 0_B + p282: 0_B + p283: 0_W + p284: 0_BG + p285: 100_GY

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

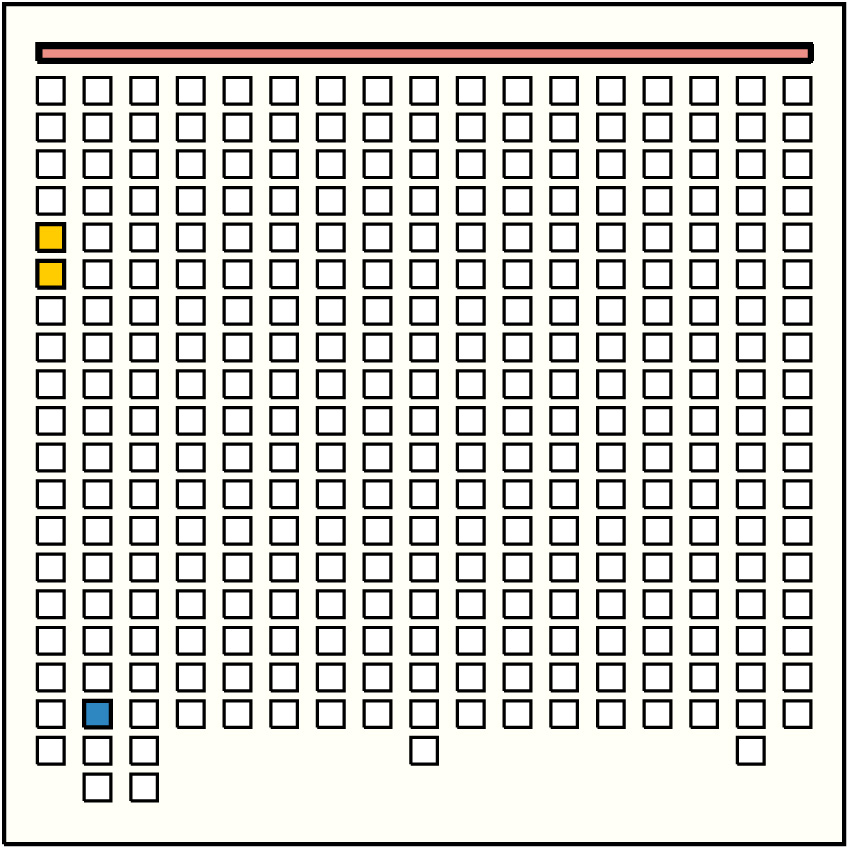

1	p37_{2, 18} : 92_B	92	2	p5: 90_B-GY + p6: 2_B

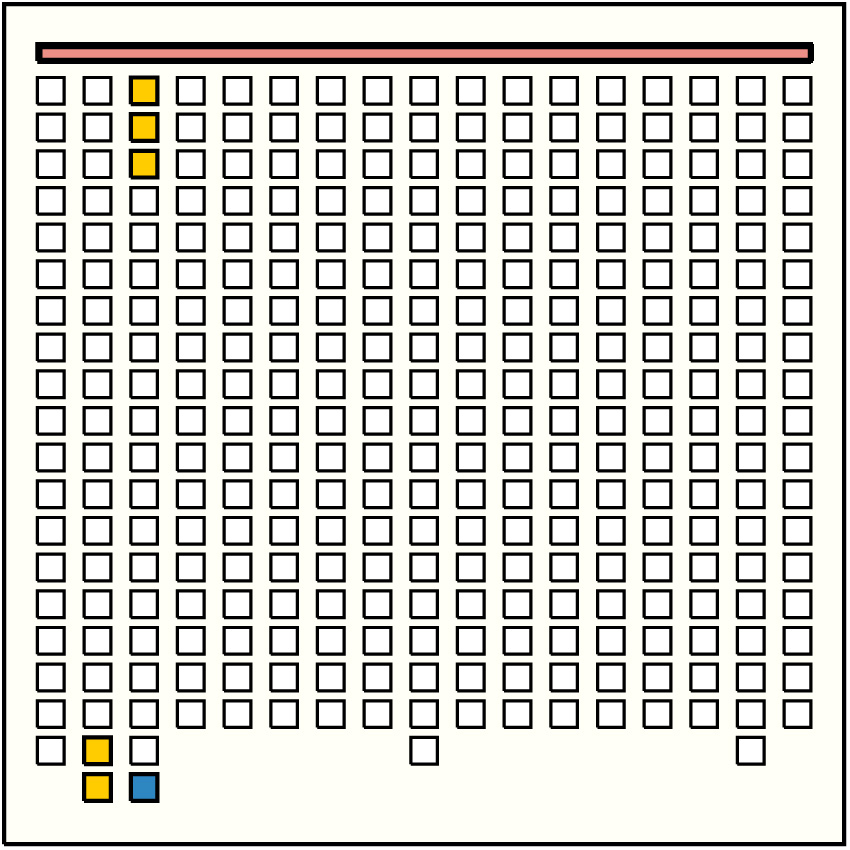

2	p59_{3, 20} : 2667_W:BD	2667	5	p38: 30_B + p39: 1087_W:BD + p40: 0_B-BD + p41: 700_W-B + p42: 850_W:B
3	p66_{4, 7} : 40_GY	40	6	p53: 30_BD + p54: 0_BD + p55: 0_W-BD + p56: 0_W + p57: 0_W:B + p58: 10_B
4	p77_{4, 18} : 1000_W:BD	1000	4	p7: 24_B + p8: 0_BG + p9: 879_GY + p10: 97_B

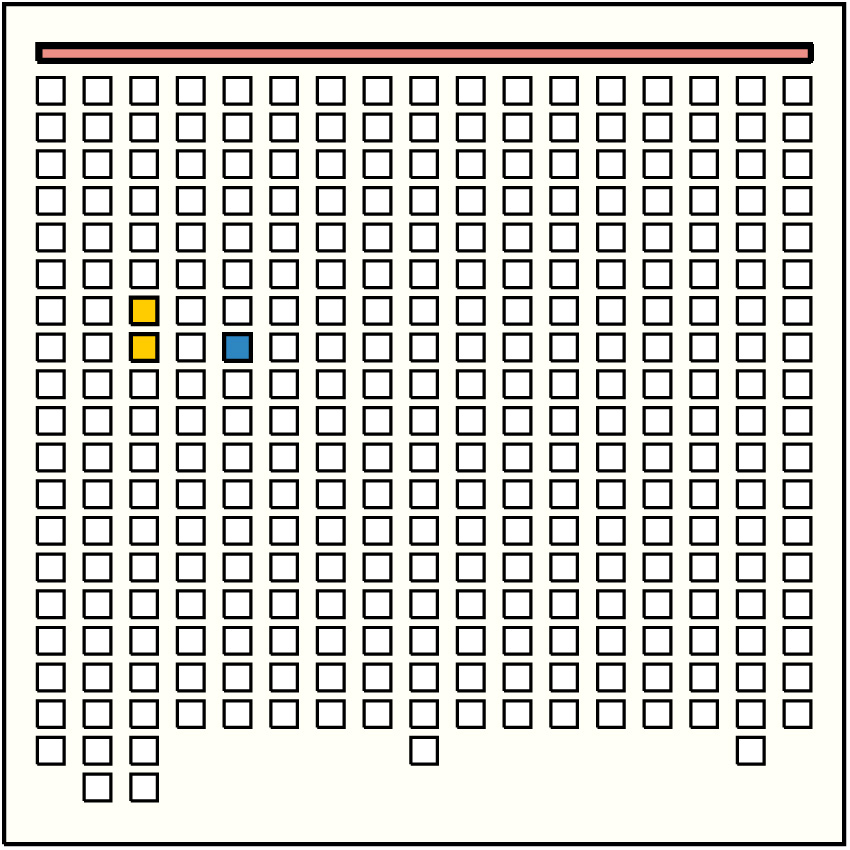

5	p85_{5, 8} : 50_GY	50	2	p46: 10_B + p47: 40_BG
6	p115_{7, 2} : 80_W-B	80	9	p50: 40_B + p51: 0_W + p52: 0_W + p53: 30_BD + p54: 0_BD + p55: 0_W-BD + p56: 0_W + p57: 0_W:B + p58: 10_B

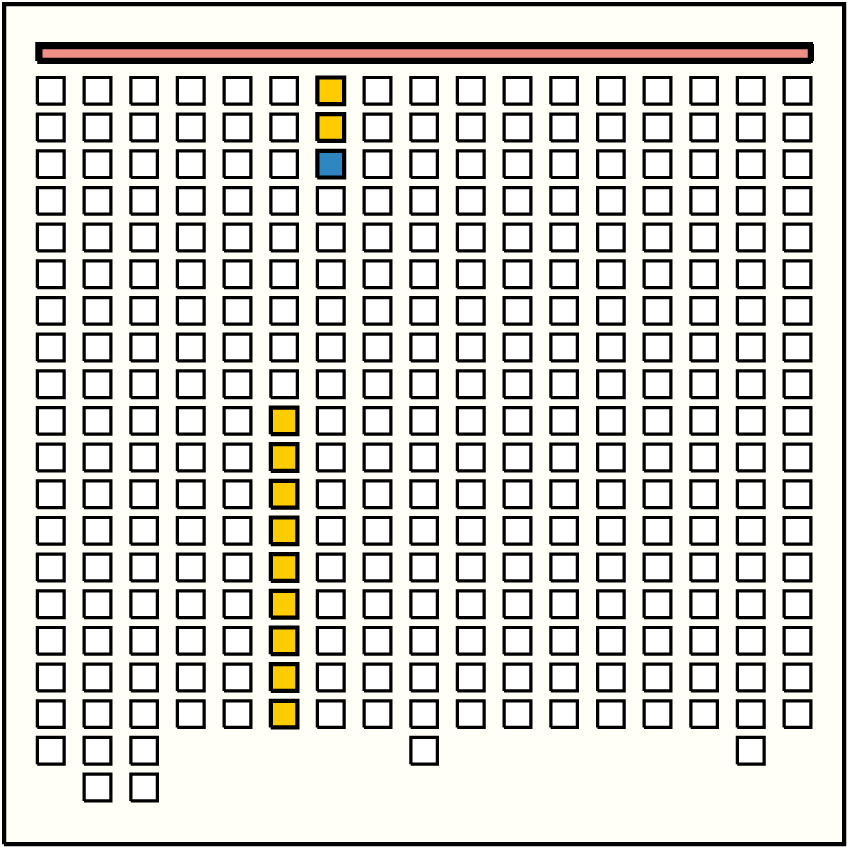

7	p116_{7, 3} : 231_W:B	231	11	p105: 5_B + p106: 0_W + p107: 6_W + p108: 0_BD + p109: 2_BD + p110: 0_W-BD + p111: 25_B + p112: 0_BD + p113: 113_W:BD + p114: 0_B-BD + p115: 80_W-B
8	p133_{8, 2} : 70_W-B	70	4	p50: 40_B + p51: 0_W + p52: 0_W + p53: 30_BD

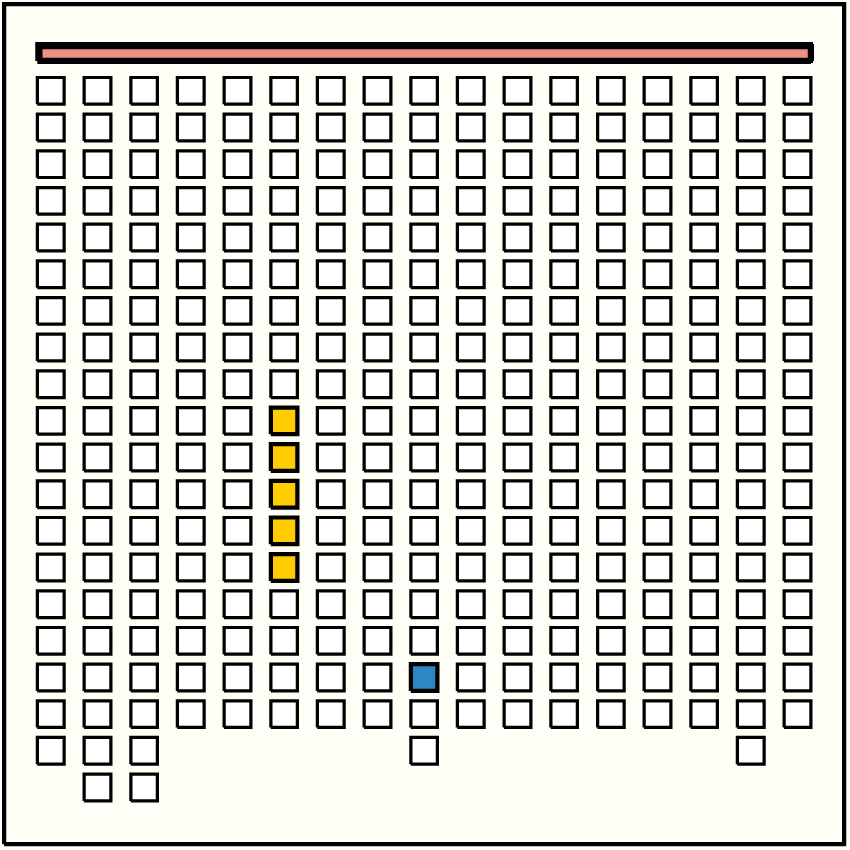

9	p166_{9, 17} : 13_B	13	5	p105: 5_B + p106: 0_W + p107: 6_W + p108: 0_BD + p109: 2_BD

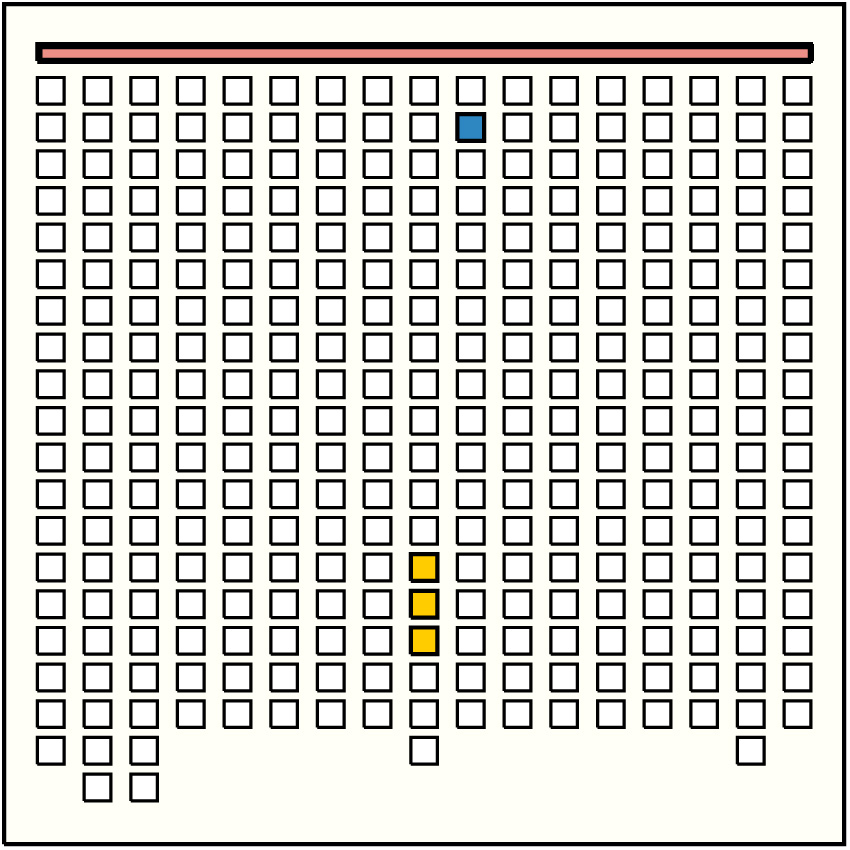

10	p170_{10, 2} : 22_W-B	22	3	p163: 12_BD + p164: 0_BD + p165: 10_W-BD

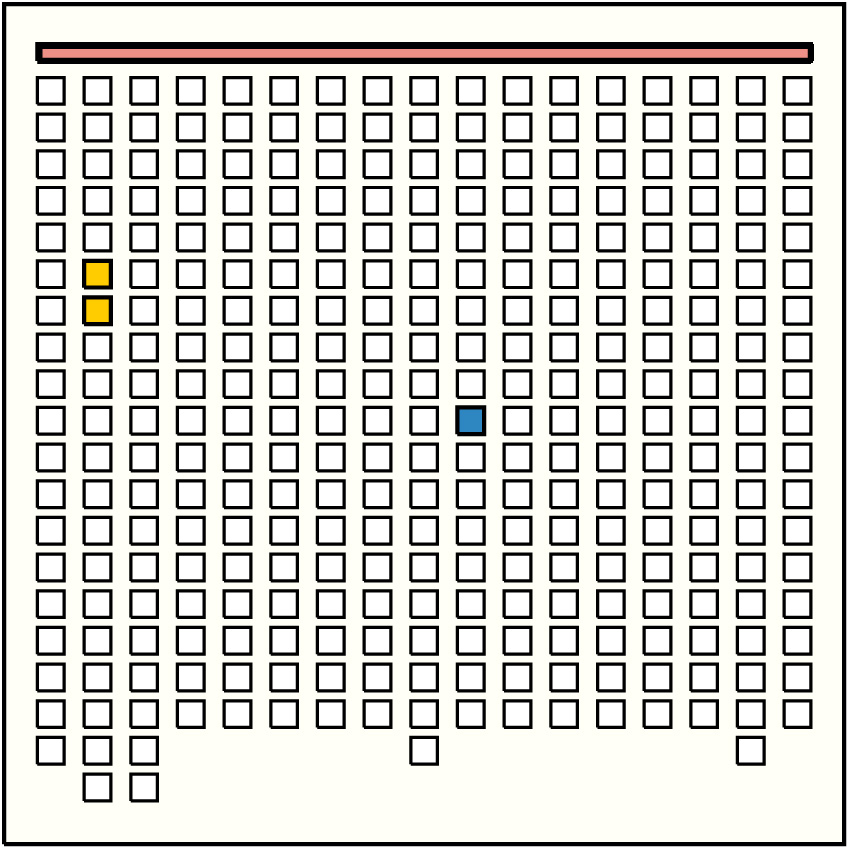

11	p178_{10, 10} : 14_B	14	2	p25: 1_B + p26: 13_B
12	p204_{11, 18} : 1000_W:BD	1000	33	p161: 30_W + p162: 17_W + p163: 12_BD + p164: 0_BD + p165: 10_W-BD + p166: 13_B + p167: 0_BD + p168: 618_W:BD + p169: 0_B-BD + p170: 22_W-B + p171: 110_W:B + p172: 0_YB + p173: 0_B + p174: 0_B + p175: 0_BG + p176: 57_GY + p177: 0_B + p178: 14_B + p179: 0_W + p180: 0_W + p181: 0_BD + p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG
13	p207_{12, 3} : 203_W:B	203	9	p170: 22_W-B + p171: 110_W:B + p172: 0_YB + p173: 0_B + p174: 0_B + p175: 0_BG + p176: 57_GY + p177: 0_B + p178: 14_B
14	p210_{12, 6} : 11_B	11	7	p141: 2_B + p142: 0_W + p143: 0_W + p144: 0_PK + p145: 5_BD + p146: 0_W-BD + p147: 4_B
15	p212_{12, 8} : 15_GY	15	2	p200: 10_BD + p201: 5_W-BD
16	p222_{12, 18} : 310_W:BD	310	31	p170: 22_W-B + p171: 110_W:B + p172: 0_YB + p173: 0_B + p174: 0_B + p175: 0_BG + p176: 57_GY + p177: 0_B + p178: 14_B + p179: 0_W + p180: 0_W + p181: 0_BD + p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD
17	p242_{14, 2} : 100_W-B	100	15	p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD
18	p243_{14, 3} : 200_W:B	200	13	p83: 12_B + p84: 0_GY + p85: 50_GY + p86: 0_B + p87: 0_B + p88: 0_W + p89: 0_W + p90: 1_BD + p91: 0_BD + p92: 0_W-BD + p93: 24_B + p94: 0_BD + p95: 113_W:BD
19	p258_{14, 18} : 700_W:BD	700	31	p218: 10_BD + p219: 0_W-BD + p220: 20_B + p221: 0_BD + p222: 310_W:BD + p223: 0_B-BD + p224: 10_W-B + p225: 20_W:B + p226: 0_YB + p227: 0_B + p228: 0_B + p229: 0_BG + p230: 10_GY + p231: 0_B + p232: 0_B + p233: 0_W + p234: 0_W + p235: 0_BD + p236: 0_BD + p237: 0_W-BD + p238: 0_B + p239: 0_BD + p240: 10_W:BD + p241: 0_B-BD + p242: 100_W-B + p243: 200_W:B + p244: 0_YB + p245: 0_B + p246: 0_B + p247: 0_BG + p248: 10_GY
20	p261_{15, 3} : 210_W:B	210	6	p243: 200_W:B + p244: 0_YB + p245: 0_B + p246: 0_B + p247: 0_BG + p248: 10_GY
21	p276_{15, 18} : 142_W:BD	142	21	p182: 2_BD + p183: 0_W-BD + p184: 5_B + p185: 0_BD + p186: 30_W:BD + p187: 0_B-BD + p188: 0_W-B + p189: 0_W:B + p190: 0_YB + p191: 0_B + p192: 0_B + p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD + p201: 5_W-BD + p202: 30_B
22	p287_{16, 11} : 27_B	27	4	p209: 1_B + p210: 11_B + p211: 0_BG + p212: 15_GY
23	p295_{16, 19} : 1050_W:BD	1050	27	p248: 10_GY + p249: 0_B + p250: 0_B + p251: 0_W + p252: 0_W + p253: 0_BD + p254: 11_BD + p255: 0_W-B + p256: 10_B + p257: 0_BD + p258: 700_W:BD + p259: 0_B-BD + p260: 80_W-B + p261: 210_W:B + p262: 0_YB + p263: 0_B + p264: 0_B + p265: 0_BG + p266: 10_GY + p267: 0_B + p268: 3_B + p269: 0_W + p270: 0_W + p271: 0_BD + p272: 6_BD + p273: 0_W-BD + p274: 10_B
24	p313_{17, 18} : 75_W:BD	75	9	p193: 60_BG + p194: 0_GY + p195: 0_B + p196: 0_B + p197: 0_W + p198: 0_W + p199: 0_BD + p200: 10_BD + p201: 5_W-BD

Khipu Notes:

Ascher Databook Notes:

By spacing and color patterning, the khipu is separated into 3 parts : part 1 is 3 groups, and parts 2 and 3 are 7 groups each.
1. Part 1: Assuming that position 10 in group 1 is non-existent, this part consists of 3 groups of 20 pendants each. The color pattern is the same for all 3 groups (with the exception of position 17 in group 3). In all 3 groups, subsidiaries appear only in positions 3, 8,9, 11, 14, 15, 16, 18, 19, 20.
2. Parts 2 and 3:
  1. Each part is basically 7 groups of 18 pendants. The exceptions of 2 groups with 19 pendants are systematic. The 6th group in each part has an additional W pendant between positions 7 and 8.
  2. Each group in parts 2 and 3 has the same color pattern (with the exception of position 8 in groups 4 and 5 and position 18 in group 4). The color pattern is the same as in part 1 with the systematic difference that positions 5 and 8 of the part 1 pattern do not exist. Thus, there are 18 pendants in each group in parts 2 and 3 as compared to 20 pendants in each group in part 1. Also, while the color in position 19 of the groups in part 1 are B, in parts 2 and 3, the comparable position is BD.
  3. Subsidiaries on pendants in parts 2 and 3 are on a subset of the positions they are on in part 1. Namely, subsidiaries are only on positions comparable to positions 9,15,16,18,20 of part 1.
Many values are uncertain due to breakage. However, we hypothesize that, position by position, values in group 1 of part 1 are related to the sums of values in groups 2 and 3 while values in groups 2 and 3 are related to sums of values in parts 2 and 3 respectively.
