AS159/KH0175 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

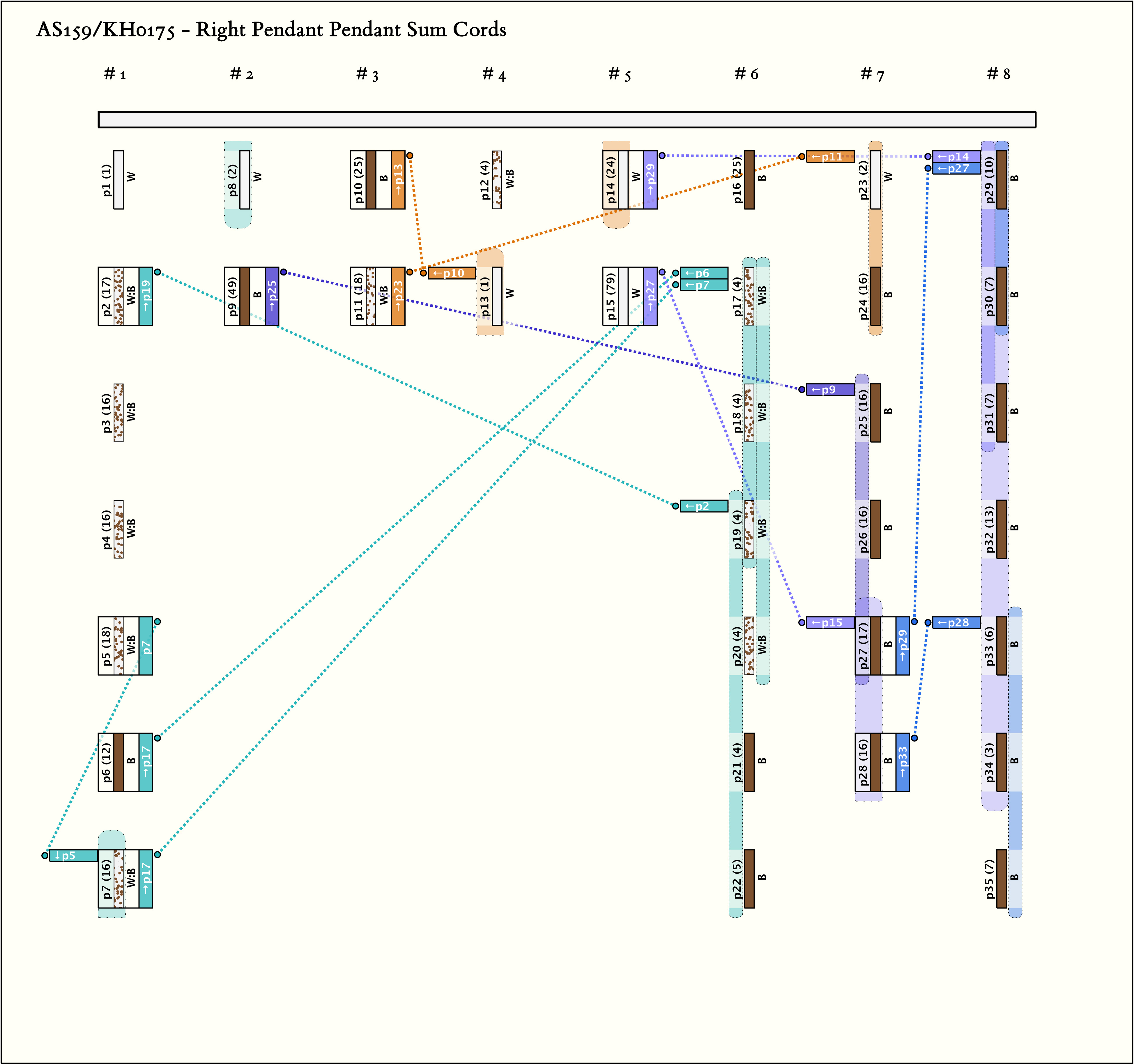

Right Handed Sums: # Sums = 11, Max # Summands = 8, (Min, Mean, Max) Sum Values = (12, 26, 79)
Click on Image to View Larger

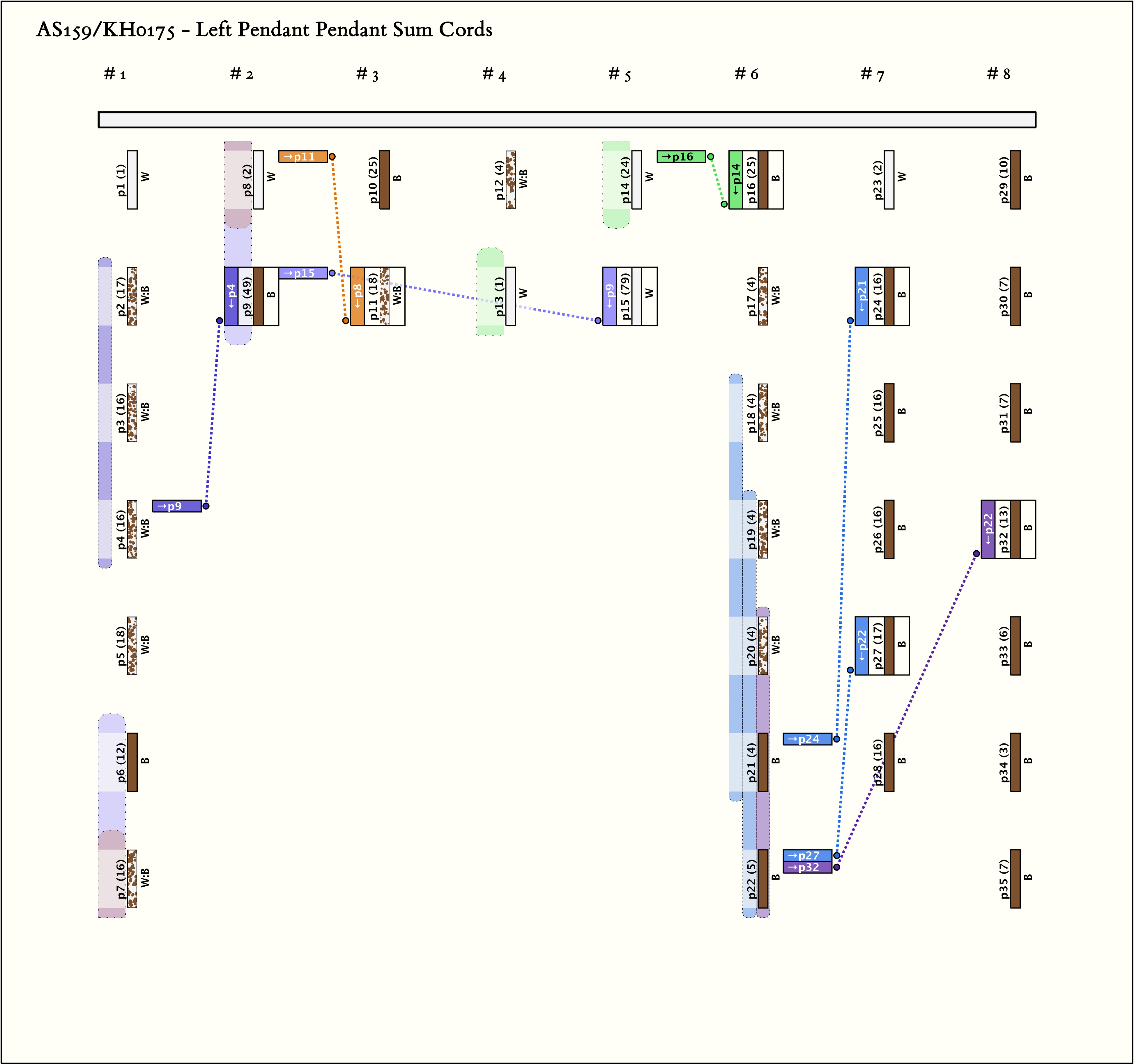

Left Handed Sums: # Sums = 7, Max # Summands = 4, (Min, Mean, Max) Sum Values = (13, 31, 79)
Click on Image to View Larger

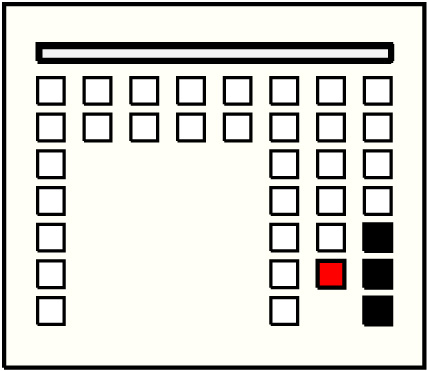

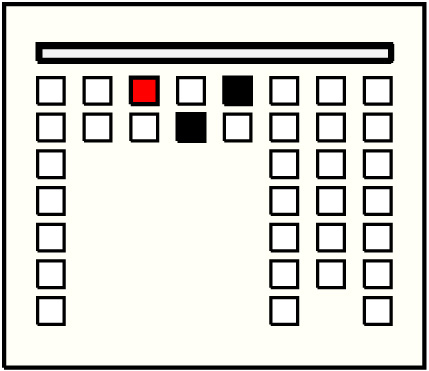

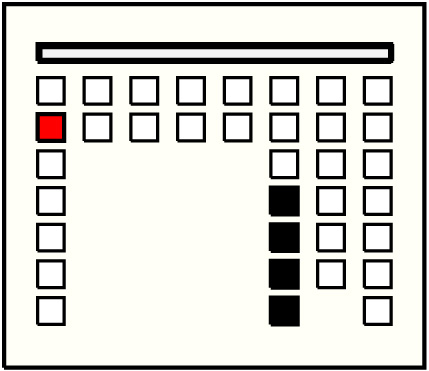

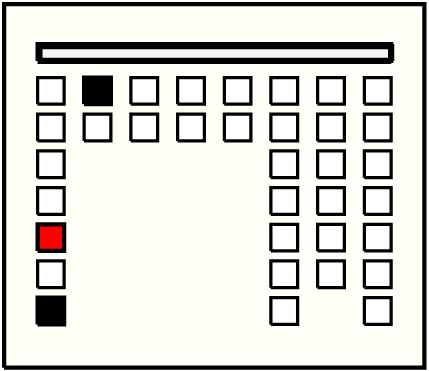

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p2_{1, 2} : 17_W:B	17	4	p19: 4_W:B + p20: 4_W:B + p21: 4_B + p22: 5_B
2	p5_{1, 5} : 18_W:B	18	2	p7: 16_W:B + p8: 2_W

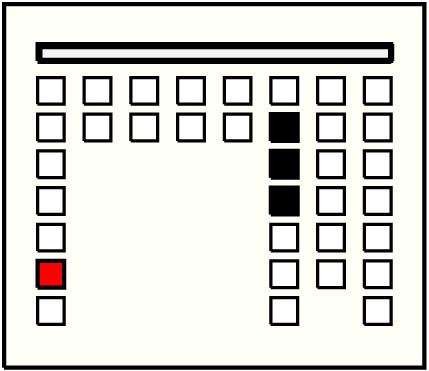

3	p6_{1, 6} : 12_B	12	3	p17: 4_W:B + p18: 4_W:B + p19: 4_W:B
4	p7_{1, 7} : 16_W:B	16	4	p17: 4_W:B + p18: 4_W:B + p19: 4_W:B + p20: 4_W:B

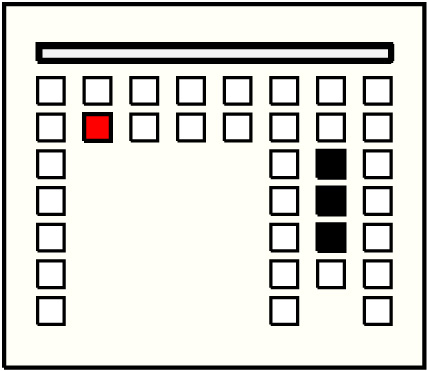

5	p9_{2, 2} : 49_B	49	3	p25: 16_B + p26: 16_B + p27: 17_B
6	p10_{3, 1} : 25_B	25	2	p13: 1_W + p14: 24_W

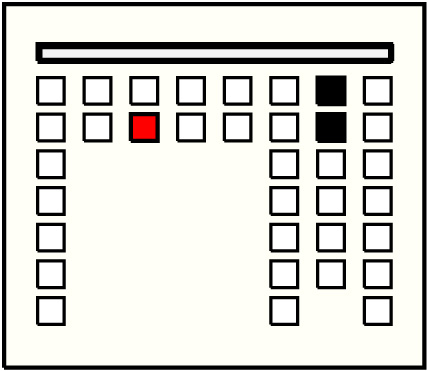

7	p11_{3, 2} : 18_W:B	18	2	p23: 2_W + p24: 16_B

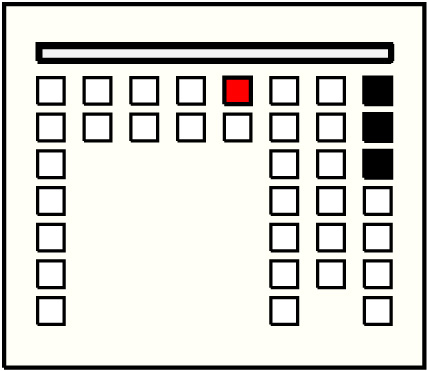

8	p14_{5, 1} : 24_W	24	3	p29: 10_B + p30: 7_B + p31: 7_B

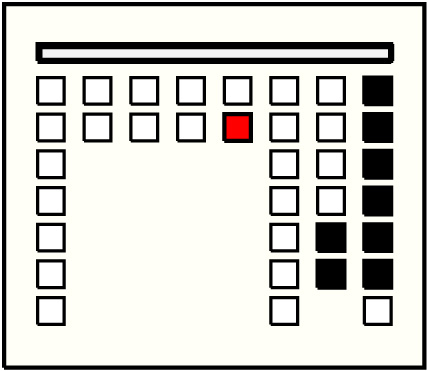

9	p15_{5, 2} : 79_W	79	8	p27: 17_B + p28: 16_B + p29: 10_B + p30: 7_B + p31: 7_B + p32: 13_B + p33: 6_B + p34: 3_B

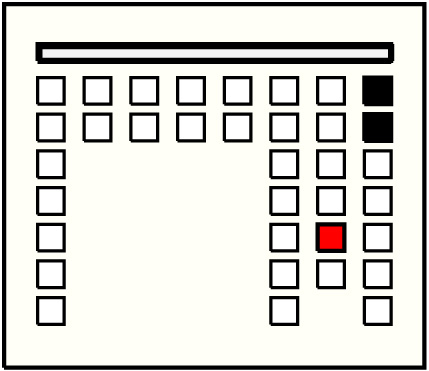

10	p27_{7, 5} : 17_B	17	2	p29: 10_B + p30: 7_B
11	p28_{7, 6} : 16_B	16	3	p33: 6_B + p34: 3_B + p35: 7_B

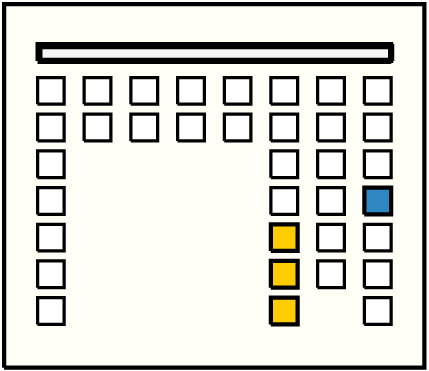

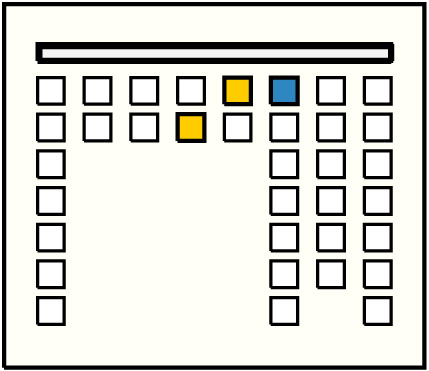

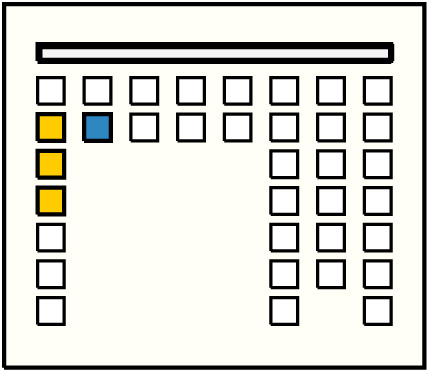

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p9_{2, 2} : 49_B	49	3	p2: 17_W:B + p3: 16_W:B + p4: 16_W:B
2	p11_{3, 2} : 18_W:B	18	2	p7: 16_W:B + p8: 2_W

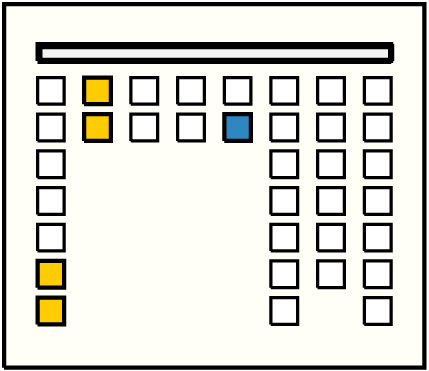

3	p15_{5, 2} : 79_W	79	4	p6: 12_B + p7: 16_W:B + p8: 2_W + p9: 49_B
4	p16_{6, 1} : 25_B	25	2	p13: 1_W + p14: 24_W
5	p24_{7, 2} : 16_B	16	4	p18: 4_W:B + p19: 4_W:B + p20: 4_W:B + p21: 4_B

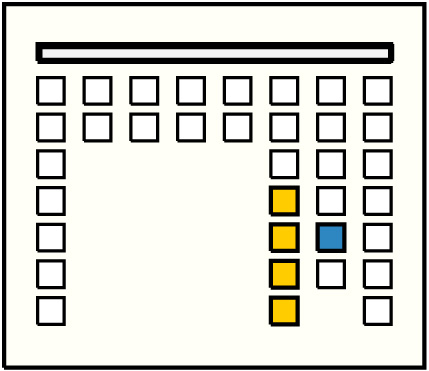

6	p27_{7, 5} : 17_B	17	4	p19: 4_W:B + p20: 4_W:B + p21: 4_B + p22: 5_B
7	p32_{8, 4} : 13_B	13	3	p20: 4_W:B + p21: 4_B + p22: 5_B

Khipu Notes:

Ascher Databook Notes:

This is one of several khipus acquired by the Museum in 1904 with provenance between Ica and Pisco. For a discussion of them, see UR1098.
By spacing, there are 8 groups with different numbers of pendants. There are much larger spaces on the main cord between groups 6-7 and 7-8 than there are between others. The only consistent colors are in the 3 groups with 7 pendants each (groups 1, 6, and 8). Group 8 is unified: all pendants are B. Groups 1 and 6 both have the pattern X, 4B:W, 2X where X=W in group 1 and X=B in group 6.
Several of the pendants have multiple unit knots so that there are 2 distinct values in some positions. (See, for example, P14.)
The value on the first pendant in group 6 is the sum of the other pendants in the group. Similarly, the value on its subsidiary is the sum of the values of the other subsidiaries in the group.
The sum of the 2 pendant values in group 5 is 100 & 3. The sum of all pendant values in groups 6 and 8 is also 100 & 3.
