AS160/KH0176 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

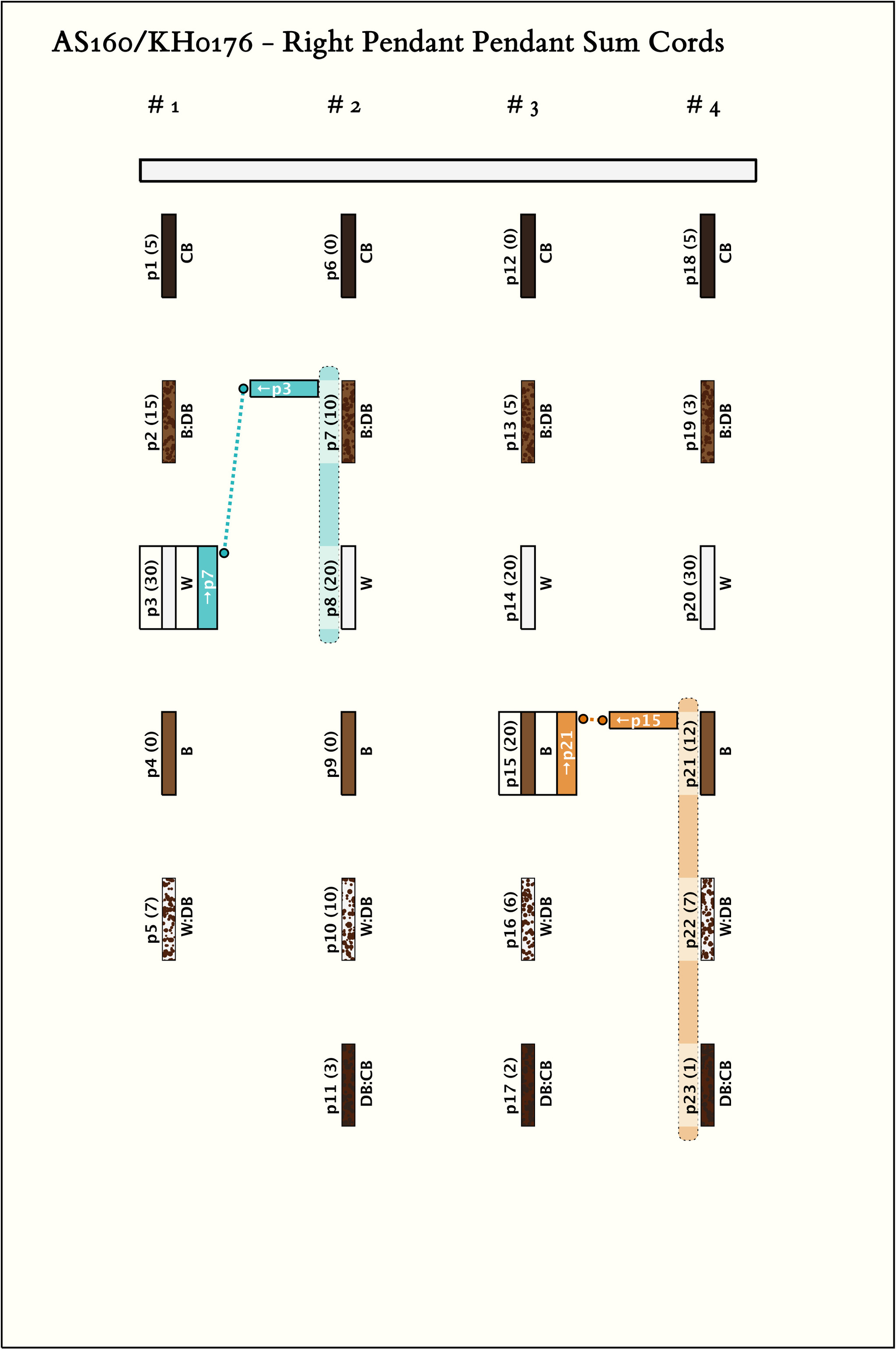

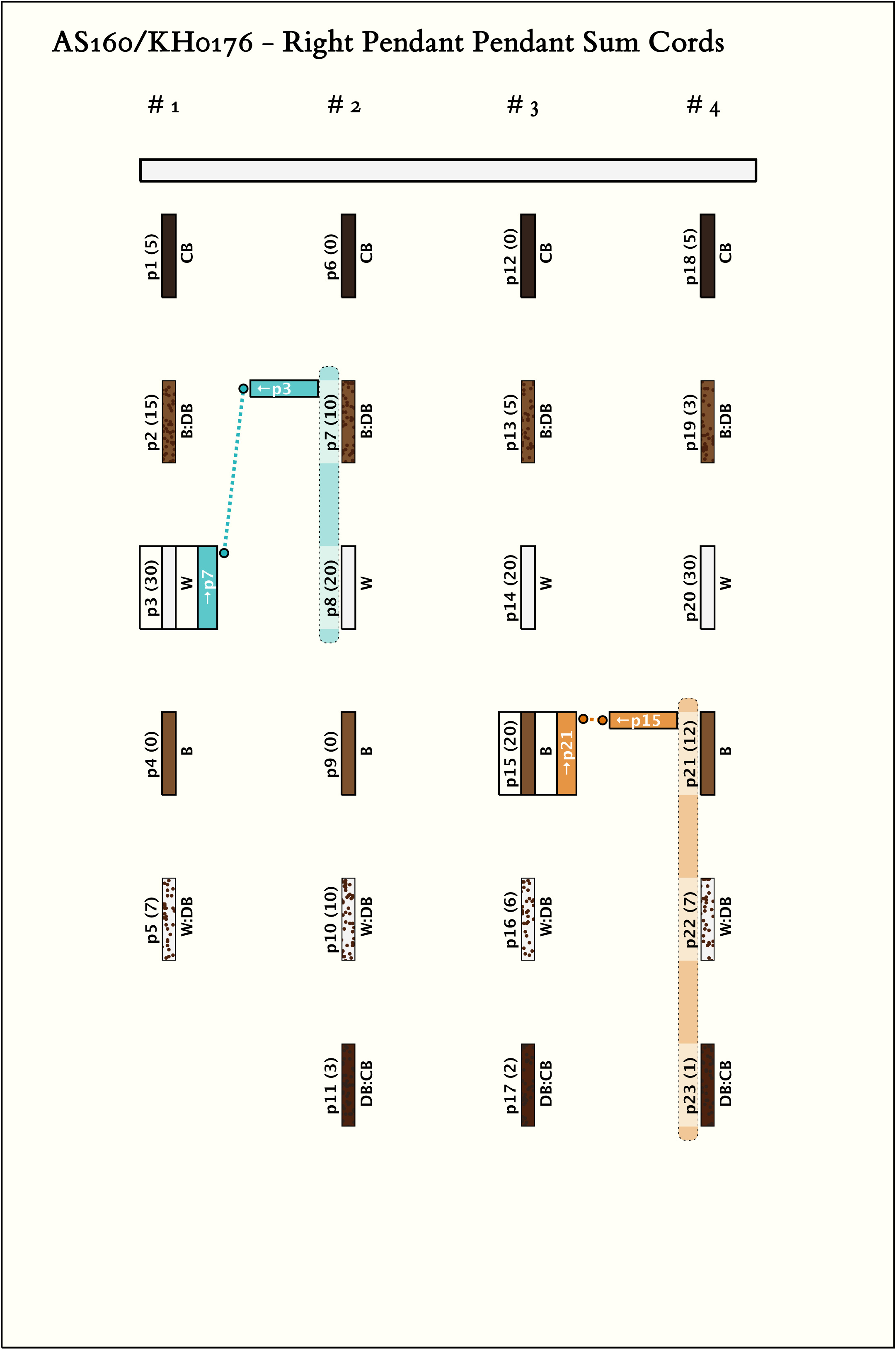

Right Handed Sums: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (20, 25, 30)
Click on Image to View Larger

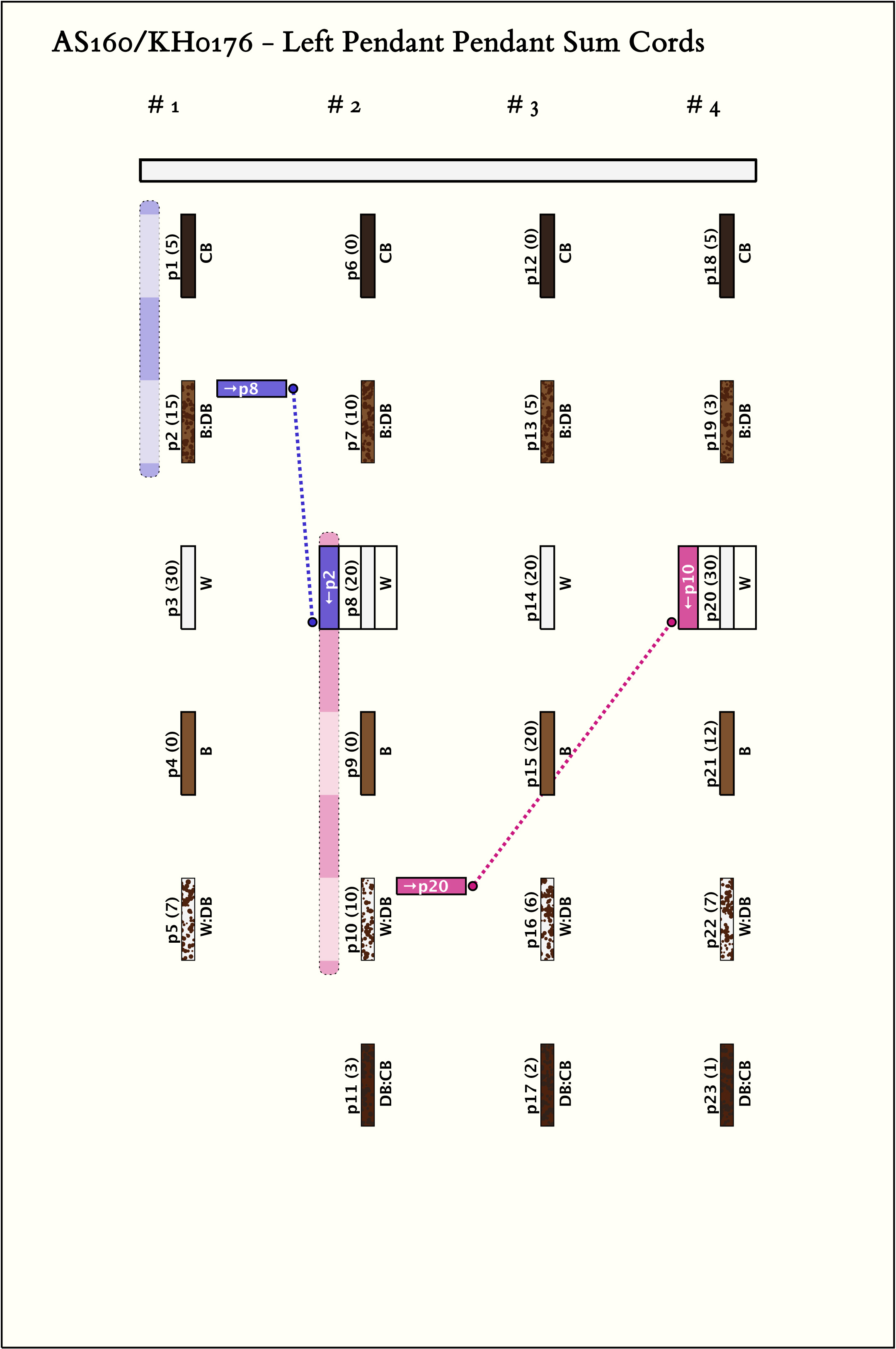

Left Handed Sums: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (20, 25, 30)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

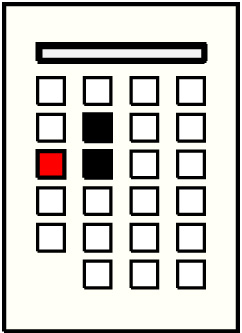

1			p3_{1, 3} : 30_W	30	2	p7: 10_B:DB + p8: 20_W

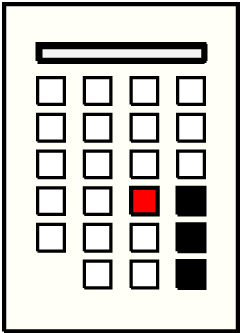

2			p15_{3, 4} : 20_B	20	3	p21: 12_B + p22: 7_W:DB + p23: 1_DB:CB

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p8_{2, 3} : 20_W	20	2	p1: 5_CB + p2: 15_B:DB

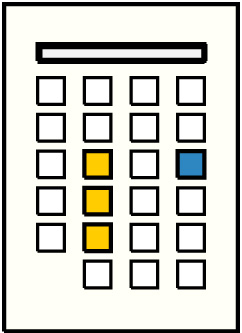

2			p20_{4, 3} : 30_W	30	3	p8: 20_W + p9: 0_B + p10: 10_W:DB

Khipu Notes:

Ascher Databook Notes:

Another pendant, just after pendant 5, was probably present as indicated by the discoloration on the main cord.
This was one of several khipus acquired by the Museum in 1904 with provenance between Ica and Pisco. For a discussion of them, see UR1098.
By spacing, the khipu consists of 4 groups of 6 pendants each. Each group has the same color pattern.
In each group, the value in position 3 is a multiple of the value in position 2. The value of position 3 is also a multiple of 10.
Seventeen of the 21 values on the khipu are multiples of 3 or 5. The different multiples present are:

3 times i where i=0 to 5 but i≠3
5 times i where i=1 to 6 but i≠5
