AS172/KH0189 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

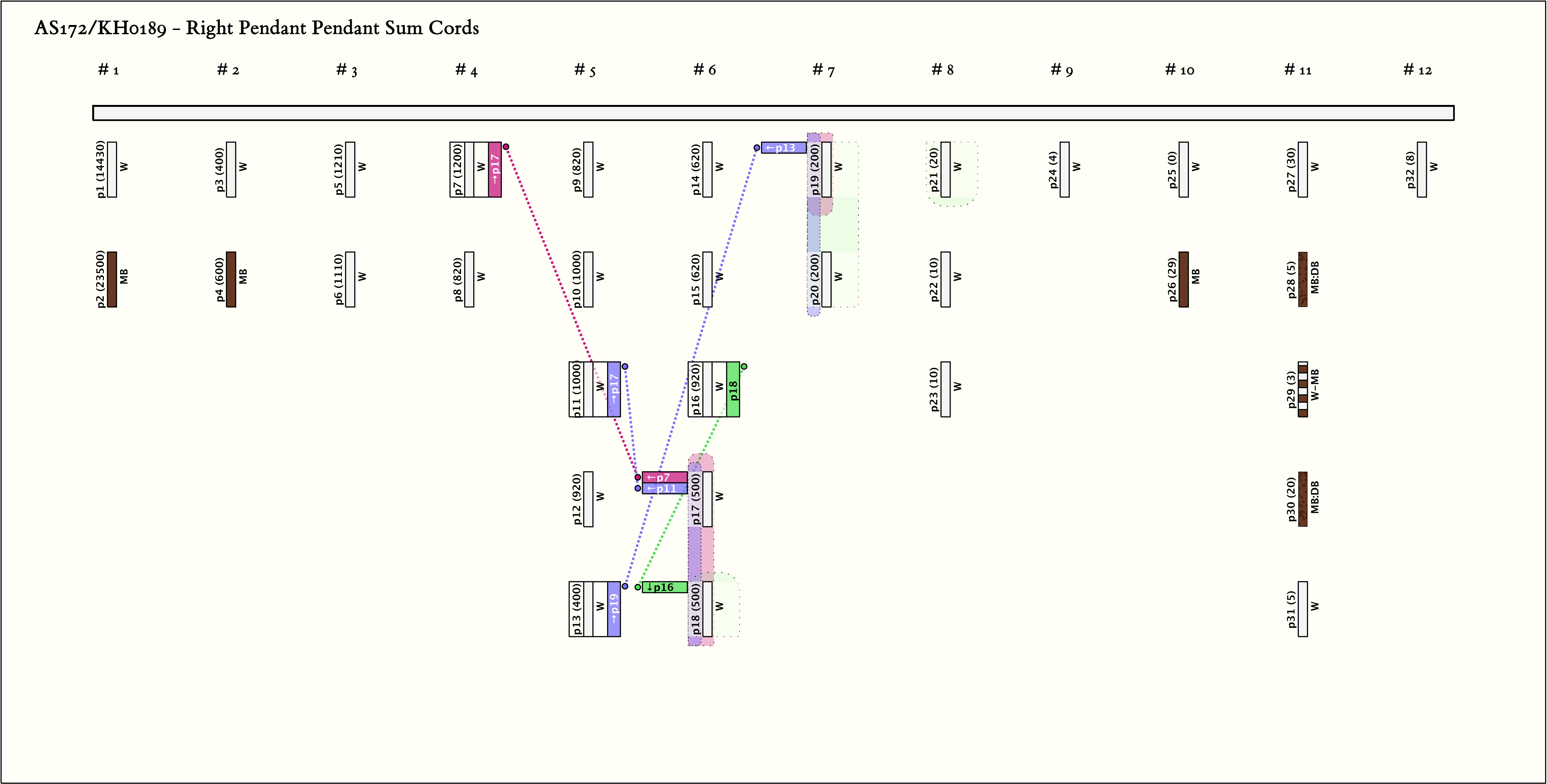

Right Handed Sums: # Sums = 4, Max # Summands = 4, (Min, Mean, Max) Sum Values = (400, 880, 1200)
Click on Image to View Larger

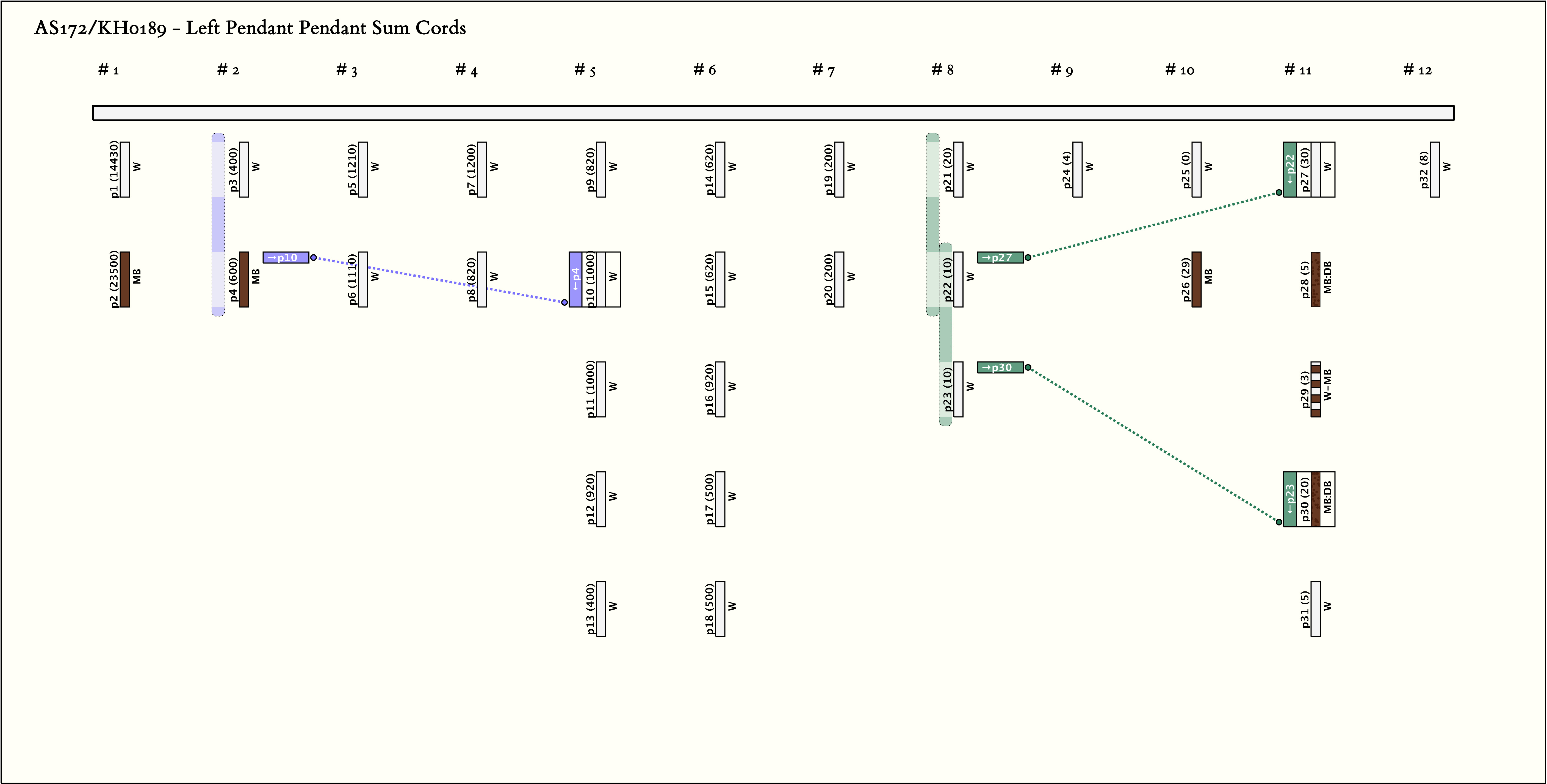

Left Handed Sums: # Sums = 3, Max # Summands = 2, (Min, Mean, Max) Sum Values = (20, 350, 1000)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

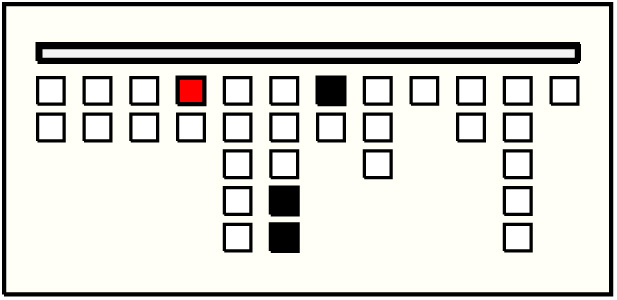

1	p7_{4, 1} : 1200_W	1200	3	p17: 500_W + p18: 500_W + p19: 200_W

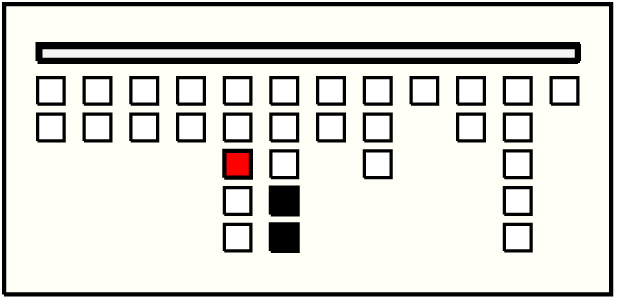

2	p11_{5, 3} : 1000_W	1000	2	p17: 500_W + p18: 500_W

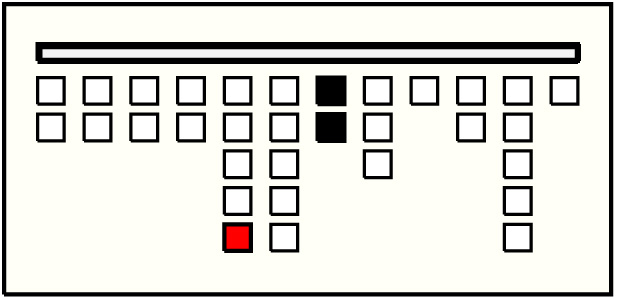

3	p13_{5, 5} : 400_W	400	2	p19: 200_W + p20: 200_W

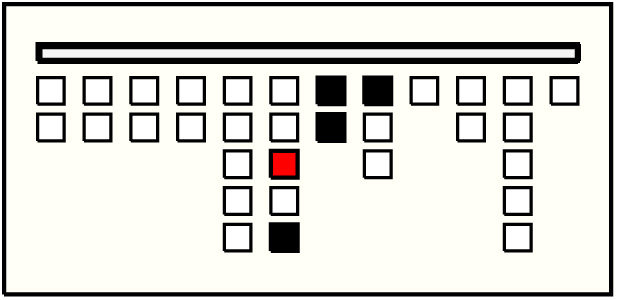

4	p16_{6, 3} : 920_W	920	4	p18: 500_W + p19: 200_W + p20: 200_W + p21: 20_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p10_{5, 2} : 1000_W	1000	2	p3: 400_W + p4: 600_MB

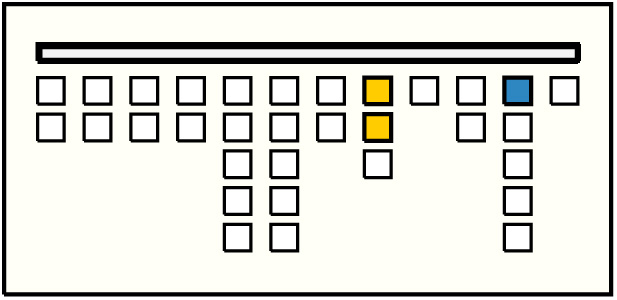

2	p27_{11, 1} : 30_W	30	2	p21: 20_W + p22: 10_W

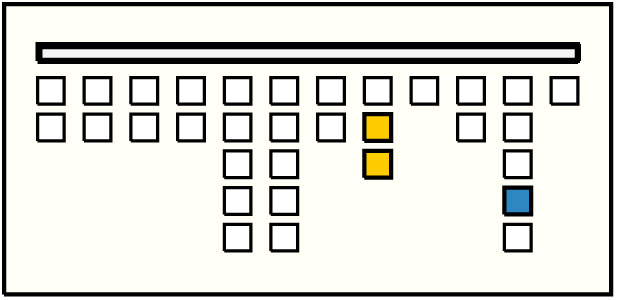

3	p30_{11, 4} : 20_MB:DB	20	2	p22: 10_W + p23: 10_W

Khipu Notes:

Ascher Databook Notes:

This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of them, see UR1097.
A large space on the main cord separates the khipu into 2 parts.
1. By spacing, the first part is separated into 2 sets of 2 pairs, then 2 groups of 5 pendants each, and then another pair. The first 2 pairs alternate in color: W, MB, W, MB. The rest of the pendants (with the exception of the last one) are W with an MB subsidiary.
2. The second part is less consistent in group size, subsidiary placement, and color. The values are lower in order of magnitude than those in the first part.
