AS189/KH0207 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Right-Handed Sum Detail
This Khipu's Fieldmark Catalog	Khipu Notes

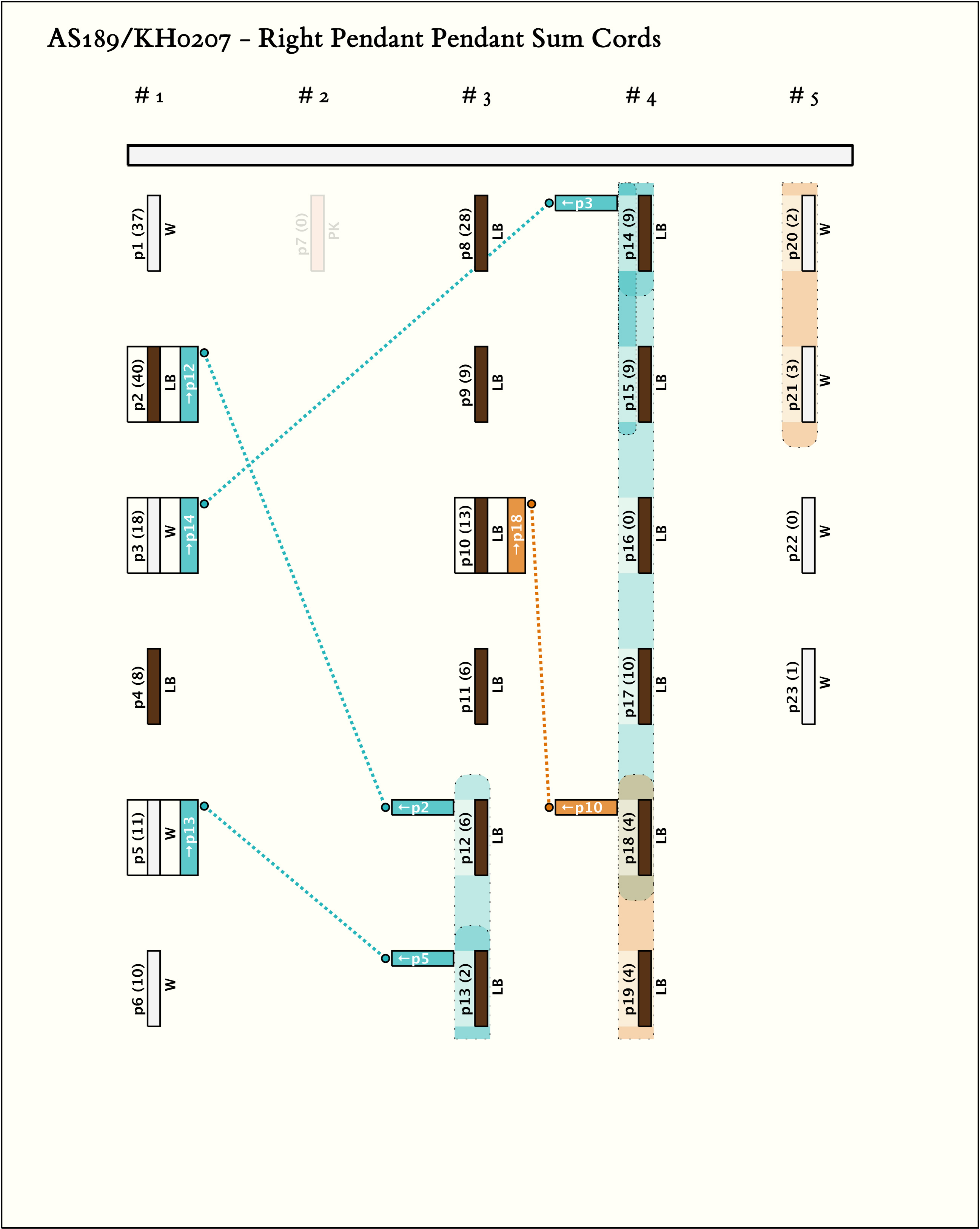

This Khipu's Drawing

Right Handed Sums: # Sums = 4, Max # Summands = 7, (Min, Mean, Max) Sum Values = (11, 20, 40)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

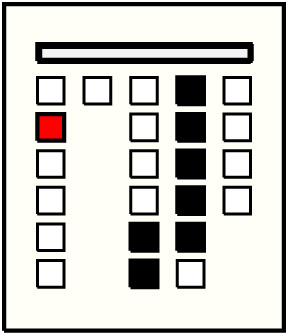

1	p2_{1, 2} : 40_LB	40	7	p12: 6_LB + p13: 2_LB + p14: 9_LB + p15: 9_LB + p16: 0_LB + p17: 10_LB + p18: 4_LB
2	p3_{1, 3} : 18_W	18	2	p14: 9_LB + p15: 9_LB

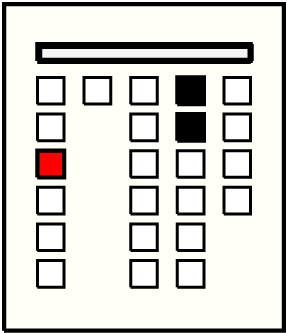

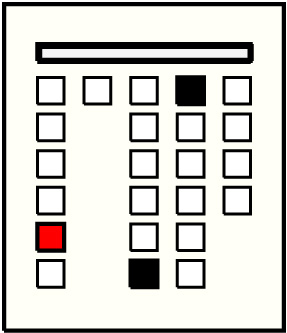

3	p5_{1, 5} : 11_W	11	2	p13: 2_LB + p14: 9_LB

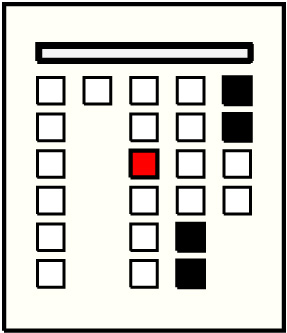

4	p10_{3, 3} : 13_LB	13	4	p18: 4_LB + p19: 4_LB + p20: 2_W + p21: 3_W

Khipu Notes:

Ascher Databook Notes:

This is an unraveled E type knot or a twist in the cord.
This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of these khipus, see UR1097.
AS187, AS188, and AS189 were acquired together as part of the contents of a wicker basket. For a description of this collection, see AS187.
By spacing, the khipu is separated into 4 groups. The first group is separated from the next 3 groups by a large space which included a single pendant cord. Groups 1-3 each have 6 pendants.
Group 4 has all pendants W; groups 2 and 3 have all pendants LB; and group 1 has some of each color. There are no subsidiaries in group 1; all subsidiaries in group 2 are LB: W; and all subsidiaries in groups 3 and 4 are LB-W.
