AS206/KH0224 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

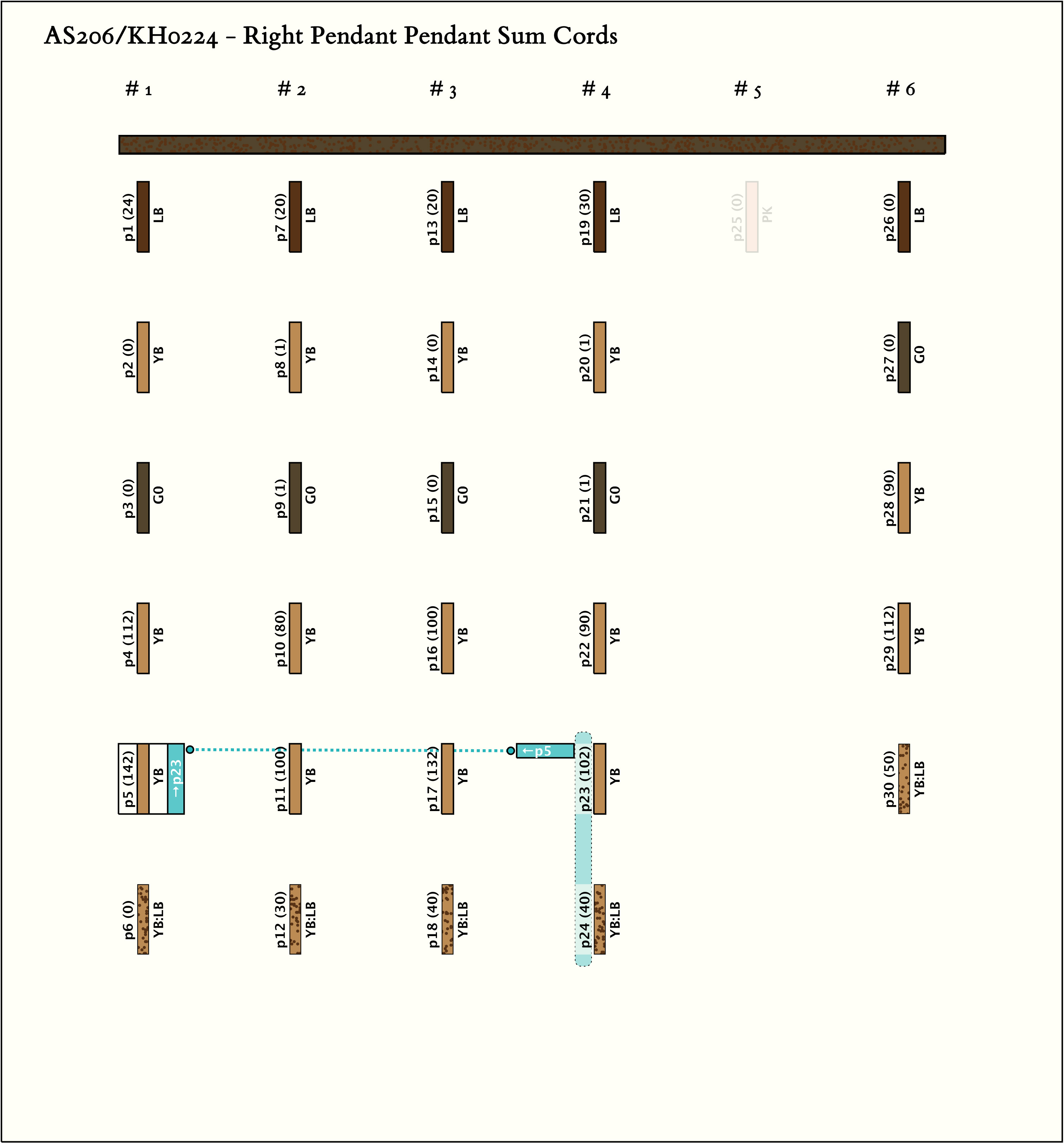

Right Handed Sums: # Sums = 1, Max # Summands = 2, (Min, Mean, Max) Sum Values = (142, 142, 142)
Click on Image to View Larger

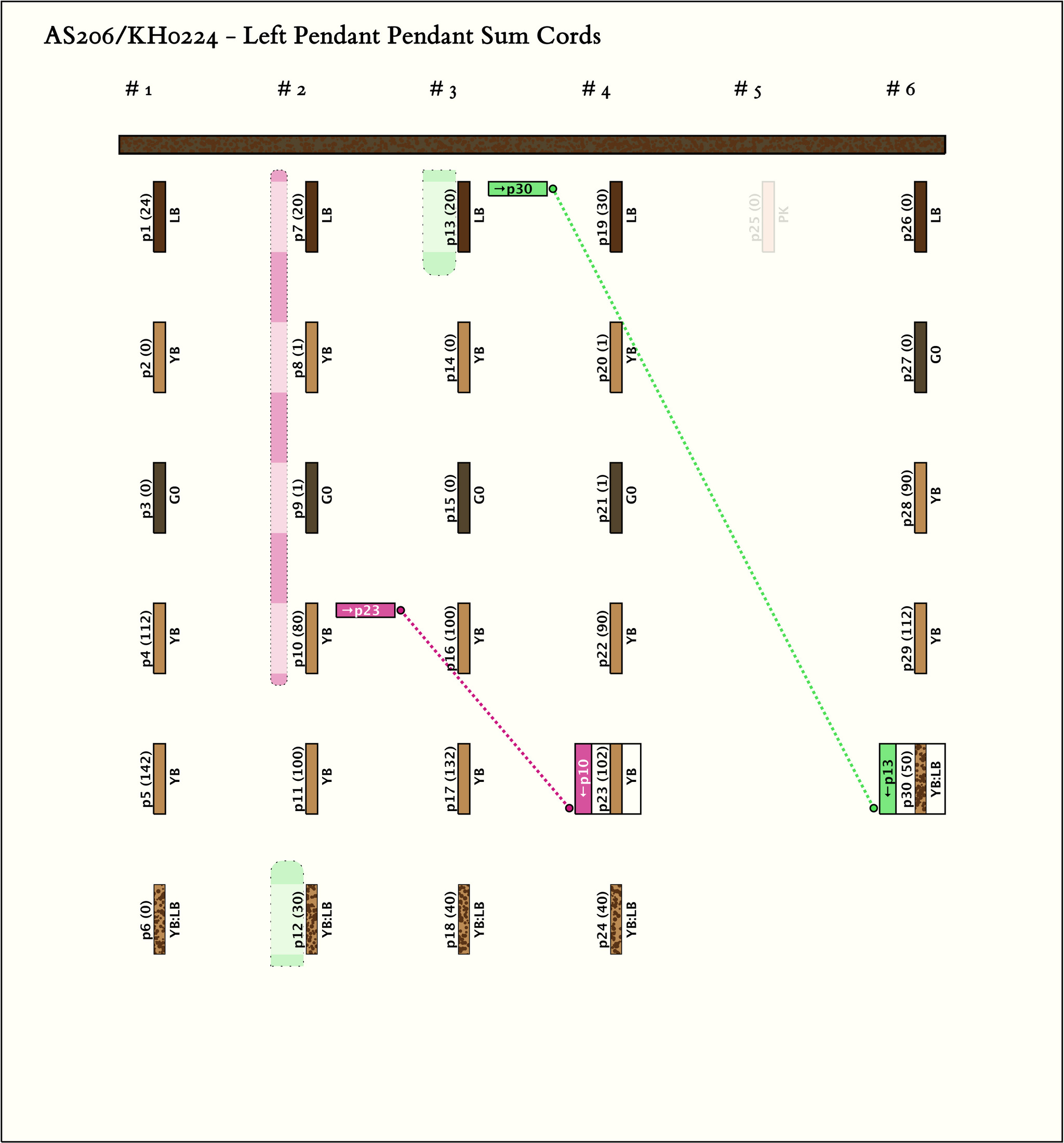

Left Handed Sums: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (50, 76, 102)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p5_{1, 5} : 142_YB	142	2	p23: 102_YB + p24: 40_YB:LB

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p23_{4, 5} : 102_YB	102	4	p7: 20_LB + p8: 1_YB + p9: 1_G0 + p10: 80_YB
2			p30_{6, 5} : 50_YB:LB	50	2	p12: 30_YB:LB + p13: 20_LB

Khipu Notes:

Ascher Databook Notes:

AS206 is two fragments of the same khipu. They are not necessarily connected. The first fragment contains 4 groups of 6 pendants each and the other fragment contains 1 group of 5 pendants. All 5 groups have the same color pattern: LB, YB, GO, YB, YB, LB:YB. Where a pendant is missing it is the second pendant in the group. Where there is a subsidiary (groups 2 and 3), it is colored LB and on the last pendant in the groups.
There is too much breakage for comparison of values. However, all groups seem to have the same rank order:

P₅ > P₄ > P₆ > P₁ > P₃ ≥ P₂.
