CM009 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

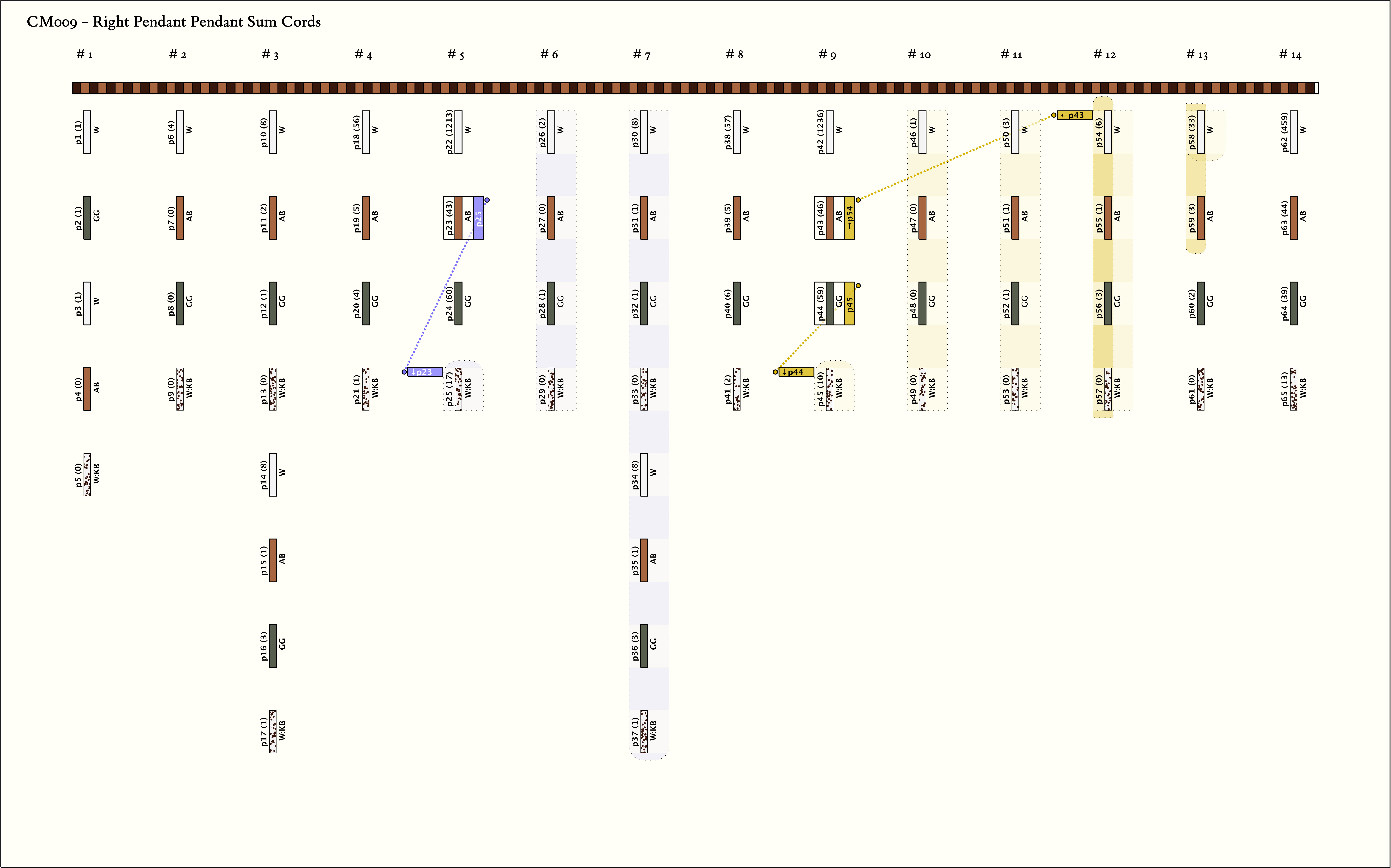

Right Handed Sums with Figure-8-Knots:     # Sums = 3,  Max # Summands = 14,   (Min, Mean, Max) Sum Values = (43, 49, 59)
Click on Image to View Larger

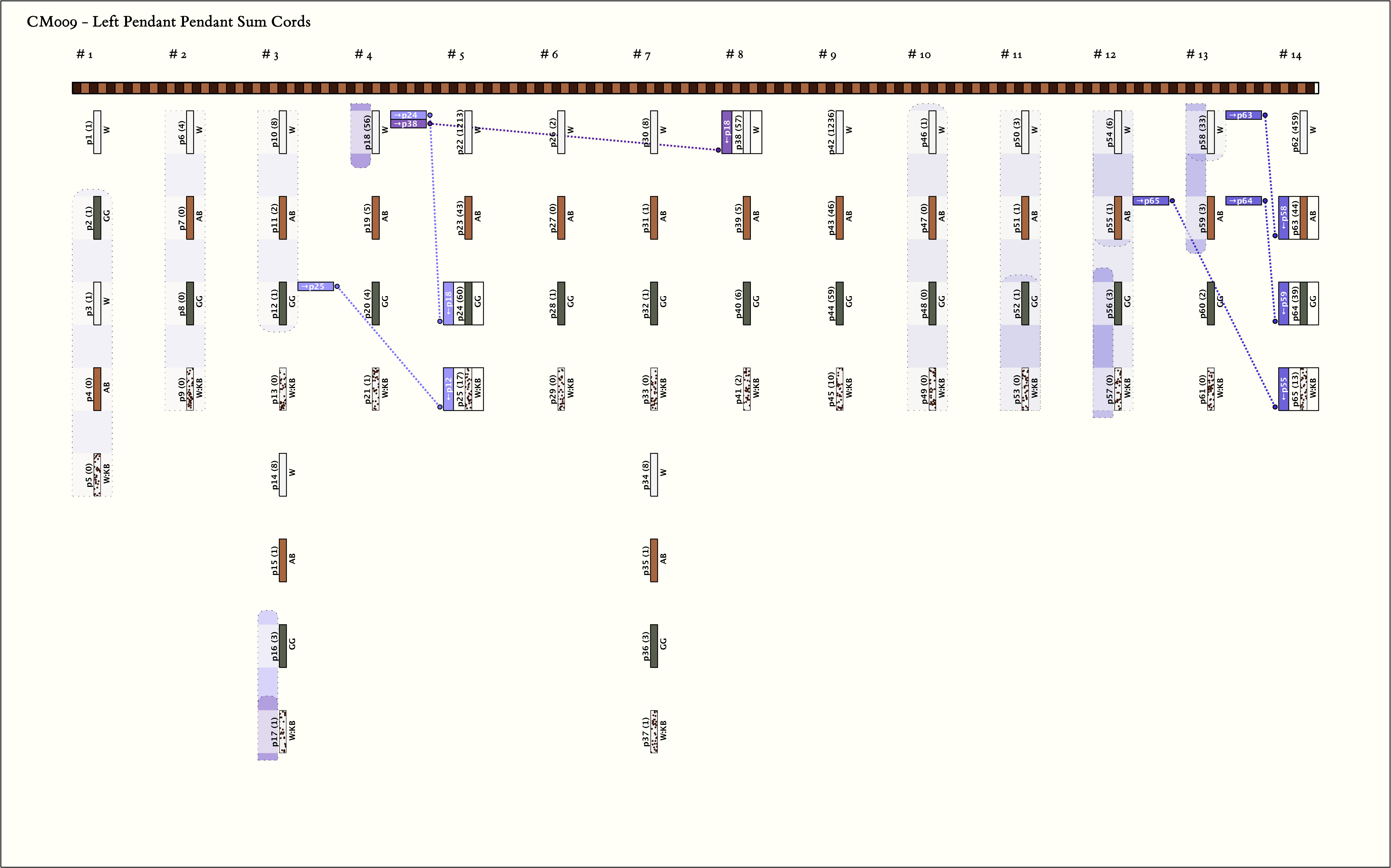

Left Handed Sums with Figure-8-Knots:     # Sums = 6,  Max # Summands = 11,   (Min, Mean, Max) Sum Values = (13, 38, 60)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

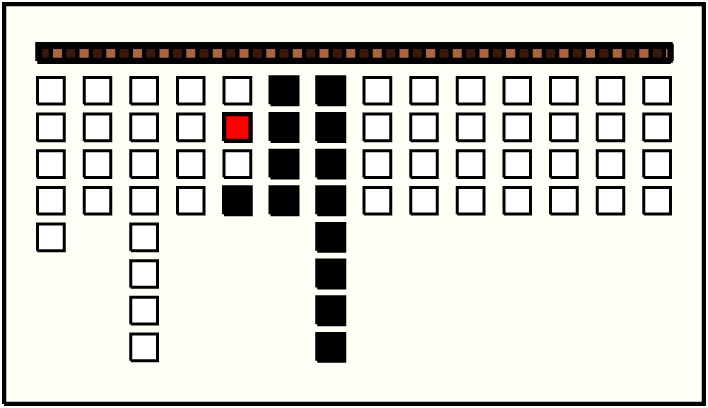

g5p2 : 43AB4313g5p4: 17W:KB + g6p1: 2W + g6p2: 0AB + g6p3: 1GG + g6p4: 0W:KB + g7p1: 8W + g7p2: 1AB + g7p3: 1GG + g7p4: 0W:KB + g7p5: 8W + g7p6: 1AB + g7p7: 3GG + g7p8: 1W:KB❽
2

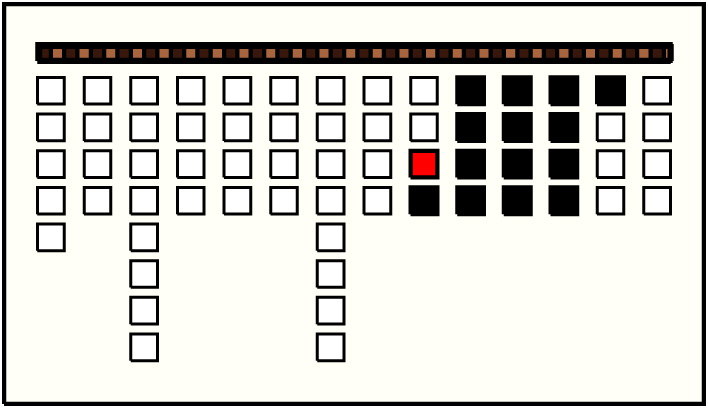

g9p2 : 46AB466g12p1: 6W∞ + g12p2: 1AB + g12p3: 3GG + g12p4: 0W:KB + g13p1: 33W + g13p2: 3AB
3
g9p3 : 59GG5914∞g9p4: 10W:KB∞ + g10p1: 1W + g10p2: 0AB + g10p3: 0GG + g10p4: 0W:KB + g11p1: 3W + g11p2: 1AB + g11p3: 1GG + g11p4: 0W:KB + g12p1: 6W + g12p2: 1AB + g12p3: 3GG + g12p4: 0W:KB + g13p1: 33W

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g5p3 : 60GG603∞g3p7: 3GG∞ + g3p8: 1W:KB + ∞g4p1: 56W
2

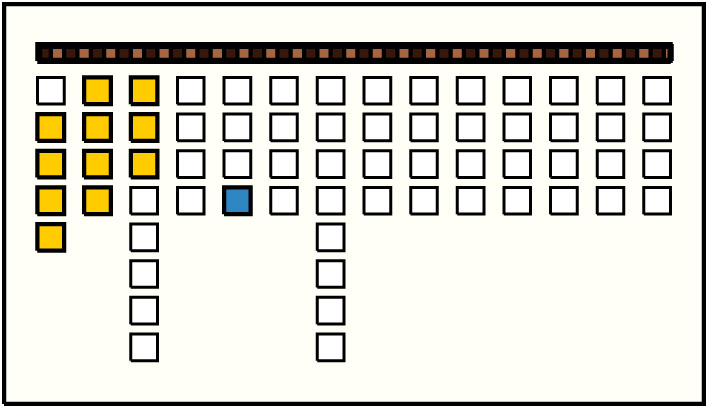

g5p4 : 17W:KB1711∞g1p2: 1GG + g1p3: 1W + g1p4: 0AB + g1p5: 0W:KB + g2p1: 4W + g2p2: 0AB + g2p3: 0GG + g2p4: 0W:KB + g3p1: 8W + g3p2: 2AB + g3p3: 1GG❽
3

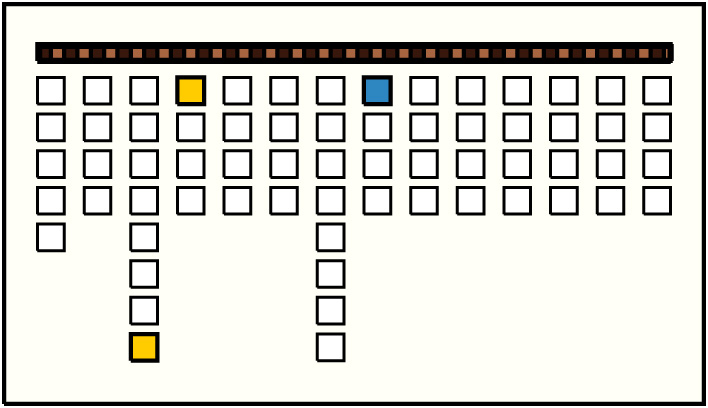

g8p1 : 57W572❽g3p8: 1W:KB + ∞g4p1: 56W
4
g14p2 : 44AB447❽g11p3: 1GG + g11p4: 0W:KB + g12p1: 6W + g12p2: 1AB + g12p3: 3GG + g12p4: 0W:KB + g13p1: 33W
5

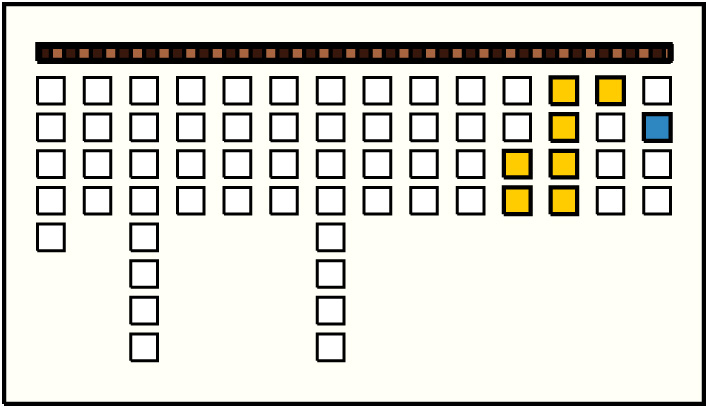

g14p3 : 39GG394∞g12p3: 3GG + g12p4: 0W:KB + g13p1: 33W + g13p2: 3AB
6

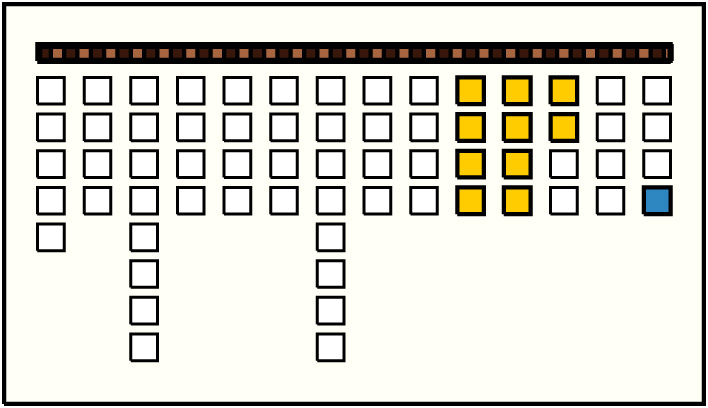

g14p4 : 13W:KB1310❽g10p1: 1W + g10p2: 0AB + g10p3: 0GG + g10p4: 0W:KB + g11p1: 3W + g11p2: 1AB + g11p3: 1GG + g11p4: 0W:KB + g12p1: 6W + g12p2: 1AB❽

Khipu Notes:
Description is recorded in Carol Mackey's 1970 Doctoral Thesis
Information is extracted from Pages 251-254 (Appendix)
Knot Location, and cord length information is conjectured or based on drawings.
Color for Mackey's Pale Blue changed to Grey Green to match other Purucucho recordings
