KH0059/AS048 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

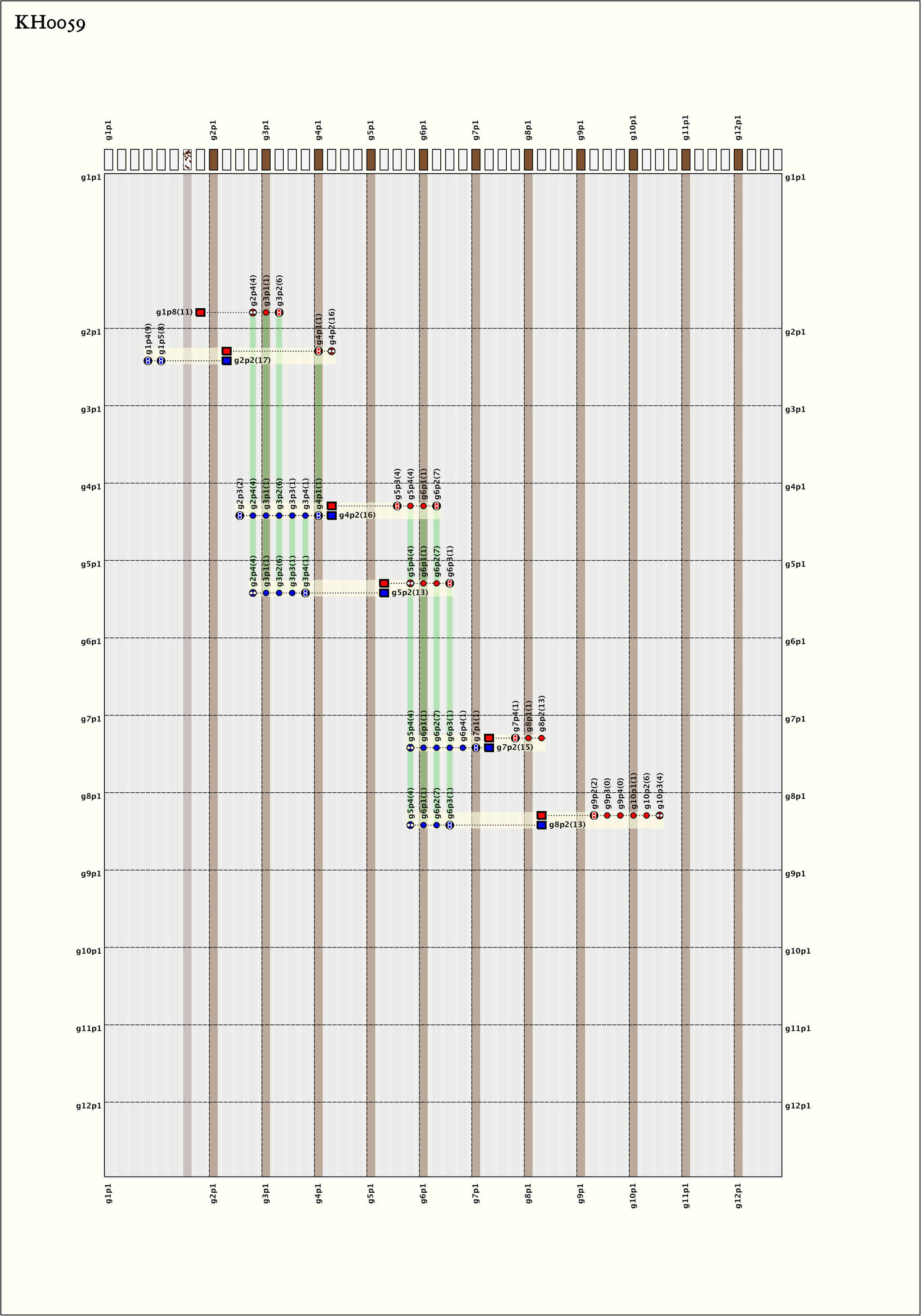

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

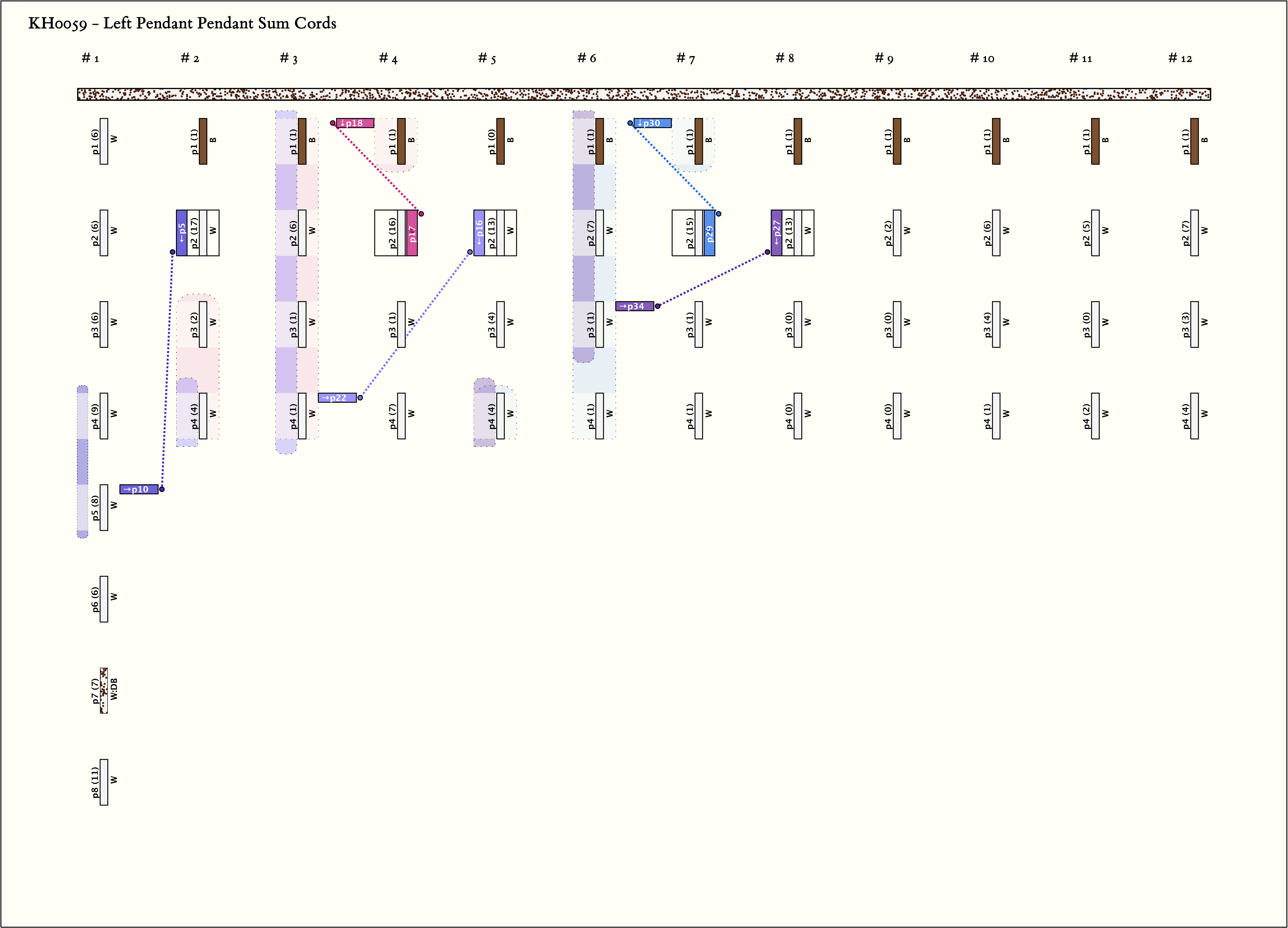

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

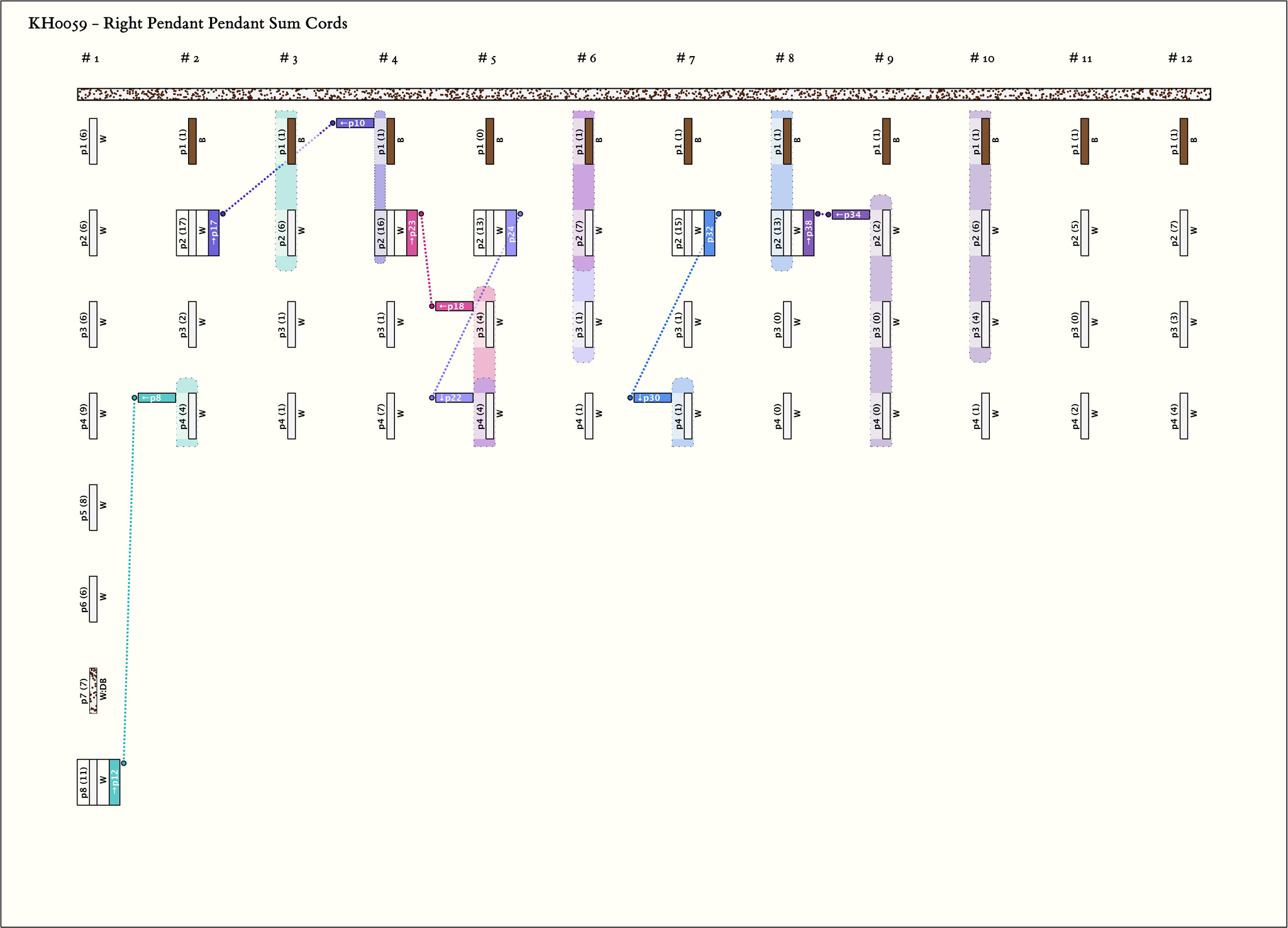

Right Handed Sums with Figure-8-Knots:     # Sums = 6,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (11, 14, 17)
Click on Image to View Larger

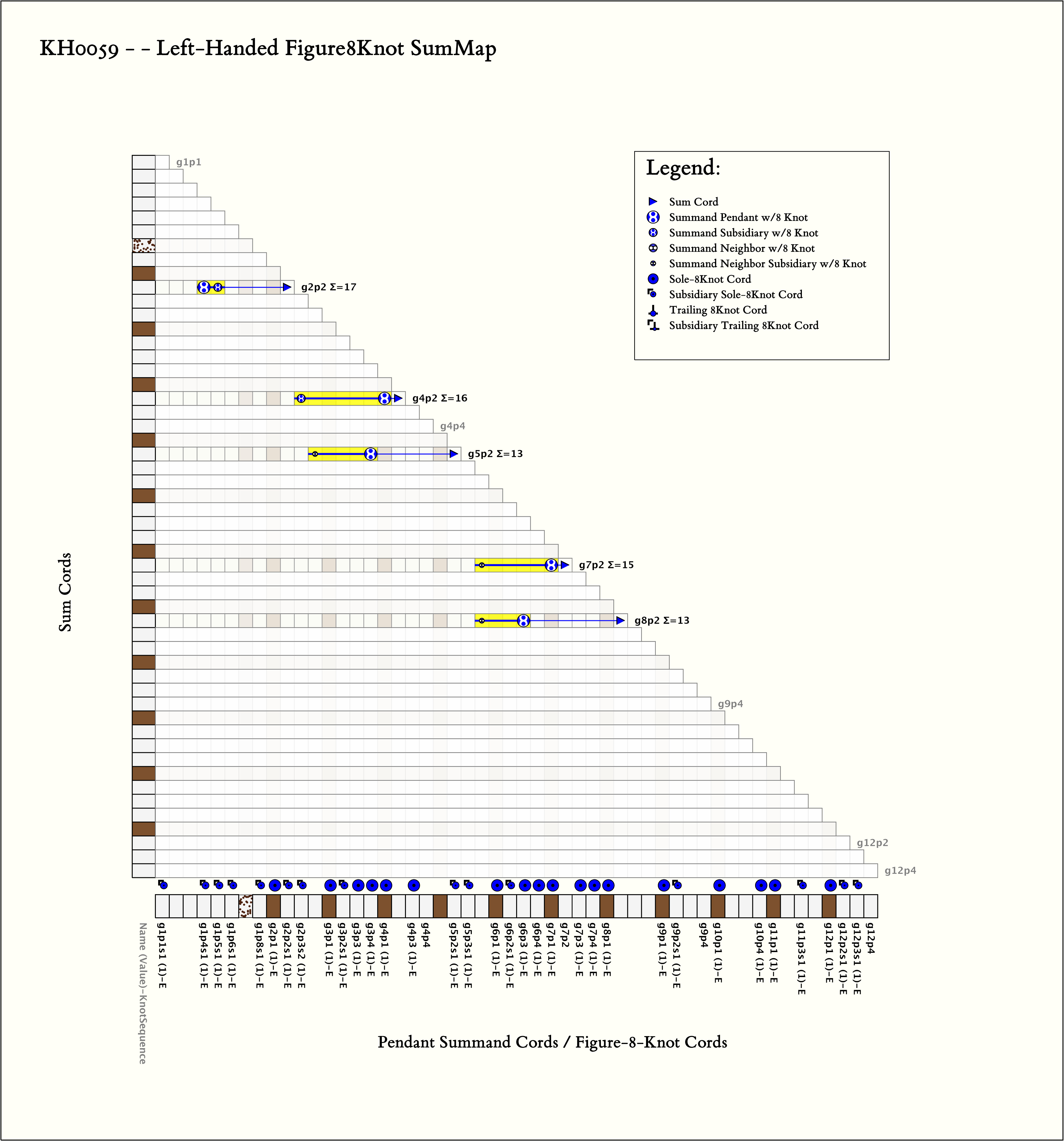

Left Handed Sums with Figure-8-Knots:     # Sums = 5,  Max # Summands = 7,   (Min, Mean, Max) Sum Values = (13, 15, 17)
Click on Image to View Larger

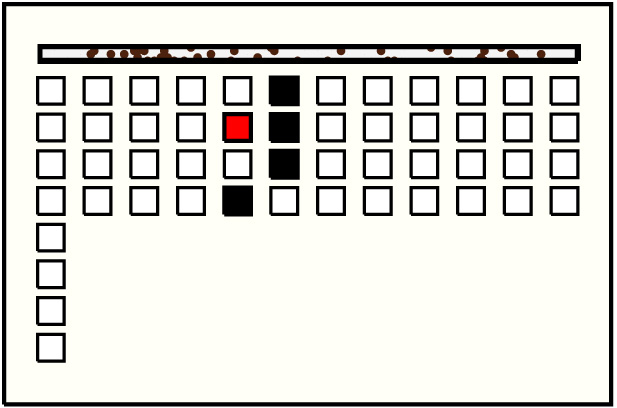

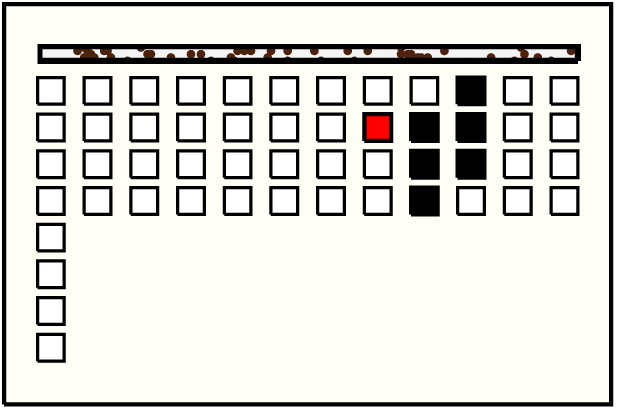

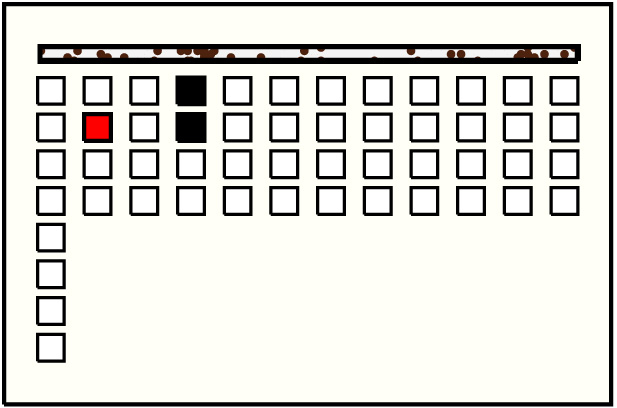

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p8 : 11W113∞g2p4: 4W∞ + g3p1: 1B + g3p2: 6W❽
2
g2p2 : 17W172❽g4p1: 1B + ∞g4p2: 16W∞
3
g4p2 : 16W164❽g5p3: 4W + g5p4: 4W + g6p1: 1B + g6p2: 7W❽
4
g5p2 : 13W134∞g5p4: 4W∞ + g6p1: 1B + g6p2: 7W + g6p3: 1W❽
5
g7p2 : 15W153❽g7p4: 1W + g8p1: 1B + ∞g8p2: 13W
6
g8p2 : 13W136❽g9p2: 2W + g9p3: 0W + g9p4: 0W + g10p1: 1B + g10p2: 6W + g10p3: 4W∞

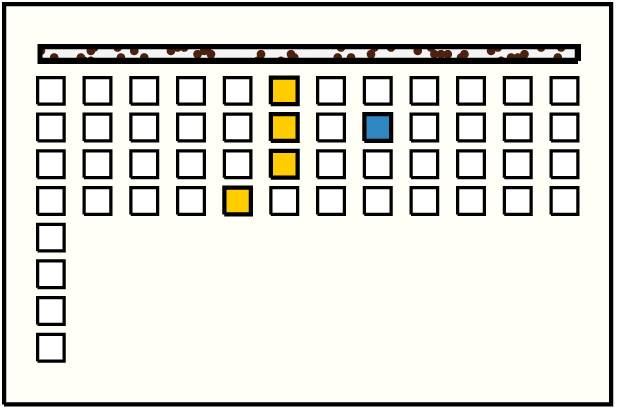

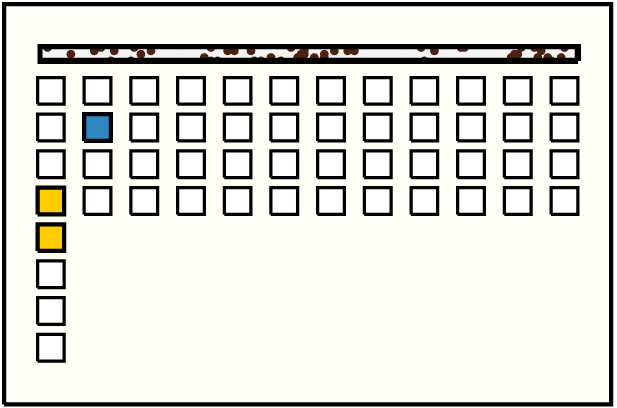

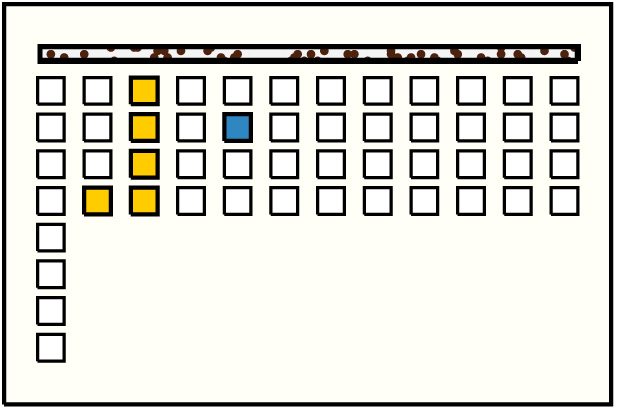

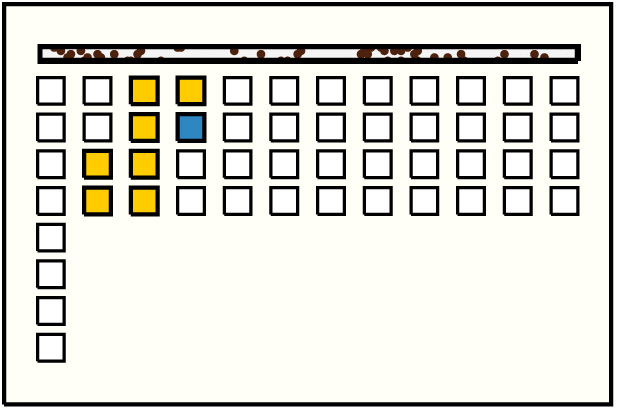

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g2p2 : 17W172❽g1p4: 9W + g1p5: 8W❽
2
g4p2 : 16W167❽g2p3: 2W + g2p4: 4W + g3p1: 1B + g3p2: 6W + g3p3: 1W + g3p4: 1W + g4p1: 1B❽
3
g5p2 : 13W135∞g2p4: 4W∞ + g3p1: 1B + g3p2: 6W + g3p3: 1W + g3p4: 1W❽
4
g7p2 : 15W156∞g5p4: 4W∞ + g6p1: 1B + g6p2: 7W + g6p3: 1W + g6p4: 1W + g7p1: 1B❽
5
g8p2 : 13W134∞g5p4: 4W∞ + g6p1: 1B + g6p2: 7W + g6p3: 1W❽

Khipu Notes:
Ascher Databook Notes:
  1. On cords P8s2, P34s2, and P47sl, the color change is at 2. 5 cm. On P46sl it is at 6.0 cm.
  2. KH0059 and KH0060 were excavated by University of Tokyo 1958 expedition, La Centinela, Tambo de Mora. The work is described in Andes, The University of Tokyo Expedition 1958, Report 1, pp. 225-226. The Museum has several associated fragments of pottery.
  3. The khipu has 12 groups by spacing. The last 11 groups each have 4 pendants and the same color pattern (B, W, W, W). For all 11 groups:
    1. positions 1 and 4 have no subsidiaries.
    2. position 2 has the maximum value. With the exception of the last group, P2 > P1 + P3 + P4.
    3. the values on pendants and subsidiaries are each 17 or less. Only 0, 1 appears in position l; 0-4 in position 3; 0-2, 4, 7 in position 4; and 1, 2,3, 7 on subsidiaries.
  4. The values on pendants in group 1 are between 6 and 11, and all 6 subsidiaries have value 1.
