KH0121/UR1107, AS107, UR237, KH0473 - Pendant Pendant Sums
Drawings:

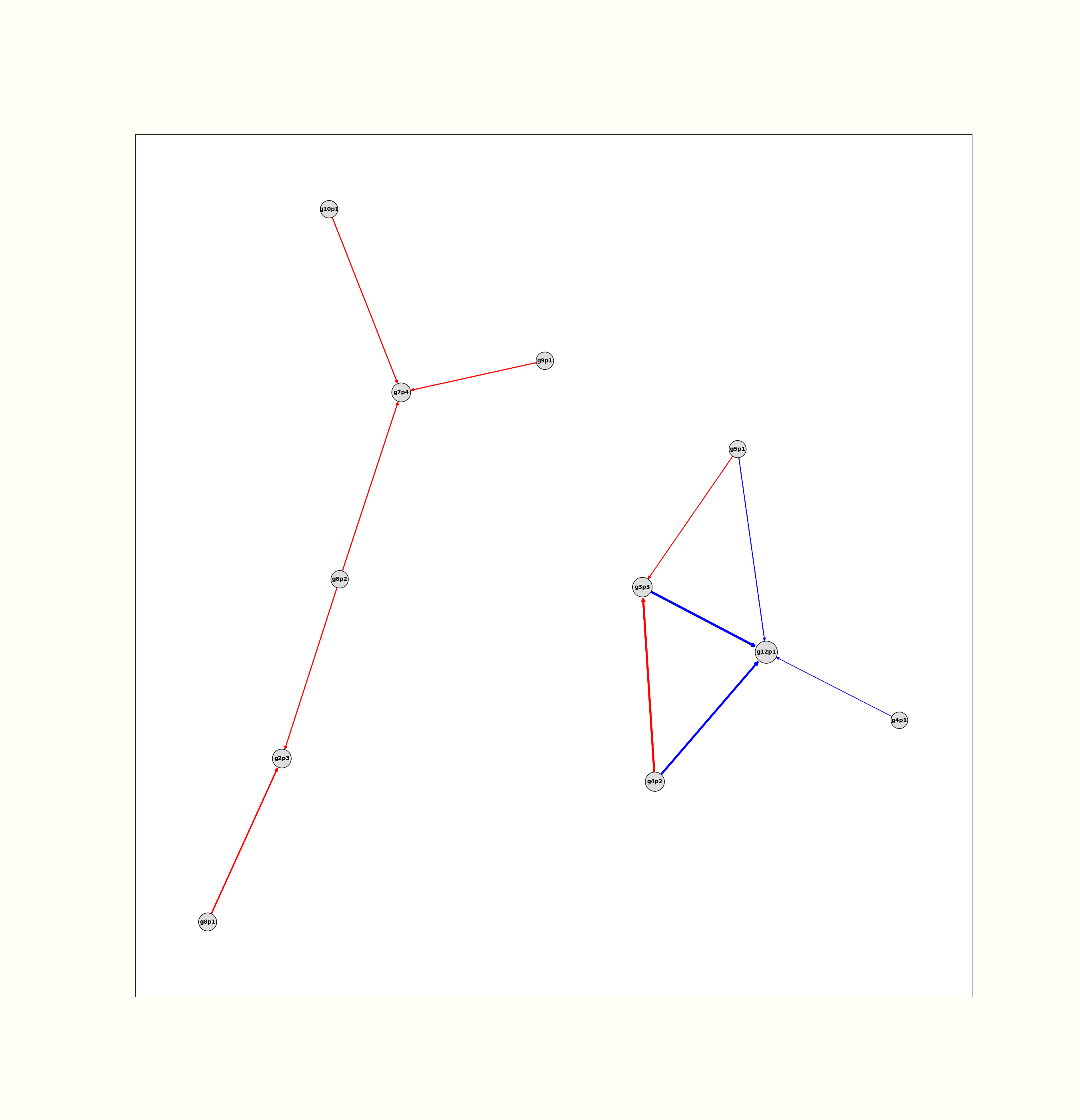

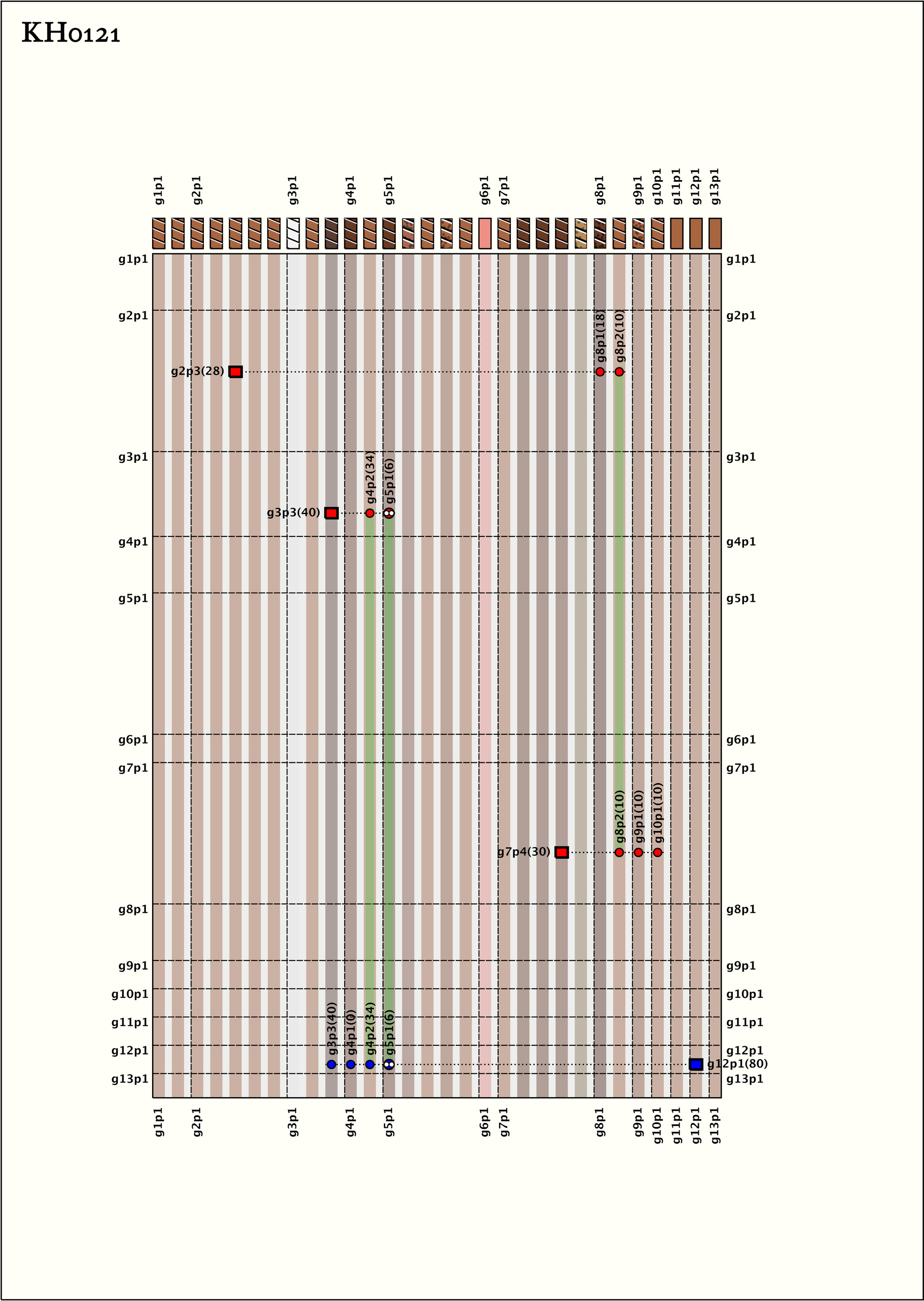

Sum NetGraph - Click on image to view larger
 |

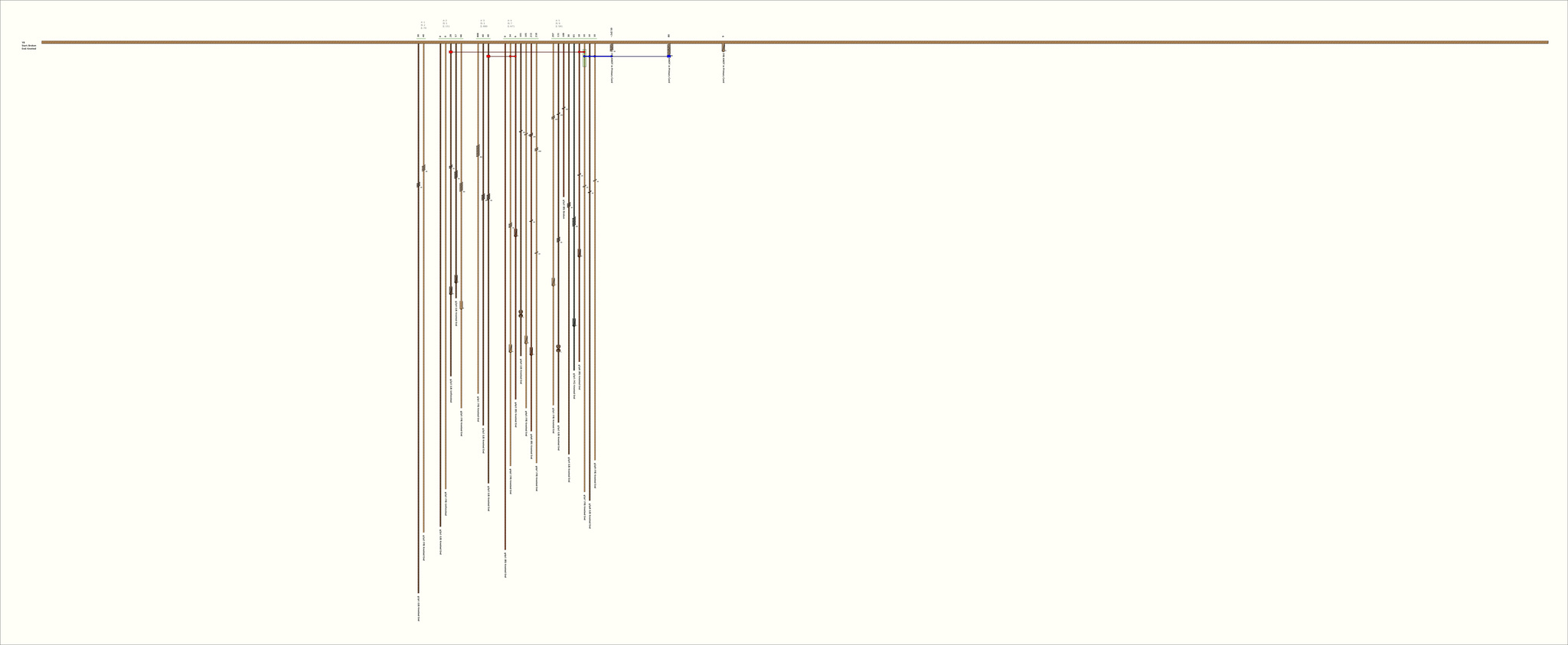

Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

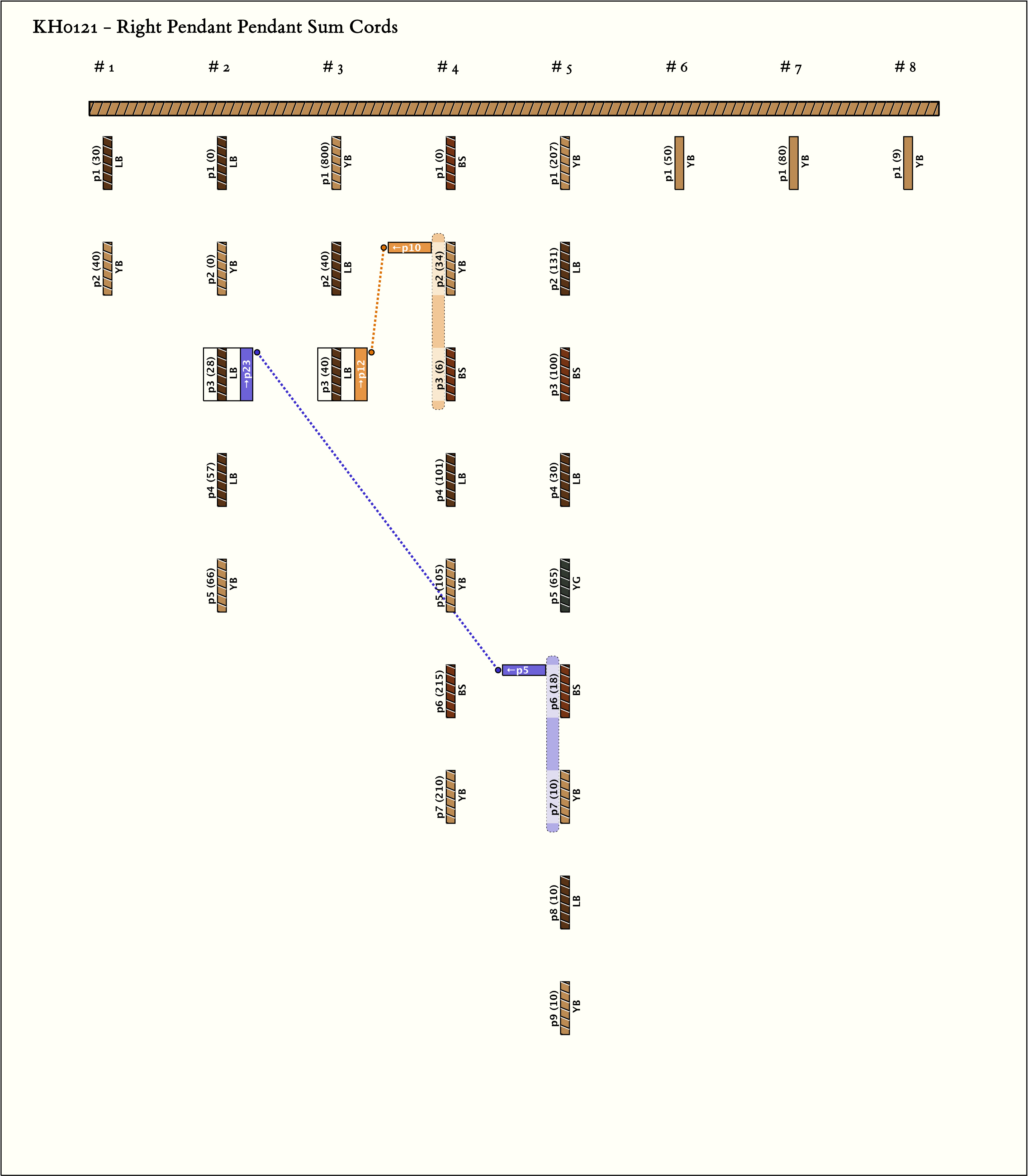

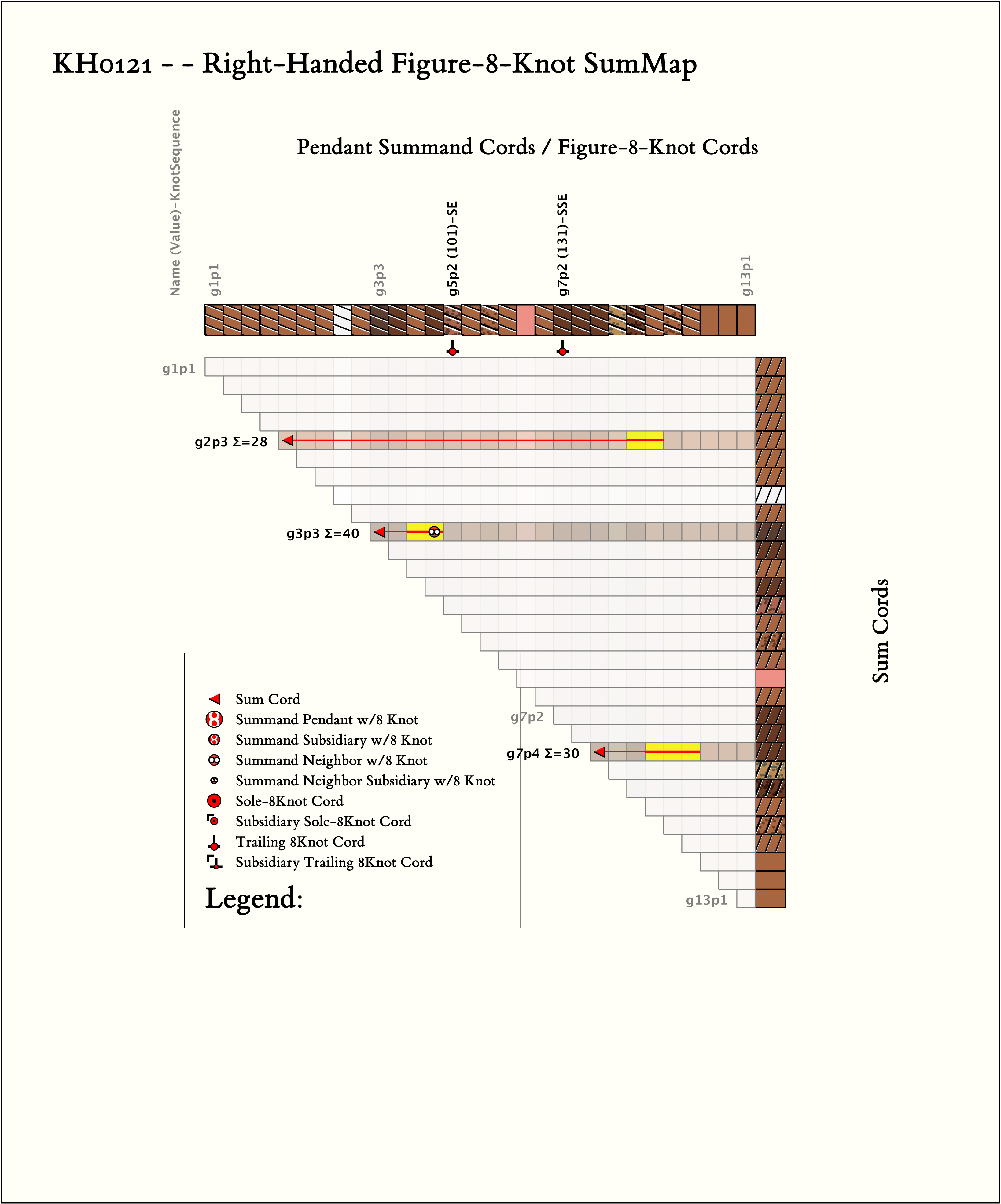

Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 3, (Min, Mean, Max) Sum Values = (28, 33, 40)
Click on Image to View Larger

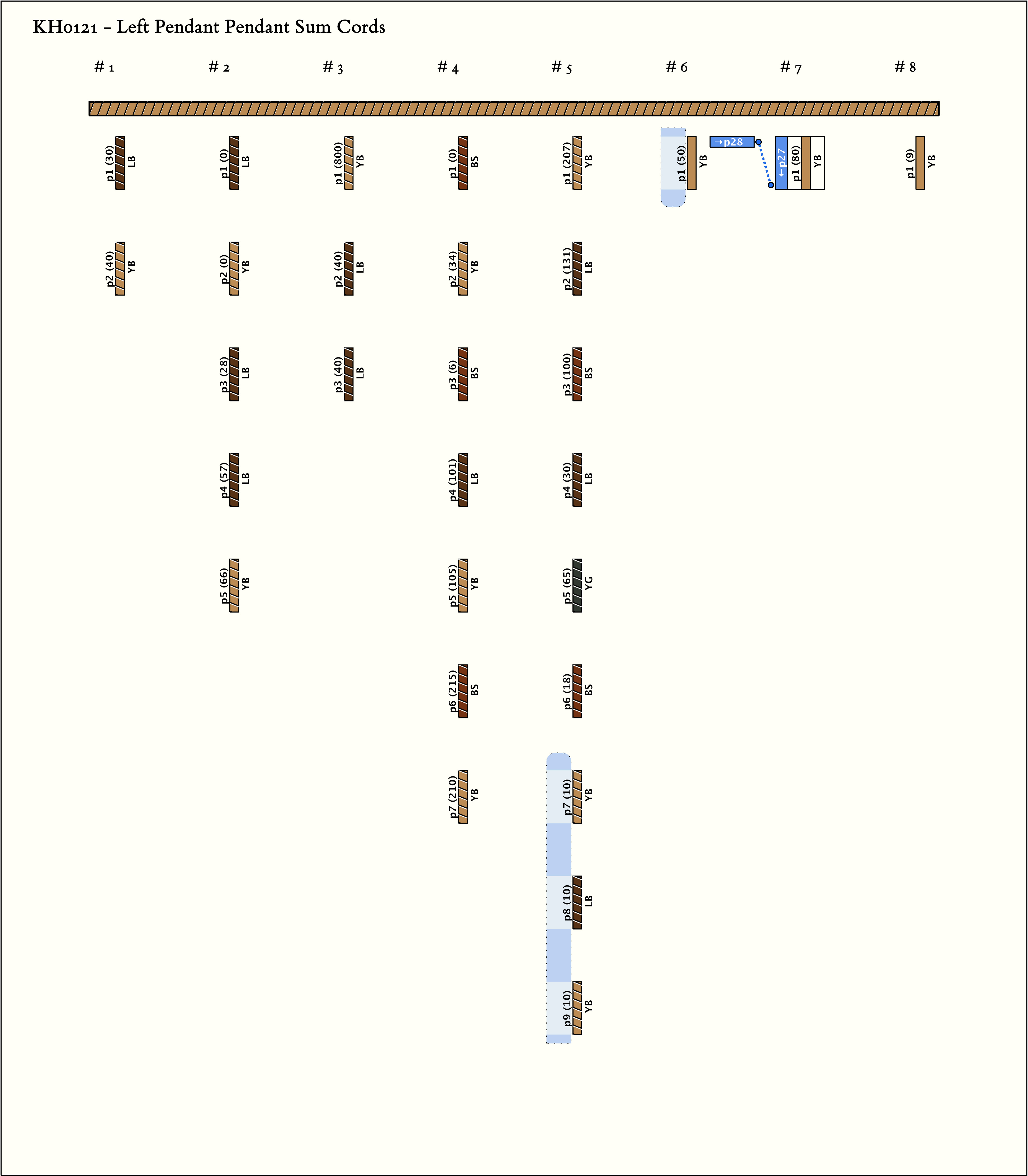

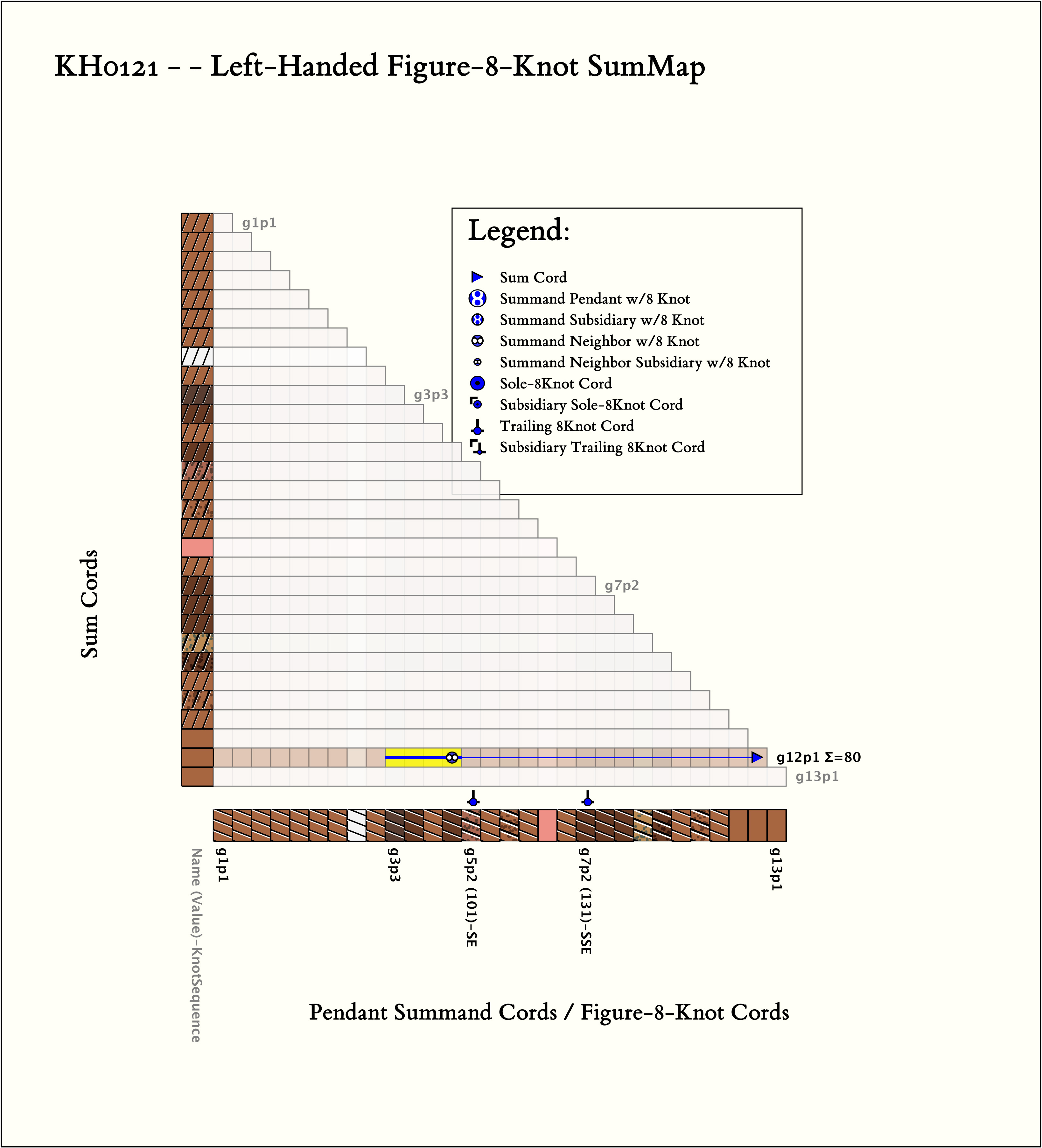

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 4, (Min, Mean, Max) Sum Values = (80, 80, 80)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

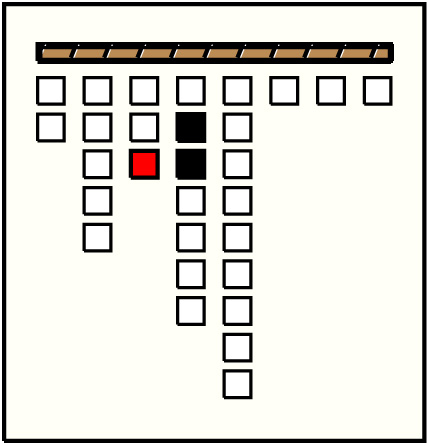

| 1 |  | g2p3 : 28AB | 28 | 2 | g8p1: 18MB:KB + g8p2: 10AB | |
| 2 |  | g3p3 : 40HB | 40 | 2 | g4p2: 34AB + g5p1: 6MB∞ | |

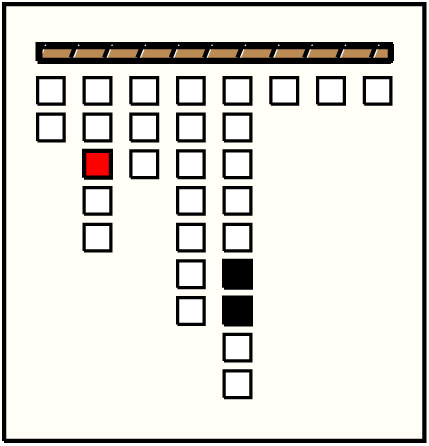

| 3 |  | g7p4 : 30MB | 30 | 3 | g8p2: 10AB + g9p1: 10AB:MB + g10p1: 10AB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

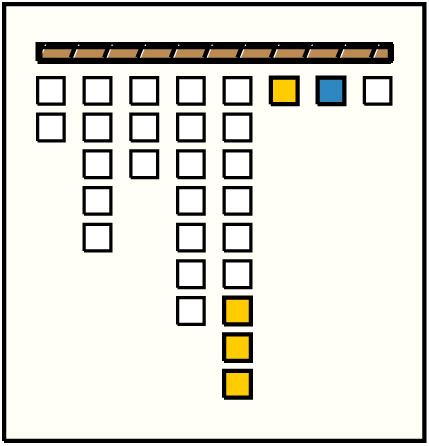

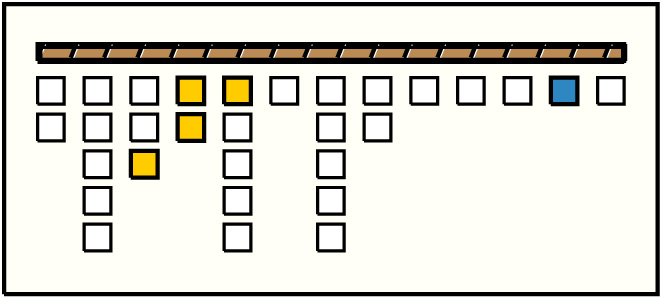

| 1 |  | g12p1 : 80AB | 80 | 4 | g3p3: 40HB + g4p1: 0MB + g4p2: 34AB + g5p1: 6MB∞ |
Khipu Notes:
Ascher Databook Notes:
- This is one of several khipus acquired by the Museum in 1899 with provenance Marquez. This group includes KH00116, KH00117, KH0138, KH00142, and KH00143. For a comparison of them, see KH00116.
- By spacing, the khipu is separated into groups that contain different numbers of pendants.
- Assuming that P20 has value 108, the knots on the main cord represent a value that is the sum of the values on the 9 pendants in the last group.
