KH0204/AS186 - Pendant Pendant Sums
Drawings:

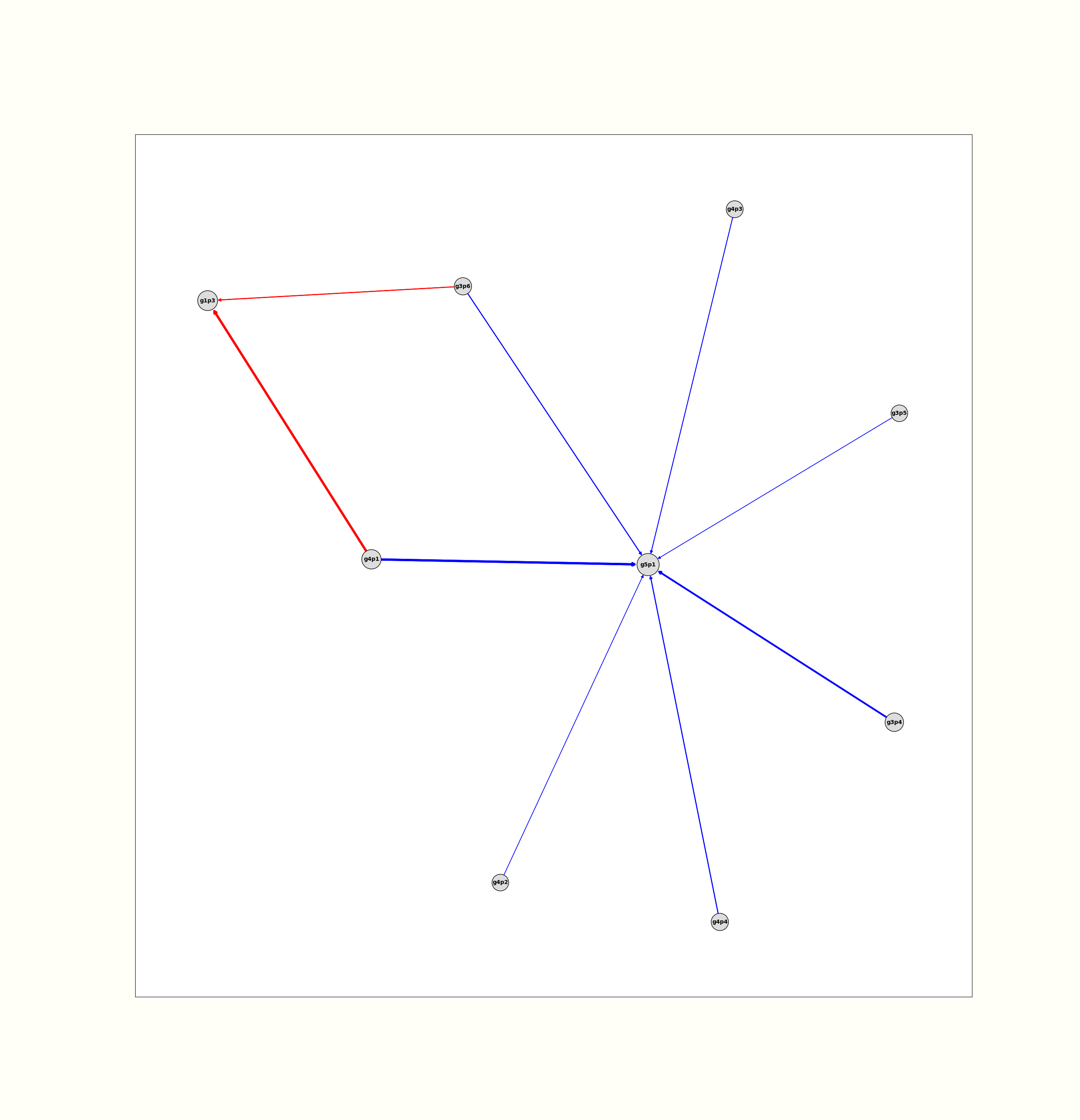

Sum NetGraph - Click on image to view larger
 |

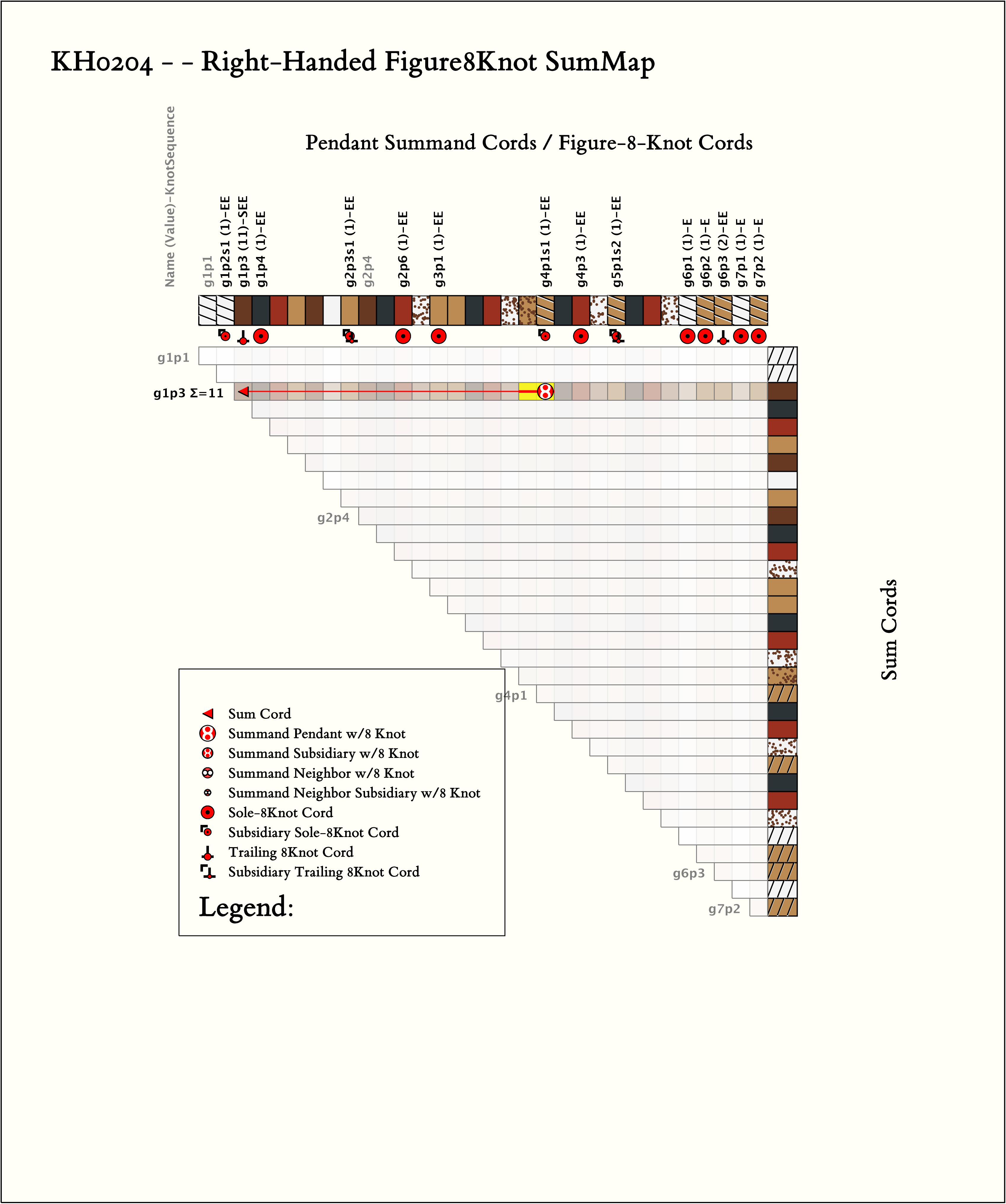

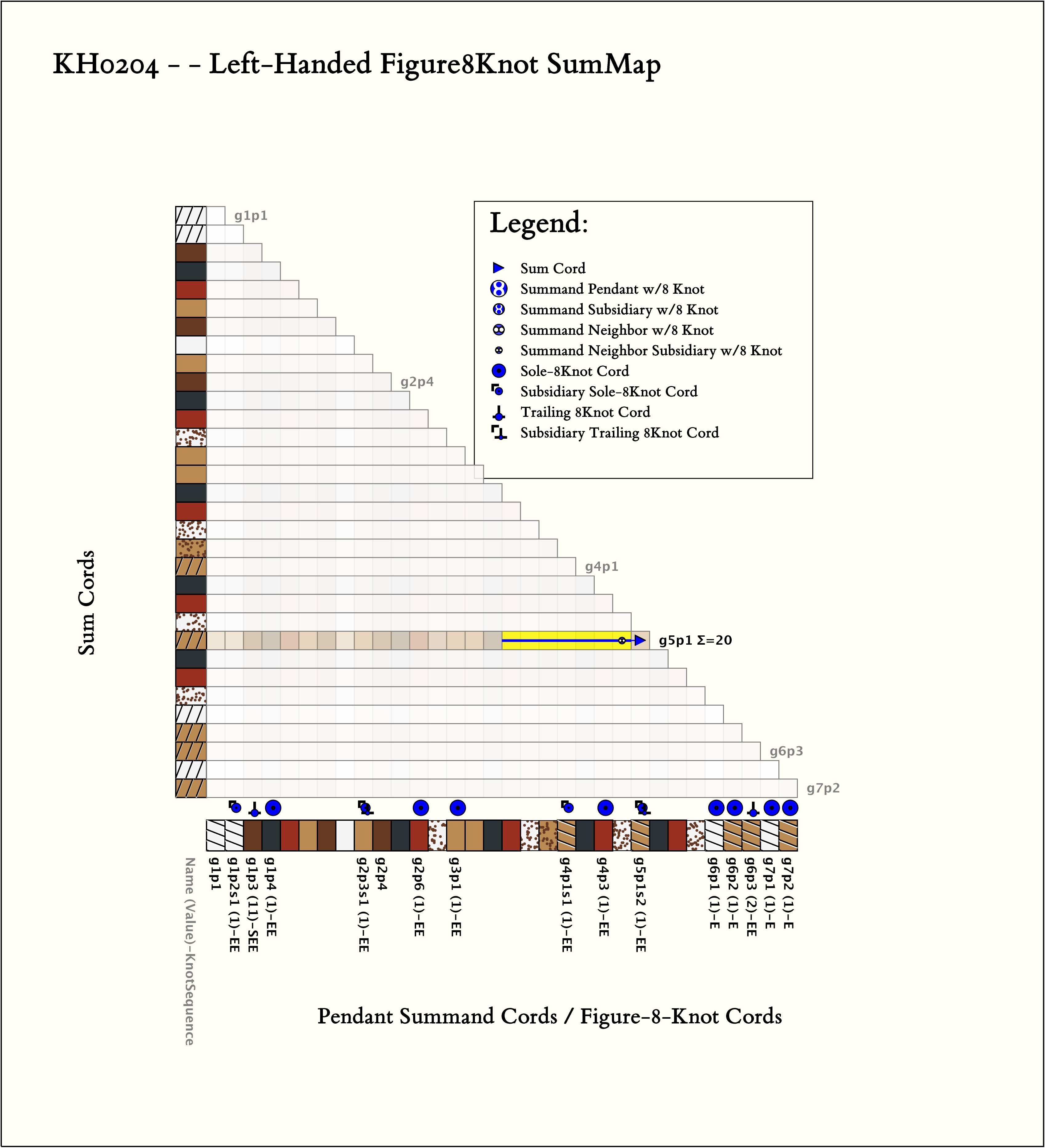

Sum Map - Click on image to view larger
 |

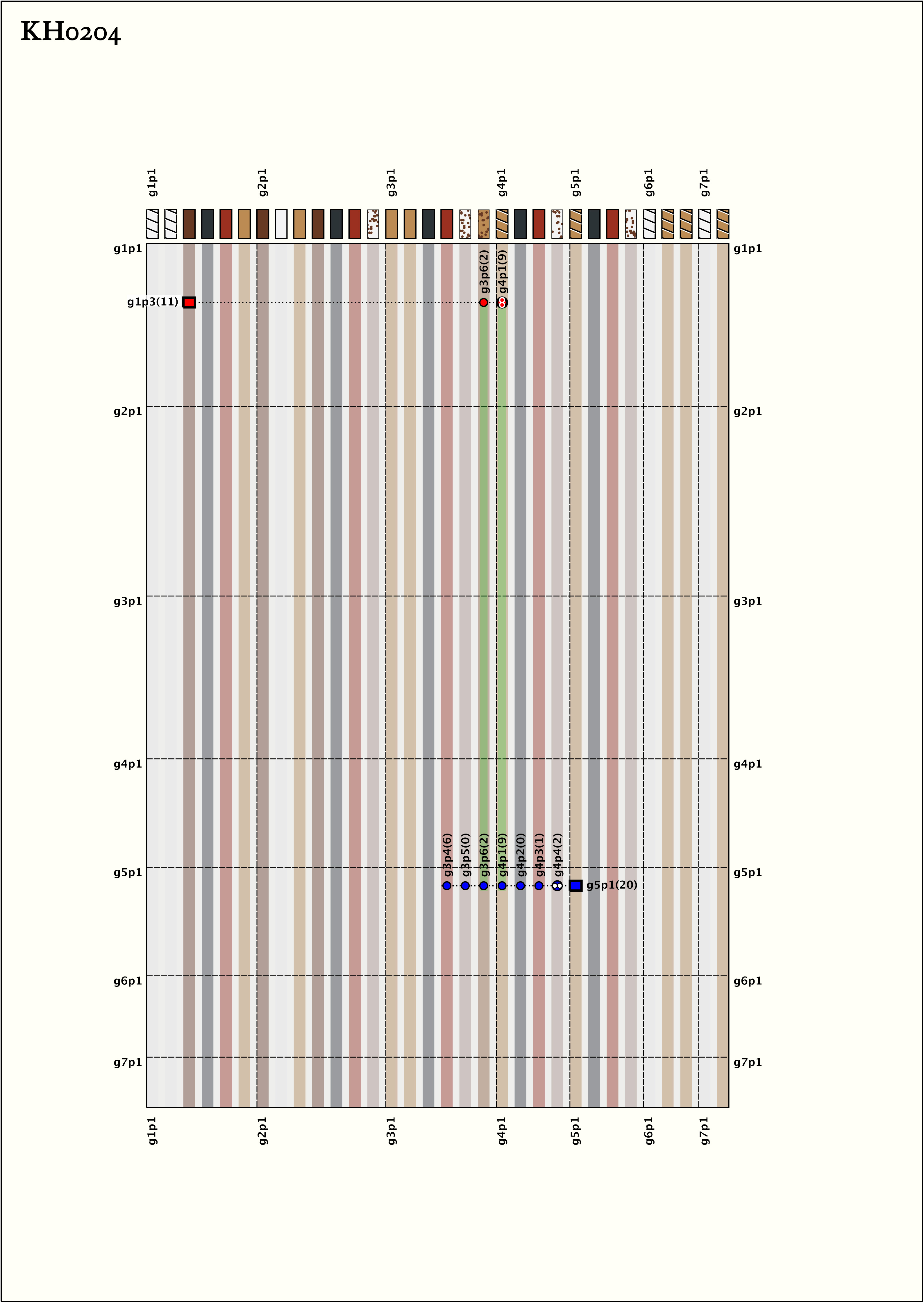

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

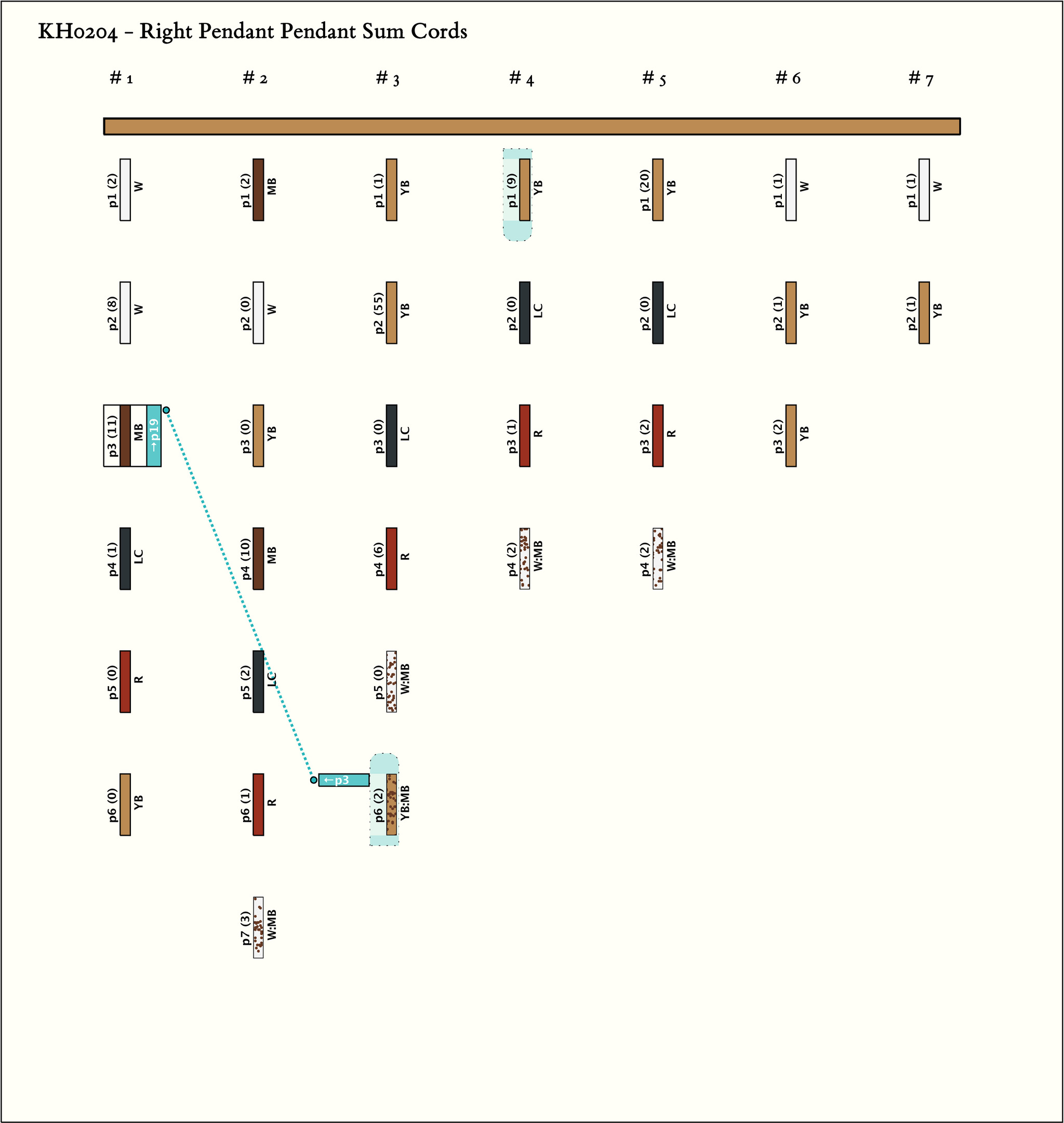

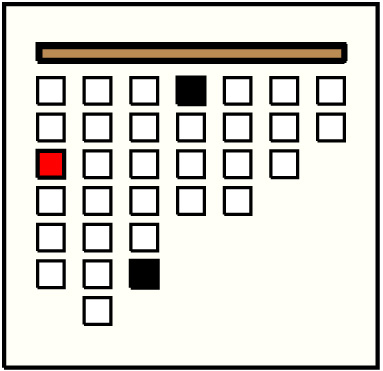

Right Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 2, (Min, Mean, Max) Sum Values = (11, 11, 11)
Click on Image to View Larger

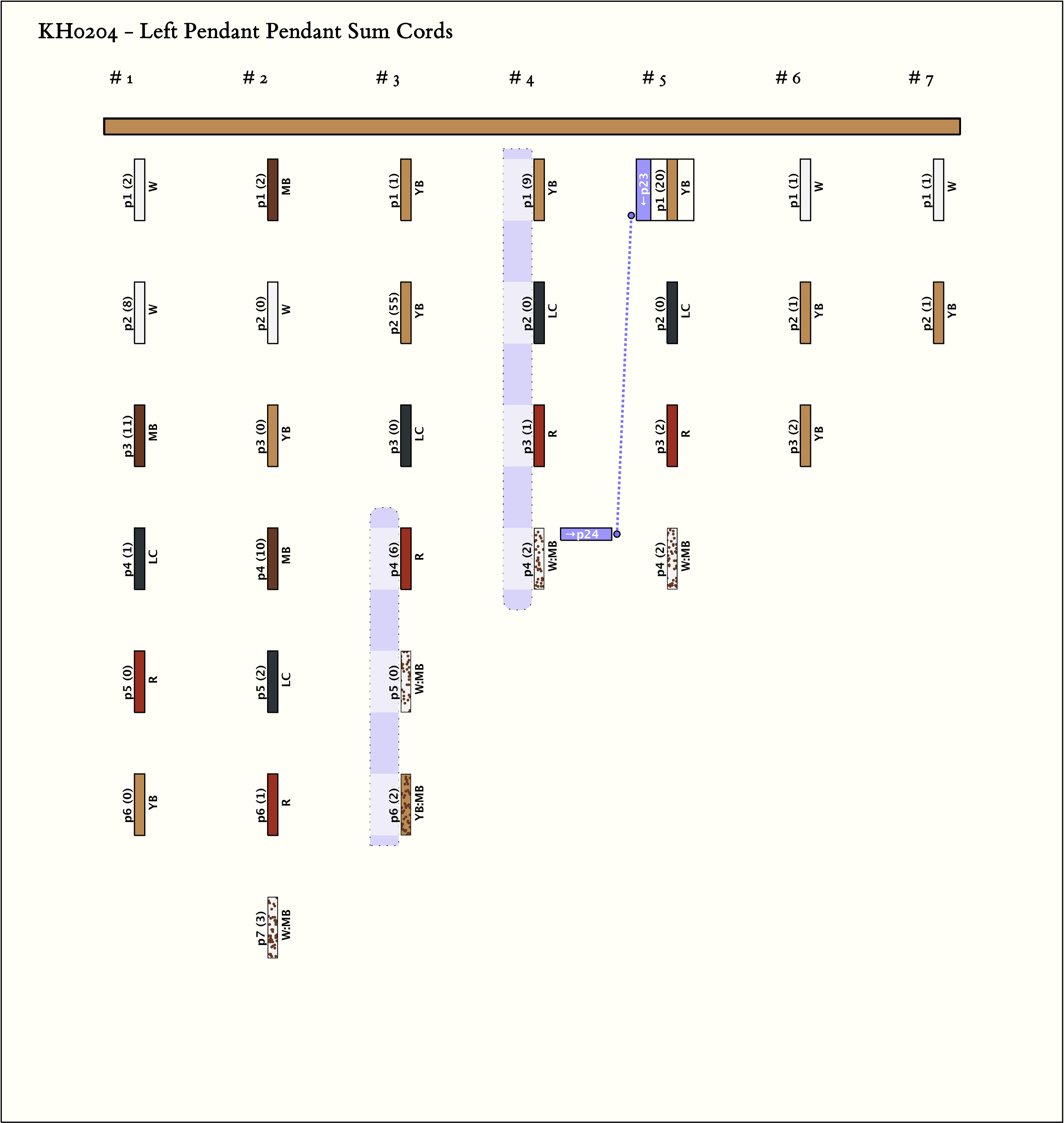

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 7, (Min, Mean, Max) Sum Values = (20, 20, 20)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p3 : 11MB | 11 | 2 | g3p6: 2YB:MB∞ + g4p1: 9YB❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g5p1 : 20YB | 20 | 7 | g3p4: 6R + g3p5: 0W:MB + g3p6: 2YB:MB + g4p1: 9YB + g4p2: 0LC + g4p3: 1R + ∞g4p4: 2W:MB∞ |
Khipu Notes:
Ascher Databook Notes:
- KH0199-KH0204 are associated in that they are tied together. For a comparison of them, see KH0199.
- By spacing, the khipu is separated into 3 parts of 2, 3, and 2 groups respectively. Although the groups differ in the number of pendants, within each part there is some shared color pattern:
- Both groups in part 1 have 3 consecutive pendants MB, LC, and R (with an R:W subsidiary);
- Each of the 3 groups in part 2 have 4 consecutive pendants YB (with 3 subsidiaries YB, LB:LC, W), LC, R (with an R:W subsidiary), and MB:W (with an FB:W subsidiary); and
- Each of the 2 groups in part 3 have a W pendant followed by a YB pendant.
