KH0273/UR041 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

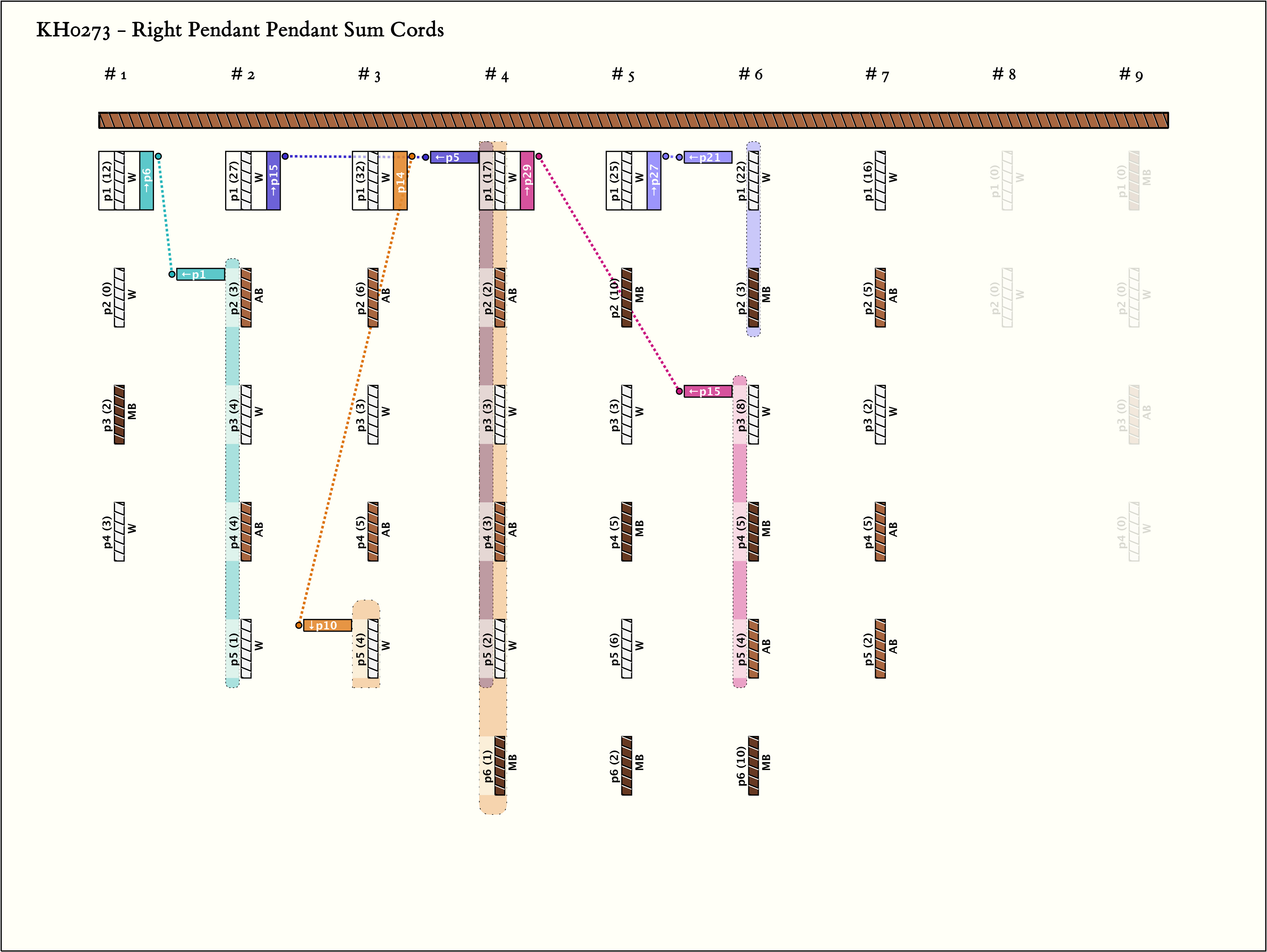

Right Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 7, (Min, Mean, Max) Sum Values = (12, 23, 32)
Click on Image to View Larger

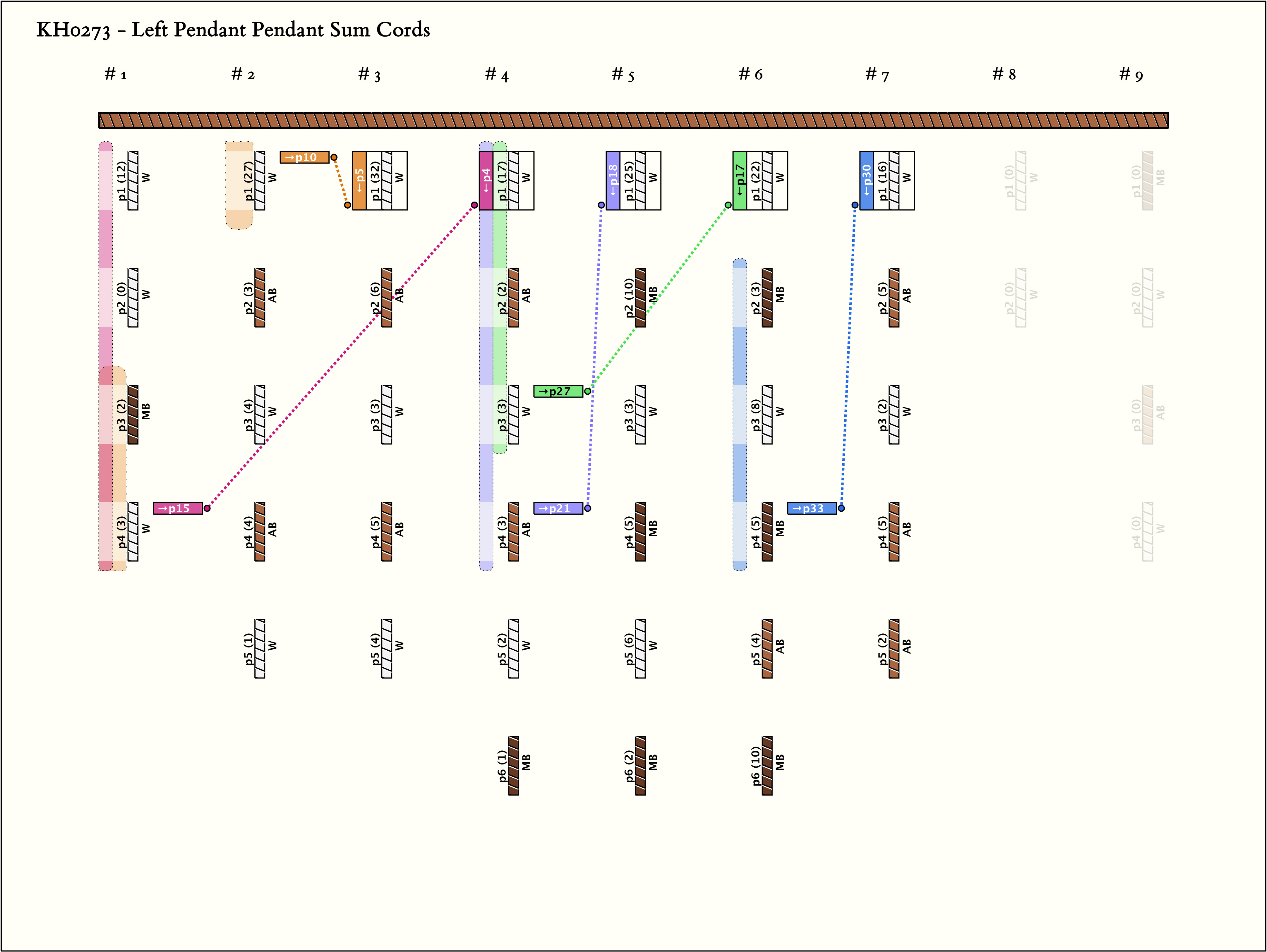

Left Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 4, (Min, Mean, Max) Sum Values = (16, 22, 32)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

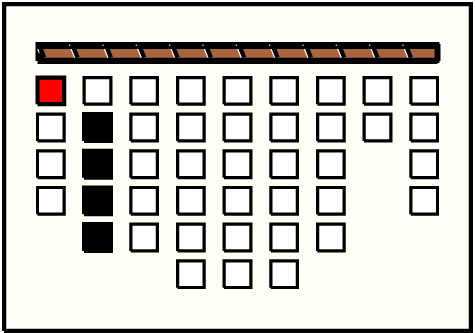

| 1 |  | g2p1 : 12W | 12 | 4 | g3p2: 3AB + g3p3: 4W + g3p4: 4AB + g3p5: 1W❽ | |

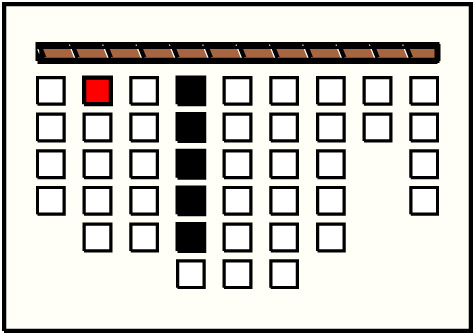

| 2 |  | g3p1 : 27W | 27 | 5 | g5p1: 17W + g5p2: 2AB + g5p3: 3W + g5p4: 3AB + g5p5: 2W∞ | |

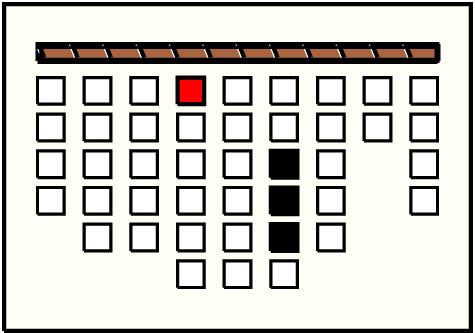

| 3 |  | g4p1 : 32W | 32 | 7 | g4p5: 4W + g5p1: 17W + g5p2: 2AB + g5p3: 3W + g5p4: 3AB + g5p5: 2W + g5p6: 1MB❽ | |
| 4 |  | g5p1 : 17W | 17 | 3 | g7p3: 8W + g7p4: 5MB + g7p5: 4AB | |

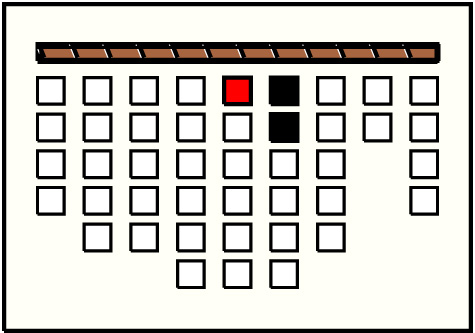

| 5 |  | g6p1 : 25W | 25 | 2 | g7p1: 22W + g7p2: 3MB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

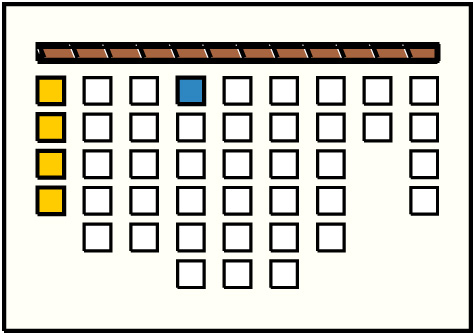

| 1 |  | g4p1 : 32W | 32 | 3 | g2p3: 2MB + g2p4: 3W + g3p1: 27W | |

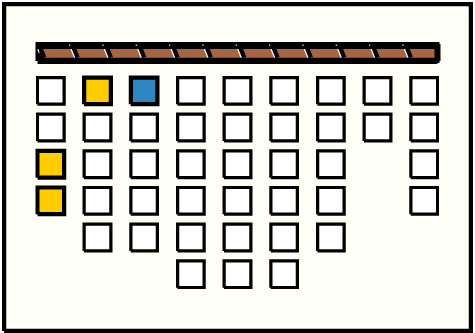

| 2 |  | g5p1 : 17W | 17 | 4 | g2p1: 12W + g2p2: 0W + g2p3: 2MB + g2p4: 3W | |
| 3 |  | g6p1 : 25W | 25 | 4 | g5p1: 17W + g5p2: 2AB + g5p3: 3W + g5p4: 3AB | |
| 4 |  | g7p1 : 22W | 22 | 3 | g5p1: 17W + g5p2: 2AB + g5p3: 3W | |
| 5 |  | g8p1 : 16W | 16 | 3 | g7p2: 3MB + g7p3: 8W + g7p4: 5MB |
Khipu Notes:
Cultural Affiliation "Inca? early nazca?" and in remarks, "Orig says 'early nazca' 'prob. made up' from Peabody Museum.
