KH0310/UR073 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

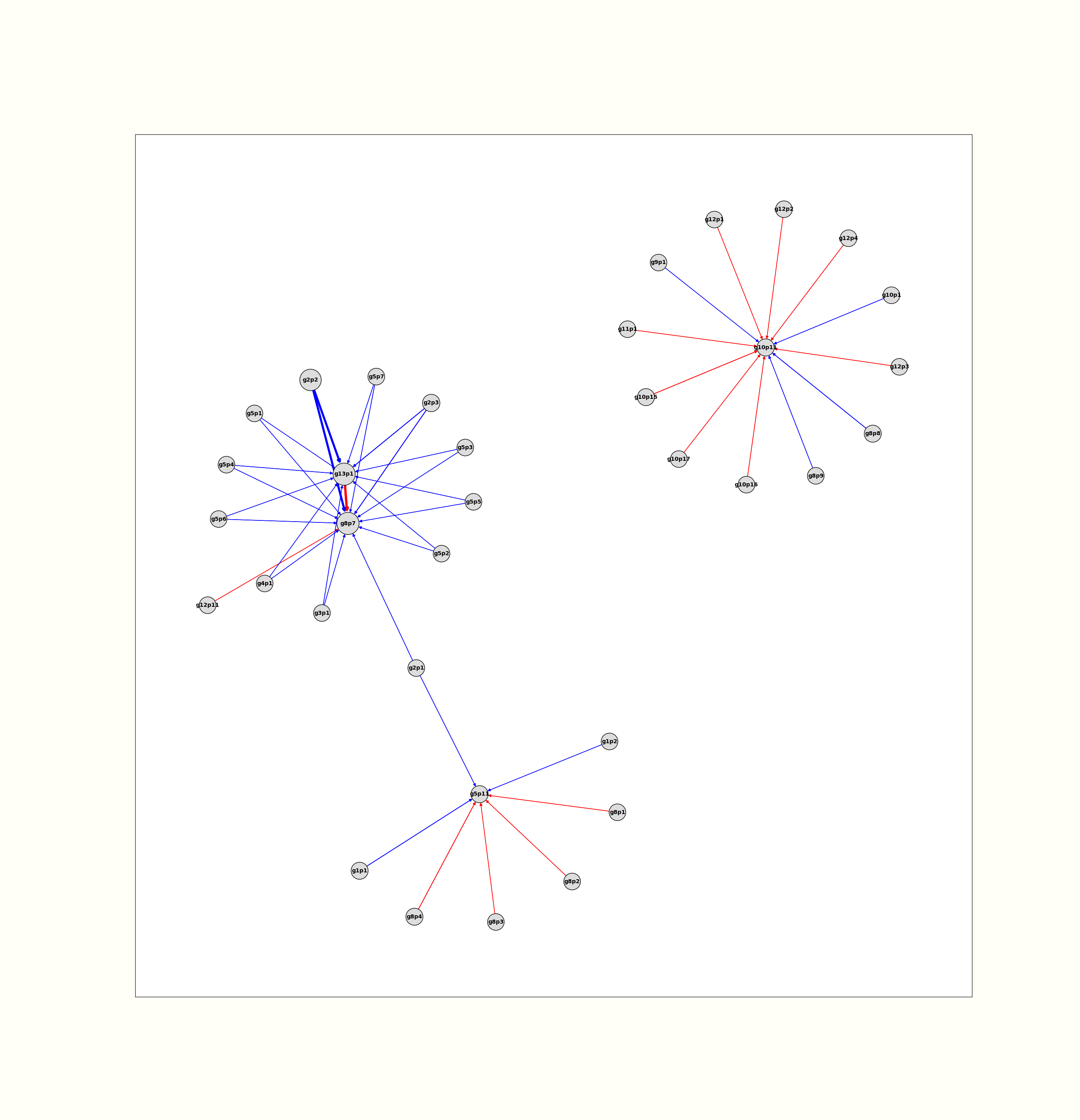

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

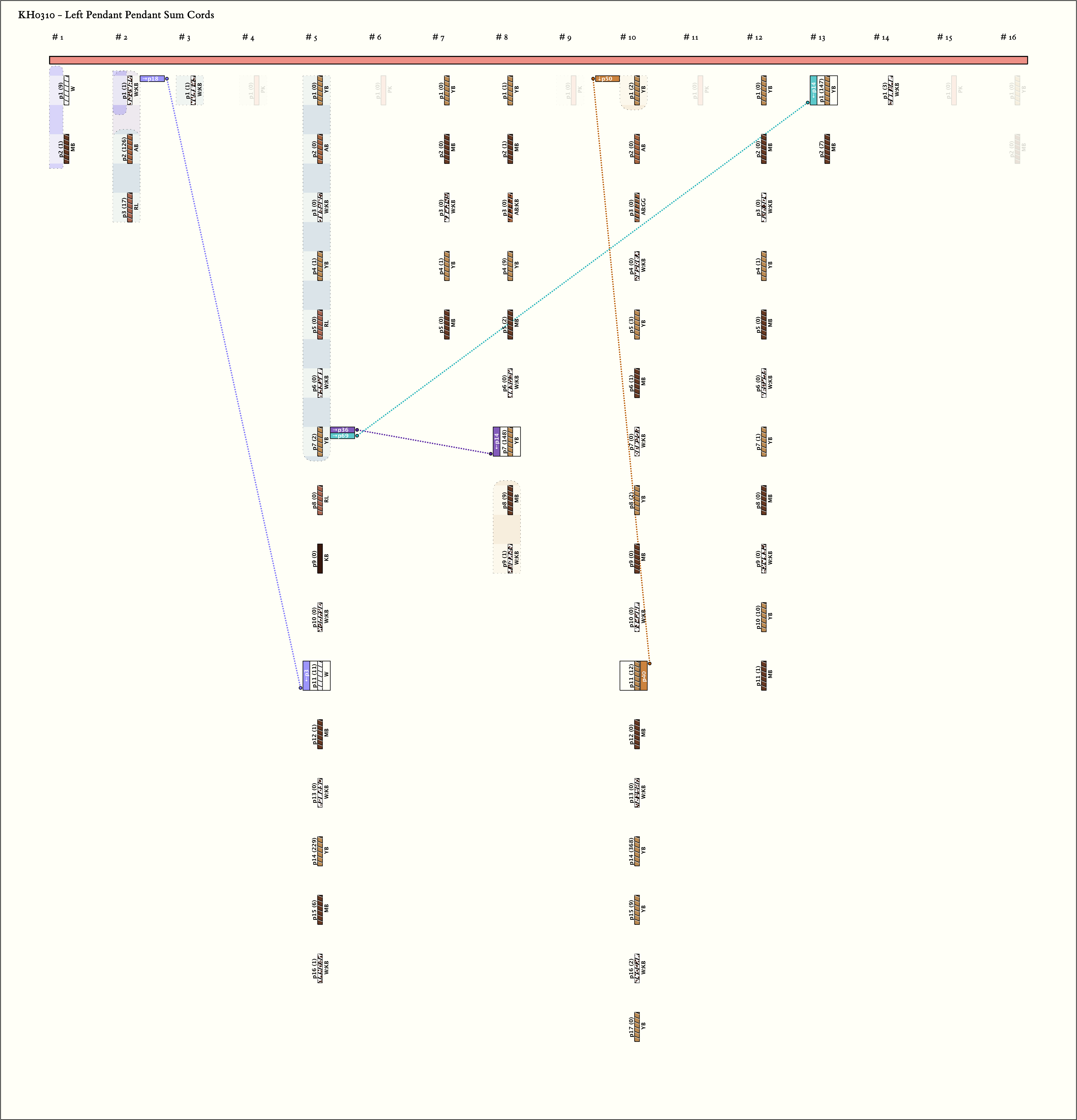

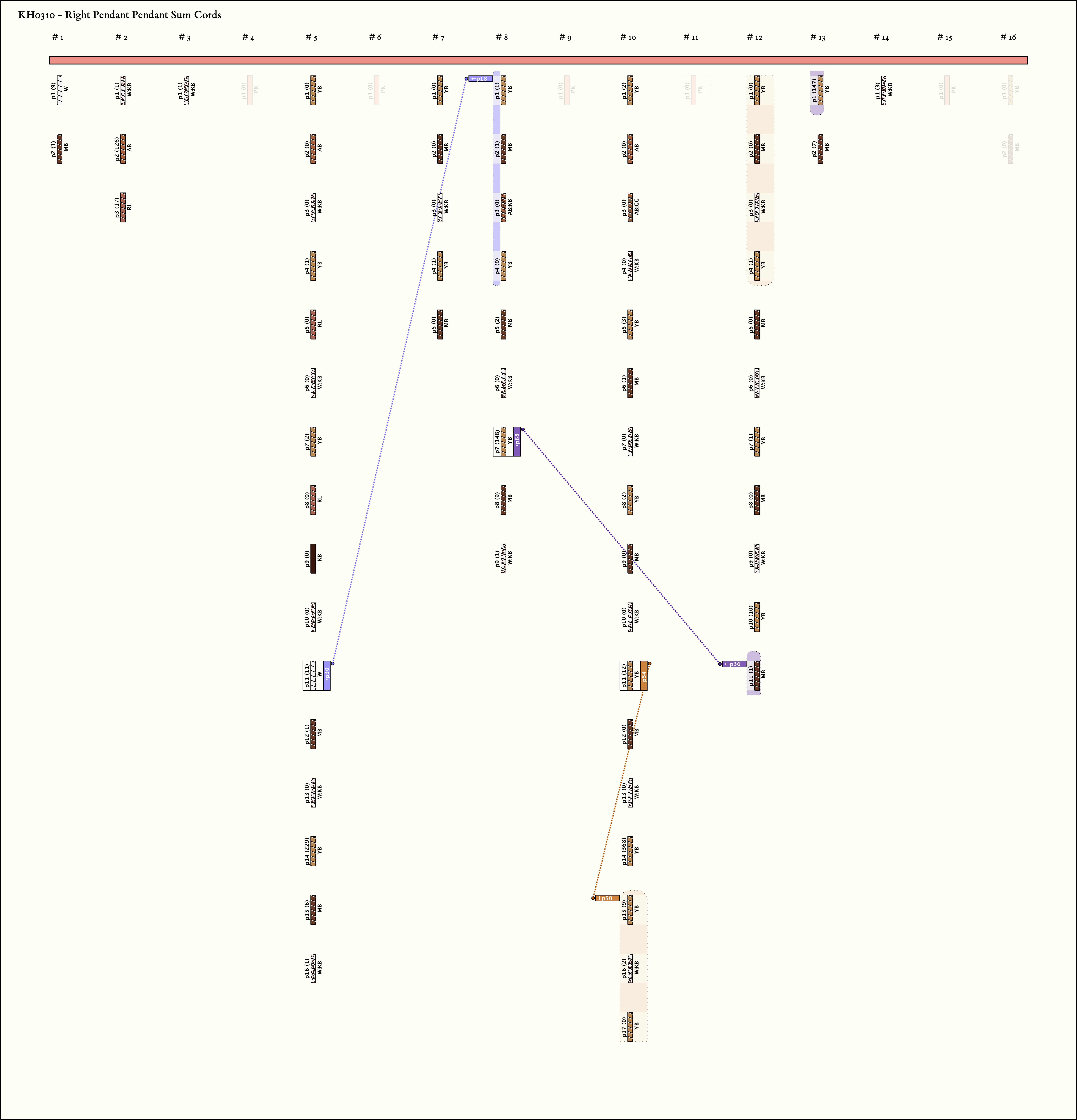

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

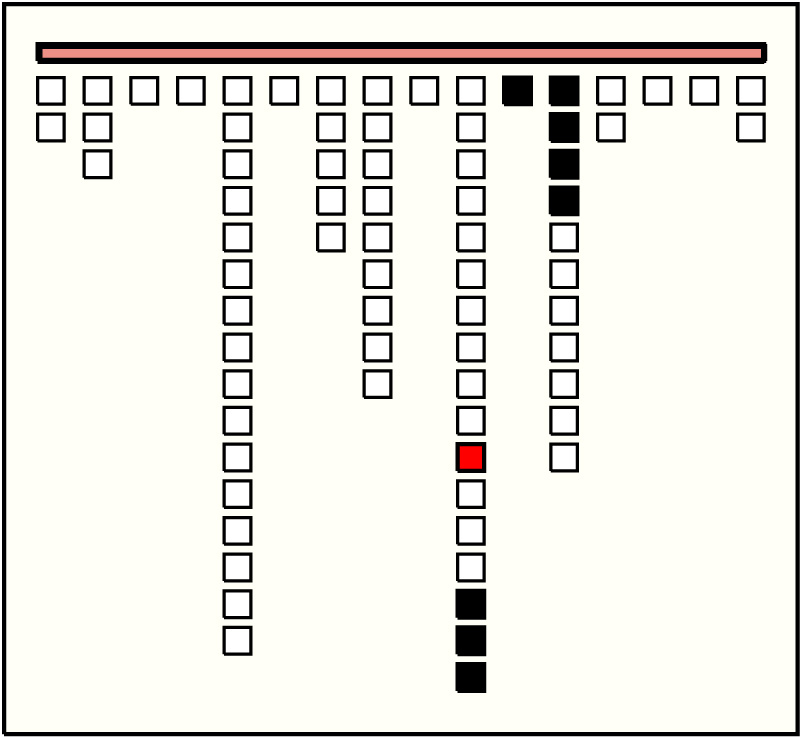

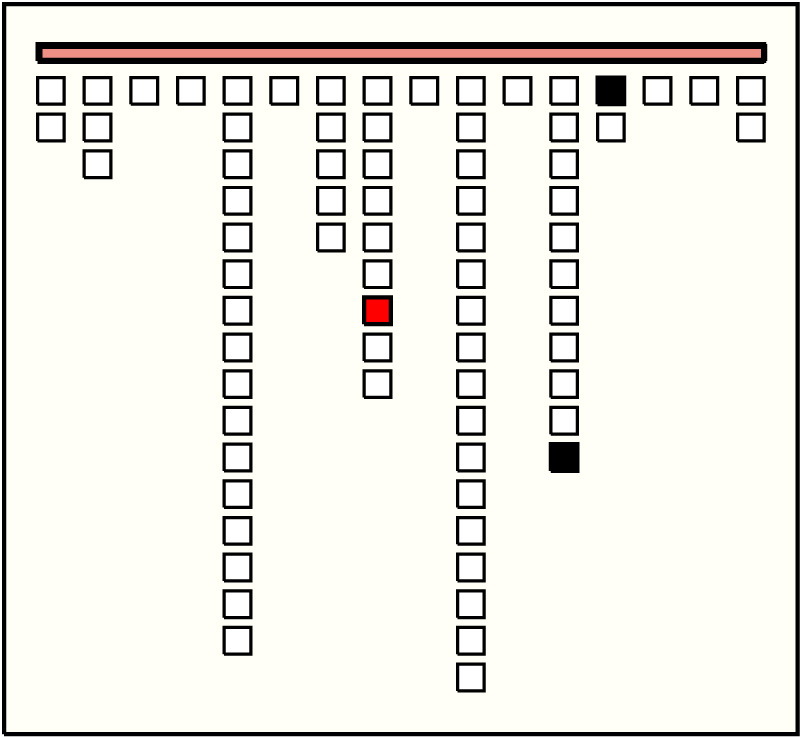

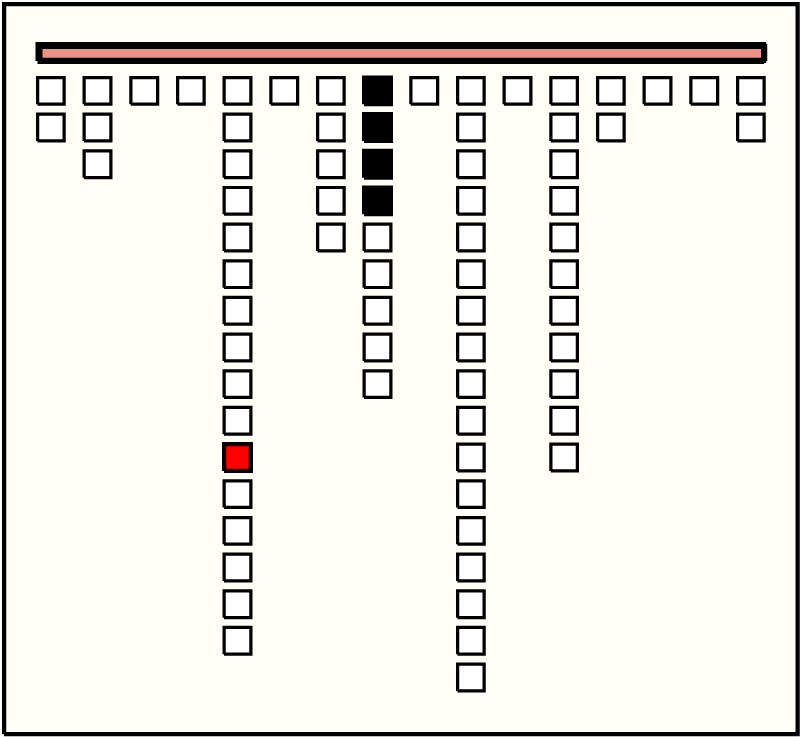

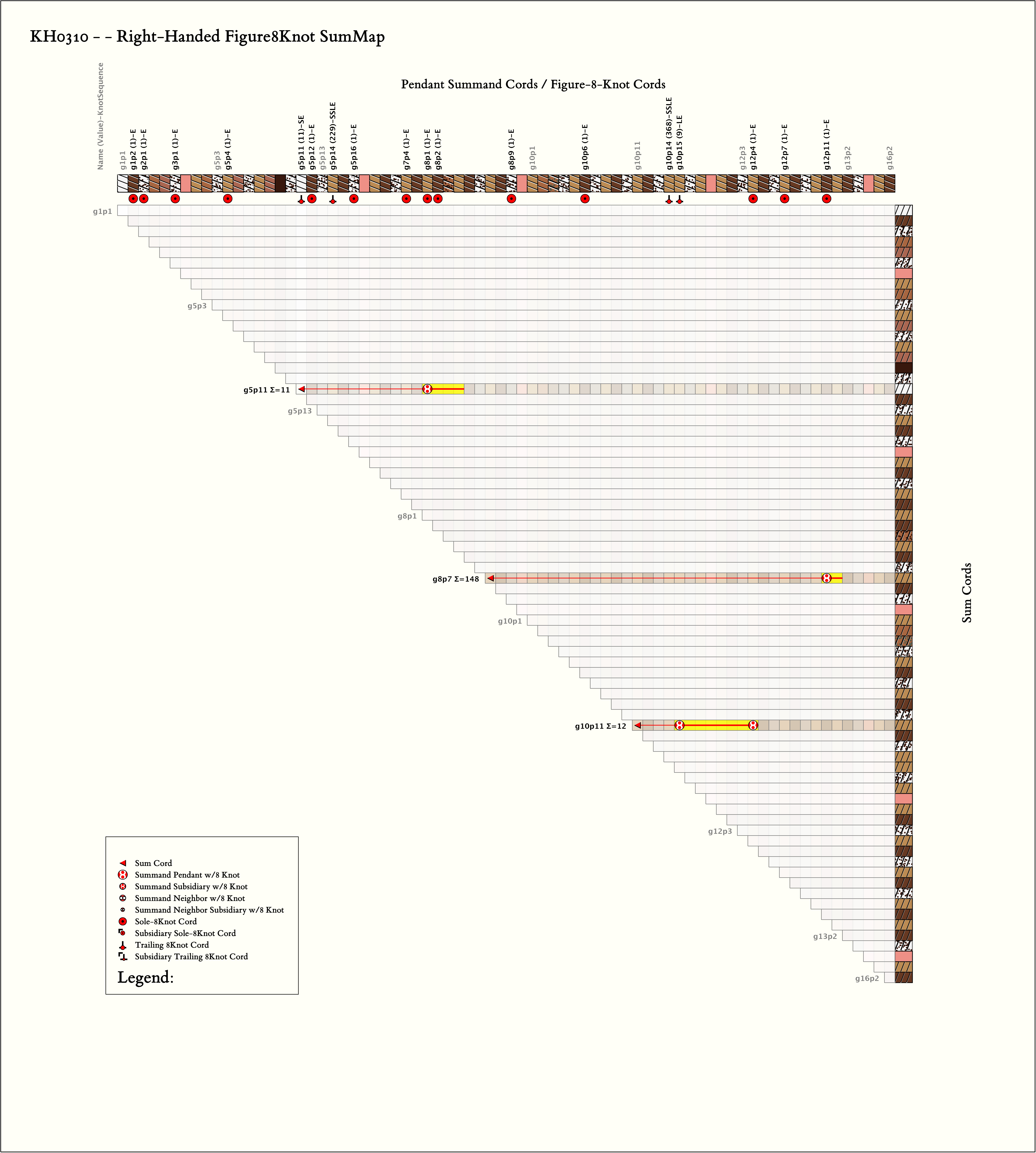

Right Handed Sums with Figure-8-Knots:     # Sums = 3,  Max # Summands = 8,   (Min, Mean, Max) Sum Values = (11, 57, 148)
Click on Image to View Larger

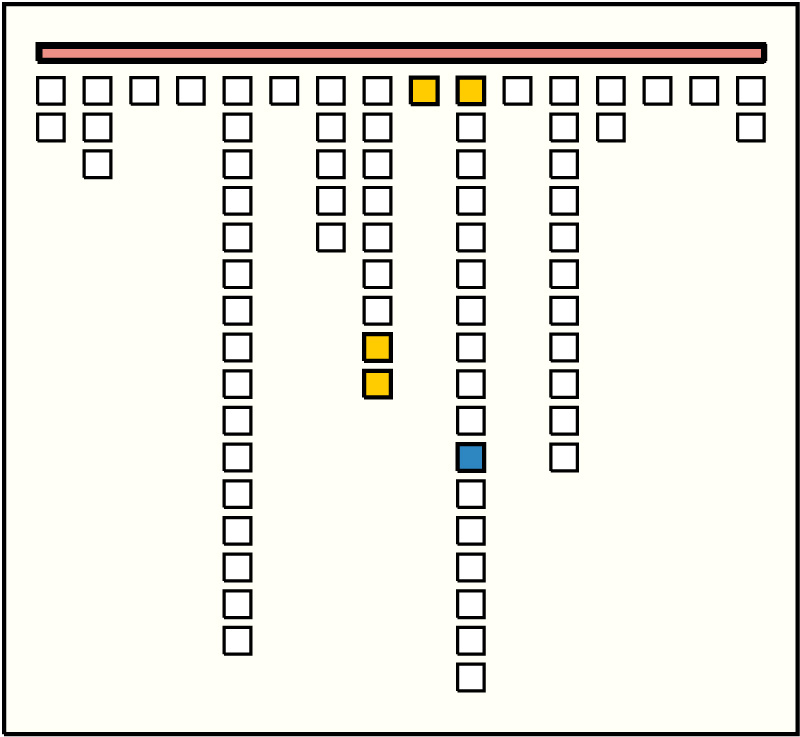

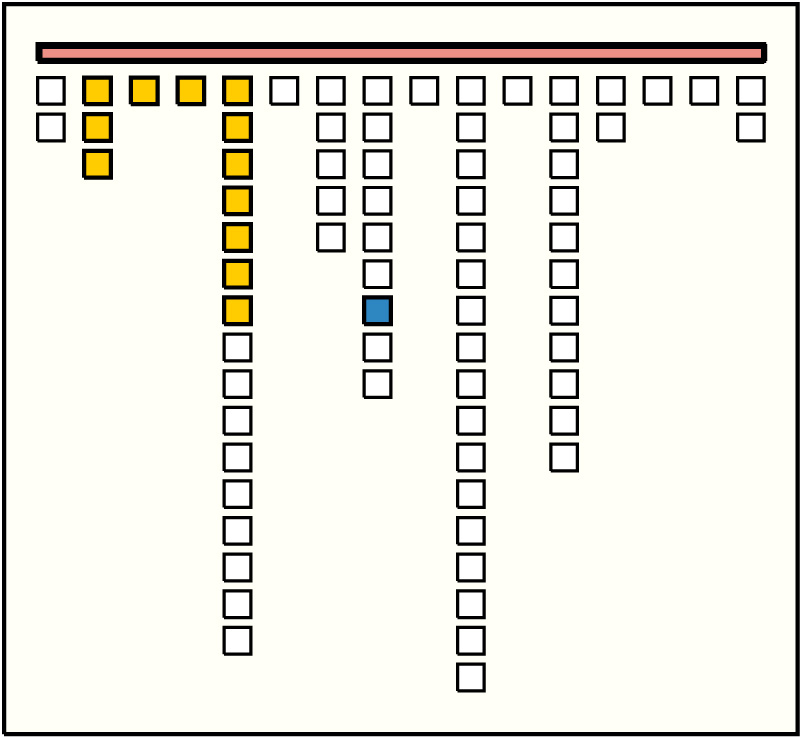

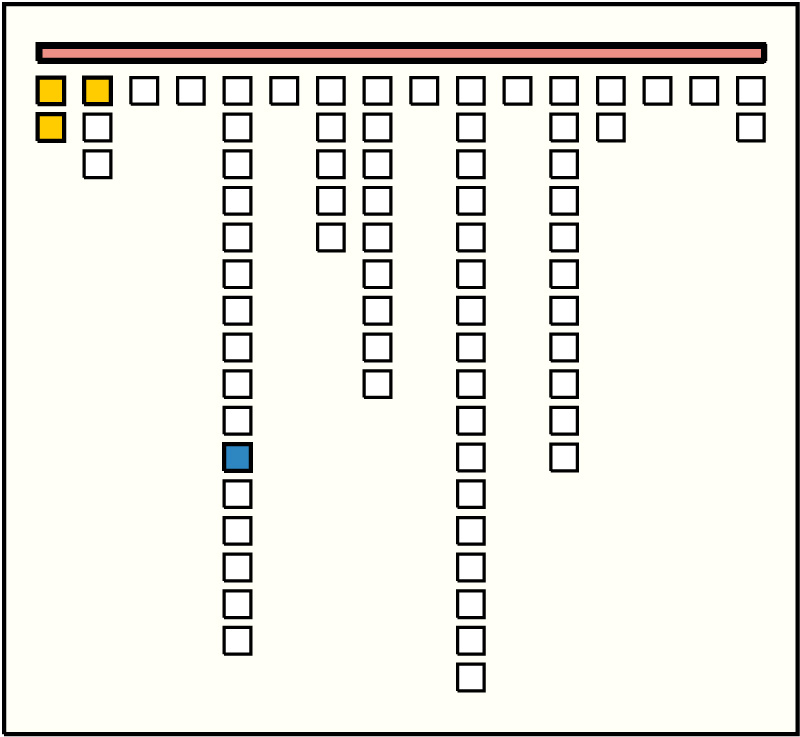

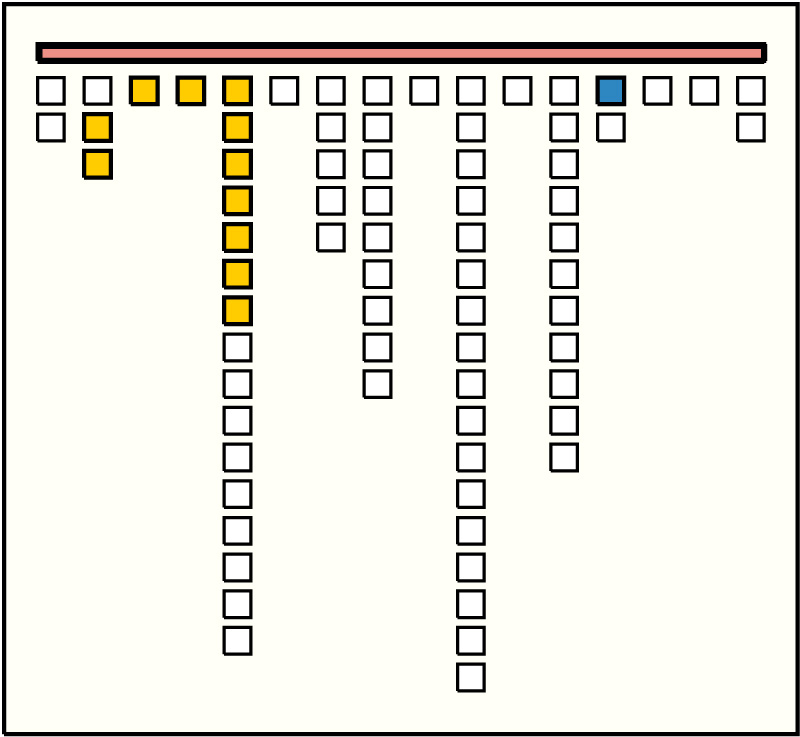

Left Handed Sums with Figure-8-Knots:     # Sums = 4,  Max # Summands = 12,   (Min, Mean, Max) Sum Values = (11, 80, 148)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g5p11 : 11W114❽g8p1: 1YB + g8p2: 1MB + g8p3: 0AB:KB + g8p4: 9YB
2
g8p7 : 148YB1482❽g12p11: 1MB + ∞g13p1: 147YB
3
g10p11 : 12YB128❽g10p15: 9YB + g10p16: 2W:KB + g10p17: 0YB + g11p1: 0PK + g12p1: 0YB + g12p2: 0MB + g12p3: 0W:KB + g12p4: 1YB❽

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g5p11 : 11W113g1p1: 9W∞ + g1p2: 1MB + g2p1: 1W:KB❽
2
g8p7 : 148YB14812❽g2p1: 1W:KB + g2p2: 126AB + g2p3: 17RL + g3p1: 1W:KB + g4p1: 0PK + g5p1: 0YB + g5p2: 0AB + g5p3: 0W:KB + g5p4: 1YB + g5p5: 0RL + g5p6: 0W:KB + g5p7: 2YB
3
g10p11 : 12YB124g8p8: 9MB∞ + g8p9: 1W:KB + g9p1: 0PK + g10p1: 2YB
4
g13p1 : 147YB14711∞g2p2: 126AB + g2p3: 17RL + g3p1: 1W:KB + g4p1: 0PK + g5p1: 0YB + g5p2: 0AB + g5p3: 0W:KB + g5p4: 1YB + g5p5: 0RL + g5p6: 0W:KB + g5p7: 2YB

Khipu Notes:
The primary cord is broken at both ends; khipu is probably incomplete. There are markers of thread wrapping around primary cord.
