KH0352/UR116A - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 9, (Min, Mean, Max) Sum Values = (12, 21, 28)
Click on Image to View Larger
Left Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 13, (Min, Mean, Max) Sum Values = (25, 31, 37)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

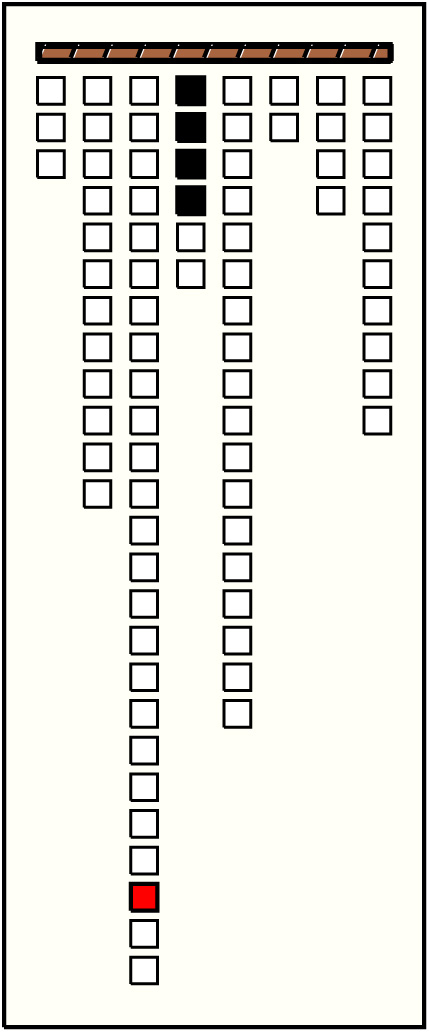

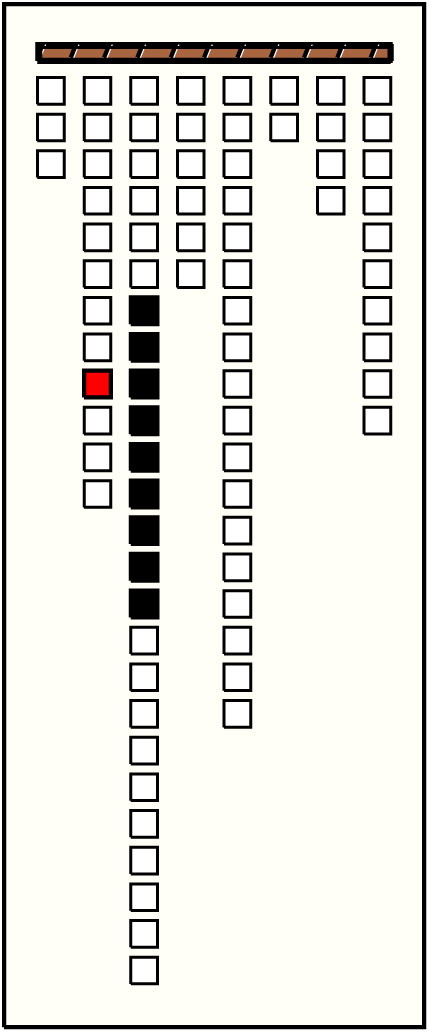

| 1 |  | g2p9 : 28MB | 28 | 9 | ∞g3p7: 2AB + g3p8: 0AB + g3p9: 10AB + g3p10: 1AB + g3p11: 2AB + g3p12: 0AB + g3p13: 0AB + g3p14: 12AB + g3p15: 1AB❽ | |

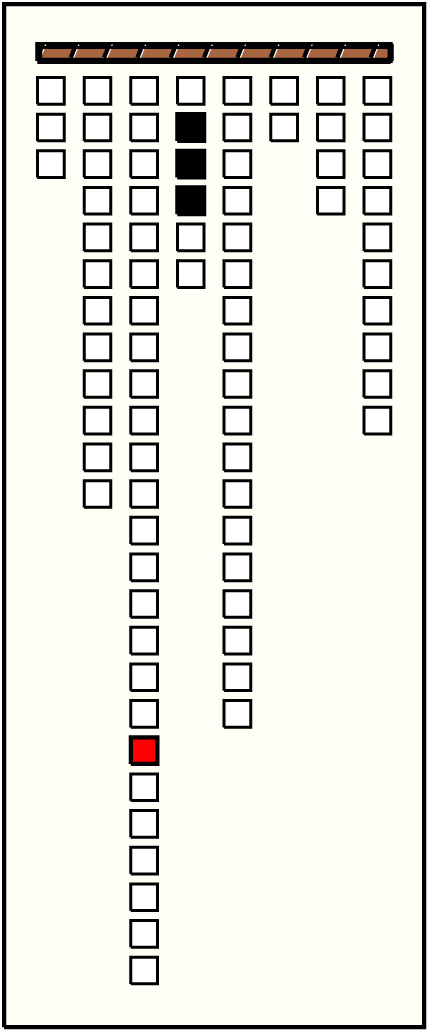

| 2 |  | g3p19 : 15AB | 15 | 3 | ❽g4p2: 1AB + g4p3: 2AB + ∞g4p4: 12AB | |
| 3 |  | g3p23 : 21AB | 21 | 4 | g4p1: 6AB∞ + g4p2: 1AB + g4p3: 2AB + ∞g4p4: 12AB | |

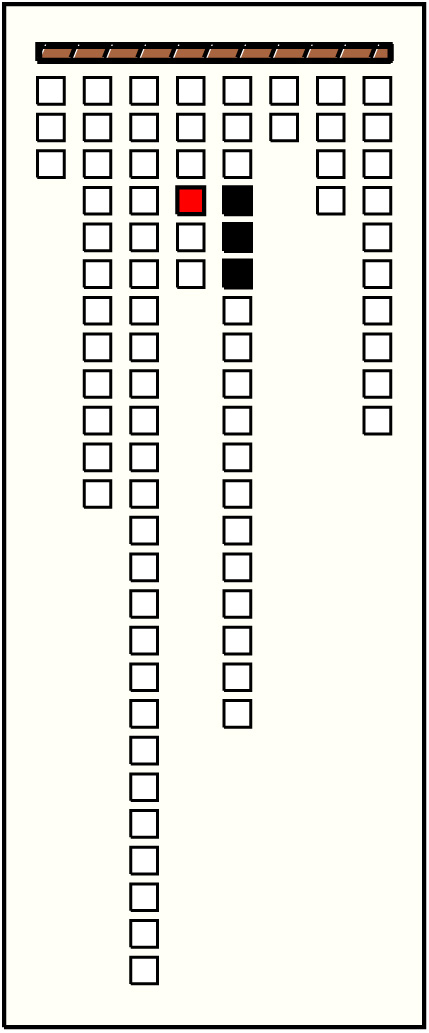

| 4 |  | g4p4 : 12AB | 12 | 3 | ❽g5p4: 10AB + g5p5: 0AB + g5p6: 2AB∞ | |

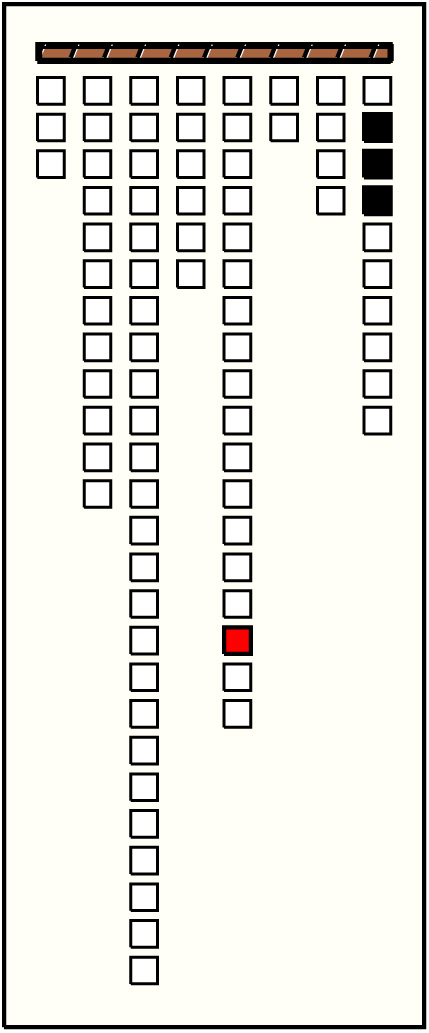

| 5 |  | g5p16 : 27MB | 27 | 3 | ❽g8p2: 1YB + g8p3: 25YB + g8p4: 1YB❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

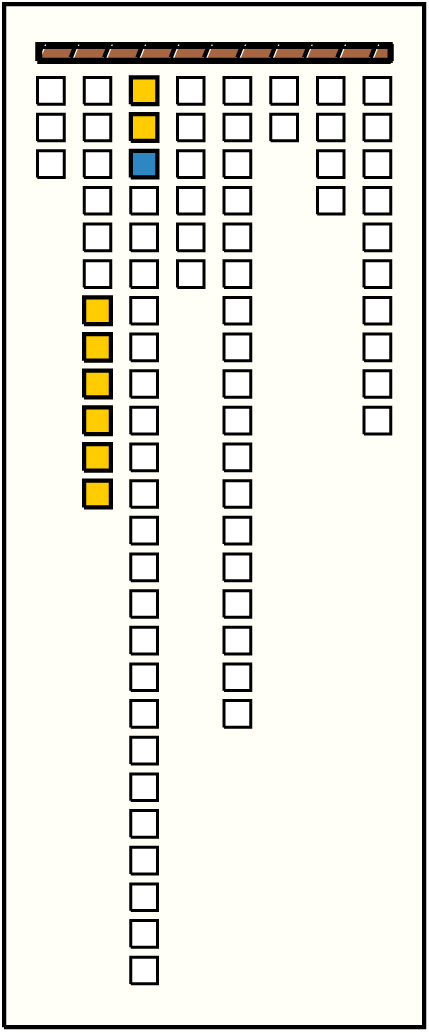

| 1 |  | g3p3 : 37MB | 37 | 8 | ❽g2p7: 1MB + g2p8: 0MB + g2p9: 28MB + g2p10: 3MB + g2p11: 2MB + g2p12: 0MB + g3p1: 1MB + ∞g3p2: 2MB | |

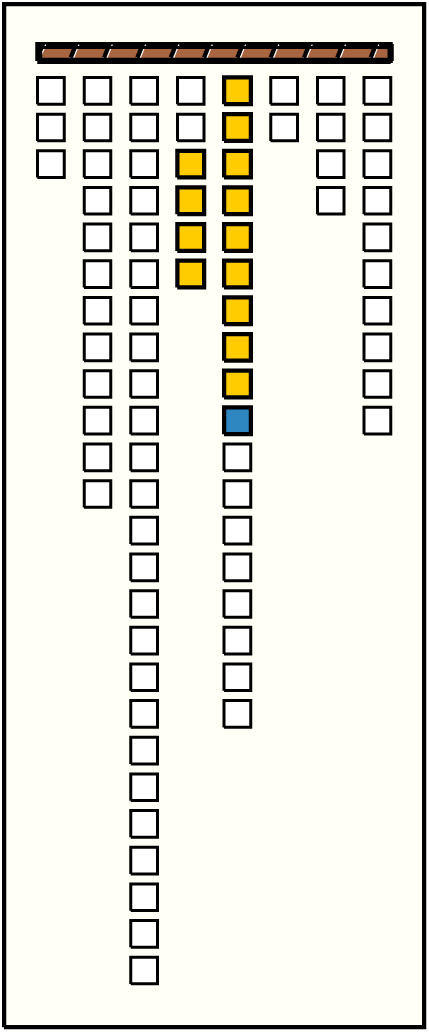

| 2 |  | g5p10 : 36MB | 36 | 13 | ❽g4p3: 2AB + g4p4: 12AB + g4p5: 0AB + g4p6: 0AB + g5p1: 0AB + g5p2: 2AB + g5p3: 1AB + g5p4: 10AB + g5p5: 0AB + g5p6: 2AB + g5p7: 4MB + g5p8: 1MB + g5p9: 2MB❽ | |
| 3 |  | g5p16 : 27MB | 27 | 9 | ∞g4p4: 12AB + g4p5: 0AB + g4p6: 0AB + g5p1: 0AB + g5p2: 2AB + g5p3: 1AB + g5p4: 10AB + g5p5: 0AB + g5p6: 2AB∞ | |
| 4 |  | g8p3 : 25YB | 25 | 7 | ∞g4p4: 12AB + g4p5: 0AB + g4p6: 0AB + g5p1: 0AB + g5p2: 2AB + g5p3: 1AB + g5p4: 10AB❽ |
Khipu Notes:
