KH0430/UR192 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay

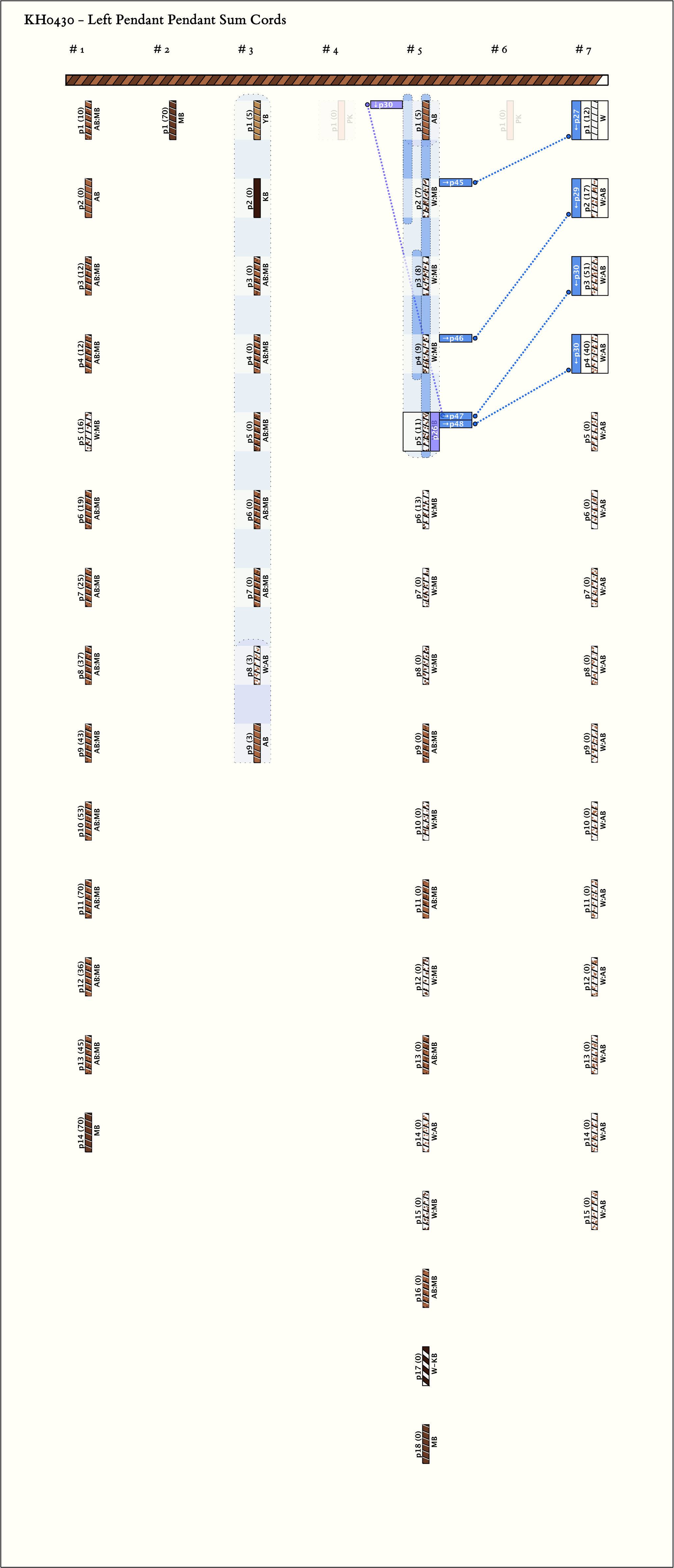

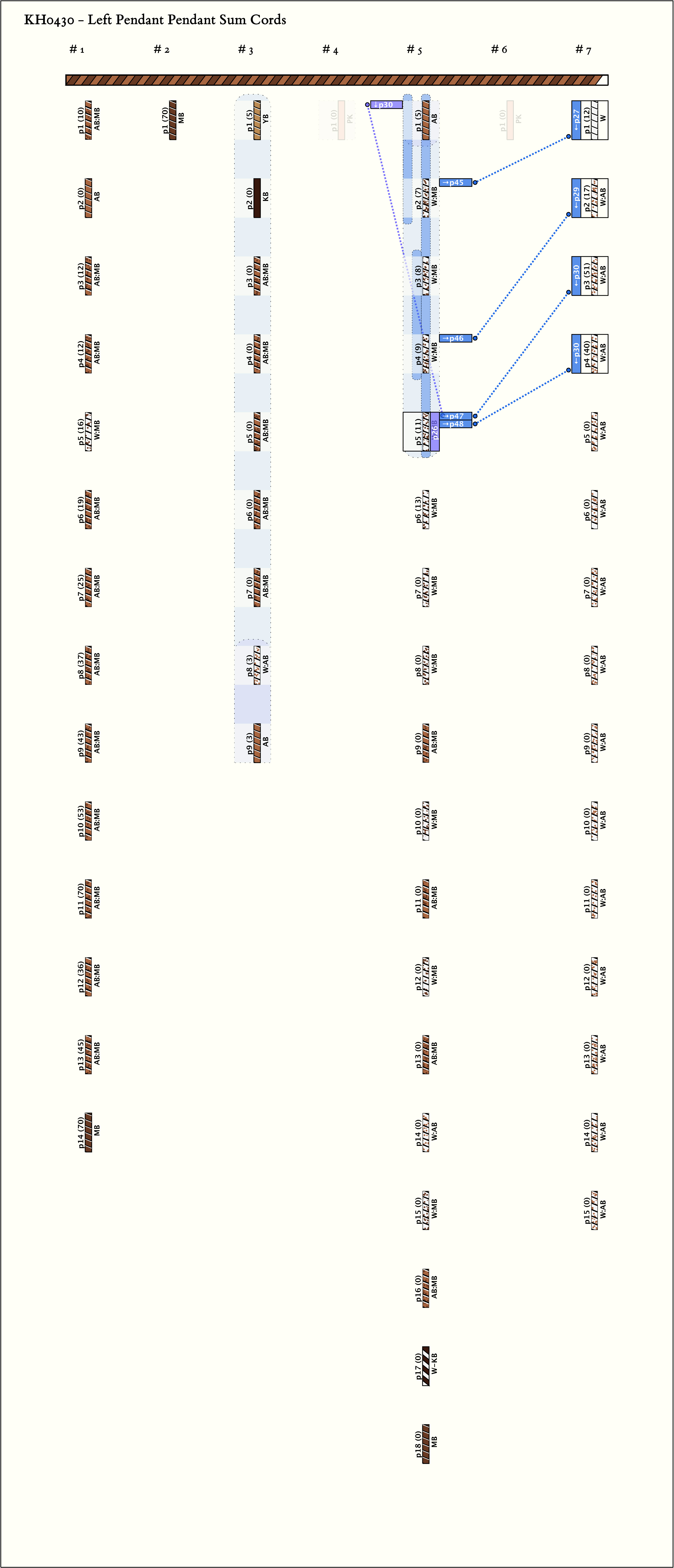

This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

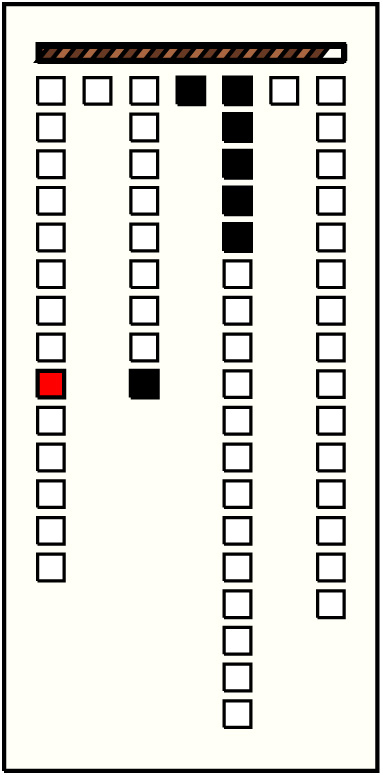

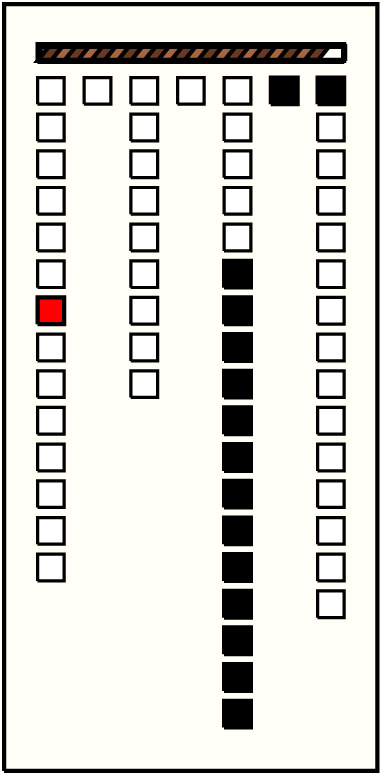

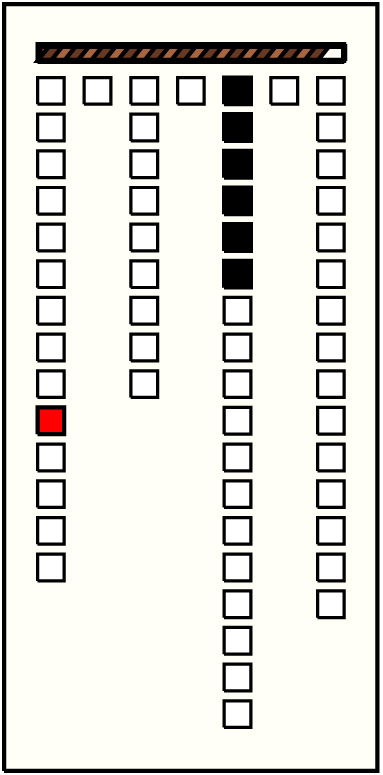

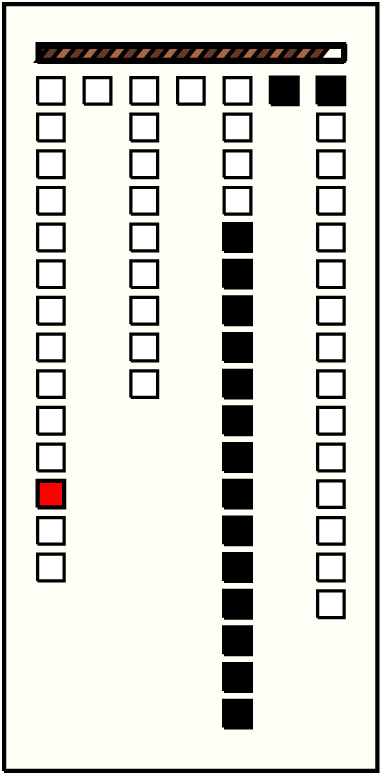

Right Handed Sums with Figure-8-Knots:     # Sums = 8,  Max # Summands = 19,   (Min, Mean, Max) Sum Values = (12, 38, 70)
Click on Image to View Larger

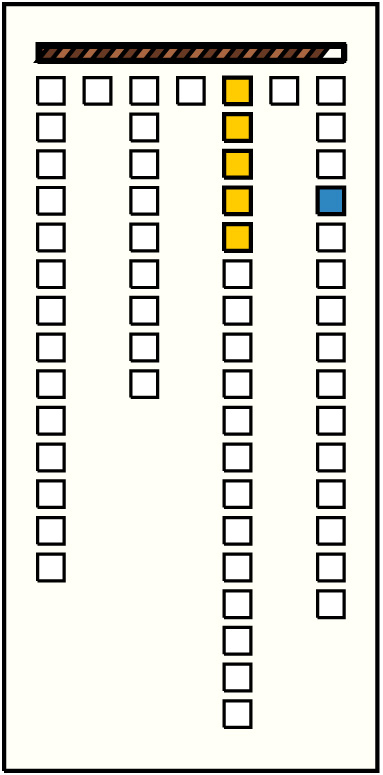

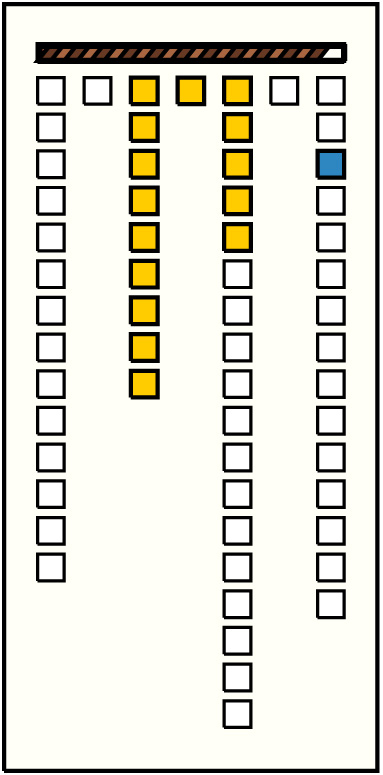

Left Handed Sums with Figure-8-Knots:     # Sums = 5,  Max # Summands = 15,   (Min, Mean, Max) Sum Values = (11, 26, 51)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p4 : 12AB:MB122g5p1: 5AB + g5p2: 7W:MB
2
g1p5 : 16W:MB1611∞g3p1: 5YB + g3p2: 0KB + g3p3: 0AB:MB + g3p4: 0AB:MB + g3p5: 0AB:MB + g3p6: 0AB:MB + g3p7: 0AB:MB + g3p8: 3W:AB + g3p9: 3AB + g4p1: 0PK + g5p1: 5AB
3
g1p7 : 25AB:MB2515∞g5p6: 13W:MB + g5p7: 0W:MB + g5p8: 0W:MB + g5p9: 0AB:MB + g5p10: 0W:MB + g5p11: 0AB:MB + g5p12: 0W:MB + g5p13: 0AB:MB + g5p14: 0W:AB + g5p15: 0W:MB + g5p16: 0AB:MB + g5p17: 0W-KB + g5p18: 0MB + g6p1: 0PK + g7p1: 12W
4
g1p9 : 43AB:MB437g3p9: 3AB + g4p1: 0PK + g5p1: 5AB + g5p2: 7W:MB + g5p3: 8W:MB + g5p4: 9W:MB + g5p5: 11W:MB❽
5
g1p10 : 53AB:MB536g5p1: 5AB + g5p2: 7W:MB + g5p3: 8W:MB + g5p4: 9W:MB + g5p5: 11W:MB + ∞g5p6: 13W:MB
6
g1p12 : 36AB:MB3616❽g5p5: 11W:MB + g5p6: 13W:MB + g5p7: 0W:MB + g5p8: 0W:MB + g5p9: 0AB:MB + g5p10: 0W:MB + g5p11: 0AB:MB + g5p12: 0W:MB + g5p13: 0AB:MB + g5p14: 0W:AB + g5p15: 0W:MB + g5p16: 0AB:MB + g5p17: 0W-KB + g5p18: 0MB + g6p1: 0PK + g7p1: 12W
7
g1p13 : 45AB:MB4517g5p4: 9W:MB∞ + g5p5: 11W:MB + g5p6: 13W:MB + g5p7: 0W:MB + g5p8: 0W:MB + g5p9: 0AB:MB + g5p10: 0W:MB + g5p11: 0AB:MB + g5p12: 0W:MB + g5p13: 0AB:MB + g5p14: 0W:AB + g5p15: 0W:MB + g5p16: 0AB:MB + g5p17: 0W-KB + g5p18: 0MB + g6p1: 0PK + g7p1: 12W
8
g2p1 : 70MB7019g5p3: 8W:MB + g5p4: 9W:MB + g5p5: 11W:MB + g5p6: 13W:MB + g5p7: 0W:MB + g5p8: 0W:MB + g5p9: 0AB:MB + g5p10: 0W:MB + g5p11: 0AB:MB + g5p12: 0W:MB + g5p13: 0AB:MB + g5p14: 0W:AB + g5p15: 0W:MB + g5p16: 0AB:MB + g5p17: 0W-KB + g5p18: 0MB + g6p1: 0PK + g7p1: 12W + g7p2: 17W:AB∞

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g5p5 : 11W:MB114g3p8: 3W:AB + g3p9: 3AB + g4p1: 0PK + g5p1: 5AB
2
g7p1 : 12W122g5p1: 5AB + g5p2: 7W:MB
3
g7p2 : 17W:AB172g5p3: 8W:MB + g5p4: 9W:MB∞
4
g7p3 : 51W:AB5115∞g3p1: 5YB + g3p2: 0KB + g3p3: 0AB:MB + g3p4: 0AB:MB + g3p5: 0AB:MB + g3p6: 0AB:MB + g3p7: 0AB:MB + g3p8: 3W:AB + g3p9: 3AB + g4p1: 0PK + g5p1: 5AB + g5p2: 7W:MB + g5p3: 8W:MB + g5p4: 9W:MB + g5p5: 11W:MB❽
5
g7p4 : 40W:AB405g5p1: 5AB + g5p2: 7W:MB + g5p3: 8W:MB + g5p4: 9W:MB + g5p5: 11W:MB❽

Khipu Notes:
M1 and M2 are composed of threads wrapped around primary cord; very frayed. Each covers ca. 1.5 cm. of hte primary cord.
