KH0464/UR227 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

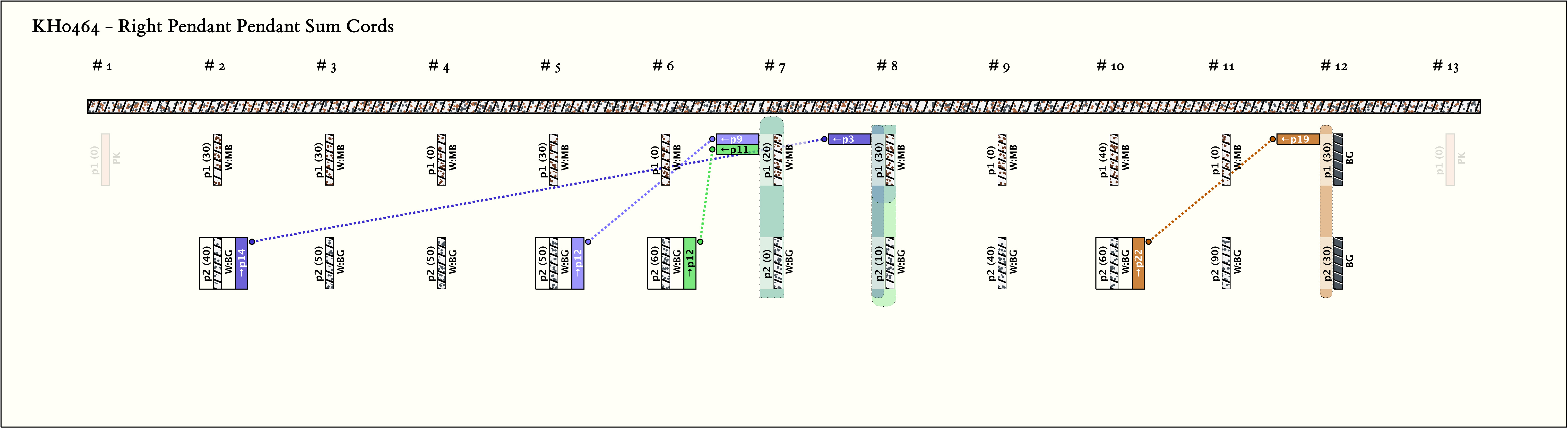

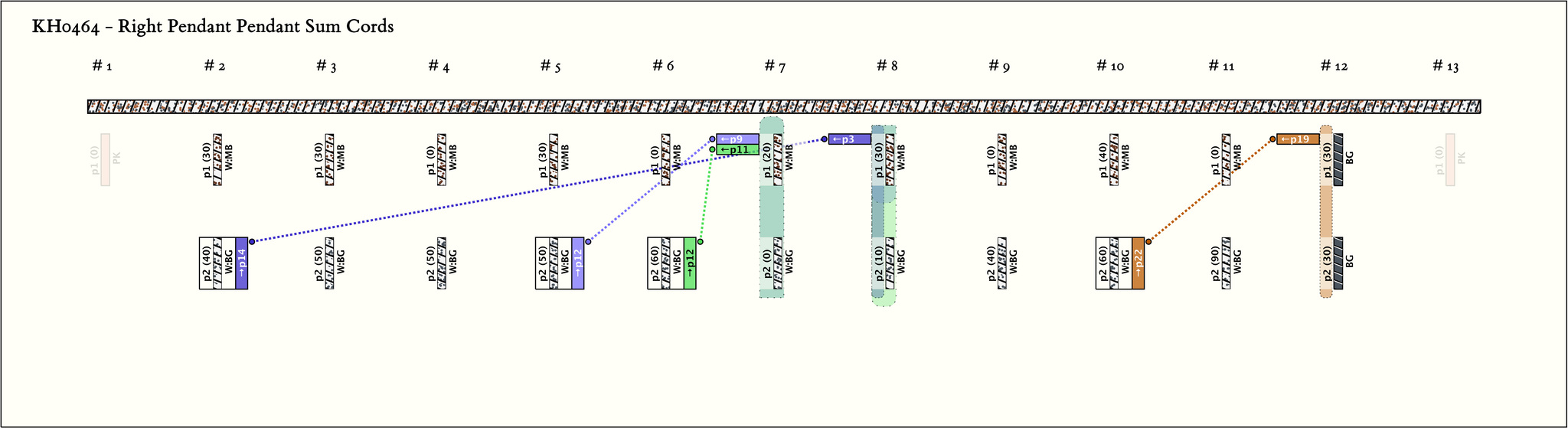

Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 4, (Min, Mean, Max) Sum Values = (40, 52, 60)
Click on Image to View Larger

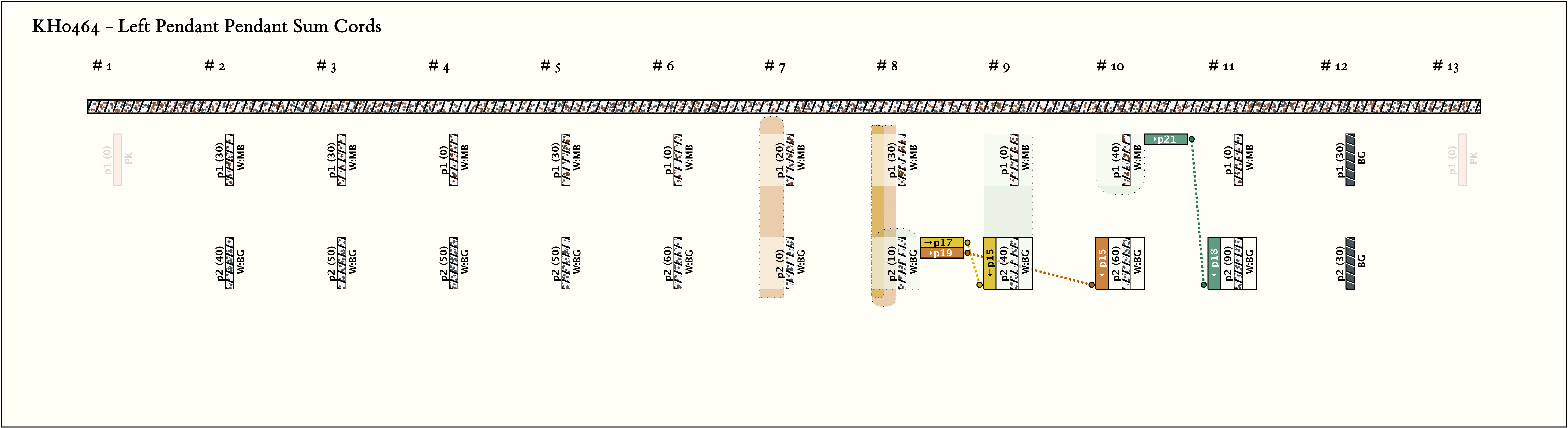

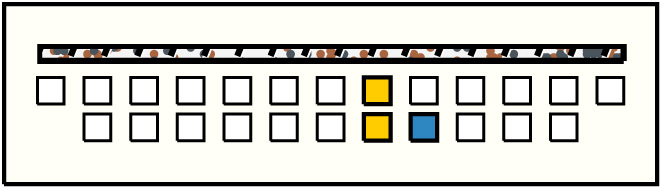

Left Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 4, (Min, Mean, Max) Sum Values = (40, 63, 90)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

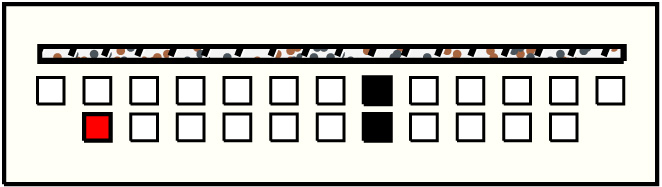

| 1 |  | g2p2 : 40W:BG | 40 | 2 | g8p1: 30W:MB + g8p2: 10W:BG | |

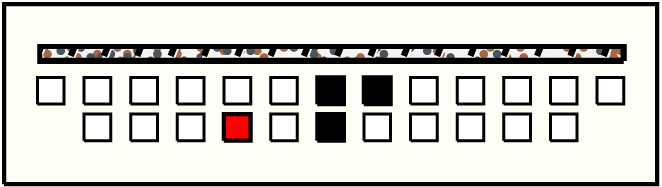

| 2 |  | g5p2 : 50W:BG | 50 | 3 | g7p1: 20W:MB + g7p2: 0W:BG + g8p1: 30W:MB | |

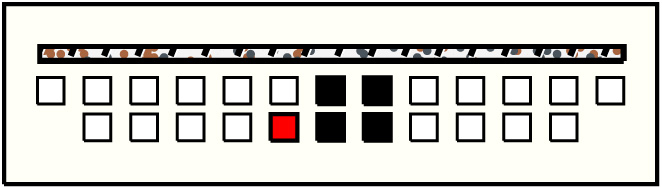

| 3 |  | g6p2 : 60W:BG | 60 | 4 | g7p1: 20W:MB + g7p2: 0W:BG + g8p1: 30W:MB + g8p2: 10W:BG | |

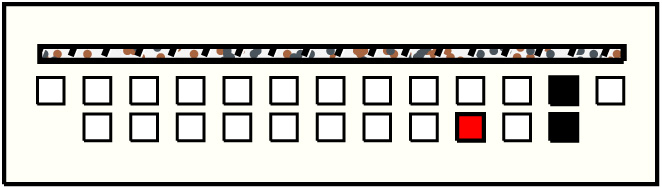

| 4 |  | g10p2 : 60W:BG | 60 | 2 | g12p1: 30BG + g12p2: 30BG |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g9p2 : 40W:BG | 40 | 2 | g8p1: 30W:MB + g8p2: 10W:BG | |

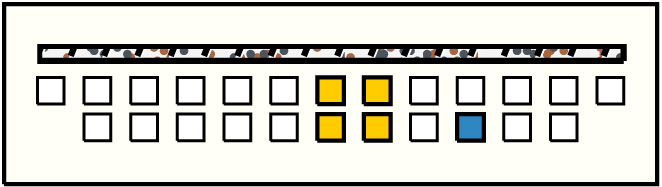

| 2 |  | g10p2 : 60W:BG | 60 | 4 | g7p1: 20W:MB + g7p2: 0W:BG + g8p1: 30W:MB + g8p2: 10W:BG | |

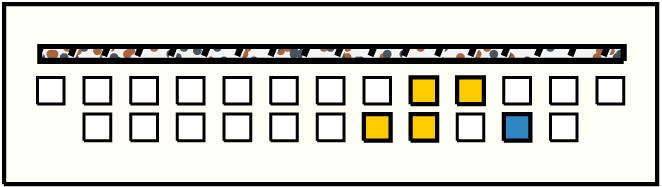

| 3 |  | g11p2 : 90W:BG | 90 | 4 | g8p2: 10W:BG + g9p1: 0W:MB + g9p2: 40W:BG + g10p1: 40W:MB |
