KH0474/UR238 - Pendant Pendant Sums
Drawings:

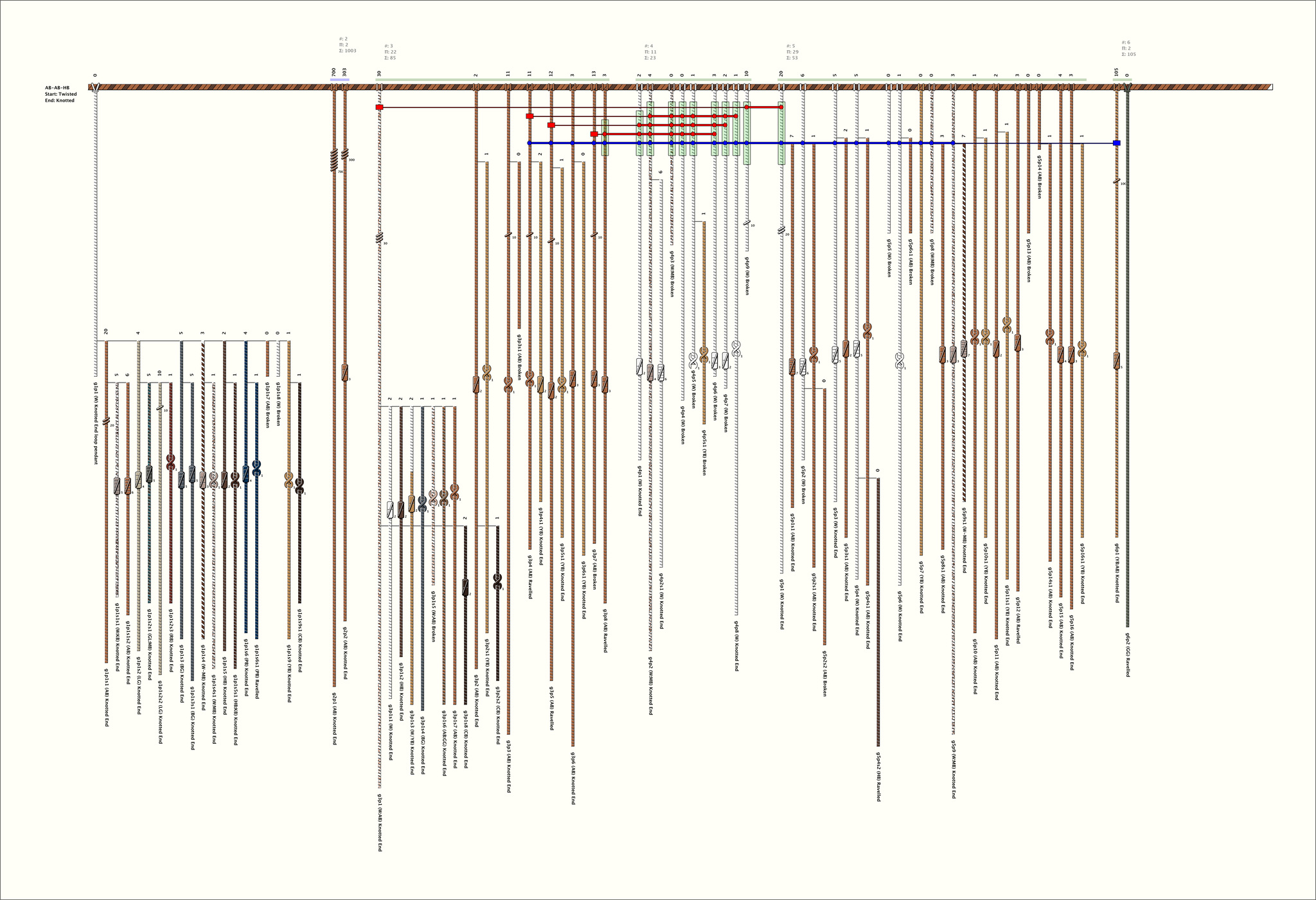

Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

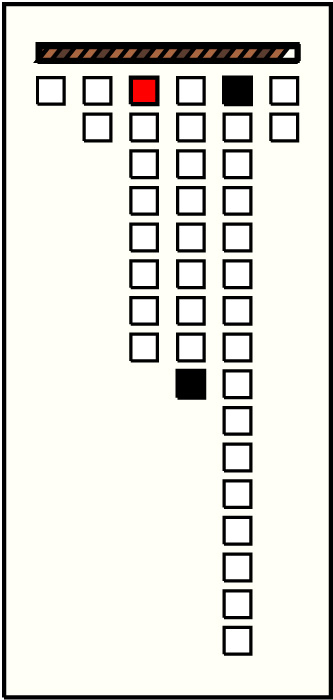

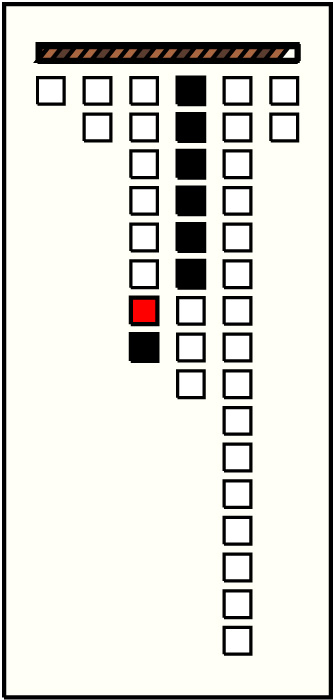

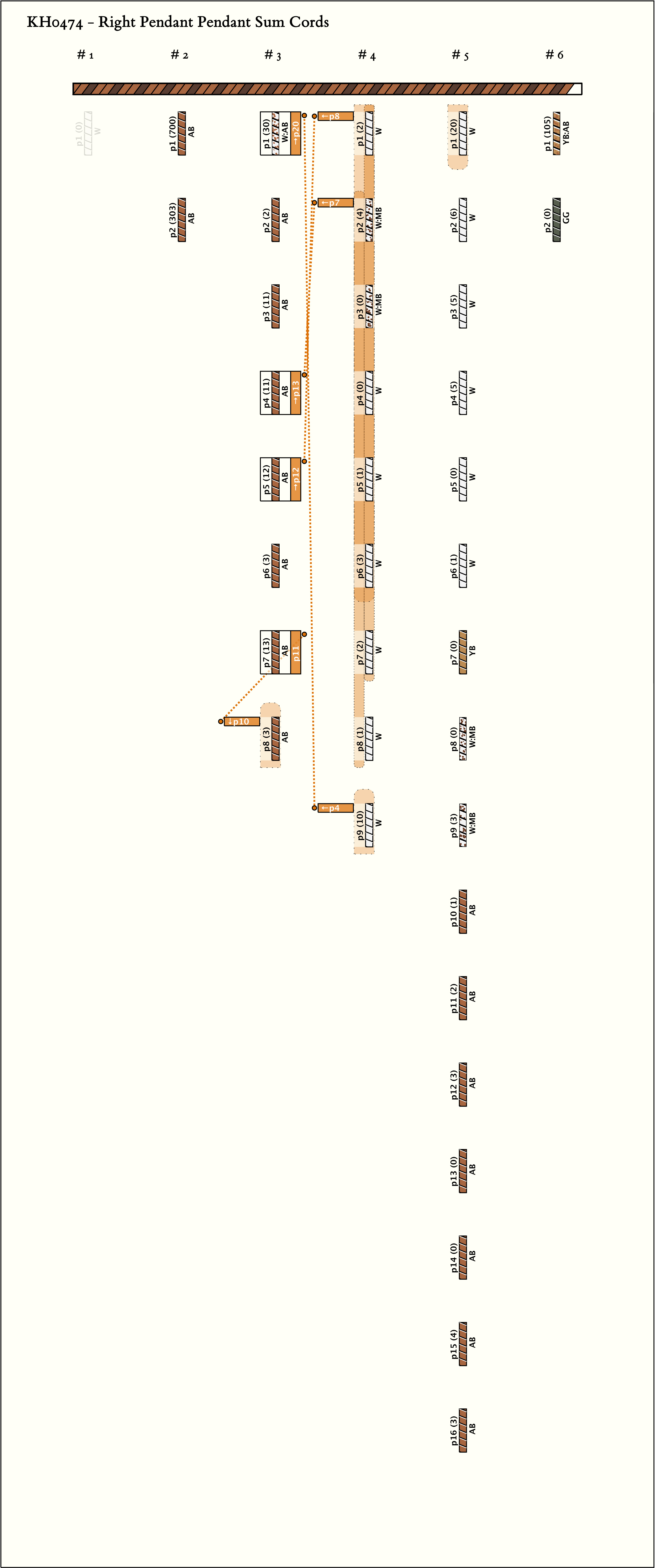

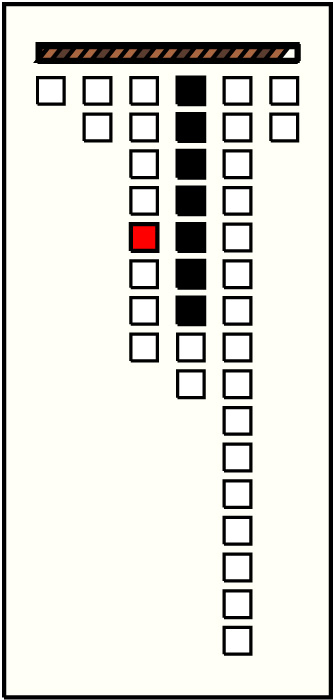

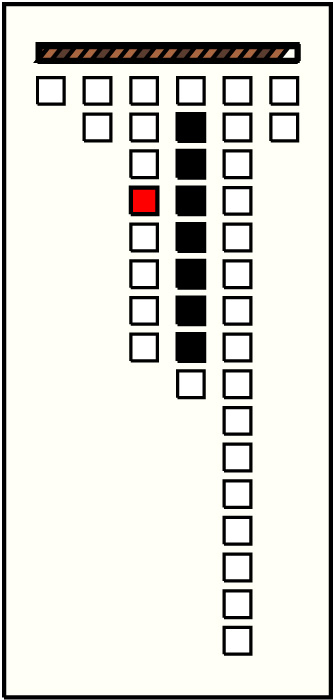

Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 7, (Min, Mean, Max) Sum Values = (11, 16, 30)
Click on Image to View Larger

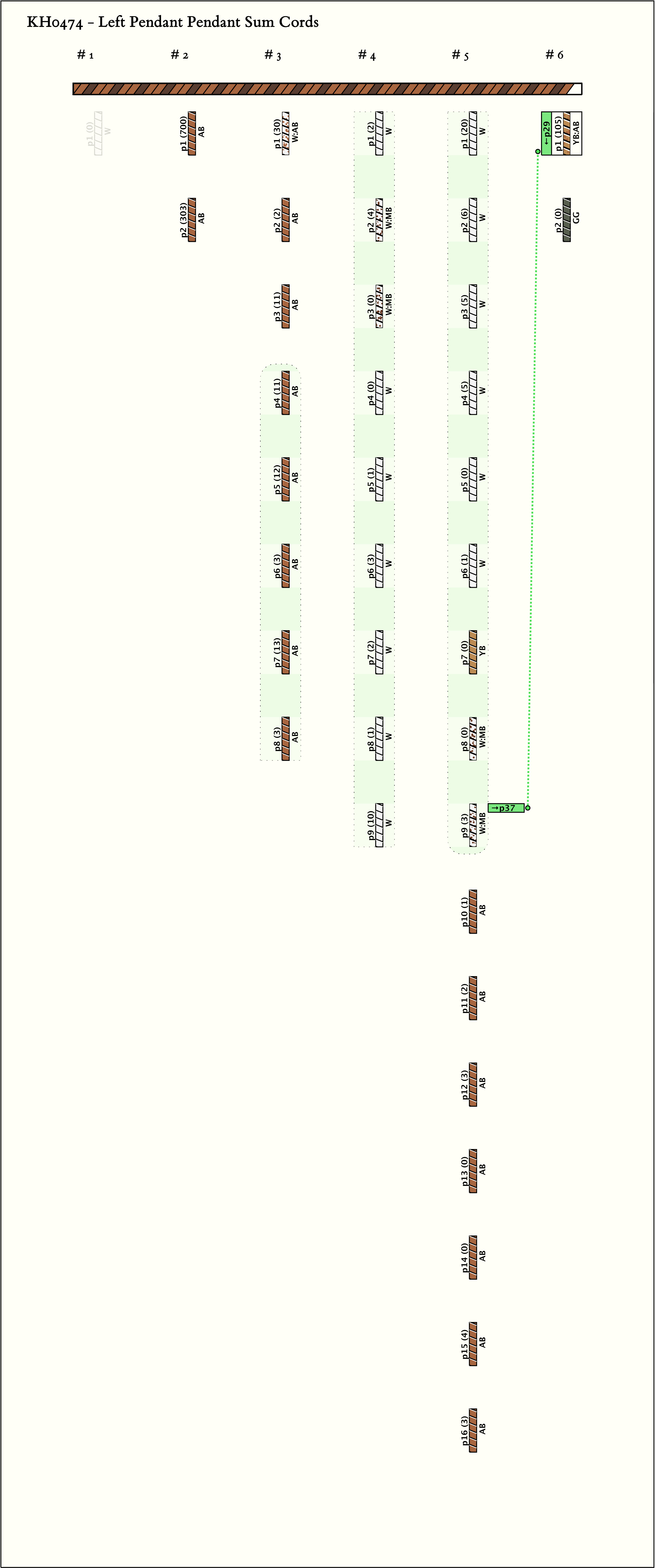

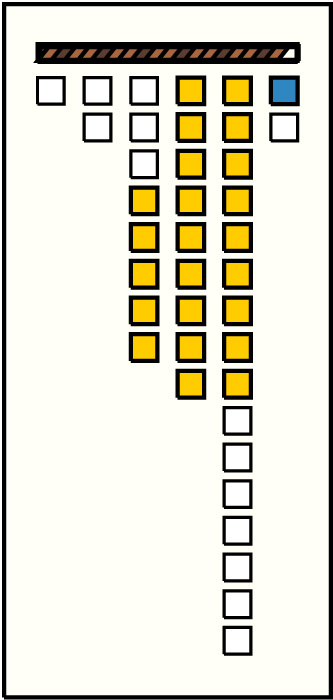

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 23, (Min, Mean, Max) Sum Values = (105, 105, 105)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p1 : 30W:AB | 30 | 2 | ∞g4p9: 10W + g5p1: 20W∞ | |
| 2 |  | g3p4 : 11AB | 11 | 7 | g4p2: 4W:MB + g4p3: 0W:MB + g4p4: 0W + g4p5: 1W + g4p6: 3W + g4p7: 2W + g4p8: 1W❽ | |
| 3 |  | g3p5 : 12AB | 12 | 7 | g4p1: 2W + g4p2: 4W:MB + g4p3: 0W:MB + g4p4: 0W + g4p5: 1W + g4p6: 3W + g4p7: 2W∞ | |
| 4 |  | g3p7 : 13AB | 13 | 7 | g3p8: 3AB + g4p1: 2W + g4p2: 4W:MB + g4p3: 0W:MB + g4p4: 0W + g4p5: 1W + ∞g4p6: 3W |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g6p1 : 105YB:AB | 105 | 23 | ❽g3p4: 11AB + g3p5: 12AB + g3p6: 3AB + g3p7: 13AB + g3p8: 3AB + g4p1: 2W + g4p2: 4W:MB + g4p3: 0W:MB + g4p4: 0W + g4p5: 1W + g4p6: 3W + g4p7: 2W + g4p8: 1W + g4p9: 10W + g5p1: 20W + g5p2: 6W + g5p3: 5W + g5p4: 5W + g5p5: 0W + g5p6: 1W + g5p7: 0YB + g5p8: 0W:MB + g5p9: 3W:MB∞ |
