KH0480/UR244 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

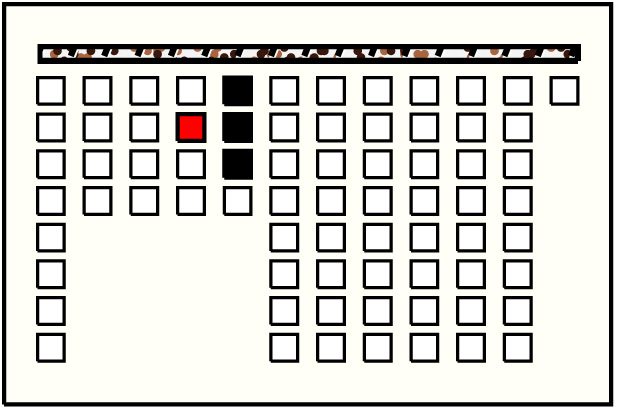

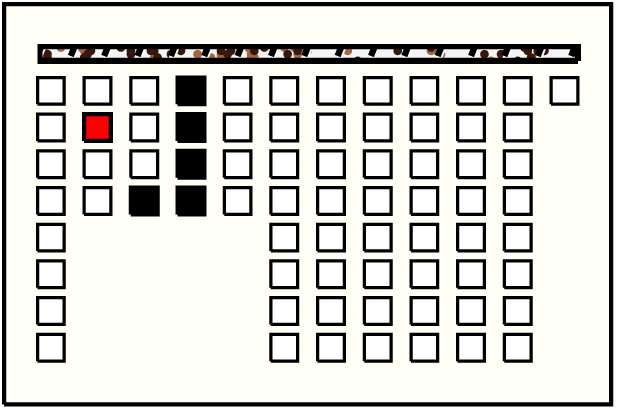

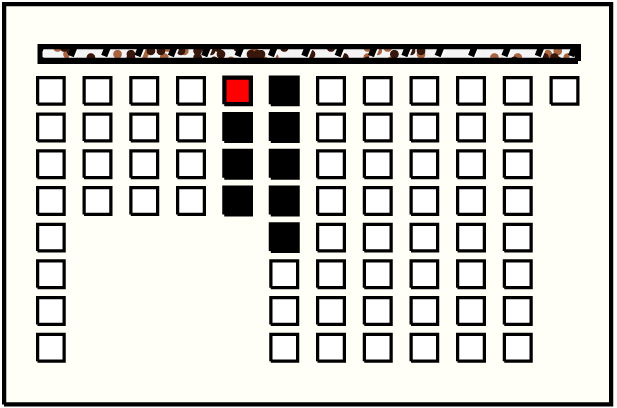

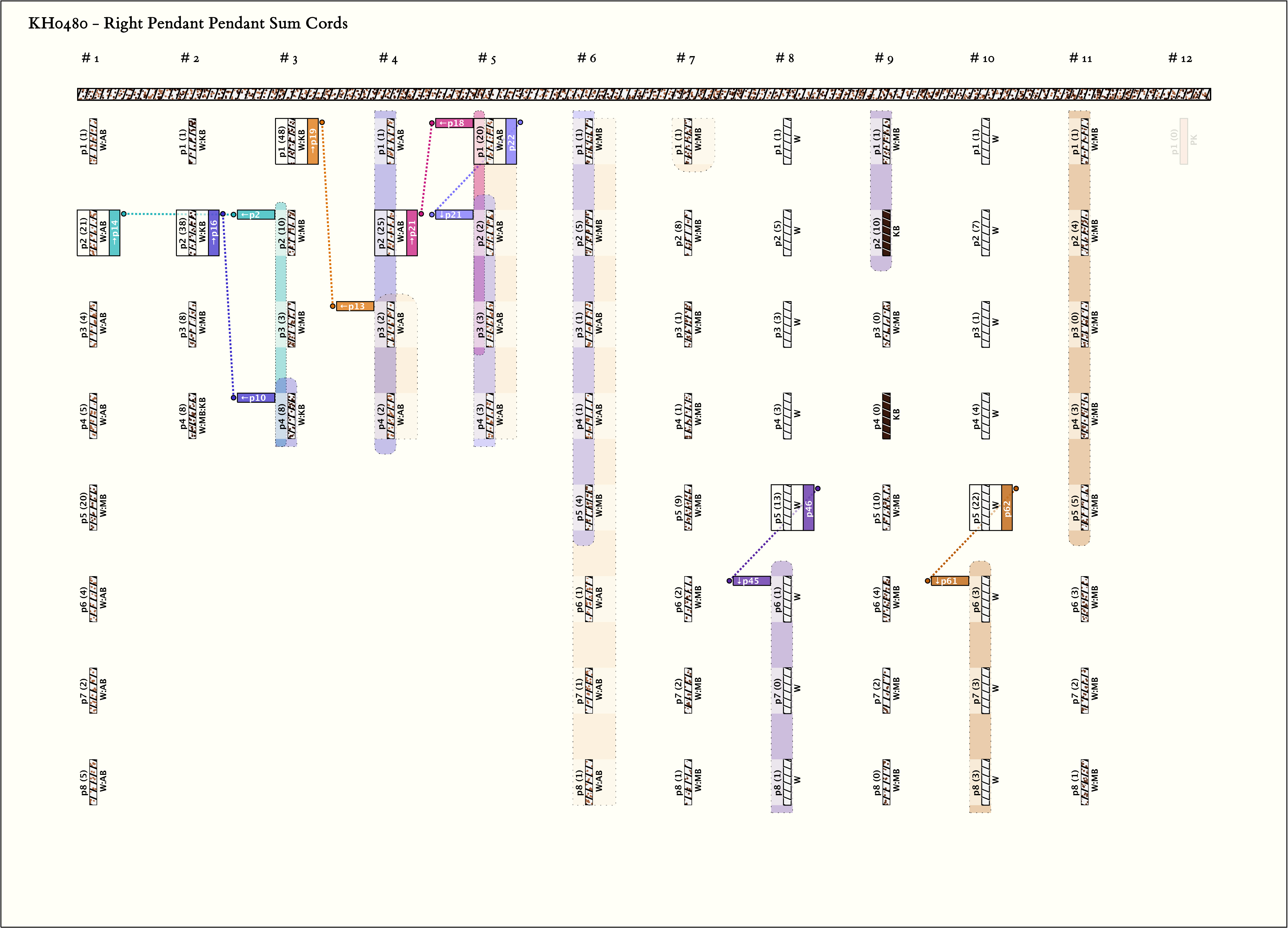

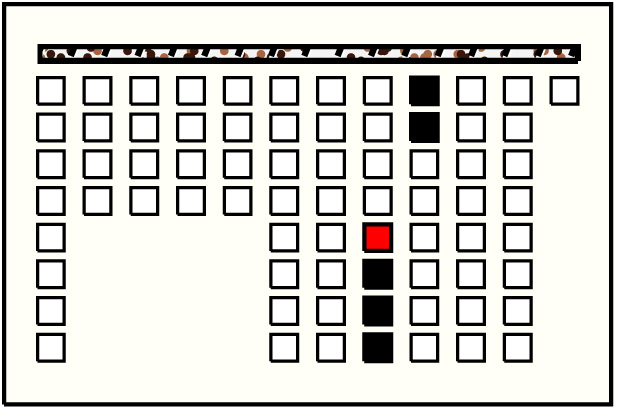

Right Handed Sums with Figure-8-Knots: # Sums = 7, Max # Summands = 15, (Min, Mean, Max) Sum Values = (13, 27, 48)
Click on Image to View Larger

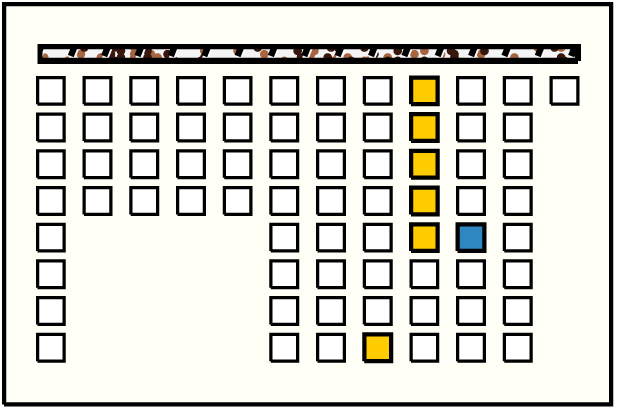

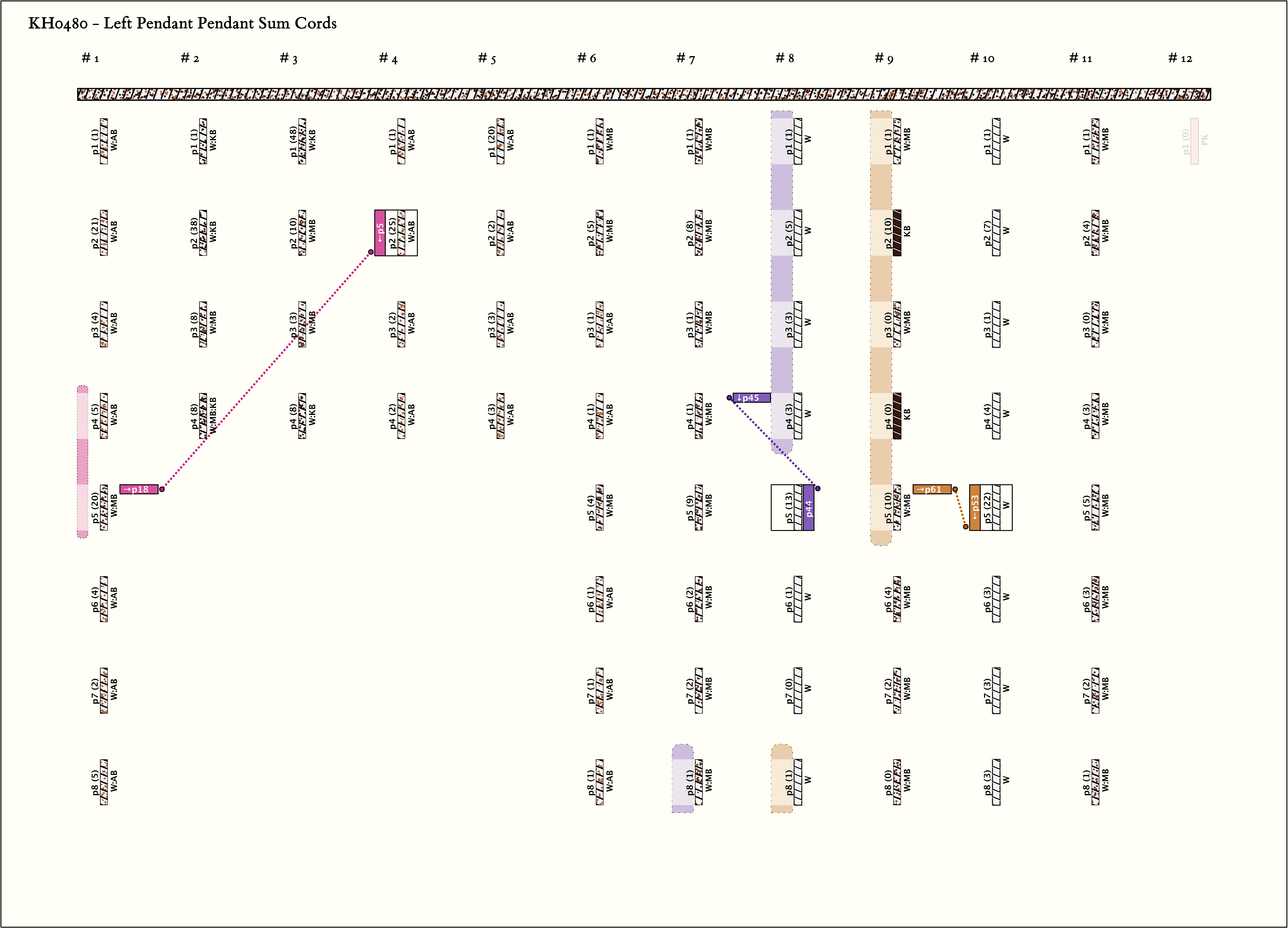

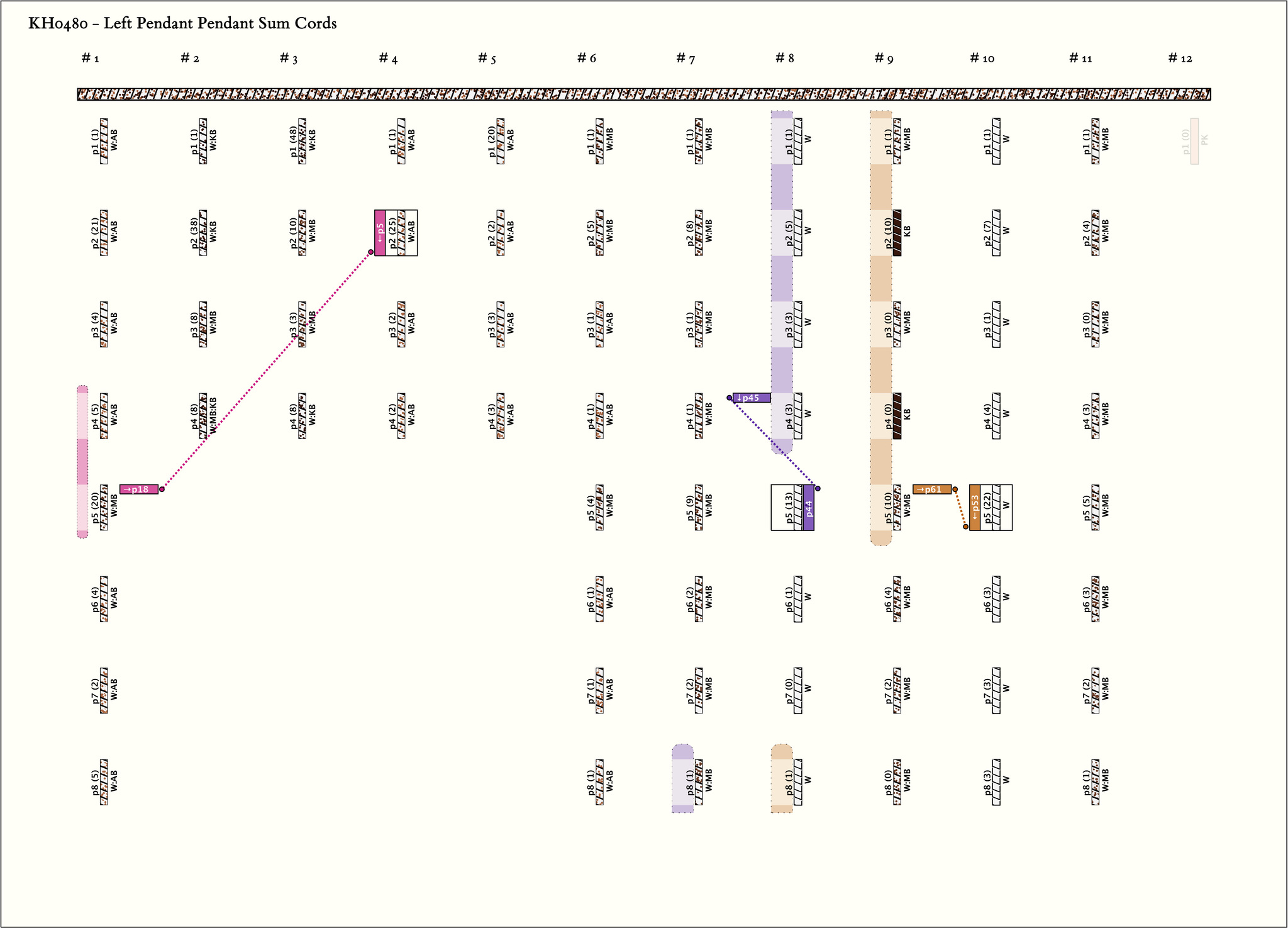

Left Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 6, (Min, Mean, Max) Sum Values = (13, 20, 25)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2 : 21W:AB | 21 | 3 | g3p2: 10W:MB + g3p3: 3W:MB + g3p4: 8W:KB∞ | |
| 2 |  | g2p2 : 38W:KB | 38 | 5 | g3p4: 8W:KB∞ + g4p1: 1W:AB + g4p2: 25W:AB + g4p3: 2W:AB + g4p4: 2W:AB | |
| 3 |  | g3p1 : 48W:KB | 48 | 15 | g4p3: 2W:AB + g4p4: 2W:AB + g5p1: 20W:AB + g5p2: 2W:AB + g5p3: 3W:AB + g5p4: 3W:AB + g6p1: 1W:MB + g6p2: 5W:MB + g6p3: 1W:AB + g6p4: 1W:AB + g6p5: 4W:MB + g6p6: 1W:AB + g6p7: 1W:AB + g6p8: 1W:AB + g7p1: 1W:MB❽ | |
| 4 |  | g4p2 : 25W:AB | 25 | 3 | g5p1: 20W:AB + g5p2: 2W:AB + g5p3: 3W:AB | |
| 5 |  | g5p1 : 20W:AB | 20 | 8 | g5p2: 2W:AB + g5p3: 3W:AB + g5p4: 3W:AB + g6p1: 1W:MB + g6p2: 5W:MB + g6p3: 1W:AB + g6p4: 1W:AB + ∞g6p5: 4W:MB∞ | |
| 6 |  | g8p5 : 13W | 13 | 5 | ❽g8p6: 1W + g8p7: 0W + g8p8: 1W + g9p1: 1W:MB + ∞g9p2: 10KB | |
| 7 |  | g10p5 : 22W | 22 | 8 | g10p6: 3W + g10p7: 3W + g10p8: 3W + g11p1: 1W:MB + g11p2: 4W:MB + g11p3: 0W:MB + g11p4: 3W:MB + g11p5: 5W:MB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p2 : 25W:AB | 25 | 2 | g1p4: 5W:AB + g1p5: 20W:MB | |
| 2 |  | g8p5 : 13W | 13 | 5 | ❽g7p8: 1W:MB + g8p1: 1W + g8p2: 5W + g8p3: 3W + g8p4: 3W | |
| 3 |  | g10p5 : 22W | 22 | 6 | ❽g8p8: 1W + g9p1: 1W:MB + g9p2: 10KB + g9p3: 0W:MB + g9p4: 0KB + g9p5: 10W:MB |
