KH0489/UR253 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

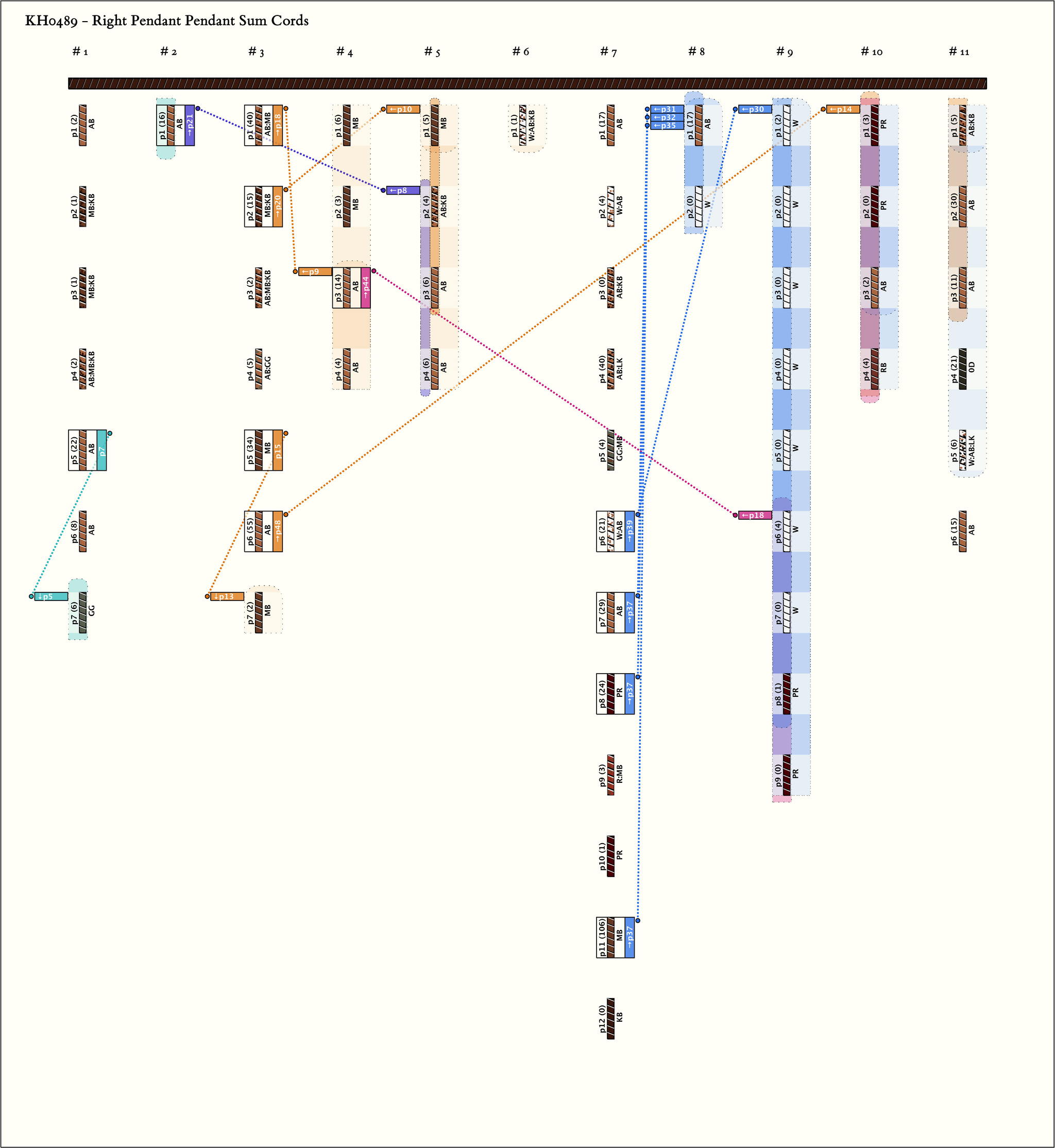

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

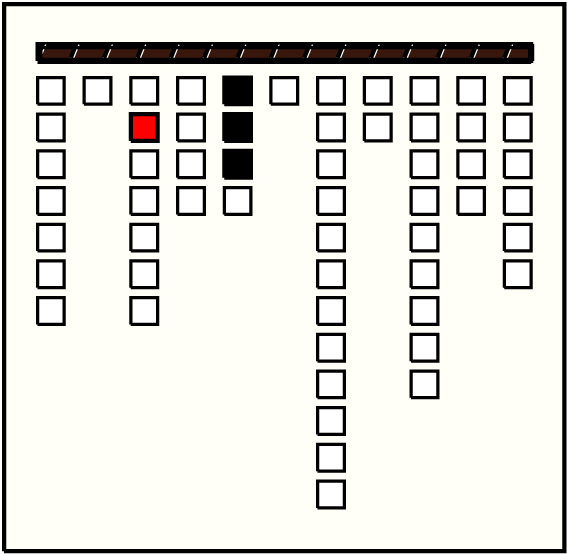

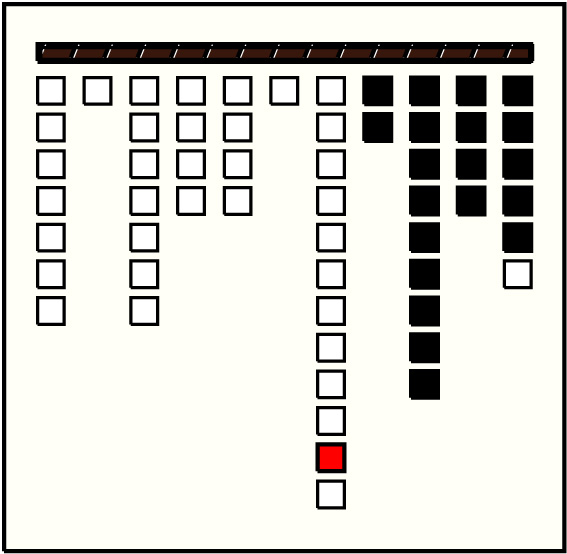

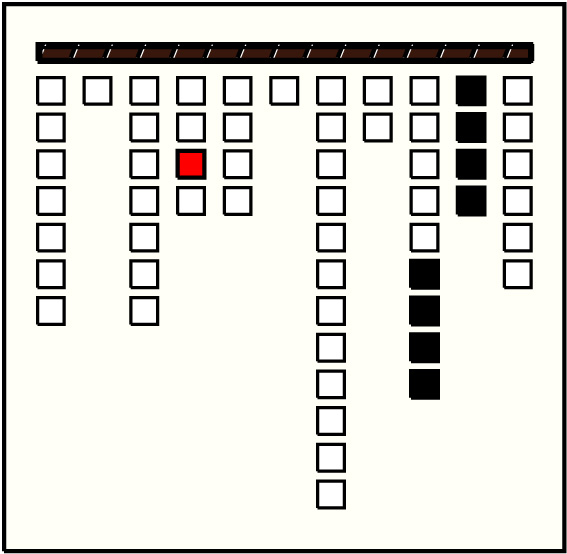

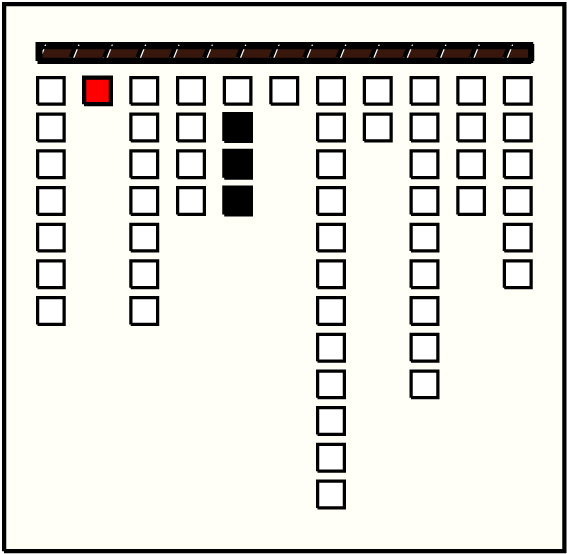

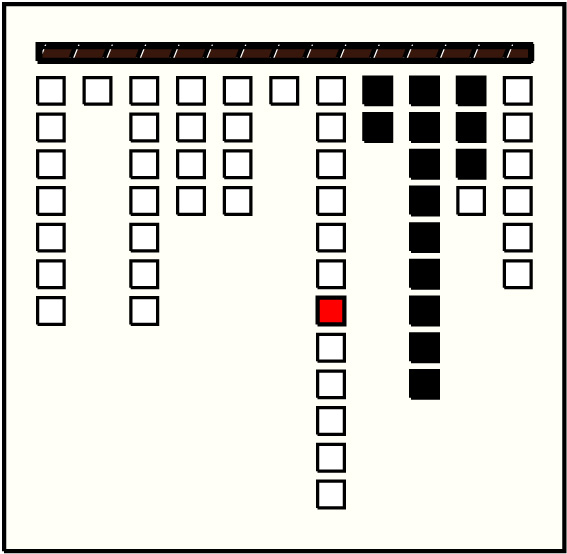

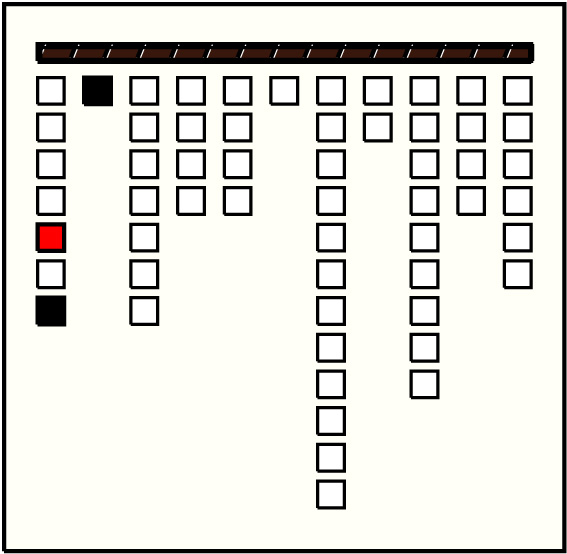

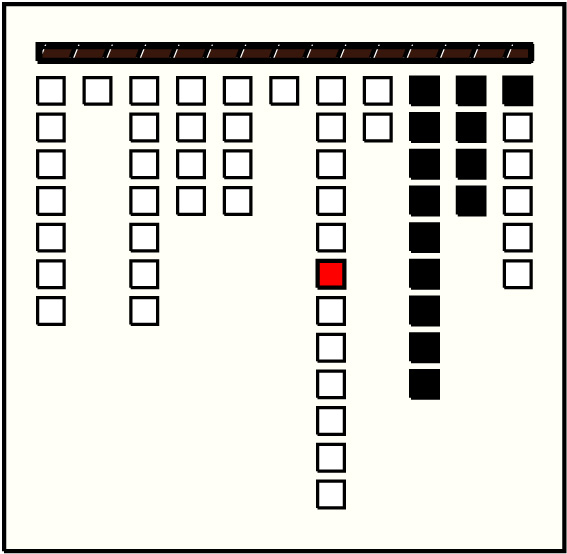

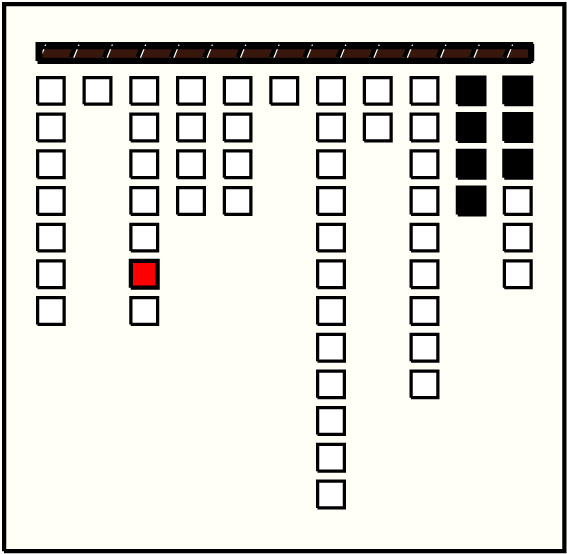

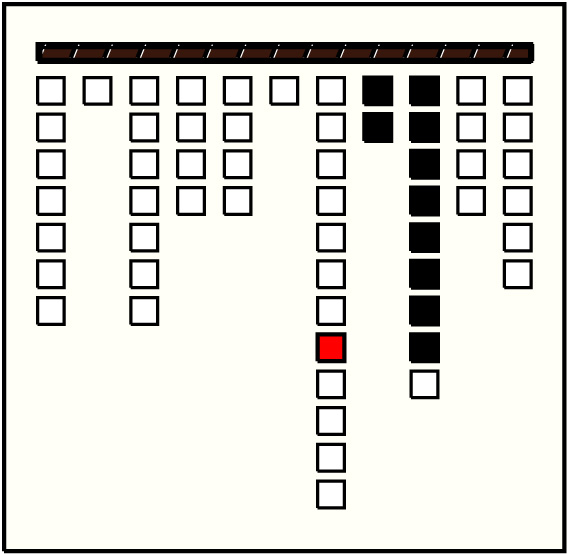

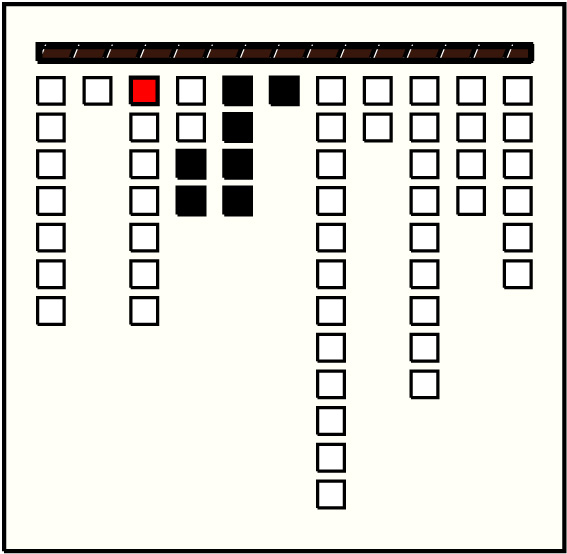

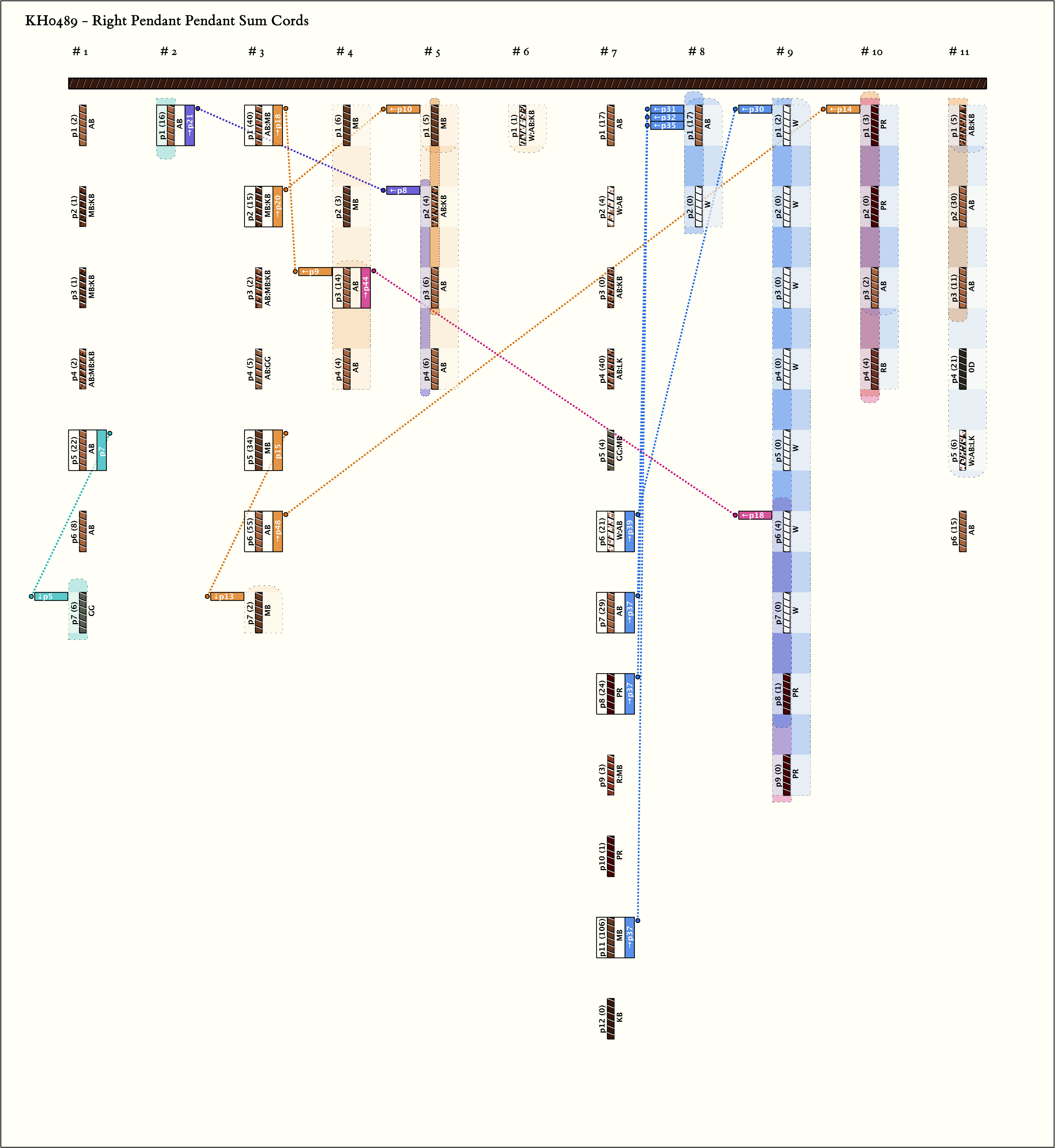

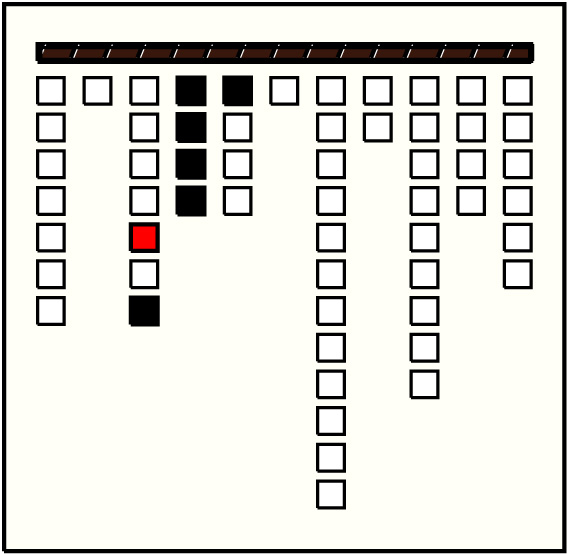

Right Handed Sums with Figure-8-Knots: # Sums = 11, Max # Summands = 20, (Min, Mean, Max) Sum Values = (14, 34, 106)
Click on Image to View Larger

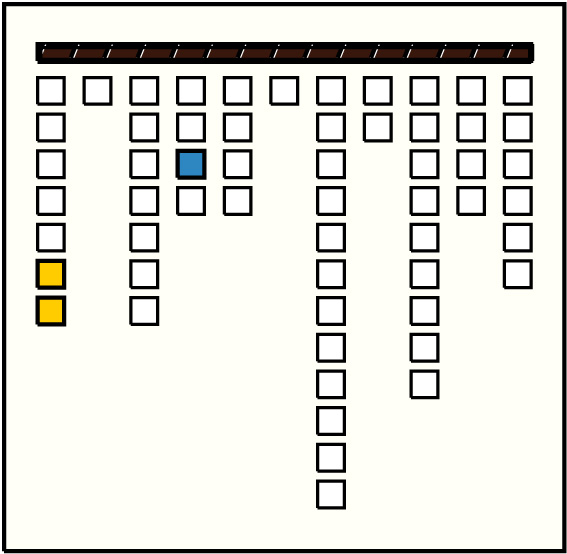

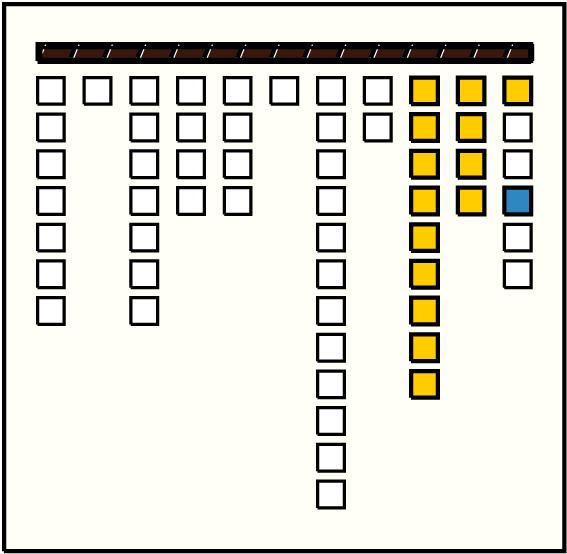

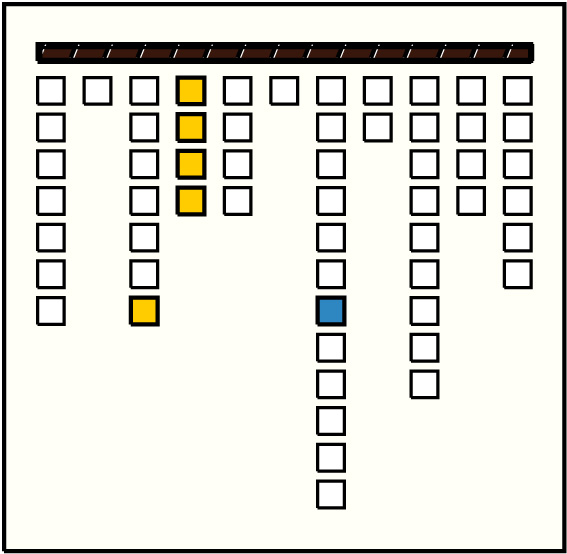

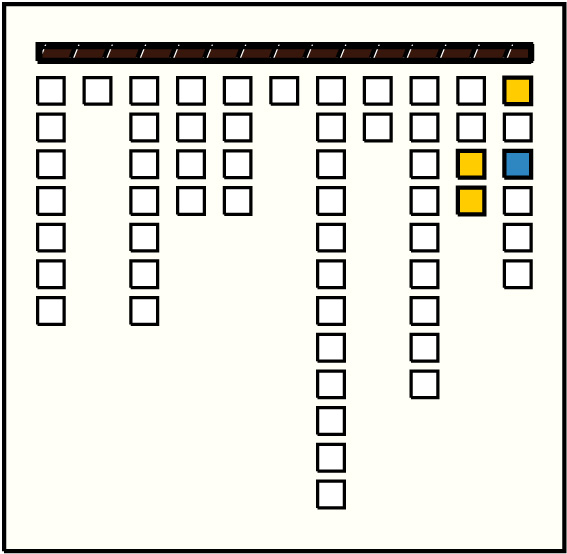

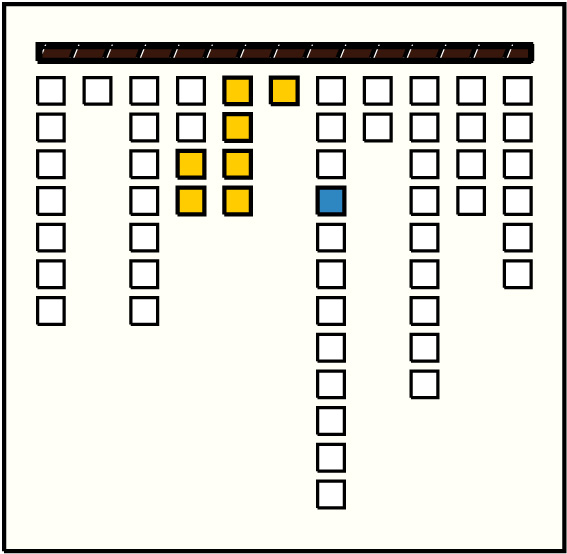

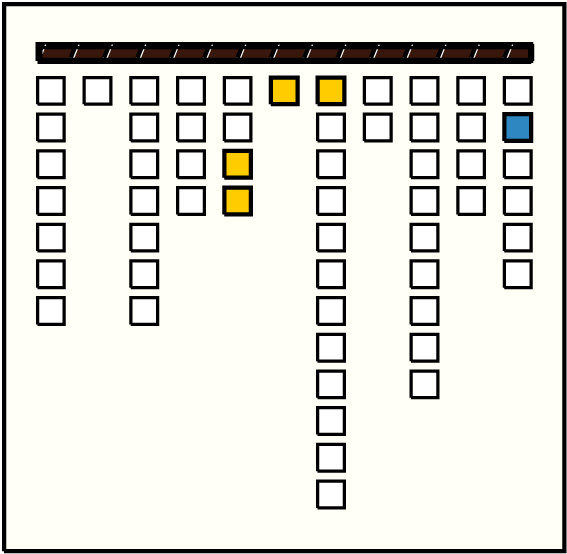

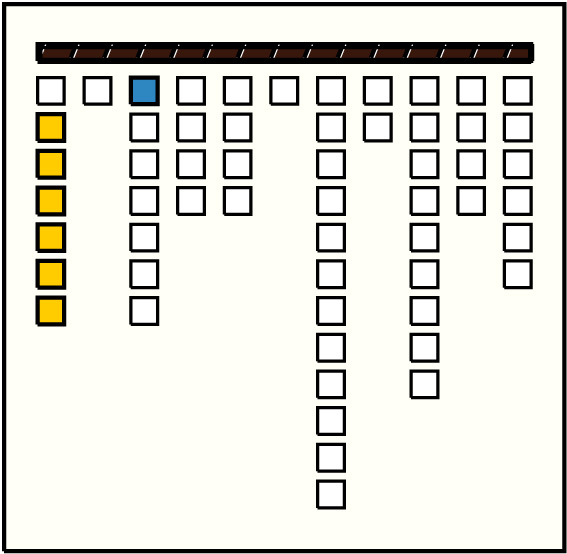

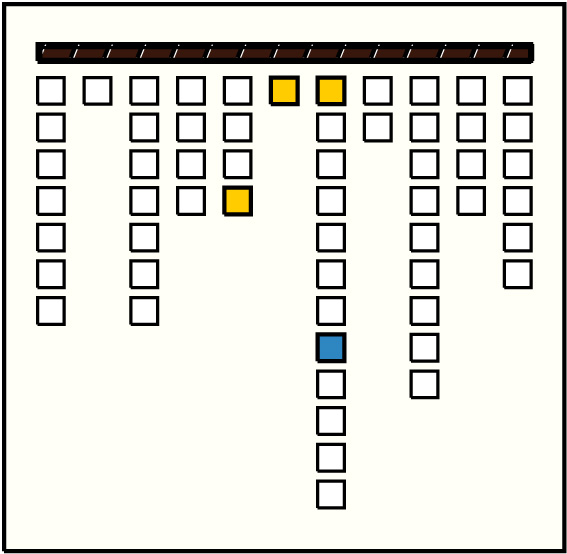

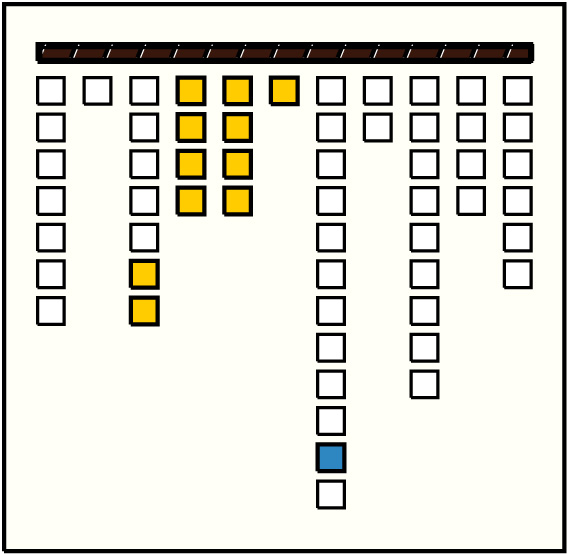

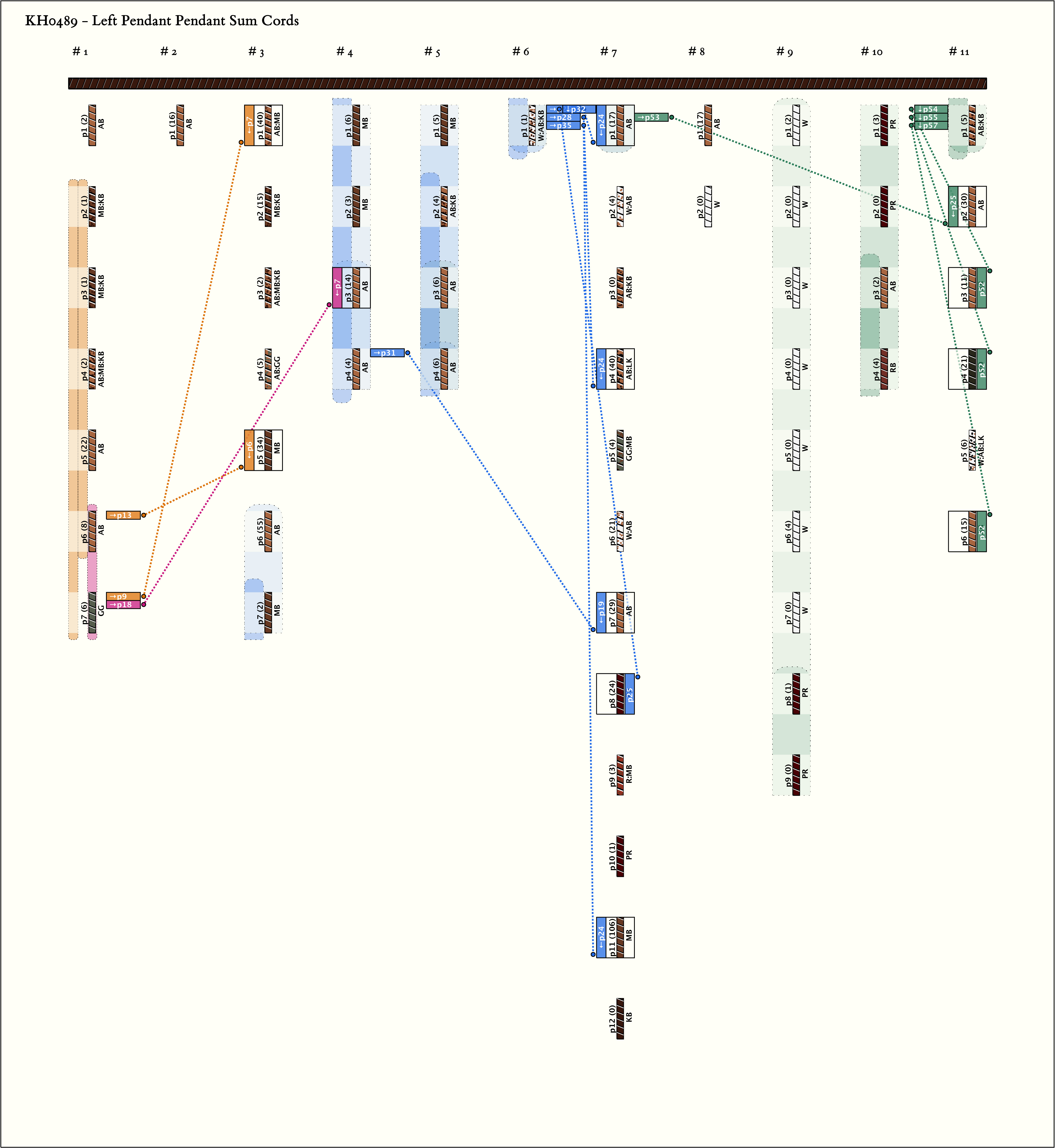

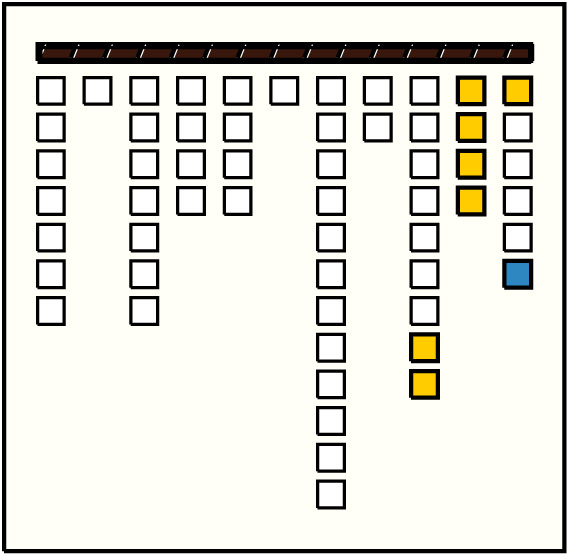

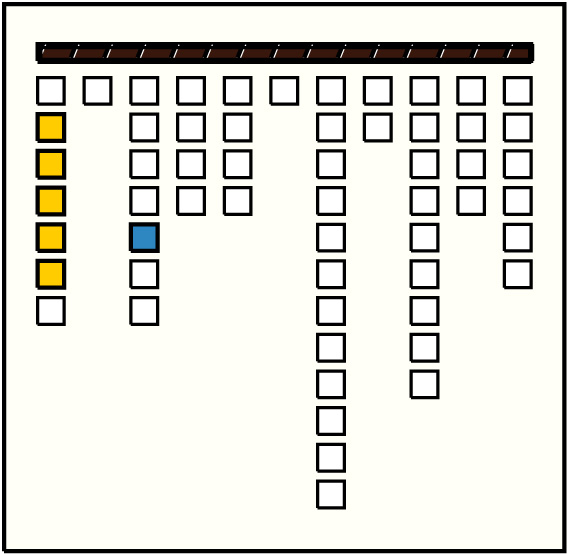

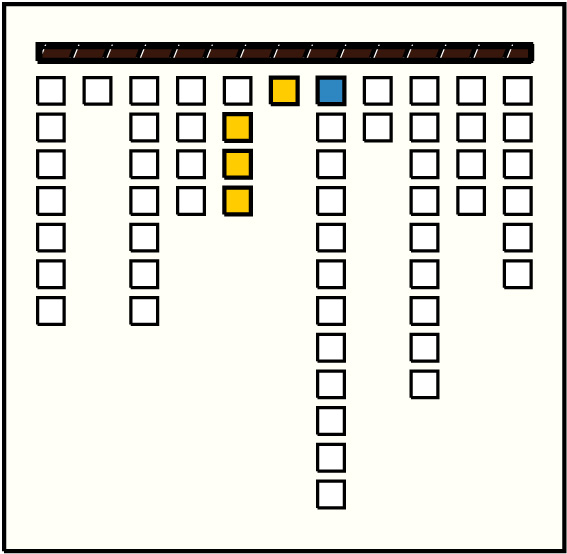

Left Handed Sums with Figure-8-Knots: # Sums = 12, Max # Summands = 14, (Min, Mean, Max) Sum Values = (11, 32, 106)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p5 : 22AB | 22 | 2 | g1p7: 6GG + g2p1: 16AB | |
| 2 |  | g2p1 : 16AB | 16 | 3 | g5p2: 4AB:KB + g5p3: 6AB + g5p4: 6AB∞ | |
| 3 |  | g3p1 : 40AB:MB | 40 | 7 | ❽g4p3: 14AB + g4p4: 4AB + g5p1: 5MB + g5p2: 4AB:KB + g5p3: 6AB + g5p4: 6AB + g6p1: 1W:AB:KB❽ | |
| 4 |  | g3p2 : 15MB:KB | 15 | 3 | g5p1: 5MB + g5p2: 4AB:KB + g5p3: 6AB | |
| 5 |  | g3p5 : 34MB | 34 | 6 | ∞g3p7: 2MB + g4p1: 6MB + g4p2: 3MB + g4p3: 14AB + g4p4: 4AB + g5p1: 5MB | |
| 6 |  | g3p6 : 55AB | 55 | 7 | g10p1: 3PR + g10p2: 0PR + g10p3: 2AB + g10p4: 4RB + g11p1: 5AB:KB + g11p2: 30AB + g11p3: 11AB❽ | |
| 7 |  | g4p3 : 14AB | 14 | 8 | g9p6: 4W + g9p7: 0W + g9p8: 1PR + g9p9: 0PR + g10p1: 3PR + g10p2: 0PR + g10p3: 2AB + ∞g10p4: 4RB∞ | |
| 8 |  | g7p6 : 21W:AB | 21 | 14 | g9p1: 2W + g9p2: 0W + g9p3: 0W + g9p4: 0W + g9p5: 0W + g9p6: 4W + g9p7: 0W + g9p8: 1PR + g9p9: 0PR + g10p1: 3PR + g10p2: 0PR + g10p3: 2AB + g10p4: 4RB + g11p1: 5AB:KB❽ | |
| 9 |  | g7p7 : 29AB | 29 | 14 | ❽g8p1: 17AB + g8p2: 0W + g9p1: 2W + g9p2: 0W + g9p3: 0W + g9p4: 0W + g9p5: 0W + g9p6: 4W + g9p7: 0W + g9p8: 1PR + g9p9: 0PR + g10p1: 3PR + g10p2: 0PR + g10p3: 2AB❽ | |
| 10 |  | g7p8 : 24PR | 24 | 10 | ❽g8p1: 17AB + g8p2: 0W + g9p1: 2W + g9p2: 0W + g9p3: 0W + g9p4: 0W + g9p5: 0W + g9p6: 4W + g9p7: 0W + g9p8: 1PR❽ | |
| 11 |  | g7p11 : 106MB | 106 | 20 | ❽g8p1: 17AB + g8p2: 0W + g9p1: 2W + g9p2: 0W + g9p3: 0W + g9p4: 0W + g9p5: 0W + g9p6: 4W + g9p7: 0W + g9p8: 1PR + g9p9: 0PR + g10p1: 3PR + g10p2: 0PR + g10p3: 2AB + g10p4: 4RB + g11p1: 5AB:KB + g11p2: 30AB + g11p3: 11AB + g11p4: 210D + ∞g11p5: 6W:AB:LK |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p1 : 40AB:MB | 40 | 6 | ❽g1p2: 1MB:KB + g1p3: 1MB:KB + g1p4: 2AB:MB:KB + g1p5: 22AB + g1p6: 8AB + g1p7: 6GG | |
| 2 |  | g3p5 : 34MB | 34 | 5 | ❽g1p2: 1MB:KB + g1p3: 1MB:KB + g1p4: 2AB:MB:KB + g1p5: 22AB + g1p6: 8AB | |
| 3 |  | g4p3 : 14AB | 14 | 2 | g1p6: 8AB + g1p7: 6GG | |
| 4 |  | g7p1 : 17AB | 17 | 4 | g5p2: 4AB:KB + g5p3: 6AB + g5p4: 6AB + g6p1: 1W:AB:KB❽ | |
| 5 |  | g7p4 : 40AB:LK | 40 | 7 | ❽g4p3: 14AB + g4p4: 4AB + g5p1: 5MB + g5p2: 4AB:KB + g5p3: 6AB + g5p4: 6AB + g6p1: 1W:AB:KB❽ | |
| 6 |  | g7p7 : 29AB | 29 | 5 | ∞g3p7: 2MB + g4p1: 6MB + g4p2: 3MB + g4p3: 14AB + ∞g4p4: 4AB | |
| 7 |  | g7p8 : 24PR | 24 | 3 | g5p4: 6AB∞ + g6p1: 1W:AB:KB + ∞g7p1: 17AB | |
| 8 |  | g7p11 : 106MB | 106 | 11 | ❽g3p6: 55AB + g3p7: 2MB + g4p1: 6MB + g4p2: 3MB + g4p3: 14AB + g4p4: 4AB + g5p1: 5MB + g5p2: 4AB:KB + g5p3: 6AB + g5p4: 6AB + g6p1: 1W:AB:KB❽ | |
| 9 |  | g11p2 : 30AB | 30 | 4 | g5p3: 6AB + g5p4: 6AB + g6p1: 1W:AB:KB + ∞g7p1: 17AB | |
| 10 |  | g11p3 : 11AB | 11 | 3 | ❽g10p3: 2AB + g10p4: 4RB + g11p1: 5AB:KB❽ | |
| 11 |  | g11p4 : 210D | 21 | 14 | g9p1: 2W + g9p2: 0W + g9p3: 0W + g9p4: 0W + g9p5: 0W + g9p6: 4W + g9p7: 0W + g9p8: 1PR + g9p9: 0PR + g10p1: 3PR + g10p2: 0PR + g10p3: 2AB + g10p4: 4RB + g11p1: 5AB:KB❽ | |
| 12 |  | g11p6 : 15AB | 15 | 7 | ❽g9p8: 1PR + g9p9: 0PR + g10p1: 3PR + g10p2: 0PR + g10p3: 2AB + g10p4: 4RB + g11p1: 5AB:KB❽ |
